Topcon RL-200 2S (314920712-2ET) Dual Slope Grade Laser Package, LS-80X Receiver, Inches Rod and Elevator Tripod - Alkaline

The Topcon RL-200 2S Dual Slope Grade Laser Package (314920712-2ET) gives contractors a complete, field-ready grading solution with fast, precise height adjustment. This kit pairs the RL-200 2S rotating laser with the LS-80X laser receiver, an inches grade rod, and an elevator tripod — everything needed to set accurate dual-slope grades on interior concrete pours, site grading, drainage work, and multi-level construction projects. If your crews frequently relocate the instrument or work at varying elevations, the elevator tripod's center column crank makes repositioning fast without breaking your grade setup.

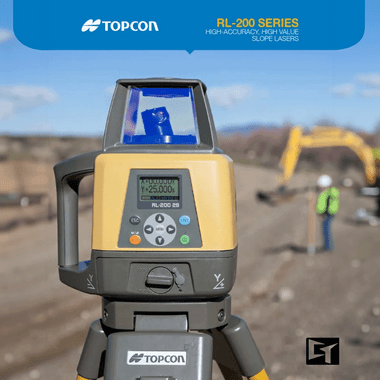

Topcon RL-200 2S: Dual Slope Grading Performance

The RL-200 2S is a professional-grade self-leveling rotating laser built specifically for contractors who need independent X and Y axis slope control. Set slopes from 0% to 25% on both axes simultaneously — ideal for crowned parking lots, ADA-compliant ramps, drainage swales, and sloped concrete slabs. The instrument self-levels within a ±5° range, reducing setup time on uneven ground. With a working radius of up to 800 meters (diameter) using the LS-80X receiver, the RL-200 2S handles large jobsite footprints without repositioning. IP66-rated housing keeps it operational through rain, dust, and heavy jobsite environments.

Key Specifications

• Model: Topcon RL-200 2S
• SKU / Part Number: 314920712-2ET
• Slope Range: 0% to ±25% on X and Y axes independently
• Self-Leveling Range: ±5°
• Accuracy: ±1mm at 10m (±3/32" at 30ft)
• Working Radius: Up to 400m (1,300ft) with LS-80X receiver
• Rotation Speed: 300, 600, or 1,200 RPM selectable
• Ingress Protection: IP66 (dust-tight, water-resistant)
• Battery Life: Up to 100 hours (D-cell batteries)
• Receiver: Topcon LS-80X with audible and visual grade indication

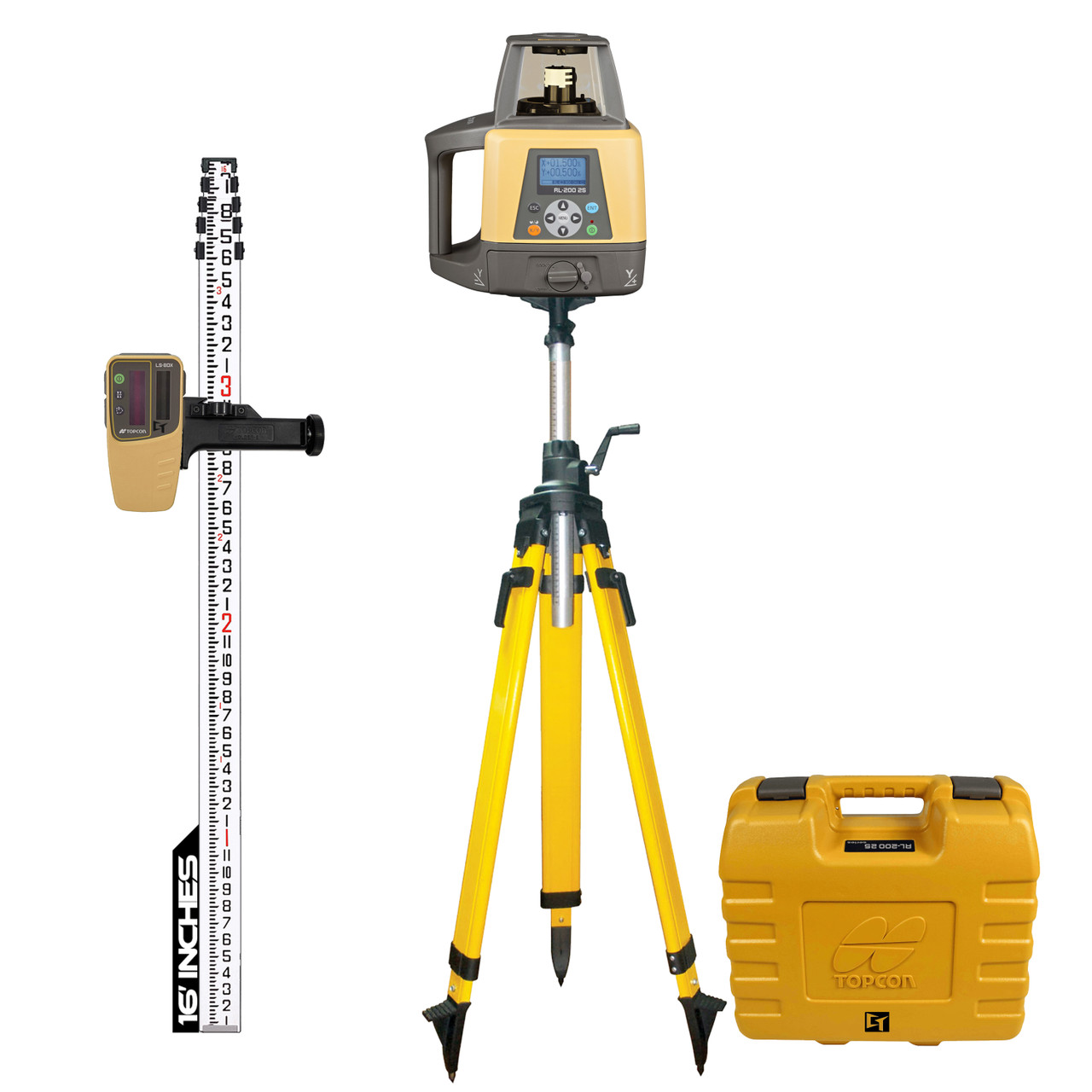

What's in the Kit

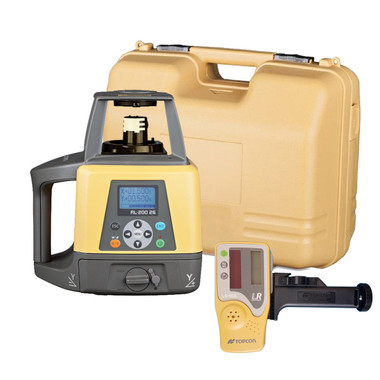

• Topcon RL-200 2S Dual Slope Rotating Laser

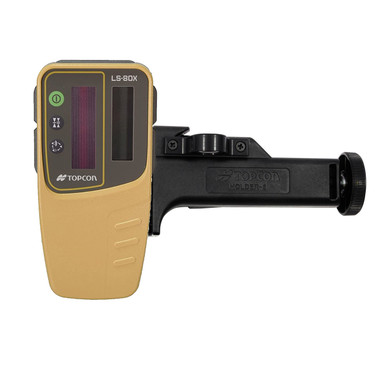

• Topcon LS-80X Laser Receiver with rod clamp
• Inches Grade Rod (direct reading for U.S. grading applications)

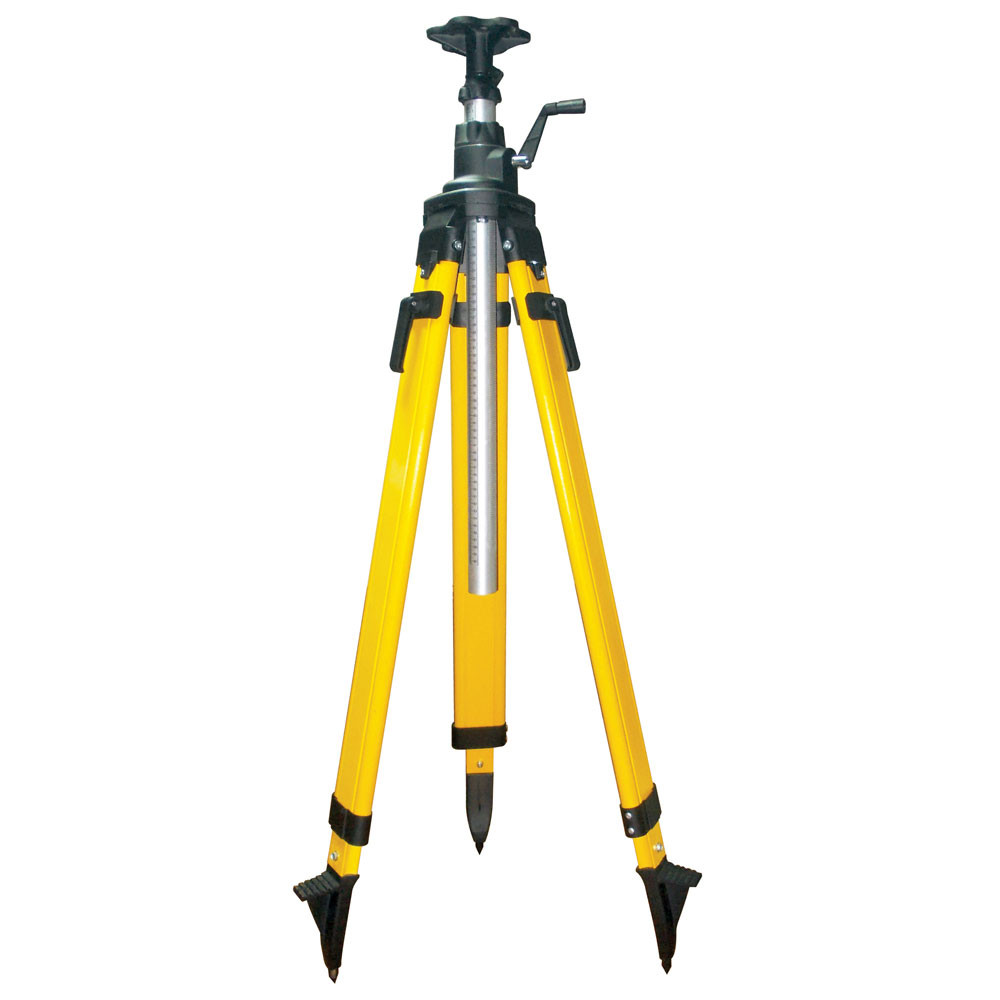

• Elevator Tripod with center-column crank for smooth height adjustment
• Carrying case for laser and receiver
• D-cell batteries and operator's manual

Job Applications

Interior Concrete Floors: Pour and screed to precise grade across large slab areas. The elevator tripod lets you dial in instrument height quickly between pours without re-establishing your benchmark.

Site Grading and Earthwork: Set dual-axis slopes for parking lots, athletic fields, and landscaped areas in a single instrument setup. Machine operators and rod crews work simultaneously with grade information broadcast across the full site.

Drainage and Utility Work: Establish consistent fall grades for stormwater swales, pipe trenches, and retention basin floors where both cross-slope and longitudinal grade must be controlled.

Multi-Level and Elevated Work: The elevator tripod's adjustable column height makes the RL-200 2S practical on elevated decks, mezzanines, and tiered site work where fixed-leg tripods require time-consuming repositioning.

Compatible Accessories

• Topcon LS-80X Laser Receiver (replacement/spare)
• Topcon RC-400 Remote Control for RL-200 Series
• Topcon RL-200 2S Machine Mount Bracket
• Replacement Grade Rod — Inches, Metric, and Tenths
• Heavy-Duty Aluminum Tripod for RL-200 Series
• Topcon Laser Detector Rod Clamp Universal

Related Guides

• How to Set Dual Slope Grade with the Topcon RL-200 2S
• Elevator Tripod vs. Standard Tripod: Which Do You Need?
• Rotating Laser Level Buyer's Guide for Contractors
• Using the LS-80X Receiver for Machine and Hand Grade Work

Frequently Asked Questions

Can the RL-200 2S set slope on both axes at the same time?

Yes. The RL-200 2S independently controls X-axis and Y-axis slope from 0% to ±25% simultaneously, making it suitable for crowned surfaces, compound drainage grades, and ADA ramp work in a single setup.

What is the advantage of the elevator tripod over a standard tripod?

The elevator tripod's center column crank lets you raise or lower the instrument without adjusting the tripod legs, which preserves your level setup. This is particularly valuable on interior pours and multi-level sites where instrument height changes frequently.

Is the RL-200 2S compatible with machine control systems?

The RL-200 2S broadcasts a standard rotating laser plane compatible with most laser-ready grade control systems. For full machine control integration, contact Express Tools to confirm compatibility with your specific machine control receiver or system.

How long do batteries last in the Topcon RL-200 2S?

The RL-200 2S runs up to 100 hours on standard D-cell batteries at normal rotation speeds. Battery life varies with rotation speed and temperature, but the instrument is designed for full-day operation without mid-shift battery changes under typical jobsite conditions.
