Spectra Precision GL612-1 Single Grade Laser with (2) x HL750 Receivers

Overview

The Spectra Precision GL612-1 dual-receiver package serves contractors running multi-operator grading crews on concrete flatwork, site development, and utility installation projects. This kit pairs the GL612 single-grade laser with two HL750 receivers, allowing independent crew positions to work simultaneously from the same reference plane—eliminating bottlenecks on large pours, drainage runs, and trench applications where distributed grade checks accelerate production. The configuration is purpose-built for crews that need to maintain consistent elevation control across spatially separated work zones without repositioning equipment or queuing for instrument access. Municipalities, concrete contractors, and excavation companies standardize on this package when production throughput depends on concurrent grade verification at multiple points.

Key Specifications

• Laser Type: Single-grade rotating laser (horizontal plane + single-axis slope)
• Working Diameter: 2,600 ft (800 m) with HL750 receiver
• Leveling Accuracy: ±1/16" at 100 ft (±1.5 mm at 30 m)
• Slope Range: 0–15% in one axis
• Rotation Speed: 600 RPM
• Self-Leveling Range: ±5°
• Power: Rechargeable NiMH battery (40+ hour runtime) or alkaline D-cells
• Operating Temperature: –20°F to 122°F (–30°C to 50°C)
• Ingress Protection: IP67 (dust-tight, submersion to 1m)
• Receiver Accuracy: HL750 on-grade tolerance ±1/16" (±1.5 mm)
• Receiver Detection Range: 10 ft to 1,300 ft (3 m to 400 m) diameter
• Receiver Display: Four-channel LCD with on-grade indicator

What's in the Kit

• GL612 single-grade rotating laser
• (2) HL750 laser receivers with rod clamps

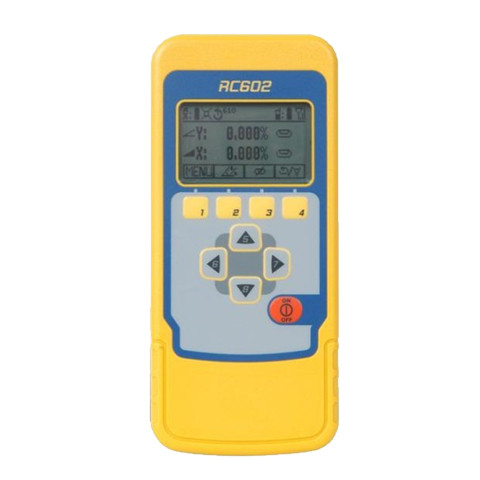

• RC602 remote control
• Rechargeable NiMH battery pack
• 110V AC battery charger
• Soft carrying case
• Alkaline battery tray (D-cell backup)
• Target card for visual alignment checks
• Quick-start operation guide
• Manufacturer calibration certificate

Job Applications

• Large-Format Concrete Slabs: Dual receivers enable simultaneous screed checks at opposite slab edges on warehouse floors, tilt-up panels, and parking structures where crew spacing exceeds practical communication distance.
• Storm Drainage Installation: Front and rear crew positions maintain independent grade control on continuous pipe runs, eliminating delays from shared instrument access during bedding and backfill operations.
• Utility Trenching: Excavator and pipe-layer positions operate concurrently with dedicated grade reference—critical on long utility corridors where single-receiver workflow creates production gaps.
• Pier and Footing Layout: Multiple elevation crew members verify formwork heights simultaneously across expansive foundation layouts, compressing schedule on projects with distributed footing locations.
• Athletic Field Grading: Independent receivers at infield and outfield positions maintain crown slope requirements without repositioning, reducing setup time on multi-plane athletic surface construction.
• Detention Basin Shaping: Slope verification at inlet and outlet zones proceeds in parallel during final grade operations on stormwater management facilities requiring precise multi-point elevation control.

Compatible Accessories

Expand functionality with HR320 machine-mount receiver for dozer/excavator integration, HL760 digital receiver upgrade with numeric elevation readout, heavy-duty aluminum tripod for stable instrument mounting, telescoping 25 ft grade rods for deep excavation work, and magnetic receiver brackets for steel formwork attachment. Add red-spectrum laser safety glasses for OSHA compliance on occupied sites.

Related Guides

• Single-Grade Laser Slope Setup: Field Procedures for Drainage Projects
• Single-Grade vs. Dual-Grade Lasers: Selecting the Right Platform
• Troubleshooting Laser Receiver Detection Range Issues
• Concrete Slab Laser Leveling: Production Techniques for Flatwork Contractors

Frequently Asked Questions

Can both HL750 receivers display different elevation information from the same laser plane?

No—both receivers reference the identical rotating laser plane and display the same grade information. The dual-receiver configuration eliminates instrument access conflicts, not positional data differentiation. Each receiver shows relative position (above/below/on-grade) to the shared reference plane established by the GL612 transmitter.

What's the practical working range with two receivers operating simultaneously?

Effective detection diameter remains 2,600 ft regardless of receiver count—the HL750 units don't interfere with each other since they're passive detection devices. Real-world range depends on ambient light conditions; expect 1,800–2,000 ft in bright sunlight, full diameter in overcast conditions or dawn/dusk work windows.

Does the GL612-1 support grade matching to existing surfaces or benchmarks?

Yes—manual slope adjustment controls on the laser head allow field calibration to established grades. Use the RC602 remote for fine-tuning slope percentage after rough alignment to benchmark elevations. This capability is essential for tying new drainage runs into existing infrastructure at predetermined inverts.

How does battery life scale with two receivers versus single-receiver operation?

Receiver count doesn't affect laser transmitter runtime—the GL612 operates 40+ hours per charge regardless of how many passive receivers detect the beam. Each HL750 receiver runs approximately 60 hours on two alkaline D-cells, with runtime independent of transmitter battery status.
