Topcon RL-200 2S Dual Slope Grade Laser Package, w/ LS-100D Receiver (314920782-1T) Rechargeable Batteries, Tenths Rod and HD Tripod

Complete Turnkey Grading Package for Professional Contractors

The Topcon RL-200 2S package (SKU: 314920782-1T) delivers everything site contractors need to tackle professional dual-slope grading work from day one. This all-inclusive kit pairs the powerful RL-200 2S rotating laser with the digital LS-100D receiver, RD-400 wireless remote control, rechargeable battery pack, tenths-graduated grade rod, and a heavy-duty adjustable tripod. Whether you're cutting pads, grading drainage swales, or establishing dual-pitch roof planes, this package ships ready to deploy right out of the box.

Product Overview & Jobsite Applications

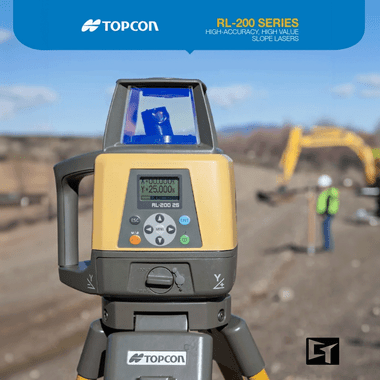

The RL-200 2S is Topcon's mid-range dual-grade rotating laser, purpose-built for contractors who need independent X and Y axis slope control without stepping up to a full machine-control system. It self-levels quickly, broadcasts a visible red beam across the entire jobsite, and pairs seamlessly with the digital LS-100D receiver for precise cut/fill readouts at distances up to 800 meters. The RD-400 remote lets one operator adjust grade settings from the machine cab or anywhere on site, eliminating the need for a second crew member at the instrument. This is a proven, reliable combination trusted on commercial site work, residential subdivisions, and agricultural grading projects across North America.

Key Specifications

• Dual-axis slope range: ±10% on both X and Y axes simultaneously
• Self-leveling range: ±5° automatic
• Accuracy: ±1mm at 10m (±1/16" at 30ft)
• Rotation speed: 300, 600, or 1200 RPM selectable
• Working radius: up to 800m (2,600ft) diameter with LS-100D receiver
• IP66 dust and water resistance rating
• Battery life: approximately 50 hours on a full charge
• Operating temperature: -20°C to +50°C (-4°F to +122°F)
• Remote control range: up to 200m (660ft) with RD-400

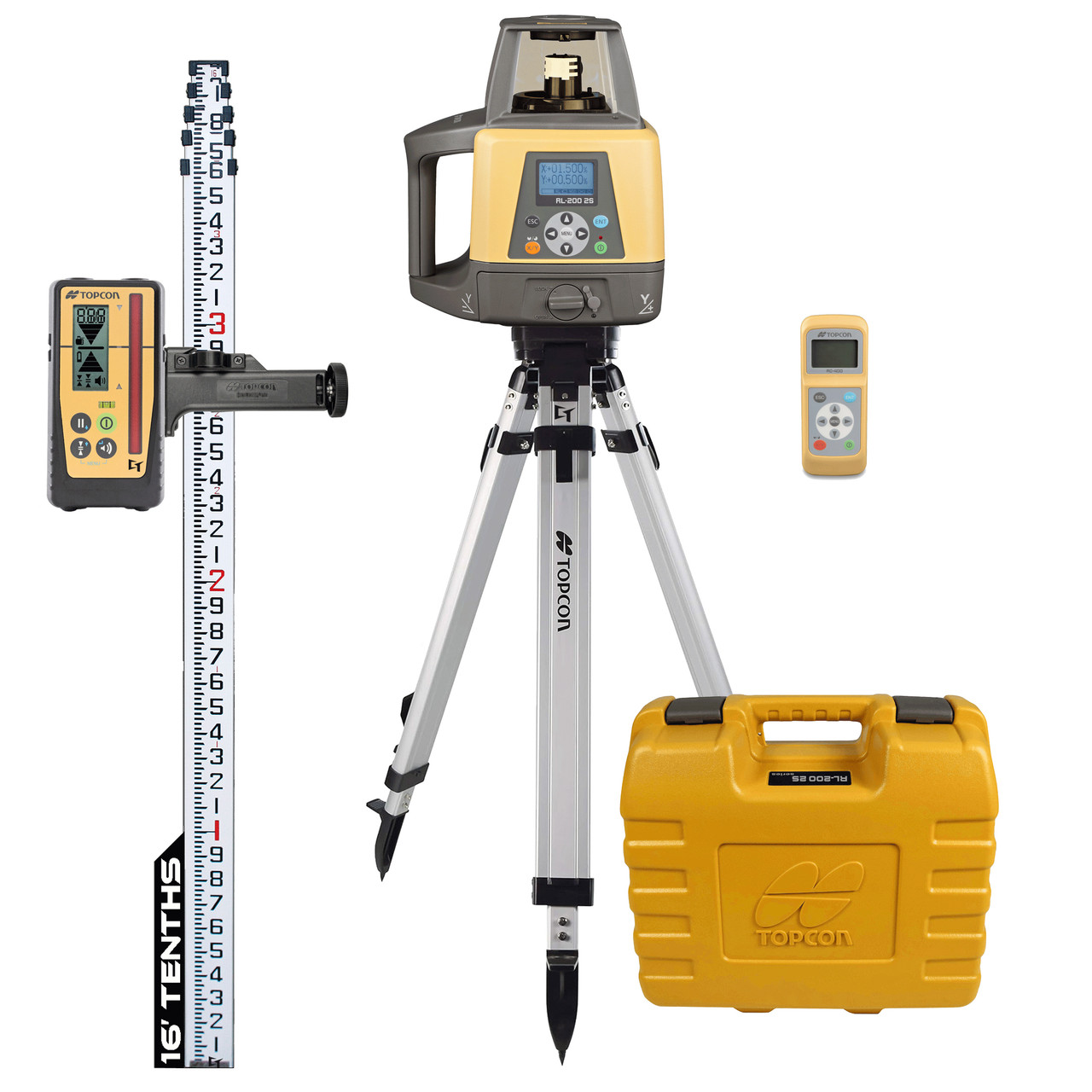

What's in the Kit

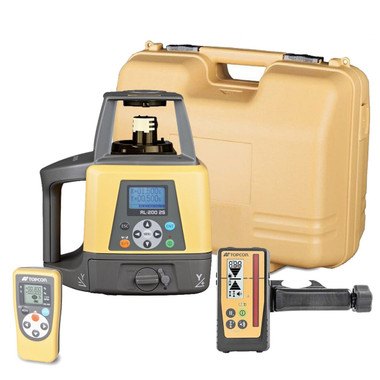

• Topcon RL-200 2S dual-grade rotating laser transmitter
• LS-100D digital grade rod receiver with audible and visual indicators
• RD-400 wireless remote control for full instrument adjustment
• Rechargeable NiMH battery pack and AC charger
• Tenths-graduated grade rod (reads in 0.01ft increments)
• Heavy-duty aluminum adjustable tripod
• Padded carrying case for laser and receiver
• Operator's manual and calibration certificate

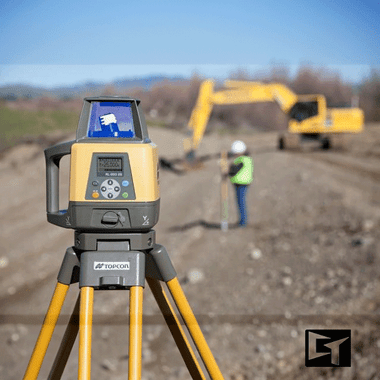

Job Applications

Site Grading & Pad Preparation: Set independent X and Y slopes to match engineered plans and grade large commercial pads or residential lots with a single instrument setup. The dual-slope capability eliminates the need to re-set the laser when transitioning between cross-slope and fall-slope work.

Drainage & Swale Construction: Dial in precise positive drainage slopes for parking lots, athletic fields, and detention basins. The 0.1% slope resolution gives you the accuracy needed to meet stormwater management specifications without over-excavating.

Agricultural Land Leveling: Run the RL-200 2S with a machine-mounted receiver on a blade or box scraper to achieve consistent field grades for furrow irrigation or surface drainage improvement across large acreage.

Concrete Flatwork & Floor Slabs: Establish accurate form heights and screed grades on sloped structural slabs, warehouse floors, and tilt-up pads where a specified fall is required across two axes simultaneously.

Compatible Accessories

• Topcon LS-100D Replacement Receiver
• Topcon RD-400 Wireless Remote Control
• Topcon Rechargeable Battery Pack for RL-200 Series
• Replacement Tenths Grade Rod
• Heavy-Duty Laser Tripod
• Topcon RL-200 2S Carrying Case

Related Guides

• How to Set Dual Slope with the Topcon RL-200 2S
• Rotating Laser Level Buyer's Guide for Site Contractors
• LS-100D Receiver Setup and Grade Reading Tips
• Laser Level Calibration: When and How to Check Your Instrument

Frequently Asked Questions

Can the RL-200 2S set different slopes on the X and Y axes at the same time?

Yes. The RL-200 2S is a true dual-grade laser, meaning it can independently control slope on both the X and Y axes simultaneously — up to ±10% on each. This is essential for grading work that requires a simultaneous cross-slope and fall-slope, such as parking lots, athletic fields, or engineered drainage planes.

Does this package include everything I need to start grading, or do I need to buy anything else?

This kit is a complete turnkey package. It includes the RL-200 2S laser, LS-100D digital receiver, RD-400 remote, rechargeable battery and charger, tenths rod, and a heavy-duty tripod. Most contractors can be operational on the jobsite the same day the package arrives with no additional purchases required.

What is the effective working range of this laser package?

With the included LS-100D digital receiver, the RL-200 2S has an effective working radius of up to 800 meters (approximately 2,600 feet in diameter). The RD-400 remote control operates at distances up to 200 meters, allowing a single operator to adjust grade settings from anywhere on a typical jobsite.

Is the Topcon RL-200 2S compatible with machine control or automatic blade systems?

The RL-200 2S is compatible with machine-mounted laser receivers for use with motor graders, dozers, and box scrapers — making it suitable for basic indicate-only machine control applications. For full automatic blade control integration, you would typically pair it with a dedicated machine control receiver such as the Topcon LS-B110W. Contact Express Tools to discuss the right receiver for your specific machine application.
