Will the 900 lbs magnetic holding force keep my receiver secure during active grading and blade vibration?

Yes—900 lbs of holding force is engineered specifically for light to mid-range grading operations where blade vibration and ground contact are normal. Keep the blade surface clean of dirt and scale to maintain full magnetic contact; reduced cleanliness directly reduces holding strength. Test the mount before starting grade work to verify secure attachment.

Can I use this mount with both LR and Bullseye receivers, or do I have to choose one?

The ATI-991364-02 is compatible with both LR and Bullseye laser receivers, so you can swap between receiver types as needed. Each receiver must fit securely into the mount housing—verify compatibility with your specific receiver model before operation.

Do I need to drill holes or weld this mount to my dozer blade?

No—the ATI-991364-02 is designed for tool-free magnetic attachment to flat-back dozer blades with zero permanent modification. Simply clean the blade surface and position the mount; magnetic force secures it in place. You can reposition or remove it anytime without fabrication work.

What if my dozer blade has paint, rust, or scale on the surface? Will the magnet still hold?

Paint, rust scale, and dirt reduce magnetic contact and holding force. Clean the blade surface thoroughly before attaching the mount—use a wire brush or scraper to bare metal where the mount will sit. Regular blade maintenance keeps magnetic holding strength at full capacity throughout the day.

Can I reposition the receiver mid-operation without removing it from the dozer?

Yes—the magnetic design allows you to slide or reposition the receiver and mount without tools or disassembly. This is valuable when grade conditions change or when you need to fine-tune blade control. Keep the blade surface clean to maintain magnetic holding force during repositioning.

How does this mount compare to welded or bolted receiver mounts?

The ATI-991364-02 saves setup time, eliminates fabrication delays, and allows equipment to move between machines without rework—welded or bolted mounts require site-based fabrication and permanent blade modification. The trade-off is that magnetic mounts depend on clean blade surfaces and are best suited for light to mid-range grading rather than extreme-duty applications. For most contractors managing multiple jobs or fleets, the speed and flexibility of magnetic mounting outweigh the limited weight capacity.

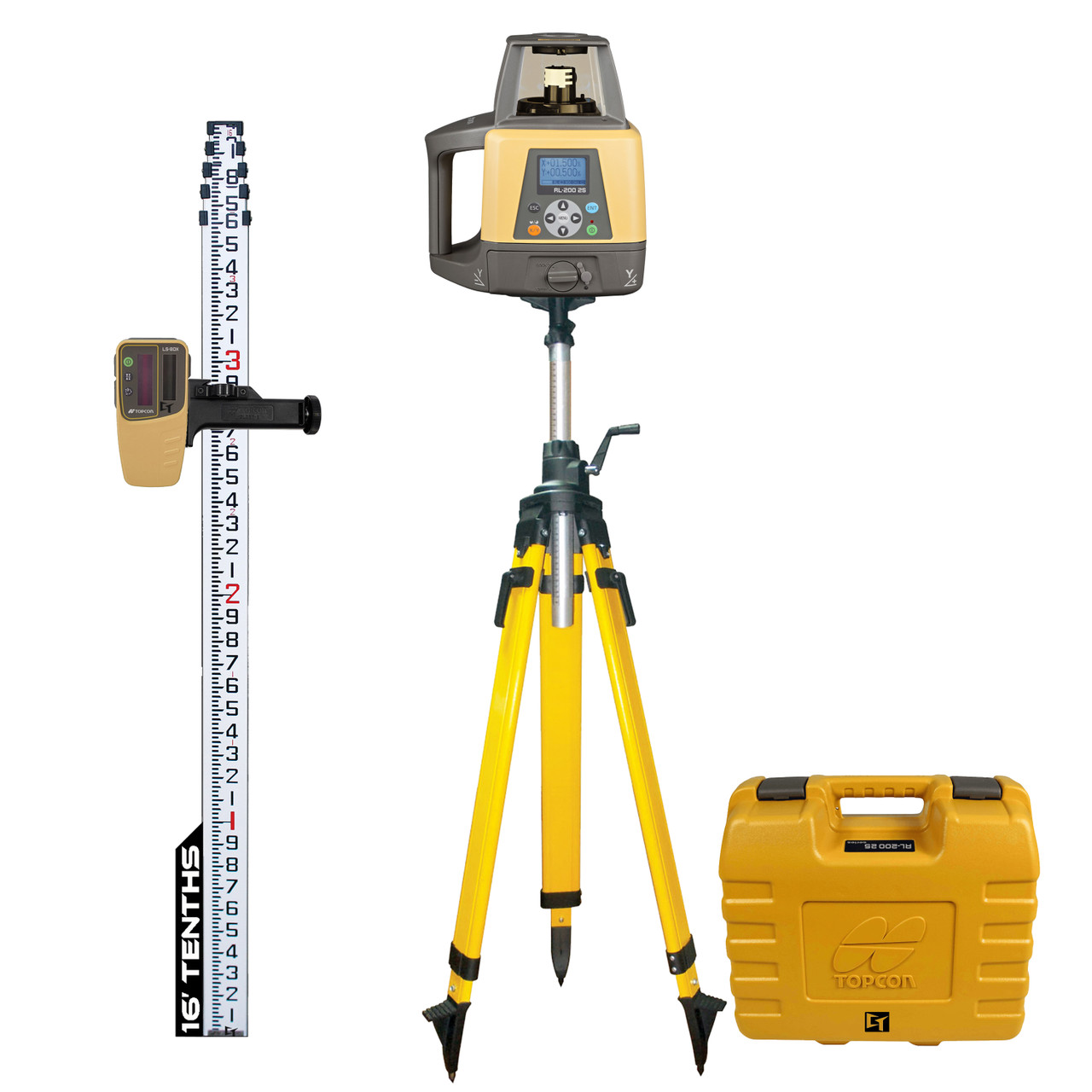

Topcon RL-200 2S (314920712-1ET) Dual Slope Grade Laser Package, LS-80X Receiver, Tenths Rod and Elevator Tripod - Alkaline

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Knowledge Summary: The Seco ATI-991364-02 Apache Bullseye Magnetic Mount is purpose-built for contractors operating flat-back bulldozer blades requiring fast, secure laser receiver positioning. This heavy-duty magnetic mount holds LR and Bullseye laser receivers with 900 lbs of magnetic holding force, suitable for light to mid-range grading operations. Designed specifically for dozer applications, it enables quick setup without tools or drilling, keeping operators on schedule. The magnetic attachment allows repositioning or receiver swaps in seconds, critical for contractors managing multiple equipment pieces or switching between jobs throughout the day.
Magnetic Holding Force: 900 lbs
Compatible Receivers: LR and Bullseye
Mount Type: Magnetic
Application: Flat-back bulldozer blades
Installation: Tool-free

TopconRL-200SKU Seco TI-991364-02 Apache Bullseye Magnetic Mount DMM2New

Grade Lasers →

Topcon RL-200 2S (314920712-1ET) Dual Slope Grade Laser Package, LS-80X Receiver, Tenths Rod and Elevator Tripod - Alkaline

$3245.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Next Day Air available - $25 flat

Qty:

±10% (±5.7°) Range

Cover large layout jobs with a ±10% (±5.7°) working reach.

±1/16 inch at 100 feet Accuracy

Hold grade with a ±1/16 inch at 100 feet accuracy rating.

Battery Life

Runs on Up to 100 hours (4 × D-cell alkaline) for jobsite flexibility.

Authorized Topcon Dealer

Genuine, factory-fresh Topcon equipment with legitimate firmware and calibration documentation.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Topcon equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Continuous grade control, no stakes

Eliminates grade staking between passes. One operator on the machine vs. 2-3-person conventional crew.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this grade laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Topcon RL-200?

The Topcon RL-200 2S (314920712-1ET) Dual Slope Grade Laser Package, LS-80X Receiver, Tenths Rod and Elevator Tripod - Alkaline is a Topcon Grade Laser with ±10% (±5.7°) grade range, ±1/16 inch at 100 feet accuracy, and Up to 2,600 feet diameter with LS-80X working range. It's available from Express Tools as an authorized Topcon dealer with same-day shipping on in-stock orders.

FIELD APPLICATIONS

What contractors use this grade lasers for

Precision Grade Control on Active Dozers

Grading contractors use the ATI-991364-02 to hold laser receivers steady during blade operation, ensuring consistent height control without receiver slip during active cutting or fill work. The 900 lbs magnetic force keeps the receiver locked in place through blade vibration and ground contact.

Multi-Equipment Fleet Management

Contractors operating multiple dozers or managing rental equipment use this mount to move receivers between machines in seconds without tools or fabrication. One receiver can follow equipment across the job site, reducing capital investment and keeping operators productive.

Quick Job-to-Job Equipment Transitions

Site supervisors managing multiple work areas or daily equipment transitions install and remove the mount without downtime, keeping dozers on schedule and billable hours maximized. No welding, no fabrication delays—operators transition between jobs in minutes.

New Construction Site Grading

General contractors and site managers use the ATI-991364-02 during site prep and grade work to achieve accurate blade positioning and consistent finish grades. The fast-change capability allows mid-operation adjustments when grade conditions or site plans shift.

Heavy Excavation and Site Development

Excavation contractors use this mount for precision dozer work in cut-and-fill operations where blade control directly impacts final grades and material movement efficiency. The tool-free installation keeps equipment moving without site-based fabrication delays.

PRODUCT OVERVIEW

Product Description

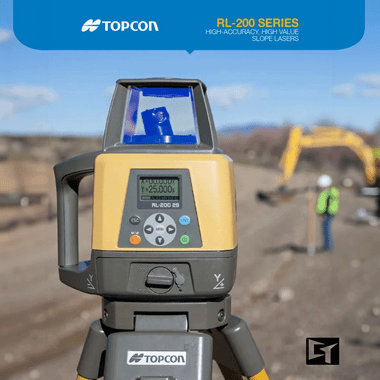

The Topcon RL-200 2S dual slope grade laser package gives civil contractors, site developers, and grading crews a complete, field-ready system engineered for precision dual-axis slope work. This kit pairs the industry-proven RL-200 2S rotating laser with the LS-80X machine-control-ready receiver, a tenths-graduated grade rod, and an elevator tripod — everything needed to establish accurate grade planes straight out of the case. Whether you're establishing swales, matching existing drainage slopes, or executing decimal-dimensioned site plans, this package delivers the accuracy and setup speed professional crews demand.

System Overview & Jobsite Applications

The RL-200 2S sets dual independent slopes simultaneously on the X and Y axes, making it uniquely suited for parking lots, athletic fields, drainage channels, and ADA-compliant flatwork where two-axis grade control is essential. The LS-80X digital receiver provides audible and visual grade indication with a 1/16-inch detection window for fine-grade work and interfaces with most machine control systems. The tenths-graduated rod simplifies reading decimal elevations directly from engineer's plans, eliminating conversion errors in the field.

Key Specifications

Model: Topcon RL-200 2S
Part Number: 314920712-1ET
Slope Range (X-Axis): ±10% (±5.7°)
Slope Range (Y-Axis): ±10% (±5.7°)
Accuracy: ±1/16 inch at 100 feet
Working Radius: Up to 2,600 feet diameter with LS-80X
Rotation Speed: 300, 600, or 1,200 RPM selectable
Self-Leveling Range: ±5° automatic
IP Rating: IP66 — dust-tight and water-jet resistant
Battery Life: Up to 100 hours (4 × D-cell alkaline)
Receiver: Topcon LS-80X with remote grade display
Rod Graduation: Tenths (0.1 ft increments)
Tripod Type: Elevator (center-column height adjustment)

What's in the Kit

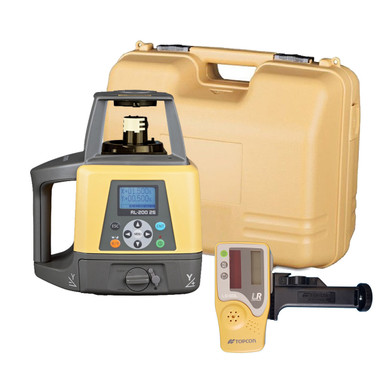

Topcon RL-200 2S Dual Slope Rotating Laser

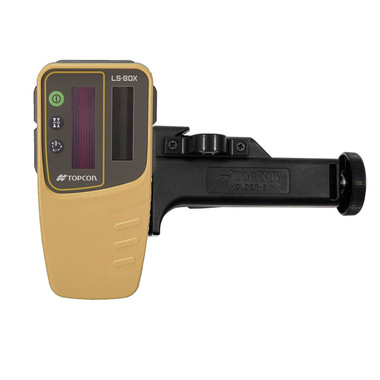

Topcon LS-80X Digital Grade Laser Receiver
Tenths-Graduated Grade Rod
Elevator Tripod with vertical center-column adjustment
Remote control unit for slope programming from grade
Receiver bracket and clamp
Carrying case
D-cell batteries and operator manual

Job Applications

Parking Lot & Hardscape Grading: Program independent X and Y slopes to direct stormwater to inlets without re-leveling the instrument. The 2,600-foot diameter working range covers large commercial lots in a single setup.

Athletic Fields & Sports Turf: Achieve consistent cross-slopes and crown grades on football fields, soccer pitches, and baseball infields — applications where both axes must slope simultaneously and uniformly.

Drainage Channels & Swales: Set longitudinal and cross-slope in a single instrument position. The tenths rod lets crews read engineer-plan elevations directly without converting fractions.

Machine Control & Grade Checking: The LS-80X receiver mounts to motor graders, scrapers, and excavators for automated blade control, then doubles as a handheld checker for final grade verification.

Compatible Accessories

Related Guides

Frequently Asked Questions

Can the RL-200 2S set different slopes on both axes at the same time?: Yes. The RL-200 2S is a true dual-slope instrument, allowing you to independently program a slope value on the X-axis and a separate slope value on the Y-axis simultaneously — no need to re-level or reposition the instrument between axis adjustments.
Why does this kit include a tenths rod instead of a standard 8ths rod?: Civil engineering and site development plans are typically drawn in decimal feet. A tenths-graduated rod lets your crew read 0.1-foot increments directly from the rod face, matching your plan dimensions exactly and eliminating the math errors that come with converting fractions to decimals in the field.
What is the advantage of an elevator tripod in a laser kit?: An elevator tripod has a center column that raises and lowers independently of the tripod legs. This lets you quickly adjust instrument height to clear obstacles, match a required benchmark elevation, or reposition for different crew needs without having to re-level the tripod from scratch each time.
Is the LS-80X receiver included in this package compatible with excavator or motor grader machine control systems?: The LS-80X is designed with machine control compatibility in mind and can interface with most popular aftermarket and OEM grade control systems via its mast-mount bracket. Always verify pin-out and signal compatibility with your specific machine control brand before installation.

Why This Equipment

Dual Grade Control

Control two slopes simultaneously for crowns, swales, and complex drainage layouts.

Machine Ready

Pairs with machine receivers for dozer, grader, and scraper grade control.

IP67 Rated

Weatherproof for outdoor use in rain, dust, and construction site conditions.

High Accuracy

±0.1mm/m grade accuracy — holds tolerance through a full working day.

KIT CONTENTS

What's In The Box

Apache Bullseye Magnetic Mount

Why Buy This?

Continuous grade control. No continuous labor.

Grade stakers cost $50–80/hr and disappear between passes. A dual-slope grade laser installs once and controls your blade automatically — through every cut, every fill, every pass. That's the math that makes grade lasers one of the fastest ROI investments in earthwork.

Professional contractors specify dual-grade systems for a reason: single-grade units work for straight drainage. The moment a job has a crown, a swale, or a complex parking lot slope — you need dual-grade.

Buying from Express Tools means authorized, factory-fresh inventory, legitimate firmware, and technical knowledge when you need it.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Knowledge Summary	The Seco ATI-991364-02 Apache Bullseye Magnetic Mount is purpose-built for contractors operating flat-back bulldozer blades requiring fast, secure laser receiver positioning. This heavy-duty magnetic mount holds LR and Bullseye laser receivers with 900 lbs of magnetic holding force, suitable for light to mid-range grading operations. Designed specifically for dozer applications, it enables quick setup without tools or drilling, keeping operators on schedule. The magnetic attachment allows repositioning or receiver swaps in seconds, critical for contractors managing multiple equipment pieces or switching between jobs throughout the day.
Magnetic Holding Force	900 lbs
Compatible Receivers	LR and Bullseye
Mount Type	Magnetic
Application	Flat-back bulldozer blades
Installation	Tool-free
Key Feature 1	900 lbs magnetic holding force
Key Feature 2	Compatible with LR and Bullseye receivers
Key Feature 3	Designed for flat-back dozer blades
Key Feature 4	Quick tool-free installation
Key Feature 5	Fast repositioning capability
Key Feature 6	Heavy-duty construction
Key Feature 7	No drilling or permanent modification required
Use Cases	Bulldozer laser receiver positioning; Grade control operations; Light to mid-range grading work; Multiple equipment management; Job-to-job equipment transitions; Precision dozer blade alignment
Setup Steps	Position bulldozer blade and verify flatback surface \| Clean magnetic mounting surface of dirt and debris \| Align magnetic mount with desired position on blade \| Allow magnetic force to secure mount in place \| Install laser receiver into mount housing \| Verify secure attachment before operation
Pro Tips	Clean blade surface regularly to maintain magnetic holding strength \| Position mount near blade center for optimal weight distribution \| Test magnetic strength before starting grade operations \| Keep receiver and mount housing clean for secure fit \| Store receivers with protective covers when not in use
Compatible Equipment	LR laser receivers; Bullseye laser receivers; Flat-back bulldozer blades; Laser systems compatible with LR/Bullseye receivers; Grade control laser systems
Common Issues	Magnetic mount slipping during operation \| Difficulty removing receiver from mount \| Reduced holding force on dirty blade surface
Grade Range	±10% (±5.7°)
Accuracy	±1/16 inch at 100 feet
Working Range	Up to 2,600 feet diameter with LS-80X
Rotation Speed	300, 600, or 1,200 RPM selectable
Self-leveling Range	±5° automatic
IP Rating	IP66 — dust-tight and water-jet resistant
Battery Life	Up to 100 hours (4 × D-cell alkaline)
Receiver	Topcon LS-80X with remote grade display
