Topcon RL-200 2S Dual Slope Grade Laser Package, w/ LS-100D Receiver (314920782-2ET) Rechargeable Batteries, Inches Rod and HD Elevator Tripod

The Topcon RL-200 2S is a professional-grade dual slope rotating laser designed for contractors who need precise two-axis grade control on demanding jobsites. This complete package includes everything you need to start grading the moment you arrive on site — no extra trips to the supplier, no missing components. Whether you're cutting drainage swales, finishing parking lots, or grading foundations, the RL-200 2S delivers the accuracy and reliability Topcon is known for across the construction industry.

System Overview & Jobsite Applications

Unlike single-slope or self-leveling horizontal lasers, the RL-200 2S lets you set independent grade percentages on both the X and Y axes simultaneously. This is essential for applications like parking lot drainage, road crown grading, and agricultural land leveling where true two-axis control determines the quality of the finished surface. The laser's wide operating range and robust housing make it equally at home on a rough grading operation or a finish grade pass before paving.

Key Specifications

• Grade Range (X-Axis): ±10% manual slope
• Grade Range (Y-Axis): ±10% manual slope
• Accuracy: ±1mm at 10m (±3/32" at 30ft)
• Operating Range: Up to 800m (2,600ft) diameter with LS-100D receiver
• Rotation Speed: 300, 600, or 1200 RPM selectable
• Self-Leveling Range: ±5° automatic compensation
• Battery Life: Up to 100 hours with included rechargeable pack
• IP Rating: IP66 — dust-tight and water-jet resistant
• Remote Control: Compatible with Topcon wireless remote (sold separately)

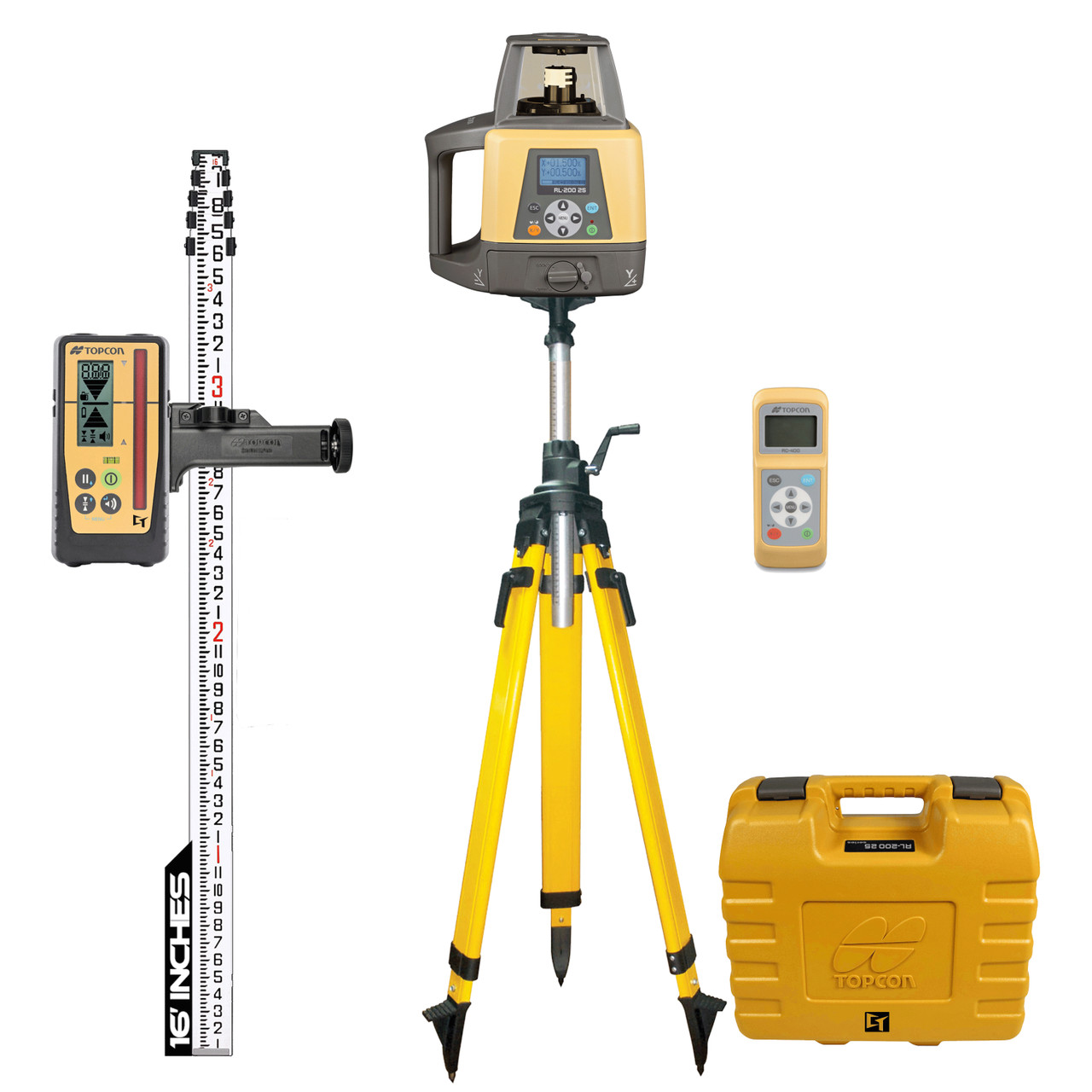

What's in the Kit

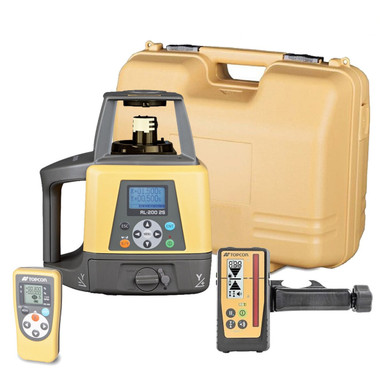

• Topcon RL-200 2S dual slope rotating laser level
• LS-100D digital grade rod receiver with audible and visual grade indication
• Inch-graduated aluminum grade rod for direct elevation readings
• Heavy-duty elevator tripod for stable, adjustable setup height
• Rechargeable battery pack with charger for all-day operation
• Carrying case and documentation

Job Applications

Parking Lot & Flatwork Drainage: Set simultaneous cross-slope and longitudinal slope to ensure positive drainage across large paved surfaces — critical for ADA compliance and long-term pavement performance.

Road Subgrade & Base Preparation: Establish consistent crown or superelevation across roadway sections with repeatable accuracy, reducing rework before paving crews arrive.

Foundation & Site Grading: Control cut-and-fill operations across commercial building pads where tight tolerances on both axes prevent costly drainage corrections after construction.

Agricultural & Land Leveling: Achieve precision field grades for irrigation efficiency on large acreage where two-axis slope control maximizes water distribution uniformity.

Compatible Accessories

• Topcon RC-400 Wireless Remote Control — adjust grade and rotation speed from the machine cab
• Topcon LS-100D Replacement Receiver — spare or second-operator receiver
• Topcon Elevator Tripod (Heavy Duty) — replacement or additional tripod
• Topcon Laser Detector Clamp for Grade Rod — secure receiver mounting
• Rechargeable Battery Pack for RL-200 Series — extended runtime backup

Related Guides

• How to Set Dual Slope with the Topcon RL-200 2S — Step-by-Step Guide
• Rotating Laser vs. Dual Slope Laser: Which Do You Need?
• Setting Up an Elevator Tripod for Grade Work
• Understanding Laser Receiver Grades: LS-100D vs. LS-80L

Frequently Asked Questions

Can the RL-200 2S be used with a machine control system?

The RL-200 2S is a manual dual slope laser and is not natively designed for fully automatic machine control. However, it is compatible with the Topcon RC-400 wireless remote for grade adjustments from equipment. For full machine control, consider Topcon's MC-series systems.

What is the difference between the RL-200 1S and RL-200 2S?

The RL-200 1S allows slope on one axis only, while the RL-200 2S provides independent slope control on both the X and Y axes simultaneously. The 2S is the correct choice for any application requiring true dual-grade or cross-slope work.

Is the LS-100D receiver included in this package?

Yes. This complete package includes the Topcon LS-100D digital receiver, which provides precise grade indication with both visual bar display and audible signals, making it easy for a single operator to work efficiently without a second crew member at the instrument.

How do I maintain accuracy on the RL-200 2S over time?

Topcon recommends periodic calibration checks using a known benchmark or the two-peg test method. The RL-200 2S has a ±5° self-leveling range, but always confirm the instrument is within that range before each setup. Annual service by an authorized Topcon dealer ensures long-term accuracy.
