Spectra Precision LL100N-1 Laser Package (tenths)

Overview

The Spectra Precision LL100N-1 Laser Package delivers professional-grade rotary laser leveling for small to mid-size construction crews, landscape contractors, and concrete finishers who need dependable accuracy without the cost of enterprise-level systems. This self-leveling laser operates at ±1/4" at 100 feet, making it suitable for interior floor leveling, site grading, foundation work, and deck installations where precision matters but budgets are constrained.

The complete package includes the LL100N rotary laser, a 15-foot aluminum grade rod graduated in tenths, HL450 laser detector for extended range work, and all essential mounting hardware. Designed for durability in the field, this system combines intuitive one-button operation with professional accuracy standards. Whether you're establishing grade stakes across a residential lot or setting elevation benchmarks for a commercial slab pour, the LL100N-1 provides consistent performance in a portable, weather-resistant platform that withstands jobsite conditions.

Key Specifications

• Accuracy: ±1/4 inch at 100 feet (±3/16 inch typical)
• Self-Leveling Range: ±5 degrees
• Leveling Method: Electronic pendulum compensator
• Rotation Speed: 600 RPM (10 rotations per second)
• Working Diameter: 1,600 feet (800-foot radius) with detector
• Beam Visibility: Approximately 300 feet diameter without detector
• Laser Class: Class 2 / 635 nm red laser diode
• Power Source: Rechargeable NiMH battery (included)
• Runtime: Up to 40 hours on single charge
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Weather Resistance: IP66 dust and water resistant
• Rod Graduation: Tenths scale (0.1-foot increments)
• Grade Capability: Manual X-axis and Y-axis adjustment
• Mounting Thread: 5/8"-11 standard tripod mount
• Weight: 6.4 pounds (laser unit only)

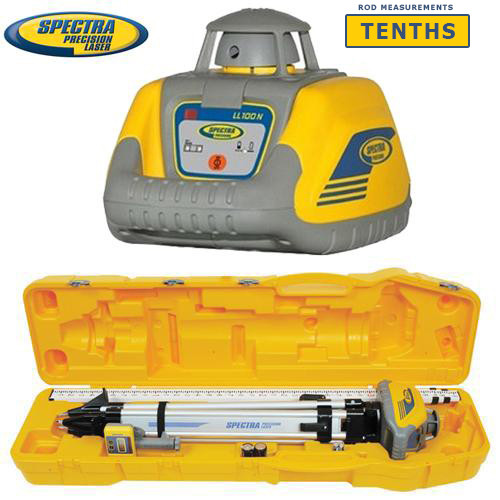

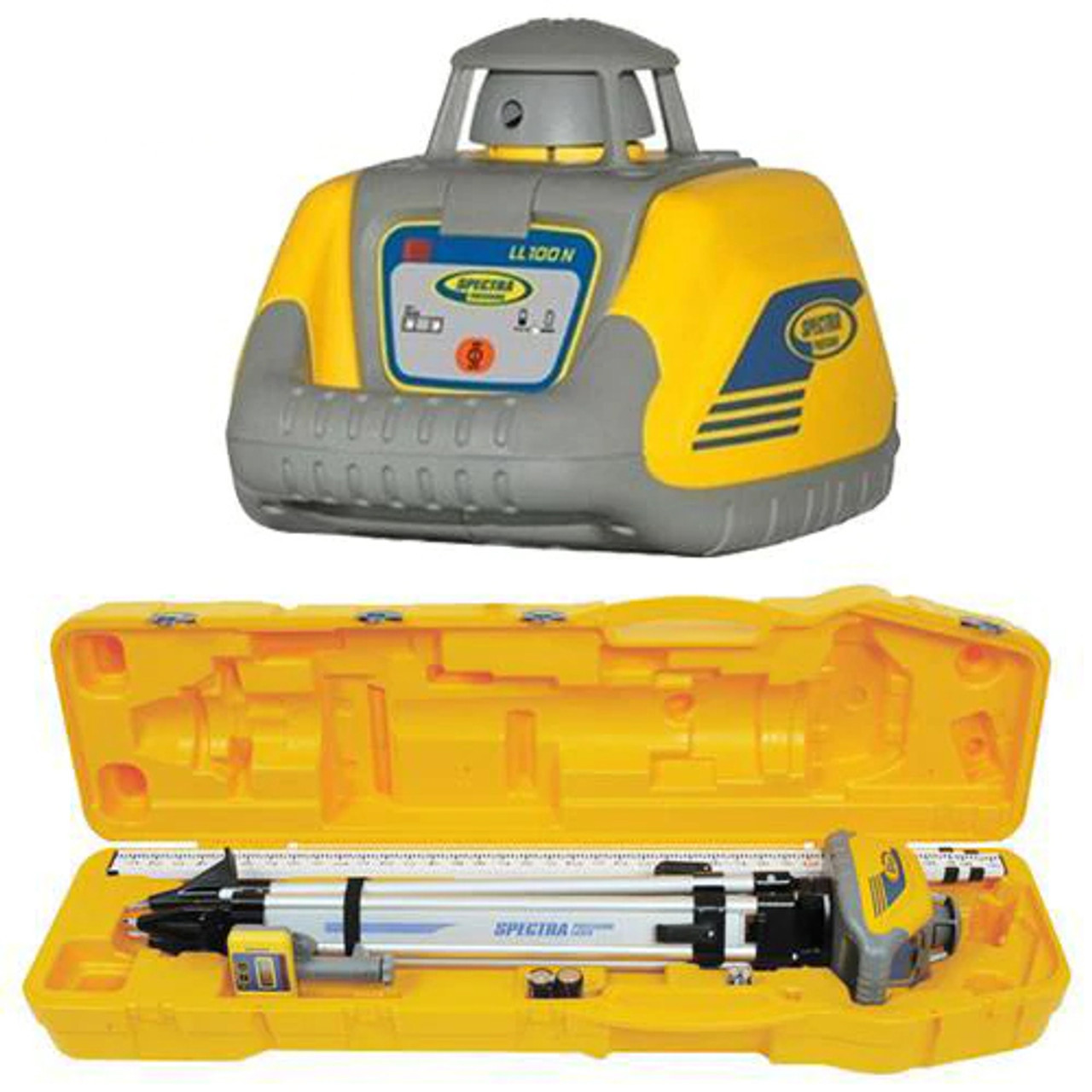

What's in the Kit

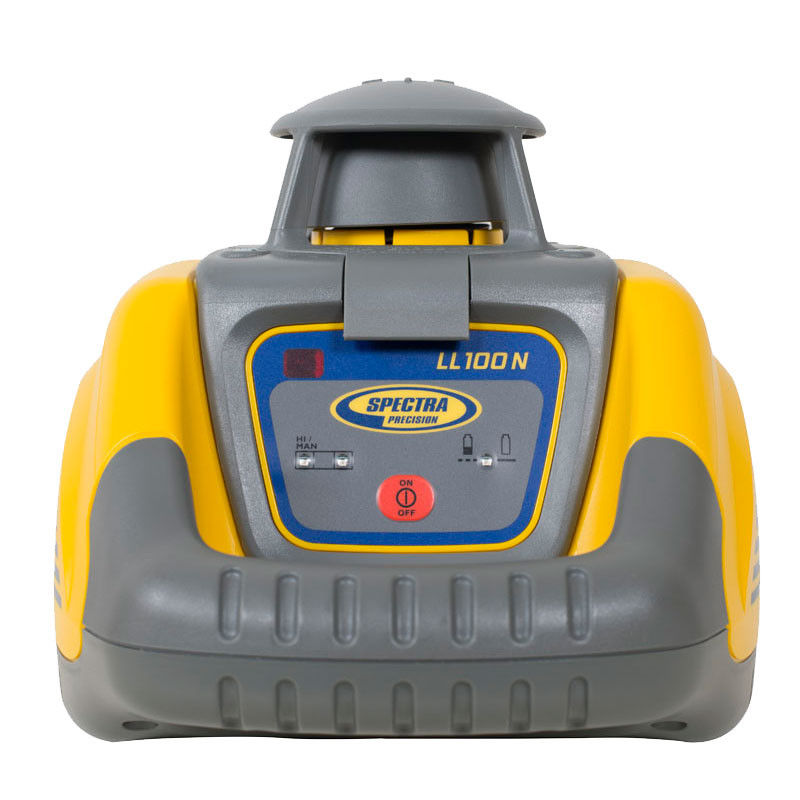

• LL100N rotary laser transmitter
• HL450 laser detector with clamp

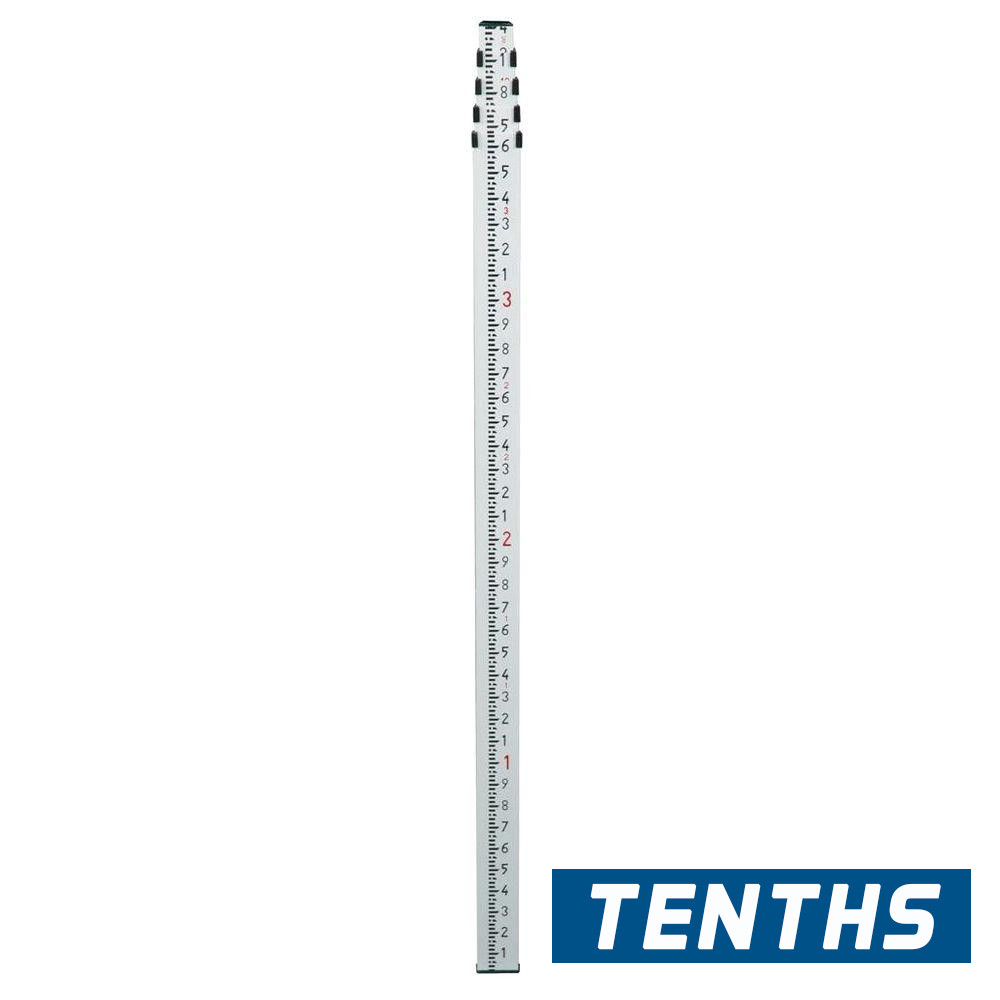

• 15-foot aluminum grade rod (tenths graduation)
• Rechargeable NiMH battery pack
• 110V AC battery charger
• Hard-shell carrying case with custom foam insert
• Laser safety glasses (red enhancement)
• Target plate for short-range setup
• Operating manual and quick-start guide
• Calibration certificate

Job Applications

• Residential Site Grading: Establish grade stakes and check rough grade elevations across building pads, driveways, and drainage swales. The 800-foot radius covers most residential lots from a single setup, and the tenths rod simplifies cut/fill calculations for excavation crews.
• Interior Floor Leveling: Set screed elevations for concrete slab pours and verify flatness tolerance before tile or flooring installation. The LL100N's ±1/4" accuracy meets ACI 117 Class C tolerance requirements for most residential and light commercial applications.
• Foundation and Footing Layout: Check formwork elevation, verify level on foundation walls, and establish benchmark elevations for multi-pour projects. The self-leveling feature maintains accuracy even when the tripod settles slightly on soft ground during extended pours.
• Deck and Patio Construction: Set consistent post heights, establish joist elevations, and verify drainage pitch on outdoor living spaces. Rotate the laser to horizontal scan mode for continuous reference around the perimeter without constant rod checks.
• Landscaping and Hardscaping: Grade planting beds, level paver bases, and establish consistent slopes for drainage. The detector extends range for larger properties while the tenths rod provides sufficient precision for non-structural grading work.
• Suspended Ceiling Installation: Mark grid height consistently around room perimeters and check hanger wire lengths before installing ceiling panels. The visible beam eliminates the need for constant chalk line reference in smaller commercial interiors.

Compatible Accessories

Spectra Precision HR320 Receiver — Digital receiver with larger display and extended detection range

CST/Berger Heavy-Duty Aluminum Tripod — Stable 5/8"-11 mounting platform for outdoor use

SECO 25-Foot Fiberglass Grade Rod (Tenths) — Extended-height rod for deep excavation work

Johnson Magnetic Detector Bracket — Hands-free detector mounting for repetitive elevation checks

Spectra Precision HL700 Detector — Upgraded detector with remote display capability

Laser Rod Eye Target — High-visibility target for long-distance detection

Related Guides

How to Calibrate Rotary Laser Levels in the Field

Spectra LL100 vs. LL300: Which Rotary Laser Fits Your Workflow?

Reading Tenths vs. Inches Grade Rods: A Contractor's Reference

Laser Level Won't Self-Level: Common Causes and Field Fixes

Frequently Asked Questions

What's the difference between tenths and inches graduation on grade rods?

Tenths rods display decimal-foot increments (0.1, 0.2, 0.3 feet) rather than feet-and-inches. This simplifies calculations for grading and excavation work since most site plans specify elevations in decimal feet. For example, a reading of 4.7 feet is easier to calculate in cut/fill schedules than 4 feet 8⅜ inches. Tenths rods are standard in civil construction and site work, while inches rods are more common in building construction.

Can I use this laser for single-slope drainage applications?

Yes, the LL100N includes manual grade adjustment on both X and Y axes, allowing you to set slopes for drainage, parking lots, or sports fields. You'll need to calculate the required grade percentage and adjust the laser accordingly using the built-in grade vials and adjustment screws. For frequent slope work, consider models with digital grade displays, but manual adjustment is reliable for occasional grading projects.

How does the detector extend the working range beyond the visible beam?

The HL450 detector senses the laser pulse even when ambient light makes the beam invisible to the naked eye. In bright outdoor conditions, you may only see the beam clearly to 150 feet radius, but the detector picks up the signal to 800 feet radius. The detector mounts on the grade rod and emits audio/visual signals indicating whether you're on-grade, above, or below the laser plane.

What maintenance does this laser require between calibration checks?

Keep the laser head clean and store it in the hard case when not in use. Wipe the rotating head window weekly with a microfiber cloth to prevent dust buildup that reduces beam visibility. Charge the battery fully before storage if the unit won't be used for more than two weeks. Verify accuracy every 3-6 months using the two-point calibration method described in the manual, or annually through a certified service center. Avoid dropping the unit or storing it in temperature extremes, which can affect the pendulum compensator alignment.
