Spectra Precision LL500-2 Long Range Laser Complete Package w/ HL700 - INCHES

Overview

The Spectra Precision LL500-2 Long Range Laser Complete Package delivers professional-grade elevation control for North American construction crews working in imperial measurements. This turnkey system pairs the LL500-2 rotating laser with the HL700 digital receiver and inches-graduated rod, eliminating field conversions on concrete pours, footings, excavation, and grading projects. Contractors managing large commercial sites, site development crews establishing benchmark networks, and concrete specialists setting formwork rely on this configuration for consistent accuracy across 1,600-foot diameters. The inches-native setup reduces calculation errors during grade stake verification, foundation work, and ADA-compliant slope verification. Dual-slope capability supports drainage planes, parking lot grading, and complex multi-plane pours without manual recalibration. Backed by Spectra Precision's three-year warranty, this package serves as the primary elevation reference for crews requiring ±1/8-inch accuracy over hundreds of feet.

Key Specifications

• Working Range: 1,600 ft diameter (800 ft radius) with HL700 receiver
• Leveling Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
• Self-Leveling Range: ±5 degrees with automatic compensation
• Rotation Speed: 0, 150, 300, 600, 900 RPM (variable for range optimization)
• Dual Grade Capability: Independent X and Y axis slopes up to ±8% in 0.1% increments
• Beam Type: Class 3R visible red laser, 635nm wavelength
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Power Source: Rechargeable NiMH battery pack, 60+ hours runtime
• Drop Survival: 1 meter onto hard surface, tripod-mounted
• Dust/Water Rating: IP66 sealed against heavy rain and job site debris
• Receiver Accuracy: HL700 reads to ±1/16 inch digital precision
• Rod Graduation: Feet, inches, and 1/8-inch increments

What's in the Kit

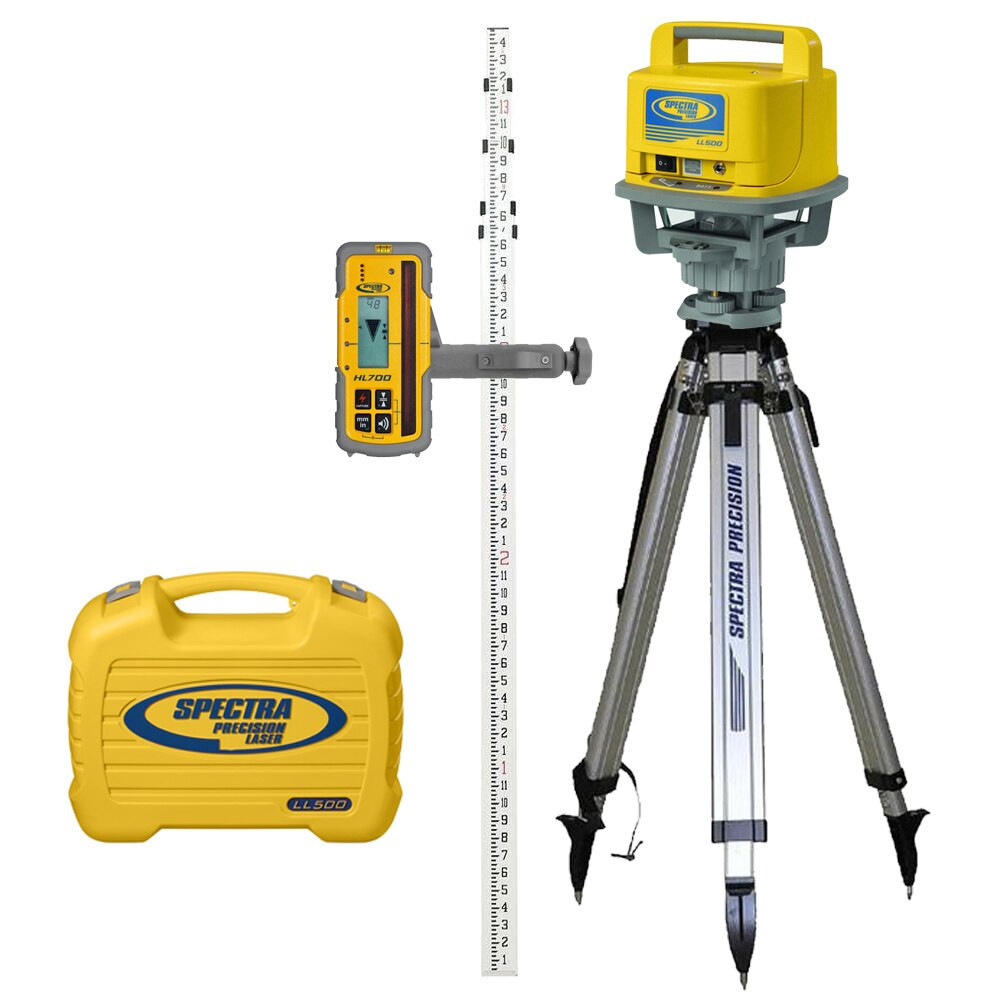

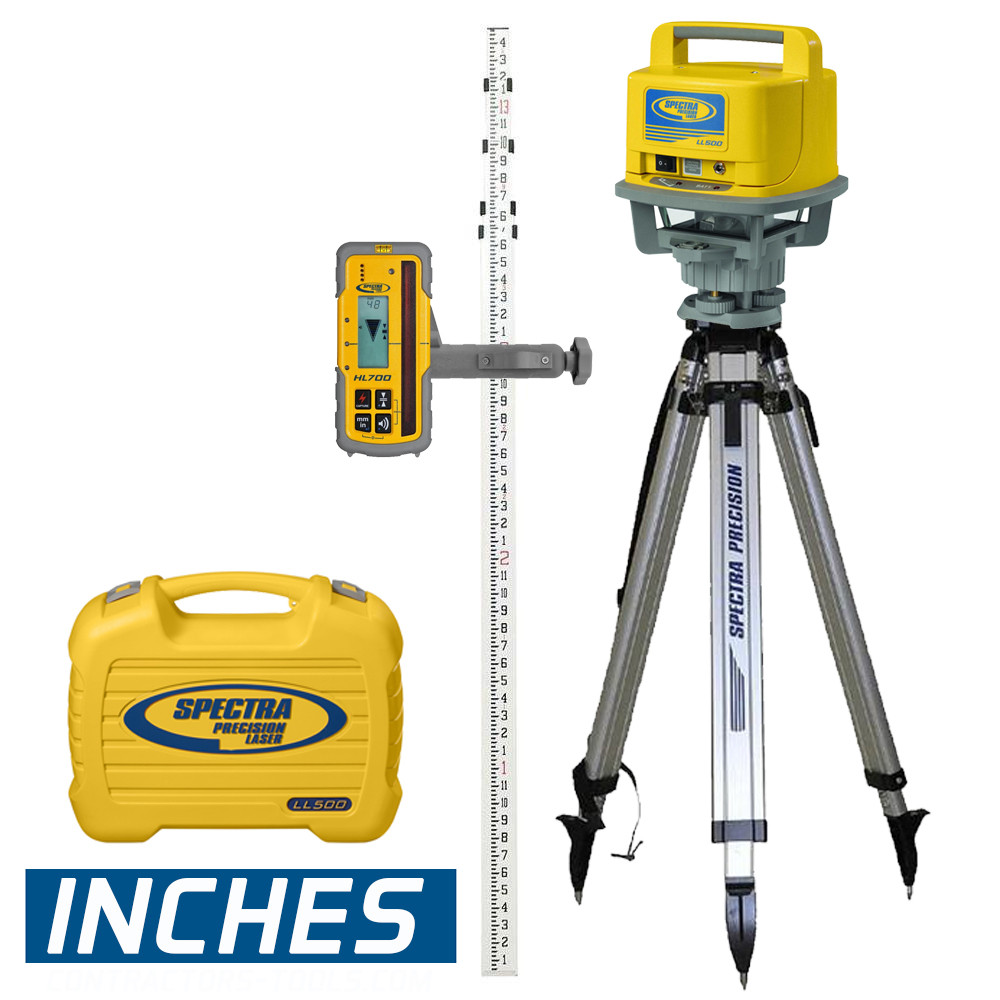

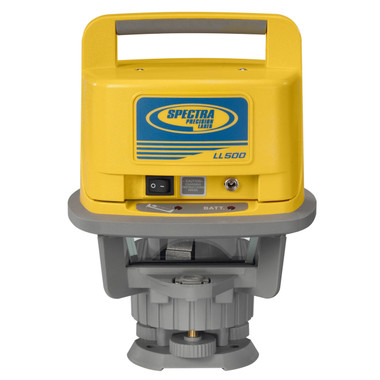

• LL500-2 Dual-Slope Rotating Laser with inches configuration
• HL700 Digital Laser Receiver with rod clamp bracket
• 13-foot Inches-Graduated Aluminum Grade Rod (extends to 13 ft)
• RC502 Remote Control for 300-foot wireless operation
• Rechargeable NiMH Battery Pack with wall charger
• Padded Hard-Shell Carrying Case with foam insert
• Alkaline Battery Tray for backup D-cell operation
• Target Plate for indoor/short-range visible reference
• Operating Manual and Quick-Start Laminated Card
• Calibration Certificate with serial-matched documentation

Job Applications

• Concrete Slab Pours: Establishes consistent screeding elevation across large decks, warehouses, and tilt-up panels where inches-based formwork dimensions eliminate conversion from metric benchmarks.
• Excavation Grade Control: Guides dozer and excavator operators to finished subgrade elevations on footings, utility trenches, and building pads requiring tight tolerance to structural drawings dimensioned in feet and inches.
• Site Grading and Drainage: Dual-slope functionality creates precise drainage planes for parking lots, building pads, and athletic fields where 1-2% slopes prevent ponding while matching civil engineering plans in imperial units.
• Foundation and Footing Layout: Verifies form elevations, pier heights, and stepped footings against architectural benchmarks, ensuring ACI-compliant concrete placement without unit translation errors.
• Framing and Deck Elevation: Transfers benchmark elevations to wood and steel framing crews setting floor systems, roof decks, and mezzanines dimensioned in fractional inches on structural plans.
• Hardscape and Paver Installation: Controls elevation for paver patios, plaza decks, and decorative concrete requiring ±1/4-inch tolerance over 50+ foot expanses to prevent trip hazards and drainage failures.

Compatible Accessories

Expand system capability with professional-grade mounting and detection accessories:

• Heavy-Duty Flat-Head Tripod — Aluminum construction with 5/8×11 thread
• HL760 Long-Range Receiver — Extends detection to 2,600 ft diameter
• Universal Rod Clamp — Secures HL700 to third-party grade rods
• GL722 Inches Grade Rod — 25-foot telescoping fiberglass rod
• Excavator Mast Kit — Mounts receiver on boom for automated grade control
• Wall/Column Mount Bracket — Attaches laser to vertical surfaces for interior work

Related Guides

• How to Set Dual-Slope Drainage Planes for Parking Lots
• Rotating Laser Level Comparison: LL500 vs LL300 vs LL400
• Verifying Laser Level Accuracy: Field Testing Procedures
• Troubleshooting: Laser Won't Self-Level or Flashes Error

Frequently Asked Questions

Can the LL500-2 be switched between inches and metric units?

No. The LL500-2 designation indicates permanent inches configuration. The laser itself projects a reference plane without units, but the included HL700 receiver, rod graduation, and slope increment settings are calibrated for imperial measurements. For metric operation, specify the LL500-1 model configured for millimeter-based systems. Mixing units between laser, receiver, and rod creates calculation errors on grade-sensitive work.

What's the effective range difference between 600 RPM and 900 RPM rotation speeds?

Higher rotation speeds extend detection range in bright conditions. At 600 RPM, the HL700 receiver maintains reliable detection to approximately 1,200 feet diameter in full sunlight. Increasing to 900 RPM pushes maximum range to the full 1,600-foot diameter specification by concentrating beam energy through faster passes. Use lower speeds (150-300 RPM) for indoor work or when using the visible beam for direct visual reference without a receiver.

How often does the LL500-2 require professional calibration?

Spectra recommends annual calibration for contractors maintaining ISO compliance or working to tight architectural tolerances. For general construction use, verify accuracy quarterly using the two-point check procedure detailed in the manual. Recalibrate immediately after drops exceeding the 1-meter spec, if the unit has been exposed to extreme temperature shock, or when benchmark checks reveal drift exceeding ±3/16 inch at 100 feet. Service centers provide NIST-traceable certification within 3-5 business days.

Can I use the HL700 receiver with other manufacturer's rotating lasers?

Yes, with limitations. The HL700 detects any rotating laser beam operating in the standard construction frequency range, including Topcon, Leica, and Trimble units. However, advanced features like automatic grade matching, digital readout calibration, and remote receiver diagnostics only function with Spectra lasers using proprietary communication protocols. When pairing with non-Spectra lasers, the HL700 functions as a standard detector with on-grade/above-grade/below-grade indication but without precise digital elevation display.
