Spectra Precision LL300S-1 Laser Complete Package with HL450 Receiver

Overview

The Spectra Precision LL300S-1 Complete Package delivers professional-grade single-slope leveling for concrete contractors, site developers, and grading professionals managing standard-to-medium precision applications. This turnkey system pairs the LL300S self-leveling rotary laser with the HL450 digital receiver and tenths-calibrated grade rod, providing everything needed for accurate elevation control up to 1,000 feet diameter. Whether you're establishing benchmark elevations for foundation pours, setting screed heights for flatwork, or checking grade consistency across multi-acre sites, this package provides reliable ±1/8-inch accuracy at 100 feet. The LL300S features automatic compensator technology that self-levels within ±5 degrees and alerts operators when tilt exceeds safe thresholds, eliminating manual setup errors that compromise accuracy and delay progress.

Key Specifications

• Leveling Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
• Working Diameter: 1,000 feet (300m) with HL450 receiver
• Self-Leveling Range: ±5 degrees automatic compensation
• Rotation Speed: 600 RPM standard
• Power Source: Rechargeable Li-ion battery with 30+ hour runtime
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• IP Rating: IP66 dust-tight and water-resistant construction
• Receiver Accuracy: ±1/16 inch (±1.5mm) with HL450 digital display
• Grade Capability: Single-axis slope 0-10% in 0.1% increments
• Laser Class: Class 2 visible red beam (635nm)
• Warranty: 3-year manufacturer coverage on laser and receiver

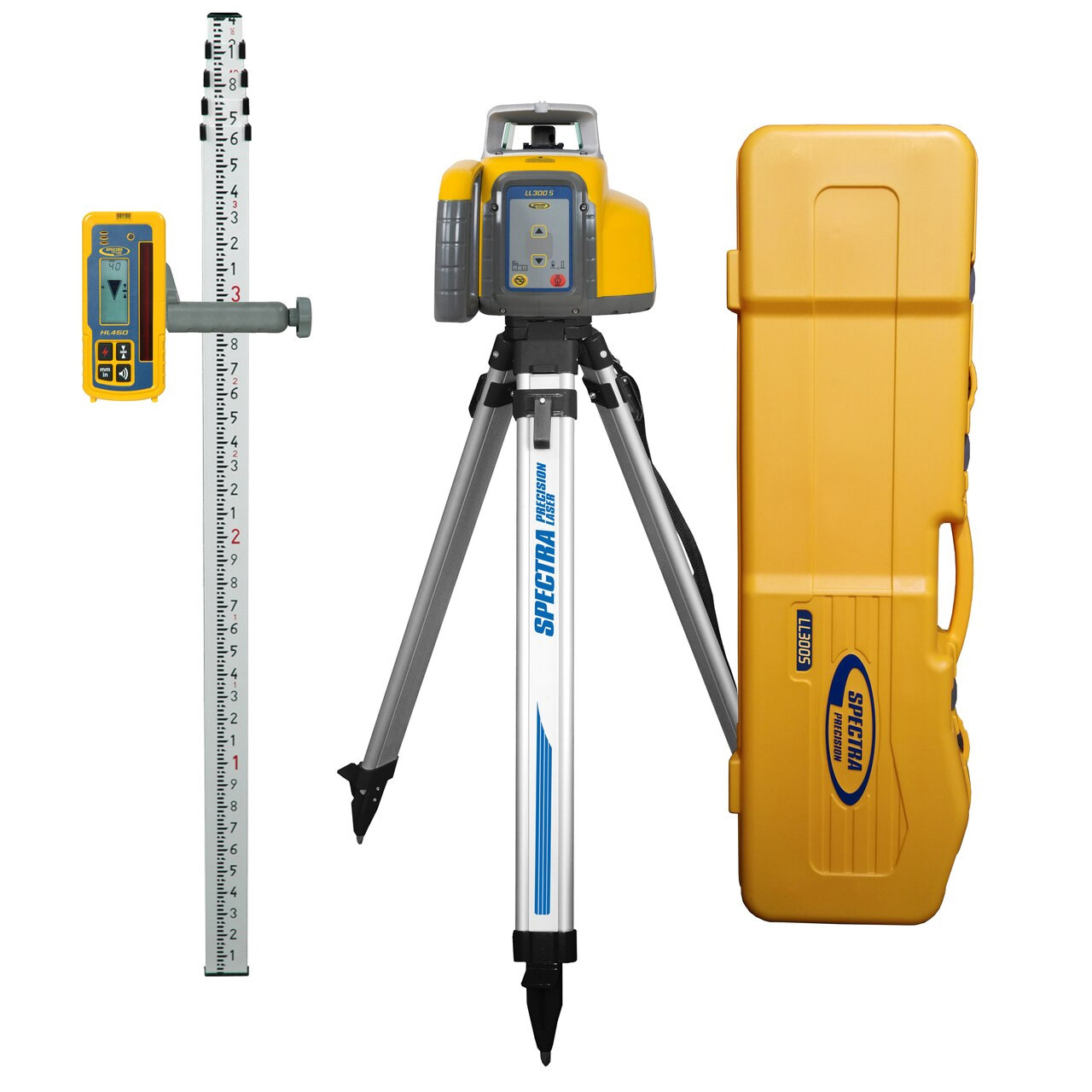

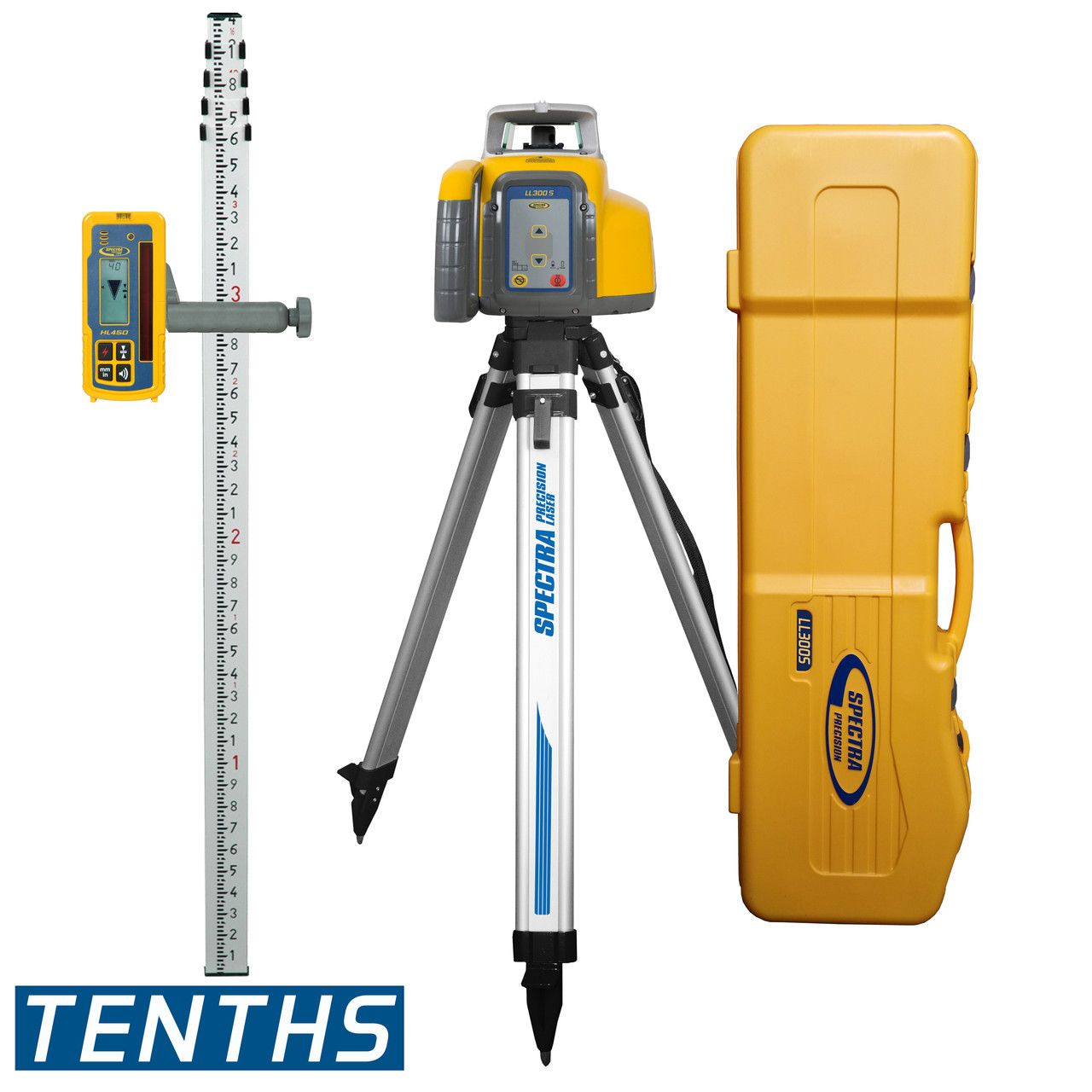

What's in the Kit

• LL300S self-leveling rotary laser transmitter

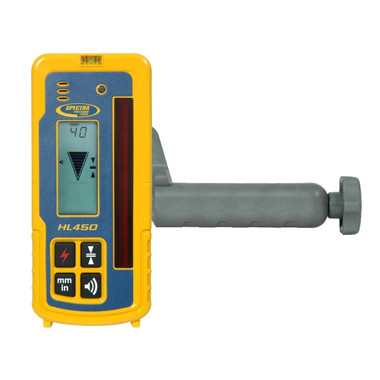

• HL450 digital laser receiver with rod clamp

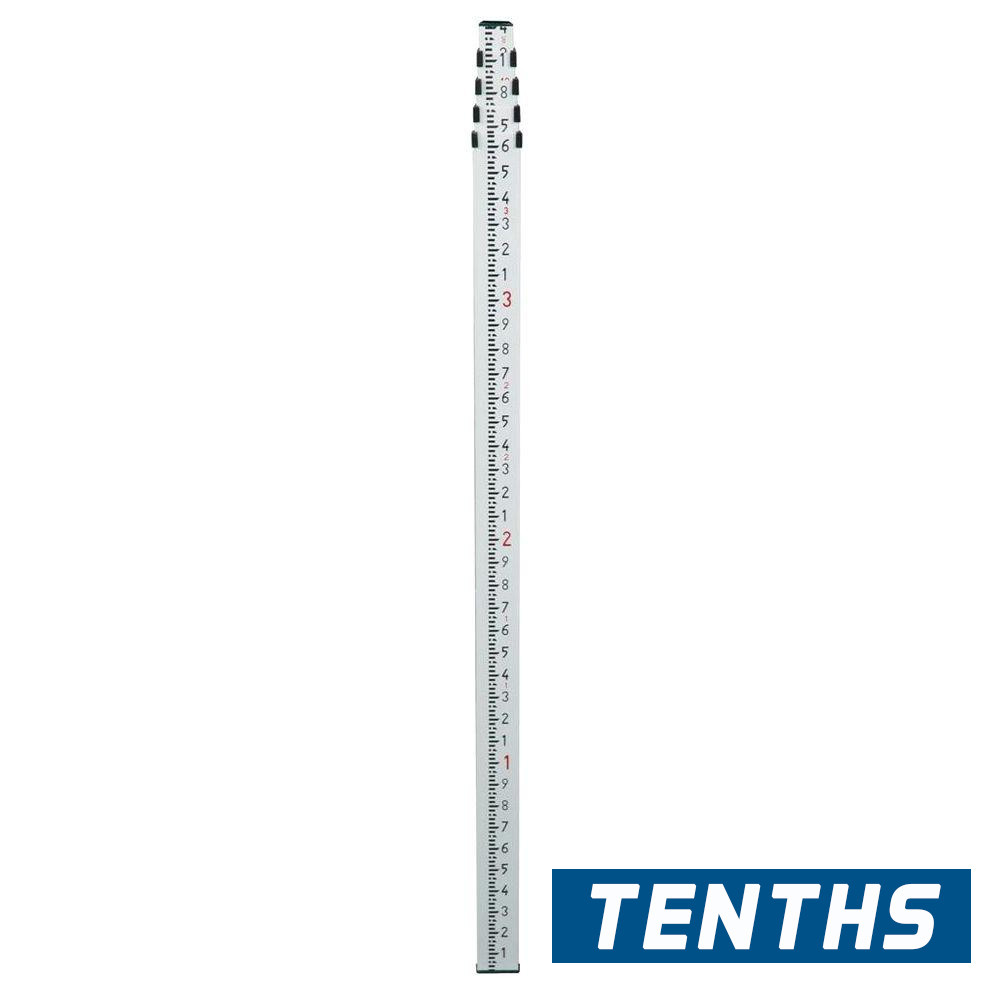

• Tenths-calibrated aluminum grade rod (extends to 13 feet)
• Rechargeable Li-ion battery pack for LL300S
• 110V AC battery charger with regional plug adapter
• RC402N wired remote control for slope adjustment
• Laser safety glasses for indoor/low-light visibility enhancement
• Heavy-duty carrying case with custom foam inserts
• Quick-start guide and calibration certificate
• 5/8-11 threaded adapter for tripod mounting

Job Applications

• Foundation Leveling: Establish consistent benchmark elevations across footing layouts and verify forms are level before concrete placement, eliminating costly post-pour corrections.
• Concrete Slab Grading: Set screed rails and check subgrade preparation for floor slabs, ensuring proper drainage slopes and eliminating low spots that compromise slab integrity.
• Site Rough Grading: Control cut-and-fill operations across residential and light commercial developments where ±1/8-inch precision meets spec requirements without premium laser costs.
• Drainage Installation: Set consistent slopes for perimeter drains, French drains, and swale grading where single-axis elevation control prevents water pooling and drainage failures.
• Paver and Hardscape Installation: Maintain accurate elevation control for patio bases, walkway subgrades, and retaining wall footings where level reference prevents settlement issues.
• Ceiling and Soffit Installation: Transfer level reference points for suspended ceiling grids, cabinet installations, and trim carpentry where vertical accuracy affects finished appearance.

Compatible Accessories

Enhance system capability with professional-grade accessories designed for demanding jobsite conditions:

• Spectra Precision Heavy-Duty Tripod — Aluminum construction with wide footprint for stability on uneven terrain
• HR320 Machine-Mount Receiver — Upgrade to machine control applications with skid steer/excavator mounting brackets
• Magnetic Detector Card — Quick visual beam detection without powering the receiver during initial setup
• Telescoping Grade Rod Extension — Extend measurement range to 25 feet for deep excavations and tall formwork
• LL300S Replacement Battery — Keep backup power on hand for multi-day projects without access to charging
• HL450 Wall Mount Bracket — Fixed-position mounting for repetitive height checks along continuous walls

Related Guides

• How to Set Single-Axis Slope with Rotary Lasers — Step-by-step instructions for establishing drainage grades and directional slopes
• Spectra LL300S vs. Topcon RL-H5A Comparison — Feature and performance analysis for contractors choosing between leading self-leveling models
• Laser Receiver Not Detecting Beam: Troubleshooting Guide — Diagnose and resolve common detection issues affecting accuracy
• Maximizing Rotary Laser Battery Life on Jobsites — Best practices for charge management and runtime optimization

Frequently Asked Questions

What's the practical working range for the HL450 receiver with the LL300S laser?

The HL450 receiver reliably detects the LL300S beam up to 1,000-foot diameter (500-foot radius) in typical outdoor conditions. Range decreases in bright sunlight or dusty environments. For maximum range, work during early morning or late afternoon when ambient light is lower, and keep the receiver sensor clean. Indoor applications with reduced ambient light can achieve full rated range consistently.

Can I use this system for dual-axis slope applications like parking lot grading?

No, the LL300S provides single-axis slope only, suitable for directional drainage but not compound slopes requiring pitch in two directions simultaneously. For parking lots, building pads, or other dual-slope applications, consider upgrading to the LL500 dual-grade laser which controls X and Y axis independently. The LL300S-1 excels at trenching, perimeter drains, and applications where slope runs in one consistent direction.

How often does the LL300S require recalibration, and can I do it myself?

Spectra Precision recommends annual recalibration or after any significant impact or drop. Field calibration checks can be performed using the "two-stake" method described in the user manual, but factory recalibration ensures NIST-traceable accuracy. Most contractors perform quarterly field checks and send units for factory service annually or when field tests show deviation exceeding ±1/8 inch at 100 feet. Express Tools offers mail-in calibration services with 3-5 day turnaround.

Will the HL450 receiver work with other Spectra rotary lasers I already own?

Yes, the HL450 is compatible with all Spectra Precision rotary lasers operating in the standard red visible spectrum, including LL300, LL400, and LL500 series models. It will not work with line lasers, dot lasers, or non-Spectra brands due to proprietary signal encoding. If you operate multiple laser brands, consider universal receivers like the Topcon LS-80L which detects most manufacturer beams, though you'll lose brand-specific features like automatic shutdown integration.
