Topcon LS-B100 Laser Machine Display Receiver

Overview

The Topcon LS-B100 Laser Machine Display Receiver (Part #312670101) is a professional-grade, entry-level solution designed specifically for operators of graders, dozers, and paving equipment who need accurate, real-time slope and elevation feedback without the complexity and expense of full machine control systems. This display-based laser receiver delivers dependable grade control performance at a price point that makes precision grading accessible to contractors, rental fleets, and municipal operations working on site preparation, road construction, drainage projects, and utility trenching applications.

Unlike basic single-sensor receivers that only show vertical position, the LS-B100 provides comprehensive grade information through its intuitive display interface, allowing operators to establish proper slopes and maintain consistent elevations throughout their work area. The system works seamlessly with Topcon rotating lasers to create an invisible reference plane across the jobsite, with the receiver mounted on the machine blade or bucket to constantly monitor position relative to design grade.

What sets the LS-B100 apart in the entry-level category is its balance of simplicity and capability. The system requires no radio communication infrastructure, GPS satellites, or total station integration—just a rotating laser transmitter and the LS-B100 receiver. This makes it ideal for contractors transitioning from manual grade stakes to electronic guidance, as well as experienced operators who need a reliable backup system or a cost-effective solution for secondary machines in their fleet.

The rugged construction withstands the harsh jobsite environment including dust, vibration, moisture, and temperature extremes common to earthmoving operations. The bright, easy-to-read display remains visible in direct sunlight, and the simple control layout allows operators to focus on their work rather than navigating complicated menus. For contractors looking to improve productivity, reduce staking costs, and achieve tighter tolerances without major capital investment, the LS-B100 represents an excellent entry point into machine-mounted laser grade control technology.

Key Specifications

• Display Type: High-visibility LED indicators with numeric readout
• Grade Range: Suitable for typical earthwork applications with rotating laser systems
• Mounting: Universal bracket system for blade, bucket, or boom installation
• Power Requirements: 12V DC operation from machine battery
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Environmental Rating: IP66 dust-tight and water-resistant protection
• Reception Height: Works with standard laser detector sensors
• Display Visibility: High-intensity LEDs for bright sunlight readability
• Control Interface: Simplified button layout for in-cab operation
• Compatibility: Works with Topcon rotating lasers and compatible laser transmitters
• Dimensions: Compact design for versatile machine installation
• Warranty: Topcon manufacturer's warranty included

What's in the Kit

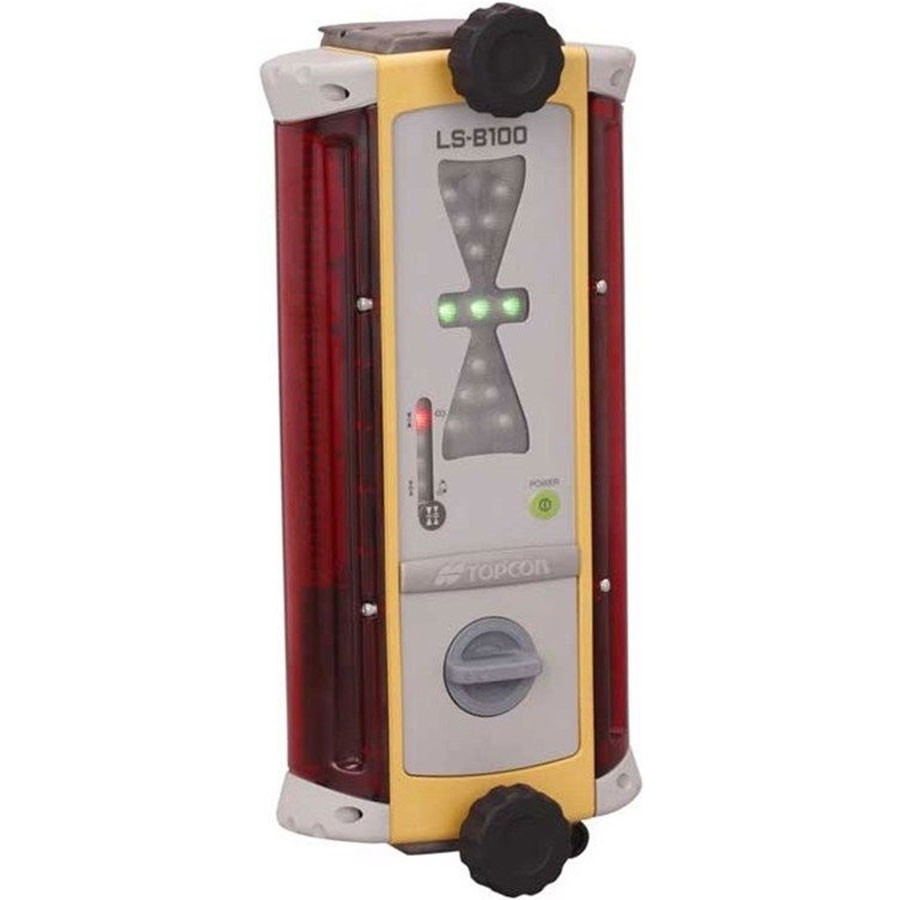

• LS-B100 Laser Receiver Display Unit (312670101)
• Mounting Bracket with Hardware
• Power Cable with Machine Connection
• Laser Sensor with Extension Cable
• In-Cab Display Mount
• Quick Start Guide and Operating Manual
• Protective Storage Case

Job Applications

• Site Preparation and Mass Grading: Establish consistent base elevations across large development sites, reducing the need for constant grade checking and restaking. The LS-B100 helps dozer operators stay on grade during initial cuts and fills, minimizing over-excavation costs and material waste while dramatically improving productivity on subdivision, commercial pad, and industrial site work.
• Road Construction and Paving: Maintain proper cross-slopes and longitudinal grades on road subbase and asphalt operations. Motor grader operators can achieve smooth, accurate surfaces that meet specifications without frequent surveyor intervention, reducing callbacks and ensuring proper drainage from the first pass—critical for projects with tight timelines and strict quality requirements.
• Parking Lot and Flatwork Grading: Create precise drainage slopes on parking areas, building pads, and concrete flatwork foundations. The system helps operators achieve the subtle 1-2% grades necessary for proper water runoff while maintaining flat areas within tolerance, eliminating bird-baths and ponding issues that lead to pavement failure and customer complaints.
• Agricultural Land Leveling: Optimize field drainage and irrigation efficiency by establishing uniform grades across agricultural properties. Farmers and land improvement contractors use the LS-B100 to create controlled slopes that prevent erosion, eliminate standing water, and improve crop yields—work that pays dividends season after season through better water management.
• Drainage and Utility Trenching: Maintain proper slopes on sewer lines, storm drains, and utility trenches to ensure gravity flow. Excavator and backhoe operators can dig to precise depths and gradients without constant measuring, reducing installation time and preventing costly errors that require re-excavation when inspectors check the work.
• Sports Field and Golf Course Grading: Achieve the smooth, precisely sloped surfaces required for athletic fields, golf courses, and recreational facilities. The LS-B100 helps operators create the subtle contours and drainage patterns these applications demand, reducing hand-finishing labor and ensuring playing surfaces that perform properly and drain effectively.

Compatible Accessories

• Topcon RL-H5A Self-Leveling Rotating Laser System
• Topcon RL-SV2S Dual Slope Rotating Laser
• Extended Range Laser Sensor for Large Jobsites
• Heavy-Duty Blade Mounting Brackets
• Replacement Sensor Cables (various lengths)
• Auxiliary Power Adapters and Chargers
• Machine-Specific Mounting Kits
• Grade Rod and Leveling Staff for Laser Setup

Related Guides

• Complete Laser Receiver Installation and Setup Guide
• Rotating Laser Systems for Machine Control: Buyer's Guide
• GPS vs. Laser Grade Control: Which System is Right for Your Operation?
• Topcon Machine Control Systems: Product Comparison and Selection
