Leica LMR360R 6003354 Machine Receiver Package with Clamps

Leica LMR360R Machine Control Receiver with Clamps

The Leica LMR360R (6003354) is a professional-grade machine control receiver engineered for contractors who demand precision on every cut. Bundled with mounting clamps for fast jobsite installation, this receiver brings real-time grade feedback directly into the operator cab — eliminating ground crew check shots and accelerating earthwork production. Whether you're rough grading a subdivision or finishing a highway subbase, the LMR360R delivers the accuracy and durability required on modern machine control systems.

Product Overview & Jobsite Applications

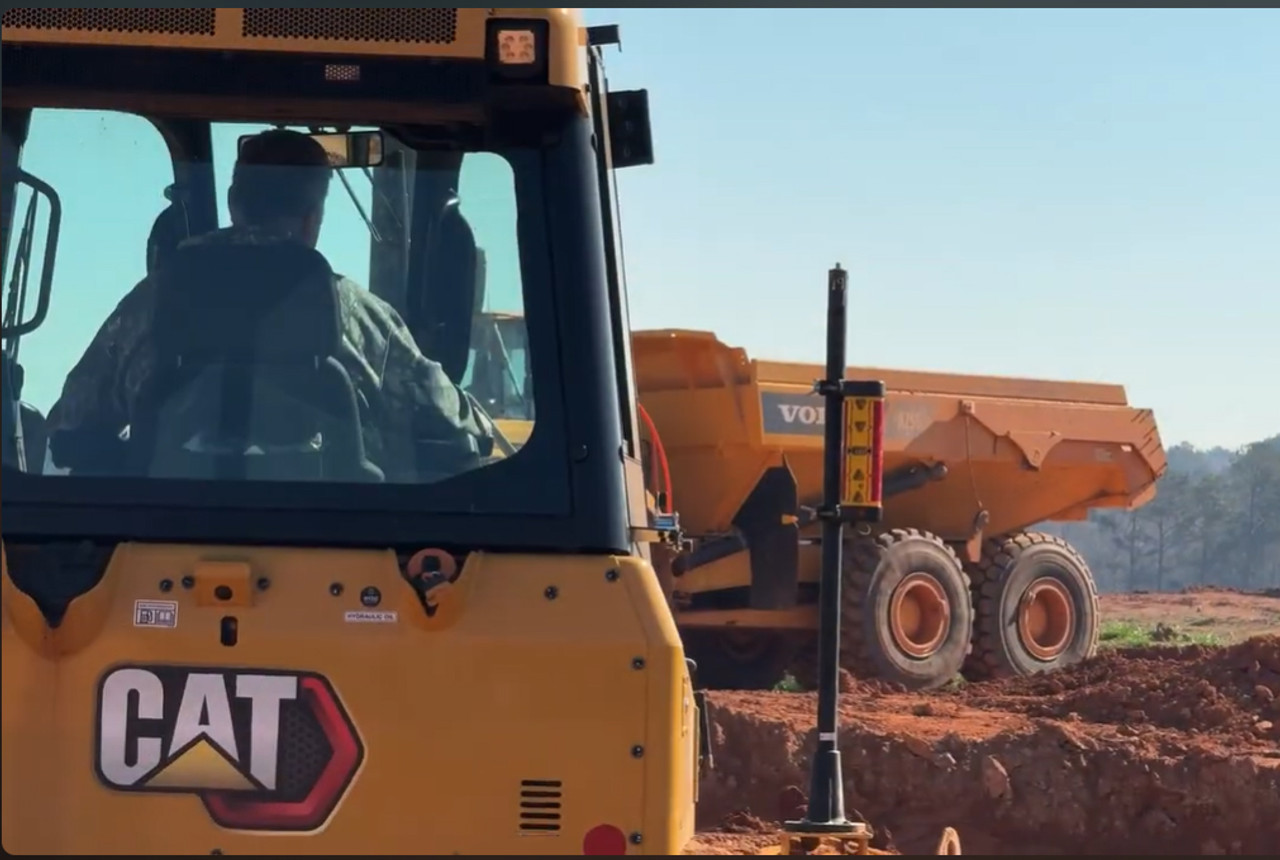

Designed to work seamlessly with rotating laser systems, the LMR360R mounts on the mast of a dozer blade, motor grader, or excavator arm and continuously communicates elevation data to an in-cab display or machine control box. Its 360-degree reception window captures the laser plane from any orientation, so operators never lose signal during turns or tight passes. The integrated tilt indication feature makes this receiver particularly valuable on cross-slope and dual-fall applications where blade angle is constantly changing. The ruggedized housing is built to withstand vibration, dust, and moisture common to heavy earthwork environments.

Key Specifications

• Model / SKU: LMR360R | Part No. 6003354
• Reception Angle: 360° continuous horizontal coverage
• Tilt Sensing: Integrated bi-axial tilt indication
• Display: LED bar graph with fine/coarse grade indication
• Accuracy: ±1.5 mm (±1/16 in.) at standard operating range
• Operating Range: Up to 500 m (1,640 ft) radius depending on laser
• Compatible Lasers: Leica Rugby, Roteo, and third-party rotating laser transmitters
• Power Supply: Internal rechargeable battery with low-battery indicator
• Protection Rating: IP67 dust and water resistant
• Operating Temperature: -20°C to +70°C (-4°F to +158°F)
• Includes: LMR360R receiver, mounting clamps, carrying case, documentation

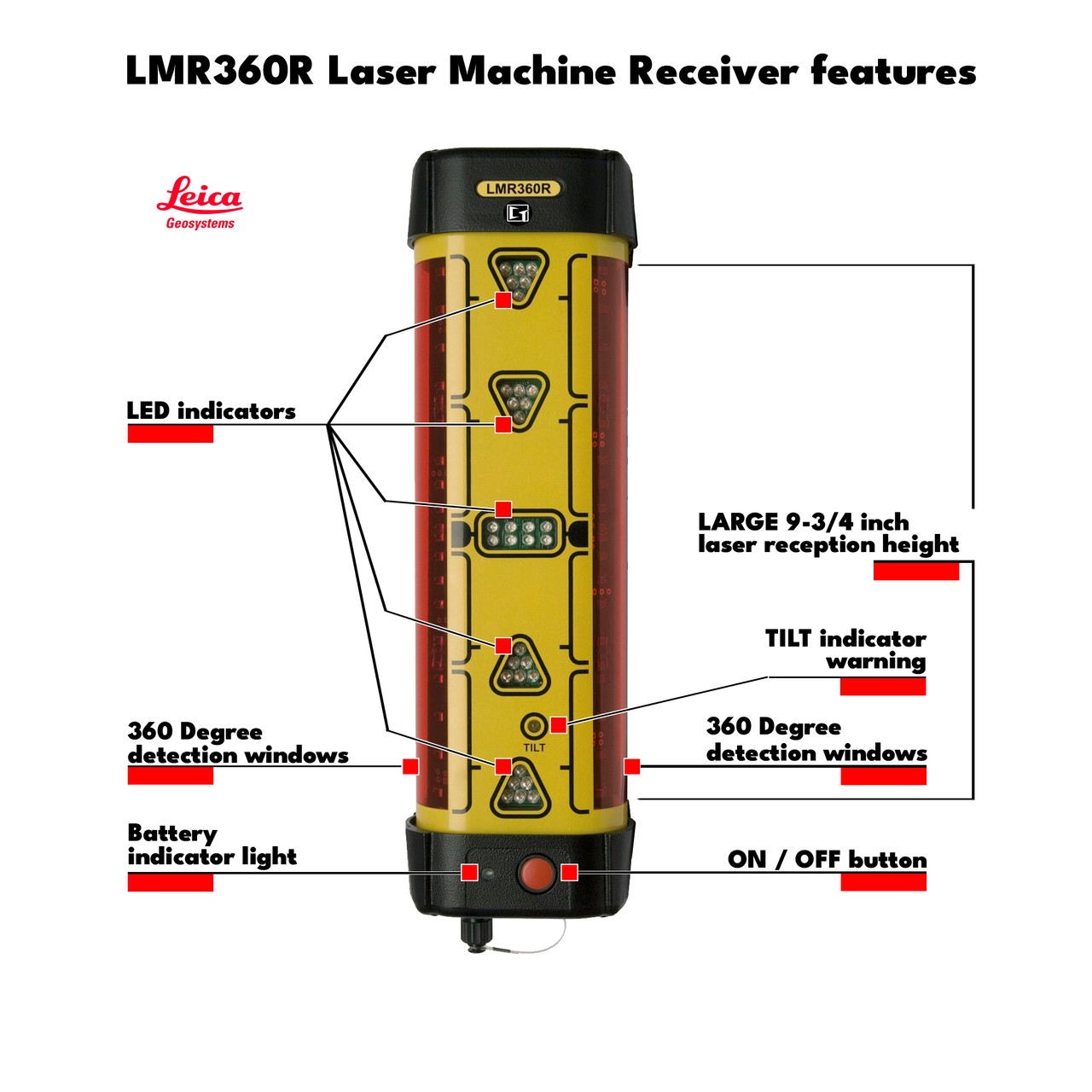

Key Features

• 360° Laser Reception: Captures the rotating laser plane from any horizontal orientation — no realignment needed during machine pivots or passes
• Integrated Tilt Indication: Bi-axial tilt sensor provides slope feedback for cross-slope grading without additional sensors
• In-Cab Grade Display: Bright LED bar graph is clearly readable in direct sunlight and low-light cab environments
• Clamps Included: Ready-to-mount hardware ships in the box for immediate field installation on standard mast diameters
• IP67 Rated Housing: Sealed against submersion and fine dust ingress for reliable operation in mud, rain, and wash-down conditions
• Universal Signal Output: Compatible with major machine control displays and aftermarket grade control boxes
• Vibration Resistant Design: Shock-dampened internals handle dozer and compactor vibration without signal dropout

Job Applications

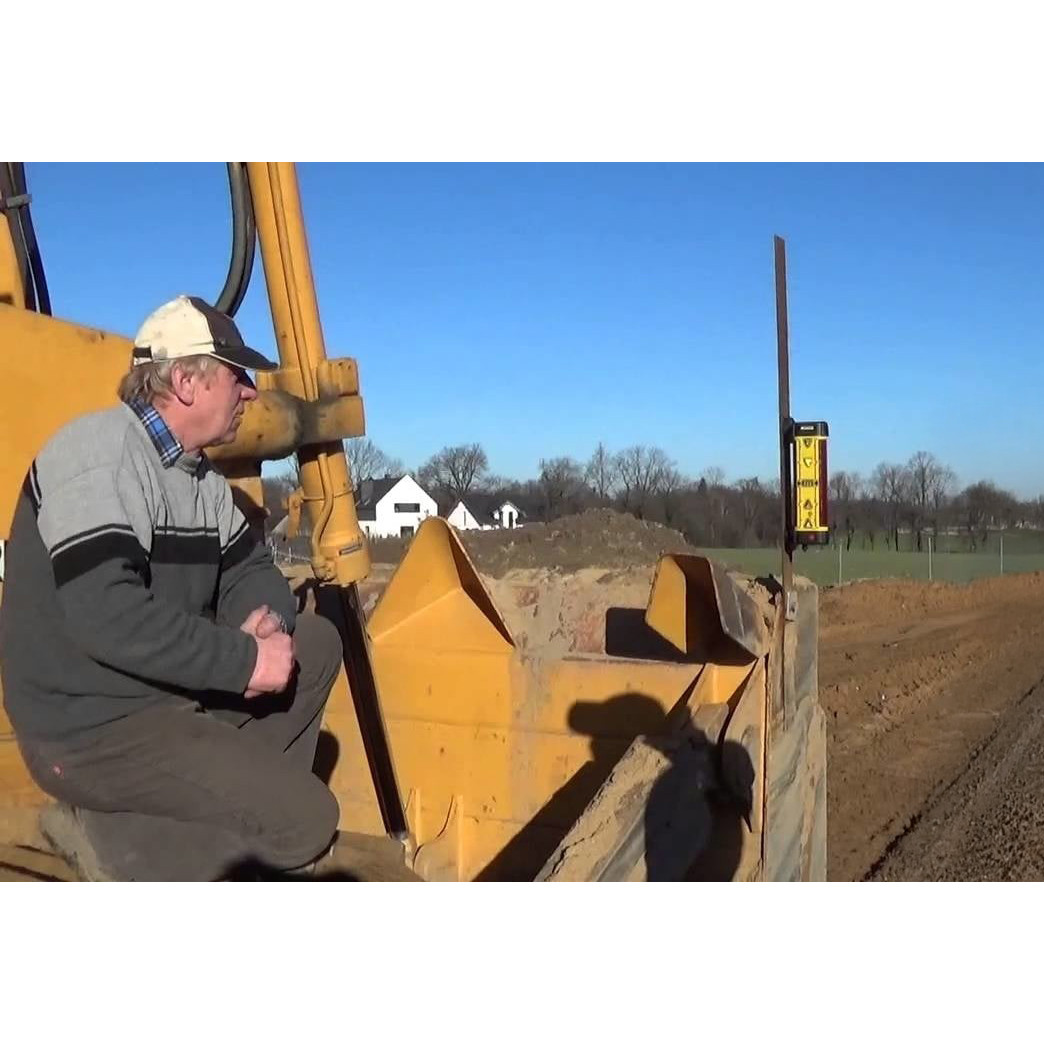

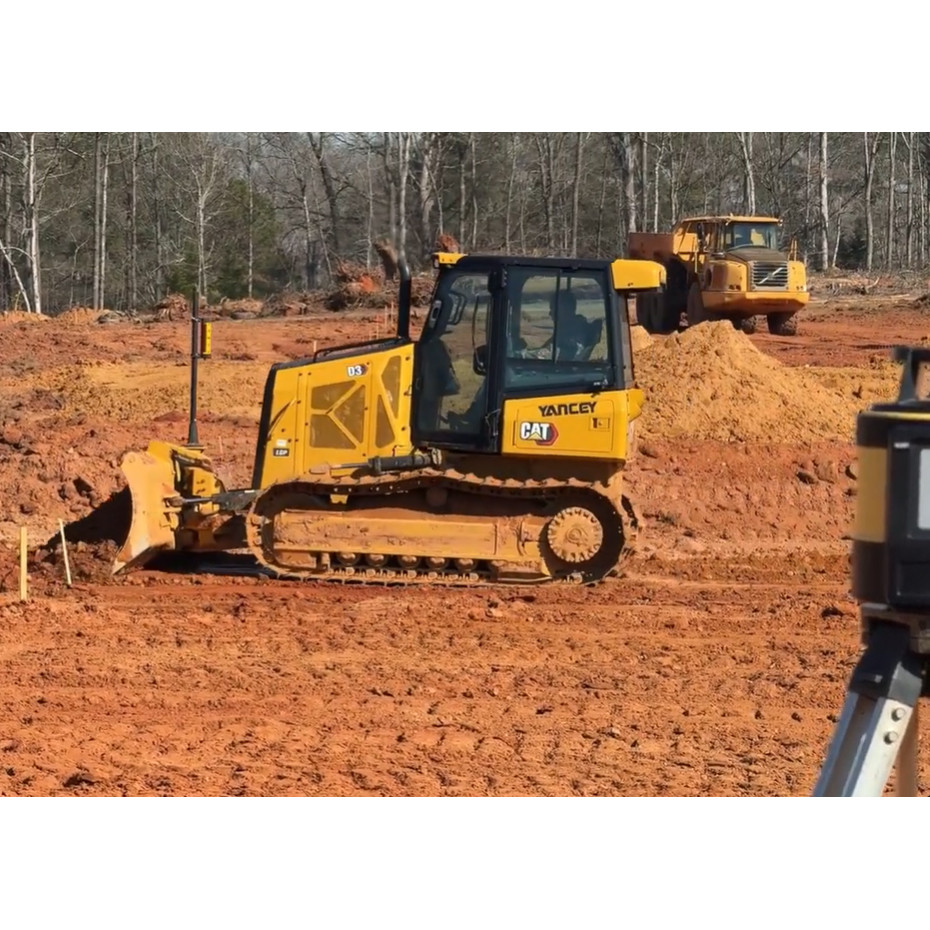

Dozer Rough Grading: Mount the LMR360R on the dozer mast and connect to your in-cab control box for automated blade height adjustment across large clearing and mass earthwork operations — reducing over-excavation and material waste.

Motor Grader Finish Work: The tilt sensing capability makes the LMR360R ideal for motor graders cutting crowned roadways or parking lot pads where both cross-slope and longitudinal grade must be maintained simultaneously.

Excavator Trenching: Use the receiver on an excavator mast to confirm trench invert depth in real time, eliminating repeated manual check shots and keeping utility installation moving at pace.

Subbase & Subgrade Preparation: Whether prepping for concrete flatwork or asphalt paving, the LMR360R ensures consistent subgrade elevation across the entire site, improving compaction uniformity and reducing surface prep costs.

Compatible Accessories

• Leica Rugby 840 Rotating Laser — High-accuracy single-slope laser ideal for pairing with the LMR360R on grading applications
• Leica Rod Eye 160 Digital Staff Receiver — Complementary receiver for manual grade rod checks on the same laser setup
• Leica GR25 Machine Control Display — In-cab display panel compatible with LMR360R signal output
• Mast Extension Kit for Machine Receivers — Raises the receiver above obstructions for extended range on large sites
• Leica Charger and Battery Kit — Replacement power supply kit for high-cycle machine control operations

Related Guides

• How to Set Up a Machine Control Receiver on a Dozer — Step-by-Step Guide
• Rotating Laser vs. GPS Machine Control: Which Is Right for Your Project?
• Understanding Tilt Indication in Machine Control Receivers
• Leica Machine Control Receiver Troubleshooting & Maintenance Tips

Frequently Asked Questions

Is the Leica LMR360R compatible with non-Leica rotating lasers?

Yes. The LMR360R is designed to receive standard rotating laser signals and is compatible with most major brands including Spectra, Topcon, and Trimble rotating lasers, in addition to the full Leica Rugby and Roteo series. Always verify signal frequency compatibility with your specific laser model before pairing.

What machine control display boxes work with the LMR360R?

The LMR360R outputs a standard grade signal compatible with Leica's own GR25 display as well as popular aftermarket machine control panels. Consult the receiver's output specifications and your display manufacturer's input requirements to confirm compatibility. Express Tools technical staff can assist with pairing recommendations.

Does the LMR360R require calibration on installation?

The LMR360R is factory calibrated and ready for use out of the box. However, verifying the mounting plumb and confirming the laser plane elevation against a known benchmark before beginning grading work is always recommended as a best practice for any machine control setup.

What is included with the LMR360R 6003354 kit from Express Tools?

This listing includes the Leica LMR360R machine control receiver (part number 6003354), mounting clamps for standard mast diameters, a protective carrying case, and manufacturer documentation. Free ground shipping is included on all orders within the contiguous United States.
