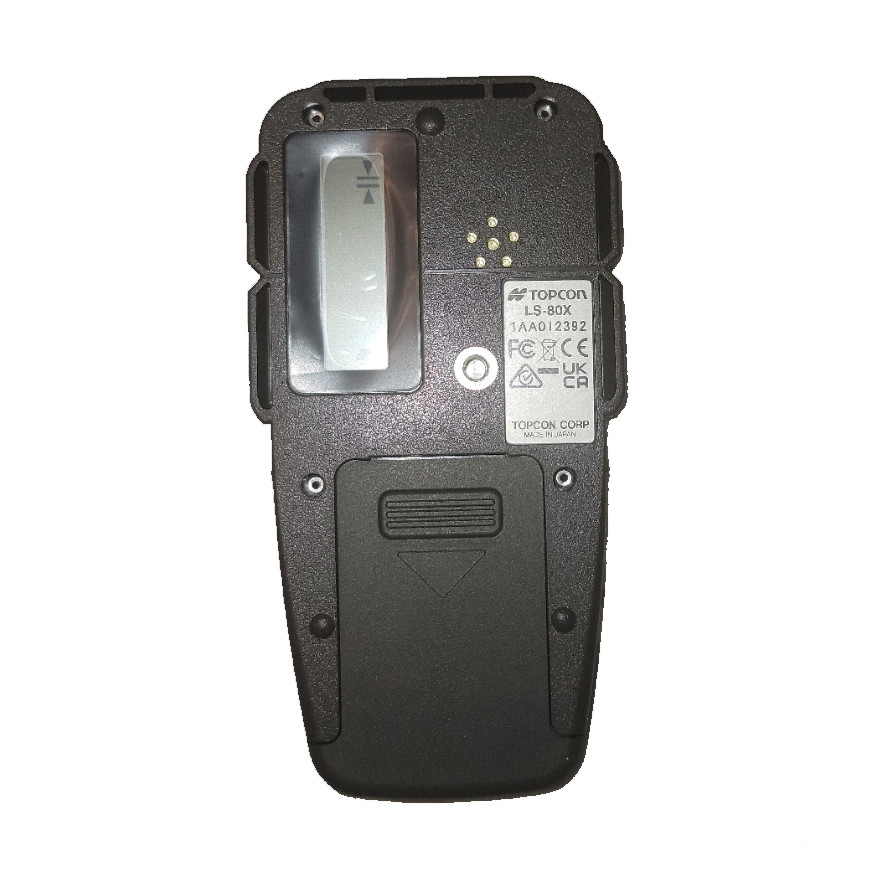

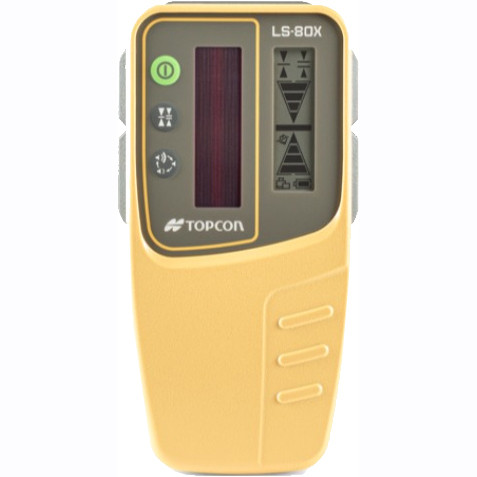

Topcon LS-80X Long Range Laser Receiver Sensor

Long-Range Detection Receiver for Rotary and Grade Lasers

The Topcon LS-80X laser receiver pushes your rotary laser's effective working range to 300 feet or more in open sunlight — a significant upgrade over standard receivers that struggle past 200 feet in bright conditions. Built for grading crews, foundation teams, and site contractors who need fast, accurate grade reads across large work zones, the LS-80X delivers a loud audible signal and a crisp LCD digital readout so operators can catch grade without walking back to the instrument. Whether you're running drain lines, setting forms, or grading a commercial pad, this receiver keeps you moving.

Overview: Built for Real Jobsite Conditions

The LS-80X is engineered to handle the environments where laser receivers get beaten up — wet foundation pours, muddy grading sites, and dusty slab work. Its IP-66 sealing blocks concrete spray, rain, and fine dust from reaching the electronics, giving it the durability that outdoor crews demand. The large, easy-to-read LCD display shows digital offset from grade in real time, reducing guesswork during cut-and-fill operations. A high-visibility LED indicator and amplified audible beep tone let the rod person confirm grade from the cab of a machine or across a noisy site.

Key Specifications

• Model: Topcon LS-80X (Part No. 1046259-01)
• Detection Range: Up to 300+ ft (90+ m) in direct sunlight
• Detection Window: 4.3 in (110 mm)
• Accuracy: ±1/16 in at 100 ft (±1.5 mm at 30 m)
• Display: LCD digital readout with numeric offset from grade
• Water & Dust Rating: IP-66 (dust-tight, high-pressure water resistant)
• Audio Alert: High-volume variable tone indicator
• LED Indicator: High-brightness visible LED for bright outdoor conditions
• Power: 2 x AA alkaline batteries
• Battery Life: Approximately 100 hours
• Operating Temperature: -4°F to +140°F (-20°C to +60°C)
• Compatible With: Most Topcon rotary and grade lasers; many other brand rotary lasers

Key Features

• Extended Sunlight Range: Detects laser beam 300+ ft in full sun — outperforms standard receivers in open-field grading applications
• IP-66 Sealed Housing: Withstands rain, concrete splash, and jobsite dust without compromising internal electronics
• Digital LCD Readout: Numeric display shows exact offset from grade, eliminating guesswork on cut-fill work
• High-Volume Audible Alert: Loud variable tone carries over equipment noise and ambient wind on active sites
• Ergonomic Rod Clamp Design: Mounts securely to grade rods or machine masts with standard clamp hardware
• Long Battery Life: Approximately 100 hours on two AA batteries — fewer interruptions during long pour or grading days
• Wide Temperature Range: Performs reliably from winter concrete work to summer asphalt paving conditions

Job Applications

Site Grading & Earthwork: Use the LS-80X on a grade rod or machine mast to hit finish elevation across large commercial pads. The 300+ ft detection range means the instrument stays parked while your operator grades the full site.

Foundation Layout & Forming: Set footing elevation with confidence in wet or muddy conditions. IP-66 protection means a rain shower or wet concrete splatter won't sideline your receiver mid-pour.

Drainage & Utility Trenching: Run drain lines, storm sewer, or utility trenches to exact grade. The digital readout gives numeric offset from invert, keeping your crew on slope without repeated instrument checks.

Asphalt & Concrete Flatwork: Mount to a screed or hand rod to verify grade during paving or slab placement. The loud tone and bright LED confirm grade hits clearly, even over compactor or screed noise.

Compatible Accessories

• Topcon RL-H5A Self-Leveling Rotary Laser — the most common pairing with the LS-80X for site grading
• Topcon RL-200 1S Single-Slope Grade Laser — ideal for drainage and pipe work
• Topcon Grade Rod & Receiver Clamp Set — secure rod-mount hardware for the LS-80X
• Topcon Replacement AA Battery Pack — keep spares in your tool bag for full-day operations
• Topcon Machine Mast Receiver Bracket — mounts LS-80X directly to dozer or grader masts

Related Guides

• How to Set Up a Rotary Laser for Site Grading
• Laser Receiver vs. Grade Rod: Which Do You Need?
• Best Rotary Lasers for Outdoor Grading in 2024
• How to Read a Laser Receiver Digital Display on the Job

Frequently Asked Questions

What lasers is the Topcon LS-80X compatible with?

The LS-80X is designed for use with Topcon rotary and grade lasers including the RL-H5A, RL-200 1S, and similar models. It also works with most other manufacturers' 635–690 nm rotary lasers, making it a versatile receiver for mixed-brand fleets. Always confirm pulse mode compatibility with your specific instrument.

What does the IP-66 rating mean for a laser receiver?

IP-66 means the LS-80X is fully dust-tight and protected against powerful water jets from any direction. On a jobsite, this translates to surviving rain, concrete spray, hose washdowns near the work area, and dusty grading conditions — without moisture or debris reaching the internal electronics.

How does the LS-80X perform better than a standard receiver in sunlight?

Standard receivers typically max out at 150–200 ft in direct sunlight because the ambient light washes out the laser signal. The LS-80X uses an advanced signal processing design and larger detection window to push that range to 300+ ft, giving grading and earthwork crews room to work across full commercial lots without repositioning the laser.

Can the LS-80X be mounted on a machine mast for grade control?

Yes. The LS-80X is compatible with standard machine mast brackets and receiver clamps used on dozers, motor graders, and skid steers. When paired with a Topcon rotary laser and machine mast kit, it provides a cost-effective manual grade control setup for operators who don't require a full machine control GPS or indicate system.
