Topcon DT305L Digital Theodolite Kit with Laser and 5 Second Accuracy - Model

Built for the Angles That Define Your Project

The Topcon DT305L Digital Theodolite combines a precision 5-second angular resolution with an integrated laser pointer to give construction layout crews and professional surveyors a reliable, field-hardened instrument for every phase of site work. Whether you're establishing building corners, verifying property boundaries, or laying out complex structural geometry, the DT305L delivers repeatable accuracy in a robust package designed to hold up on active job sites.

Instrument Overview and Jobsite Applications

The DT305L is engineered for contractors and survey crews who need consistent angular measurements without the complexity or cost of a full total station. The large, dual-sided LCD displays horizontal and vertical angles simultaneously, reducing the chance of field errors and keeping your crew productive. The built-in laser pointer cuts through daylight glare for faster target acquisition on distant rods and reference points—a genuine time-saver on open sites where heat shimmer and sun angle challenge conventional line of sight. The instrument runs on standard AA batteries, ensuring you're never sidelined by a proprietary power system on a long day in the field.

Key Specifications

• Angular Accuracy: 5-second (5")
• Telescope Magnification: 30x
• Minimum Focus Distance: 1.0 m (3.3 ft)
• Compensator Type: Liquid compensator
• Display: Dual-sided LCD, simultaneous H & V readout
• Laser Pointer: Class II integrated laser for target acquisition
• Waterproof Rating: IPX6 splash resistant
• Battery: AA alkaline (approx. 50–60 hours operation)
• Tribrach Mount: Standard 5/8" x 11 thread
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)

What's in the Kit

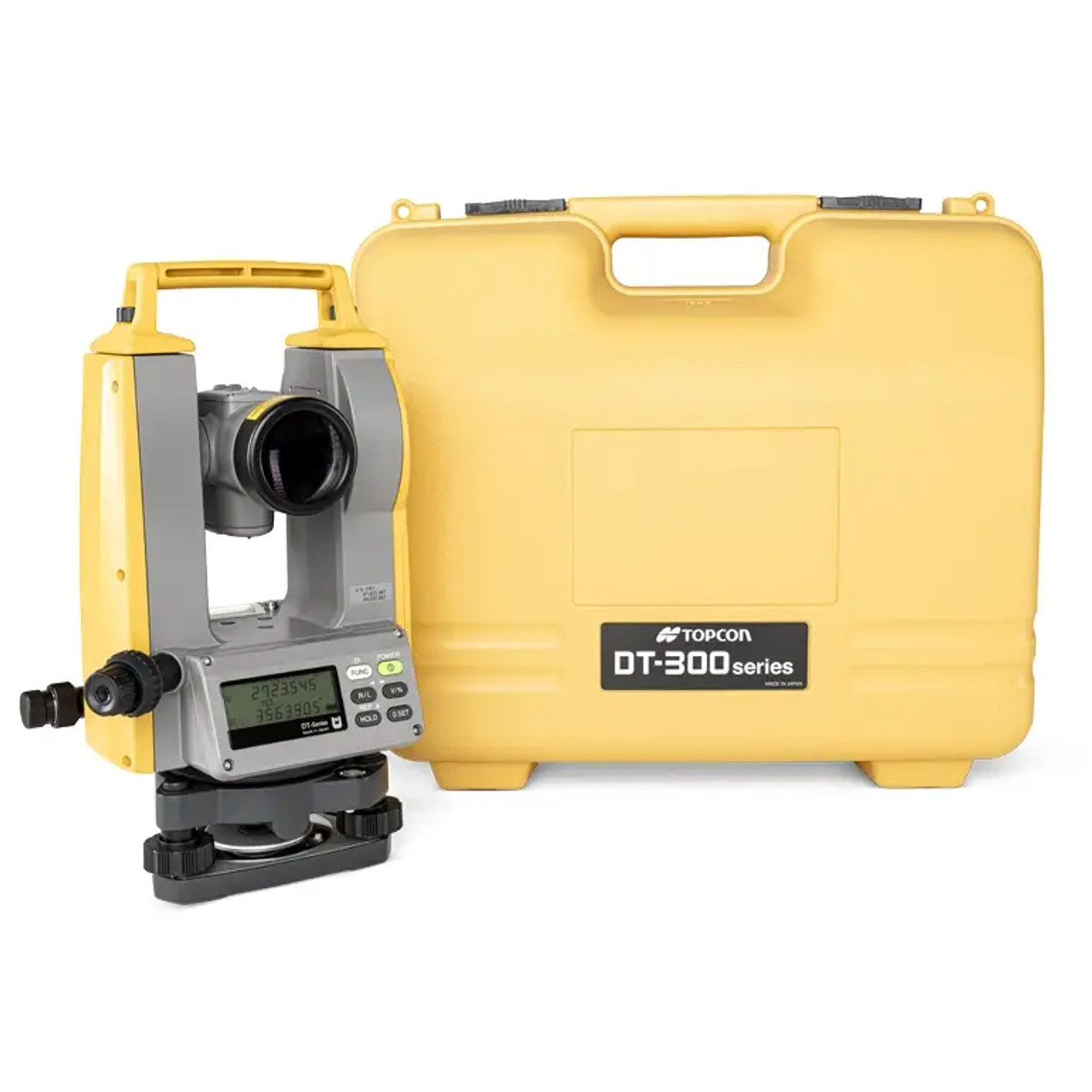

• Topcon DT305L Digital Theodolite
• Hard-shell carrying case with foam insert
• Lens cap and eyepiece cap
• Rain cover
• AA batteries (initial set)
• Operator's manual
• Certificate of calibration

Job Applications

Building Layout and Foundation Control: Set horizontal angles with 5-second resolution to establish column lines, foundation corners, and offset hubs with confidence. The DT305L's repeating angle function simplifies multi-point layouts on large commercial pads.

Property Boundary Verification: Survey crews use the DT305L to re-establish and verify lot corners, easement lines, and right-of-way limits where angular precision is critical and GPS canopy obstruction is a factor.

Structural and Mechanical Alignment: Plumb tall structures, align precast panels, and check verticality of columns and curtain wall frames. The vertical circle readout makes plumb work straightforward with no additional equipment needed.

Road and Utility Layout: Establish curve geometry, set slope stakes, and lay out underground utility alignments using deflection angles and arc calculations. The laser pointer keeps rod work efficient on long sight lines across open right-of-way.

Compatible Accessories

• Topcon Aluminum Tripod — Heavy-Duty Field Tripod
• Topcon Grade Rod and Level Rod Sets
• Optical Plummet Tribrach for DT Series
• Theodolite Carrying Strap and Field Case Cover
• AA Lithium Battery Multi-Pack for Extended Field Use

Related Guides

• How to Set Up and Level a Digital Theodolite on Site
• Theodolite vs. Total Station: Choosing the Right Instrument for Your Project
• Using a Laser Pointer Theodolite in Bright Daylight Conditions
• Construction Layout Basics: Angles, Offsets, and Hub Setting

Frequently Asked Questions

Does the DT305L measure distances, or is it angles only?

The DT305L is a digital theodolite—it measures horizontal and vertical angles only. It does not include an EDM (electronic distance measurement) module. For combined angle and distance measurement, consider a Topcon total station. The DT305L is ideal when you're pairing it with a tape, chain, or separate EDM for distance control.

What does the integrated laser pointer do on the DT305L?

The built-in Class II laser pointer projects a visible beam through the telescope objective, allowing the instrument operator to highlight a specific point on a rod, wall, or target from a distance. This is particularly useful in bright conditions where the crosshair view alone can be slow to communicate to a rod person. It does not measure distance—it strictly aids target identification and communication on site.

Is the DT305L compatible with standard surveying tripods?

Yes. The DT305L mounts on any tripod with a standard 5/8" x 11 thread—the most common thread pattern in professional surveying tripods. Topcon aluminum and fiberglass tripods are recommended for optimal stability, but the instrument is compatible with most quality field tripods from other manufacturers as well.

How does 5-second accuracy compare to other digital theodolites?

A 5-second (5") instrument provides angular resolution of 0.0014 degrees per reading—suitable for the vast majority of construction layout, structural alignment, and boundary survey tasks. For reference, a 1-second instrument offers higher precision but is typically reserved for geodetic or high-order control work. For building layout, road construction, and utility work, 5-second accuracy is the standard professional specification.
