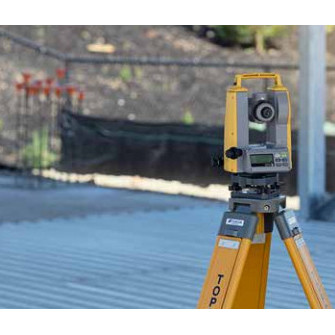

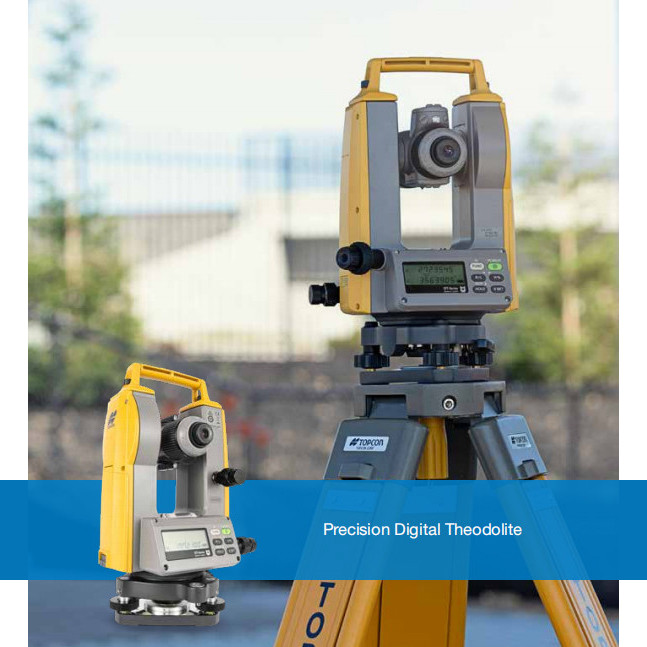

Topcon DT305 Digital Theodolite Kit with 5 Second Accuracy - Model

The Topcon DT-305 Digital Theodolite delivers 5-second (±5") angular accuracy in a rugged, field-proven optical-electronic package built for professional surveyors, civil contractors, and construction layout crews. Whether you're establishing control points on a boundary survey, laying out column grids on a structural pour, or verifying plumb on a multi-story tilt-up wall, the DT-305 gives you the repeatable precision your project schedule and liability exposure demand. Express Tools is an authorized Topcon dealer, meaning every unit ships factory-fresh with full manufacturer warranty support.

Instrument Overview & Jobsite Applications

Designed around Topcon's proven absolute encoder technology, the DT-305 eliminates index errors by reading the full circle on every measurement — no zeroing required after a power interruption. The large, high-contrast dual-sided LCD displays horizontal and vertical angles simultaneously, reducing transcription mistakes in the field. With an IP54 dust-and-splash rating, the instrument stands up to concrete dust, morning dew, and light rain without sacrificing a reading. The 30× magnification telescope with a 1.5 m minimum focus distance handles close-range layout work on confined job sites just as reliably as long-range line-of-sight tasks on open civil projects.

Key Specifications

• Angular Accuracy: ±5 arc-seconds (5")
• Measurement Type: Absolute encoder — horizontal & vertical
• Telescope Magnification: 30×
• Minimum Focus Distance: 1.5 m (4.9 ft)
• Display: Dual-sided LCD, simultaneous H/V angle readout
• Plate Level Sensitivity: 30"/2 mm
• Circular Level Sensitivity: 10'/2 mm
• Dust & Water Protection: IP54
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Battery Life: Approx. 70 hours continuous operation (AA alkaline)
• Weight: Approx. 4.6 kg (10.1 lbs) with tribrach

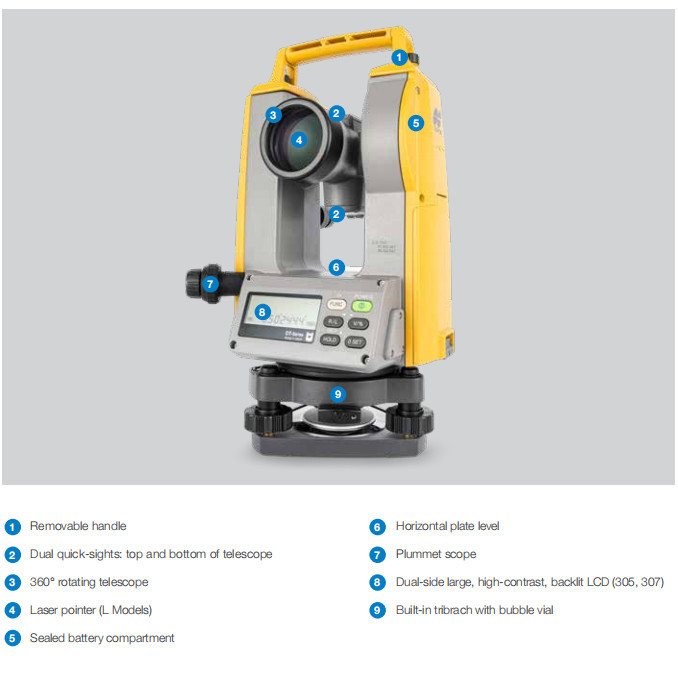

Key Features

• Absolute Encoder Technology: Reads full-circle position on power-up — no re-initialization after battery swap or shutdown
• Dual-Sided Display: Both operator and target-side LCD panels show live angle data, reducing communication errors on two-person crews
• 30× Optical Telescope: High-contrast crosshair and coated optics maintain sharp sight pictures in low-contrast conditions
• Repetition Clamp System: Accumulate and average multiple angle measurements for enhanced field accuracy on critical control shots
• Vertical Angle Hold: Lock vertical circle independently to speed layout workflows without disturbing the horizontal setting
• Standard AA Battery Power: No proprietary packs — grab replacements at any hardware store or site trailer
• Compact Tribrach Mount: Compatible with standard 5/8"-11 tribrach adapters for use on most surveying tripods
• Audible & Visual Alerts: On-screen warnings flag out-of-level conditions before a reading is recorded

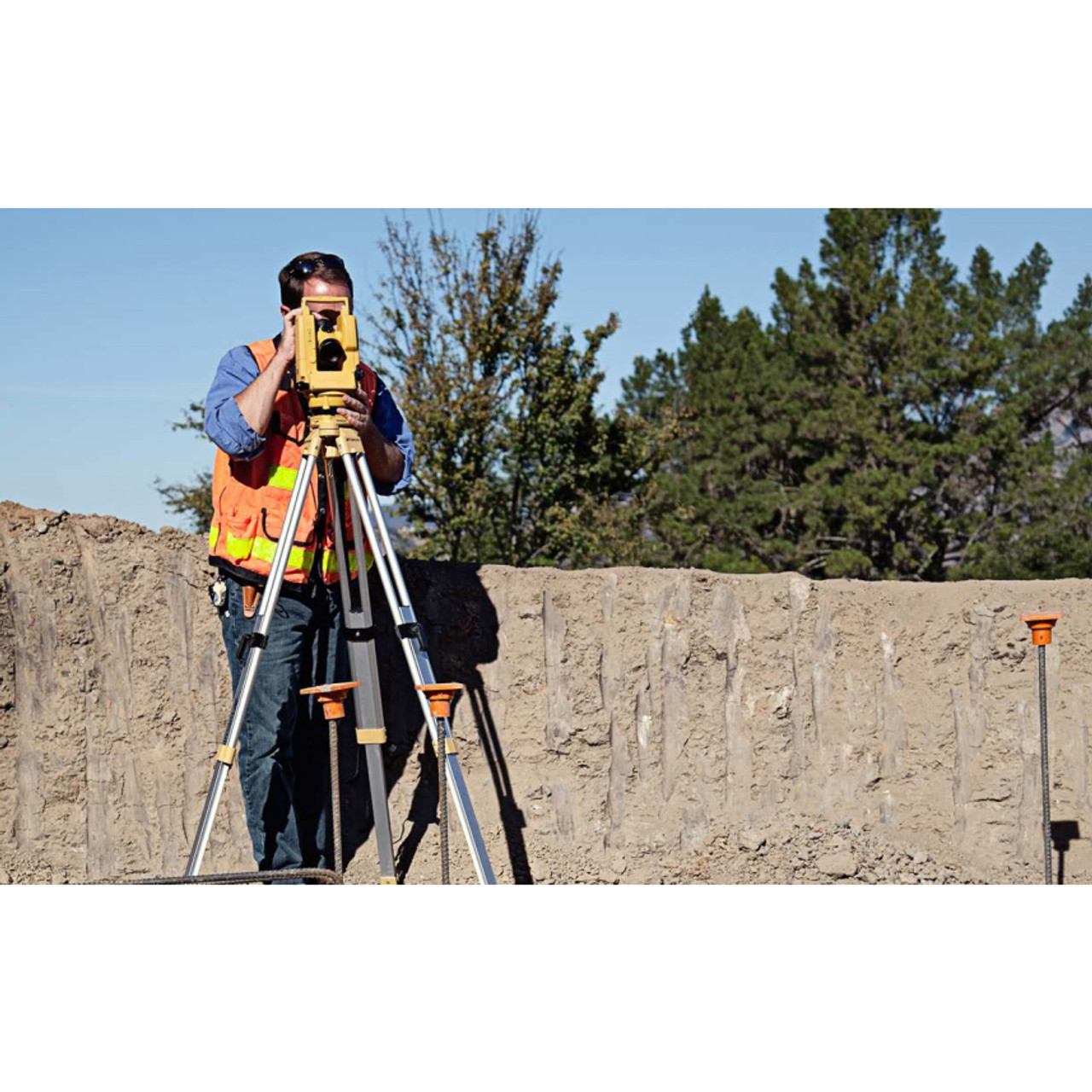

Job Applications

Boundary & Topographic Surveys: Establish traverse control points and turn precise deflection angles when running boundary lines. The 5" accuracy keeps closure errors within tolerance on lot surveys where deed bearings must be reproduced to the second.

Construction Layout & Column Grid: Set building corners, offset stakes, and structural column centerlines from a backsight with confidence. The repetition clamp lets crews average multiple angle shots on critical grid intersections before driving stakes.

Structural Plumb Verification: Use the vertical circle lock to hold a precise zenith angle while rotating the instrument around a column or wall panel, confirming plumb on tilt-up concrete and structural steel erection without relying on a single bubble level.

Pipeline & Utility Alignment: Turn deflection angles on sewer, water main, and conduit runs where horizontal alignment tolerances are specified by the engineer of record. The DT-305 provides a documented, repeatable angular record for as-built submittals.

Compatible Accessories

• Topcon Aluminum Tripod — Heavy-Duty Surveying Grade
• Topcon Tribrach with Optical Plummet
• Surveying Prism Pole with Target
• Plumb Bob & Centering Rod Kit
• Hard Carrying Case with Foam Insert
• AA Battery 8-Pack — Field Supply

Related Guides

• How to Set Up and Level a Digital Theodolite on the Jobsite
• Theodolite vs. Total Station: Which Instrument Does Your Project Need?
• Using Repetition Angles to Improve Field Accuracy
• Construction Layout Basics: Turning Angles from a Control Point

Frequently Asked Questions

What does 5-second accuracy mean in practical terms?

Five arc-seconds (5") is 1/720th of a degree. At 100 meters, a 5" angular error translates to approximately 2.4 mm of linear displacement — well within tolerance for most structural layout and boundary survey work. For projects requiring tighter specs, consider a 2" or 1" instrument.

Does the DT-305 measure distances, or only angles?

The DT-305 is a pure angle-measurement theodolite. It does not include an electronic distance measurement (EDM) module. If you need simultaneous distance and angle data in a single shot, look at Topcon's total station lineup available at Express Tools.

Is the DT-305 compatible with standard surveying tripods?

Yes. The instrument mounts via a standard tribrach with a 5/8"-11 threaded base, which is the industry-standard connection used by virtually all professional surveying tripods and tribrachs on the market.

How long does the battery last in cold-weather conditions?

Topcon rates the DT-305 at approximately 70 hours on a fresh set of AA alkaline batteries under normal conditions. In sub-freezing temperatures, battery capacity drops — field crews working below 0°C should carry a spare set of lithium AA batteries, which maintain capacity significantly better in cold environments.
