Overview

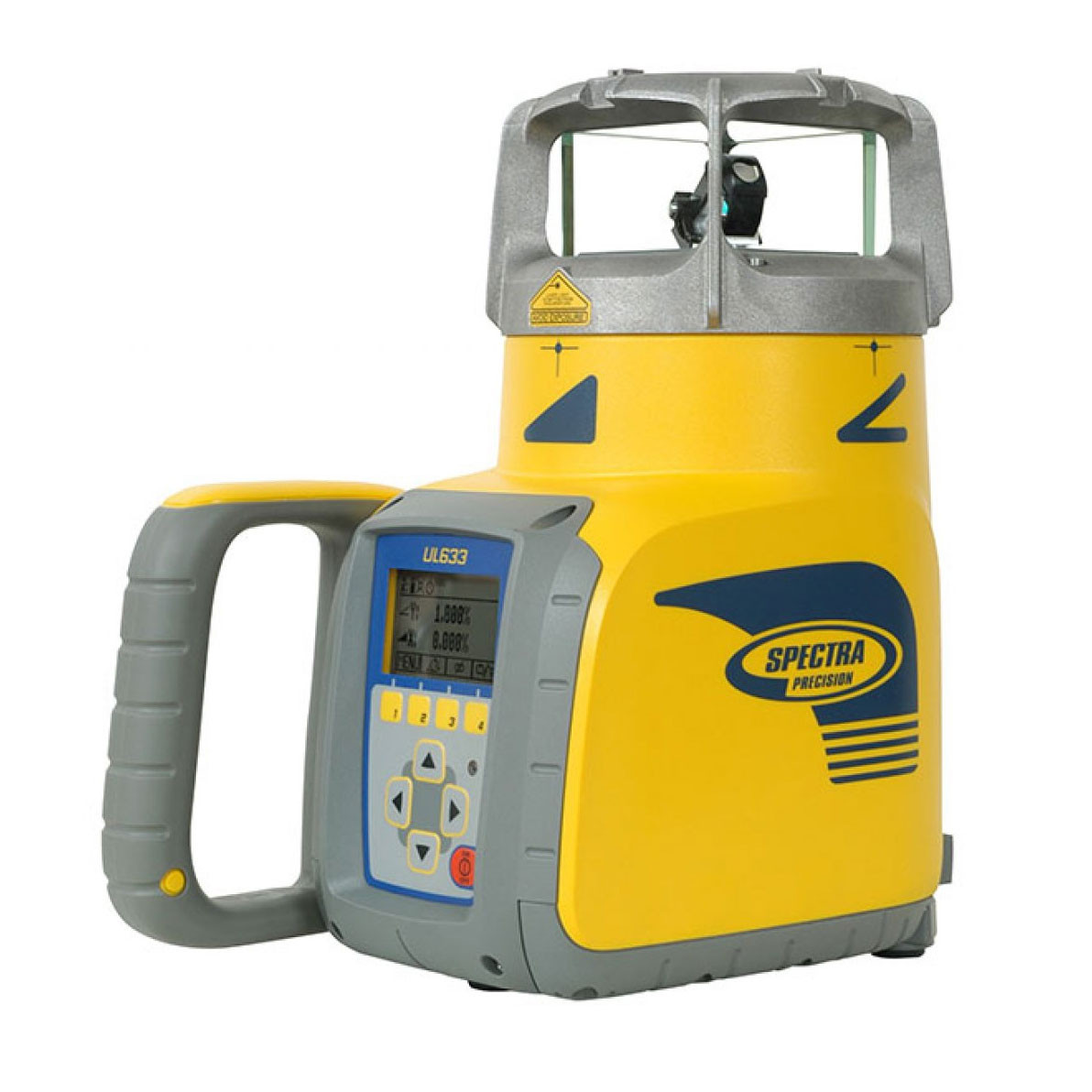

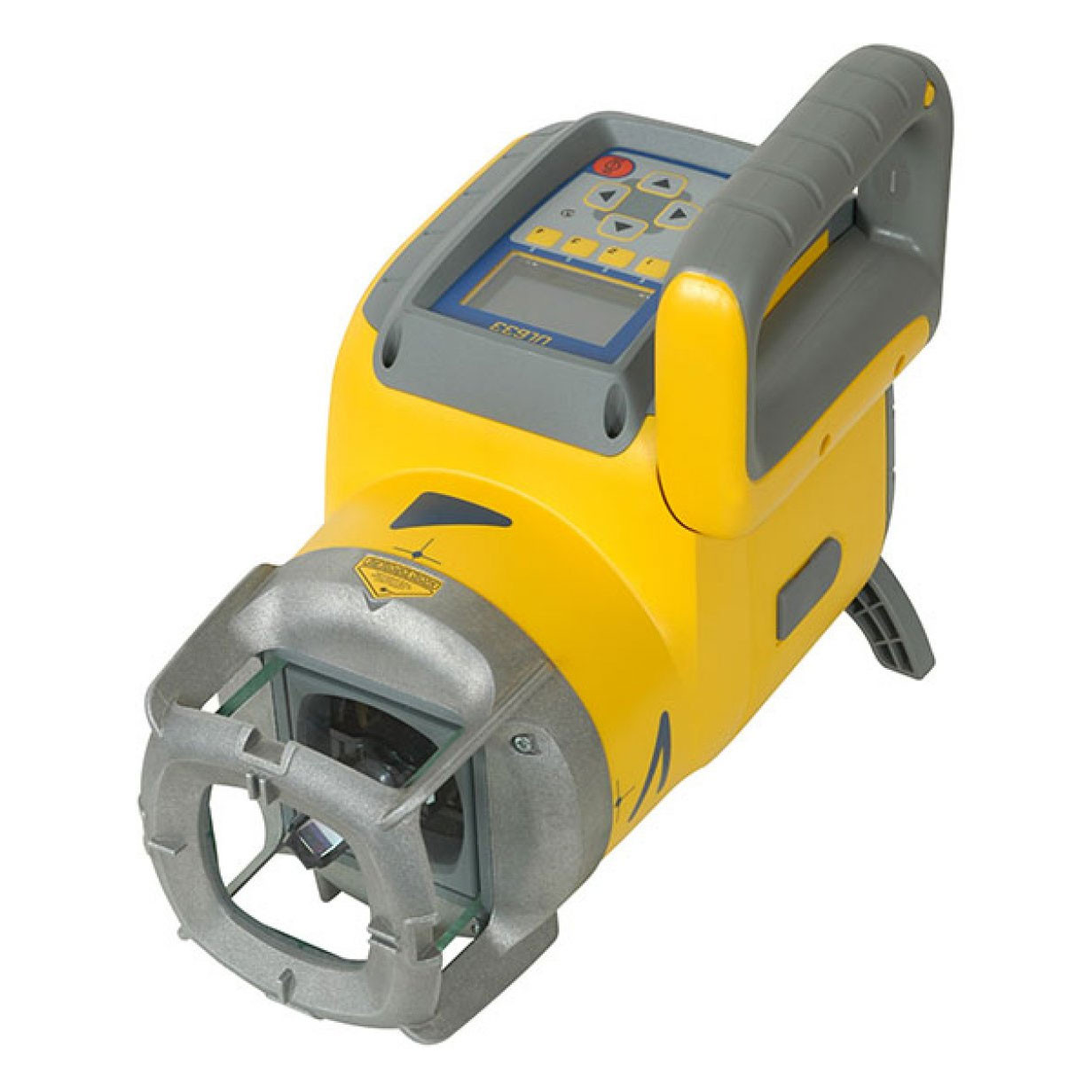

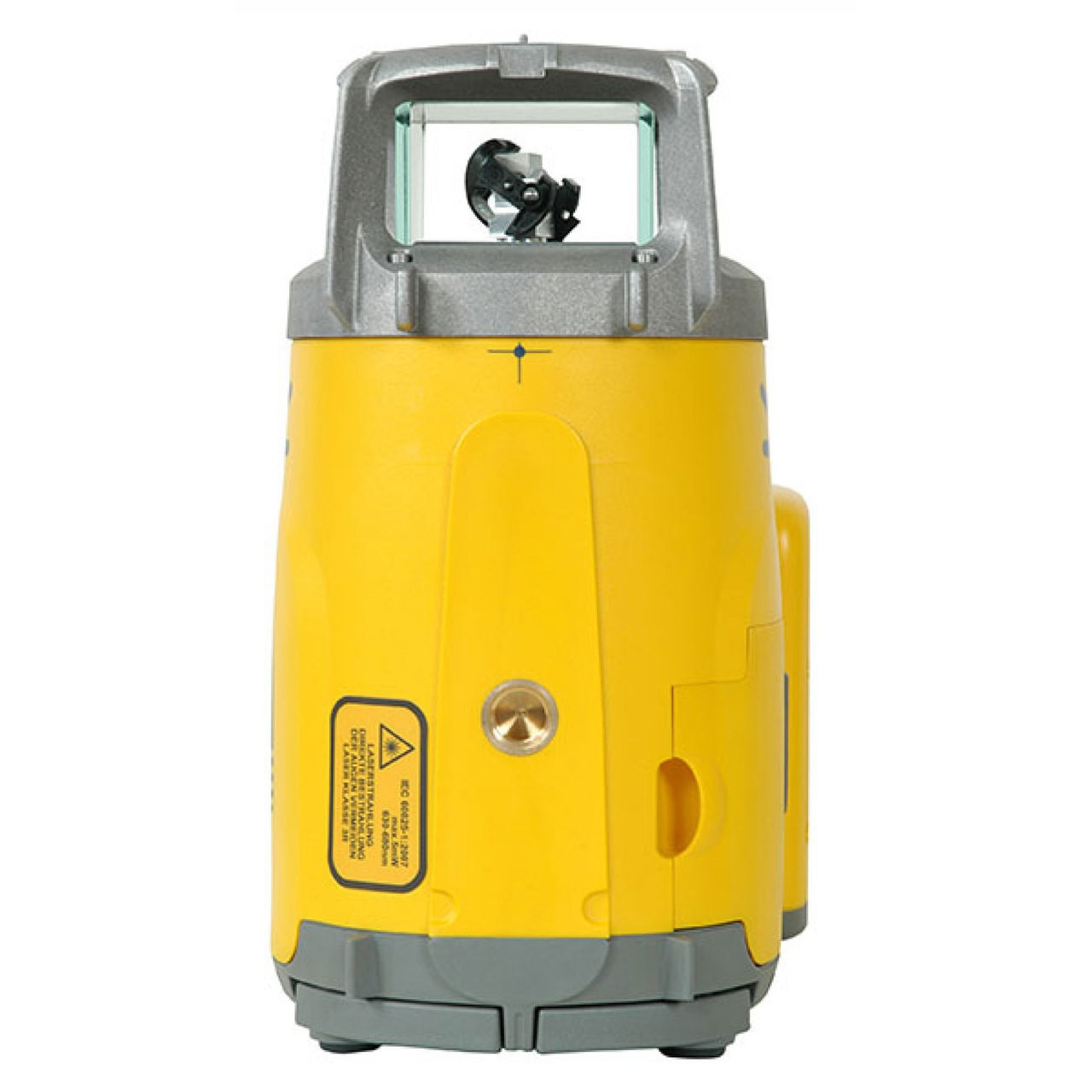

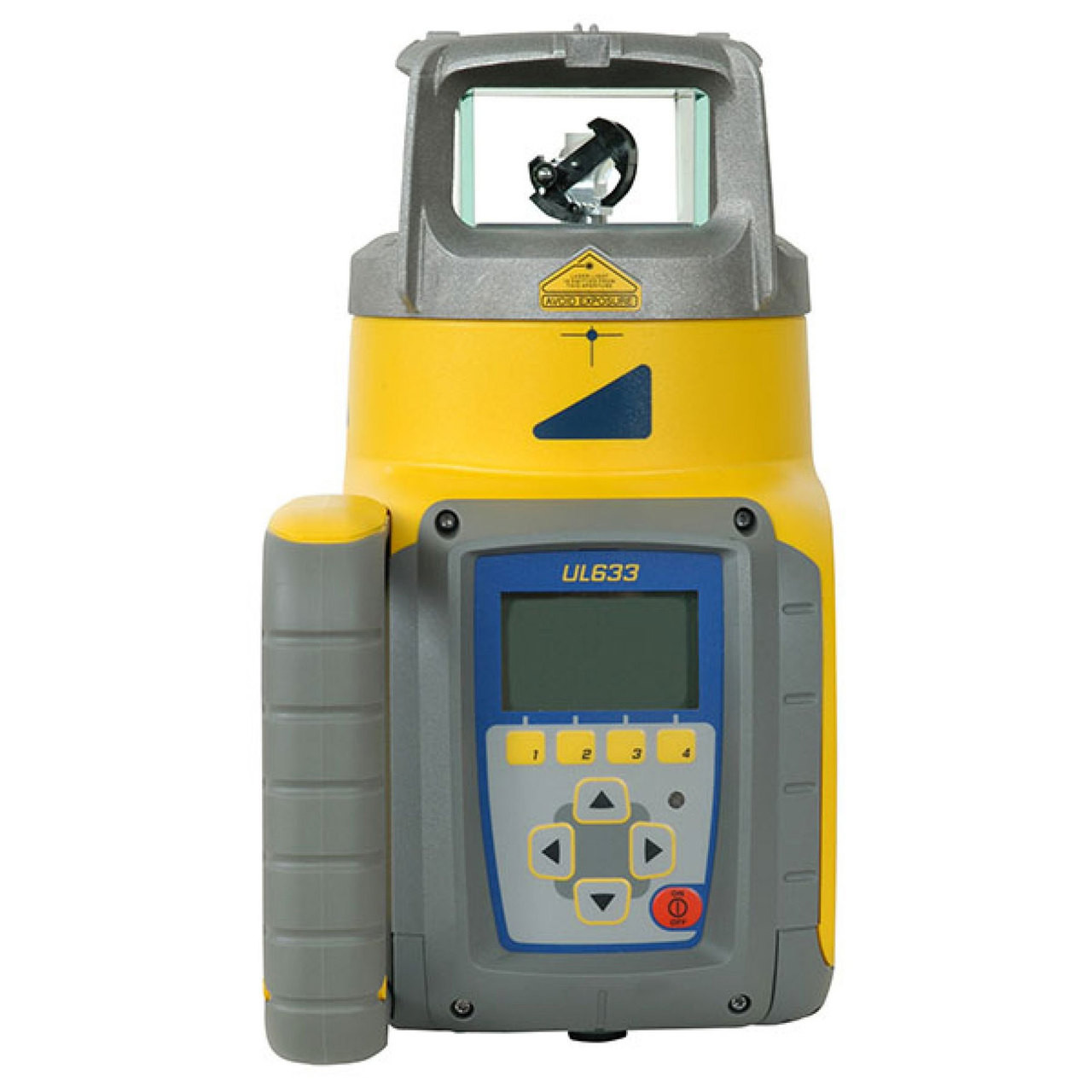

The Spectra Precision UL633 Universal Laser with HL750 Laserometer Receiver delivers four distinct operational modes in one field-hardened instrument—rotary laser, single-slope laser, plumb beam, and horizontal alignment—eliminating the need to transport multiple units across phased construction workflows. Built for commercial contractors and civil crews managing grade work, vertical plumbing, and horizontal alignment on the same site, this system replaces three specialized lasers while maintaining ±1/16" accuracy at 100 feet. The included HL750 receiver extends detection range to 2,600 feet diameter, enabling long-distance cut/fill operations and machine control handoffs without supplemental detection equipment. IP67 dust and water protection, integrated drop protection to 1 meter on all axes, and a -20°F to 140°F operating envelope ensure reliability across foundation pours, high-rise plumbing, site grading, and utility trenching applications regardless of environmental conditions.

Key Specifications

• Accuracy: ±1/16" at 100 feet (rotary/horizontal modes); ±3/16" at 100 feet (plumb mode)
• Leveling Range: ±5° self-leveling with electronic sensors
• Rotation Speed: 0, 150, 300, 600 RPM (four-speed selection)
• Receiver Detection Range: 2,600-foot diameter with HL750 Laserometer
• Slope Capability: Single-axis manual slope to 15% in 0.1% increments
• Beam Type: Class 3R visible red diode (635nm wavelength)
• Operating Temperature: -20°F to 140°F (-29°C to 60°C)
• Protection Rating: IP67 sealed against dust ingress and temporary water immersion

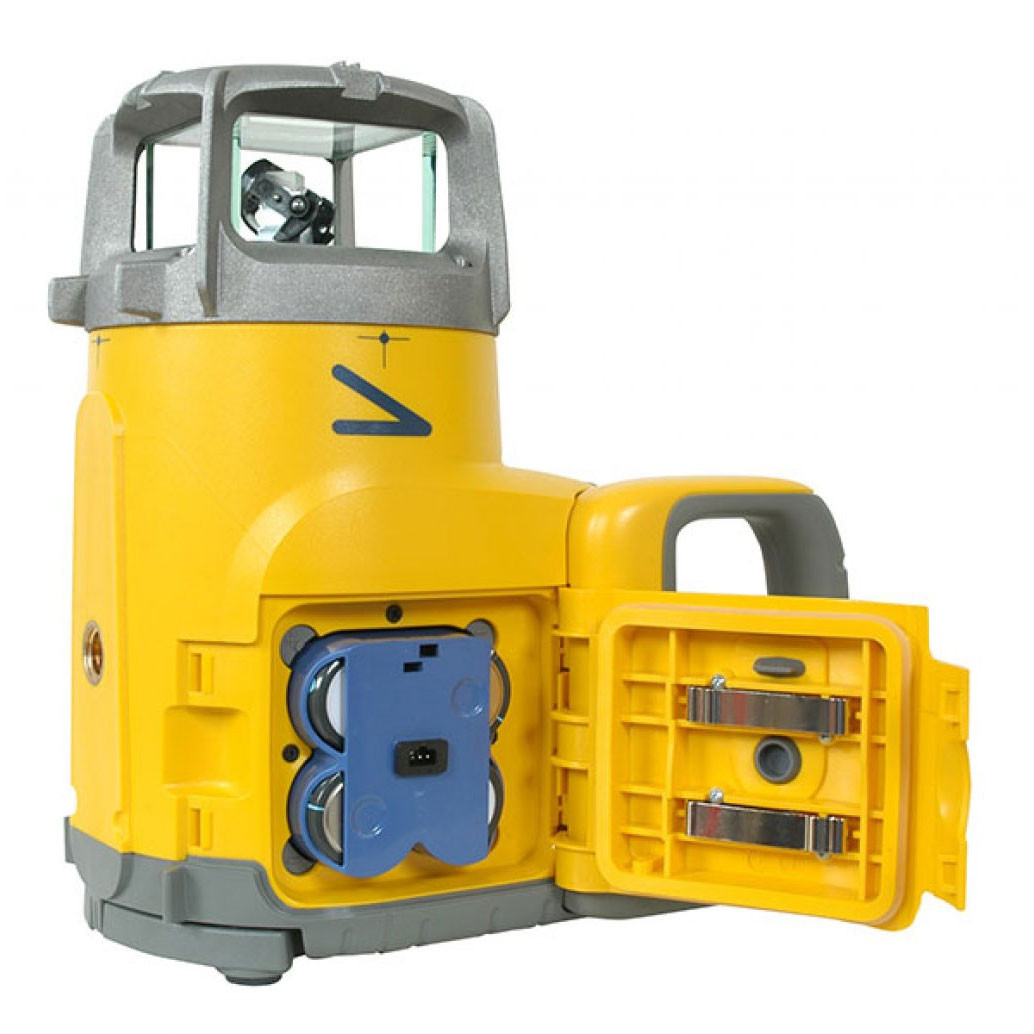

• Battery Runtime: 60 hours on alkaline D-cells; 40 hours on NiMH rechargeable pack
• Control Interface: Two-button operation with mode-select and power functions
• Drop Protection: Engineered housing survives 1-meter drops onto concrete

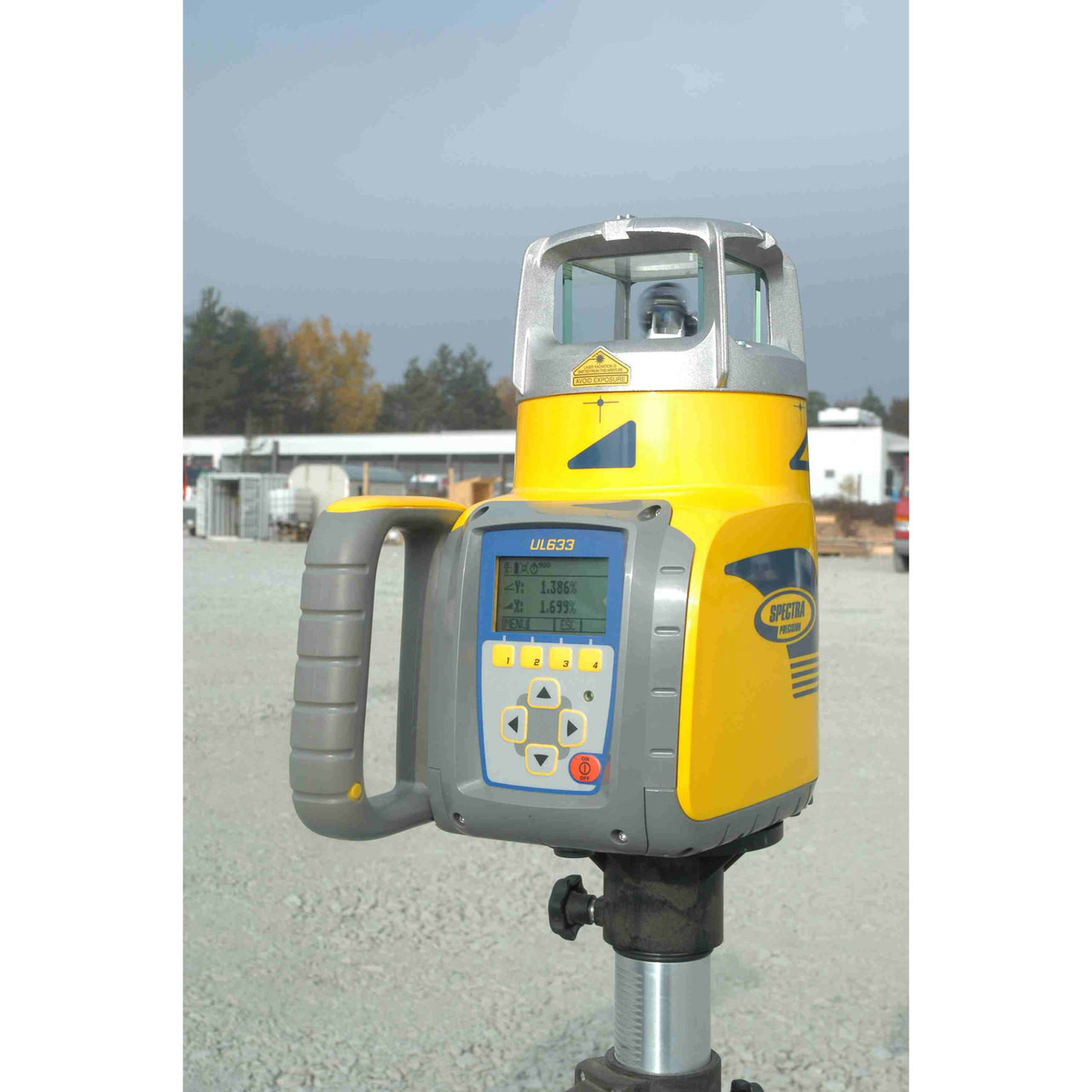

• Mounting: 5/8"-11 threaded insert for tripod/pole attachment

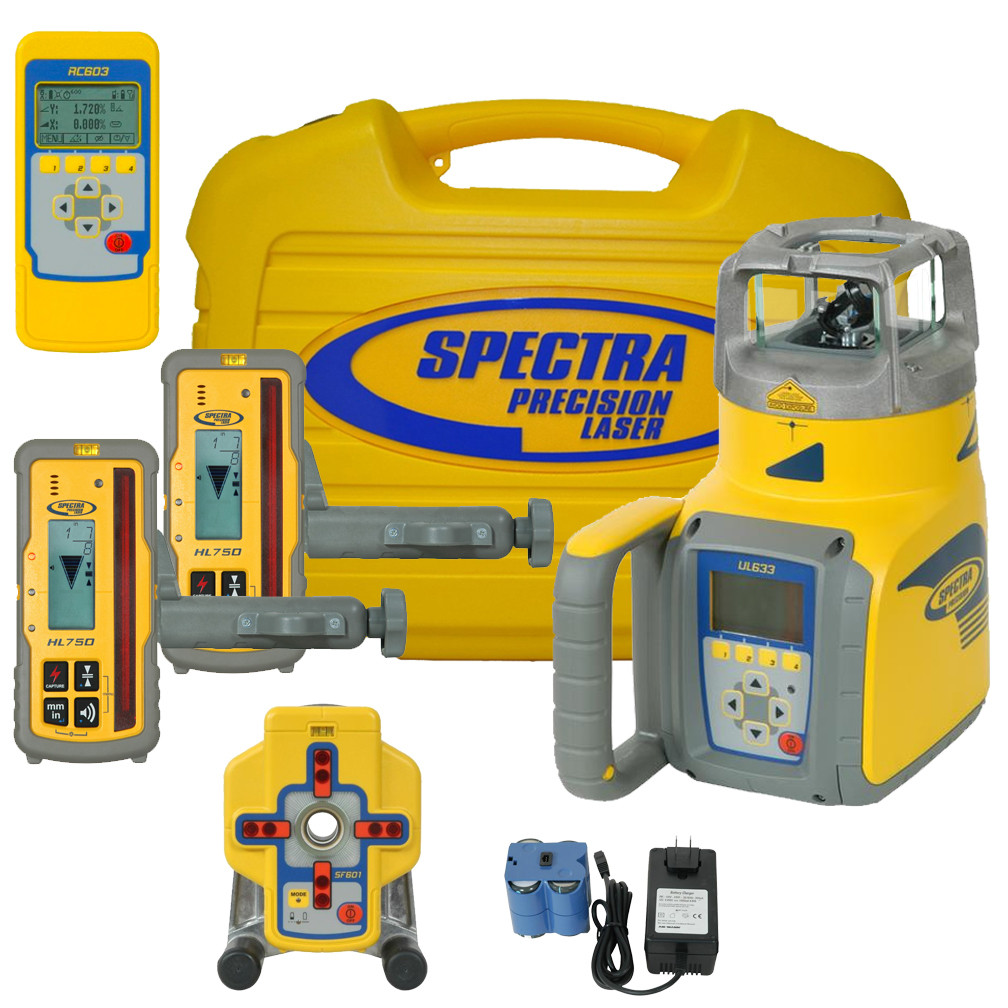

What's in the Kit

• UL633 Universal Laser (four-mode transmitter)
• HL750 Laserometer Receiver with rod clamp
• RC602N Remote Control (200-foot operational radius)
• Alkaline D-cell battery pack (four cells included)
• Padded hard-shell carrying case with die-cut foam inserts
• Operator manual and quick-reference setup card
• Manufacturer calibration certificate with test data

Job Applications

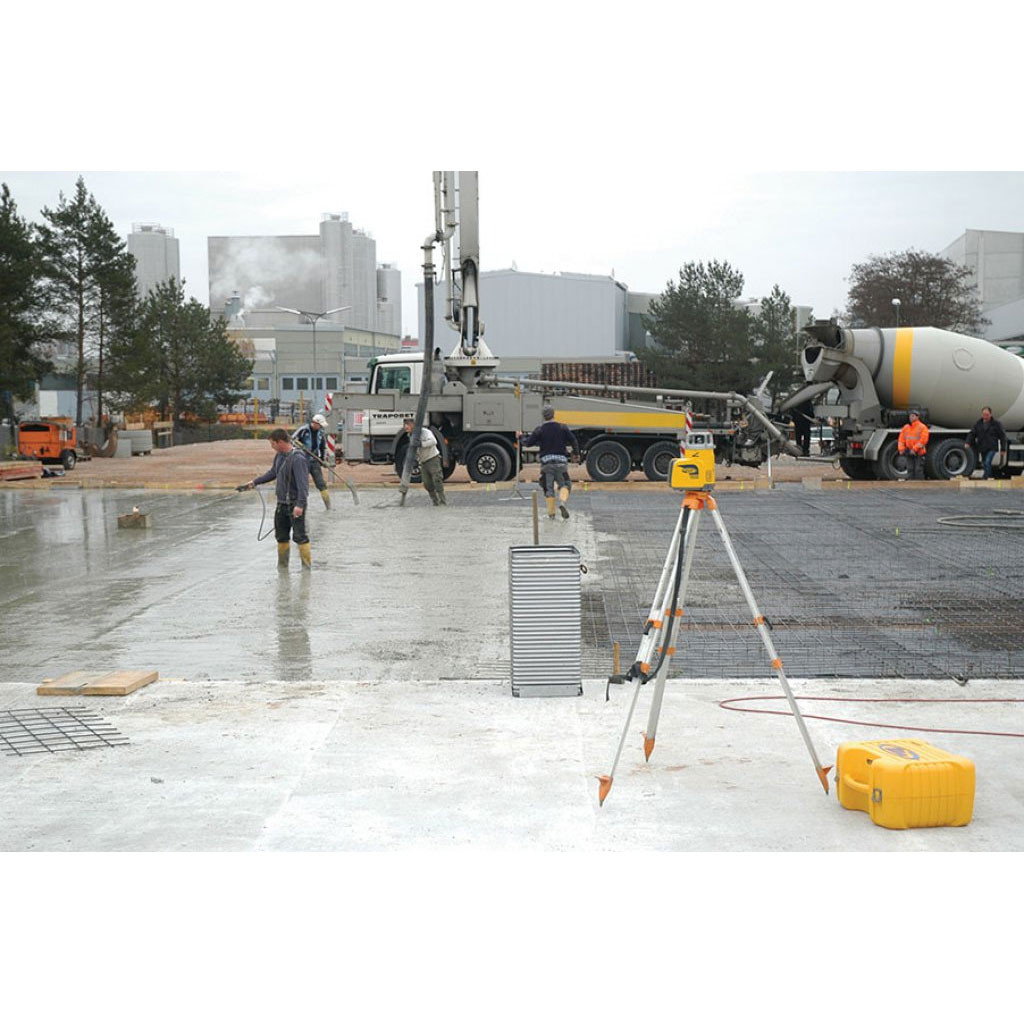

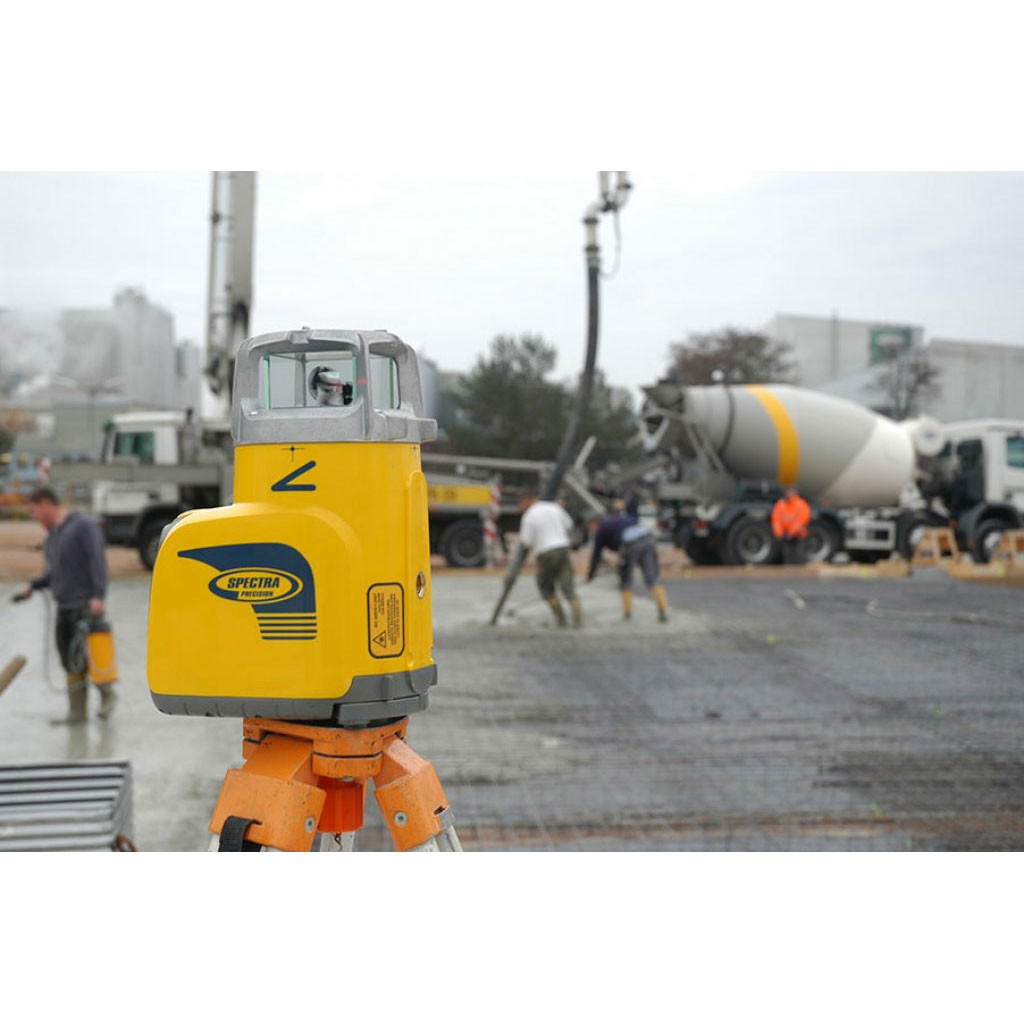

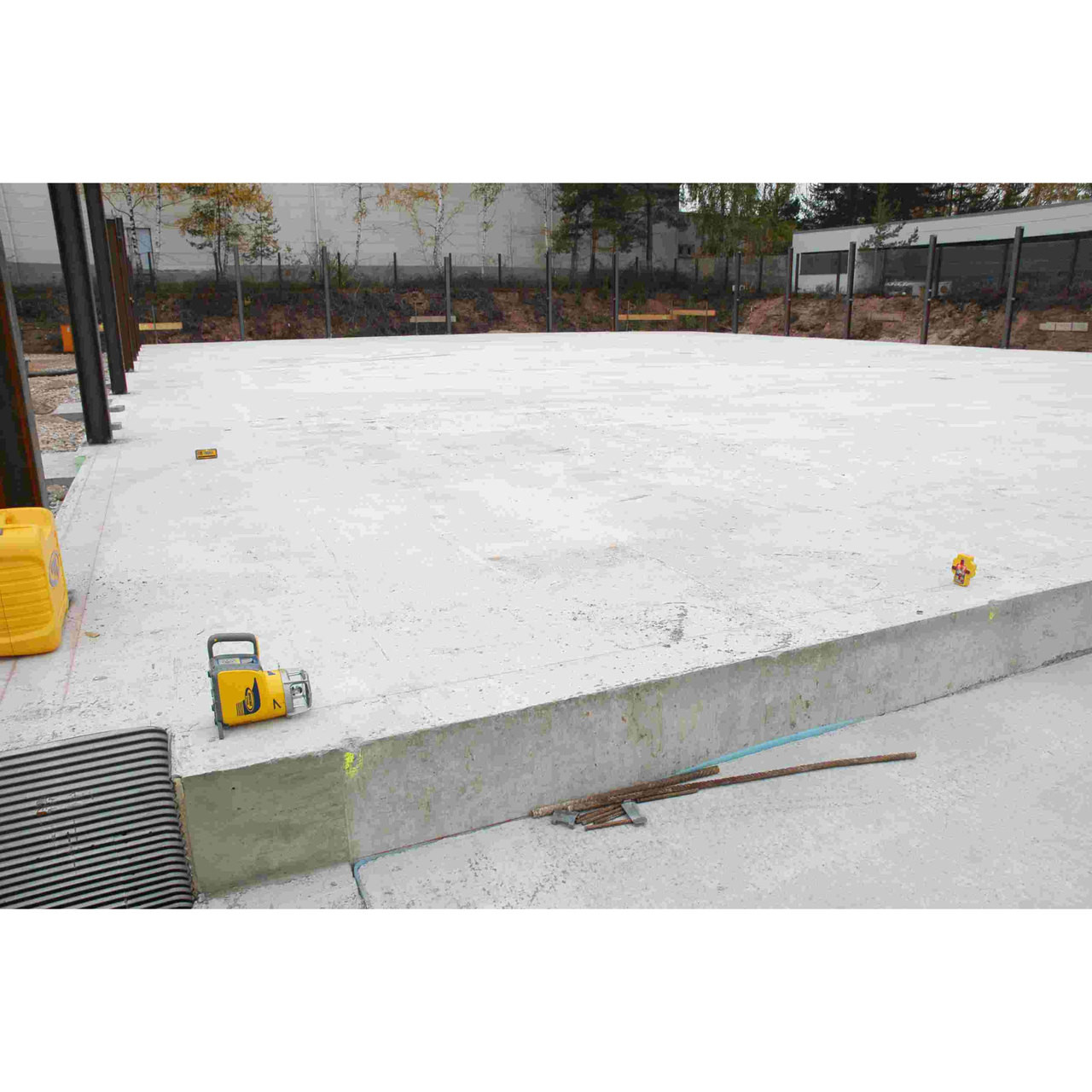

• Concrete Slab Pours: Rotary mode establishes consistent elevation reference across large deck areas, while the HL750's continuous grade readout eliminates manual rod readings during screed operations—critical for maintaining ACI tolerances on post-tension and elevated slabs.
• Site Grading and Excavation: Single-axis slope functionality sets drainage gradients for parking lots, building pads, and stormwater channels without requiring dual-slope transmitters, reducing setup complexity when transitioning between flat excavation zones and pitched swale work.
• Exterior Wall Plumbing: Plumb beam mode projects vertical reference lines for tilt-up panel alignment, curtain wall installation, and structural steel column verification—applications where traditional optical plummets lack the range to cover multi-story elevations from a single setup position.

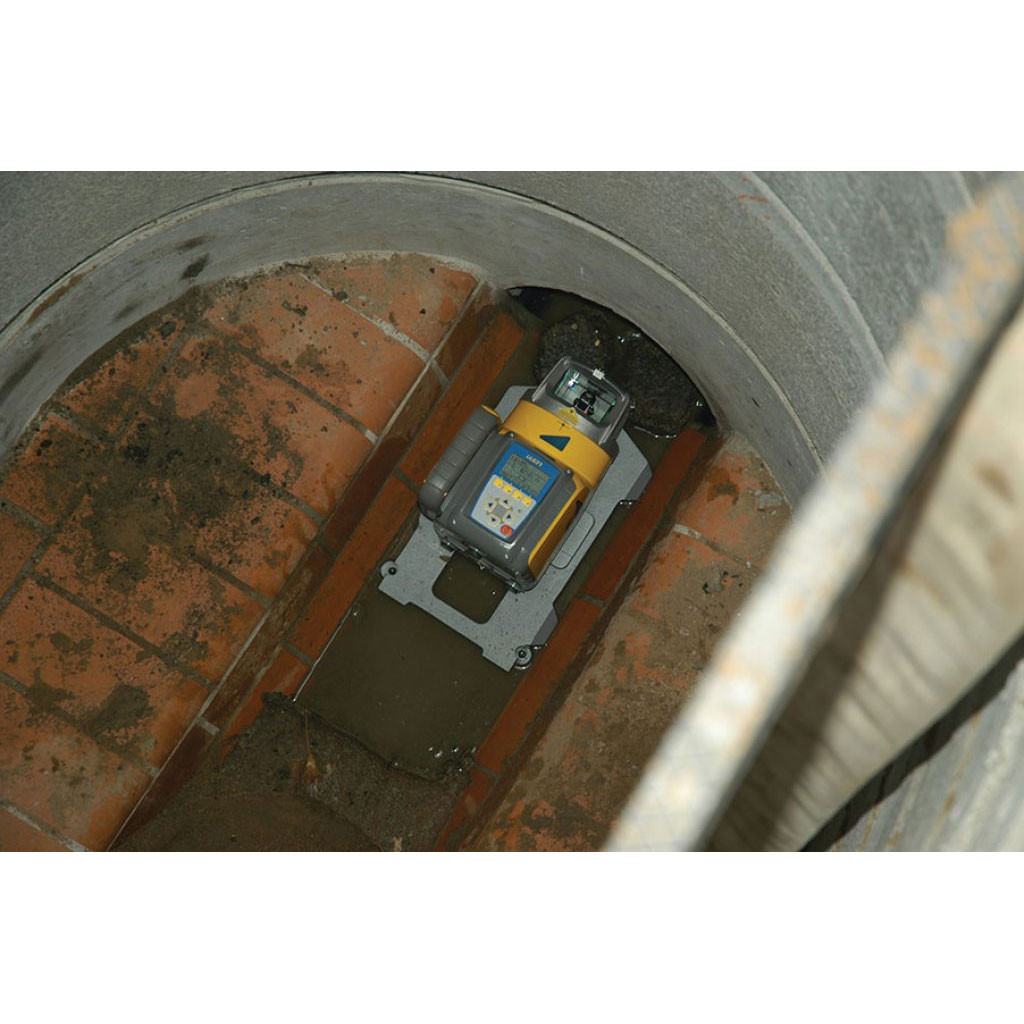

• Underground Utility Trenching: Extended 2,600-foot receiver range supports open-cut sewer and storm drain projects where laser visibility exceeds 1,000 feet between manholes, maintaining grade control without intermediate setups that interrupt excavation productivity.

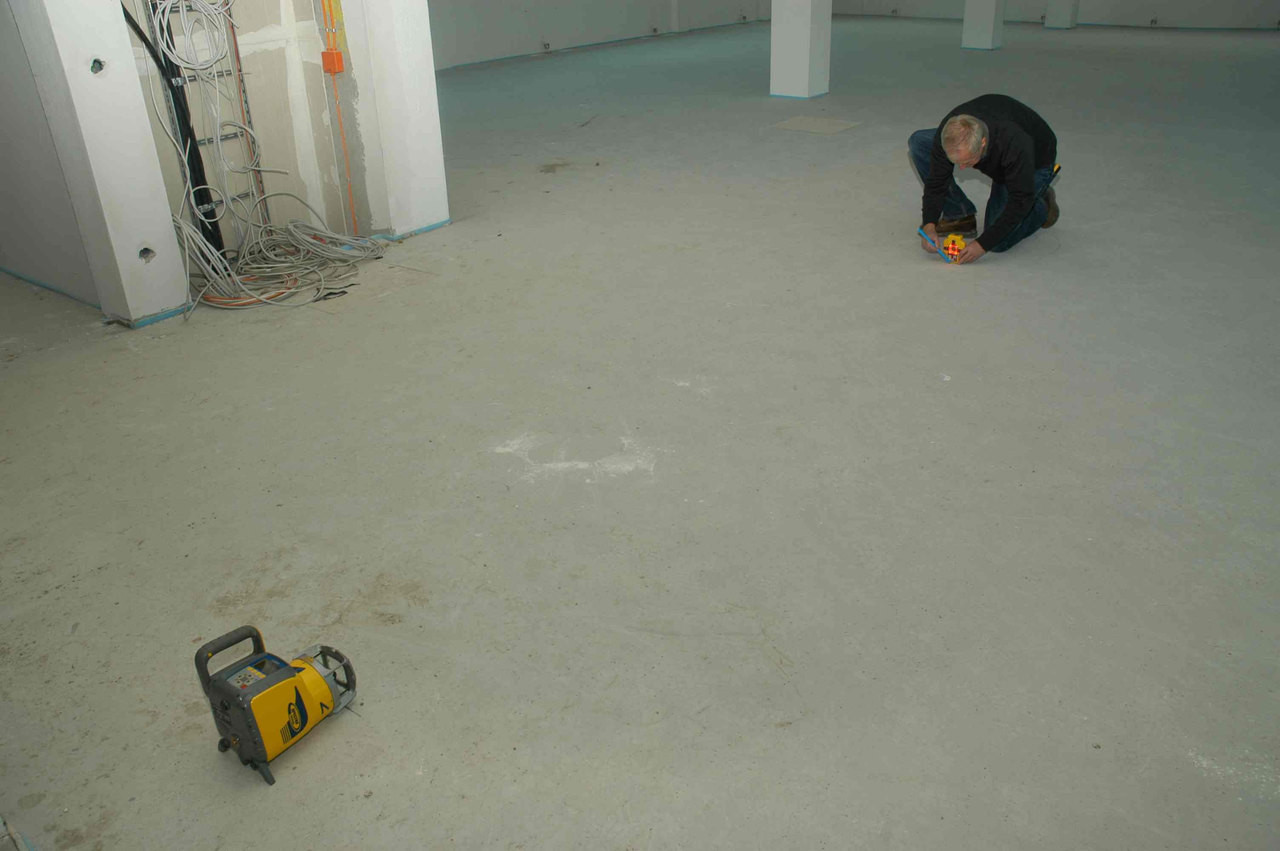

• Interior Ceiling Grid Layout: Horizontal line mode (with receiver on grade rod) provides elevation benchmarks for suspended ACT systems and MEP rough-in across tenant improvement spaces, eliminating the need to swap between rotary lasers and line generators during sequential trades.

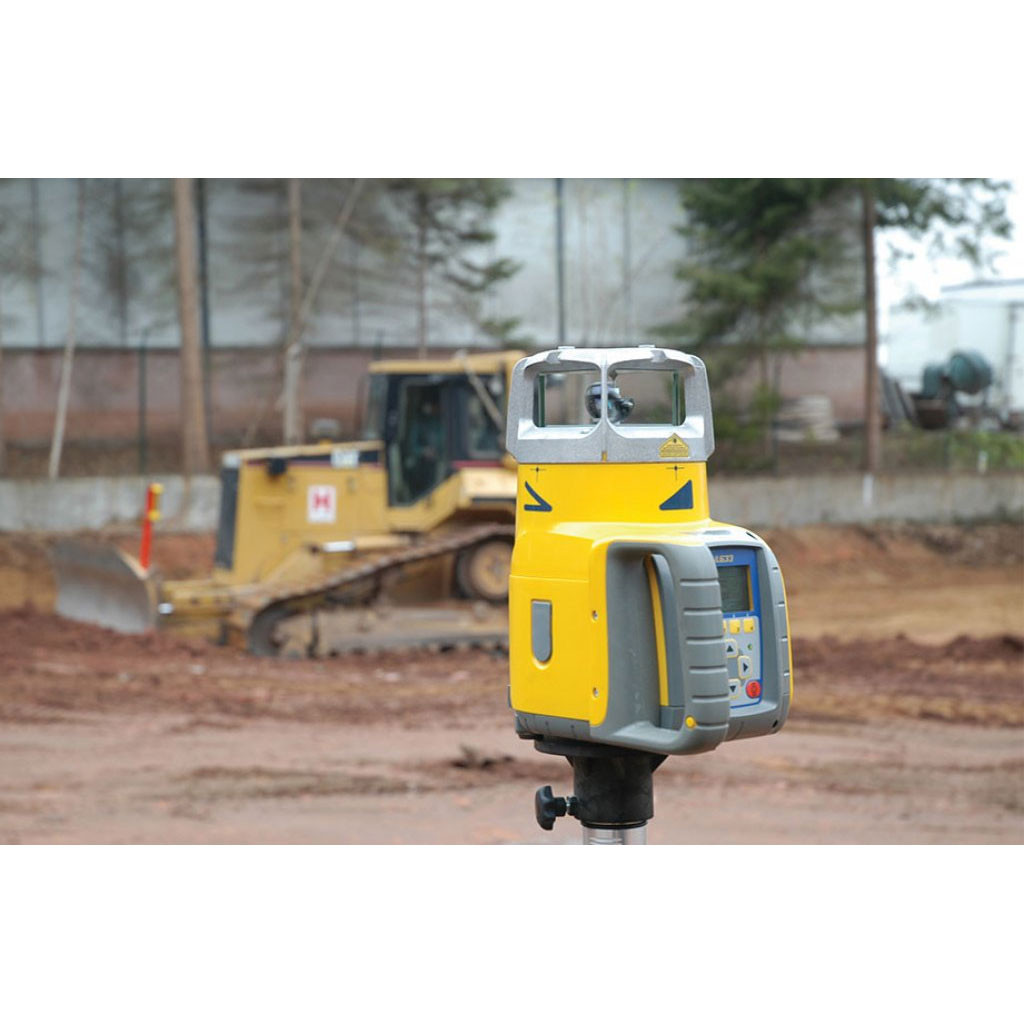

• Machine Control Grade Checking: Rotary output at 600 RPM interfaces with dozer/excavator receivers for automated grading verification, while the same unit switches to 150 RPM for manual grade rod confirmation—consolidating GPS and conventional workflows with compatible detection hardware.

Compatible Accessories

Spectra HL760 Digital Display Receiver (millimeter readout for high-precision applications)
Spectra Rechargeable NiMH Battery Pack (reduces alkaline cell consumption on daily-use crews)
25-Foot Aluminum Grade Rod with Tenths (extends receiver detection in deep excavation zones)
Heavy-Duty Laser Tripod with Quick-Clamp Head (stable platform for uneven terrain setups)
Universal Laser Detector Pole Clamp (aftermarket replacement for rod-mounted receiver positioning)
Spectra Red Laser Enhancement Glasses (improves beam visibility in high-ambient light conditions)

Related Guides

How to Set Slope on Single-Grade Lasers
Rotary Laser vs. Line Laser: Which Layout Tool for Your Application?
Laser Level Won't Self-Level: Diagnosis and Field Fixes
Extending Laser Detection Range in Bright Sunlight

Frequently Asked Questions

Can the UL633 run dual-axis slope for cross-slope grading applications?

No. The UL633 provides single-axis slope only (manual adjustment up to 15% grade in one direction). For cross-slope work such as crowned roads or dual-pitch parking lots, consider the Spectra GL622 or GL722 dual-grade lasers with X/Y-axis electronic slope control. The UL633 excels in applications requiring flat reference planes or single-direction drainage grades.

What's the effective receiver range in direct sunlight without a locator card?

The HL750 maintains reliable detection to approximately 1,000 feet diameter in full sunlight when mounted on a grade rod at standard working height (4-6 feet). Maximum 2,600-foot range applies in dawn/dusk conditions or shaded environments. For extended bright-condition range, use laser enhancement glasses to visually track the beam, or upgrade to the HL760 receiver with enhanced photodiode sensitivity.

Does the system store slope settings when powered off between setups?

No. The UL633 requires slope recalibration each time the unit is powered on or moved to a new setup location. Slope values are not stored in memory. For repetitive drainage work at consistent grades (such as 2% sewer laterals), document the slope adjustment procedure or use a dual-grade laser with preset memory functions to reduce daily setup time.

Can I mount the UL633 on a grade pole for interior slab work instead of a tripod?

Yes, but with limitations. The 5/8"-11 threaded mount accepts standard laser pole adapters, and the unit's 1-meter drop protection tolerates minor bumps during repositioning. However, pole-mounted setups lack the three-point stability of tripods—acceptable for quick spot-checks or confined spaces, but not recommended for long-duration pours where vibration from power trowels or foot traffic may disturb leveling accuracy. Always verify level status using the instrument's indicator before critical measurements.

```
