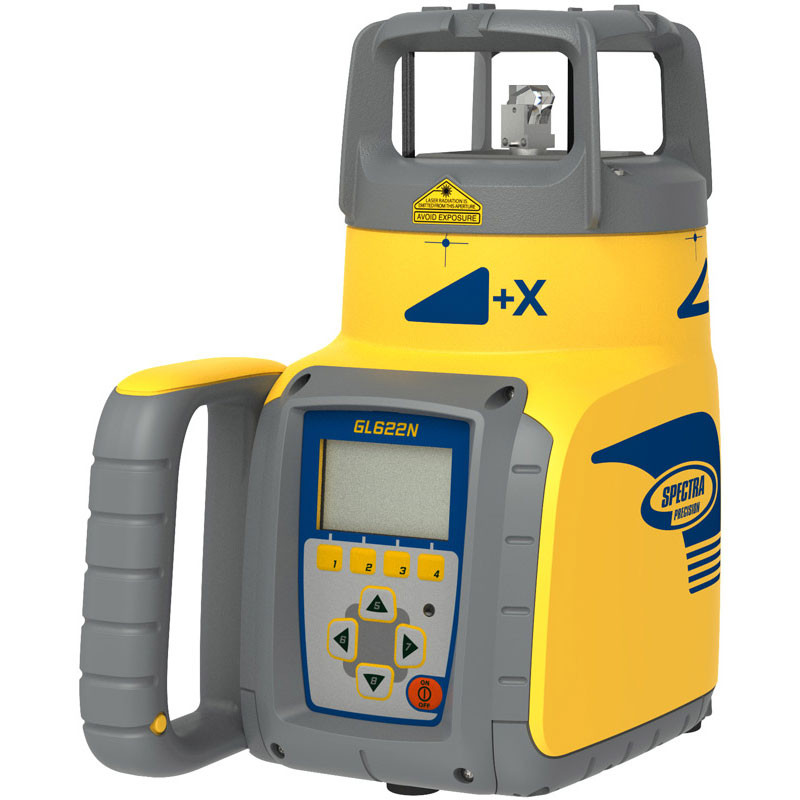

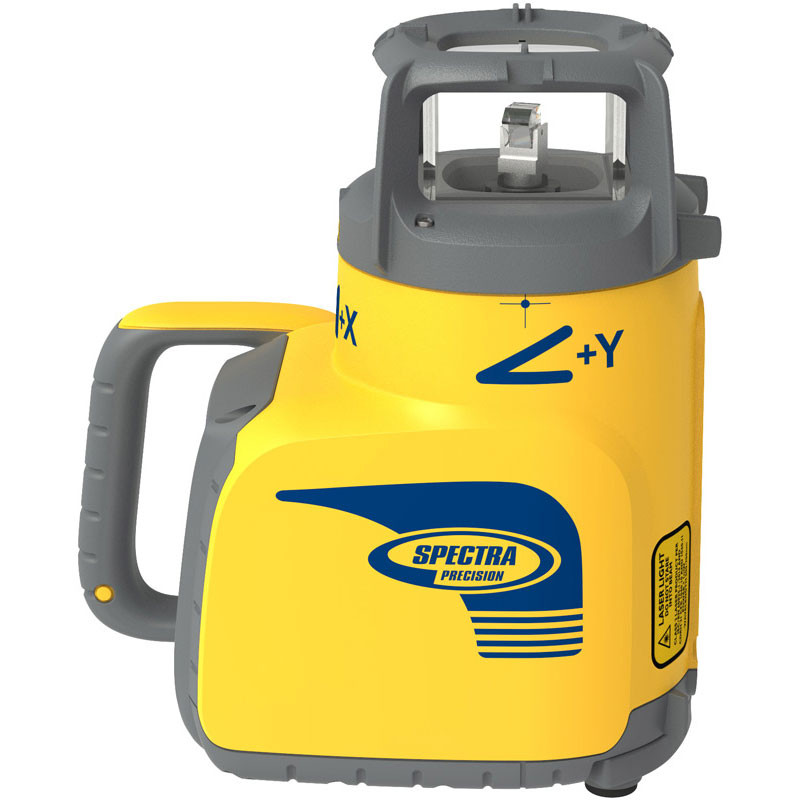

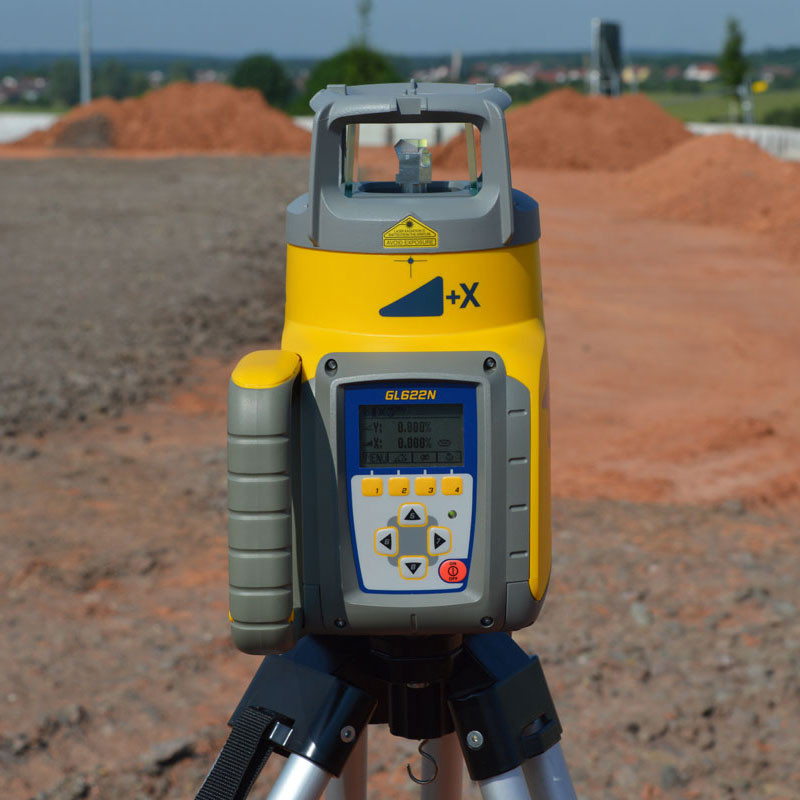

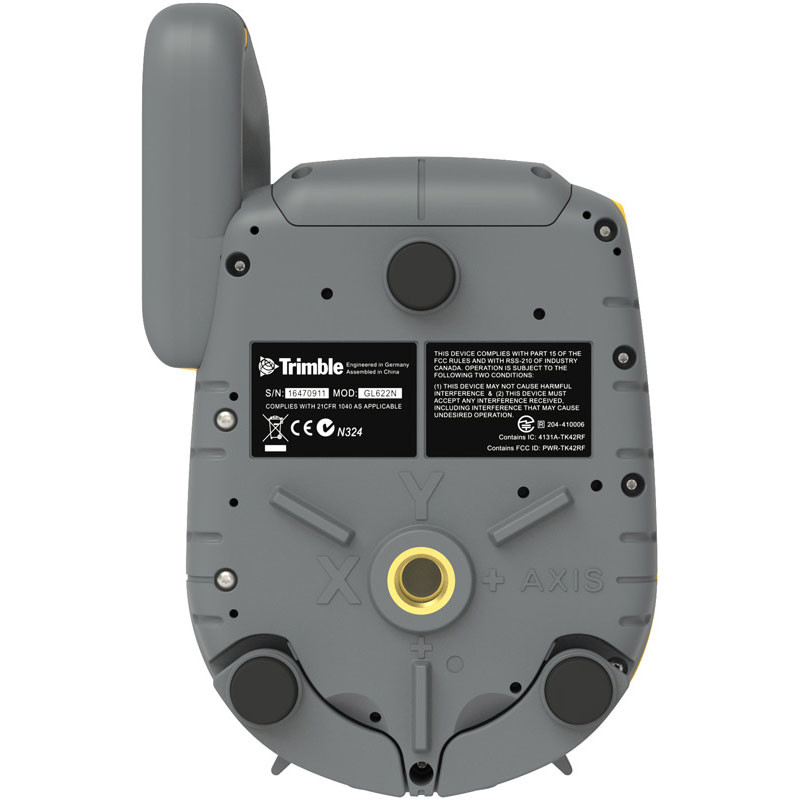

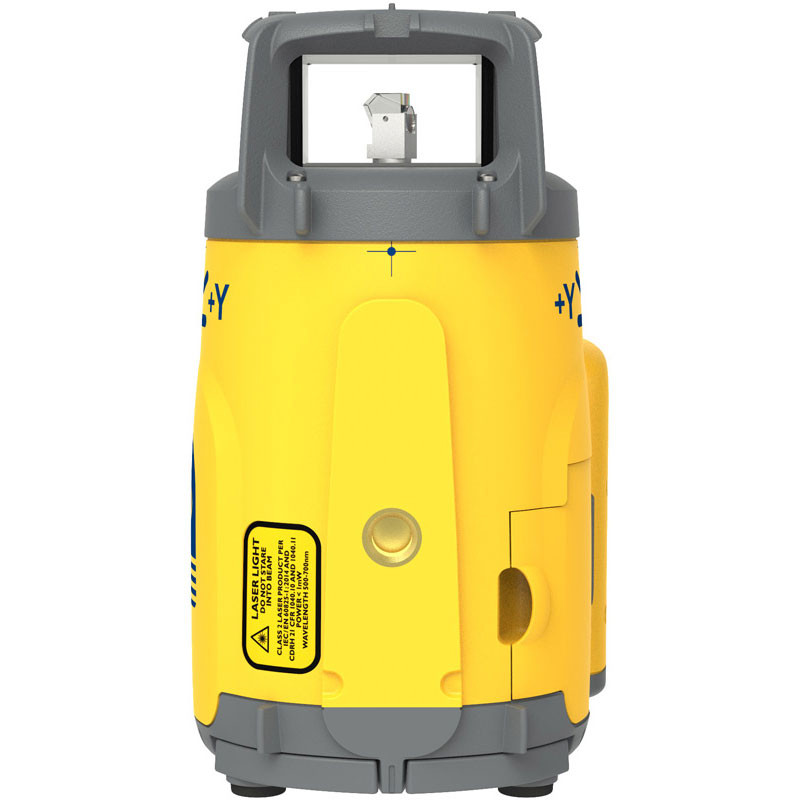

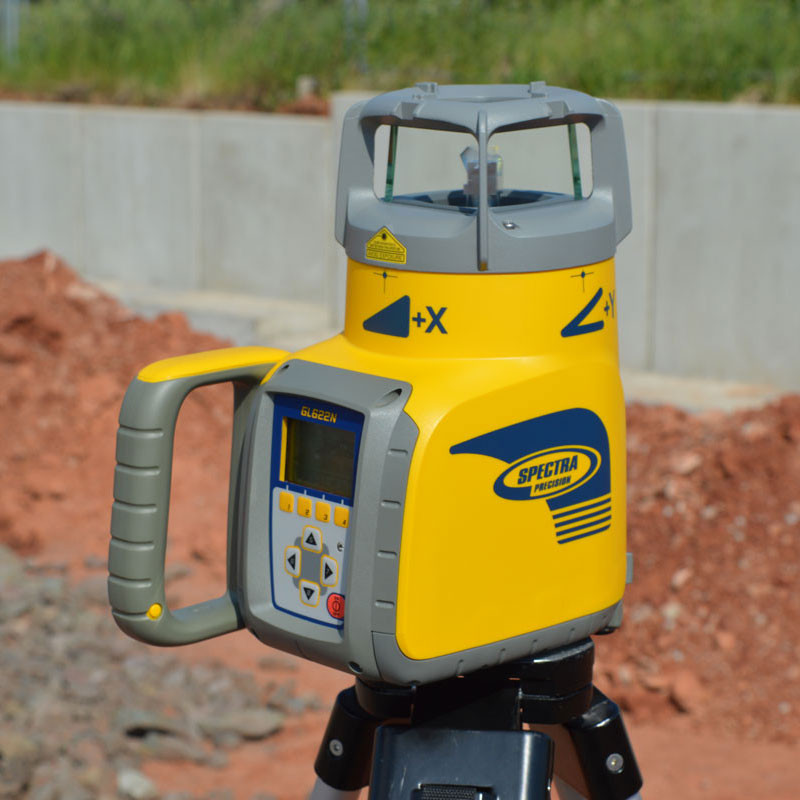

Spectra Precision GL622N-14 Dual Grade Laser with CR700 Receiver

Overview

The Spectra Precision GL622N-14 Dual Grade Laser System represents the pinnacle of grading technology for professional contractors who demand precision and reliability on every jobsite. This comprehensive package combines the field-proven GL622N dual grade laser with the advanced CR700 digital receiver, creating a complete solution for complex grading operations including parking lots, building pads, drainage systems, and athletic fields. With true dual-axis grade capability and industry-leading accuracy of ±1/16 inch at 100 feet, this system eliminates costly rework while dramatically increasing productivity on projects with challenging elevation requirements.

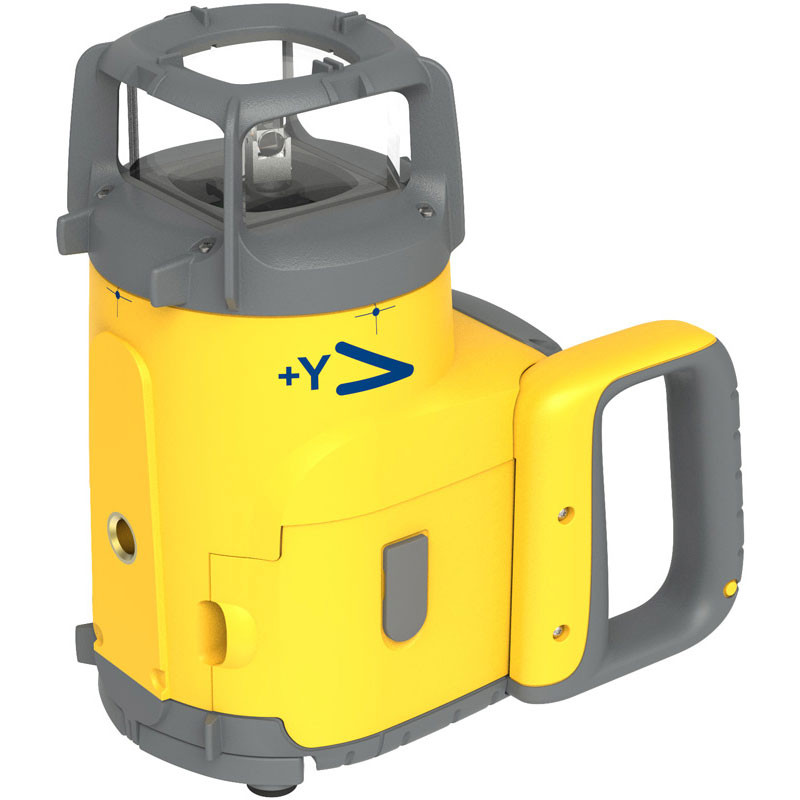

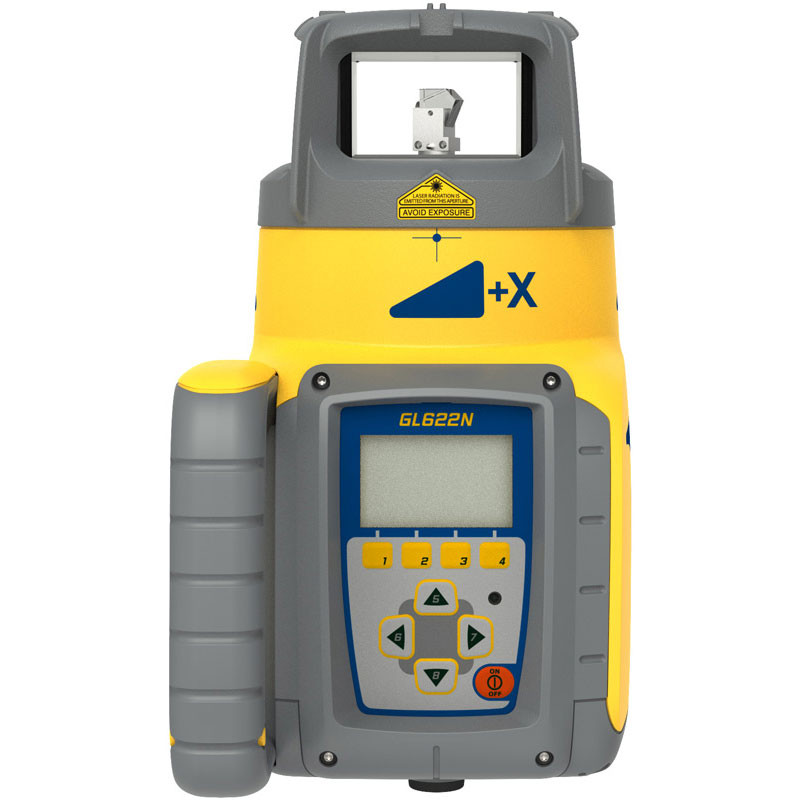

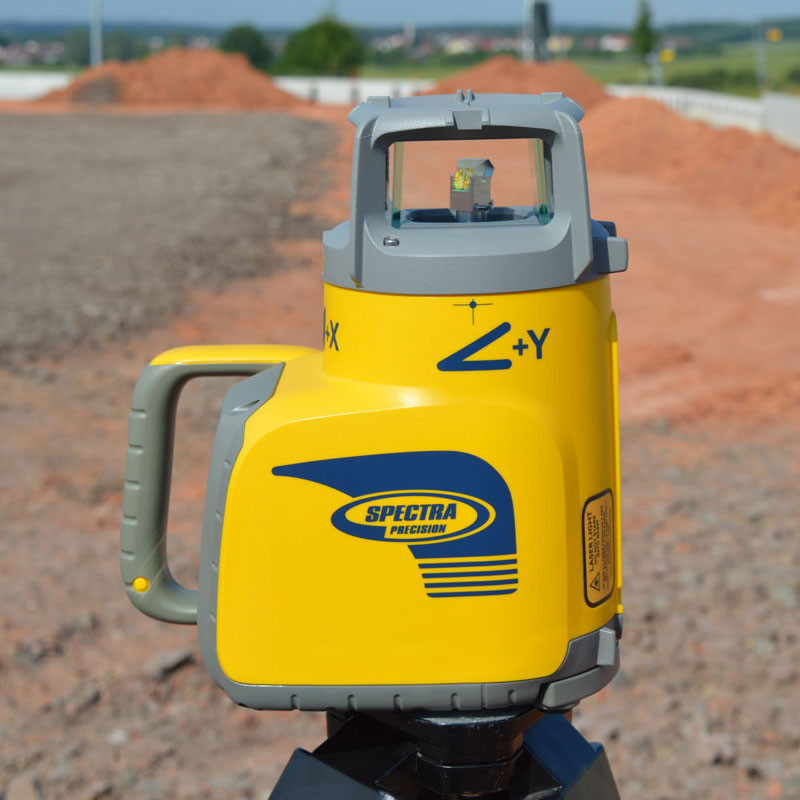

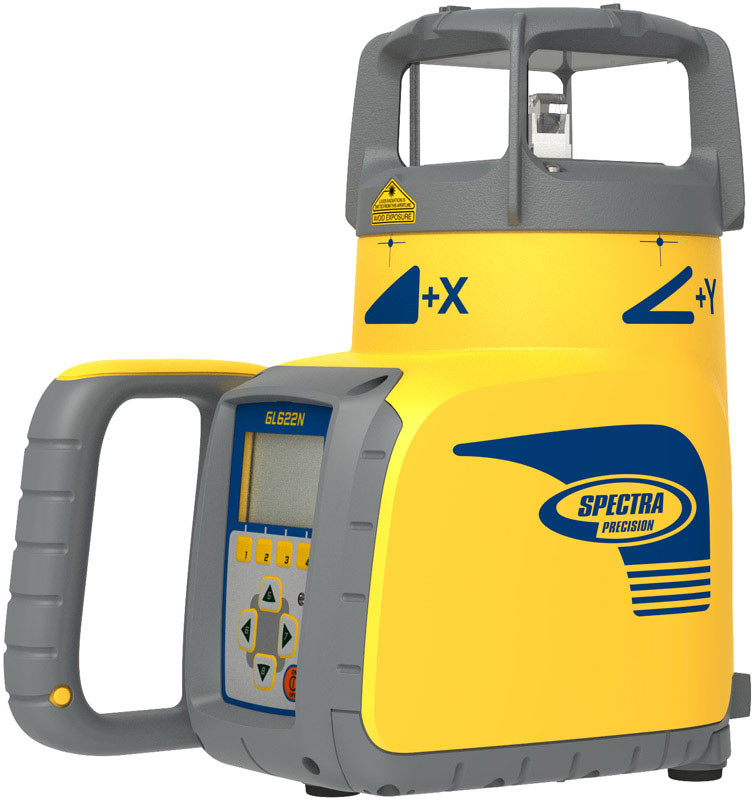

What sets the GL622N-14 apart is its ability to handle compound slopes with ease—establishing independent grades on both the X and Y axes simultaneously. The CR700 receiver features an extended detection range up to 2,600 feet diameter, enhanced signal processing for superior stability in challenging conditions, and an intuitive interface that reduces operator training time. Whether you're working on residential foundations, commercial site development, or agricultural land leveling, this laser system delivers the accuracy and versatility needed to meet stringent specifications while maximizing daily productivity.

Built to withstand the rigors of construction environments, the GL622N features fully sealed electronics with IP67 rating, protecting against dust infiltration and water immersion. The system's motorized, self-leveling design automatically compensates for minor jobsite disturbances, maintaining accurate reference planes without constant adjustment. For contractors managing multiple crews or large-scale grading operations, this laser system provides the reliability and performance that keeps projects on schedule and within budget.

Key Specifications

• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Working Range: 2,600-foot diameter with CR700 receiver
• Grade Range: -10% to +25% on both axes
• Self-Leveling Range: ±5 degrees on both axes
• Rotation Speed: 0, 150, 300, 600, 900, 1200 RPM (variable)
• Environmental Protection: IP67 rating (dustproof and waterproof)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)

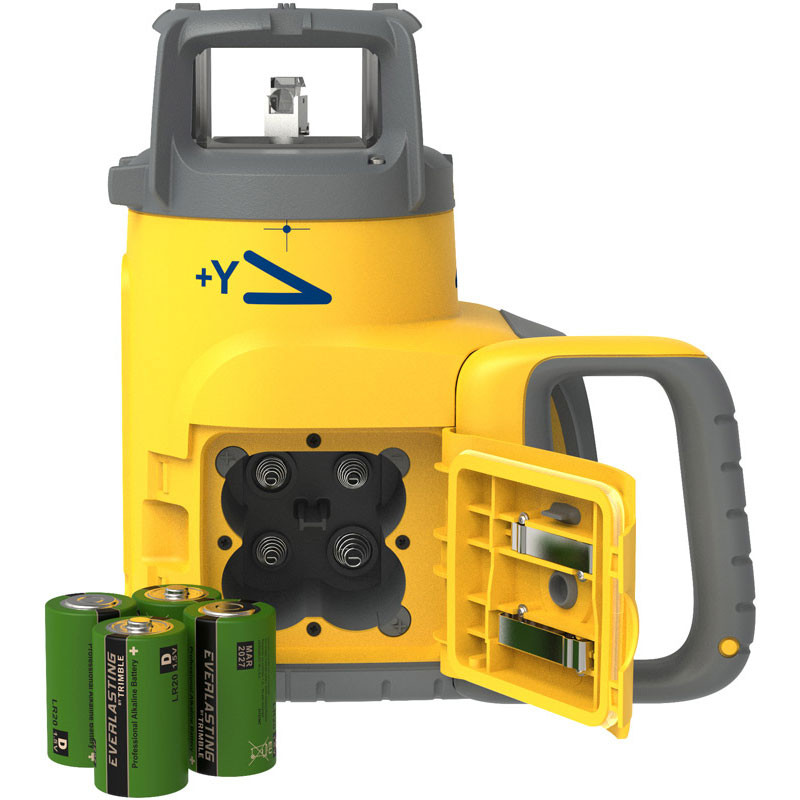

• Power Source: Rechargeable NiMH battery or alkaline batteries
• Battery Life: Up to 60 hours continuous operation
• Receiver Display: High-visibility LCD with on-grade indicators
• Receiver Accuracy: ±1/16 inch (±1.5mm) digital readout

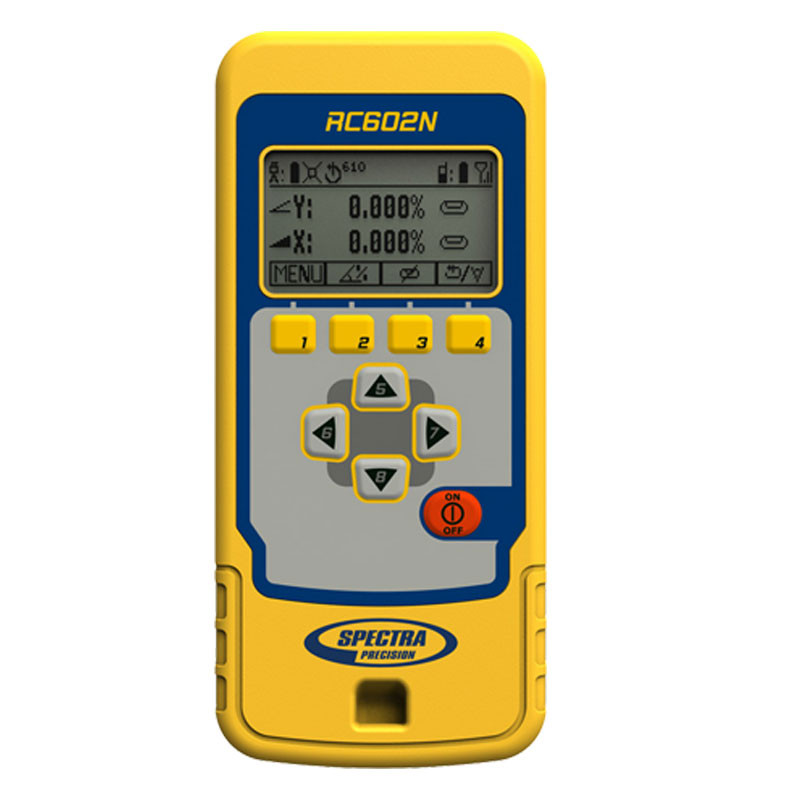

• Remote Range: RC703 remote operates up to 1,000 feet

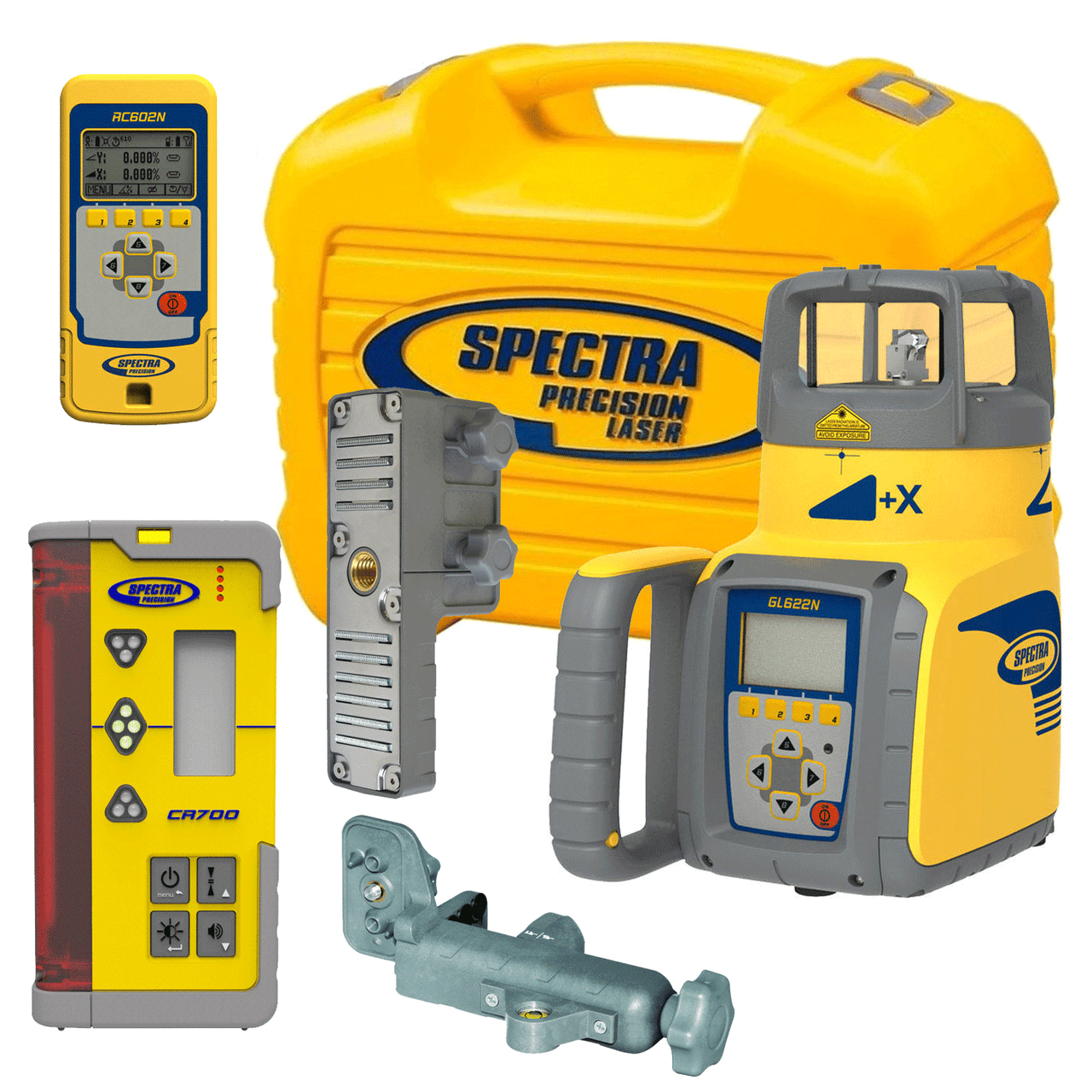

What's in the Kit

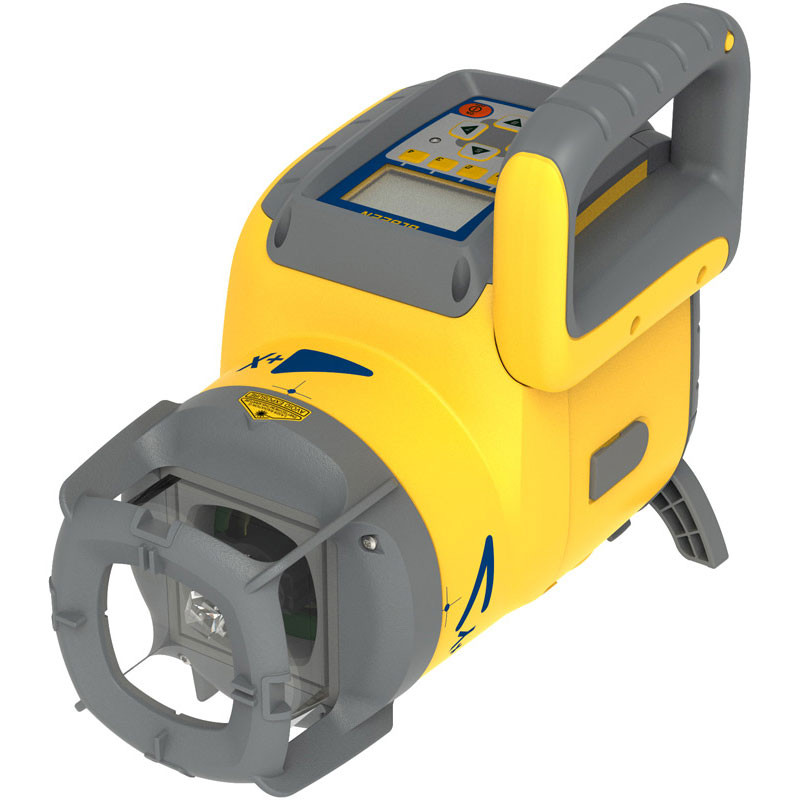

• GL622N Dual Grade Laser Transmitter

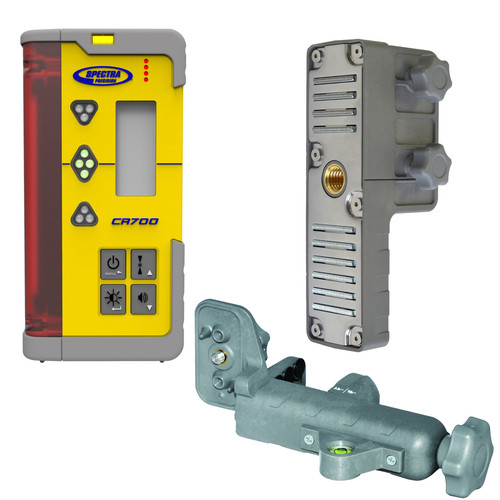

• CR700 Digital Laser Receiver with rod clamp
• RC703 Wireless Remote Control

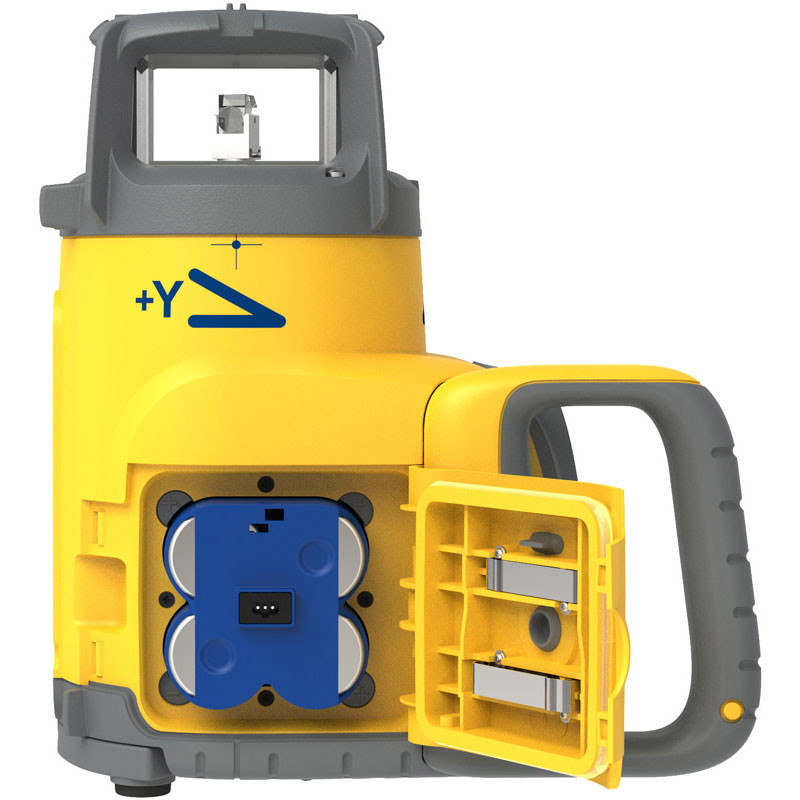

• Rechargeable NiMH Battery Pack
• Battery Charger with AC adapter
• Heavy-Duty Carrying Case with custom foam insert
• Operator Manual and Quick Reference Guide
• Calibration Certificate

Job Applications

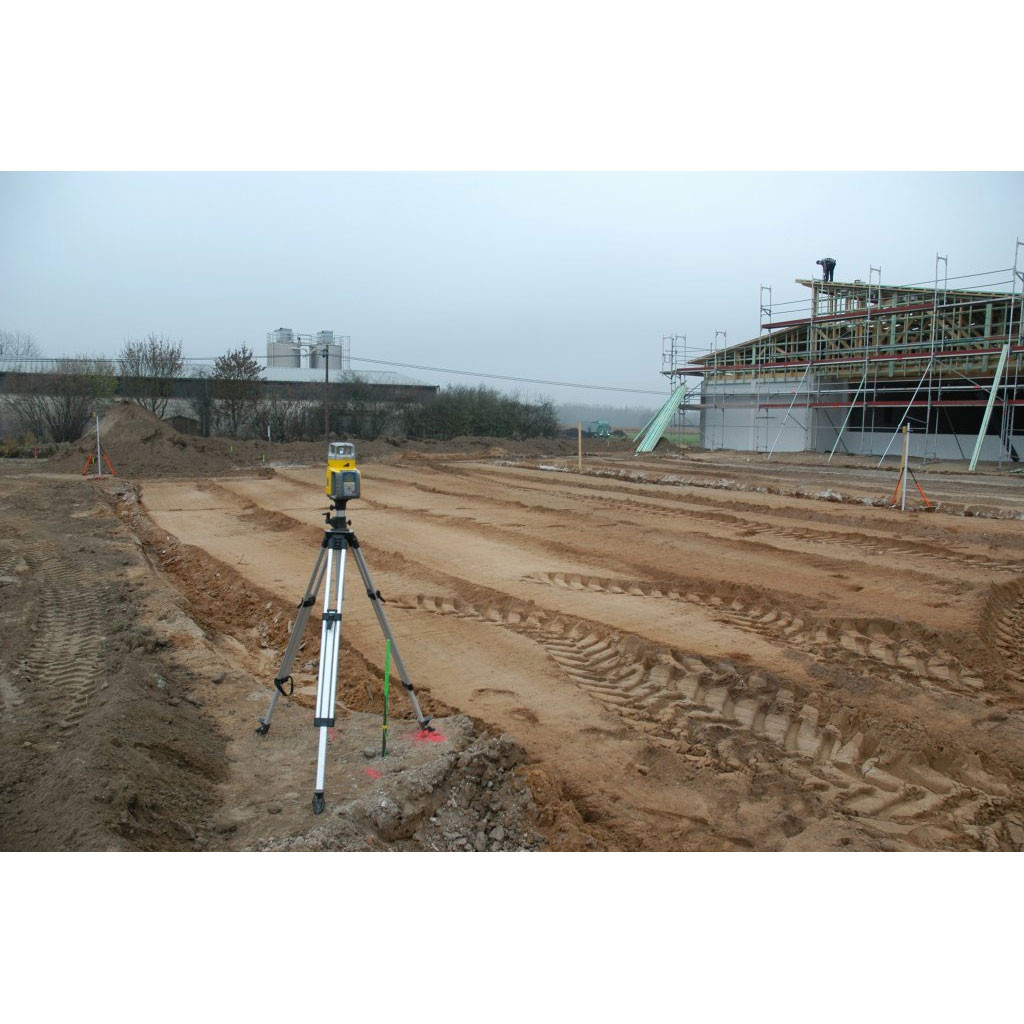

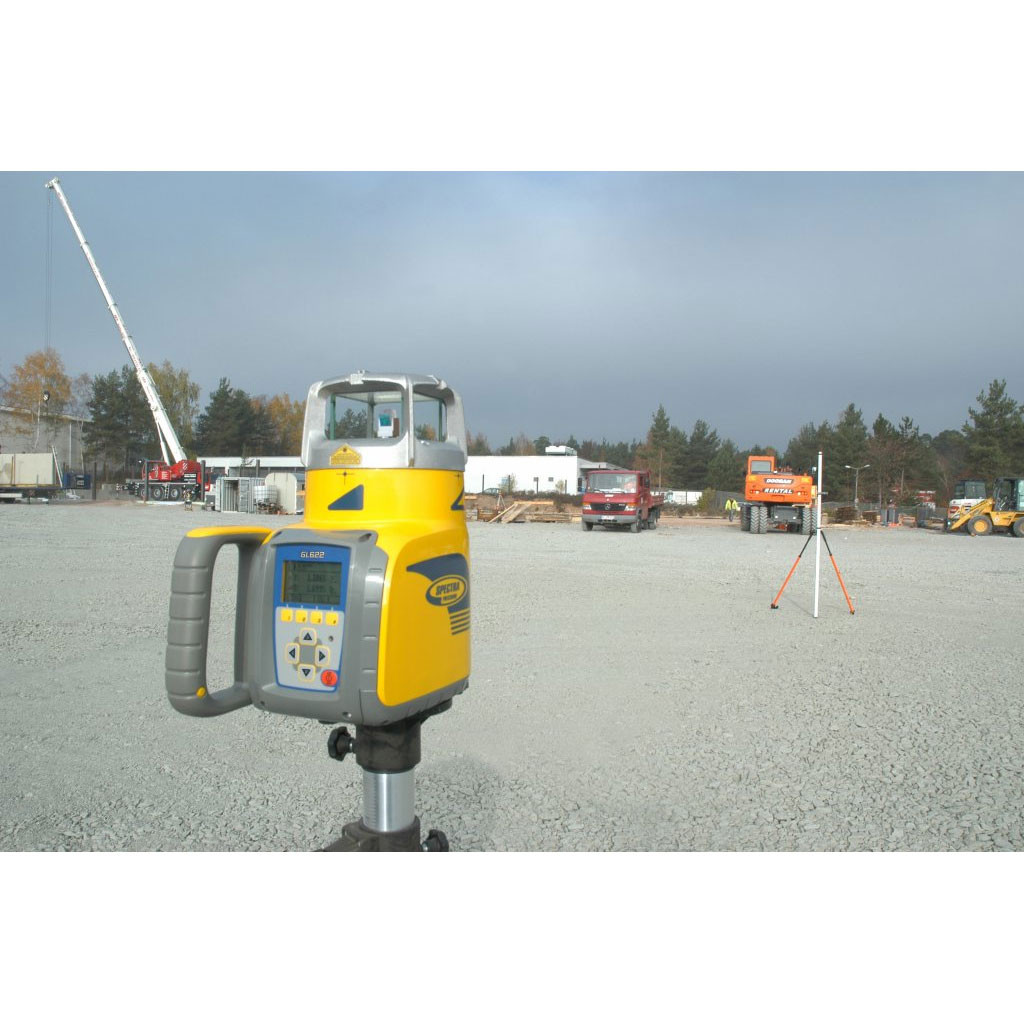

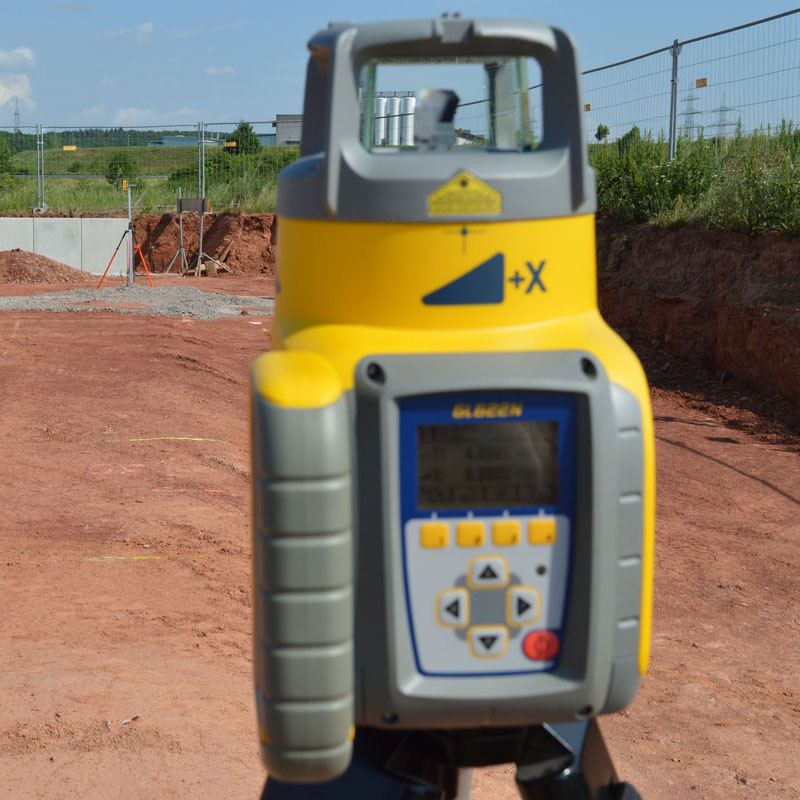

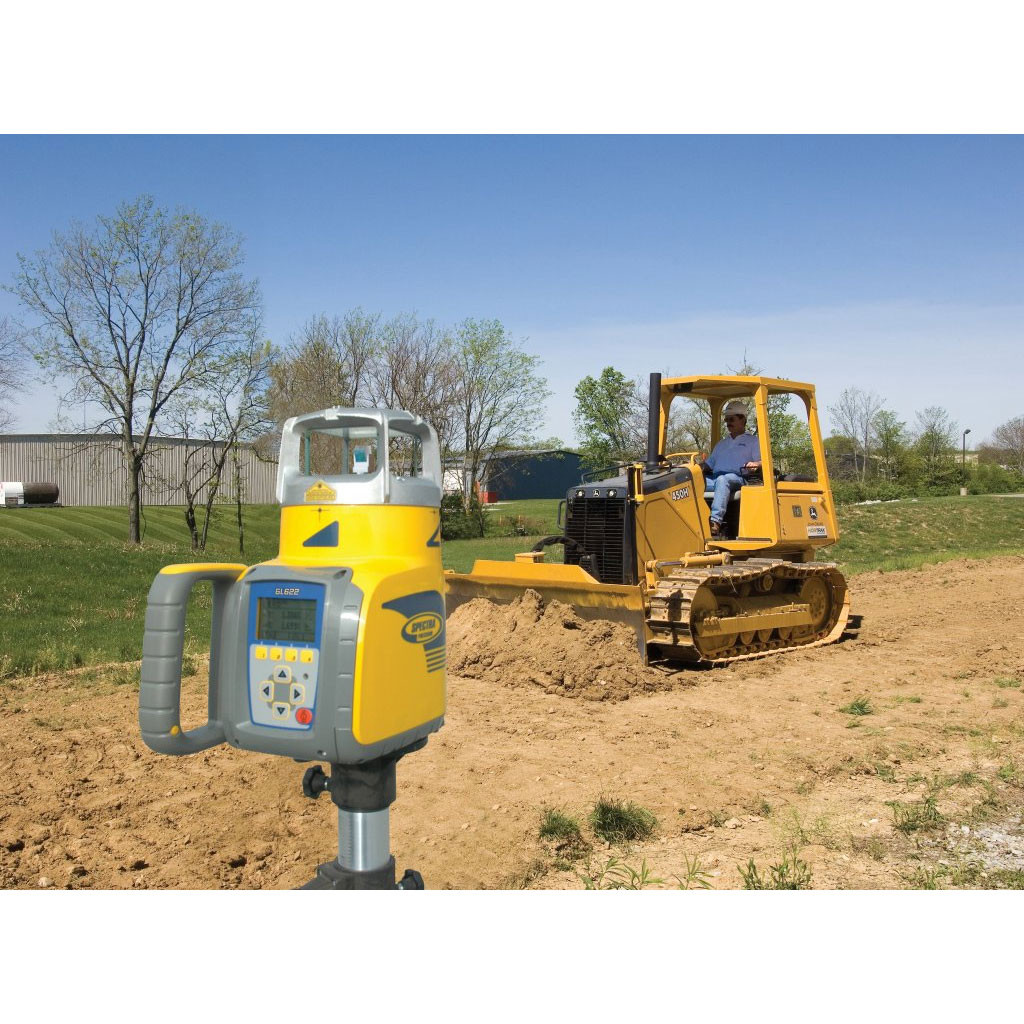

• Site Grading and Excavation: Establish precise elevation benchmarks across large construction sites, enabling operators to achieve exact cut and fill specifications on the first pass. The dual-grade capability eliminates the need to reposition the laser when working compound slopes, reducing setup time by up to 75% on complex grading projects.
• Parking Lot and Roadway Construction: Create accurate drainage slopes and crown profiles essential for water management and ADA compliance. The GL622N's ability to set independent cross-slopes and longitudinal grades simultaneously ensures proper drainage while meeting engineering specifications without constant laser repositioning.

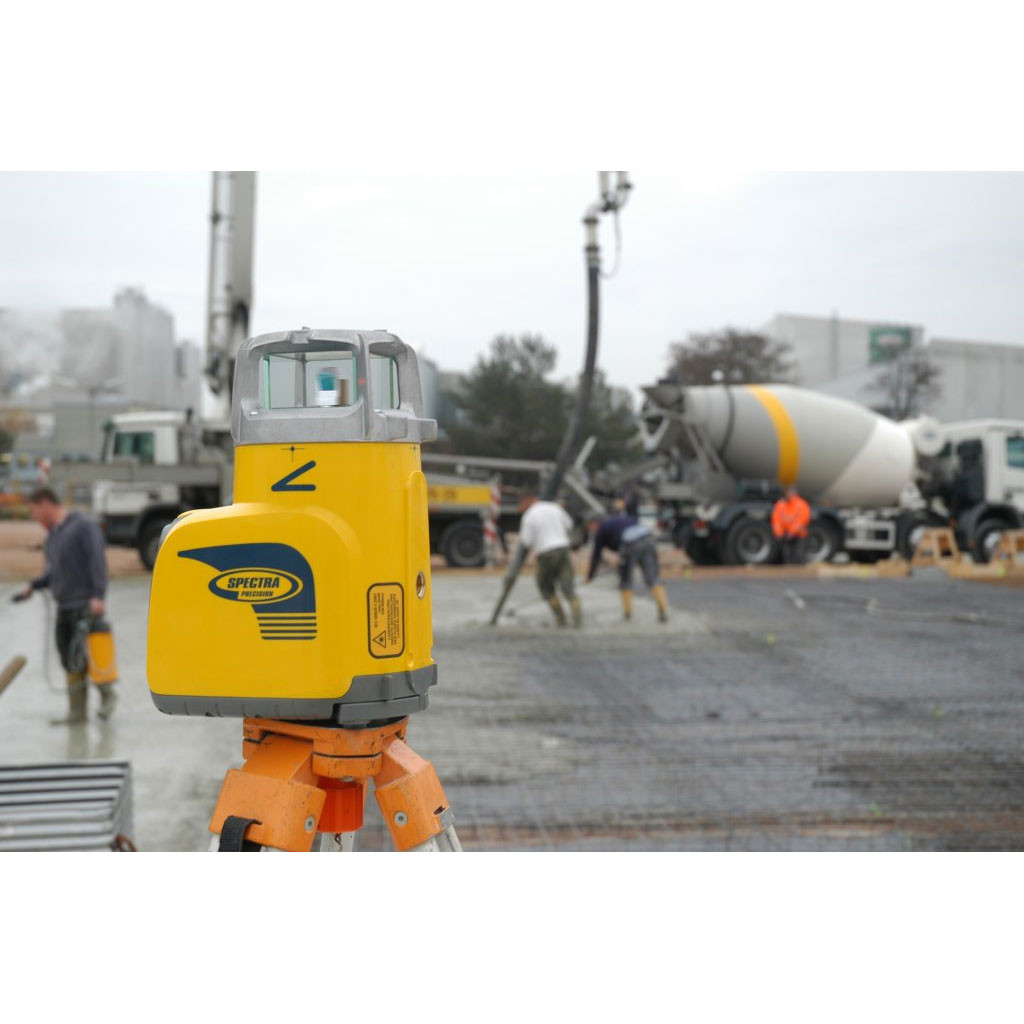

• Building Foundations and Concrete Slabs: Achieve perfectly level or sloped foundations with minimal labor investment. The system's ±1/16 inch accuracy eliminates the guesswork in formwork preparation and concrete placement, preventing costly corrections and ensuring structural integrity from the ground up.
• Agricultural Land Leveling: Optimize field drainage and irrigation efficiency with precisely graded surfaces that prevent water pooling and maximize crop yields. The extended 2,600-foot range covers large agricultural plots without repositioning, while battery life supports full-day operations in remote locations.
• Drainage Systems and Underground Utilities: Install sewer lines, storm drains, and utility trenches with confidence that grade specifications are maintained throughout the run. The CR700's digital elevation readout provides real-time feedback to equipment operators and pipe layers, ensuring proper flow gradients and preventing backfall issues.
• Sports Field Construction: Build athletic fields with the precise crown and drainage slopes required for tournament-quality play surfaces. The system's accuracy ensures water sheds properly while maintaining safe, playable conditions that meet governing body standards for baseball diamonds, soccer fields, and golf courses.

Compatible Accessories

• HL750 Laser Receiver: Rod-mounted receiver for manual grade checking and stake-out operations
• Heavy-Duty Laser Tripod: Reinforced tripod with adjustable legs for stable laser positioning
• Elevator Tripod: Quick-height adjustment tripod for efficient laser setup at various elevations
• Laser Detector for Machine Mount: Direct integration with GPS and grade control systems on excavators and dozers
• Grade Rods and Leveling Rods: Precision measuring rods with tenths graduations for accurate elevation readings
• Replacement Battery Packs: Additional NiMH batteries for extended runtime on long workdays
• Laser Glasses: Enhance beam visibility in bright sunlight conditions

Related Guides

• Complete Laser Level Buying Guide for Contractors
• How to Set Up and Calibrate Dual Grade Lasers
• Understanding Construction Grading Accuracy Standards
• Laser Receiver Comparison: Choosing the Right Detector

FAQ

What's the difference between single and dual grade lasers?

Single grade lasers can only create a slope in one direction at a time, requiring repositioning for compound slopes. The GL622N dual grade laser establishes independent grades on both X and Y axes simultaneously, allowing you to create complex drainage patterns, crowned surfaces, and multi-directional slopes without moving the laser. This capability reduces setup time dramatically on parking lots, athletic fields, and any application requiring water to drain in multiple directions.

How far can the CR700 receiver detect the laser beam?

The CR700 receiver provides reliable detection up to 2,600 feet diameter (1,300-foot radius) from the laser transmitter under normal conditions. Actual range may vary based on environmental factors like bright sunlight, dust, or atmospheric conditions. For maximum range in bright conditions, use slower rotation speeds (150-300 RPM) which concentrate the beam energy for better detectability at distance.

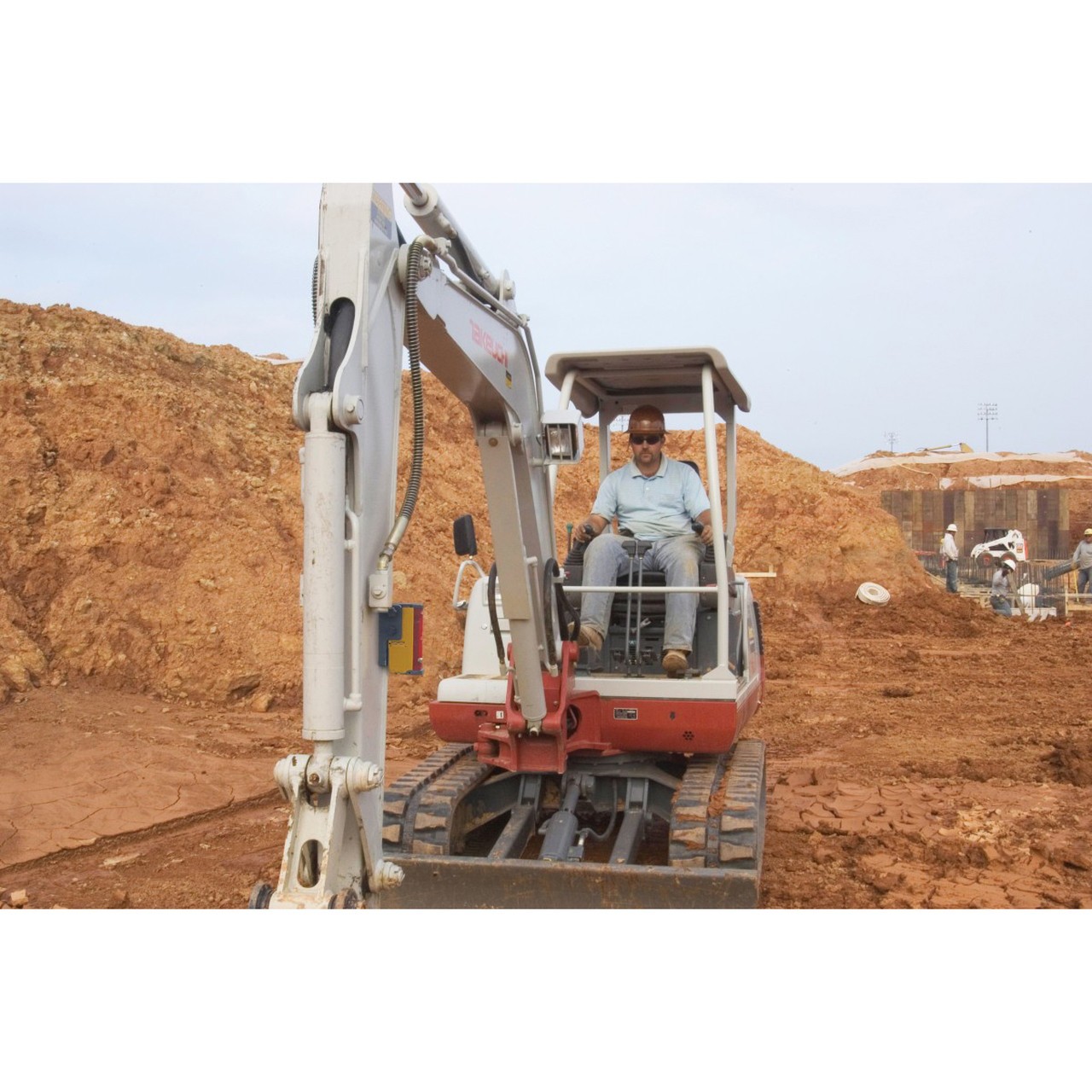

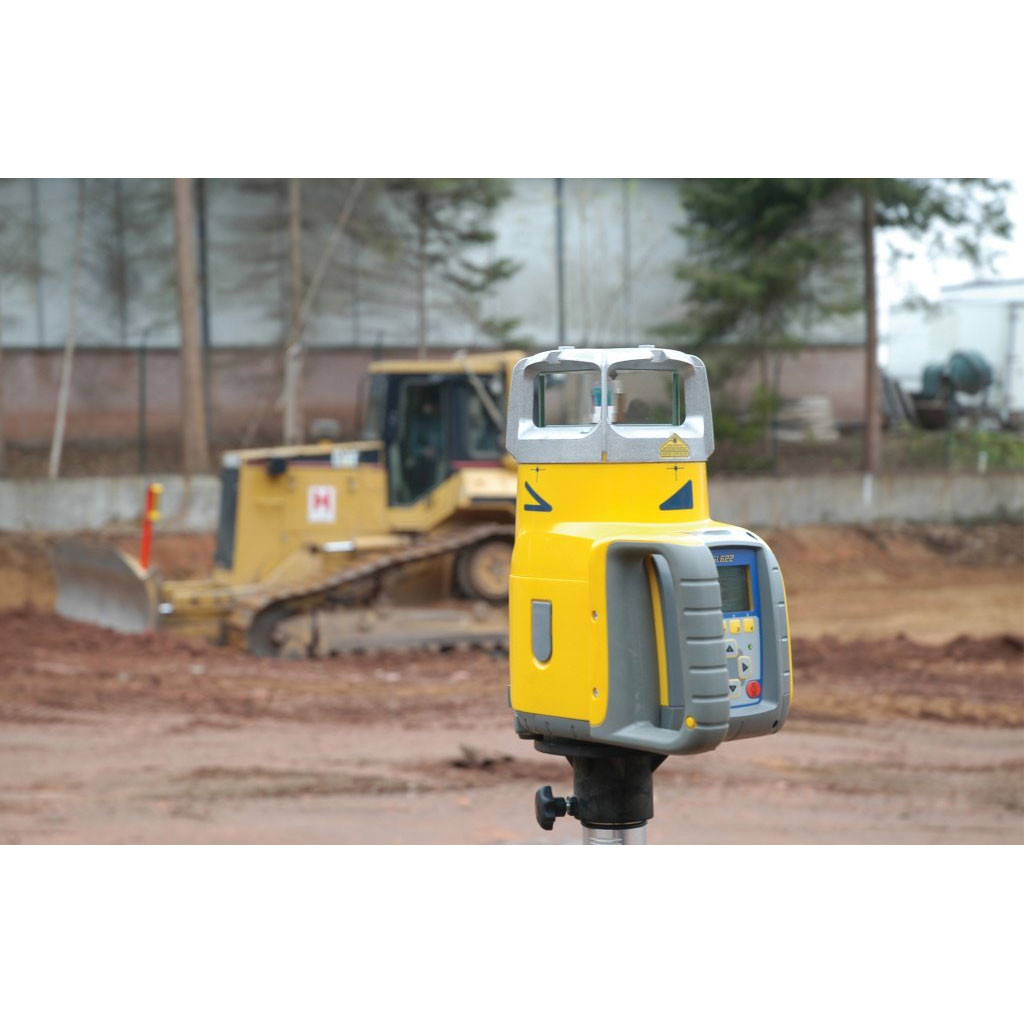

Can this laser be used with machine control systems on excavators and dozers?

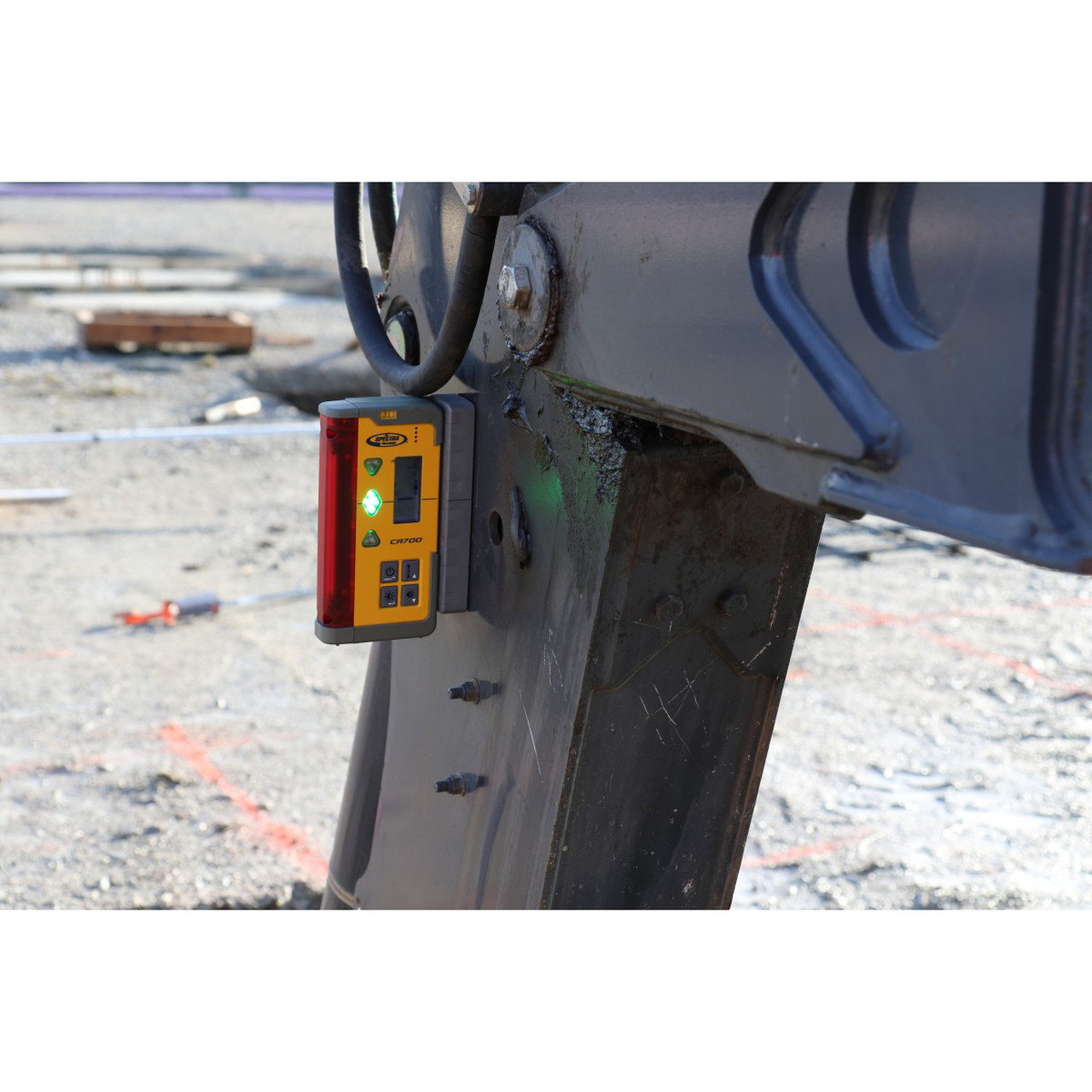

Yes, the GL622N is fully compatible with machine-mounted laser receivers and grade control systems. The consistent rotation speed and reliable beam quality integrate seamlessly with automated grade control systems from major manufacturers. Many contractors use this laser as a cost-effective alternative to GPS systems on smaller sites or as a backup system for mission-critical grading operations.

How often does the GL622N need calibration?

Spectra Precision recommends professional calibration annually or after any significant impact or drop. The laser includes self-diagnostic features that alert you if the unit falls out of calibration. For contractors who depend on certified accuracy for bid compliance, maintaining documented calibration records ensures you meet quality assurance requirements and protects against liability on precision grading projects.
