Spectra Precision GL622N-19 Dual Grade Laser TENTHS Package with HL760 Receiver, Remote and Elevator Tripod

The Spectra Precision GL622N-19 delivers professional-grade dual axis slope control paired with an elevator tripod for vertical laser head repositioning on demanding jobsites. Designed for contractors who need repeatable grade accuracy across multi-level sites, terraced grading, and projects where laser height must be adjusted without disturbing calibration, this kit is a proven workhorse in site preparation, concrete flatwork, and drainage construction. Express Tools is an authorized Spectra Precision dealer — buy with confidence and get free shipping on every order.

Product Overview & Jobsite Applications

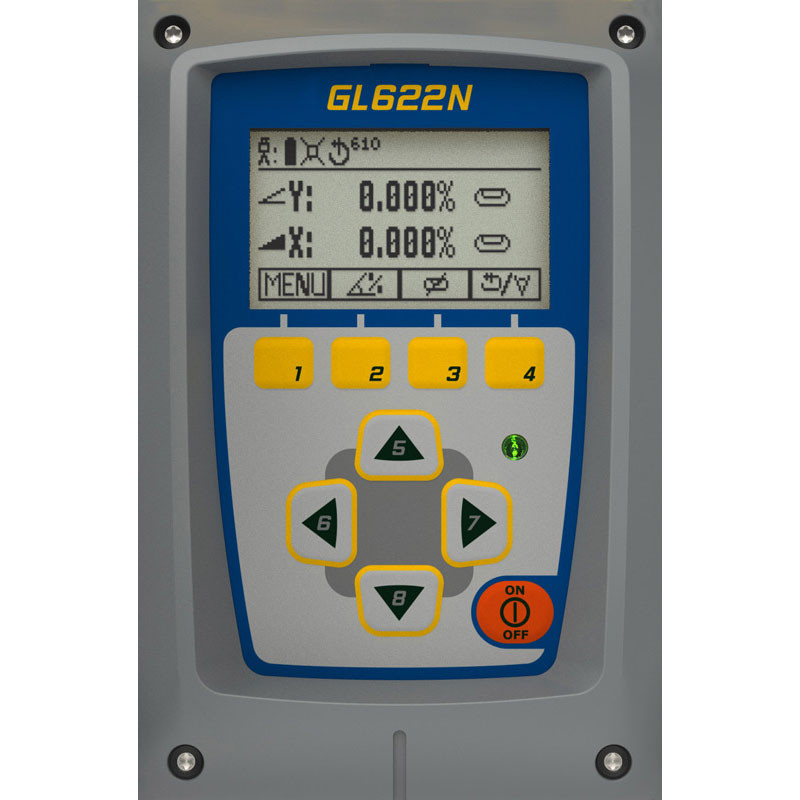

The GL622N-19 builds on Spectra Precision's GL622N platform by bundling it with an elevator tripod that provides smooth, tool-free vertical adjustment from approximately 4 to 7 feet. The laser head can be repositioned up or down along the elevator column while retaining grade settings, eliminating the need to re-establish slope references when changing work heights. This makes the GL622N-19 particularly effective on sites where crews are transitioning between subgrade, base course, and finish grade elevations throughout the day. The dual grade system controls X and Y axis slopes independently, with digital readouts allowing precise tenth-of-a-foot elevation inputs for elevation control workflows.

Key Specifications

• Model: GL622N-19
• Grade Range: ±10% on both X and Y axes simultaneously
• Grade Accuracy: ±1.5 arc seconds (standard deviation)
• Self-Leveling Range: ±5°
• Working Range: Up to 2,000 ft diameter with compatible receiver
• Rotation Speed: 100, 300, 600 RPM selectable
• Elevator Tripod Height Range: Approximately 4–7 feet vertical adjustment

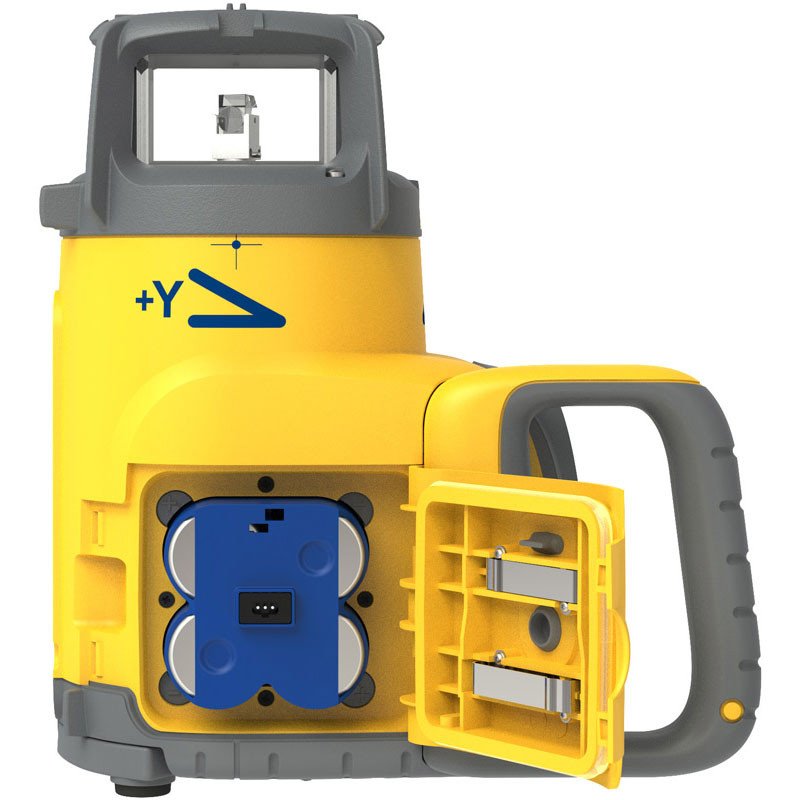

• Power: Internal NiMH rechargeable battery pack
• Battery Life: Up to 80 hours continuous operation
• Protection Rating: IP66 dust and water resistant
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)

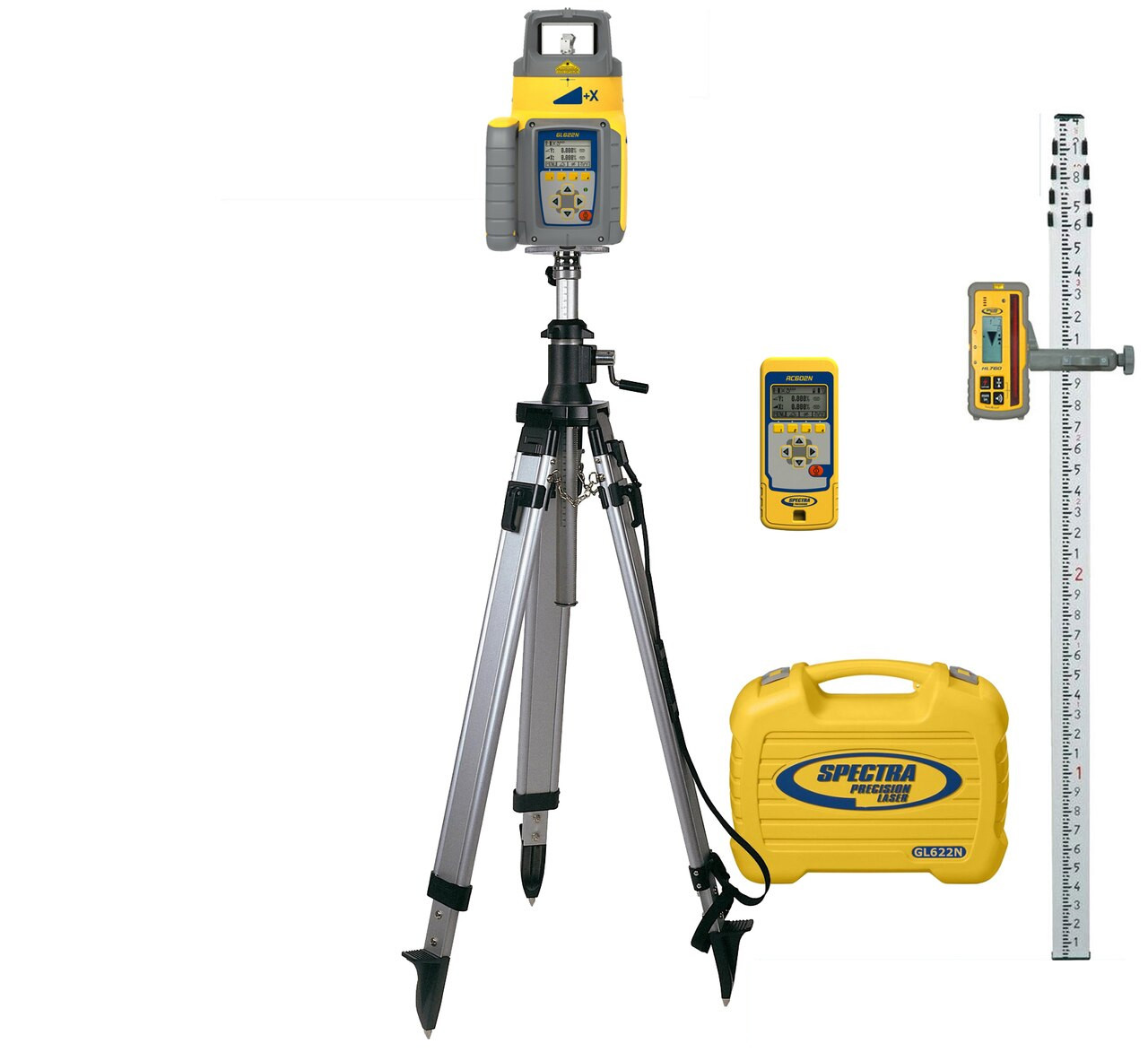

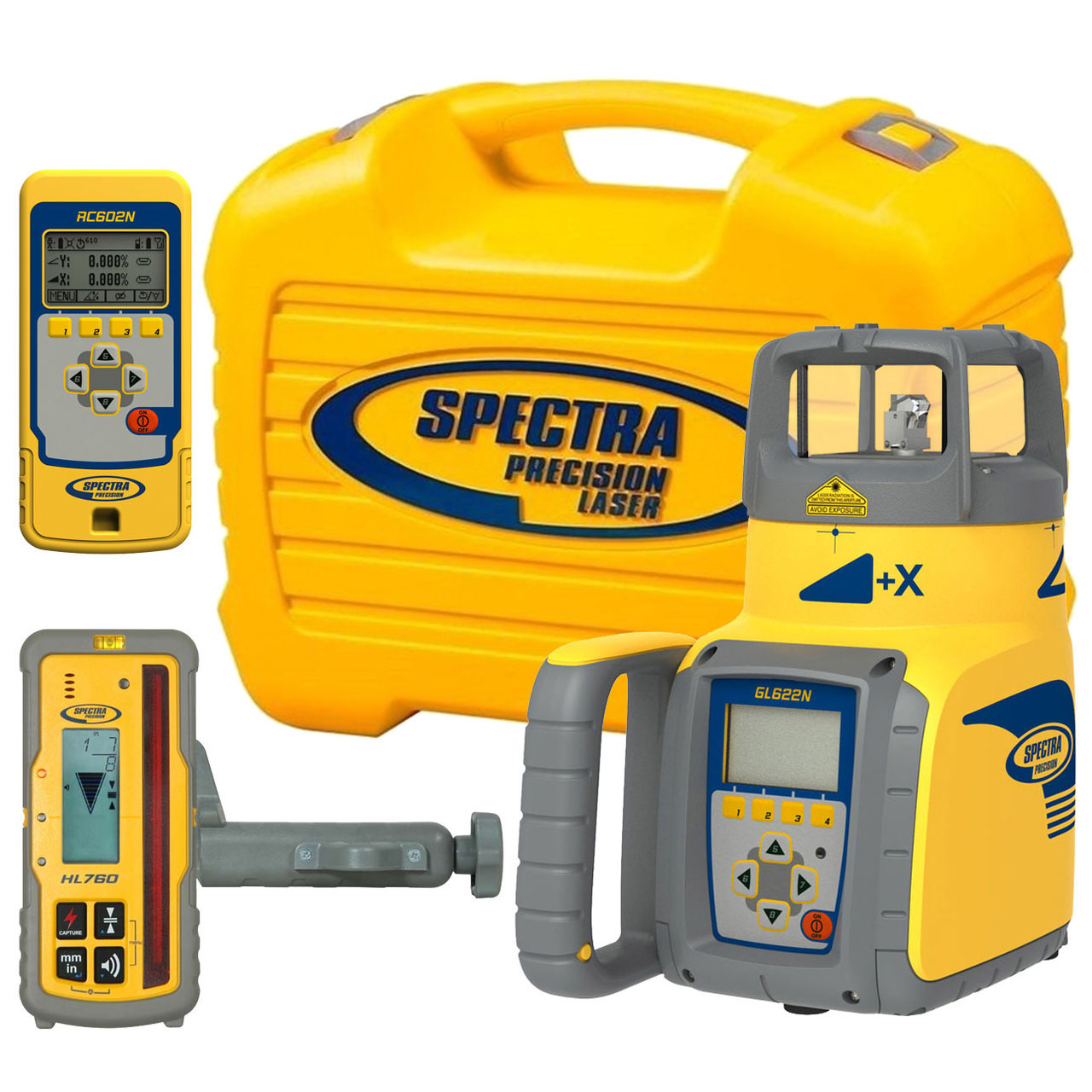

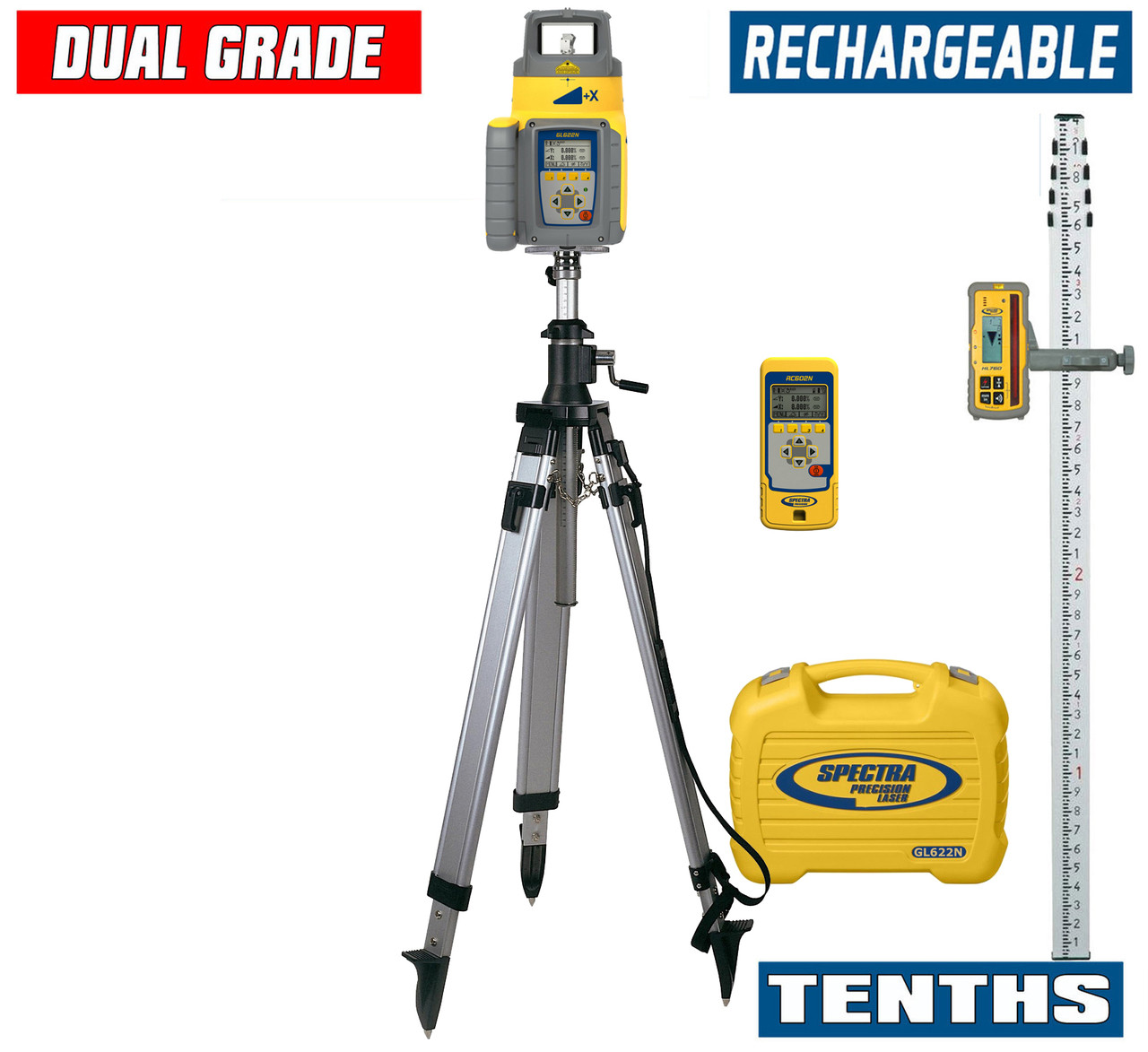

What's in the Kit

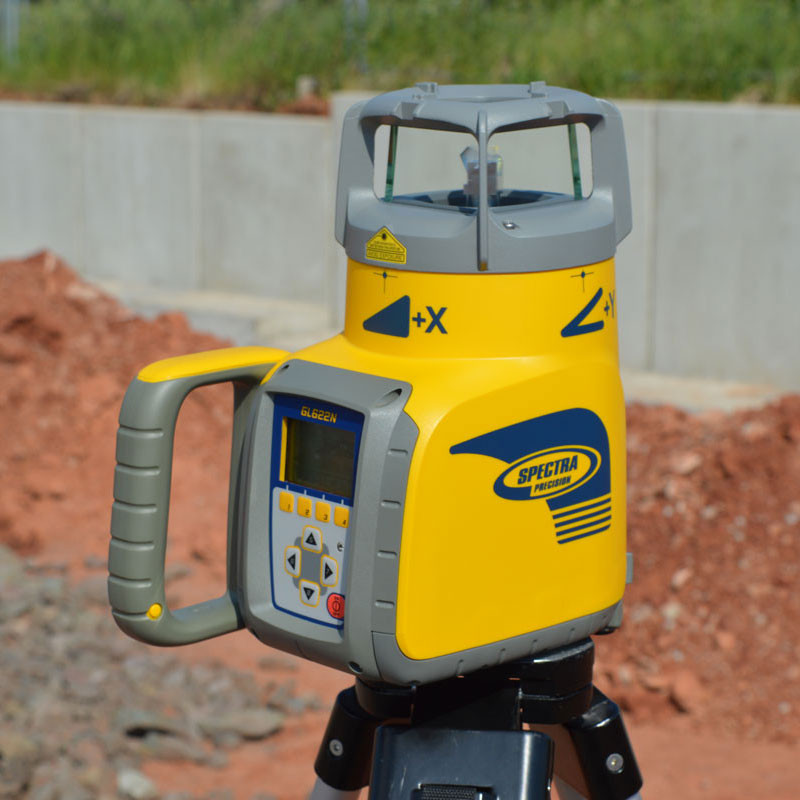

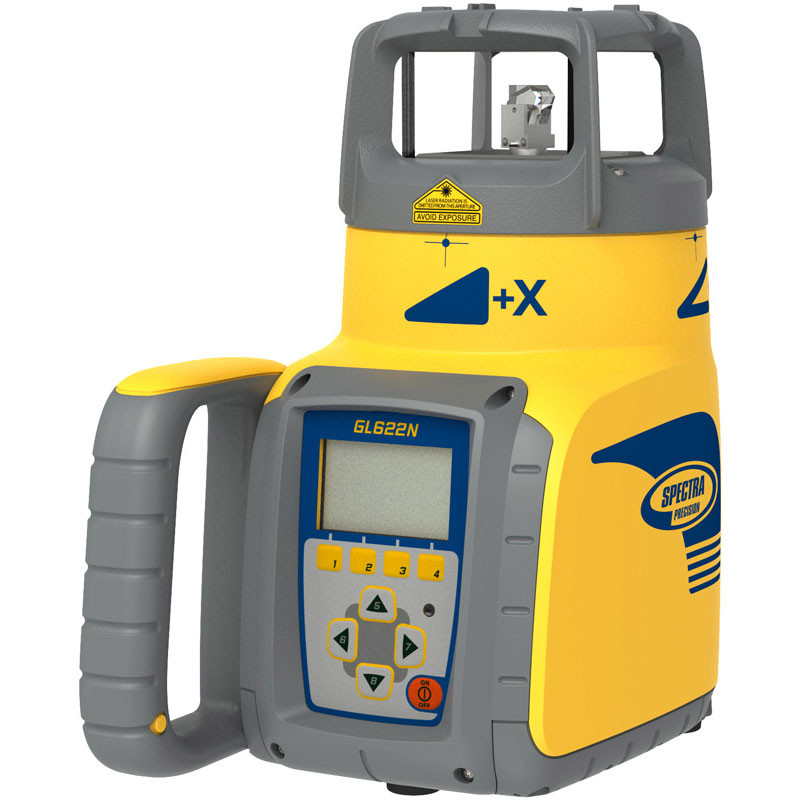

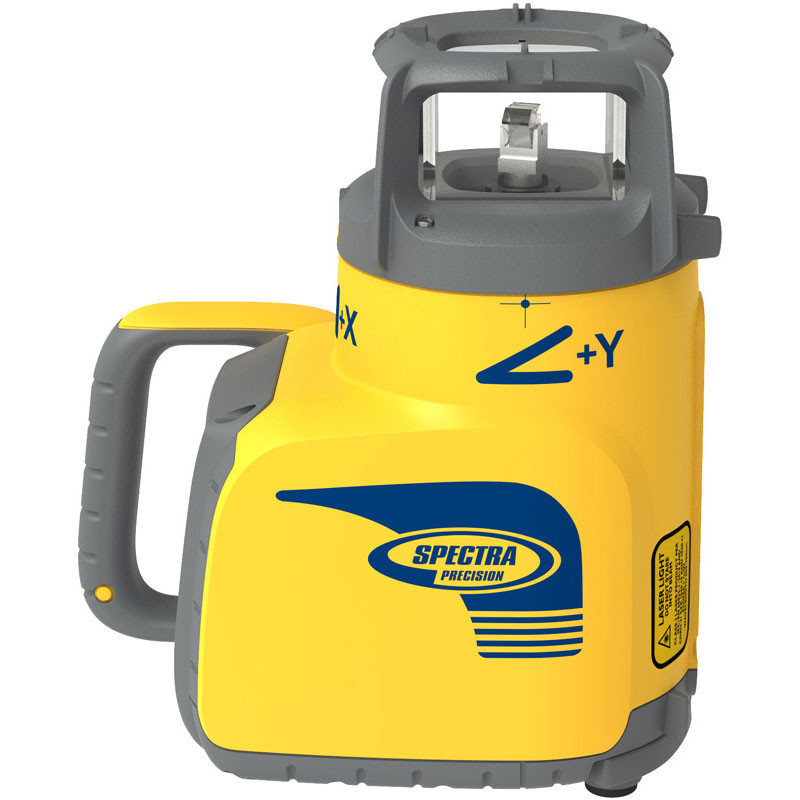

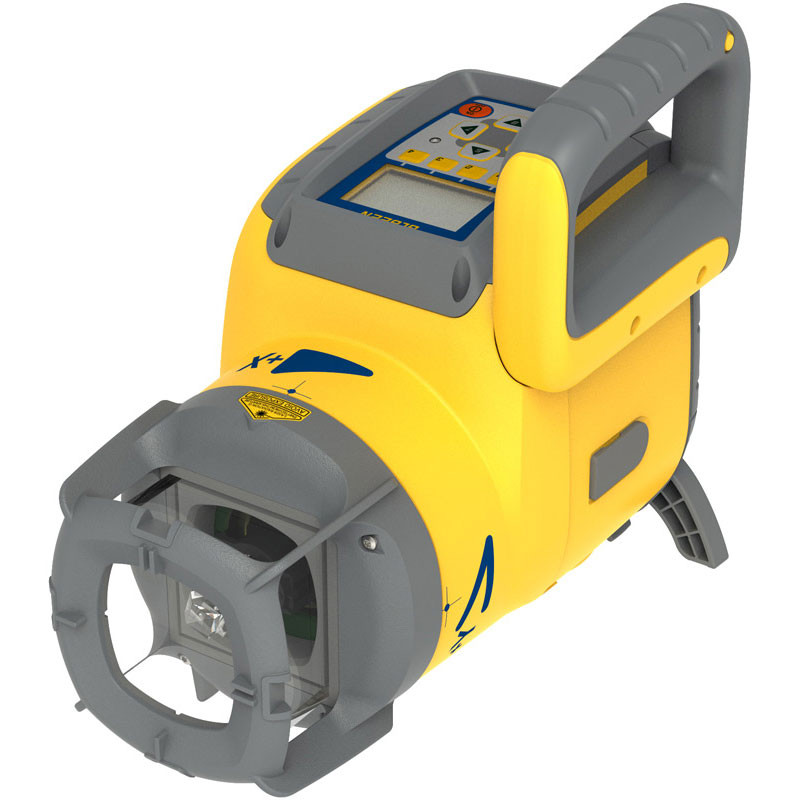

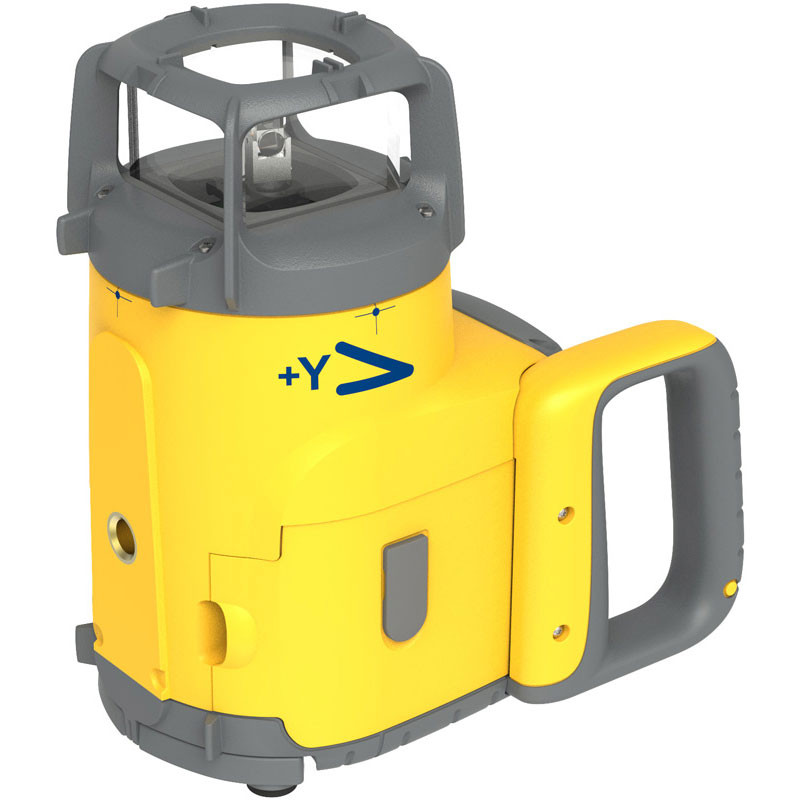

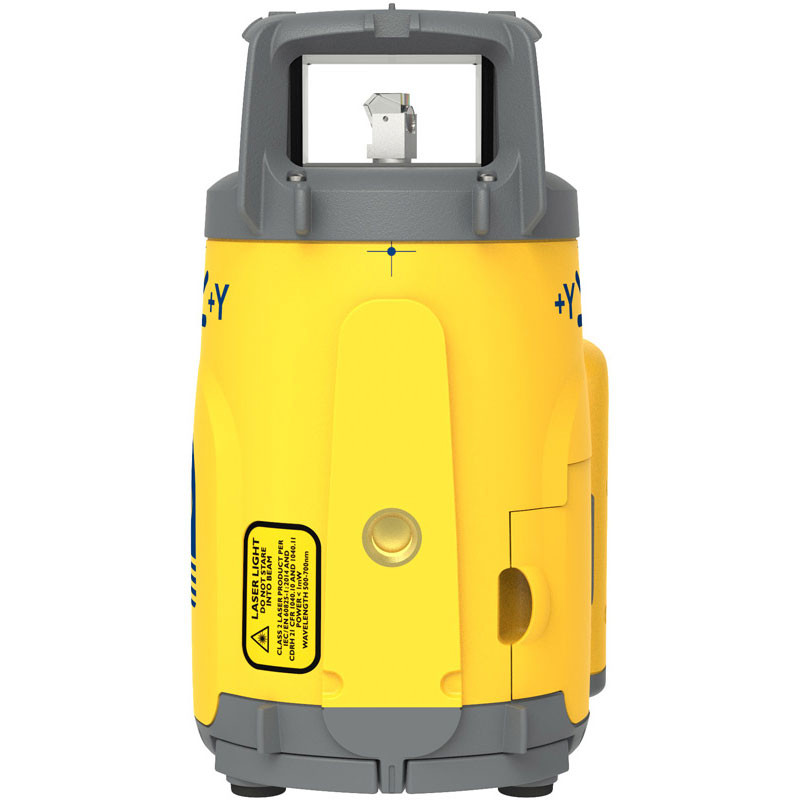

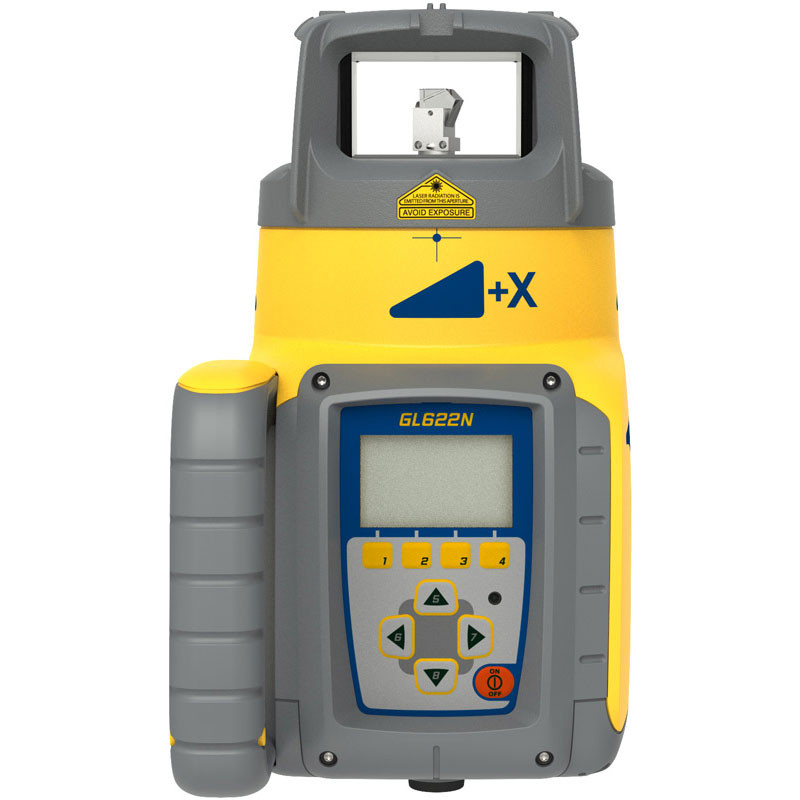

• Spectra Precision GL622N Dual Grade Laser Head
• Elevator Tripod (4–7 ft vertical range)
• NiMH Rechargeable Battery Pack
• AC Wall Charger
• Carrying Case
• Operator's Manual

Job Applications

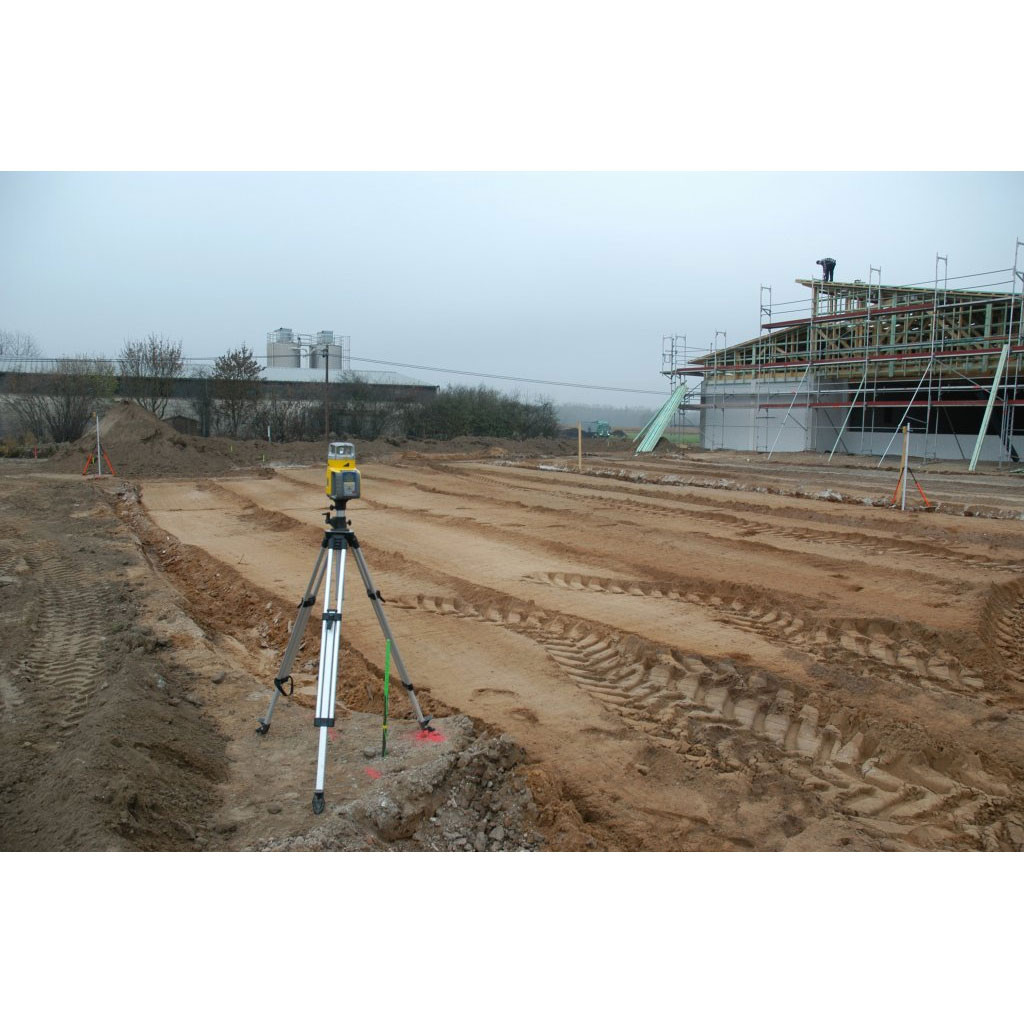

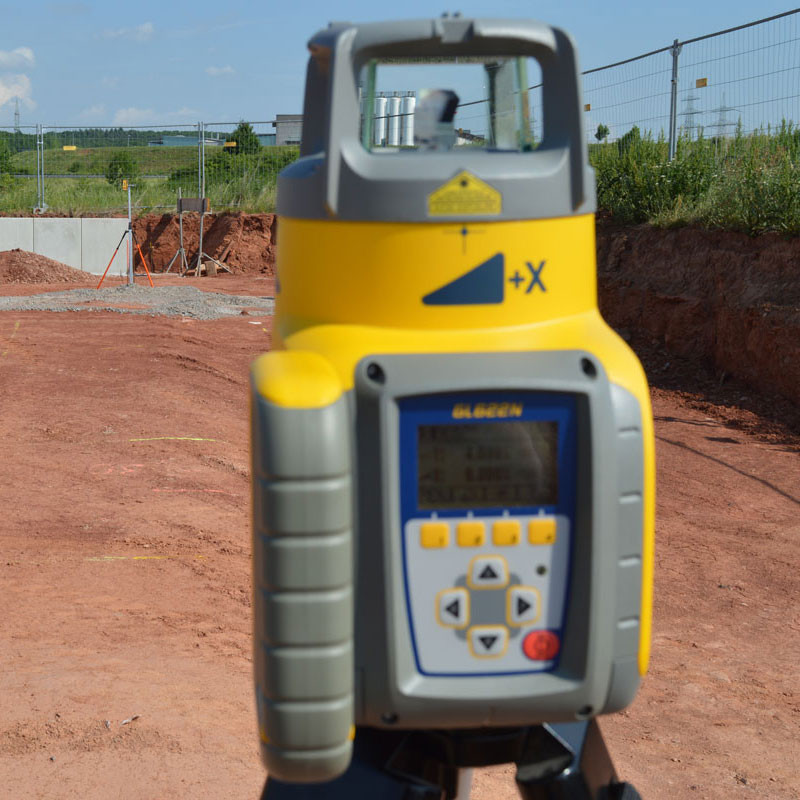

Terraced Site Grading: Contractors grading multi-bench sites can reposition the laser head vertically between bench levels without resetting grade angles, keeping crews moving efficiently between elevation changes.

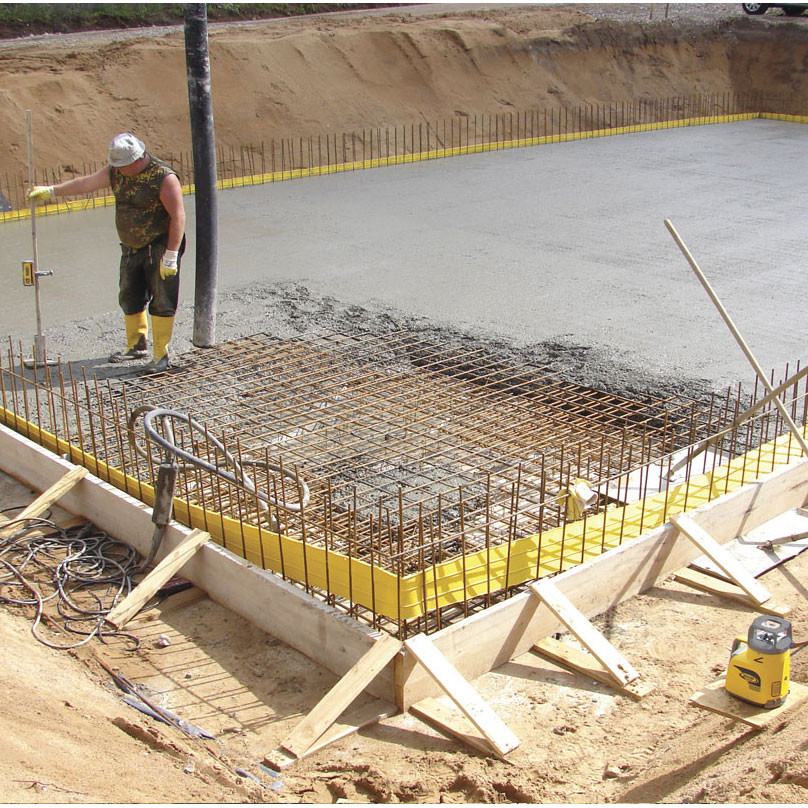

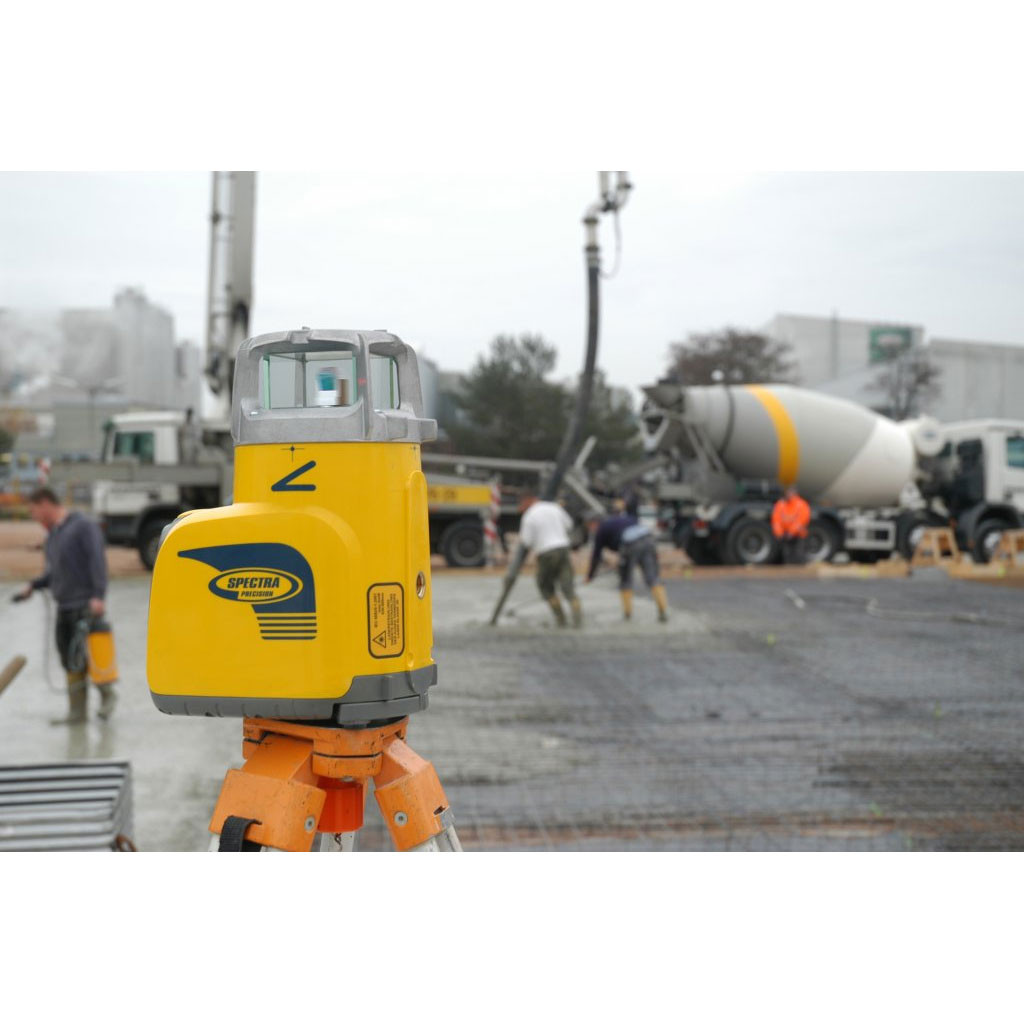

Concrete Flatwork & Slab Pours: The dual axis grade control supports precise slope-to-drain layouts on parking structures, warehouse floors, and sloped concrete flatwork where both X and Y pitch must be independently dialed in.

Drainage & Pipeline Installation: Elevator height flexibility lets crews position the beam at optimal receiver height in trenches while maintaining exact fall-per-foot settings across long drainage runs.

Multi-Story Construction Layout: The elevator tripod's extended height range supports floor-to-floor layout work where the laser must be raised to clear formwork or reference higher structural elements.

Compatible Accessories

• Spectra Precision HL760 Laser Receiver
• Spectra Precision RC804 Remote Control
• Replacement NiMH Battery Pack
• Spectra Precision Detector Holder / Rod Clamp
• Heavy-Duty Tripod (Fixed Height)

Related Guides

• How to Set Dual Grade on the Spectra Precision GL622N
• Elevator Tripod Setup Guide for Laser Levels
• Choosing the Right Laser Level for Site Grading
• GL622N vs GL622N-19: Which Kit Do You Need?

Frequently Asked Questions

Can I adjust the elevator tripod height without losing my grade settings?

Yes. The elevator tripod column allows vertical repositioning of the laser head independently of the grade control system. Your X and Y axis slope settings remain locked in as you raise or lower the head along the column.

What receiver is recommended for use with the GL622N-19?

Spectra Precision recommends the HL760 laser receiver for use with the GL622N series. It provides a large detection zone and digital grade readout, making it ideal for machine control and rod work at the ranges this laser supports.

Is the GL622N-19 suitable for machine control applications?

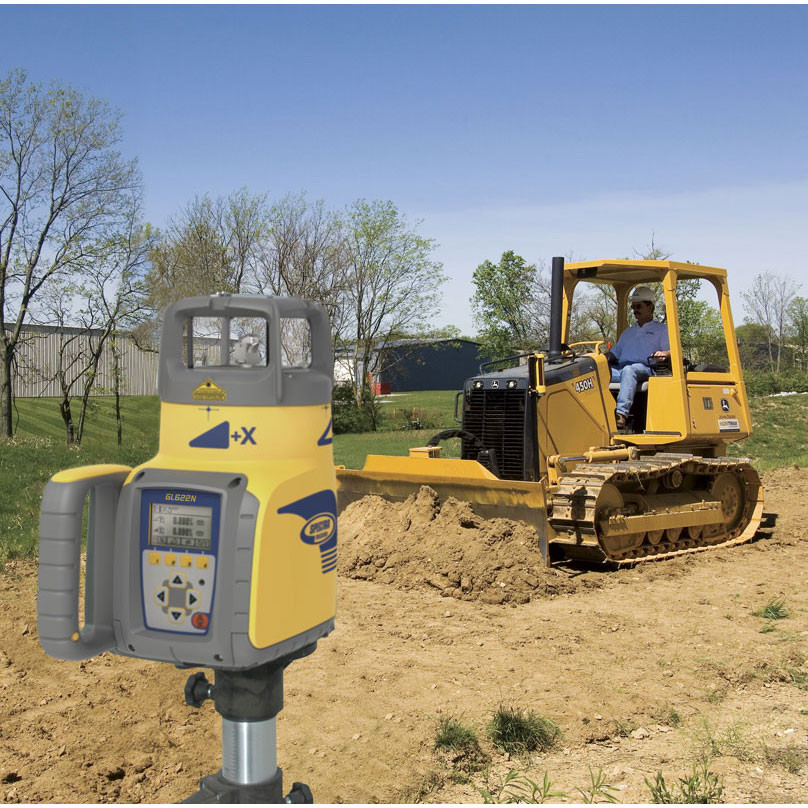

The GL622N is compatible with grade control systems when paired with a compatible machine-mounted receiver. However, for dedicated machine control workflows, verify receiver and system compatibility with your grading equipment manufacturer before purchase.

What is the warranty on the Spectra Precision GL622N-19?

Spectra Precision backs the GL622N with a standard manufacturer's warranty covering defects in materials and workmanship. Contact Express Tools or refer to the documentation included with your unit for full warranty terms and service center information.
