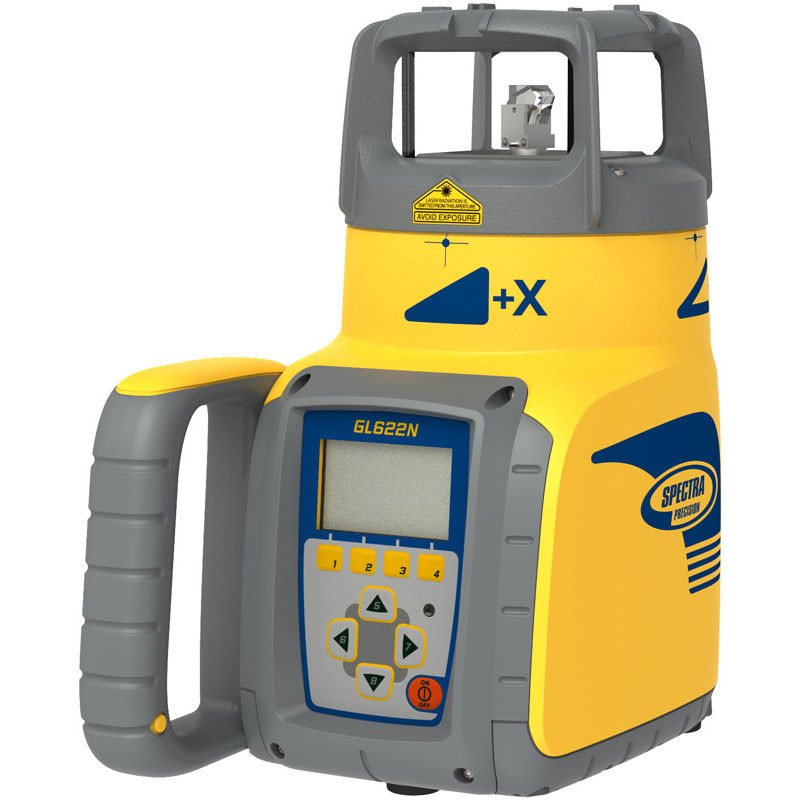

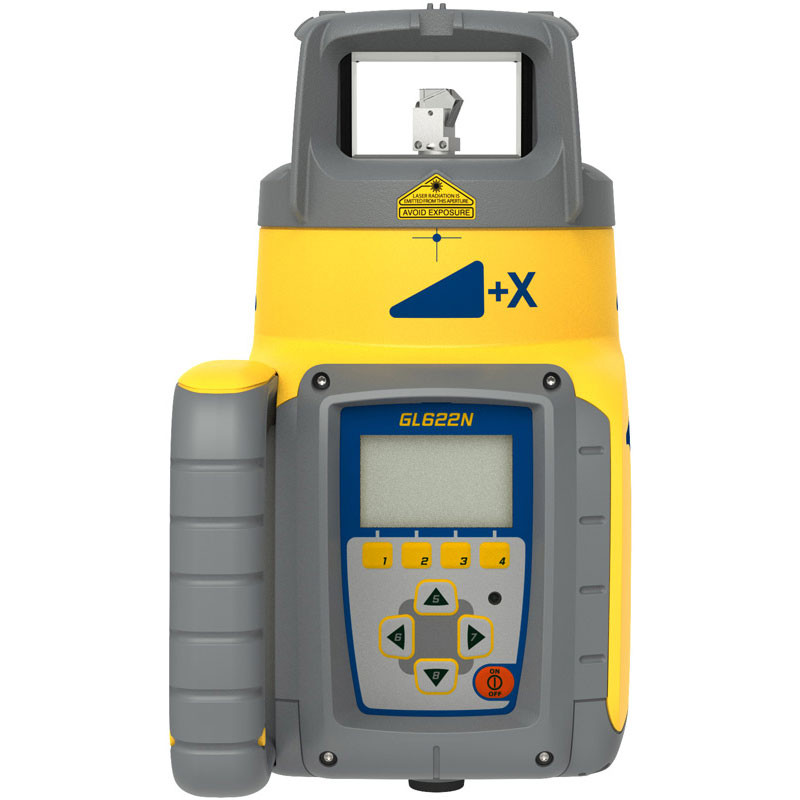

Spectra Precision GL622IR Dual Grade Laser with HL760 Receiver and RC602N Remote - with Infrared Laser Beam

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Laser Type: Infrared (invisible beam), Class 1
Self-leveling Range: ±5° automatic compensation
Dual Slope Range: ±10% on both X and Y axes simultaneously
Grade Resolution: 0.001% increments
Accuracy: ±1.5 mm at 30 m (±1/16" at 100 ft)
Operating Range: Up to 600 m (2,000 ft) diameter with HL760 receiver

Spectra PrecisionGL622IRSKU CT-934New

Grade Lasers →

Spectra Precision GL622IR Dual Grade Laser with HL760 Receiver and RC602N Remote - with Infrared Laser Beam

Name: Spectra Precision GL622IR Dual Grade Laser with HL760 Receiver and RC602N Remote - with Infrared Laser Beam
Brand: Spectra Precision
SKU: CT-934
Price: 3495.00 USD
Availability: InStock

$3495.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

±5° automatic compensation Range

Cover large layout jobs with a ±5° automatic compensation working reach.

±1.5 mm at 30 m (±1/16" at 100 ft) Accuracy

Hold grade with a ±1.5 mm at 30 m (±1/16" at 100 ft) accuracy rating.

Dual Slope Range

Handles ±10% on both X and Y axes simultaneously so crews can match design slopes.

Power Source

Runs on Rechargeable NiMH battery pack or AC adapter for jobsite flexibility.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Spectra Precision equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Continuous grade control, no stakes

Eliminates grade staking between passes. One operator on the machine vs. 2-3-person conventional crew.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this grade laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Spectra Precision GL622IR?

The Spectra Precision GL622IR Dual Grade Laser with HL760 Receiver and RC602N Remote - with Infrared Laser Beam is a Spectra Precision Grade Laser with ±5° automatic compensation self-leveling range, ±10% on both X and Y axes simultaneously dual slope range, and ±1.5 mm at 30 m (±1/16" at 100 ft) accuracy. It's available from Express Tools as an authorized Spectra Precision dealer with same-day shipping on in-stock orders.

FIELD APPLICATIONS

What contractors use this grade lasers for

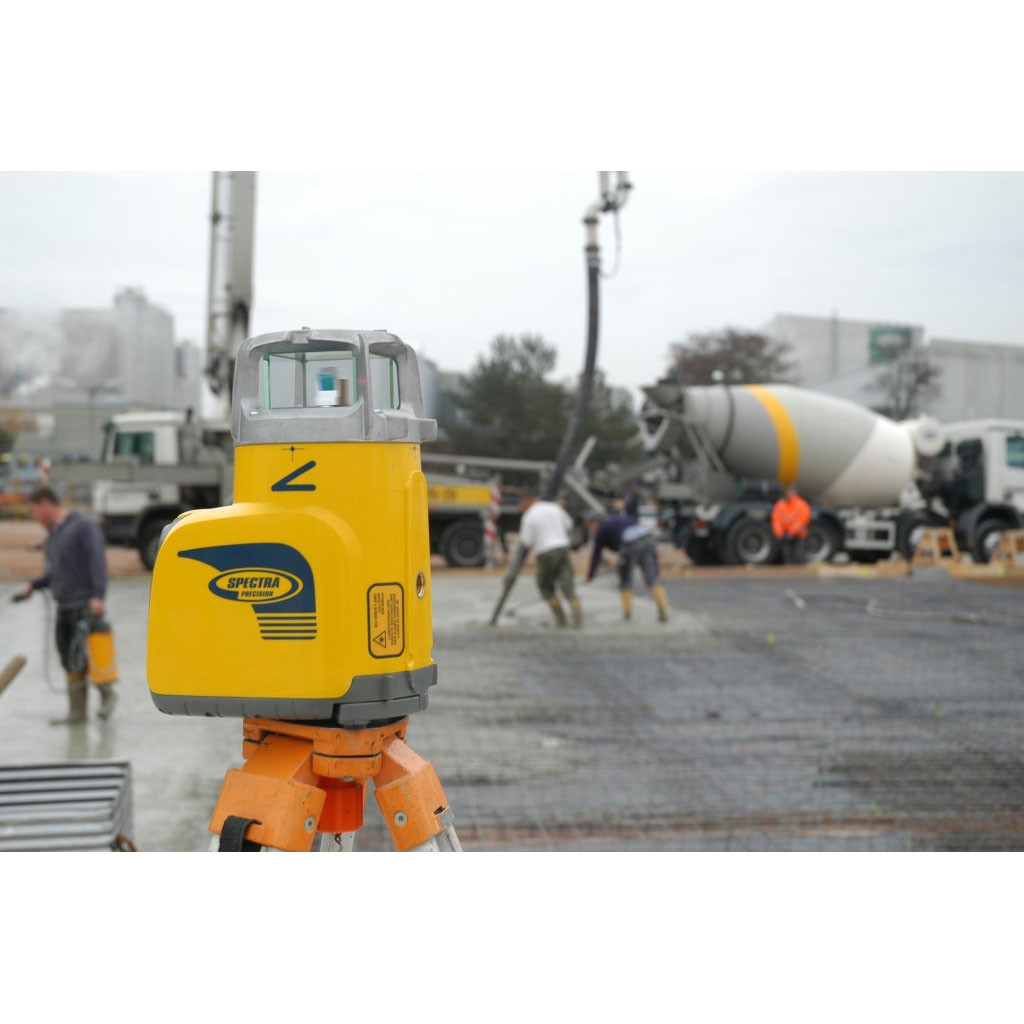

Bright Daylight Grade Control

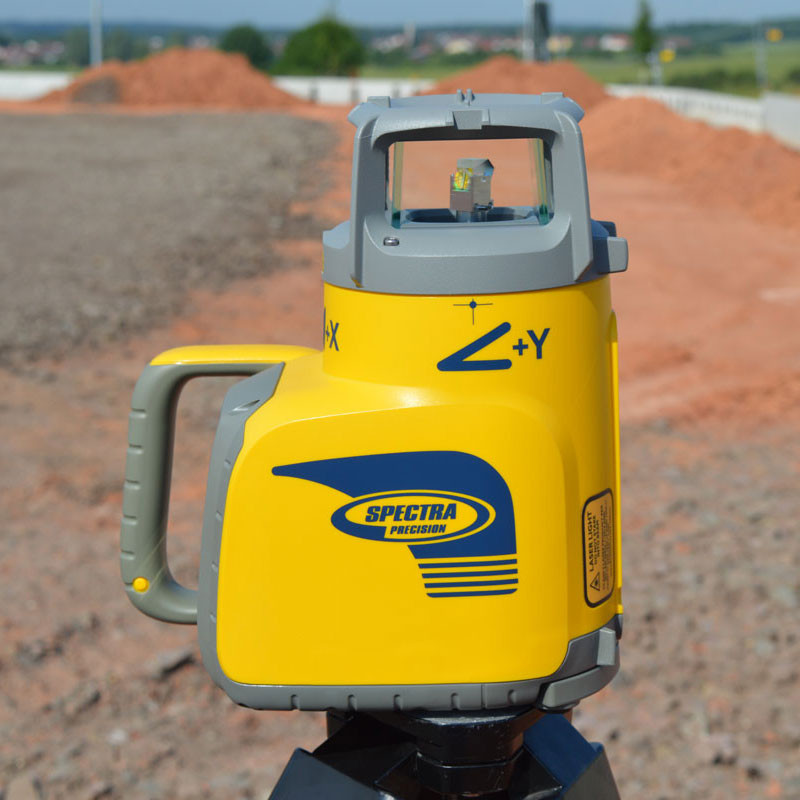

Dual-Slope Grading

Machine-Guided Earthwork

PRODUCT OVERVIEW

Product Description

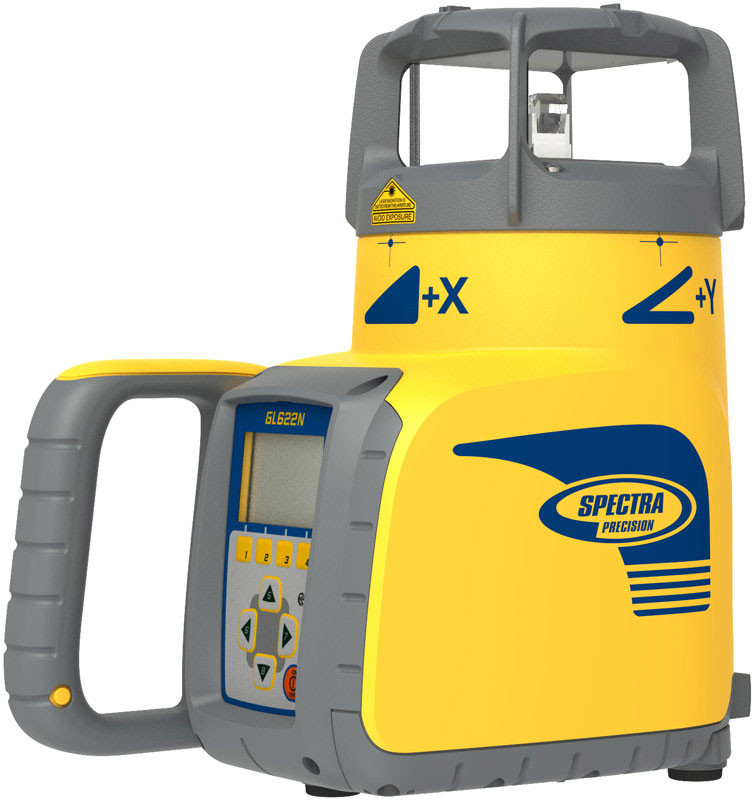

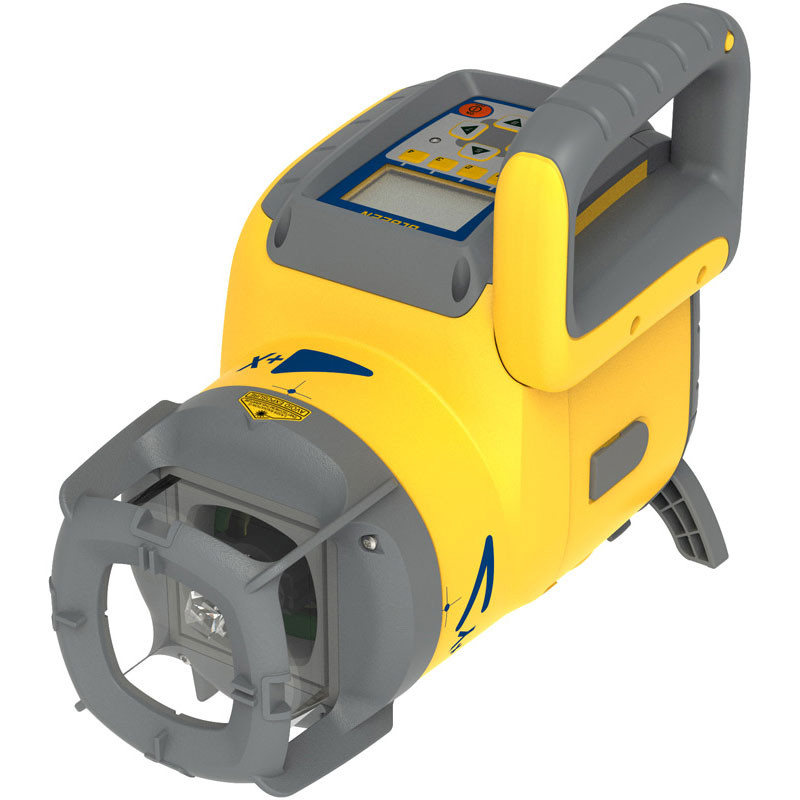

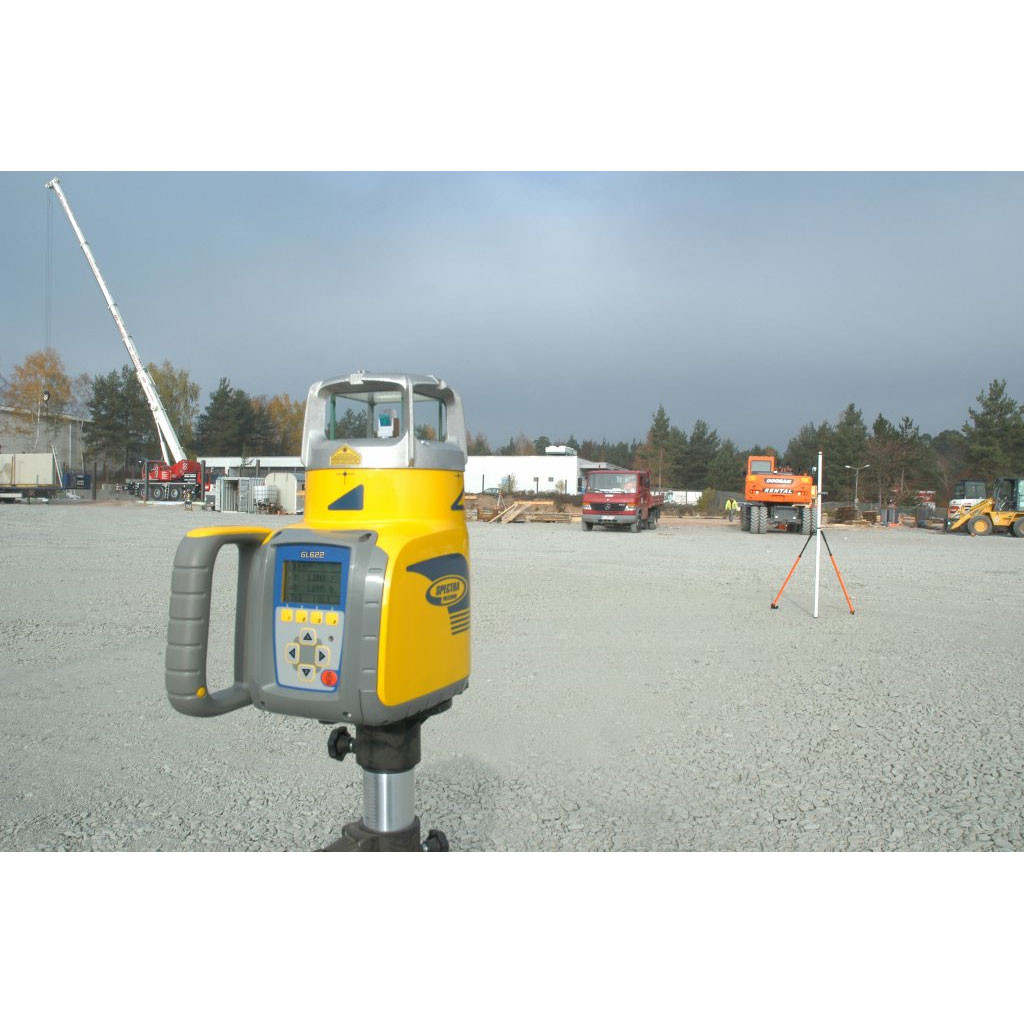

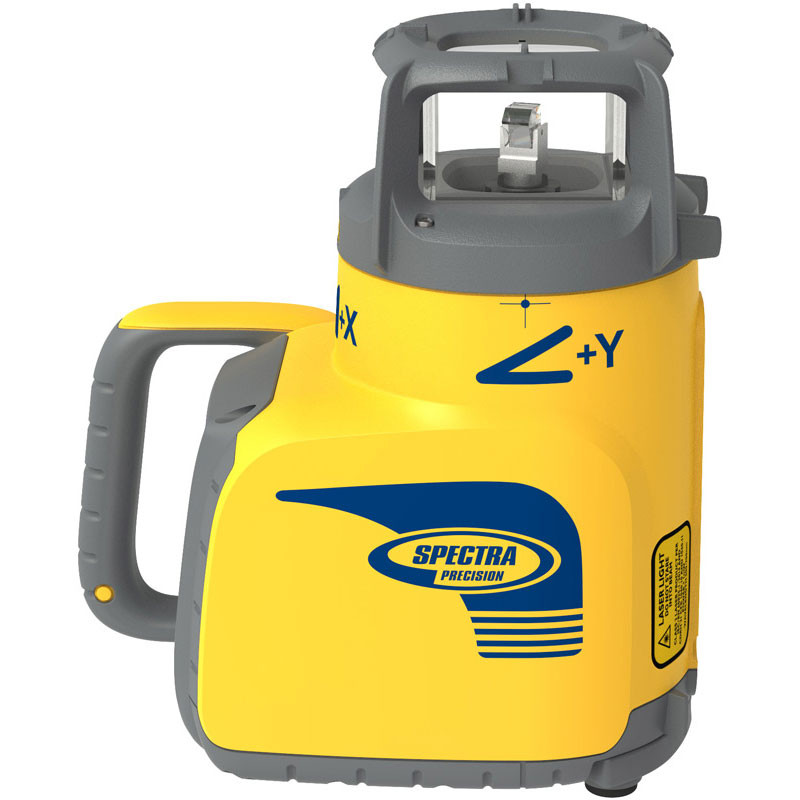

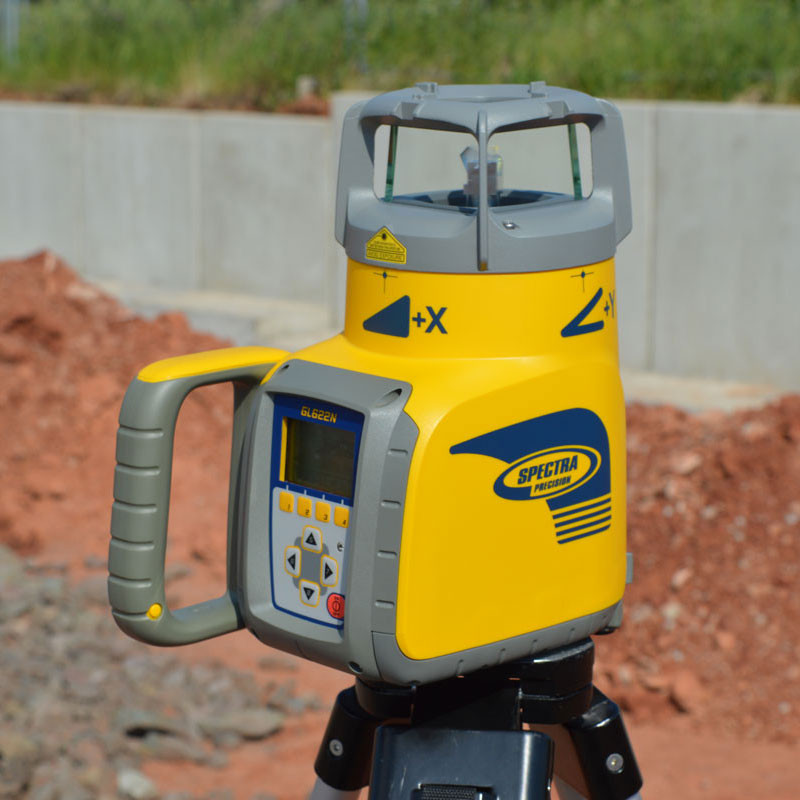

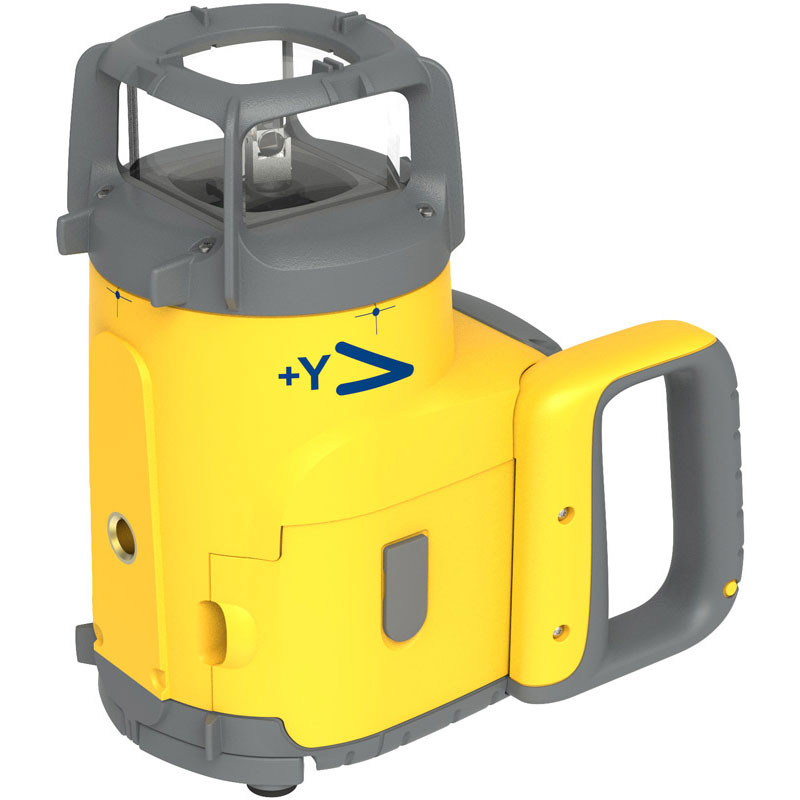

The Spectra Precision GL622IR is a professional dual-slope infrared grade laser engineered for contractors who need reliable grade control in high-ambient-light conditions where a standard red beam laser falls short. Pairing invisible infrared laser technology with the precision of independent dual-axis slope control, the GL622IR delivers consistent, accurate results on demanding grading, drainage, and site work projects.

Product Overview & Jobsite Applications

Unlike visible red beam lasers that struggle in bright sunlight, the GL622IR transmits an infrared signal detected exclusively by the included HL760 receiver, making it effective outdoors at extended ranges regardless of lighting conditions. The RC602N remote control allows operators to adjust slope values and monitor laser status wirelessly from any point on the site, eliminating repeated trips back to the instrument. Whether you are establishing a single-plane grade, setting dual-axis fall on a parking lot, or dialing in swales for drainage work, the GL622IR handles the task with repeatable, survey-grade accuracy.

Key Specifications

Laser Type: Infrared (invisible beam), Class 1
Self-Leveling Range: ±5° automatic compensation
Dual Slope Range: ±10% on both X and Y axes simultaneously
Grade Resolution: 0.001% increments
Accuracy: ±1.5 mm at 30 m (±1/16" at 100 ft)
Operating Range: Up to 600 m (2,000 ft) diameter with HL760 receiver
Rotation Speed: 0, 150, 300, 600 RPM selectable

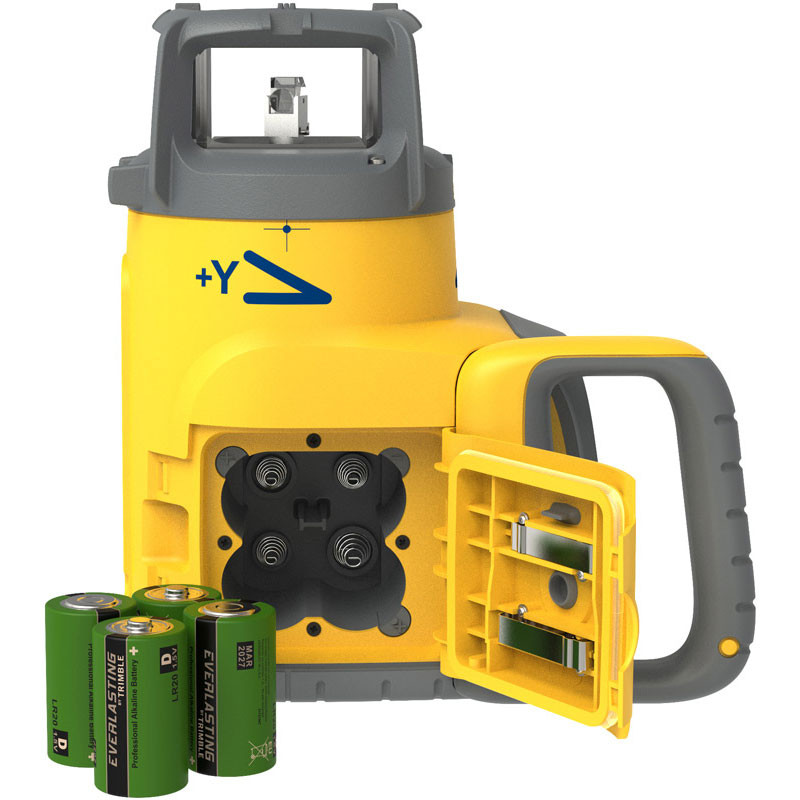

Power Source: Rechargeable NiMH battery pack or AC adapter
Battery Life: Up to 100 hours per charge
IP Rating: IP66 dust and water resistant
Operating Temperature: -20°C to +50°C (-4°F to +122°F)

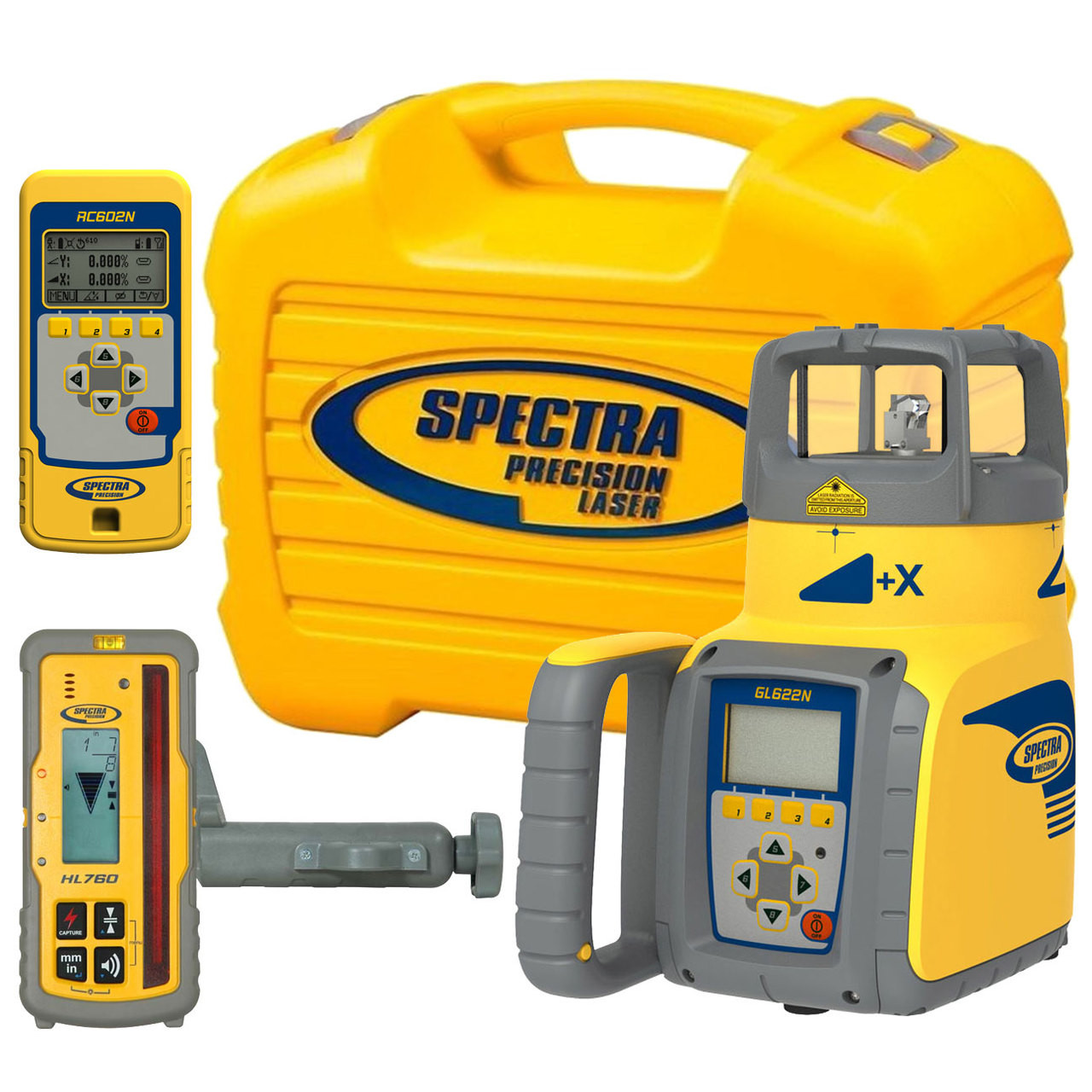

What's in the Kit

GL622IR infrared grade laser transmitter
HL760 infrared laser receiver with bracket and clamp
RC602N wireless remote control

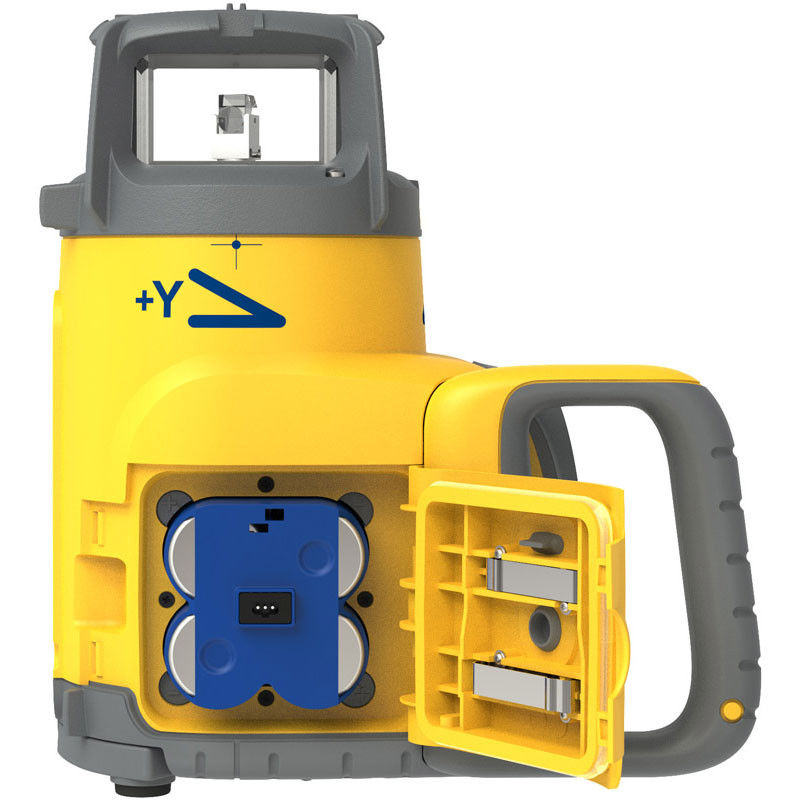

Rechargeable NiMH battery pack
AC wall charger
Carrying case
Operator's manual

Job Applications

Parking Lots & Flatwork: Set independent X and Y slopes simultaneously to achieve proper drainage fall across large concrete or asphalt pours — no secondary setups required.

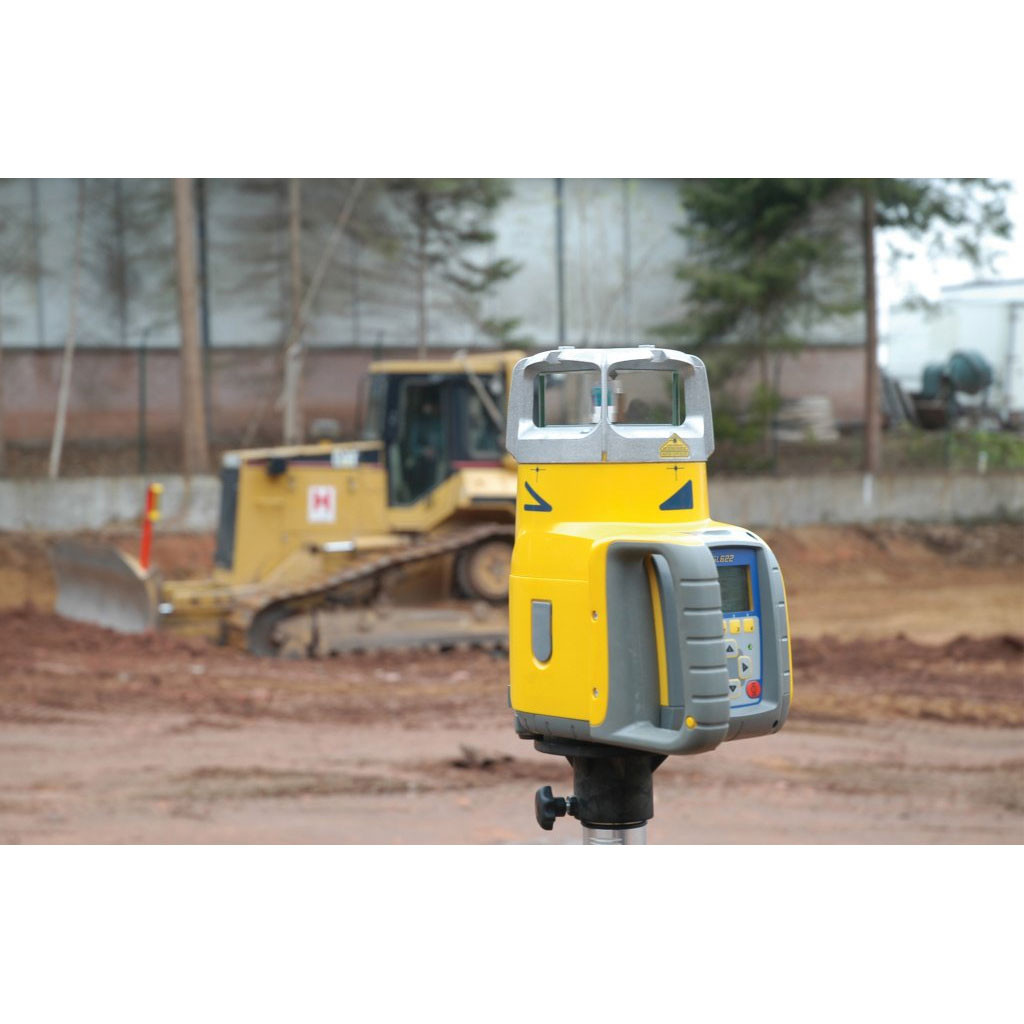

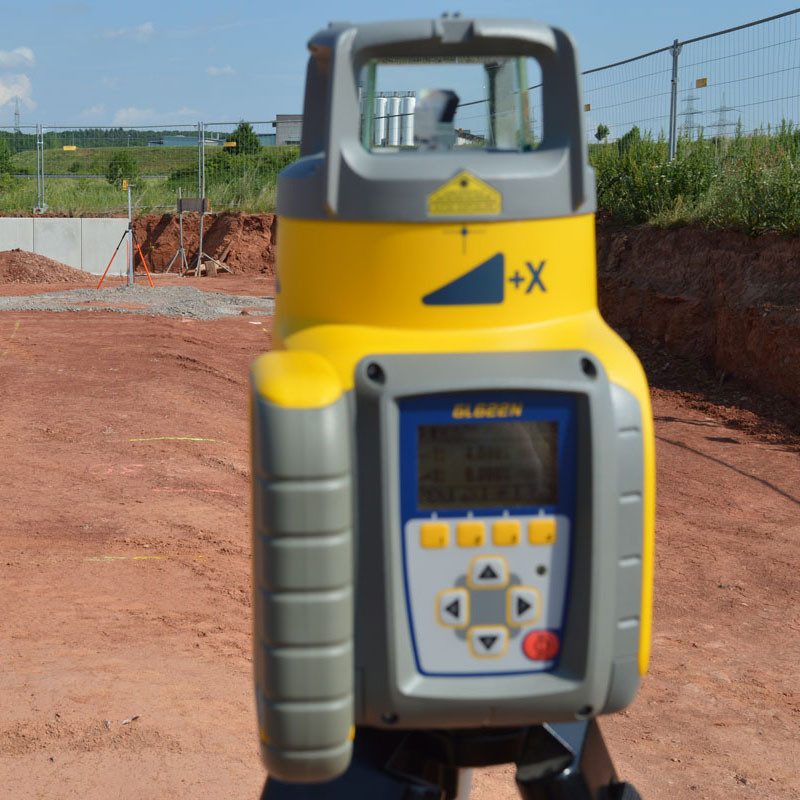

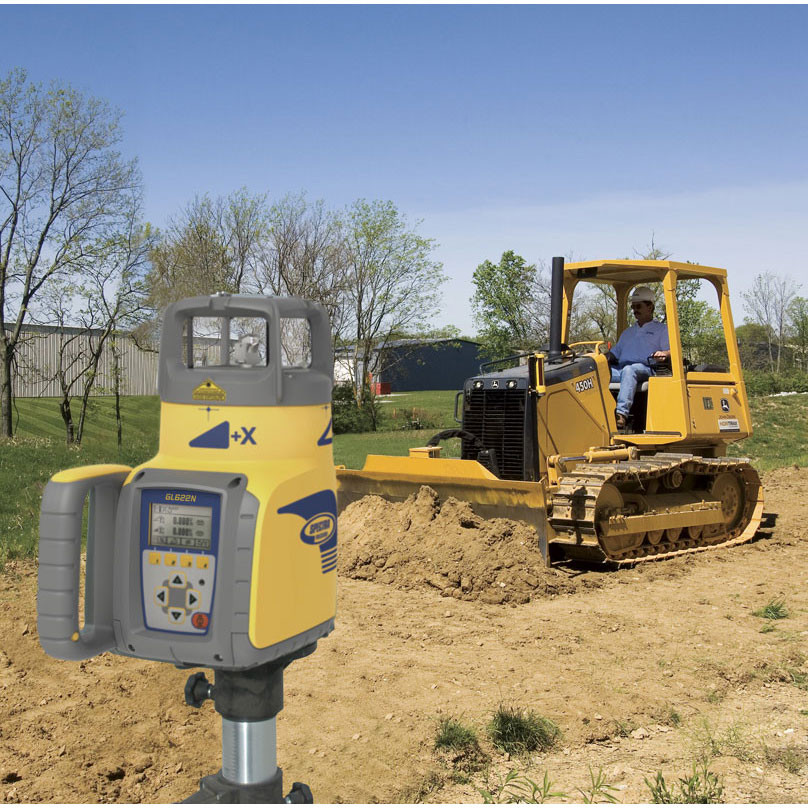

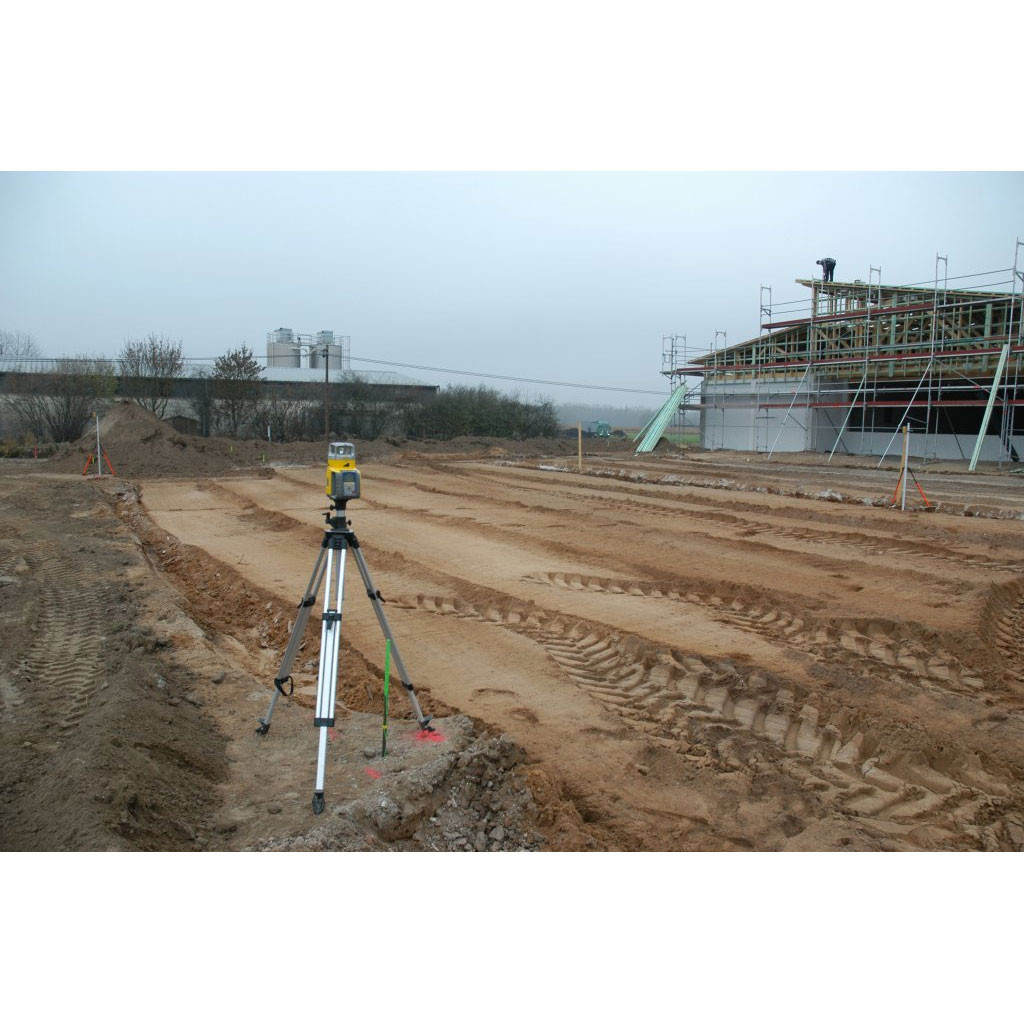

Site Grading & Earthwork: Control motor graders and scrapers with the extended 600 m working range; the infrared signal remains stable in full sun where visible lasers wash out.

Drainage & Swale Work: Program precise low-percentage grades down to 0.001% for culverts, retention areas, and agricultural drainage channels that demand exact slope tolerances.

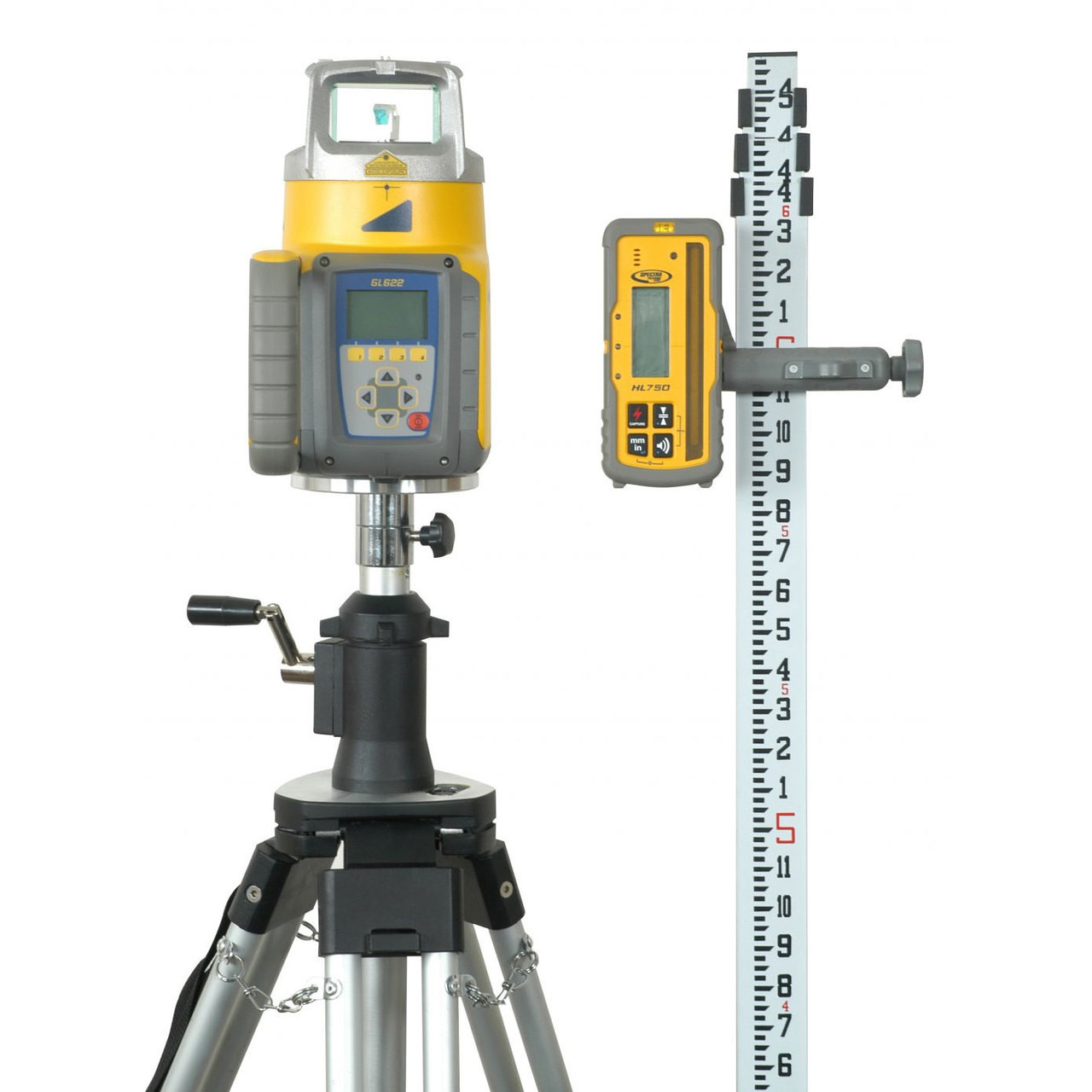

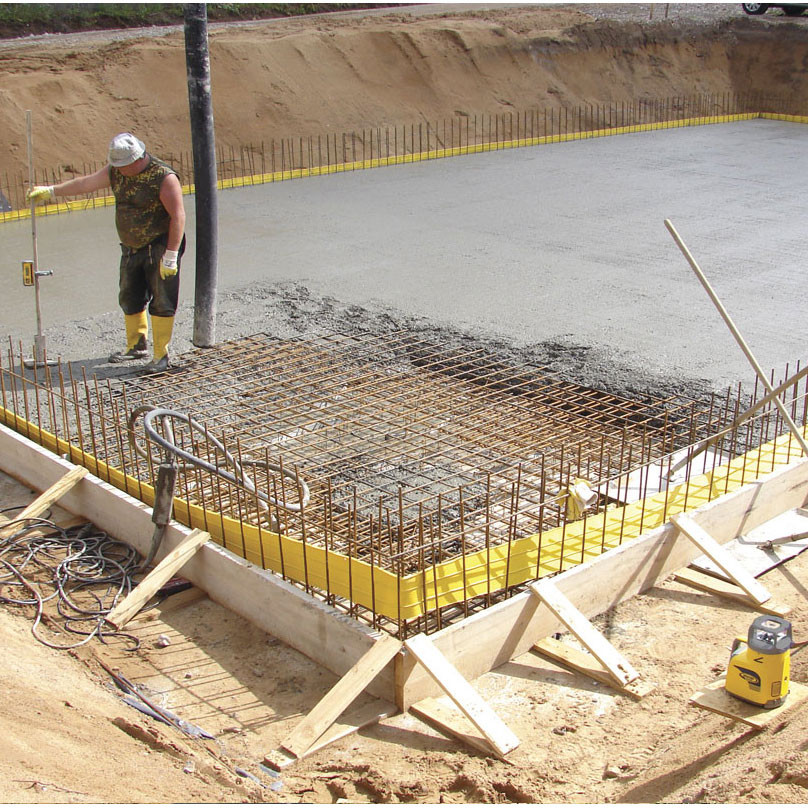

Foundation & Slab Prep: Establish consistent elevation references across large slab areas using the HL760 receiver on a grade rod, speeding up formwork and subbase verification.

Compatible Accessories

HL760 Infrared Laser Receiver — replacement or additional detector for large crew operations
RC602N Wireless Remote Control — spare or replacement remote for the GL622IR

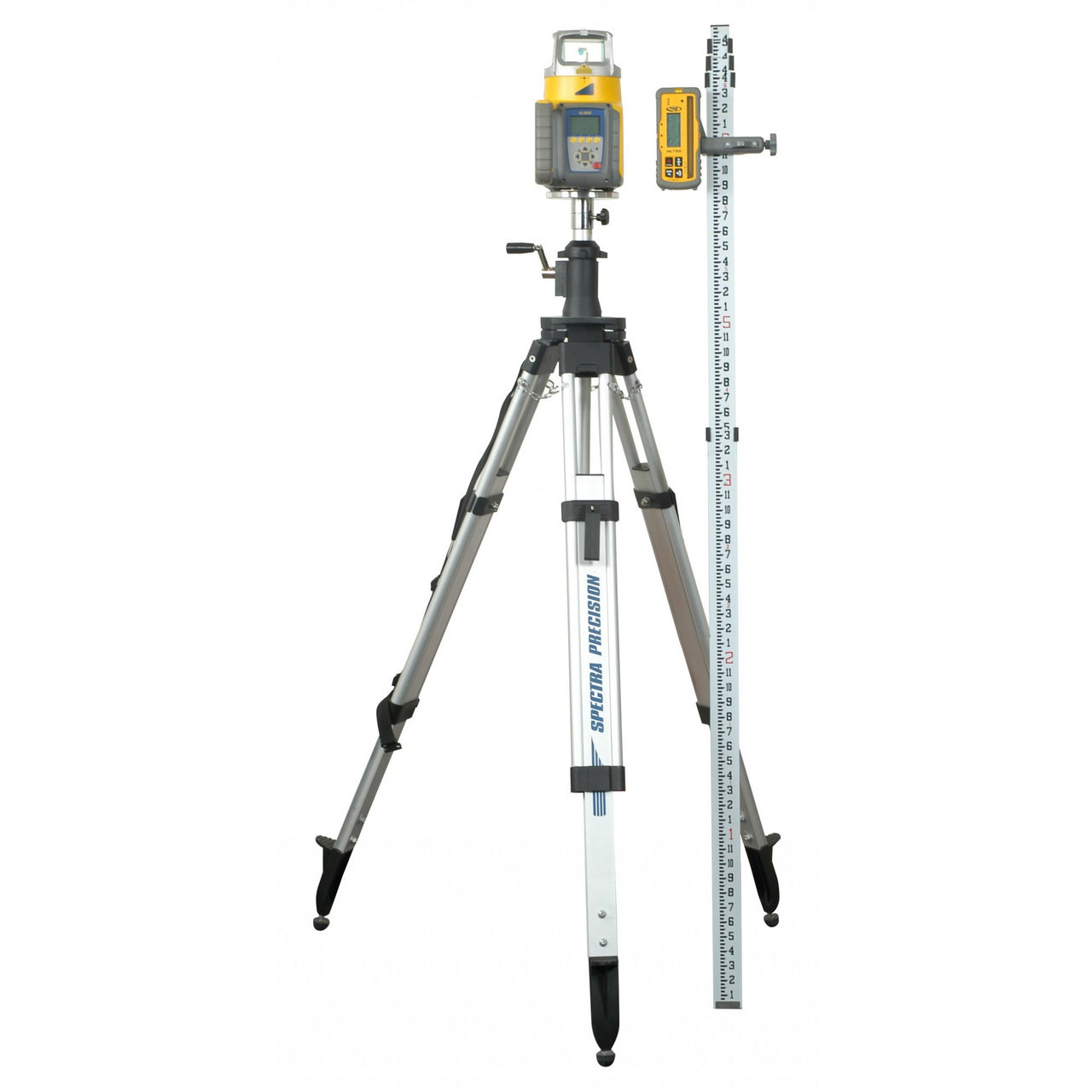

Spectra Precision Elevator Tripod — heavy-duty aluminum tripod for stable field setup
NiMH Rechargeable Battery Pack — extended runtime battery for all-day use
Detector Holder & Grade Rod Clamp — universal mounting hardware for HL760 on any grade rod

Related Guides

Frequently Asked Questions

Can the GL622IR be used with machine control systems?: The GL622IR is primarily a rotating grade laser designed for manual grade rod and receiver use. For full machine control integration, Spectra Precision offers dedicated machine control lasers; however, the GL622IR's infrared signal is compatible with many aftermarket machine control receivers — consult your dealer for compatibility details.
What is the difference between the GL622IR and the standard GL622?: The GL622 uses a visible red beam, while the GL622IR emits an invisible infrared signal. The infrared version is preferred for outdoor, high-ambient-light applications where the red beam is difficult for the receiver to lock onto at long range. Both models share the same dual-slope capability and operating range.

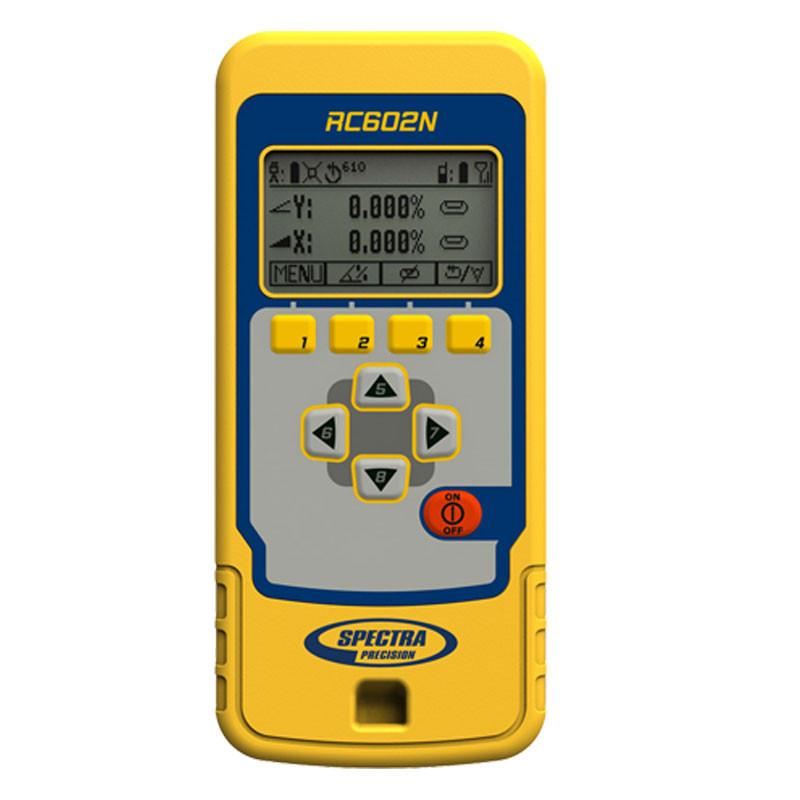

How far away can the RC602N remote control the laser?: The RC602N wireless remote operates at ranges up to approximately 200 m (650 ft) line-of-sight, allowing grade operators to adjust slope percentages, change rotation speed, and power the unit on or off without walking back to the laser.
Is the GL622IR covered by a warranty?: Spectra Precision backs the GL622IR with a standard limited warranty covering defects in materials and workmanship. Express Tools is an authorized dealer, so your unit is fully eligible for factory warranty service. Contact us for current warranty terms and repair service options.

Why This Equipment

Dual Grade Control

Control two slopes simultaneously for crowns, swales, and complex drainage layouts.

Machine Ready

Pairs with machine receivers for dozer, grader, and scraper grade control.

IP67 Rated

Weatherproof for outdoor use in rain, dust, and construction site conditions.

High Accuracy

±0.1mm/m grade accuracy — holds tolerance through a full working day.

Why Buy This?

Continuous grade control. No continuous labor.

Grade stakers cost $50–80/hr and disappear between passes. A dual-slope grade laser installs once and controls your blade automatically — through every cut, every fill, every pass. That's the math that makes grade lasers one of the fastest ROI investments in earthwork.

Professional contractors specify dual-grade systems for a reason: single-grade units work for straight drainage. The moment a job has a crown, a swale, or a complex parking lot slope — you need dual-grade.

Buying from Express Tools means authorized, factory-fresh inventory, legitimate firmware, and technical knowledge when you need it.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Laser Type	Infrared (invisible beam), Class 1
Self-leveling Range	±5° automatic compensation
Dual Slope Range	±10% on both X and Y axes simultaneously
Grade Resolution	0.001% increments
Accuracy	±1.5 mm at 30 m (±1/16" at 100 ft)
Operating Range	Up to 600 m (2,000 ft) diameter with HL760 receiver
Rotation Speed	0, 150, 300, 600 RPM selectable
Power Source	Rechargeable NiMH battery pack or AC adapter
Battery Life	Up to 100 hours per charge
IP Rating	IP66 dust and water resistant
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
