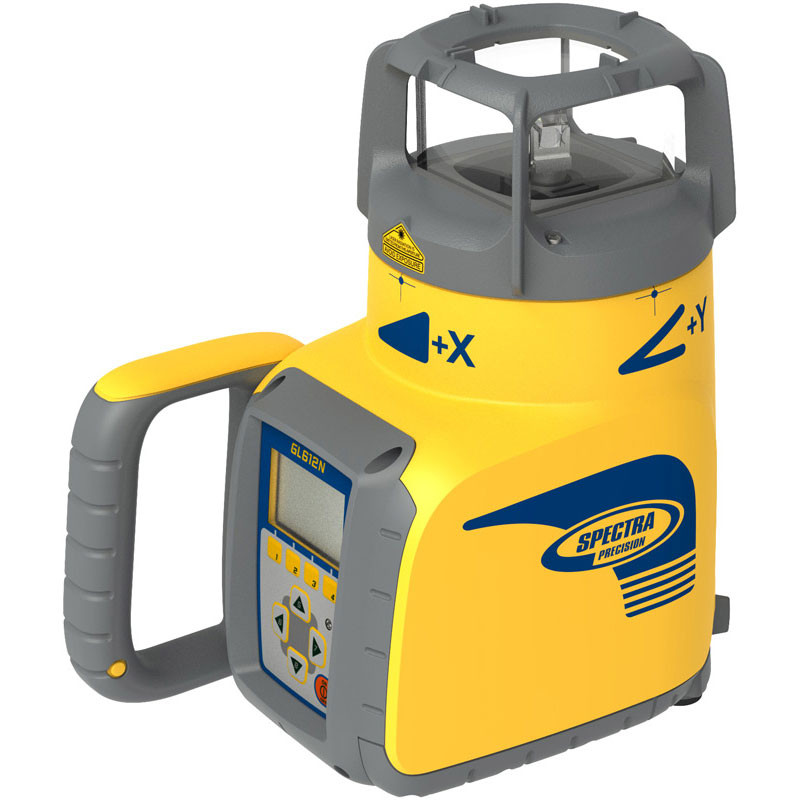

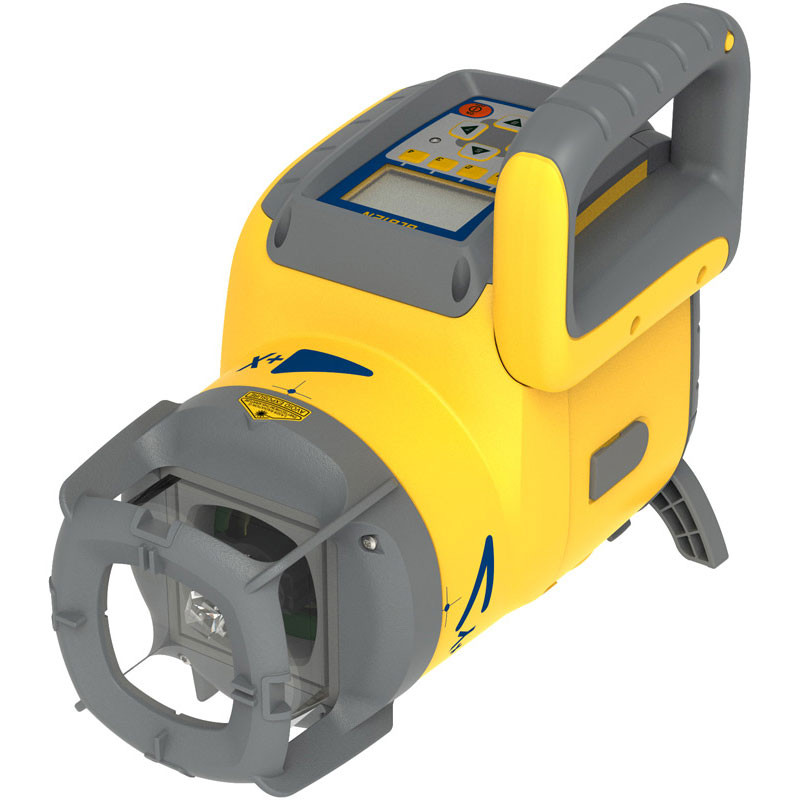

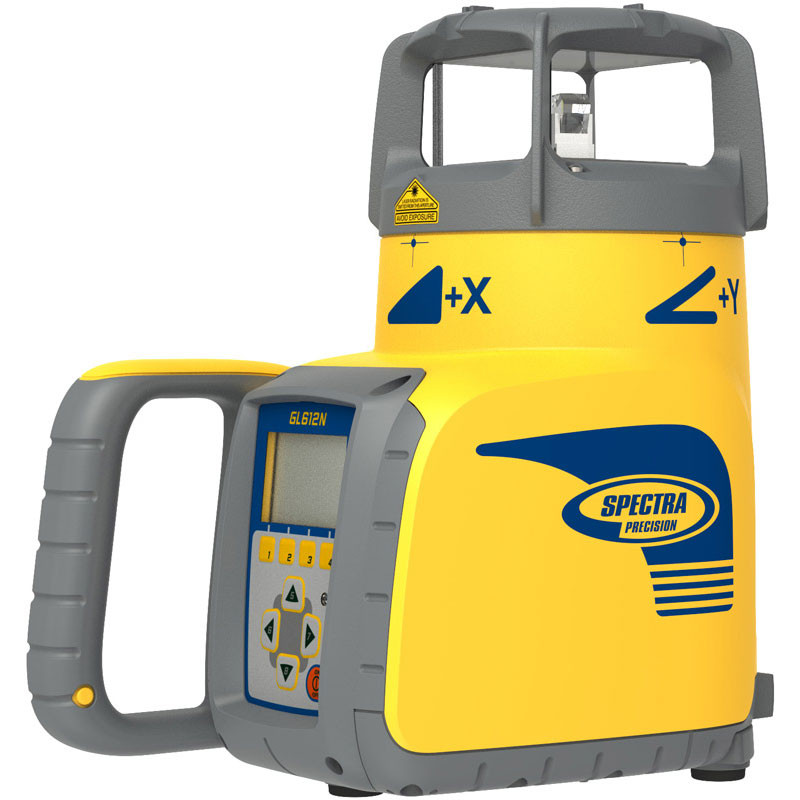

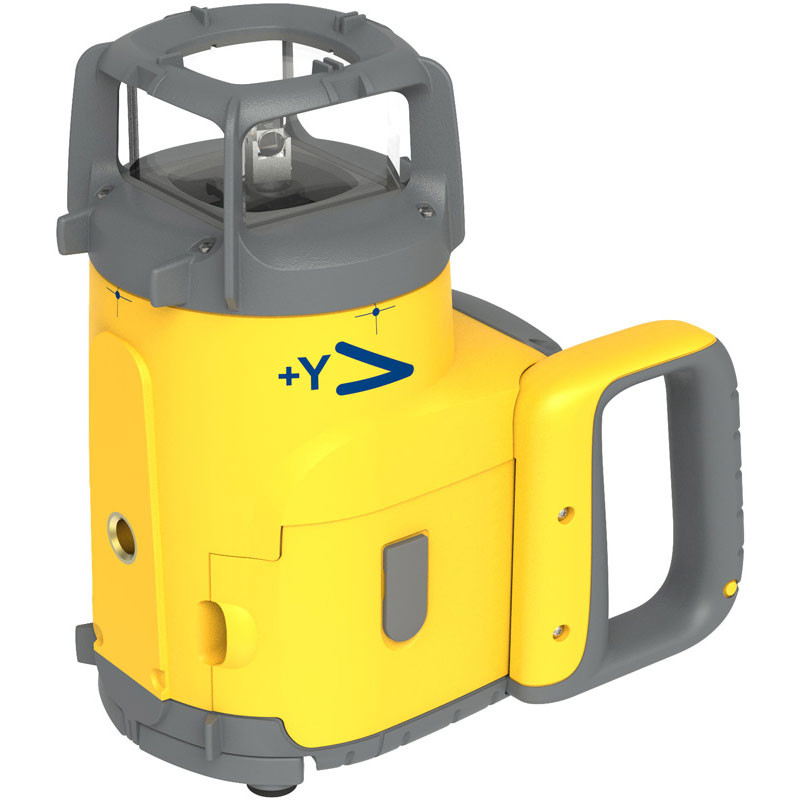

Spectra Precision GL612N Single Grade Laser with HL760 Receiver and RC602N Remote

Overview

The Spectra Precision GL612N Single Grade Laser System represents a professional-grade solution for contractors who demand precision and reliability in their grading operations. This comprehensive kit combines the rugged GL612N laser transmitter with the advanced HL760 digital receiver and RC602N remote control, creating a complete measurement system capable of handling the most demanding site work. Engineered for single-slope applications, this laser excels in drainage projects, foundation work, and concrete finishing where accurate grade control is non-negotiable.

What sets the GL612N apart is its exceptional versatility across variable terrain and challenging job site conditions. The system automatically self-levels and maintains grade even when subjected to vibration or minor disturbances, ensuring continuous productivity throughout your workday. The included HL760 receiver provides extended detection range and precision readout, while the RC602N remote enables efficient one-person operation from up to 1,000 feet away. Whether you're establishing drainage slopes, setting concrete forms, or grading parking lots, this system delivers the accuracy and durability professional contractors require.

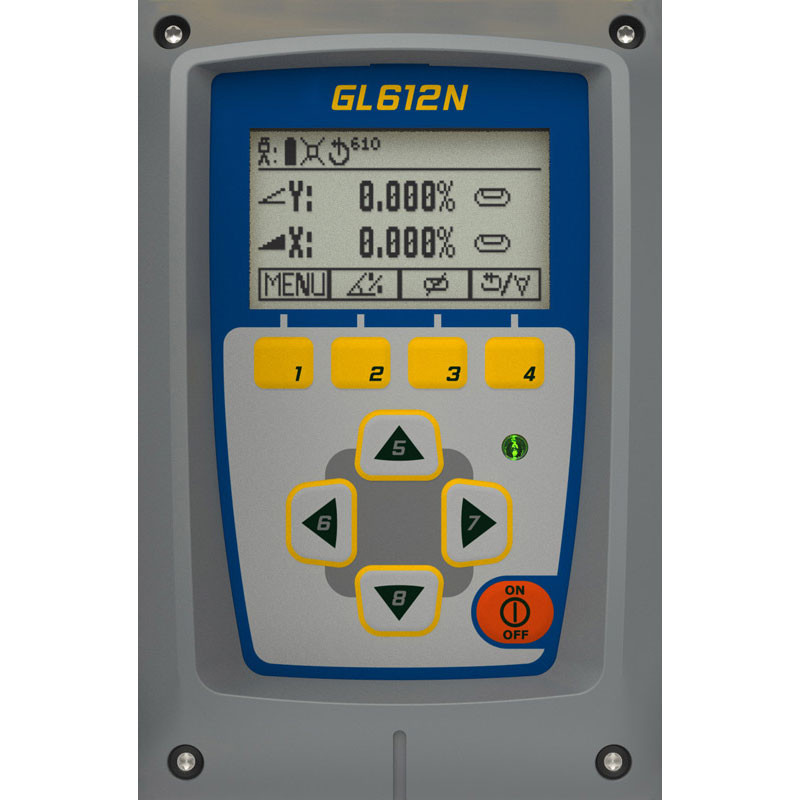

Built to withstand harsh construction environments, the GL612N features robust housing with IP67 water and dust resistance. The intuitive interface minimizes training time, allowing crew members to achieve productive operation within minutes. With its combination of precision engineering, comprehensive accessories, and field-proven reliability, the GL612N system provides exceptional value for contractors seeking to improve efficiency and reduce costly grade errors.

Key Specifications

• Leveling Range: ±5 degrees automatic leveling
• Working Diameter: Up to 2,600 feet (800 meters) with HL760 receiver
• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Grade Range: -10% to +10% in X-axis or Y-axis
• Rotation Speed: 600 RPM for bright, highly visible beam
• Battery Life: 60+ hours on alkaline D-cells
• Remote Range: RC602N operates up to 1,000 feet from transmitter
• Environmental Rating: IP67 dust-tight and waterproof protection
• Operating Temperature: -20°F to 122°F (-30°C to 50°C)
• Self-Leveling Time: Less than 30 seconds
• Receiver Accuracy: HL760 displays to ±1/16 inch digital readout
• Warning System: Audible and visual alerts for out-of-level conditions

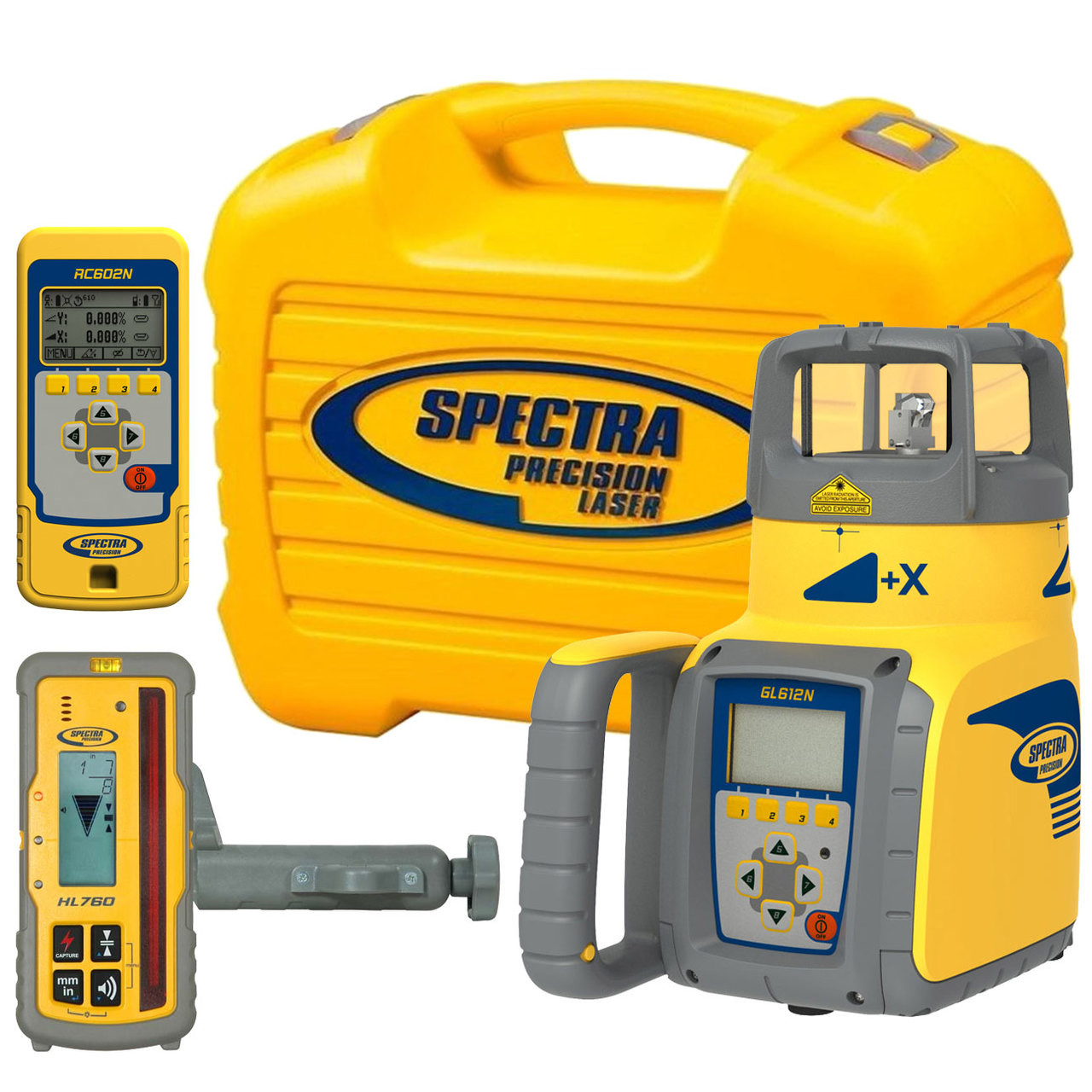

What's in the Kit

• GL612N Single Grade Laser Transmitter with protective carrying case
• HL760 Digital Laser Receiver with rod clamp and carrying case

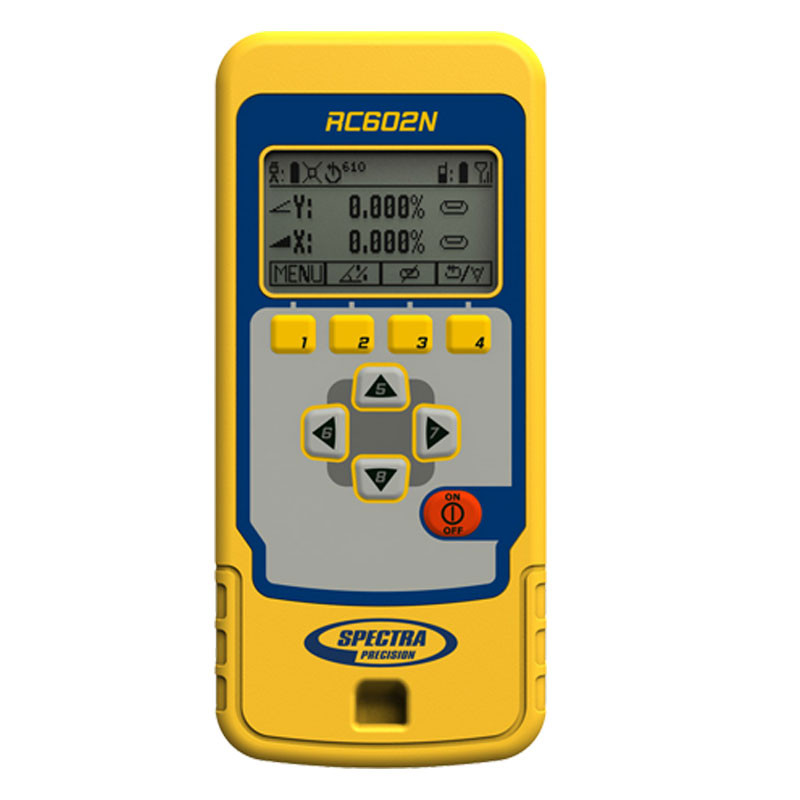

• RC602N Wireless Remote Control for one-person operation

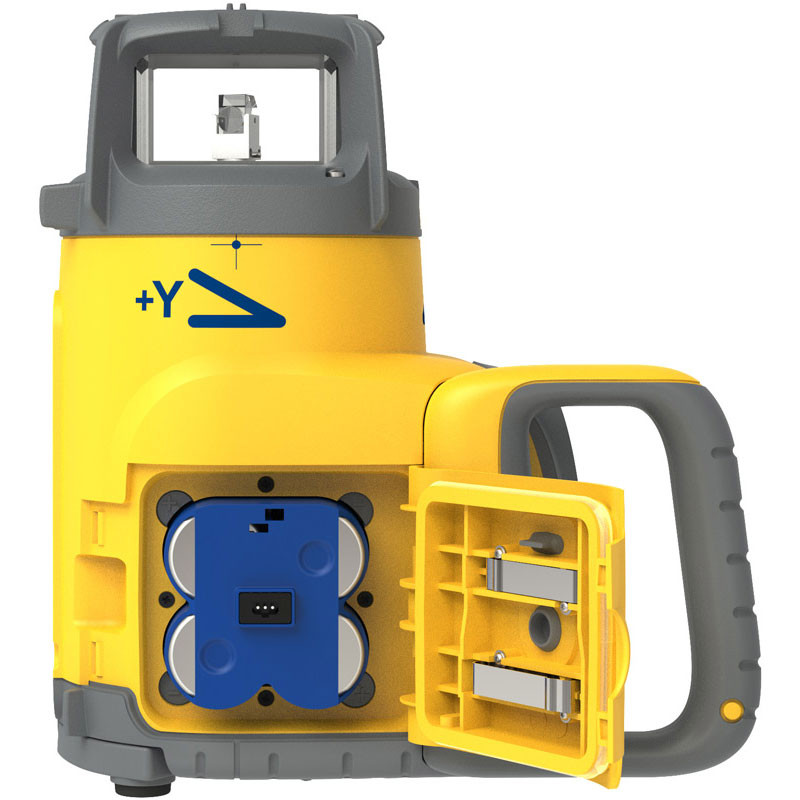

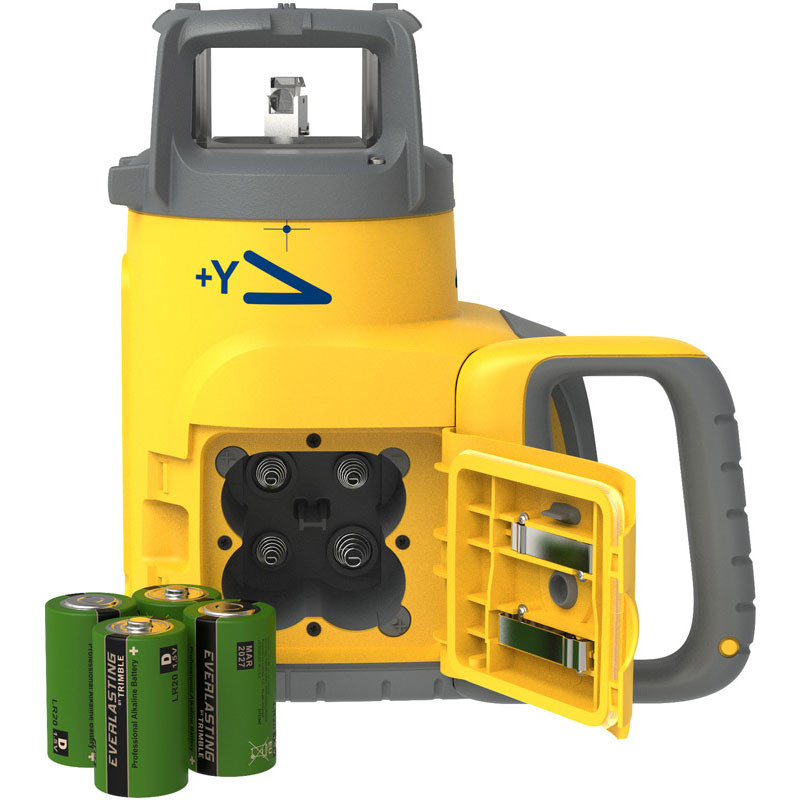

• Heavy-duty alkaline battery pack (D-cells included)
• Comprehensive operator's manual with quick-start guide
• Factory calibration certificate with traceable accuracy documentation
• Limited two-year manufacturer's warranty

Job Applications

• Site Drainage and Grading: Establishing proper water runoff is critical to prevent foundation damage and erosion. The GL612N's precise single-slope capability ensures accurate pitch across parking lots, athletic fields, and building pads, eliminating standing water issues that can delay projects and create long-term maintenance problems.
• Concrete Foundation Work: Foundation forms must be set to exacting specifications to prevent structural issues. This laser system enables contractors to establish level references or controlled slopes for footings and slabs with confidence, reducing callbacks and ensuring compliance with engineering specifications on the first pour.
• Trench and Pipeline Installation: Gravity-flow sewer and drainage lines require consistent grade throughout their entire run. The GL612N maintains accurate slope reference over extended distances, helping excavation crews achieve proper pitch without constant surveying, which dramatically improves installation speed and reduces material waste.
• Agricultural Land Leveling: Precision agriculture and irrigation efficiency depend on controlled field grades. This system allows agricultural contractors to establish uniform slopes for optimal water distribution, improving crop yields while conserving water resources through more efficient irrigation management.
• Paving and Curb Installation: Professional paving crews use the GL612N to set screeds and verify subgrade preparation before asphalt or concrete placement. The system's accuracy ensures proper crown and cross-slope on roadways, while the remote control allows the operator to adjust reference points without returning to the transmitter.
• Residential and Commercial Landscaping: Creating visually appealing yards with proper drainage requires careful grade control. Landscape contractors rely on this laser system to shape terrain, establish swales, and ensure water flows away from structures while maintaining aesthetic contours that complement architectural design.

Compatible Accessories

• Spectra Precision RC602 Remote Control: Additional remotes for multi-crew operations
• Spectra HL450 Economy Receiver: Cost-effective backup receiver option
• Heavy-Duty Elevating Tripod: Adjustable height positioning for variable terrain
• NiMH Rechargeable Battery Pack: Economical power solution for daily use
• Laser Enhancement Glasses: Improved beam visibility in bright sunlight
• Grade Rod with Tenths Scale: Direct reading measurement pole
• Protective Shipping Case: Hard-shell transport protection for fleet vehicles
• Wall/Ceiling Mount Bracket: Secure positioning for interior applications

Related Guides

• Complete Guide to Choosing the Right Grade Laser for Your Projects
• Understanding Laser Level Accuracy and Calibration Requirements
• Site Drainage and Grading Best Practices for Contractors
• Laser Safety Guidelines and OSHA Compliance on the Job Site

FAQ

Can the GL612N handle dual-slope grading applications?

No, the GL612N is specifically designed for single-slope applications along either the X-axis or Y-axis. For projects requiring compound slopes or dual-axis grading, consider the Spectra GL722 dual-grade laser system. The GL612N excels at applications like trench work, simple drainage, and single-plane grading where one-directional slope is needed.

What is the effective working range in typical job site conditions?

With the included HL760 receiver, the GL612N delivers reliable detection up to 2,600 feet diameter (1,300-foot radius). Actual range varies with ambient light conditions—you'll achieve maximum range during dawn, dusk, or overcast conditions. In bright sunlight, effective range may reduce to 1,500-2,000 feet. Using laser enhancement glasses can extend daytime visibility significantly.

How does the system handle vibration from nearby equipment?

The GL612N features advanced shock and vibration resistance with automatic re-leveling capability. Minor vibrations from compaction equipment, traffic, or wind won't affect operation. If disturbance exceeds ±5 degrees from level, the system will alert operators with audible and visual warnings, then automatically re-level when conditions stabilize. For extreme vibration environments, mount the transmitter on a stable platform away from the source.

Is the system compatible with GPS or machine control platforms?

The GL612N is a standalone optical laser system and does not integrate directly with GPS or automated machine control systems. It's designed for traditional receiver-and-rod measurement workflows. For projects requiring machine control integration, consider Spectra's precision machine control lasers with appropriate interfaces. However, the GL612N can work alongside GPS systems to provide independent verification of automated grading.
