Spectra Precision GL612N-1 Single Grade Laser with Two HL760 Receiver and RC602N Remote

Overview

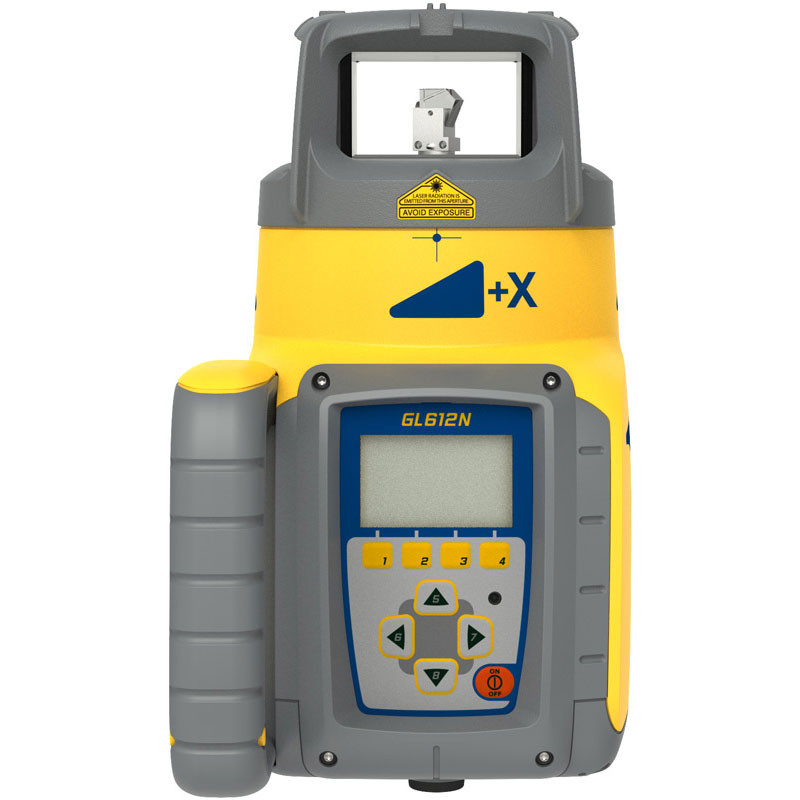

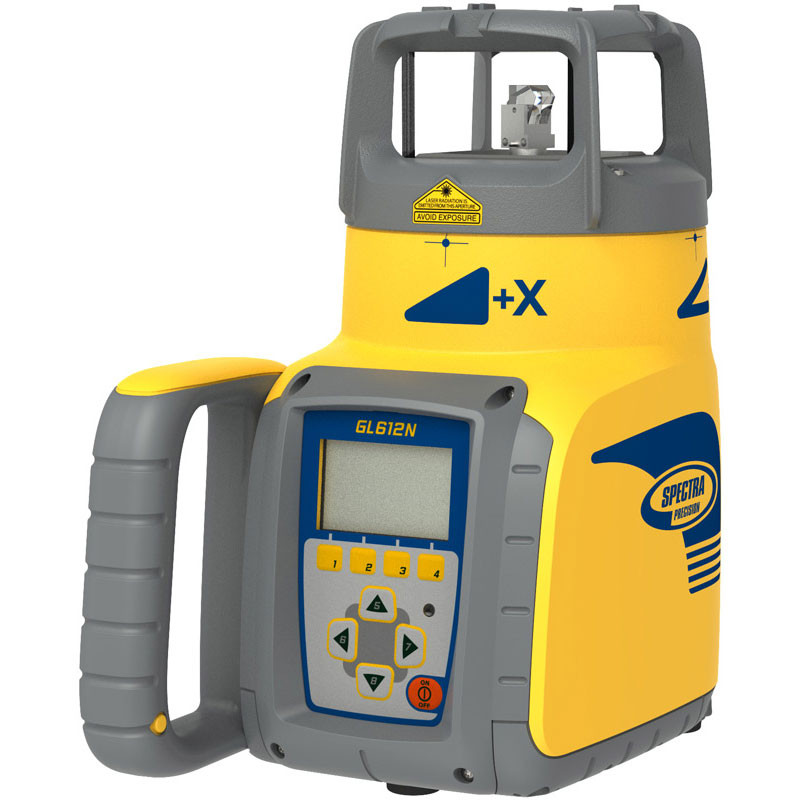

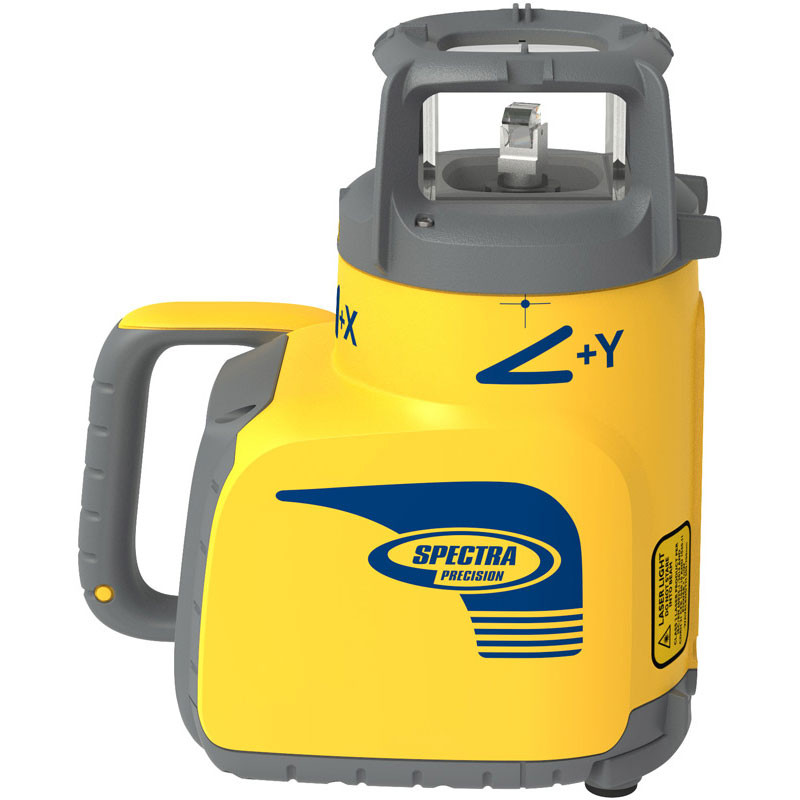

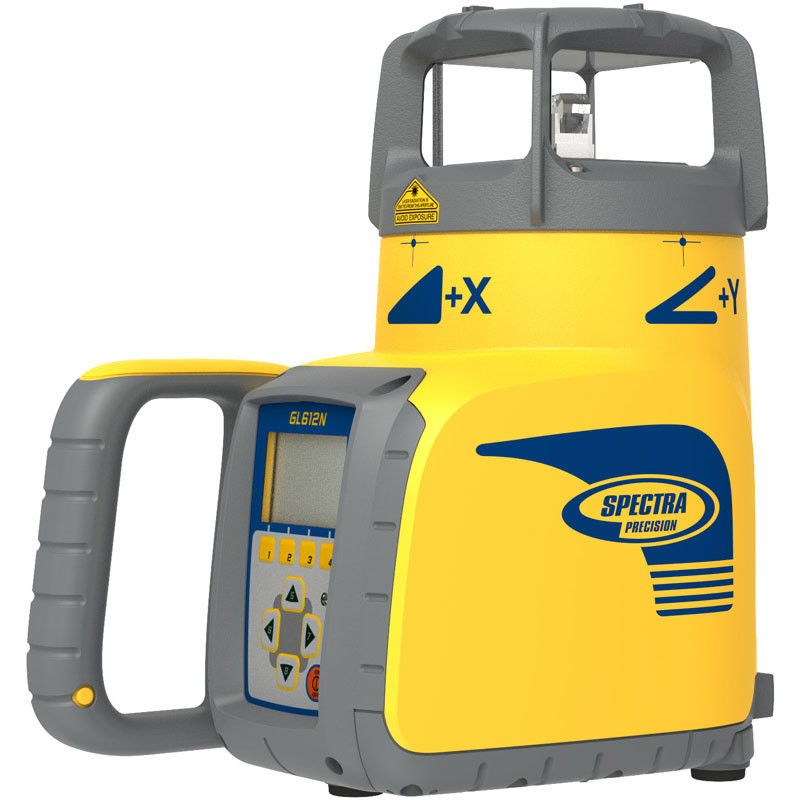

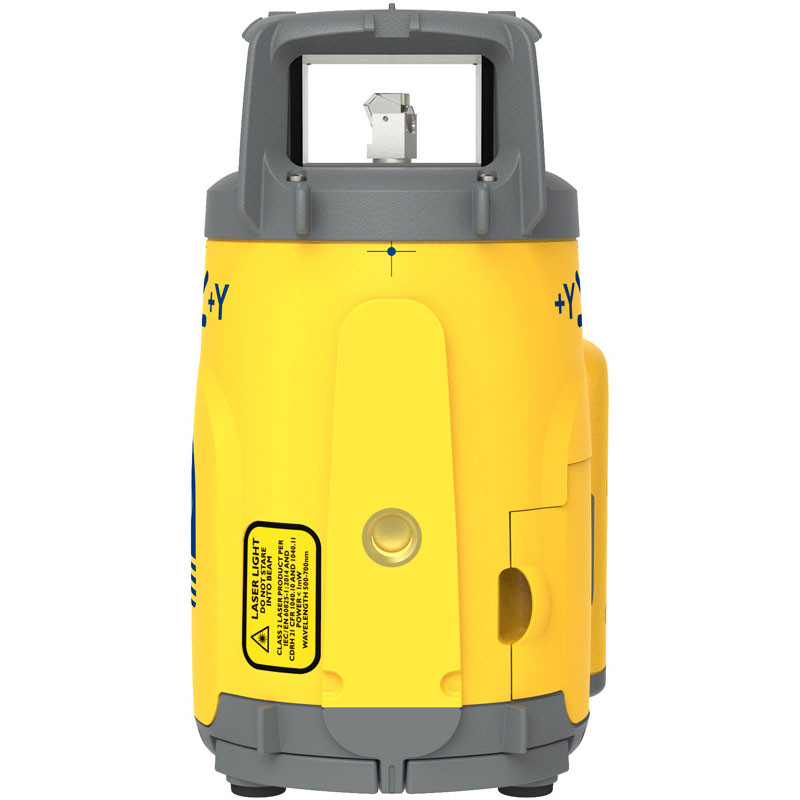

The Spectra Precision GL612N-1 Single Grade Laser delivers professional-grade slope control for construction sites where multiple crews need simultaneous grade verification across different work zones. This comprehensive system includes the GL612N rotating laser with single-axis slope capability, two HL760 digital rod receivers for independent elevation monitoring, and the RC602N remote control for convenient setup adjustments from up to 800 feet away. Engineered for demanding applications like site preparation, utility trenching, and foundation work, the GL612N-1 provides reliable accuracy and productivity-boosting efficiency for contractors managing multi-phase projects or coordinating separate teams on the same site.

What sets this dual-receiver configuration apart is its ability to support independent crew operations without equipment bottlenecks. While one team verifies excavation depth in a foundation zone, another crew can simultaneously check drainage grades 300 feet away—both referencing the same laser plane. The HL760 receivers feature large multi-segment displays with audio alerts, making grade matching fast and intuitive even in bright sunlight or noisy environments. Combined with the RC602N's wireless control functionality, operators can establish precise slope references and make grade adjustments without returning to the laser head, significantly reducing setup time and eliminating workflow interruptions on complex job sites.

Built to withstand harsh construction environments, the GL612N features IP67-rated dust and water protection, operating temperatures from -4°F to 122°F, and Spectra's proven leveling technology that self-levels within ±5° and continues tracking through minor vibrations or ground settlement. The system's 2,600-foot diameter working range with receivers provides coverage for large sites while maintaining accuracy within ±1/16 inch at 100 feet—precise enough for finished grade work yet rugged enough for initial earthmoving operations.

Key Specifications

• Laser Type: Single-axis rotating grade laser with manual slope capability (0-10% in one direction)
• Leveling System: Electronic self-leveling within ±5°, automatic out-of-level alert
• Accuracy: ±1/16 inch (1.6 mm) at 100 feet horizontal and vertical
• Working Range: Up to 2,600-foot diameter with HL760 receivers; 800 feet diameter visible beam
• Rotation Speed: 600 RPM (constant) for optimal receiver performance
• Remote Control Range: RC602N operates up to 800 feet from laser transmitter
• Receiver Detection: HL760 digital receivers with ±0.04 inch (1 mm) on-grade accuracy
• Display: Multi-segment LED with directional arrows, on-grade indicators, and intensity readout

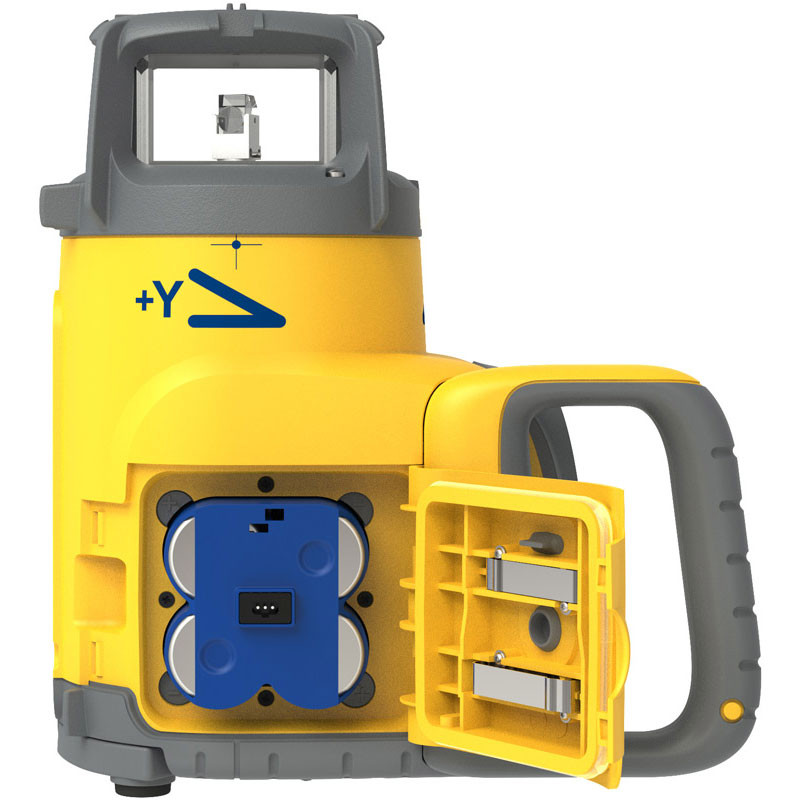

• Battery Life: 60+ hours on alkaline D-cells (laser); 60+ hours on 2 AA cells (HL760); 40+ hours on AA cells (RC602N)
• Environmental Rating: IP67 dust-tight and waterproof protection
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Weight: 9.9 lbs (4.5 kg) laser unit only

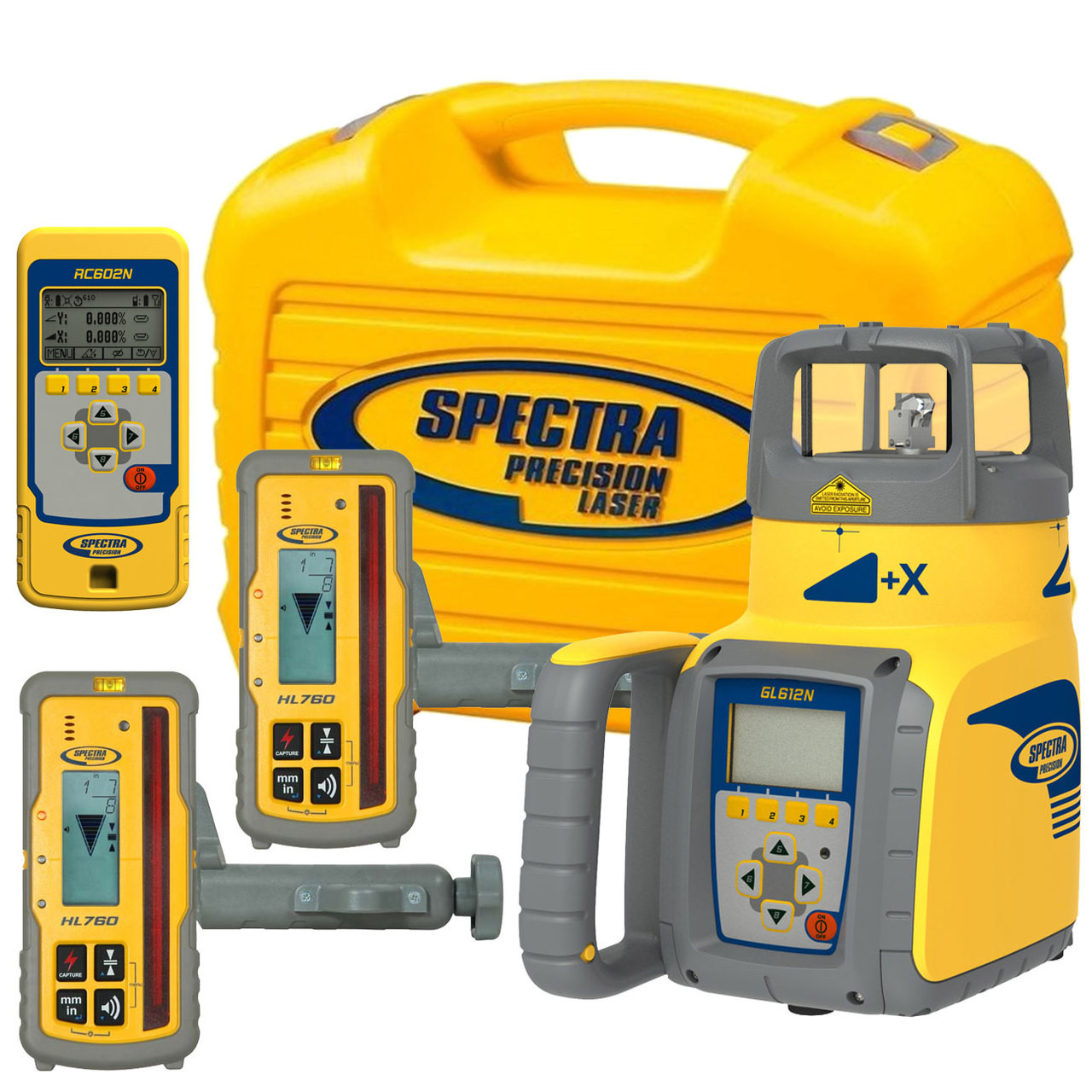

What's in the Kit

• GL612N single-axis grade laser transmitter

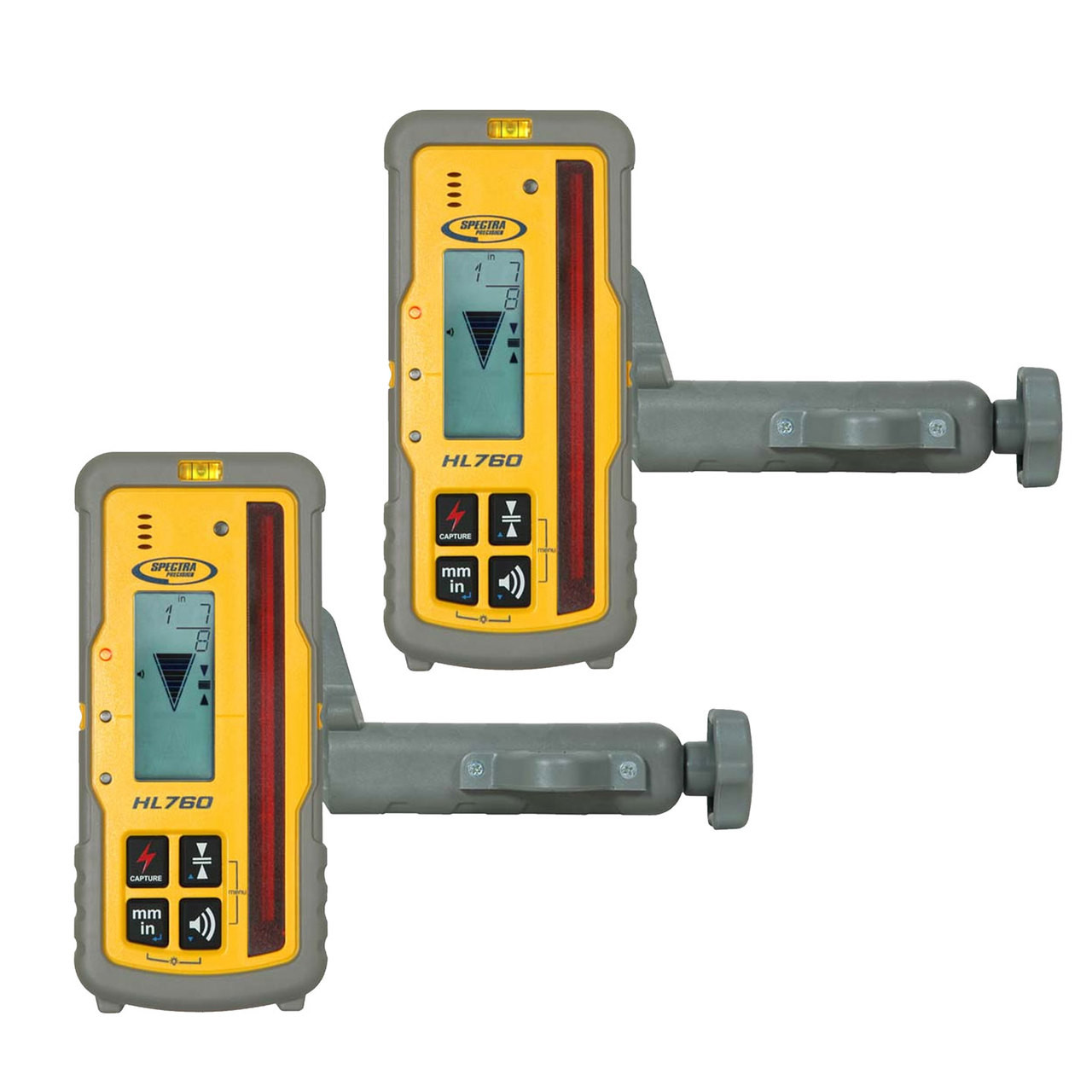

• Two (2) HL760 digital laser receivers with rod clamps
• RC602N wireless remote control with belt holster

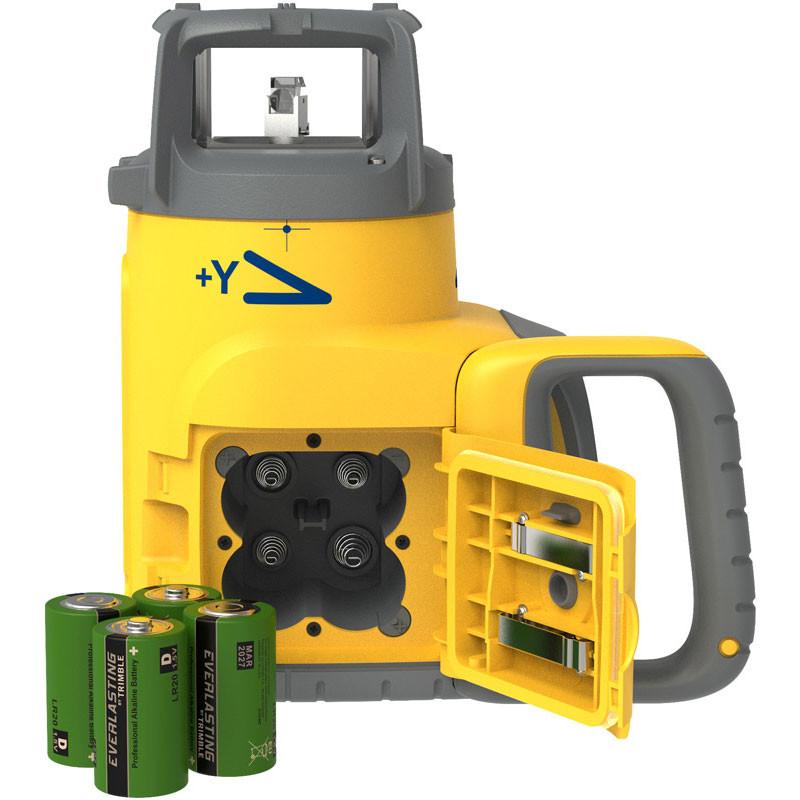

• Alkaline battery set for laser (4 D-cells)
• AA batteries for receivers and remote
• Heavy-duty carrying case with custom foam inserts
• Operator manuals and quick-start guides
• Spectra Precision 3-year manufacturer warranty documentation

Job Applications

• Site Preparation & Mass Excavation: Coordinate cut-and-fill operations across large development sites where earthmoving crews need continuous grade reference without waiting for surveyor verification between passes, dramatically reducing idle time and improving material yield calculations.
• Foundation & Footings: Simultaneously verify excavation depth in multiple foundation zones while another crew checks formwork elevation, ensuring consistent bearing surface preparation and eliminating the costly delays caused by grade conflicts discovered during concrete placement.
• Utility Trenching: Maintain precise drainage slopes for sewer, storm water, and drainage installations while a second crew verifies bedding depth or backfill grades in completed sections, keeping utility projects on schedule without compromising flow-critical pitch accuracy.
• Concrete Slab & Flatwork: Set finished floor elevations across large warehouse pads or parking structures with one receiver guiding laser screed operators while another verifies subgrade preparation in the next pour section, optimizing crew coordination on fast-paced concrete placement days.
• Grading & Drainage: Establish positive drainage slopes for athletic fields, parking lots, and landscape areas where separate crews handle rough grading and finish work simultaneously, ensuring water management requirements are met without project phase conflicts.
• Agricultural Land Leveling: Control field grades for irrigation efficiency with multiple receivers tracking elevation across extensive acreage, allowing tractor operators to maintain consistent slopes while monitoring personnel verify adjacent sections without interrupting machine productivity.

Compatible Accessories

• Spectra Precision LR60 Machine Receiver: Add machine-mount grade control for dozer or excavator blade automation
• Heavy-Duty Elevating Tripod: Extended-height tripod for improved line-of-sight on rolling terrain or obstructed sites
• Alkaline & Rechargeable Battery Packs: Extended runtime solutions for multi-shift operations
• Additional HL760 Receivers: Expand system capacity for larger crew deployments
• Grade Rods & Measuring Poles: Telescoping and fixed-length options with metric or imperial graduations
• Receiver Rod Clamps: Replacement or additional mounting hardware for grade rod attachment
• Laser Safety Glasses: ANSI-rated eyewear for beam visibility enhancement in bright conditions

Related Guides

• How to Choose the Right Grade Laser for Your Construction Application
• Laser Receiver Setup and Calibration Best Practices
• Converting Drainage Requirements to Laser Slope Settings
• Grade Laser Maintenance and Accuracy Verification Procedures

FAQ

Can both HL760 receivers be used simultaneously without interference?

Yes, the GL612N laser beam can be detected by unlimited receivers at the same time. Both included HL760 units (and any additional receivers you add) operate independently, allowing separate crews to verify grade in different locations simultaneously without any signal interference or performance degradation.

What's the difference between single-grade and dual-grade lasers for my application?

Single-grade lasers like the GL612N create slope in one direction only—ideal for drainage trenches, simple site grades, and applications requiring consistent pitch along a single axis. Dual-grade lasers create compound slopes in two directions simultaneously, necessary for complex drainage designs like crowned roads or multi-directional parking lot drainage. For most foundation, trenching, and basic grading work, single-grade provides the precision you need at a more economical price point.

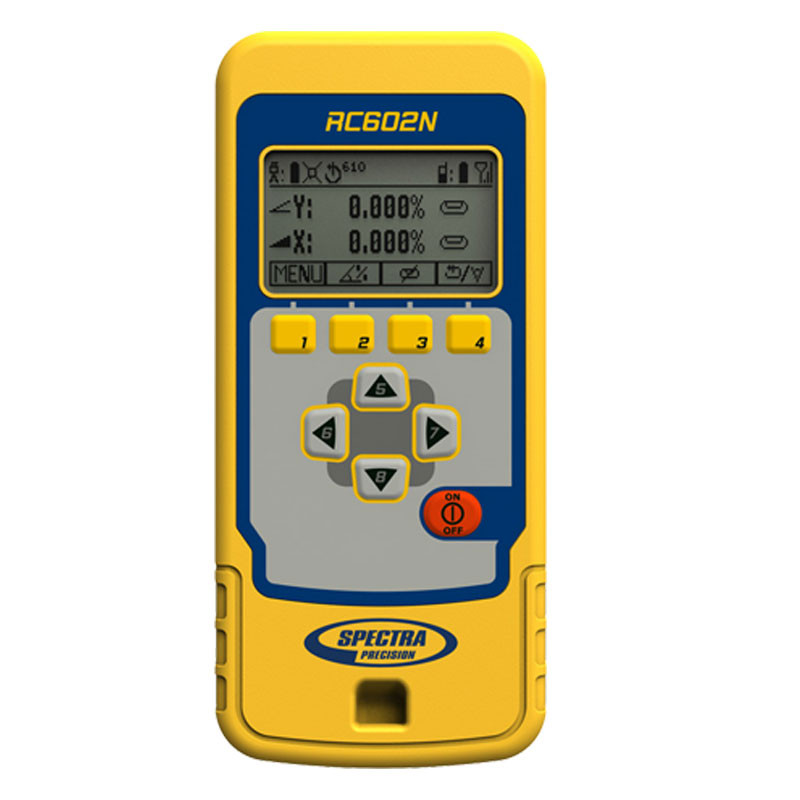

How far from the laser can I use the RC602N remote control?

The RC602N provides reliable wireless control up to 800 feet from the laser transmitter in typical conditions. This range allows you to make slope adjustments, change rotation speed, or power the laser on/off from anywhere on most job sites without walking back to the unit—a significant time-saver when fine-tuning grades or switching between level and slope modes during different project phases.

What battery life can I expect during a typical workday?

With alkaline batteries, the GL612N laser operates 60+ hours, the HL760 receivers run 60+ hours, and the RC602N remote provides 40+ hours of use. For standard construction schedules, this means approximately two weeks of operation per battery set under normal use—though having spare batteries on site is recommended for continuous multi-shift operations or extreme temperature conditions that reduce battery performance.
