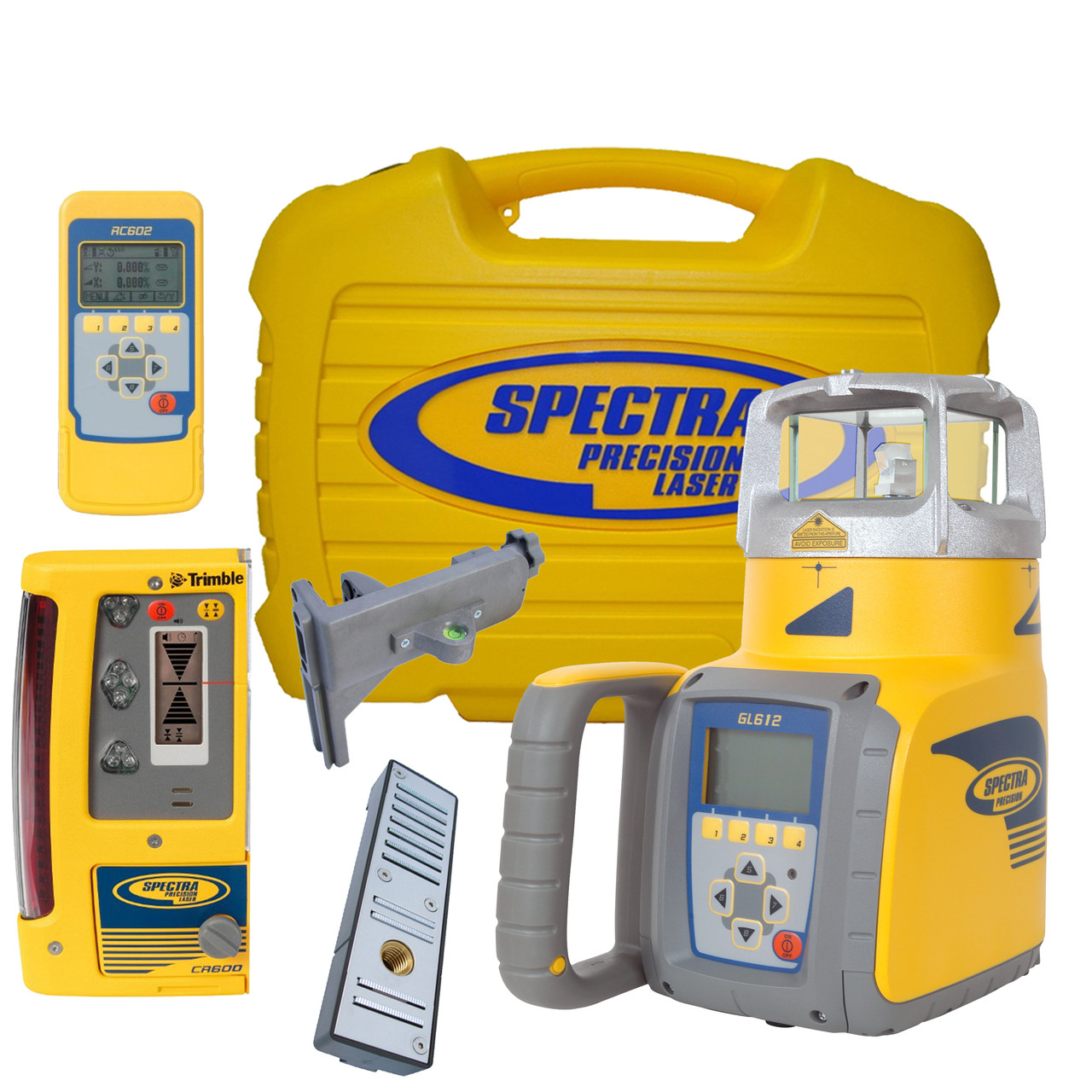

Spectra Precision GL612-14 Single Grade Laser with CR600 Receiver

Overview

The Spectra Precision GL612-14 is a single-grade laser system designed for grading contractors, paving crews, and excavation operators who need reliable slope control on linear grading projects. This package pairs the GL612 single-axis rotating laser with the CR600 receiver, providing 360-degree rotational coverage for machine-mounted grade checking and on-the-ground verification. Built for jobsites where consistent grade must be maintained across long runs—drainage trenches, roadbeds, parking lots, and athletic fields—the GL612-14 delivers dual-axis leveling with single-slope capability in one direction. The CR600 receiver mounts to excavator booms, dozer masts, or grade poles, giving operators instant visual and audible feedback to stay on-grade without stopping to check elevation. This kit is the standard solution for crews running open-cut excavation, sub-base prep, or finish grading where a single-plane reference is sufficient.

Key Specifications

• Laser Type: Single-grade rotating laser with dual-axis leveling
• Grade Range: -10% to +15% in one axis
• Leveling Accuracy: ±1/16" at 100 feet (±1.5 mm at 30 m)
• Working Diameter: Up to 2,600 feet (800 m) with CR600 receiver
• Rotation Speed: 600 RPM
• Self-Leveling Range: ±5 degrees
• Receiver Detection: 360-degree rotational coverage, front and rear on-grade LEDs
• Receiver Accuracy: ±1/16" (±1.5 mm) digital readout
• Power: Rechargeable NiMH battery (laser); 2× D-cell alkaline (receiver)
• Runtime: Up to 60 hours (laser); up to 100 hours (receiver)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• IP Rating: IP67 (dustproof and waterproof to 1 meter)
• Warranty: 3 years manufacturer warranty

What's in the Kit

• Spectra Precision GL612 single-grade rotating laser

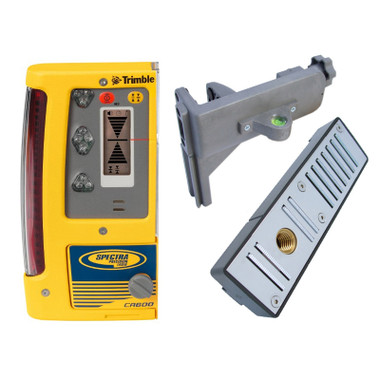

• CR600 machine receiver with magnetic mount

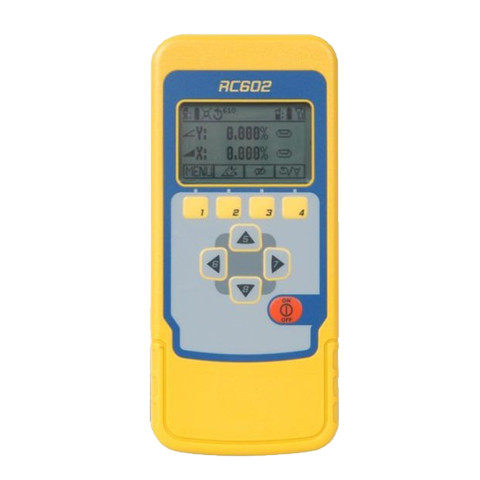

• RC602 wired remote control for laser
• Rechargeable NiMH battery pack for laser
• Battery charger with AC adapter
• Alkaline battery tray (backup power option)
• Heavy-duty hard-shell carrying case
• Operator manuals and quick-start guide

Job Applications

• Storm Drain and Utility Trenching: Maintains consistent fall over long linear runs, eliminating the need for constant string line checking and reducing crew labor on slope verification.
• Parking Lot and Roadway Grading: Controls cross-slope or longitudinal grade during base prep and asphalt placement, ensuring proper drainage and eliminating low spots that cause ponding.
• Agricultural Land Leveling: Establishes uniform slope across fields for controlled irrigation runoff and water distribution, critical for orchards, row crops, and flood irrigation systems.
• Athletic Field Construction: Sets precise crown or single-plane grade for football fields, baseball diamonds, and running tracks where drainage performance and playability depend on accurate elevation control.
• Building Pad and Foundation Excavation: Provides benchmark reference for rough excavation and fine grading before concrete placement, reducing over-excavation and material waste.
• Concrete Slab and Flatwork Prep: Guides screeding and sub-base preparation for warehouse floors, sidewalks, and exterior flatwork where consistent elevation is required before pour.

Compatible Accessories

• Spectra Precision CR700 Laser Receiver — upgrade receiver with increased range and digital readout
• Spectra Precision HL760 Rod Receiver — handheld receiver for grade checking and benchmarking
• Spectra Precision RC402N Remote Control — wireless remote for extended-range laser adjustments
• Heavy-Duty Machine Control Mast Kit — universal mast with clamp and magnetic base for excavators and dozers
• 10-Foot Telescoping Aluminum Grade Rod — for hand-checking elevations and setting benchmarks
• Spectra NiMH Replacement Battery Pack — spare battery for extended runtime on multi-shift projects

Related Guides

• How to Set Grade on Spectra Rotating Lasers
• Single-Grade vs. Dual-Grade Lasers: Which Do You Need?
• Mounting Laser Receivers on Heavy Equipment for Accurate Grade Control
• Troubleshooting: Spectra Laser Won't Self-Level or Flashes Red

Frequently Asked Questions

Can the GL612 be used for both horizontal leveling and grade applications?

Yes. The GL612 self-levels on both axes but allows you to set a controlled slope in one direction (X-axis) from -10% to +15%. The perpendicular axis (Y-axis) remains level, making it ideal for drainage work, road grading, and any application requiring a single-plane slope.

What's the difference between the CR600 and CR700 receivers?

The CR600 is a machine-mount receiver with 360-degree detection, front/rear LEDs, and audible alerts. The CR700 adds a digital LCD readout showing elevation offset in inches or millimeters, plus increased working range and programmable sensitivity settings—preferred for finish grading and applications requiring precise numeric feedback.

How do I mount the CR600 receiver on my excavator or dozer?

The CR600 includes a magnetic mount that attaches to steel masts or boom-mounted brackets. Most contractors use a universal machine control mast (sold separately) that clamps to the excavator stick or dozer blade A-frame. Position the receiver so it faces the laser and is perpendicular to the direction of travel for optimal signal reception.

What is the effective range when using the CR600 receiver?

The GL612-14 system has a working diameter of up to 2,600 feet (800 meters) under ideal conditions. Actual range depends on ambient light, dust, and atmospheric conditions. For most grading work, expect reliable performance at 1,000–1,500 feet radius in full daylight.
