Spectra Precision GL412N-27 Single Grade Laser w/ HL760 Receiver, INCHES-Rod and Tripod

Overview

The Spectra Precision GL412N-27 Single Grade Laser represents a purpose-built solution for contractors and site professionals who demand reliable single-slope grading capabilities with imperial measurement integration. This complete package combines Spectra's proven GL412N laser transmitter with the HL760 digital receiver, an inches-graduated leveling rod, and a heavy-duty tripod—delivering everything needed to establish accurate grade references across construction sites, drainage projects, and foundation work. Operating on a single-slope configuration, the GL412N-27 eliminates the complexity of dual-axis systems while maintaining the precision required for excavation control, form setting, and site preparation tasks where grade tolerances directly impact project outcomes and material costs.

Engineered for field environments where imperial measurements remain the documentation standard, this laser system streamlines the transition from plan specifications to physical layout. The included inches-graduated rod ensures direct correlation with architectural drawings, engineering plans, and inspection requirements typically expressed in feet and inches rather than metric units. With an effective working diameter exceeding 2,600 feet and accuracy specifications holding to ±1/8 inch at 100 feet, the GL412N-27 provides the range and precision necessary for mid-sized commercial projects, residential developments, and infrastructure improvements. The system's self-leveling mechanism and motorized grade adjustment allow single-operator workflows, reducing labor requirements while maintaining consistent elevation control throughout the workday.

Key Specifications

• Laser Type: Single-axis rotating grade laser with horizontal and slope modes
• Leveling Range: ±5 degrees with automatic self-leveling
• Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
• Working Diameter: 2,600+ feet (800m) with HL760 receiver
• Rotation Speed: 600 RPM (standard) with scan mode option
• Grade Range: -10% to +15% in single-axis slope mode
• Power Source: Rechargeable NiMH battery with 60+ hour runtime
• Operating Temperature: -20°F to 122°F (-30°C to 50°C)
• IP Rating: IP67 dust-tight and waterproof protection
• Receiver Display: HL760 digital LCD with nine-channel sensitivity
• Rod Graduation: Inches scale with direct imperial readout
• Tripod Compatibility: 5/8-11 thread standard surveying mount

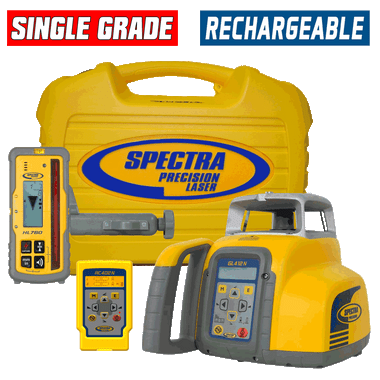

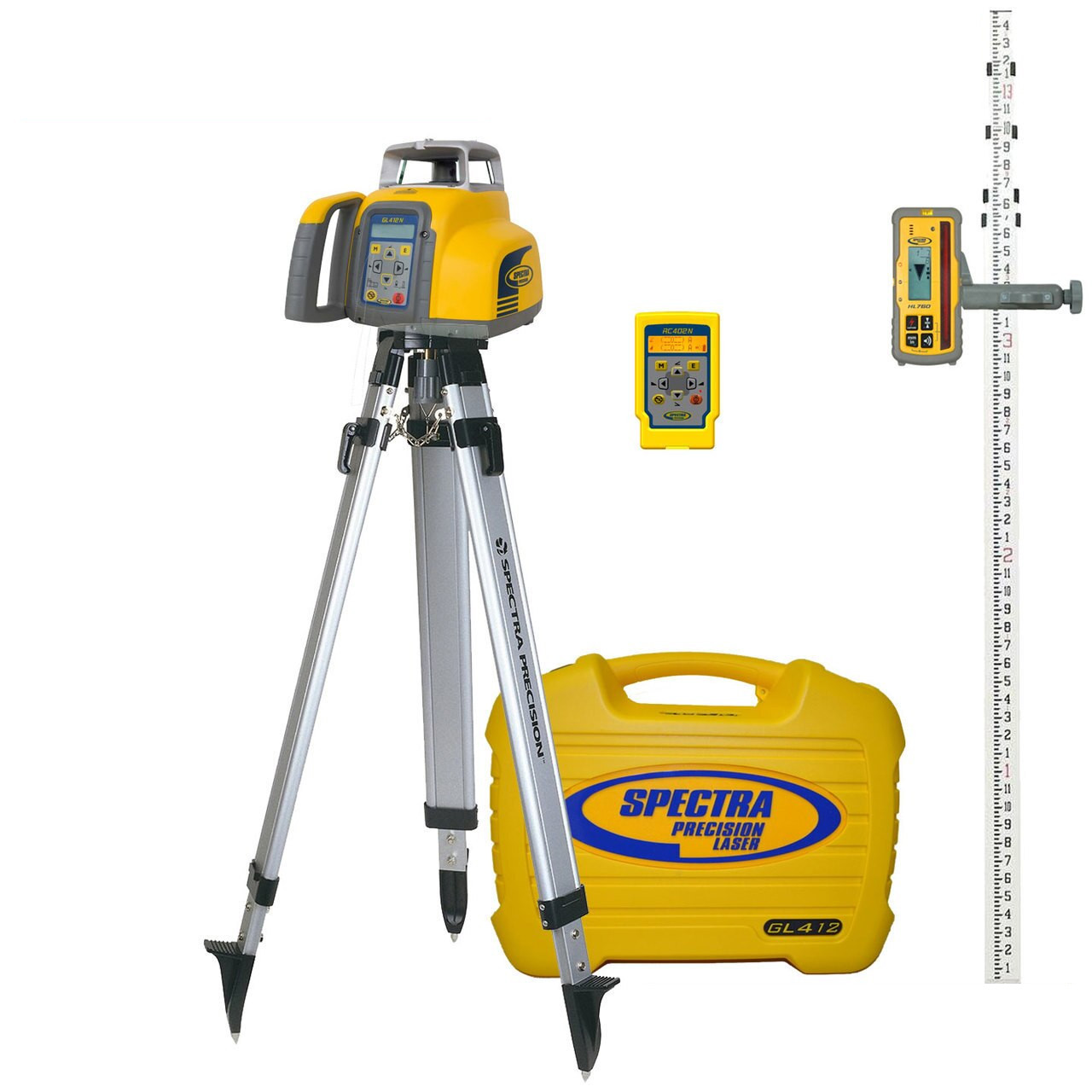

What's in the Kit

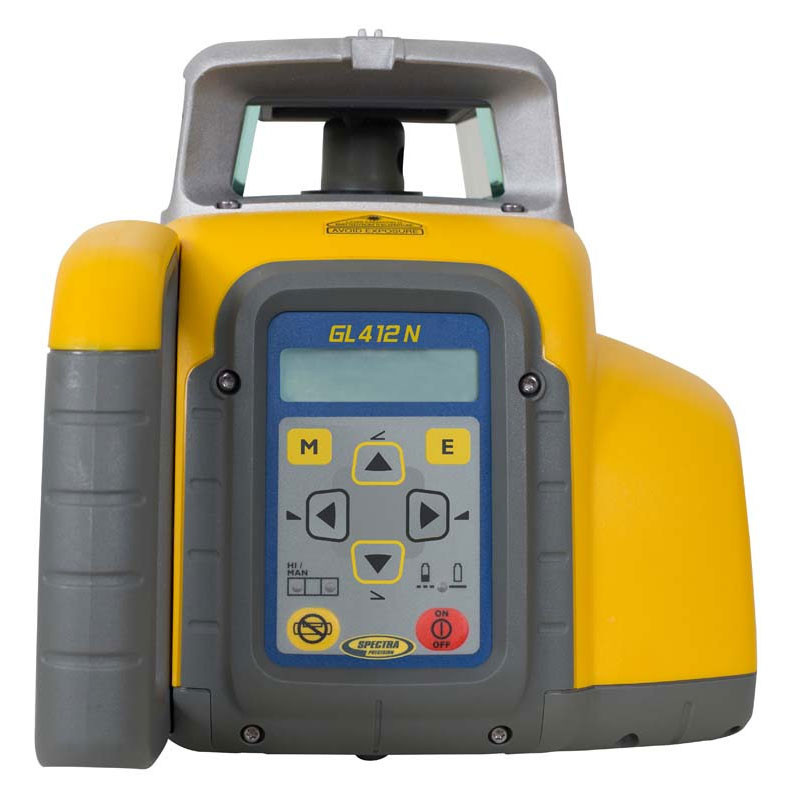

• GL412N grade laser transmitter with single-slope capability
• HL760 digital laser receiver with rod clamp assembly
• Inches-graduated leveling rod with extended height capability
• Heavy-duty aluminum tripod with adjustable legs and locking mechanisms
• Rechargeable NiMH battery pack with charging base
• AC wall adapter and charging cables
• Protective hard case for laser transmitter with foam insert
• RC402N remote control for grade adjustment and function selection
• Instruction manual with setup diagrams and calibration procedures
• Quick-reference field guide and specification card

Job Applications

• Foundation Excavation: Establishing consistent depth control across building footprints ensures proper bearing surface preparation and eliminates costly over-excavation. The single-slope capability accommodates sloped footings for hillside construction while the inches rod provides direct verification against structural drawings specifying imperial foundation depths.
• Parking Lot and Pavement Grading: Creating proper drainage slopes in asphalt and concrete surfaces requires precise grade control to prevent ponding and premature pavement failure. The GL412N's adjustable slope function allows operators to set specified drainage percentages while maintaining reference elevation throughout the grading process, reducing survey staking requirements and material waste.
• Concrete Slab Installation: Screeding large floor slabs, sidewalks, and flatwork demands continuous elevation reference to maintain thickness specifications and finished floor elevations. The rotating laser provides 360-degree coverage while the HL760 receiver mounted on screed frames or grade checking equipment gives real-time feedback, improving first-pass accuracy and reducing finishing labor.
• Site Drainage and Utility Trenching: Installing storm drainage systems, sanitary sewers, and underground utilities requires adherence to engineered slope specifications for proper flow characteristics. The laser's grade-setting precision ensures trench bottoms meet design gradients while the extended working range covers typical residential lot dimensions without instrument relocation, maintaining productivity in linear excavation work.
• Landscape Grading and Earthwork: Shaping building pads, swales, and finish grade surfaces benefits from continuous elevation monitoring that prevents rework and material hauling adjustments. The system's durability in dusty conditions and bright sunlight performance make it suitable for rough grading operations where conventional optical levels struggle with visibility and setup time constraints.
• Formwork and Masonry Layout: Setting wall forms, masonry ledges, and structural elevations with imperial rod measurements directly supports construction documentation and inspection workflows. The laser reference eliminates cumulative measuring errors inherent in traditional string-line methods while allowing multiple trades to work from the same elevation datum simultaneously.

Compatible Accessories

• HL700 basic laser receiver with simple LED display for budget-conscious applications
• RC402N/RC502N remote controls for extended-range grade adjustment without transmitter access
• Laser enhancement glasses for improved beam visibility in bright ambient light conditions
• Heavy-grade tripod with wider footprint and leveling head for unstable ground conditions
• Laser targets and detector cards for alignment and beam-finding during initial setup
• Extended-life battery packs and 12V vehicle charging adapters for remote site work
• Machine-mounting brackets for excavator and dozer blade control integration
• Protective transit covers and weather shields for extreme environment operation

Related Guides

• Complete Guide to Choosing Grade Lasers for Construction Applications
• Understanding Laser Level Accuracy Specifications and Field Calibration
• Site Drainage and Grading Best Practices with Laser Instruments
• Metric vs. Imperial Measurement Systems in Construction Layout Tools

FAQ

What's the practical working range for the GL412N with the HL760 receiver in typical job site conditions?

The HL760 receiver reliably detects the laser beam at distances exceeding 1,300 feet radius (2,600-foot diameter) under normal daylight conditions. In bright sunlight or dusty environments, effective range may decrease to 800-1,000 feet radius, though this still covers most residential lots and small commercial sites without instrument relocation. Using the laser in scan mode or during early morning/late afternoon hours when ambient light is reduced extends detection range to maximum specifications.

Can this laser be used for both horizontal leveling and slope grading, or is it limited to one function?

The GL412N operates in both horizontal level mode (0% grade) and single-axis slope mode with adjustable grade from -10% to +15%. You can switch between modes using the control panel or RC402N remote. In horizontal mode, it functions as a standard rotary level for elevation transfer and level reference work. In slope mode, the laser plane tilts along a single axis while remaining level perpendicular to the slope direction, making it suitable for drainage runs, ramps, and sloped foundations but not for complex two-directional slopes.

Why would I choose an inches-graduated rod instead of a metric rod for construction work?

The inches-graduated rod provides direct compatibility with U.S. construction documentation, which predominantly specifies dimensions in feet and inches. This eliminates conversion calculations when verifying excavation depths, foundation elevations, or finished floor heights against architectural and engineering drawings. For projects where specifications, material dimensions, and inspection requirements use imperial units, an inches rod reduces measurement errors and speeds field verification compared to reading metric values and converting to imperial equivalents.

How does the IP67 rating protect the laser in actual field conditions?

The IP67 environmental rating certifies the GL412N is completely dust-tight (no particulate ingress) and waterproof to 1-meter submersion for 30 minutes. In practical terms, this means the laser withstands rain, concrete splatter, mud, and dusty conditions without internal contamination or damage. You can rinse the unit with water for cleaning, and brief submersion from accidental drops into puddles or wet trenches won't compromise electronics. However, IP67 isn't designed for continuous underwater use or high-pressure washdown—the rating addresses typical construction-site environmental exposure rather than extreme abuse scenarios.
