Spectra Precision GL412N-16 Single Grade Laser w/ CR700 Receiver, TENTHS-Rod and Tripod

Overview

The Spectra Precision GL412N-16 Single Grade Laser represents a professional-grade solution for contractors who need reliable, accurate slope control on demanding jobsites. This complete grading system combines Spectra's proven GL412N-16 laser transmitter with the intelligent CR700 digital receiver, delivering single-axis slope capability with working radius up to 2,600 feet (800m diameter). Unlike basic laser levels that only establish flat planes, the GL412N-16 creates precise grade lines up to 25% in any direction, making it ideal for drainage work, pipe laying, concrete forming, and foundation leveling.

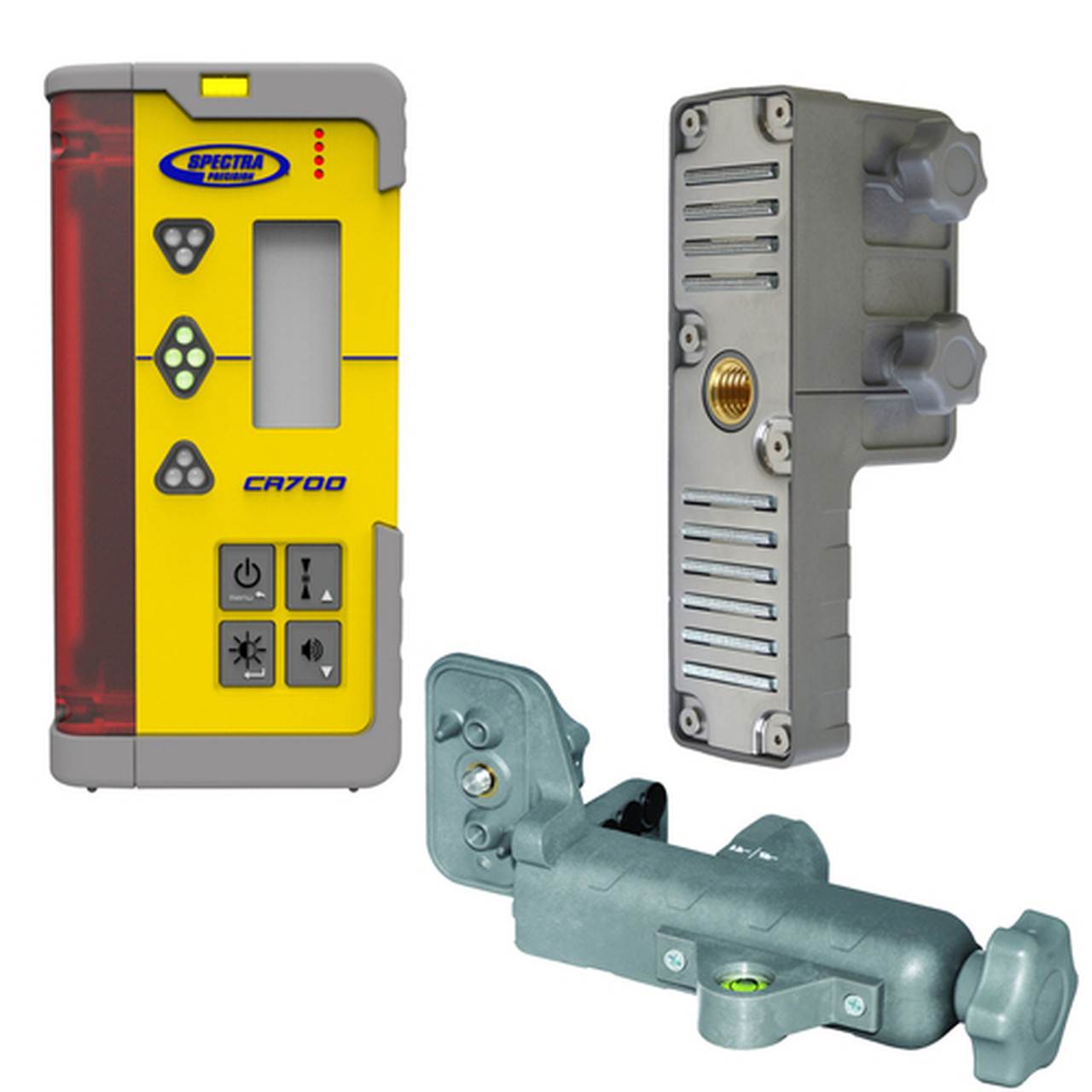

What sets this package apart is the inclusion of the CR700 receiver—Spectra's advanced rod-mounted detector that doesn't just beep when on-grade. The CR700 features a large LCD display that shows exact elevation readings in tenths of feet or metric units, eliminating guesswork and reducing errors. The system includes a professional TENTHS-graduated leveling rod and heavy-duty tripod, providing everything needed for immediate deployment. At $2,726, this kit delivers exceptional value for excavation contractors, site preparation crews, concrete professionals, and landscaping companies who demand precision without the complexity of dual-slope systems.

Built to withstand the rigors of construction environments, the GL412N-16 features rugged housing with IP67 weather protection, allowing operation in rain, dust, and temperature extremes from -4°F to 122°F. The self-leveling laser heads eliminate manual leveling procedures, while the long-life battery system supports full-shift operation. Whether you're grading parking lots, installing drainage systems, or setting foundation elevations, this system provides the accuracy and reliability professionals require.

Key Specifications

• Laser Type: Single-axis grade laser with motorized self-leveling
• Working Radius: Up to 1,300 feet (400m) with CR700 receiver
• Diameter Coverage: 2,600 feet (800m)
• Grade Range: 0% to 25% in single axis
• Leveling Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Self-Leveling Range: ±5 degrees
• Rotation Speed: 0, 300, 600, 900, 1200 RPM (variable)
• Power Source: Rechargeable NiMH battery or alkaline D-cells
• Battery Life: Up to 80 hours (alkaline), 40 hours (NiMH)
• Weather Protection: IP67 rated (dust-tight, water submersion resistant)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• CR700 Receiver Accuracy: ±1/16 inch (±2mm) on-grade detection
• Receiver Display: Backlit LCD with digital readout in tenths
• Rod Graduation: Tenths of feet (0.10' increments)

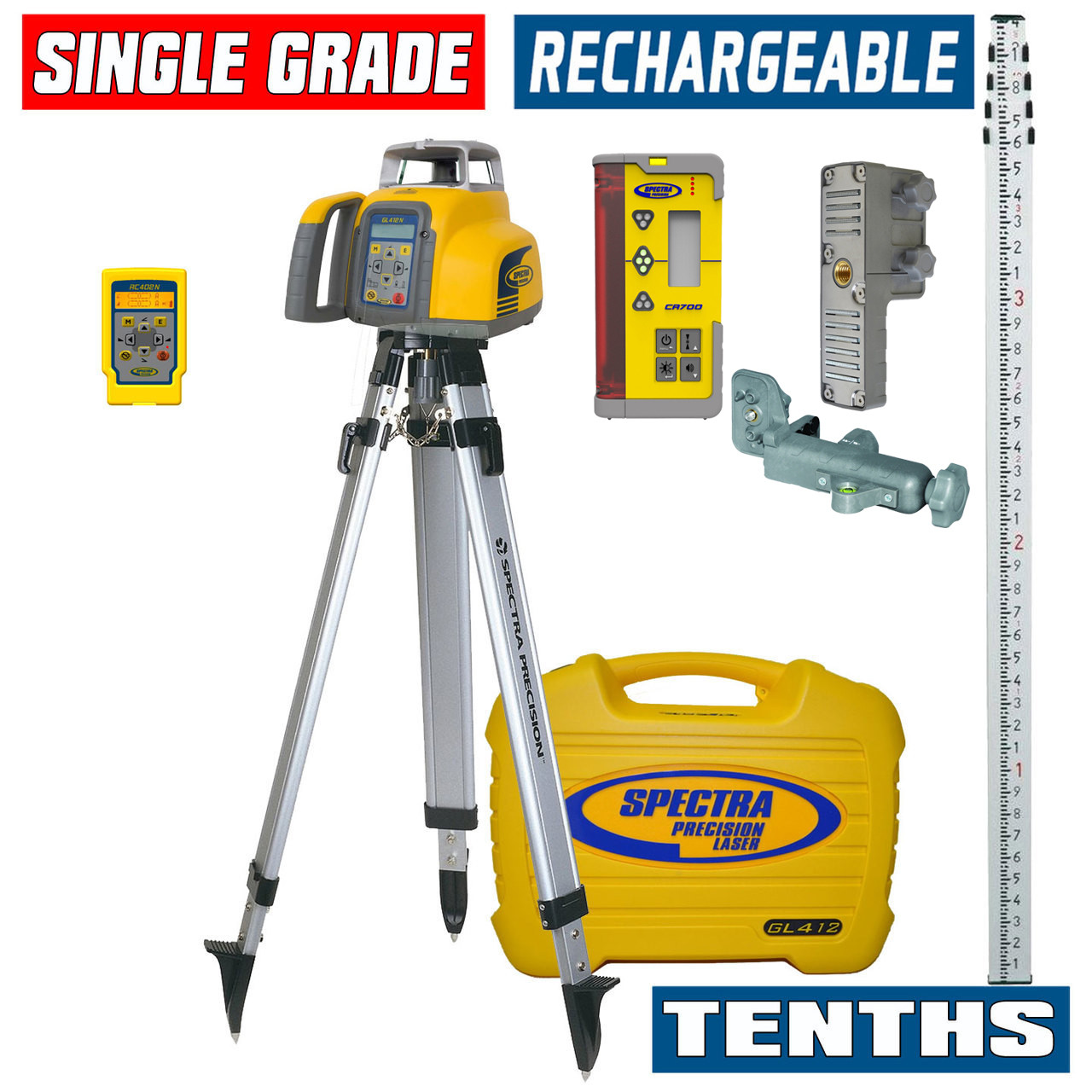

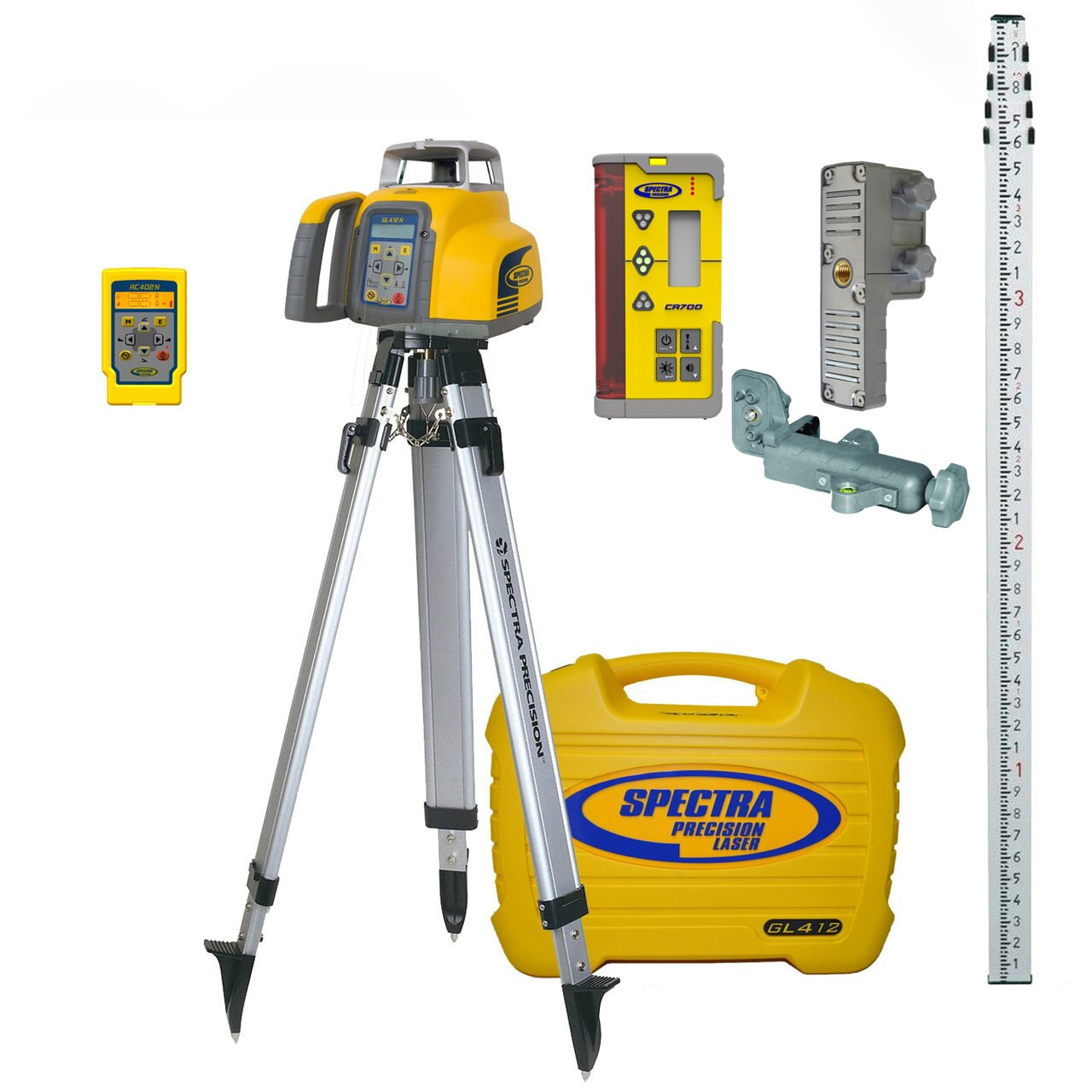

What's in the Kit

• GL412N-16 Single Grade Laser Transmitter with motorized self-leveling head
• CR700 Digital Laser Receiver with rod clamp and on-grade detection
• Professional TENTHS-graduated leveling rod (extends to 16 feet)
• Heavy-duty aluminum tripod with adjustable legs and flat head
• Rechargeable NiMH battery pack with charger
• Remote control for laser grade and function adjustments
• Protective hard-shell carrying case for laser transmitter
• Soft carrying case for receiver and accessories
• Operator's manual and quick-start guide
• Calibration certificate and manufacturer warranty documentation

Job Applications

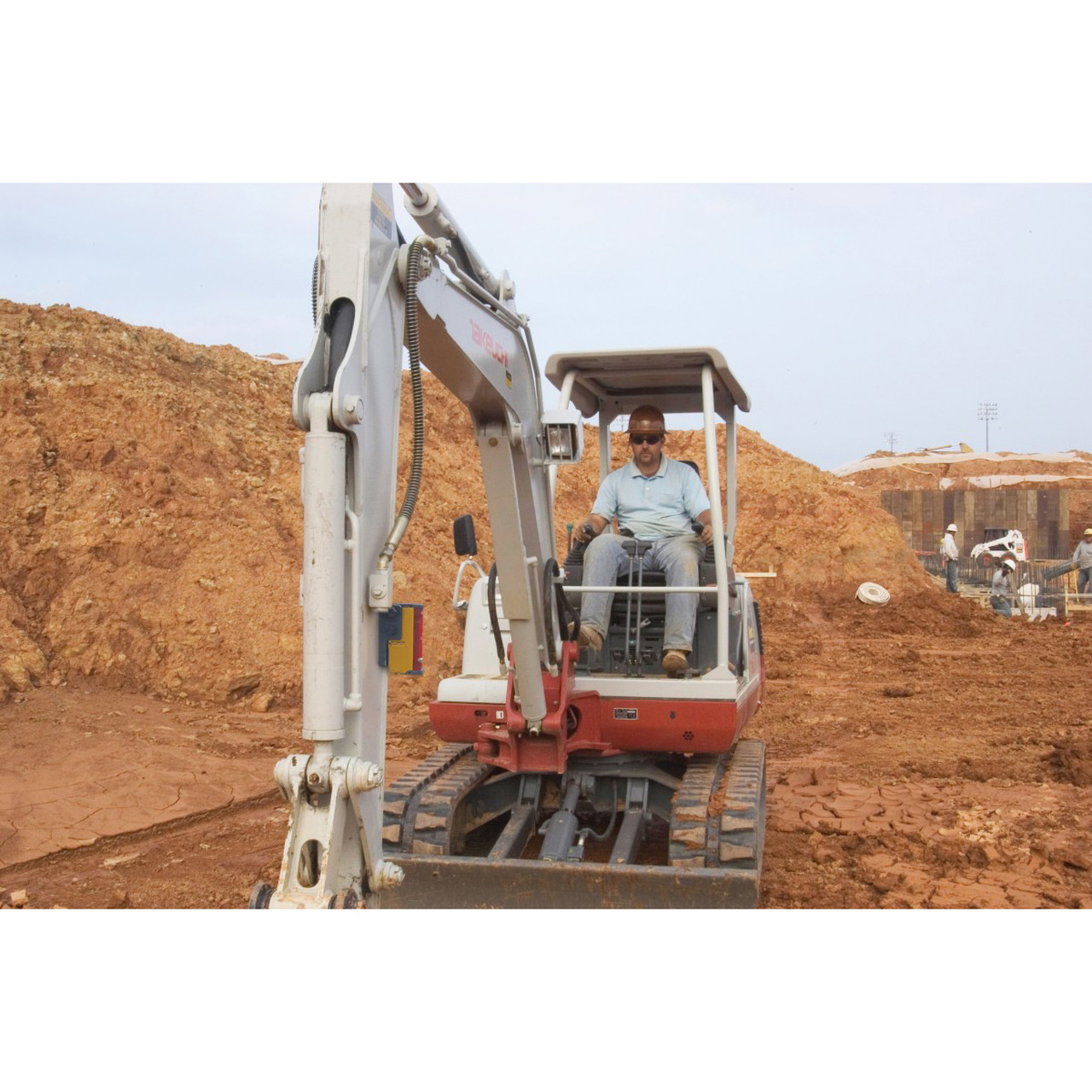

• Site Grading and Excavation: The GL412N-16 excels at establishing consistent grade lines across large areas, enabling equipment operators to cut or fill to precise elevations without constant surveyor intervention. The 2,600-foot diameter coverage means fewer setups on expansive sites, dramatically improving productivity on parking lot preparation, pad grading, and rough grading operations.
• Drainage and Underground Utility Installation: Proper drainage requires exact slope control—too flat and water pools, too steep and you waste excavation. This system allows pipe crews to verify trench bottom elevations continuously, ensuring storm drains, sanitary sewers, and French drains maintain design grades. The CR700's digital readout eliminates interpretation errors when working to engineering specifications.
• Concrete Forming and Flatwork: Foundation walls, footings, and slab-on-grade projects demand precise elevation control. The laser establishes consistent benchmarks for form setting, while the TENTHS rod and CR700 receiver provide exact measurements for verifying form heights. Concrete finishers can also use the system to set screed rails and verify slab elevations during placement.
• Landscape Grading and Sports Field Construction: Creating proper surface drainage on athletic fields, golf courses, and commercial landscapes requires subtle, consistent slopes. The GL412N-16's ability to set grades from 0% to 25% makes it perfect for establishing finished grade elevations, while the long working range accommodates large turf areas without repositioning equipment.
• Building Layout and Benchmark Establishment: Before construction begins, accurate benchmarks and elevation control points must be set throughout the site. This laser system allows survey crews to efficiently transfer elevations from known datums to working stakes, providing reliable reference points that construction teams can verify independently throughout the project duration.
• Agricultural Land Leveling: Modern precision agriculture requires controlled field grades for irrigation efficiency and drainage management. The GL412N-16 provides the range and durability needed for agricultural applications, helping farmers and land improvement contractors establish optimal field slopes that conserve water and prevent erosion while maximizing productive acreage.

Compatible Accessories

• HL700 Laser Receiver for Excavators: Machine-mounted receiver with dual displays for cab and blade-side viewing
• RC702 Advanced Remote Control: Extended-range remote with grade memory storage
• Alkaline Battery Tray: Alternative power option using readily available D-cell batteries
• Laser Enhancement Glasses: Improve beam visibility in bright sunlight conditions
• Grade Rod Extensions: Increase rod height for deep excavation applications
• Heavy-Duty Transit Case: Rugged transport protection for multi-unit storage
• Elevator Tripod: Quick-adjust column tripod for rapid height changes
• Wall/Column Mount: Secure laser to vertical surfaces for indoor applications

Related Guides

• Complete Guide to Choosing the Right Construction Laser Level
• Understanding Laser Level Accuracy and Calibration Requirements
• Professional Tips for Grade Laser Setup and Site Layout
• Rotating Laser Troubleshooting and Maintenance Guide

FAQ

What's the difference between single-grade and dual-grade lasers?

Single-grade lasers like the GL412N-16 create slope in one direction only—ideal for drainage lines, trenches, and simple site grading where you need consistent fall in a single axis. Dual-grade lasers can slope in two directions simultaneously (creating complex planes), necessary for applications like crowned roads or multi-directional drainage. For most excavation, utility, and foundation work, single-grade capability provides all the functionality needed at a more accessible price point.

How does the CR700 receiver differ from basic laser detectors?

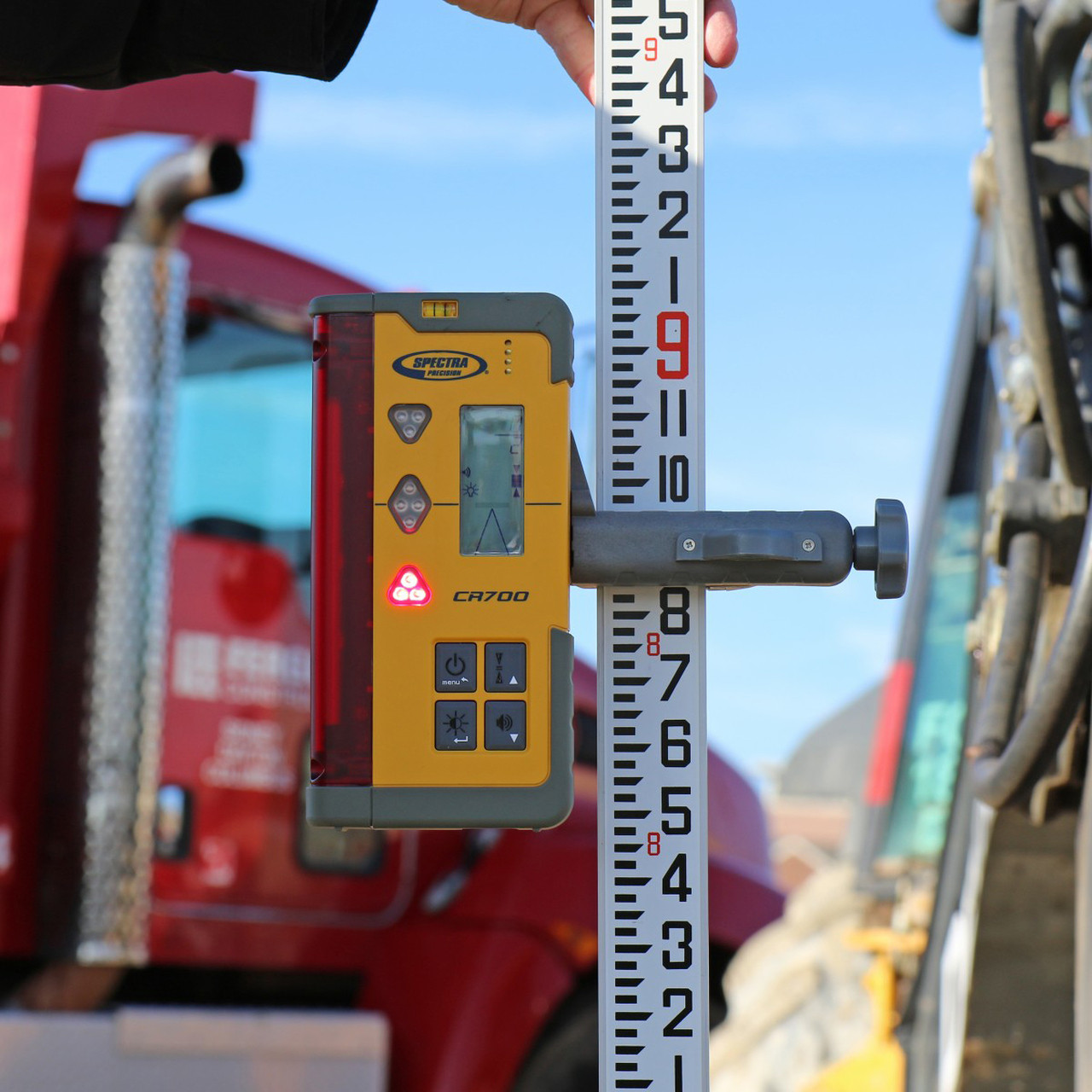

Standard receivers simply beep faster as you approach grade, requiring you to interpret sounds and estimate how far off-grade you are. The CR700 features a digital LCD display that shows your exact position relative to grade in measurable units (tenths of feet or millimeters). This eliminates guesswork—you can see precisely that you're 0.3 feet low, for example, rather than just hearing rapid beeps. This direct readout significantly reduces errors and speeds up elevation verification.

Can this system be used for both interior and exterior applications?

Yes, the GL412N-16 works equally well indoors and outdoors. The rotating laser head with variable speed settings adapts to different environments—use higher rotation speeds in bright outdoor conditions for better receiver detection, and lower speeds indoors where ambient light is controlled. The IP67 weather rating means it handles outdoor jobsite conditions, while the precision accuracy suits interior concrete work, MEP installations, and finish applications. The 2,600-foot diameter coverage handles most building interiors easily.

What kind of accuracy can I expect at maximum range?

The GL412N-16 maintains ±1/16 inch accuracy at 100 feet, which scales proportionally with distance. At the maximum receiver range of 1,300 feet radius, you can expect approximately ±3/16 inch deviation. For most construction applications—site grading, utility trenching, foundation work—this accuracy far exceeds requirements. Critical precision work is typically performed within 300-500 feet of the laser where accuracy remains within 1/8 inch, more than adequate for concrete forming, pipe laying, and finished grading operations.
