How does the thumb-release mechanism work compared to traditional tripod leg locks?

The thumb-release allows each leg to extend and lock independently using single-hand control, eliminating fumbling with traditional screw locks or clamps. One operator can adjust all three legs to different lengths in seconds, achieving firm ground contact across uneven terrain without complex procedures or two-handed manipulation.

Will this tripod work on soft ground, mud, and sandy soil without legs sinking?

The three-point base distributes load more evenly than bipods, reducing ground pressure per contact point. On very soft ground, wider leg spacing and firm ground contact from all three points resist sinking better than two-legged systems, though muddy conditions may still require foot plates or spread-out positioning.

What total stations, GPS receivers, and laser levels mount on this tripod?

The SitePro tripod is compatible with standard surveying instruments including Topcon, Trimble, Nikon, and Leica total stations, GPS receivers, laser levels, theodolites, and prism poles. Verify your specific instrument's mount type before ordering; most professional surveying equipment uses standard 5/8"-11 tripod head threads.

How much faster is setup with thumb-release compared to screw-lock tripods?

One-handed thumb-release adjustment eliminates two-handed fumbling and complex lock sequences, reducing setup time between stations by 30–60 seconds per setup depending on terrain. Across a multi-station survey or construction stake-out, faster cycles compound into measurable crew productivity gains and reduced project timelines.

Will the tripod tip over on slopes if I don't position legs correctly?

The three-point base provides superior tipping resistance compared to bipods, particularly when all three legs contact ground firmly. Spread legs wider on slopes and ensure each leg locks fully before mounting your instrument; the tripod is designed to resist tipping, but proper setup remains operator responsibility.

Can I adjust individual legs while the tripod is mounted with an instrument on top?

Yes, the thumb-release design allows individual leg adjustment even with a mounted instrument, making it practical to fine-tune leveling and ground contact after initial setup. However, always ensure all three legs are locked firmly before measuring to maintain stability and measurement integrity.

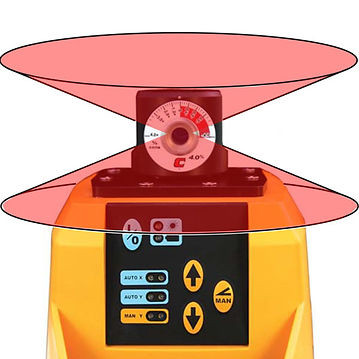

ProShot Alpha-C Cone Grade Laser 020-0020C with Visual Diagram of Dual Cone Beam Projection

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Knowledge Summary: The SitePro Thumb-Release Pole Tripod is the three-legged foundation system for surveyors and contractors requiring maximum stability across uneven terrain and challenging field conditions. Features thumb-release mechanism providing one-handed adjustment without complex procedures or two-handed manipulation. Tripod design offers superior stability compared to bipods, particularly on slopes, soft ground, and irregular surfaces common in land surveying and construction. Three-point base distributes load evenly and resists tipping, essential for protecting expensive total stations, GPS receivers, and laser levels during extended measurement sessions.
SKU: 07-4250
Type: Three-legged tripod
Design Type: Pole tripod
Legs: 3
Base Configuration: Three-point

020-0020CSKU 07-4250New

Grade Lasers →

ProShot Alpha-C Cone Grade Laser Level with R9 Receiver – Model 020-0020C - 4 percent

$2547.95

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

0–4% (approx. 0–2.3°) Range

Cover large layout jobs with a 0–4% (approx. 0–2.3°) working reach.

±0.05% (factory calibrated) Accuracy

Hold grade with a ±0.05% (factory calibrated) accuracy rating.

Power

Runs on Internal rechargeable battery (8+ hour runtime) for jobsite flexibility.

Authorized Dealer

Genuine, factory-fresh equipment from leading manufacturers, with legitimate firmware and calibration documentation.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Continuous grade control, no stakes

Eliminates grade staking between passes. One operator on the machine vs. 2-3-person conventional crew.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this grade laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the ProShot Alpha-C Cone Grade Laser Level with R9 Receiver – Model 020-0020C - 4 percent?

The ProShot Alpha-C Cone Grade Laser Level with R9 Receiver (Model 020-0020C) is a 4% grade laser that projects a 360° continuous cone beam with ±0.05% accuracy and automatic self-leveling up to ±5°. It delivers visible range up to 150 ft unaided and extends to 600 ft diameter when paired with the included R9 digital receiver, powered by an internal rechargeable battery with 8+ hour runtime. The IP54-rated unit comes complete with the R9 receiver, mounting hardware, carrying case, and charger for construction and grading applications.

FIELD APPLICATIONS

What contractors use this grade lasers for

Boundary Surveying on Hillsides

Land surveyors running perimeter shots on sloped or mountainous terrain rely on three-point stability to keep total stations level and secure across multiple setups. The thumb-release mechanism enables quick repositioning between elevation changes without breaking down and resetting the entire tripod.

Construction Stake-Out on Ungraded Sites

Grading and concrete contractors setting grades and reference points on raw, uneven ground need a tripod that maintains stable footing in soft soil and ruts. The three-legged design resists tipping when legs contact variable terrain heights, protecting expensive GPS receivers and laser levels.

Machine Control and Grade Verification

Motor graders, dozers, and excavators rely on consistent laser level and GPS positioning signals from stable base stations. This tripod's three-point load distribution prevents settling or shifting in muddy conditions common on active grading operations.

Ditch and Foundation Work

Surveyors and contractors working in ditches, trenches, and foundation excavations face irregular ground surfaces where traditional tripods struggle to achieve three-point contact. The thumb-release adjustment allows independent leg length control for precise leveling in confined, uneven spaces.

Long-Duration Measurement Sessions

Extended survey projects and all-day construction staking demand a rigid, non-shifting platform that maintains measurement accuracy regardless of terrain or operator fatigue. The tripod's stable three-point base eliminates drift and ensures consistent readings throughout the workday.

PRODUCT OVERVIEW

Product Description

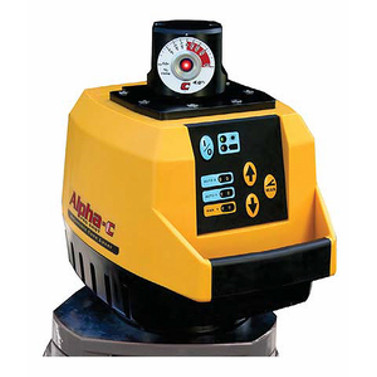

The ProShot Alpha-C Cone Grade Laser (model 020-0020C) is a professional-grade, cone-style laser built for contractors who need accurate, repeatable slope on demanding jobsites. Whether you're laying pipe, establishing drainage fall, or finish-grading a site, the Alpha-C delivers a full 360-degree cone beam that lets your entire crew — excavator operator, pipe hands in the trench, and grade checker at the far end — all work off a single instrument simultaneously. The included R9 receiver rounds out a complete, job-ready system from the moment you open the case.

Overview & Jobsite Applications

Cone grade lasers are the preferred tool on open-trench pipe and drainage jobs because the cone beam eliminates the dead zones that plague rotating lasers used at steep angles. The Alpha-C projects a continuous conical plane at your programmed grade, so there's no waiting for a sweep — the beam is always on. With a 4% (approximately 2.3°) slope range, it handles everything from shallow storm drain falls to steeper sanitary sewer grades, all while maintaining the submillimeter repeatability that production pipe crews demand. The R9 digital receiver extends usable range and provides clear in-grade, above, and below indication even in bright outdoor conditions.

Key Specifications

Model: ProShot Alpha-C — 020-0020C
Beam Type: Cone (360° continuous coverage)
Grade Range: 0–4% (approx. 0–2.3°)
Grade Accuracy: ±0.05% (factory calibrated)
Self-Leveling Range: ±5° automatic compensation
Visible Range (unaided): Up to 150 ft in low-light conditions
Receiver Range: Up to 600 ft diameter with R9 receiver
Laser Class: Class IIIa / Class 3R
Power Source: Internal rechargeable battery (8+ hour runtime)
Included: R9 digital receiver, mounting hardware, carrying case, charger
Protection Rating: IP54 dust and splash resistant

Key Features & What's in the Kit

360° Cone Beam: Continuous grade plane with no sweep — every crew member reads the same plane at the same time
4% Slope Capability: Covers the majority of gravity-flow pipe and drainage grade requirements
R9 Digital Receiver: Clear in-grade / above / below readout; works in full sunlight at extended distances
Automatic Self-Leveling: Instrument compensates for minor setup variations; out-of-level alarm shuts beam if tolerance is exceeded
Rugged, Jobsite-Ready Housing: IP54 rated, shock-resistant chassis built for trench and grade work environments

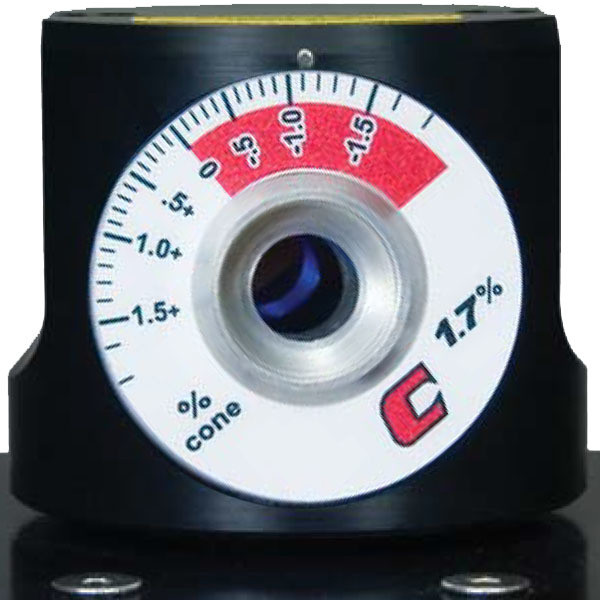

Simple Grade Entry: Intuitive controls for fast setup — dial in your fall and get to work

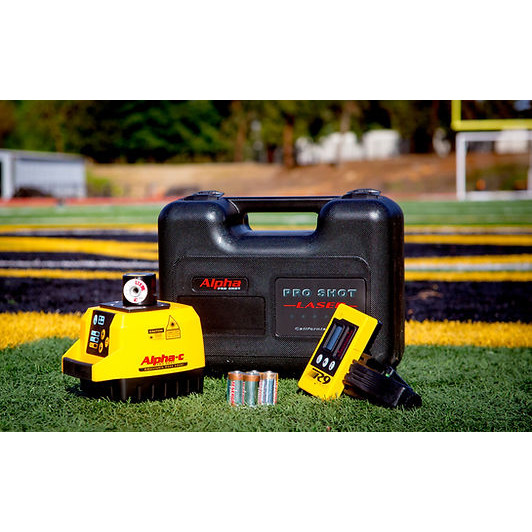

Complete Kit: Laser, R9 receiver with clamp, carrying case, battery charger, and target card all included

Job Applications

Sanitary & Storm Sewer Installation: Dial in the design fall percentage and give your pipe crew a reliable grade reference from manhole to manhole. The cone beam means the excavator operator and the pipe layer can both read grade without moving the instrument.

Drainage Swales & Culverts: Establish consistent fall across long drainage runs. The R9 receiver clips to a grade rod for fast check shots at any point along the swale without repositioning the laser.

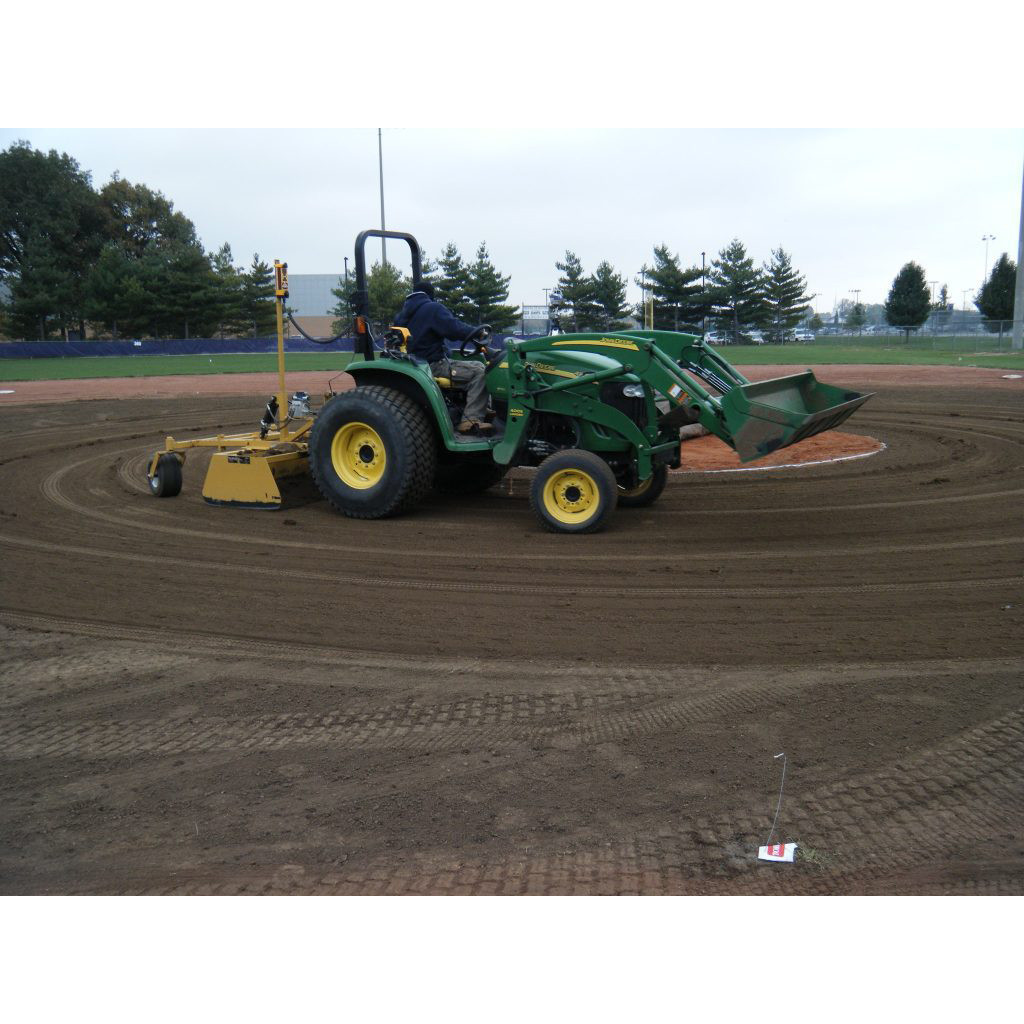

Sub-Base & Finish Grading: Set a reference plane for machine operators cutting sub-base or motor grader operators pulling finish grade on sloped parking lots and access roads.

Irrigation & Agricultural Tile Drainage: Maintain precise, shallow fall on irrigation laterals and subsurface tile systems where consistent low-percentage grade is critical to system performance.

Compatible Accessories

Related Guides

Frequently Asked Questions

What is the maximum slope the ProShot Alpha-C can project?: The Alpha-C has a grade range of 0–4%, which covers the overwhelming majority of gravity-flow pipe, storm drain, and drainage applications. If your design calls for slopes steeper than 4%, a pipe laser with higher grade range would be the appropriate tool.
Does the Alpha-C come with a receiver, or is it sold separately?: The 020-0020C kit includes the R9 digital receiver, mounting clamp, carrying case, and charger — everything you need to start shooting grade on day one. No separate receiver purchase is required.
Can multiple crew members read the cone beam at the same time?: Yes. The continuous 360-degree cone beam is always on and visible from any direction around the instrument. Your excavator operator, pipe crew in the trench, and a grade checker 300 feet away can all read the same plane simultaneously — a key advantage over rotating lasers on busy pipe jobs.
Is the Alpha-C suitable for use inside a pipe?: The Alpha-C is a cone-style grade laser optimized for open-trench and surface-grade work. For shooting grade inside a pipe (e.g., directing a pipe laser target from inside the barrel), a dedicated pipe laser is the correct instrument. The Alpha-C is best used above grade to provide a reference plane for the pipe crew working at the trench.

Why This Equipment

Dual Grade Control

Control two slopes simultaneously for crowns, swales, and complex drainage layouts.

Machine Ready

Pairs with machine receivers for dozer, grader, and scraper grade control.

IP67 Rated

Weatherproof for outdoor use in rain, dust, and construction site conditions.

High Accuracy

±0.1mm/m grade accuracy — holds tolerance through a full working day.

KIT CONTENTS

What's In The Box

SitePro Thumb-Release Pole Tripod (three-legged assembly)

Why Buy This?

Continuous grade control. No continuous labor.

Grade stakers cost $50–80/hr and disappear between passes. A dual-slope grade laser installs once and controls your blade automatically — through every cut, every fill, every pass. That's the math that makes grade lasers one of the fastest ROI investments in earthwork.

Professional contractors specify dual-grade systems for a reason: single-grade units work for straight drainage. The moment a job has a crown, a swale, or a complex parking lot slope — you need dual-grade.

Buying from Express Tools means authorized, factory-fresh inventory, legitimate firmware, and technical knowledge when you need it.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Knowledge Summary	The SitePro Thumb-Release Pole Tripod is the three-legged foundation system for surveyors and contractors requiring maximum stability across uneven terrain and challenging field conditions. Features thumb-release mechanism providing one-handed adjustment without complex procedures or two-handed manipulation. Tripod design offers superior stability compared to bipods, particularly on slopes, soft ground, and irregular surfaces common in land surveying and construction. Three-point base distributes load evenly and resists tipping, essential for protecting expensive total stations, GPS receivers, and laser levels during extended measurement sessions.
SKU	07-4250
Type	Three-legged tripod
Design Type	Pole tripod
Legs	3
Base Configuration	Three-point
Adjustment Mechanism	Thumb-release
Adjustment Mechanism	Thumb-release
Primary Use	Surveying and construction
Key Feature 1	Three-legged stability design
Key Feature 2	Thumb-release one-handed adjustment
Key Feature 3	Operational efficiency on challenging terrain
Key Feature 4	Even load distribution across three points
Key Feature 5	Tipping resistance for expensive equipment protection
Key Feature 6	Superior stability on slopes and soft ground
Use Cases	Land surveying on uneven terrain; Construction work on slopes; Soft or unstable ground support; Irregular surface positioning; Long-duration measurement sessions; Total station equipment mounting; GPS receiver positioning; Laser level support
Setup Steps	Position tripod on uneven or challenging terrain \| Spread three legs apart to maximum stability footprint \| Use thumb-release to adjust leg length individually \| Ensure all three legs contact ground firmly \| Level tripod head for accurate instrument positioning \| Lock thumb-release mechanisms on all three legs \| Mount surveying instrument on tripod head
Pro Tips	Three-point design provides superior stability over bipods on challenging terrain \| Adjust each leg independently using thumb-release for precise ground contact \| Spread legs wider for increased stability margin on slopes \| Three-legged base resists tipping, protecting expensive surveying instruments \| Thumb-release enables quick adjustment when terrain requires repositioning
Compatible Equipment	Total stations; GPS receivers; Laser levels; Theodolites; Surveying instruments; Prism poles
Common Issues	One or more legs not fully contacting ground on uneven terrain \| Tripod head tilting despite leveled legs \| Thumb-release mechanisms difficult to operate on all three legs simultaneously \| Legs sinking into soft ground or mud
Beam Type	Cone (360° continuous coverage)
Grade Range	0–4% (approx. 0–2.3°)
Grade Accuracy	±0.05% (factory calibrated)
Self-leveling Range	±5° automatic compensation
Laser Class	Class IIIa / Class 3R
Power	Internal rechargeable battery (8+ hour runtime)
IP Rating	IP54 dust and splash resistant
