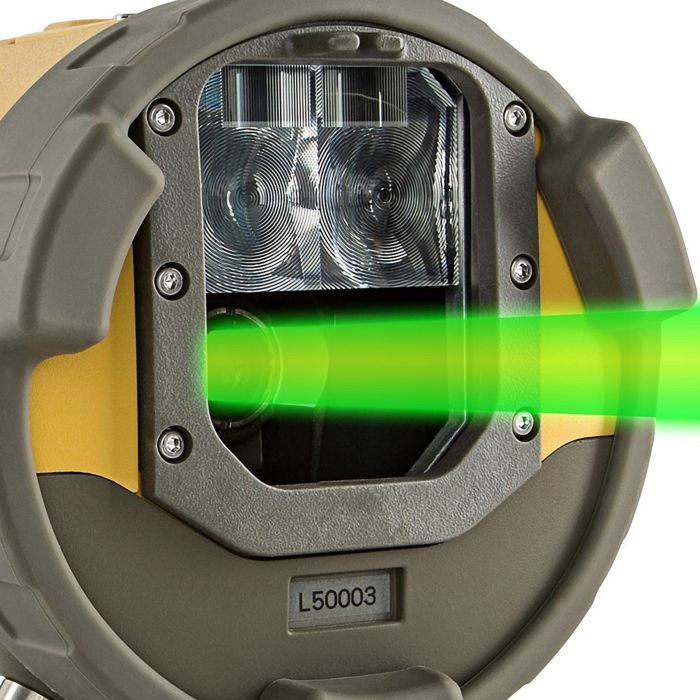

The Topcon TP-L6GV is a professional-grade green beam pipe laser built for contractors who demand accuracy on gravity-fed sewer and utility line installations. Delivering a bright, high-visibility green laser beam, the TP-L6GV outperforms red beam alternatives in bright outdoor and partially lit trench conditions, giving crews a reliable grade reference from distances exceeding 100 feet. The integrated laser plumb function lets crews simultaneously verify both horizontal grade and vertical alignment without additional setup steps — a critical advantage on complex, multi-drop utility layouts.
Overview: Built for Utility and Sewer Installation
Topcon engineered the TP-L6GV for the demands of underground utility contractors, municipal sewer crews, and civil construction teams. Whether you're laying main sewer runs, storm drain laterals, or service connections, the TP-L6GV delivers the beam visibility, grade accuracy, and setup speed that production crews require. The green beam technology increases visibility by up to four times compared to red lasers, making it a dependable choice for deep trenches, long runs, and daylight applications where red beam washout is a common problem.
Key Specifications
- Laser Color: Green Beam (520 nm)
- Grade Range: ±10% (self-leveling within ±5%)
- Grade Accuracy: ±1.5 mm per 10 m (±1/16" per 30 ft)
- Working Range: Up to 300 m (approx. 980 ft) with detector
- Visible Range: 100+ ft unaided in typical trench conditions
- Laser Plumb Function: Yes — vertical alignment reference integrated
- Self-Leveling: Automatic, dual-axis
- Out-of-Level Alarm: Audible and visual alert
- Pipe Diameter Compatibility: 4" to 36" via adapter system
- Power Source: Rechargeable battery pack
- Battery Life: Up to 40 hours typical use
- Ingress Protection: Dust and water resistant for trench environments
- Operating Temperature: -20°C to +50°C (-4°F to 122°F)
- Display: Digital grade readout with keypad control
Key Features
- Green Beam Visibility: Up to 4x brighter than red laser alternatives — ideal for outdoor trenches and deep excavations
- Integrated Laser Plumb: Simultaneously establishes horizontal grade and vertical pipe alignment, reducing layout steps on the job
- Automatic Dual-Axis Self-Leveling: Fast, reliable leveling on setups within the compensator range — no manual adjustments needed
- Wide Grade Range: Handles grades from flat to ±10%, covering most municipal and site utility applications

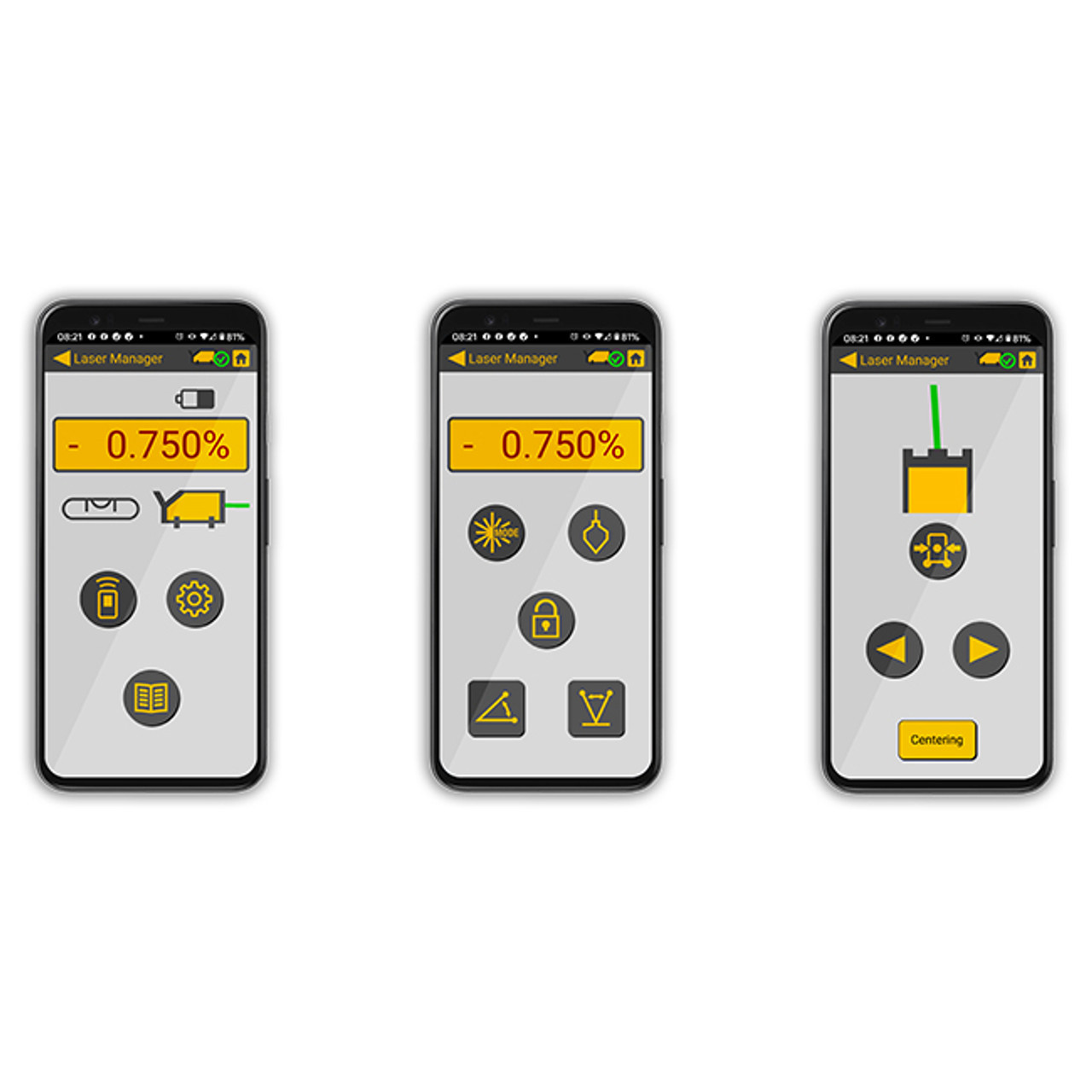

- Digital Grade Entry: Set precise grades directly via keypad for repeatable, documentation-ready layout
- Out-of-Level Safety Alarm: Audible and visual warning shuts down beam if the unit is disturbed, preventing costly grade errors
- Universal Pipe Adapter System: Compatible with a broad range of pipe diameters from 4" through 36"
- Long Battery Life: Extended runtime keeps crews productive through full shifts without recharging
- Rugged Field Construction: Built to withstand the vibration, moisture, and debris conditions of active trench work
Job Applications
The TP-L6GV is a versatile tool suited to a range of underground construction scenarios:
- Municipal Sewer Main Installation: Establish consistent invert grades on gravity sewer mains, ensuring proper flow from manhole to manhole without re-checking grade at every joint.
- Storm Drain and Culvert Layout: Set precise drain grades on storm sewer runs, culverts, and detention outlet structures where both slope accuracy and pipe alignment are critical.
- Service Lateral Connections: Use the laser plumb feature to accurately align service laterals both vertically and horizontally, minimizing re-work and inspection failures.
- Utility Conduit and Pressurized Line Grading: Though purpose-built for gravity systems, the TP-L6GV's accuracy and range make it a reliable reference tool for conduit banks, gas service lines, and water main installations requiring controlled grade.
Compatible Accessories
- Topcon Compatible Laser Detector / Receiver
- Topcon Universal Pipe Adapter Kit (4"–36")
- Topcon Rechargeable Battery Pack and Charger
- Topcon Pipe Laser Target Plate
- Topcon Hard Shell Carrying Case
Related Guides
- How to Set Up a Pipe Laser for Sewer Line Installation
- Red Beam vs. Green Beam Pipe Lasers: Which Is Right for Your Project?
- Pipe Laser Grade Accuracy Tips for Underground Utility Crews
- Topcon Pipe Laser Model Comparison Guide
Frequently Asked Questions
- What is the difference between the Topcon TP-L6GV and the TP-L6G?
- The TP-L6GV adds an integrated vertical (plumb) laser reference to the standard TP-L6G green beam platform. This allows crews to simultaneously verify both horizontal pipe grade and vertical alignment in a single setup, which is particularly valuable on service lateral connections and complex utility layouts where pipe position in both planes must be controlled.
- Can the TP-L6GV be used in wet or muddy trench conditions?
- Yes. The TP-L6GV is designed for active trench environments and is built to resist dust, moisture, and incidental water exposure typical of underground utility work. It should not be submerged, but it is rated for the rain, mud splatter, and humid conditions crews commonly encounter on utility jobsites.
- How far can the green beam be seen without a detector?
- In typical trench conditions, the green beam is clearly visible to the naked eye at 100 feet or more. Visibility depends on ambient light, trench depth, and atmospheric conditions. For longer runs or detection in bright daylight, pairing the TP-L6GV with a compatible Topcon laser detector extends the effective working range up to approximately 980 feet.
- What pipe sizes is the Topcon TP-L6GV compatible with?
- Using Topcon's universal adapter system, the TP-L6GV is compatible with pipe diameters ranging from 4 inches through 36 inches. The adapter system centers the laser accurately within the pipe for consistent invert grade references regardless of pipe size, which is critical for maintaining flow-line accuracy across varying pipe diameters on the same project.
