Topcon TP-L6B Pipe Laser Package - Red Beam

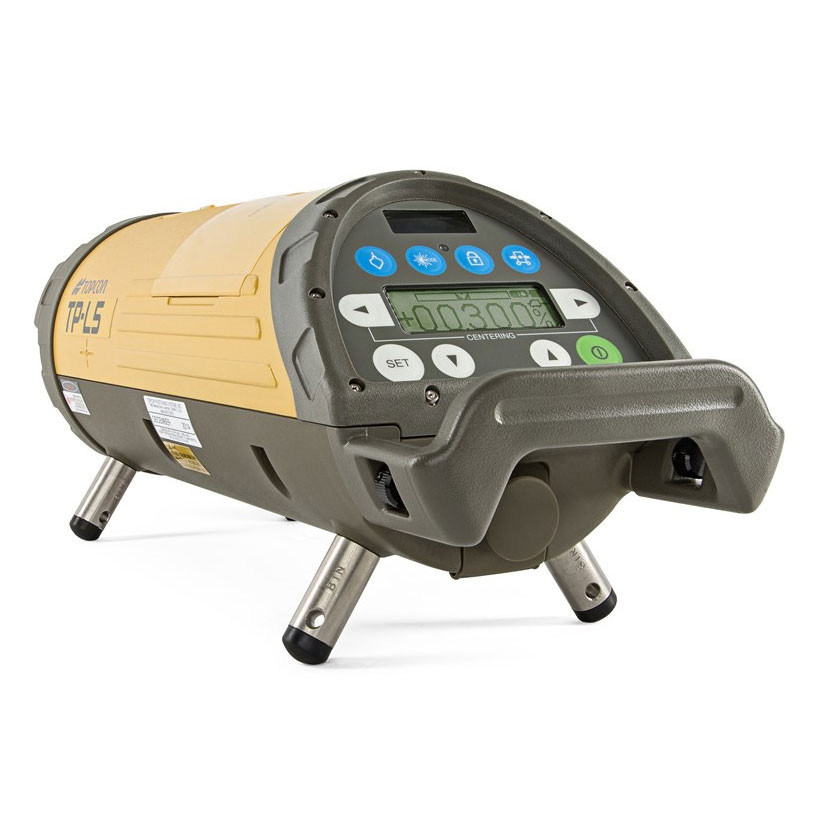

Topcon TP-L6B—Professional Red Beam Pipe Laser for Underground Contractors

The Topcon TP-L6B is a red beam pipe laser engineered for sewer, drainage, and utility contractors who need reliable grade and alignment performance in underground conditions. Designed as a direct successor to proven Topcon pipe laser technology, the TP-L6B delivers precise beam alignment that matches traditional survey control methods, making it easy to integrate into existing workflows. The built-in LED plumb reference eliminates the need for separate instrumentation during setup, keeping your crew moving efficiently from one installation to the next.

Underground Alignment Performance

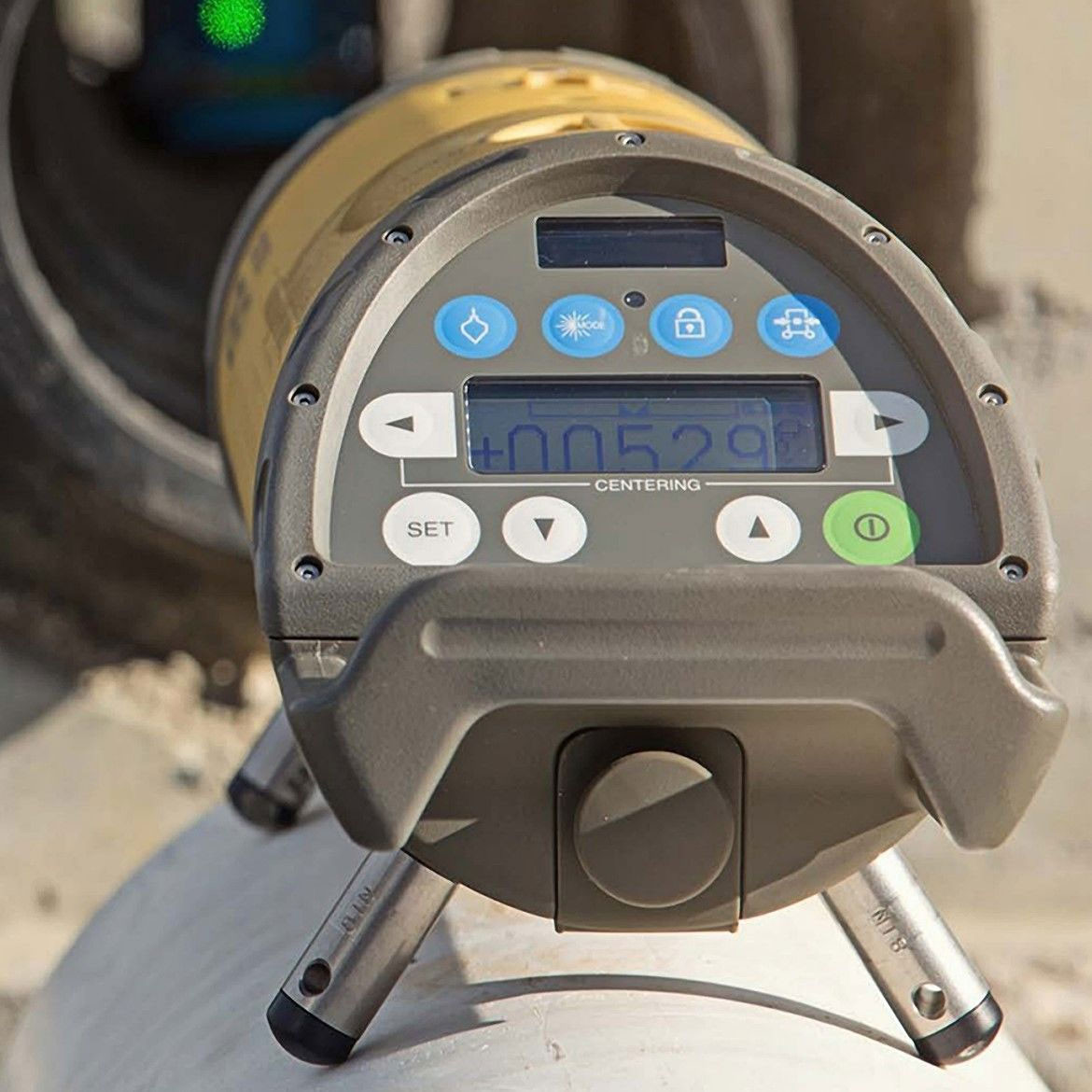

The TP-L6B is purpose-built for the demanding conditions of pipe installation work—wet manholes, confined trenches, and low-light pipe interiors. The red beam performs in typical sewer and drainage pipe environments without the need for auxiliary illumination, and the instrument's self-leveling system compensates automatically within its leveling range, reducing setup time and operator error. Whether you are laying gravity sewer main, setting storm drain culverts, or installing conduit runs, the TP-L6B provides the beam accuracy that production-grade contractors rely on.

Key Specifications

• Beam Type: Red diode laser
• Self-Leveling Range: ±10% grade (approximately ±5.7°)
• Grade Setting Range: -10% to +40% (instrument dependent on mount)
• Accuracy: ±1.5mm at 30m (±1/16 in. at 100 ft)
• LED Plumb Reference: Integrated, visible from pipe interior
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)
• Water Resistance: IP67 rated—fully protected against dust and temporary submersion
• Battery Life: Up to 40 hours on alkaline AA batteries
• Visible Range: Up to 300m (1,000 ft) in typical pipe conditions
• Weight: Approximately 1.9 kg (4.2 lbs) without batteries
• Tripod/Mount Thread: 5/8-11 standard

Key Features

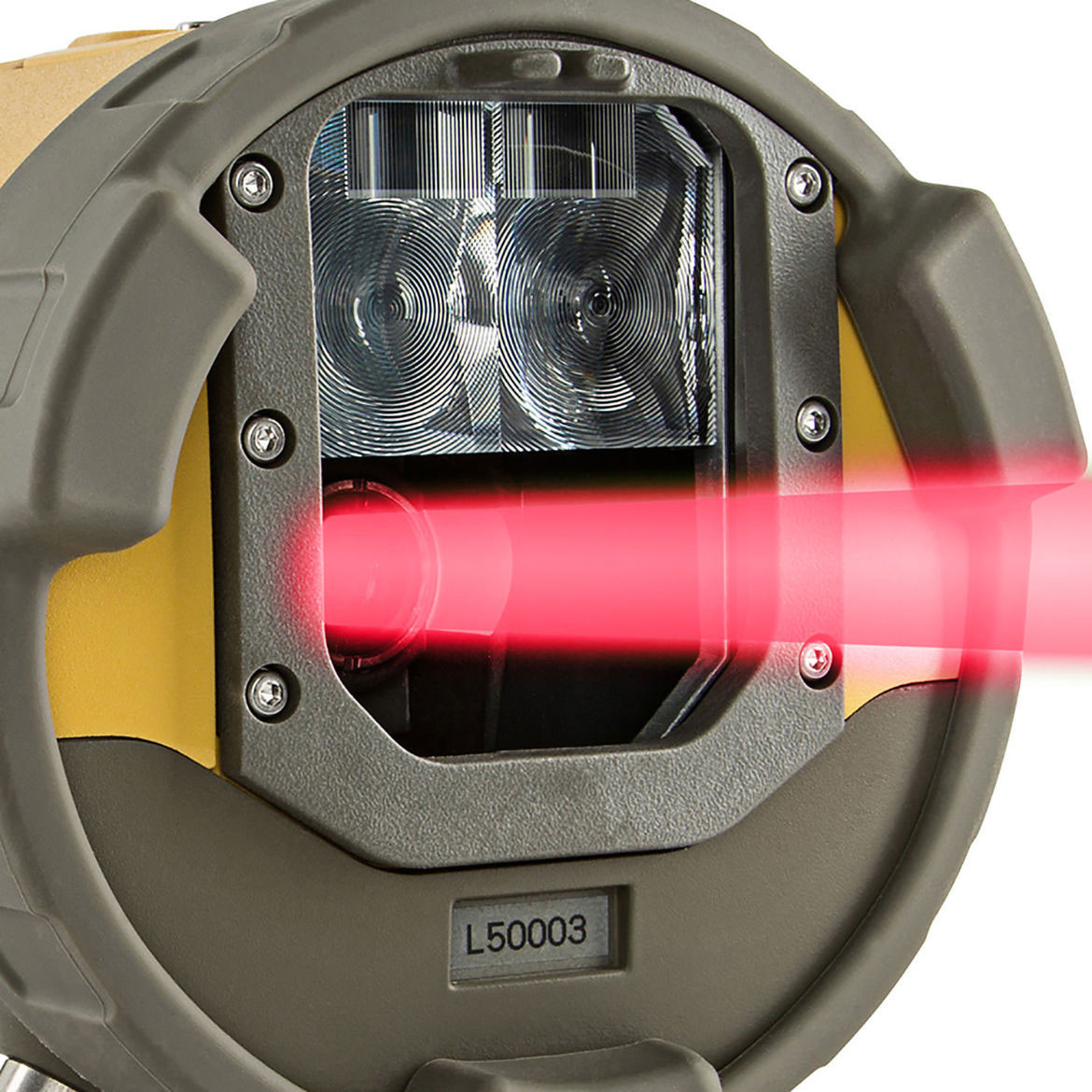

• Red beam laser visible in standard sewer and drainage pipe interior lighting without auxiliary equipment
• Integrated LED plumb reference for fast, accurate vertical alignment at setup
• Automatic self-leveling within grade range—audible and visual out-of-level alert
• IP67-rated housing withstands water infiltration, mud, and jobsite impact
• Long battery life supports extended production days without battery changes mid-task
• Compatible with Topcon remote control systems for operation from outside the pipe
• 5/8-11 mounting thread accepts standard laser mounts, centering rods, and tripods

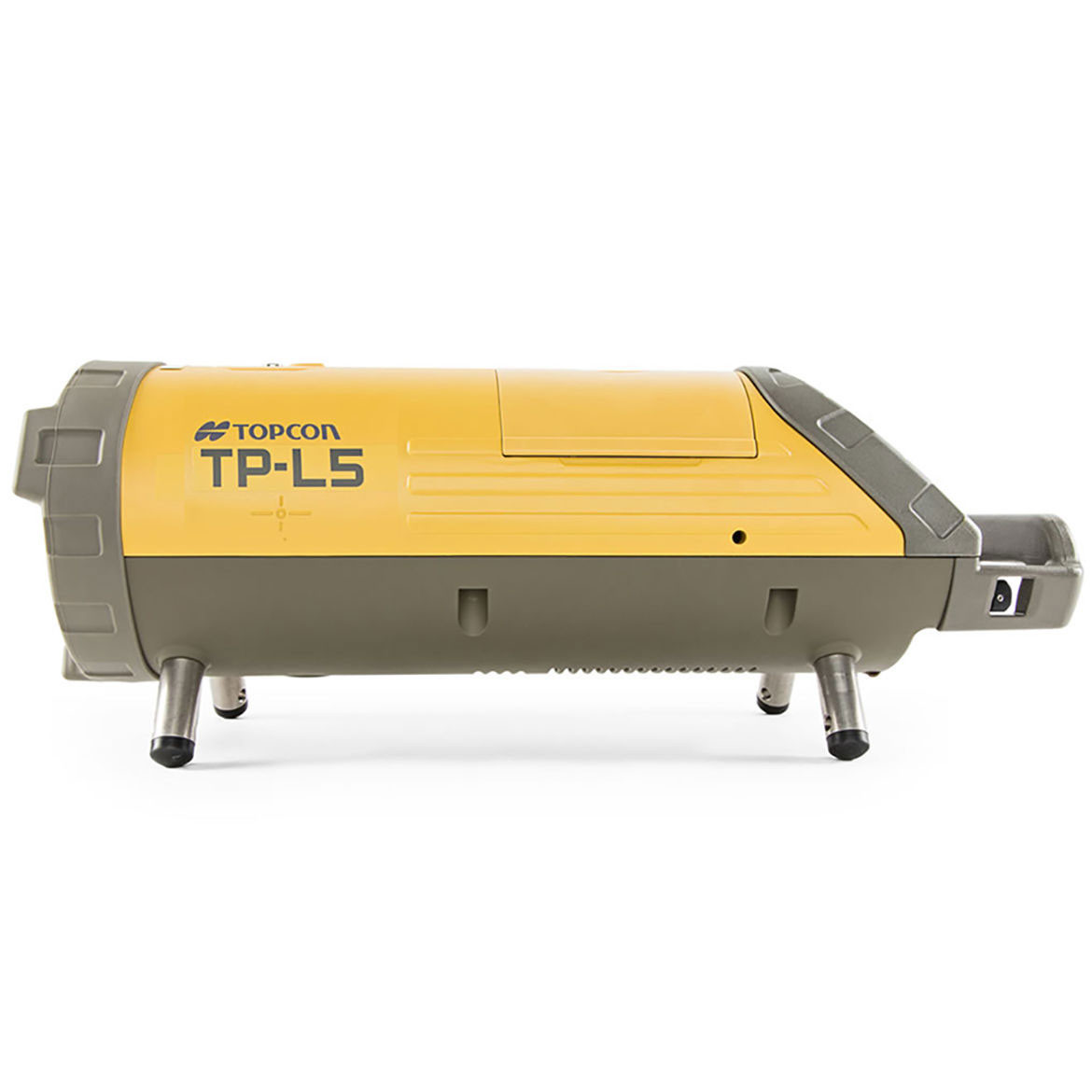

• Compact, balanced design fits comfortably in standard manhole openings

Job Applications

The TP-L6B performs across a wide range of underground utility and civil construction scenarios:

• Municipal Sewer Main Installation: Set grade and alignment from manhole to manhole on gravity sewer projects. The red beam gives your grade checker a clear target inside the pipe at production dig rates.
• Storm Drain and Culvert Work: Run accurate grades on storm sewer laterals and mainline storm drain installations. The TP-L6B handles the moderate to steep grades common in stormwater systems.
• Conduit and Duct Bank Alignment: Establish straight-line control for electrical conduit, telecommunications duct bank, and other underground utility installations where horizontal alignment is as critical as grade.
• Trenchless and Bore Pit Applications: Use the TP-L6B in launch pit setups for horizontal directional drilling (HDD) pilot control and pipe bursting alignment work where a stable, accurate beam reference is required.

Compatible Accessories

• Topcon Pipe Laser Mounting Accessories
• Topcon RC Remote Control for Pipe Lasers
• Pipe Laser Alignment Targets
• Centering Rods and Manhole Mounts
• Replacement Carrying Cases and Transport Protection

Related Guides

• How to Set Up a Pipe Laser for Sewer Installation
• Setting Grade with a Pipe Laser—Contractor Tips
• Red Beam vs. Green Beam Pipe Lasers—Which Is Right for Your Job?
• Topcon TP-L6B vs. TP-L6G—Feature Comparison Guide

Frequently Asked Questions

What is the maximum grade range of the Topcon TP-L6B?

The TP-L6B is designed to handle grade settings from -10% to +40%, covering the full range of typical gravity sewer and storm drain installations. For grades outside the self-leveling range, manual adjustment via the instrument's grade dial is used, and the unit will alert the operator if it goes out of automatic leveling range.

Does the TP-L6B work with a remote control?

Yes. The Topcon TP-L6B is compatible with Topcon's optional remote control system, which allows operators to adjust grade, alignment, and power functions from outside the pipe or at the surface. This is particularly useful on production sewer jobs where frequent grade adjustments are needed without sending someone back into the manhole.

What does the LED plumb reference do and why does it matter?

The integrated LED plumb reference projects a visible reference point that helps the operator quickly confirm the instrument is centered and plumb within the pipe during setup. This eliminates the need for a separate plumb bob or level, speeds up manhole setup time, and reduces the chance of a misaligned starting position that could throw off an entire run of pipe.

Is the Topcon TP-L6B protected against water and mud in the pipe?

Yes. The TP-L6B carries an IP67 rating, meaning it is fully protected against dust ingress and can withstand temporary submersion in water up to 1 meter deep for up to 30 minutes. This makes it well-suited for wet manhole conditions and the general moisture and debris exposure common in active sewer and drainage construction environments.
