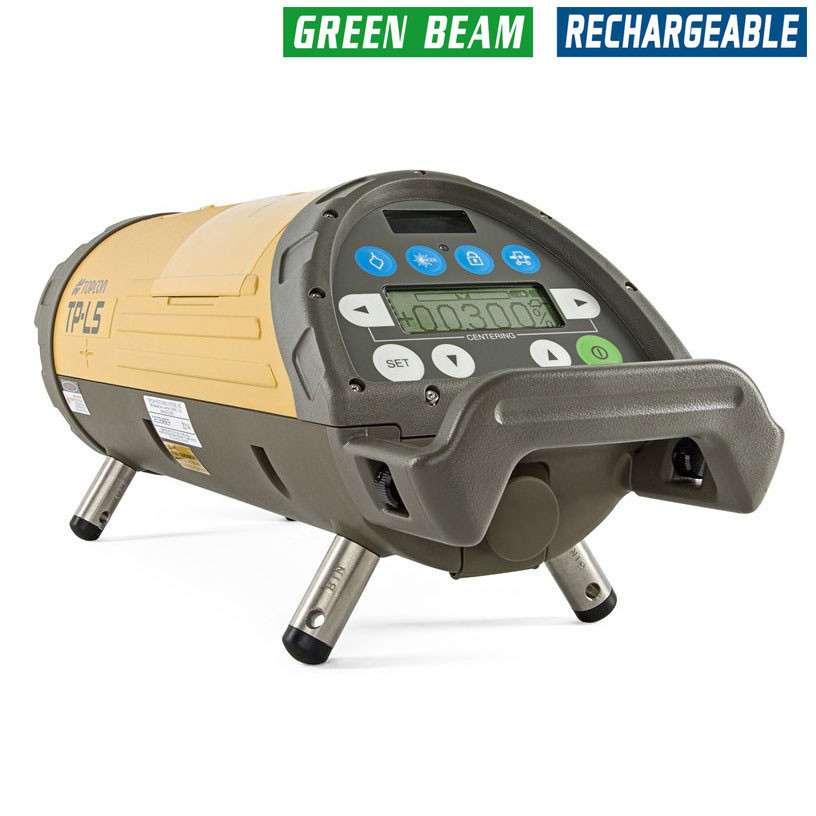

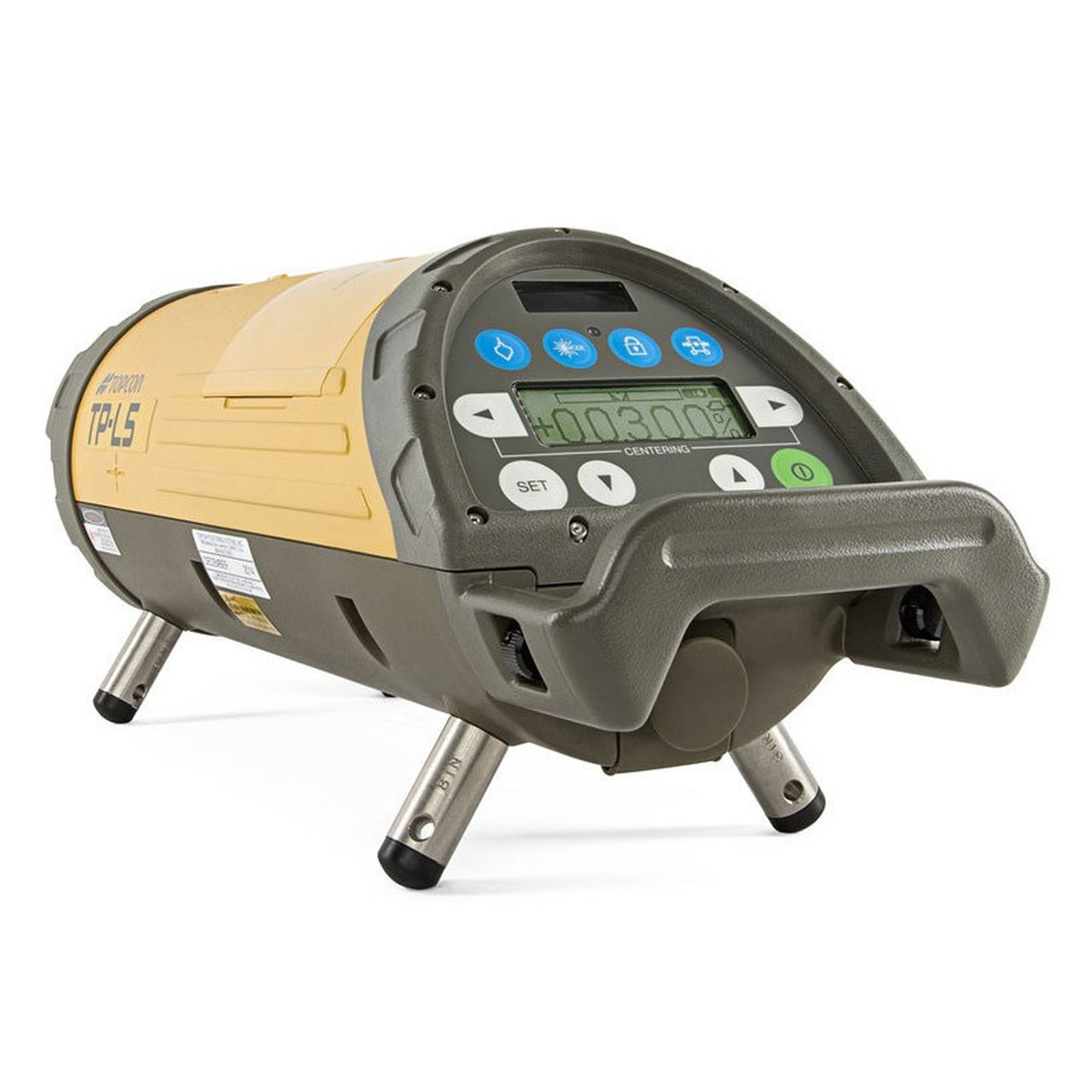

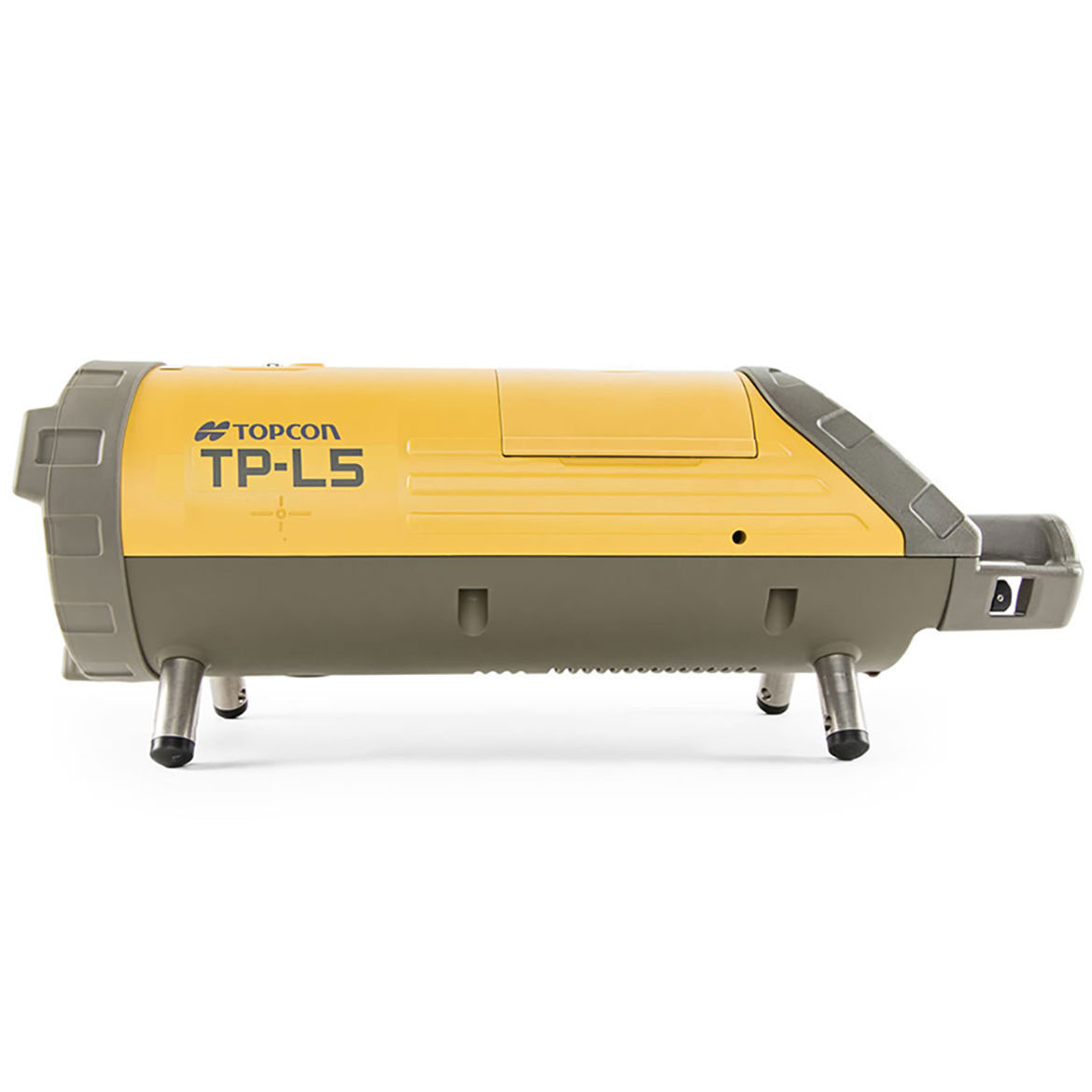

Topcon TP-L5GV Pipe Laser Package - GREEN Beam with Laser Plumb 329560152 SmartLine

Topcon TP-L5GV: Green Beam Precision for Underground Utility Alignment

The Topcon TP-L5GV is a professional-grade green beam pipe laser engineered for contractors who demand uncompromising accuracy on sewer, storm drain, and underground utility installations. Featuring Topcon's SmartLine technology and a dedicated laser plumb reference — rather than a standard LED indicator — the TP-L5GV delivers a sharper, more visible alignment beam that performs in demanding trench conditions. Whether you're laying gravity sewer mains, installing conduit corridors, or working on municipal infrastructure, this unit gives your crew the confidence to hit grade and alignment on every pipe.

Overview & Jobsite Applications

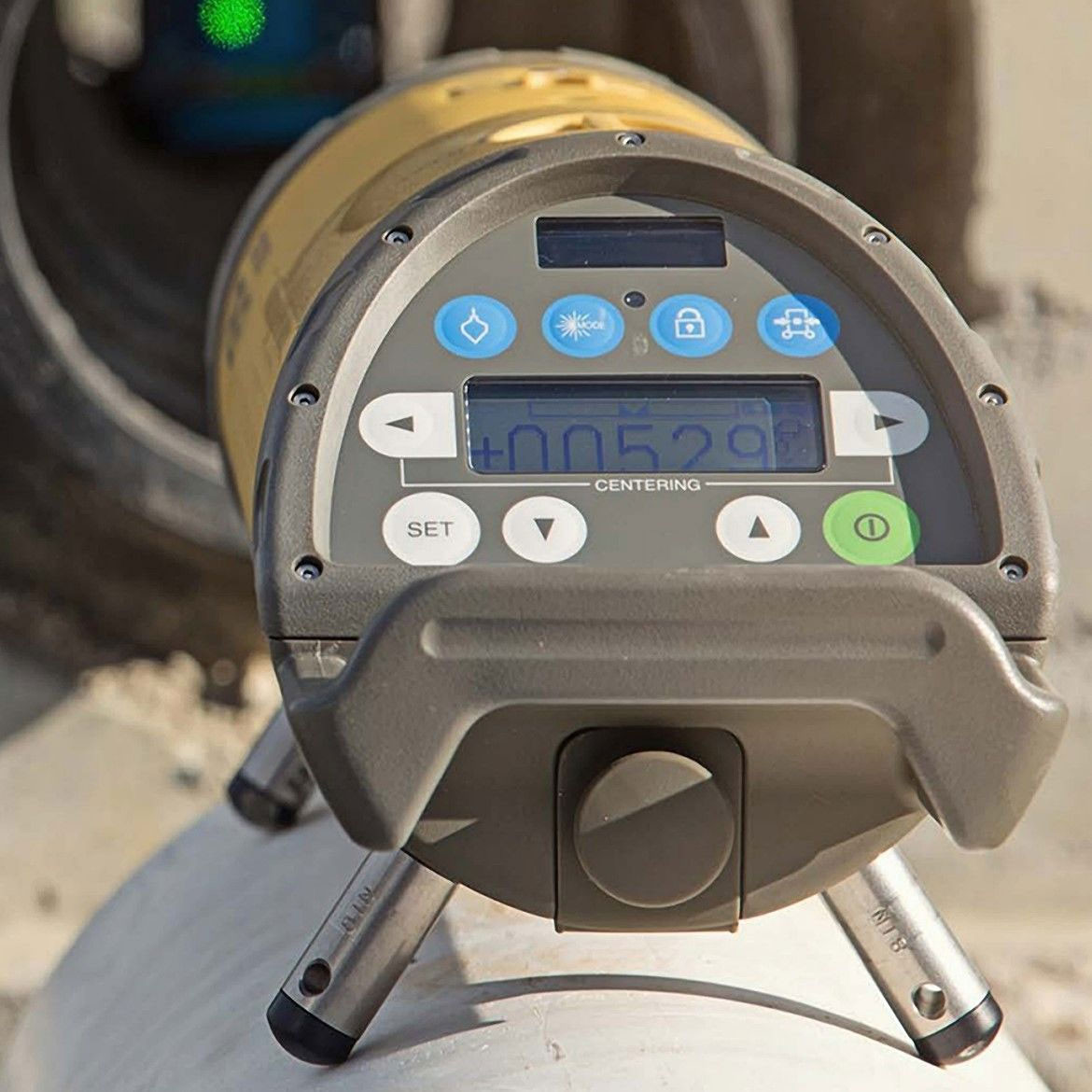

Designed for general contractors, utility subcontractors, and municipal construction crews, the TP-L5GV excels in projects where green beam visibility and true laser plumb accuracy are non-negotiable. Green beam lasers are up to four times more visible to the human eye than red beam alternatives, reducing crew fatigue and improving target acquisition in deep or shaded trenches. The self-leveling system automatically compensates for minor disturbances, keeping downtime to a minimum during active excavation. Remote control capability allows a single operator to adjust grade and alignment from the trench face without returning to the instrument, improving workflow on tight-schedule municipal contracts.

Key Specifications

• Beam Color: Green (532 nm wavelength)
• Laser Class: Class 3R
• Self-Leveling Range: ±10% (approximately ±5.7°)
• Grade Range: 0% to ±10%
• Accuracy: ±1.5 mm at 30 m
• Working Range: Up to 300 m (984 ft) diameter
• Plumb Reference: Laser plumb (not LED)
• Remote Control: Included, operates up to 100 m
• Battery Life: Approximately 50 hours (alkaline)
• Power Source: 4 x AA alkaline or rechargeable NiMH
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• IP Rating: IP67 dust and waterproof
• Weight: Approximately 2.8 kg (6.2 lbs)

Key Features

• Laser Plumb Reference: True laser plumb beam provides superior vertical alignment accuracy compared to standard LED indicators — critical for deep manholes and junction structures

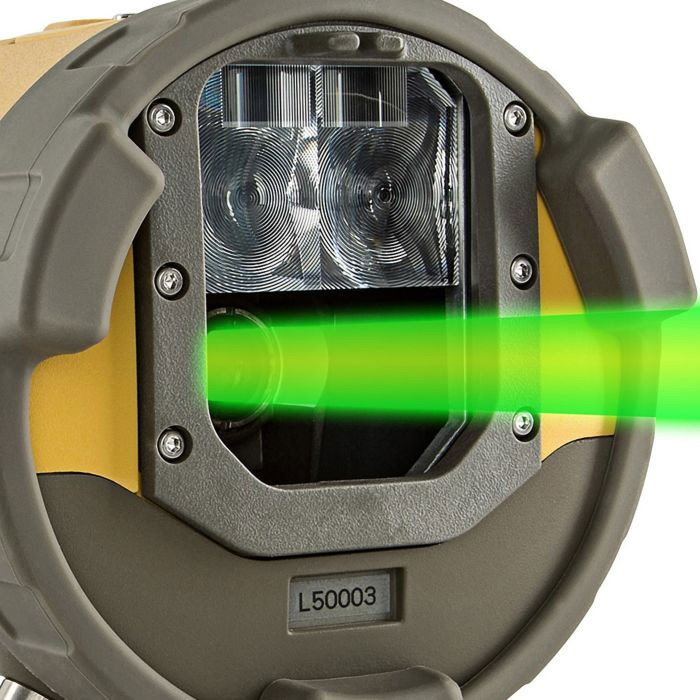

• Green Beam Visibility: 532 nm green beam is significantly more visible than red in bright outdoor and trench conditions
• SmartLine Technology: Topcon's intelligent self-leveling and tilt-lock system with automatic out-of-level alert
• Full Remote Control: Wireless remote included for single-operator grade and alignment adjustments from up to 100 m away
• IP67 Protection: Fully dust-tight and submersible up to 1 m — built for wet trench environments
• Wide Grade Range: Handles 0% to ±10% grade settings for steep utility runs
• Long Battery Life: Up to 50 hours on standard AA batteries reduces mid-job interruptions
• Compact Tripod-Ready Design: Compatible with standard pipe laser tripods and rod systems for quick setup in any pipe diameter

Job Applications

Municipal Sewer Main Installation: The TP-L5GV is purpose-built for gravity sewer contracts where grade tolerances are strict. The laser plumb reference ensures accurate centerline alignment at each manhole structure, reducing costly re-work during inspection.

Storm Drain & Culvert Work: Green beam visibility and IP67 protection make this unit reliable for open-cut storm drain projects where standing water, mud, and variable light conditions challenge lesser instruments.

Underground Conduit & Duct Bank Alignment: Electrical and telecom contractors use the TP-L5GV to maintain consistent horizontal and vertical alignment through long conduit runs beneath roadways and structures.

Microtunneling & Trenchless HDD Support: The precision plumb and grade accuracy supports setup and monitoring tasks on smaller-diameter trenchless installations where beam clarity and remote operation are essential.

Compatible Accessories

• Topcon TP-L5 Pipe Laser Tripod
• Topcon RC-4 Remote Control (Replacement)
• Topcon Pipe Laser Target Plate
• NiMH Rechargeable Battery Pack for TP-L Series
• Topcon Hard Carrying Case for TP-L5 Series

Related Guides

• How to Set Up a Pipe Laser for Gravity Sewer Installation
• Green vs. Red Beam Pipe Lasers: Which Is Right for Your Project?
• Understanding Pipe Laser Grade Settings and Tolerances
• Topcon TP-L5GV vs. TP-L5B: Full Comparison Guide

Frequently Asked Questions

What is the difference between the TP-L5GV and the standard TP-L5B?

The TP-L5GV uses a green beam (532 nm) which is significantly more visible to the human eye than the red beam on the TP-L5B, and it includes a laser plumb reference instead of an LED indicator — providing more precise vertical alignment for critical applications like deep manhole connections and junction structures.

Does the Topcon TP-L5GV come with a remote control?

Yes, the TP-L5GV includes a wireless remote control that operates up to 100 meters from the instrument, allowing a single operator to adjust grade and alignment settings from the trench face without disturbing the setup.

Is the TP-L5GV suitable for use in wet or flooded trench conditions?

Yes. The TP-L5GV carries an IP67 rating, meaning it is fully dust-tight and can withstand submersion in up to 1 meter of water for up to 30 minutes, making it well suited to wet trench environments common in utility and sewer construction.

What grade range can the TP-L5GV handle?

The TP-L5GV supports a grade range of 0% to ±10%, covering the vast majority of gravity sewer, storm drain, and utility installation grades encountered on municipal and commercial jobsites.
