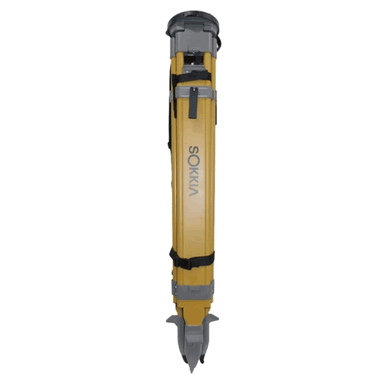

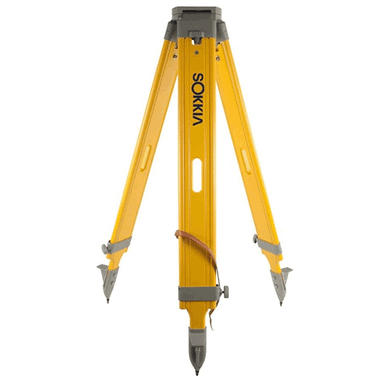

Sokkia 1030650-01 Heavy Duty Wood and Fiberglass Tripod

The Sokkia 1030650-01 Heavy Duty Wood Tripod is built to meet the daily demands of professional surveyors, construction crews, and field technicians who need a stable, reliable instrument platform in any environment. Combining the natural vibration-dampening properties of hardwood construction with fiberglass-reinforced leg sections, this tripod delivers the rigidity and longevity that precision work requires — from tight urban jobsites to rugged open terrain.

Overview & Jobsite Applications

Designed for use with a wide range of professional geomatics and construction instruments, the Sokkia 1030650-01 accepts any instrument fitted with the industry-standard 5/8-inch x 11 TPI threaded mounting connection. Whether you are running control traverses with a total station, occupying GNSS base station points, or setting grade elevations with a rotating laser level, this tripod provides the firm, level base your measurements depend on. The quick-release clamp leg system speeds up setup and breakdown throughout the day, reducing fatigue and improving crew efficiency on multi-point layouts.

Key Specifications

• Model: Sokkia 1030650-01
• Construction: Heavy duty hardwood with fiberglass-reinforced leg sections
• Mounting Thread: 5/8 inch x 11 TPI (industry standard)
• Leg Adjustment: Quick-release clamp system
• Tripod Type: Fixed-head (flat-top) wood tripod
• Duty Rating: Heavy duty — suited for total stations, GNSS receivers, and optical levels
• Compatibility: Sokkia instruments and all brands using 5/8x11 thread

Key Features

• Hardwood Stability: Natural wood construction absorbs vibration and resists flex better than aluminum alternatives in many field conditions
• Fiberglass Reinforcement: Extends service life and maintains structural integrity under heavy daily use
• Quick-Clamp Leg Locks: Fast, positive leg extension and locking for efficient instrument setup without tools
• 5/8x11 Standard Thread: Compatible with virtually all professional surveying, construction, and GPS instruments on the market
• Flat Top Head: Provides a stable, level mounting surface for tribrach-mounted or direct-mount instruments
• Pointed Steel Shoes: Leg tips penetrate soil and pavement cracks to anchor the tripod securely on any surface

Job Applications

Boundary & Topographic Surveying: Set up your total station or theodolite over control points with confidence. The heavy duty wood construction resists the micro-vibrations that can affect angle measurements on windy days or near active construction equipment.

GNSS Base Station Setup: Occupy known control points with a GPS or GNSS receiver mounted via tribrach. The flat-top head and 5/8x11 thread accommodate all major rover and base station antenna setups from Sokkia, Topcon, Trimble, and Leica.

Construction Layout & Grade Control: Mount rotary laser levels or pipe lasers directly to the tripod for elevation transfer, grade setting, and alignment work on grading, utilities, and concrete projects.

Optical & Digital Levels: Use with automatic or digital levels for differential leveling runs on infrastructure, building, or earthwork projects where a stable, shock-resistant base is critical to maintaining instrument calibration.

Compatible Accessories

• Sokkia Tribrach with Optical Plummet
• Sokkia 5/8x11 Adapter Plate
• Tripod Carrying Bag for Wood Tripods
• Sokkia CX Series Total Stations
• Sokkia GRX3 GNSS Receiver

Related Guides

• How to Set Up a Total Station Tripod for Accurate Control
• Wood vs. Aluminum Tripods: Which Is Right for Your Crew?
• 5/8x11 Thread Compatibility Guide for Surveying Instruments
• Tripod Care and Maintenance Tips for Field Crews

Frequently Asked Questions

What instruments are compatible with the Sokkia 1030650-01 tripod?

Any instrument with a standard 5/8-inch x 11 TPI threaded base is compatible, including total stations, theodolites, GNSS receivers, rotating laser levels, and optical levels from Sokkia, Topcon, Trimble, Leica, and other major manufacturers.

Is this a flat-top or dome-head tripod?

The Sokkia 1030650-01 features a flat-top (fixed flat head) design, which accepts tribrachs and direct-mount instruments. This is the standard configuration preferred for total station and GNSS work.

How does the quick-clamp leg system work?

Each leg section features a lever-style clamp that releases with a squeeze, allowing the leg to slide freely for height adjustment. Once positioned, releasing the lever locks the leg firmly in place — no knob spinning or tools required.

Why choose a wood tripod over an aluminum tripod?

Wood tripods naturally dampen vibration better than aluminum, which helps protect sensitive instrument optics and electronics from shock. They also maintain rigidity in temperature extremes without the thermal expansion concerns of metal legs, making them a preferred choice for high-precision survey work.
