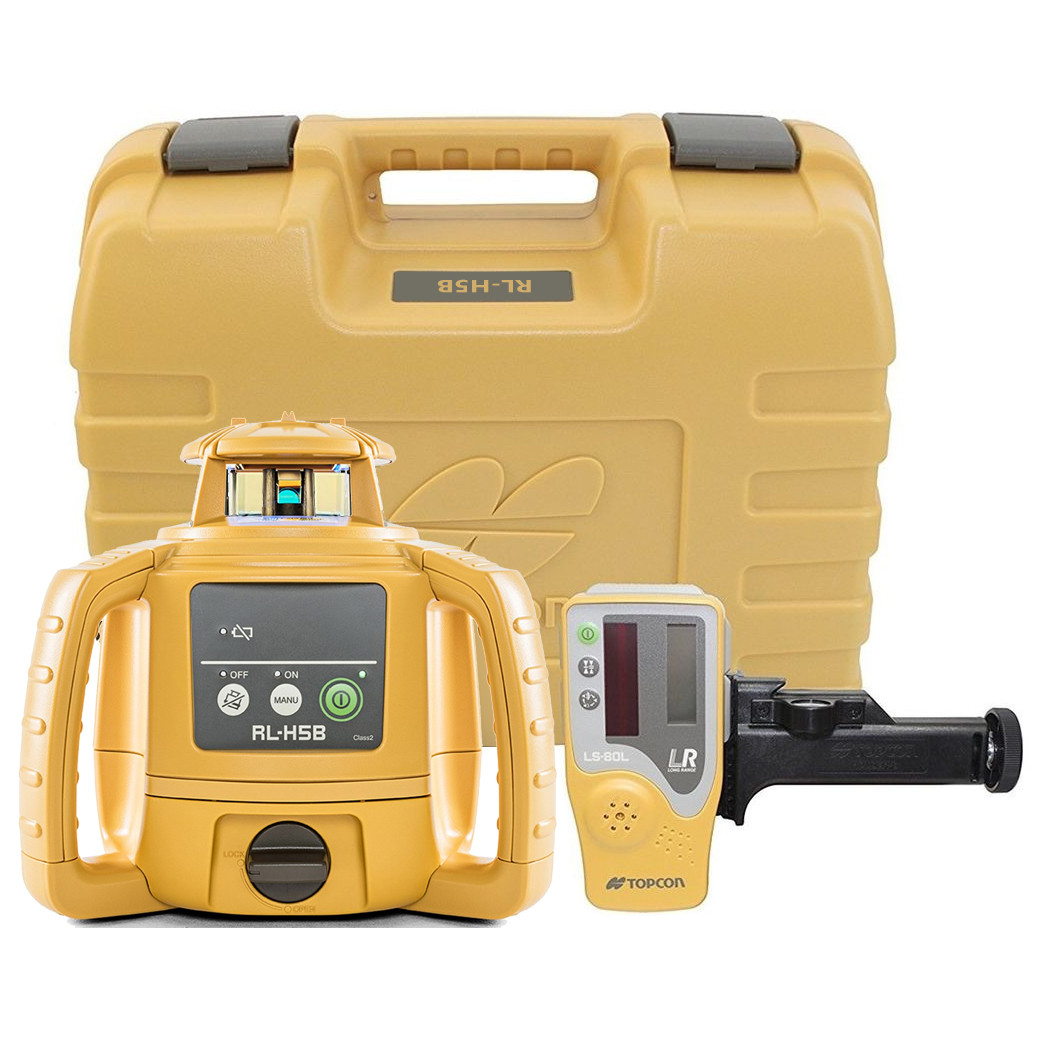

Topcon RL-H5B Self-Leveling Laser PS.DB Kit with LS-80L Receiver, Grade Rod INCHES and Tripod - 1021200-31-K2 (uses Alkaline Batteries)

Overview

The Topcon RL-H5B Self-Leveling Laser PS.DB Kit delivers dependable horizontal leveling for construction professionals who demand accuracy without complexity. This complete package serves residential builders, concrete contractors, and site preparation crews working on foundations, grading, excavation, and deck installations. The RL-H5B automatically levels within ±5 degrees and alerts operators when tilted beyond range, preventing costly errors. American contractors benefit from the included grade rod marked in feet and inches—eliminating field conversions and transcription mistakes common with metric measurements. With alkaline battery operation, you avoid the downtime and expense of rechargeable battery replacement. The LS-80L receiver extends detection range up to 2,600 feet diameter, making this kit suitable for large residential lots and commercial site work where laser visibility alone isn't sufficient.

Key Specifications

• Self-Leveling Range: ±5 degrees with out-of-level alarm
• Leveling Accuracy: ±1/16 inch at 100 feet (±1.6mm at 30m)
• Working Diameter: 2,600 feet (800m) with LS-80L receiver
• Rotation Speed: 600 RPM
• Environmental Rating: IP66 dust-tight and water-resistant
• Power Source: 4 D-cell alkaline batteries (not included)
• Battery Life: Approximately 100 hours continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Laser Weight: 5.3 lbs (2.4 kg) without batteries
• Beam Color: Red (Class 2 laser, eye-safe)

What's in the Kit

• RL-H5B Rotary Laser: Self-leveling base unit with pendulum compensator and automatic out-of-level alert
• LS-80L Laser Receiver: Rod-mounted detector with visual and audible indicators, on-grade beep function, and dual-sided detection
• Inch-Marked Grade Rod: Telescoping measuring rod graduated in feet and inches for direct elevation readings without conversion
• Adjustable Tripod: Aluminum construction with quick-release laser mount and adjustable legs for uneven terrain
• Carrying Case: Hard-shell protective case with custom foam cutouts for organized transport and storage
• Alkaline Battery Holder: Four D-cell battery compartment (batteries sold separately)
• Target Plate: High-visibility reflector for short-range visual alignment checks
• User Manual: Complete operating instructions and calibration procedures

Job Applications

• Foundation and Slab Layout: Establishes consistent elevation reference across formwork to ensure level concrete pours and prevent pooling or drainage issues
• Excavation Depth Control: Guides equipment operators to achieve proper dig depths for footings, utility trenches, and site grading without constant manual measurements
• Deck and Patio Construction: Provides level reference for post heights, beam installation, and drainage slope verification on outdoor structures
• Interior Floor Leveling: Identifies high and low spots in concrete subfloors before tile installation or helps establish screeding guides for self-leveling compound
• Retaining Wall Installation: Maintains consistent course heights across long wall sections and verifies proper backfill grading behind structural elements
• Drop Ceiling and Soffit Alignment: Creates level reference line for suspended ceiling grid installation and ensures uniform soffit heights in commercial remodels
• Drainage and Site Grading: Establishes benchmark elevations for slope calculations and verifies positive drainage away from structures

Compatible Accessories

Expand your RL-H5B system capabilities with these Topcon-compatible accessories:

• Topcon LS-100D Machine Receiver for excavator and dozer grade control integration
• Topcon RC-40 Remote Control to adjust rotation speed and switch to single-slope mode from up to 100 feet away
• Topcon Tri-Bracket Laser Mount for wall and ceiling mounting without tripod
• Heavy-Duty Flat-Head Laser Tripod with wider footprint for windy conditions
• Elevating Center Column Tripod for height adjustment without repositioning legs
• Alkaline D Batteries (12-Pack) to keep your laser running through long workdays

Related Guides

• How to Set Up a Rotary Laser for Foundation Work – Step-by-step process for establishing benchmark elevation and checking formwork
• Topcon RL-H5B vs. Spectra LL300 Comparison – Feature and value analysis of leading horizontal lasers under $800
• Understanding Laser Receiver Detection Accuracy – How receiver quality affects measurement precision at different distances
• Rotary Laser Won't Self-Level – Common Causes and Fixes – Diagnostic procedures for self-leveling errors and calibration verification

Frequently Asked Questions

Can the RL-H5B create slopes, or is it horizontal-only?

The RL-H5B is designed exclusively for horizontal leveling applications and cannot create slopes. The laser self-levels to create a perfectly flat plane. If you need slope capability for drainage work or ramp construction, consider the Topcon RL-H5A which offers manual grade matching or the RL-SV2S with dual-axis slope capability.

Why choose alkaline batteries instead of a rechargeable model?

Alkaline battery operation eliminates long-term costs associated with rechargeable battery degradation and replacement. After 2-3 years, rechargeable batteries lose capacity and require $80-$150 replacement. With alkaline operation, you simply swap in fresh D-cells available at any hardware store, keeping the laser running on remote jobsites without charging infrastructure. The RL-H5B delivers approximately 100 hours per battery set.

What's the difference between the LS-80L receiver and higher-end models?

The LS-80L provides essential detection functions with visual LCD and audible indicators across a 2,600-foot diameter range. Higher-end receivers like the LS-100D add machine control outputs, digital readout with numeric elevation display, and enhanced detection algorithms for challenging environments. For handheld grade checking and rod work, the LS-80L delivers professional performance at a value price point.

How do I verify the RL-H5B is still calibrated and accurate?

Perform a two-point calibration check every 3-6 months or after the laser experiences impact during transport. Set up the laser and mark an elevation point on a wall 100 feet away using the receiver. Rotate the laser head 180 degrees and check the same wall location—the reading should match within 1/8 inch. Complete calibration procedures are detailed in the user manual. Topcon recommends annual factory calibration for contractors requiring certified accuracy documentation.
