Topcon RL-H5B Self-Leveling Laser PS.DB Kit with LS-80L Receiver, Grade Rod 10ths and Tripod - 1035257-01 (uses Alkaline Batteries)

Overview

The Topcon RL-H5B Self-Leveling Laser PS.DB Kit (1035257-01) delivers reliable horizontal leveling for general contractors, landscapers, and commercial builders working on grade-critical projects. This complete package includes the RL-H5B laser head, LS-80L receiver with rod clamp, aluminum grade rod marked in 10ths, and heavy-duty tripod—everything needed for elevation transfer, foundation layout, and site grading work. The alkaline battery design eliminates charging downtime on remote jobsites, allowing crews to swap fresh D-cells in seconds and maintain continuous operation. Topcon's self-leveling mechanism with motorized pendulum automatically levels within ±5° and shuts down if disturbed beyond acceptable tolerances, preventing costly measurement errors during concrete pours and excavation tasks.

Key Specifications

• Self-Leveling Range: ±5 degrees automatic compensation
• Leveling Accuracy: ±3/32" at 100 feet (±2.5mm at 30m)
• Working Diameter: 1,600 feet (500m) with LS-80L receiver
• Rotation Speed: 600 RPM (fixed)
• Environmental Protection: IP66 dust-tight and water-resistant
• Power Source: 4× D-cell alkaline batteries (60+ hours runtime)
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Laser Class: Class 2 visible red beam (635nm)
• Unit Weight: 5.5 lbs (2.5 kg) laser head only

What's in the Kit

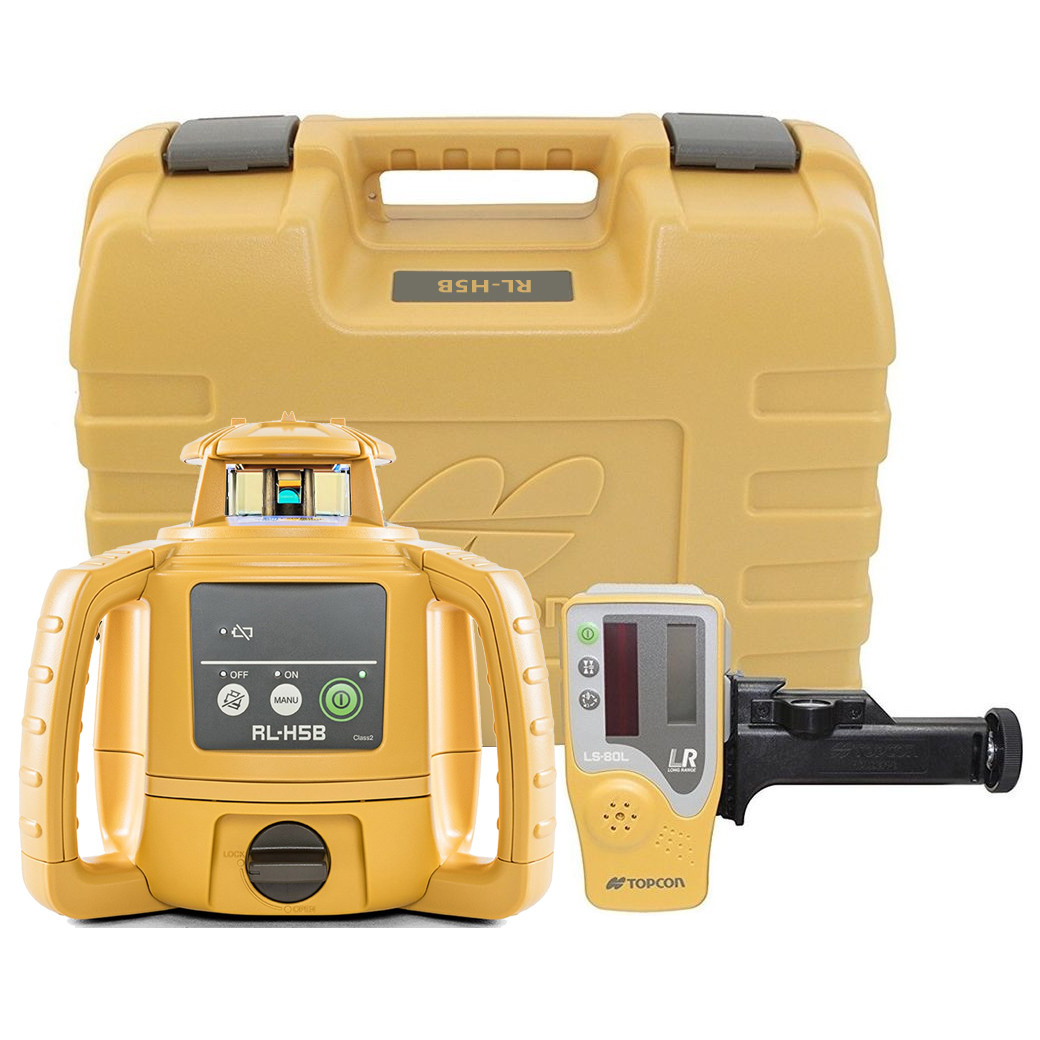

• RL-H5B Laser Head: Self-leveling rotary transmitter with automatic tilt shutdown and visible red beam
• LS-80L Laser Receiver: Front/back detection with visual and audible on-grade indicators, operating range to 800' radius
• Rod Clamp Assembly: Secure mounting bracket for attaching LS-80L receiver to grade rod
• Aluminum Grade Rod (10ths): Telescoping measuring staff with decimal-foot graduations for elevation readings
• Aluminum Tripod: Adjustable-leg support with 5/8"-11 threaded mounting platform
• Rechargeable Battery Pack: NiMH power option with charger (standard alkaline D-cells also compatible)
• Protective Carrying Case: Hard-shell transport case with custom foam inserts for all components
• Instruction Manual: Setup guide with calibration procedures and troubleshooting reference

Job Applications

• Foundation Excavation: Verify dig depth across footings and basement excavations to ensure uniform depth before concrete placement
• Concrete Slab Pours: Set screed rails and establish consistent elevation references for flatwork crews pouring warehouse floors, sidewalks, and parking structures
• Site Grading & Drainage: Establish slope benchmarks for proper water runoff on parking lots, athletic fields, and landscape installations
• Pier & Column Layout: Transfer elevation from benchmark to formwork locations, ensuring uniform height across multiple structural elements
• Suspended Ceiling Installation: Set laser reference plane for commercial drop ceiling grid systems, eliminating stringline sagging over long distances
• Retaining Wall Construction: Maintain consistent course heights and establish backfill elevations during segmental block or poured-wall installations

Compatible Accessories

Expand system capabilities with these genuine Topcon components:

• Topcon LS-100D Digital Receiver – Upgrade to millimeter-precision digital readout with extended 1,000' range
• Topcon RC-500 Remote Control – Adjust rotation speed and axis alignment from receiver position up to 300 feet away
• Topcon Tri-Max Quick-Clamp Tripod – Reinforced composite-head tripod with tool-free leg locks for faster setups
• SECO 25' Fiberglass Grade Rod – Extended-length rod for deep excavations and tall structure measurements
• RL-H5B Alkaline Battery Tray – Replacement battery holder for 4× D-cell operation

Related Guides

• How to Level-Check Your Rotary Laser for Accuracy – Field calibration procedure to verify ±3/32" spec without sending unit for service
• Topcon RL-H5A vs. RL-H5B Comparison – Feature differences between rechargeable-only (H5A) and dual-power (H5B) models
• Understanding Laser Receiver Signal Displays – Interpreting LS-80L arrow patterns and audio tones for accurate elevation readings
• Troubleshooting: Rotary Laser Won't Self-Level – Diagnose pendulum lock, out-of-range tilt, and motorized leveling failures

Frequently Asked Questions

Can the RL-H5B be used for vertical plumb applications?

No, the RL-H5B is horizontal-only. For plumb beam or dual-axis work, consider the Topcon RL-SV2S dual-grade laser or RL-VH4DR combination system with vertical mode capability.

What's the difference between the PS.DB kit and standard RL-H5B packages?

The PS.DB designation indicates this kit includes both alkaline battery capability and the DB (dry battery) holder, plus the complete package with LS-80L receiver, grade rod, and tripod. Standard packages may include only the laser head or rechargeable battery options without the full accessory set.

How do I know when the laser is properly leveled and ready to use?

The RL-H5B self-levels automatically within 4-5 seconds after power-on. A solid green LED indicates successful leveling and rotation. If the unit is tilted beyond ±5°, the laser beam shuts off and the LED blinks red, requiring manual repositioning of the tripod to bring it within leveling range.

Can this laser be used in bright outdoor sunlight?

The visible red beam is detectable with the LS-80L receiver in full sunlight at typical working distances (200-400 feet). For maximum range or extremely bright conditions, position the laser in shaded areas when possible, or upgrade to the LS-100D receiver with enhanced detection sensitivity.
