What is the Topcon RL-H5A?

Topcon RL-H5A self-leveling rotary laser kit with upgraded LS-100D receiver and rechargeable batteries. Enhanced receiver detection range with full-day cordless power for site grading and foundation work.

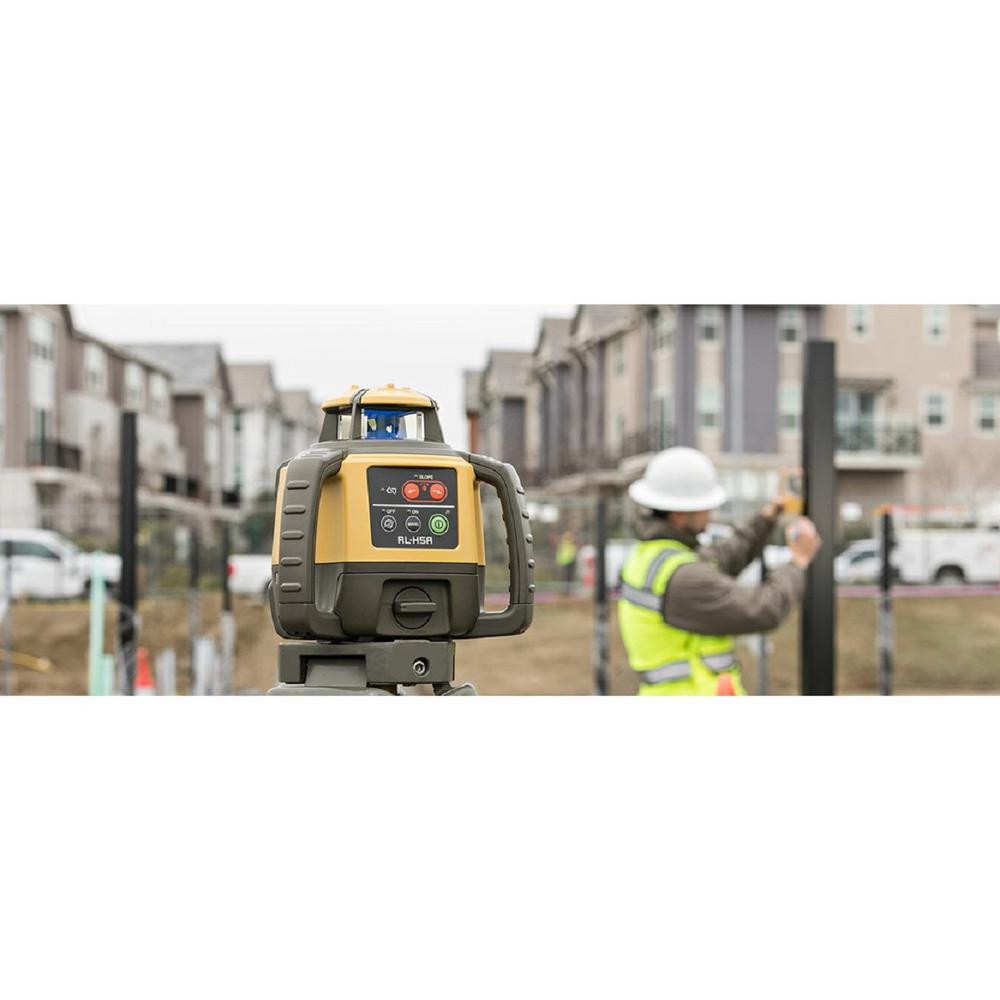

FIELD APPLICATIONS

What contractors use this rotary lasers for

Extended Range Grade Detection

Foundation and Infrastructure Projects

Versatile Cordless Operation

PRODUCT OVERVIEW

Product Description

TOPCON RL-H5A - PS.RB 1021200-08
Self-Leveling Rotary Laser Level Rechargeable Batteries Package

Includes: LS-100D Receiver and NiMH Rechargeable Batteries

Next Generaton Self-Leveling Construction Laser

The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.

Topcon RL-H5A TOP FEATURES

Self-Leveling Horizontal Beam
Long Range Operation 2,600 ft diameter
High Horizontal Accuracy 1/16-inch @ 100-feet
Simple, intuitive manual slope capability
Tough IP66 Rating - Dust and Water Rating
Self-Leveling Range ± 5 degrees
Long Rechargeable battery life - 60 hours
Back-Up Alkaline battery life - 100 hours
Out of Level Notification

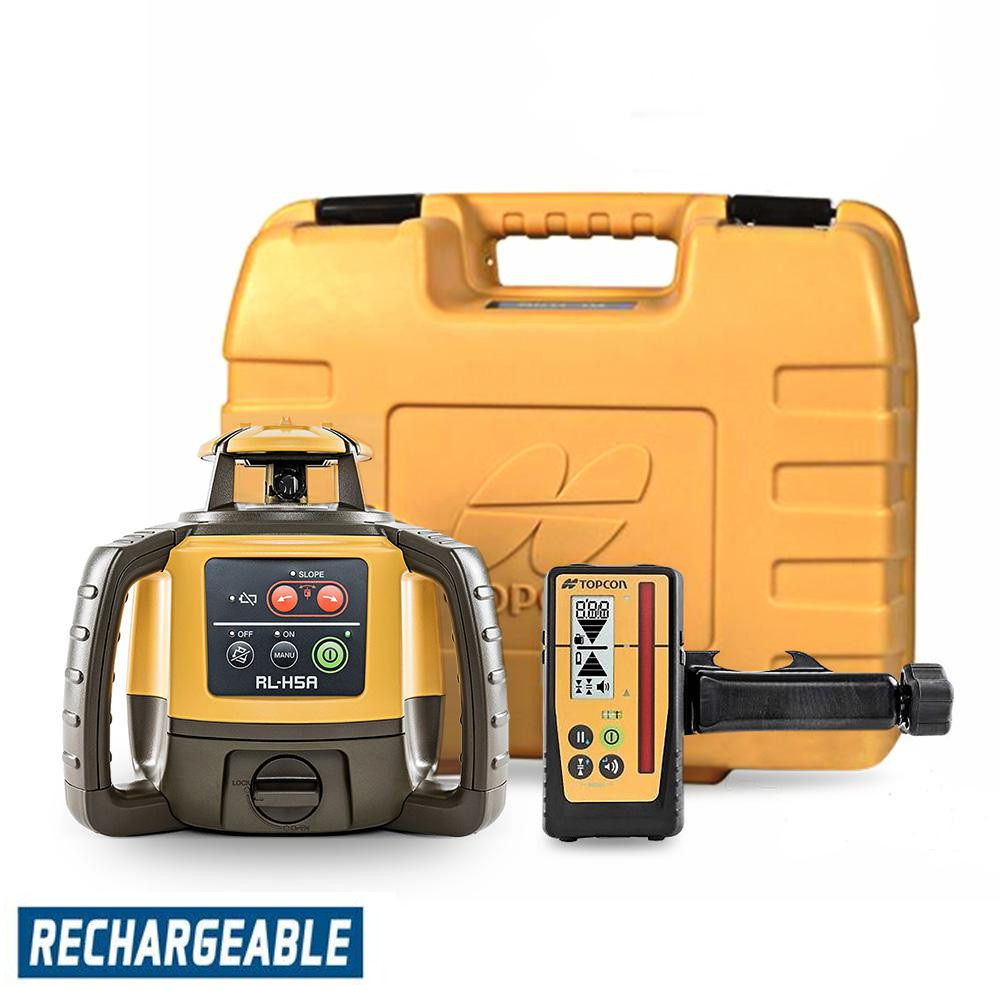

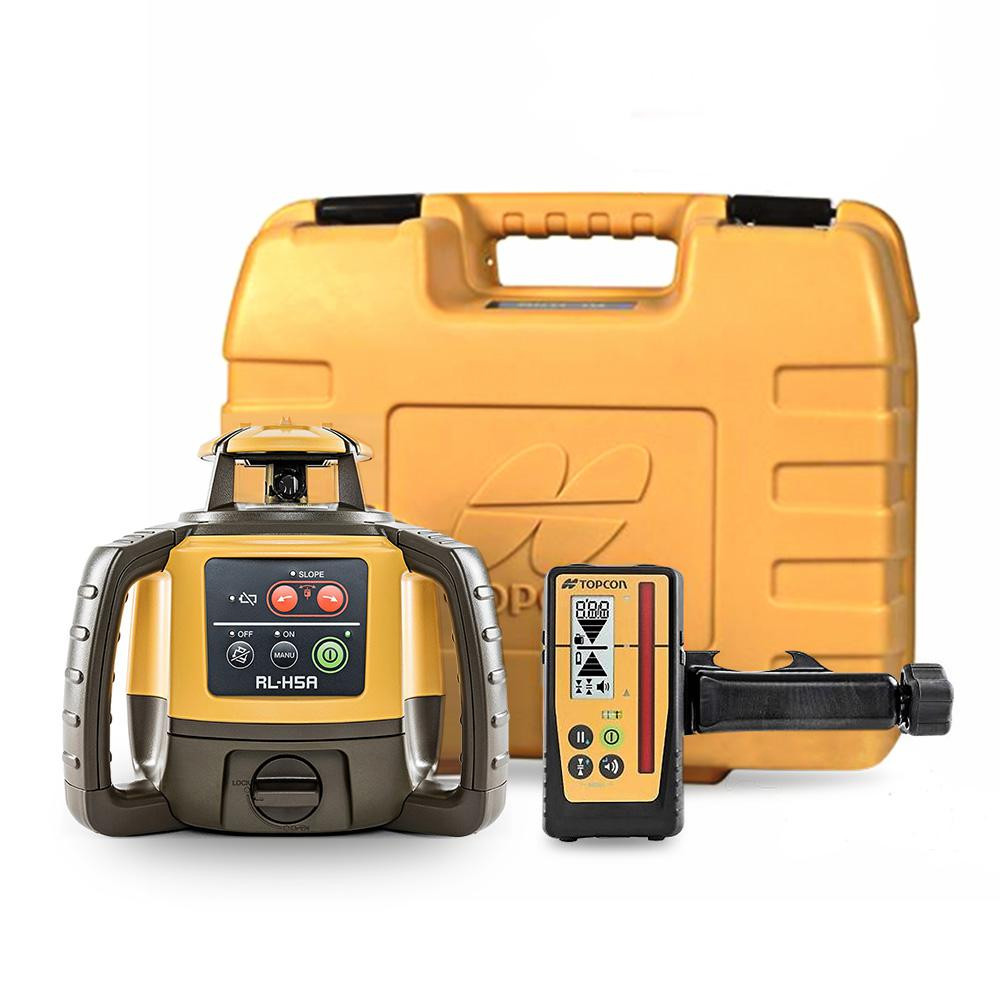

Topcon RL-H5A (1021200-06) Laser Kit INCLUDES

RL-H5A Horizontal Laser
LS-100D Laser Receiver Sensor 1011989-01
Receiver Rod Clamp Holder 100 (1011990-01)
(4) D-Cell NiMH Rechargeable Batteries BT-79Q 1025029-01
Rechargeable Battery Holder 1024993-01
AC Adapter / Charger 1024944-02

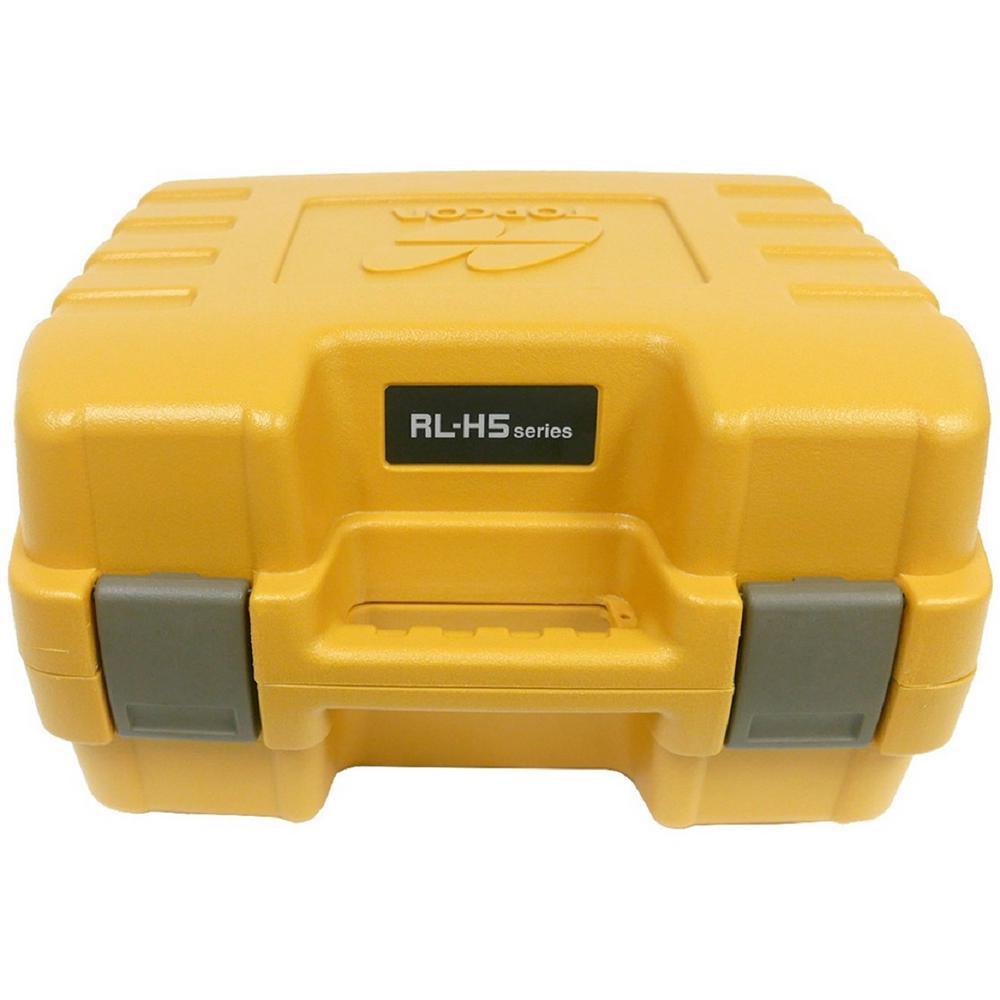

Rugged Hard Shell Carrying Case
5-Year Warranty Guarantee

MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.

EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.

LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon RL-H5A Laser SPECIFICATIONS
Accuracy	1/16-inch @ 100-feet
Self-Leveling Range	± 5 degrees
Working Range diameter	2,600 feet
Rotation Speed	600 RPM
Light Source	Visible Red Laser 635NM
Laser Class	CDRH(FDA) IIIa JIS/IEC 3R
Dust / Water Rating	IP66
Operation Time	Rechargeable : 60 hours Alkaline: 100 hours
Operational Temp	-4ºF to 122ºF
Size	7.0 x 7.7 x 8.5 in
Maximum Power Output	2.4mW
Tripod Screw Thread	5/8-11

Topcon RL-H5A Laser Series COMPARISON
New Series	RL-H5A RB	RL-H5A DB	RL-H5A RB	RL-H5B DB
LASER - TOP COMPONENT OVERVIEW
New Model	1021200-06	1021200-07	1021200-08	1021200-31
Receiver	LS-80L	LS-80L	LS-100D	LS-80L
Batteries	Rechargeable	Dry / Alkaline	Rechargeable	Dry / Alkaline
Remote Control	NO	NO	NO	NO
LASER SPECIFICATIONS
Source	635nm Class 2	635nm Class 2	635 nm Class 2	635 nm Class 2
Range (Diameter)	2,600-feet	2,600-feet	2,600-feet	1,300-feet
Accuracy @ 100 feet	1/16-inch	1/16-inch	1/16-inch	1/8-inch
Rotation Speed	600 RPM	600 RPM	600 RPM	600 RPM
Slope	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis	NO
Manual Slope Range	± 5 degrees	± 5 degrees	± 5 degrees
Self-Leveling	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees
Rechargeable Battery	60 hours		60 hours
Dry/Alkaline Battery	100 hours	100 hours	100 hours	100 hours
Battery Run Charge	NO		NO
Enviornment	IP66	IP66	IP66	IP66
Warranty	5 YEARS	5 YEARS	5 YEARS	5 YEARS
DISCONTINUED VERSION - OLD LASER INFORMATION
Old Series	New	RL-4HC DB	RL-4HC RB	NEW
Old Model	New	313980752	313980772	NEW
All laser prices are discounted in shopping cart

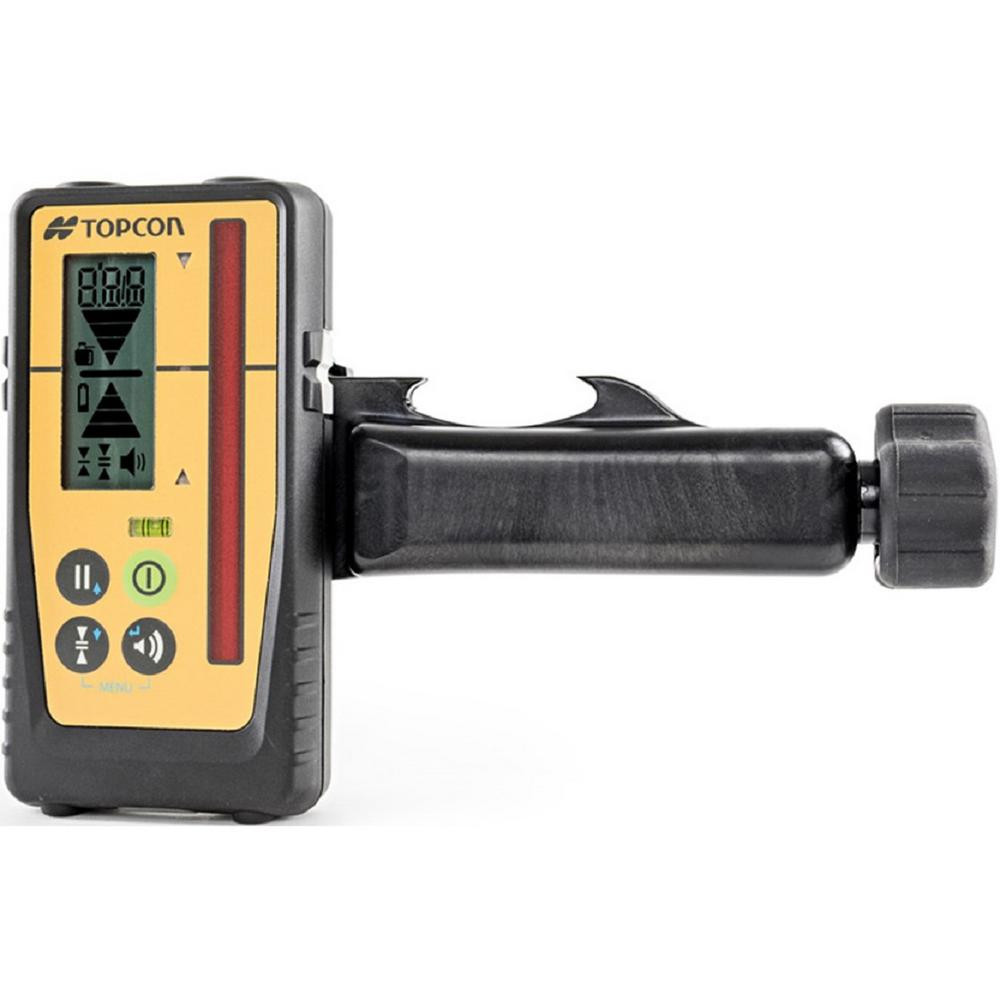

INCLUDED Topcon LS-100D Receiver Sensor OVERVIEW

Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.

It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the the results. For added versatility, three colored LED's and a strong magnet mount are embedded for vertical operation, ideal for steal erection or operator grade checking while excavating.

To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI Alert) or when the laser battery is low.

TOPCON LS-100D Laser Receiver SPECIFICATIONS

Working Range (diameter)	2,500 feet with the RL-H5A, RLHC, RL-SV2S, and RL-200 Series Lasers
Vertical Detecting Range	3.5 inch
LCD Digital Readout Range	2.7 inch
Horizontal Detecting Range	±45º
Strobe Light Suppression	Yes
Units / Measurements	mm / cm / inch / fractional inch
Grade Resolution Settings	±0.02 inch ±0.05 inch ±0.10 inch ±0.20 inch ±0.50 inch
LCD Grade Indicators	9 Channels
LED Grade Indicators	Orange, Green, Red (On/Off selectable)
Display	LCD on each side
Buzzer	Loud / Low / Off selectable
Bubble Tube	Yes
Warning Icons	HI Alert, Low Battery (for the RL-4HC, RL-SV2S, and RL-200 Series)
Battery	One AA/LR6 dry-cell battery
Operation Time	Up to 45 hours with alkaline batteries
Battery Level indicator	LCD Icon
Auto Shut-off	Approximately 30 minutes
Dust/Water Rating	IP67
Operating Temperature	-4ºF to 122ºF
Dimensions ( L x W x H )
Weight
Magnetic Mount	Two Round Magnets on Top
Receiver Sensor Bracket	Screw mount

If you need assistance or have questions regarding laser products, or applications give us a call at 1.877.866.5721
