Topcon RL-H5A Self-Leveling Laser PS.DB2 Kit with LS-80L Receiver - 1021200-15 (uses Alkaline Batteries)

Topcon RL-H5A Self-Leveling Rotary Laser System with LS-80L Receiver

The Topcon RL-H5A PS.DB2 Kit (1021200-15) delivers professional-grade horizontal leveling for excavation contractors, concrete crews, and site development professionals. This rotary laser projects a 360-degree reference plane visible across large jobsites, while the included LS-80L receiver enables machine-mounted or rod-mounted grade control without line-of-sight to the laser head. Alkaline battery operation eliminates rechargeable battery logistics—critical for remote sites and crews running multiple units. The PS.DB2 kit configuration includes priority detector, alkaline battery case, and professional carrying case for complete deployment readiness.

Overview

General contractors, excavation operators, and concrete finishers depend on the RL-H5A for fast site layout, foundation leveling, and grading control. This self-leveling rotary laser establishes a horizontal reference plane accurate to ±3/32" at 100 feet, suitable for building foundations, parking lot grading, French drain installation, and concrete slab preparation. The kit pairs the RL-H5A laser head with the LS-80L machine-mountable receiver, enabling single-operator equipment control during excavation and grading operations. Unlike entry-level lasers, the RL-H5A offers reliable outdoor range, IP66 dust/water protection, and field-serviceable components. Alkaline battery compatibility supports 100+ hour runtime using standard D-cells available at any jobsite supplier, reducing downtime compared to proprietary rechargeable systems requiring dedicated chargers and spare battery inventory.

Key Specifications

• Self-Leveling Range: ±5 degrees (manual leveling beyond range)
• Leveling Accuracy: ±3/32" (2.5mm) at 100 feet
• Working Diameter: 2,600 feet (800m) with LS-80L receiver
• Rotation Speed: 600 RPM (fixed speed)
• Environmental Rating: IP66 (dust-tight, water jet resistant)
• Power Source: 4× D-cell alkaline batteries
• Battery Life: 100+ hours continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Unit Weight: 5.5 lbs (2.5 kg) with batteries
• Beam Type: Class 2 visible red laser (630-670nm)

What's in the Kit

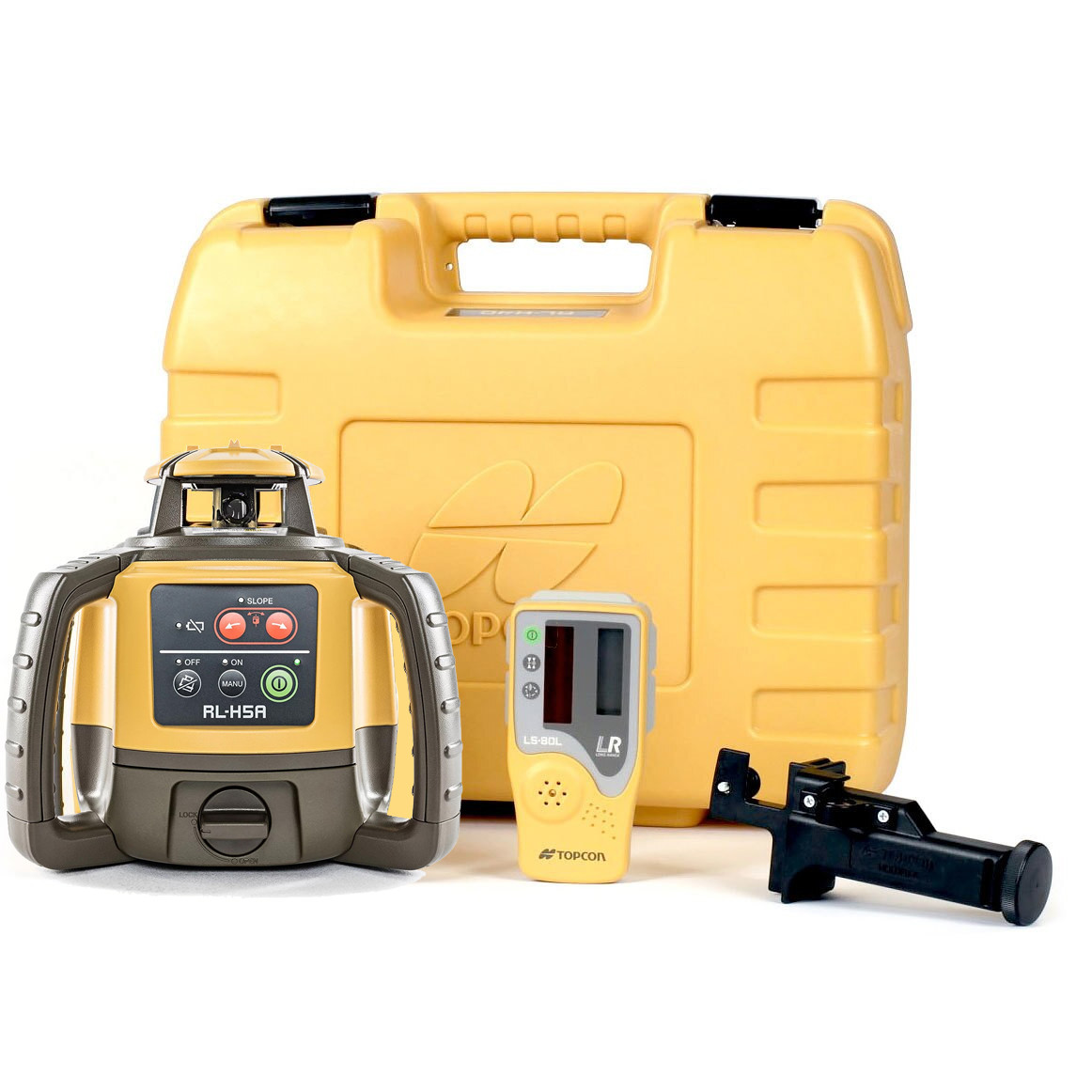

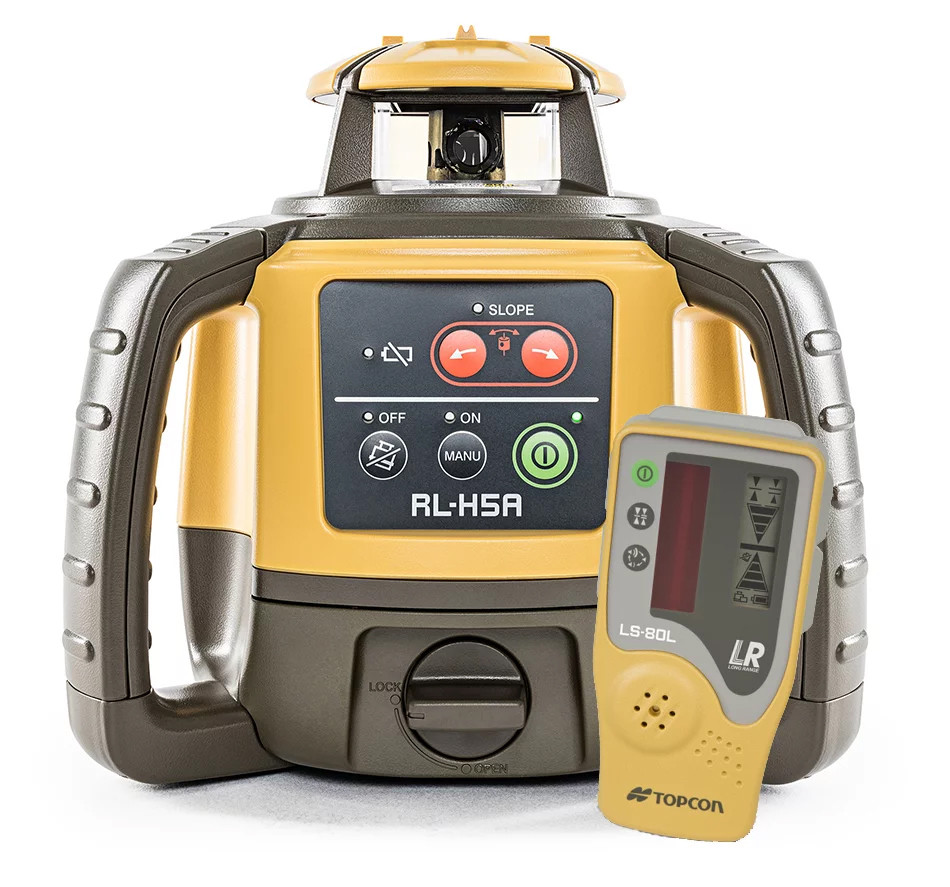

• RL-H5A Rotary Laser Head: Self-leveling transmitter with 360-degree rotation
• LS-80L Laser Receiver: Machine-mountable detector with rod clamp and visual/audible grade indication
• Alkaline Battery Case (DB-2): Holds 4× D-cell batteries for 100+ hour runtime
• Carrying Case: Weather-resistant hard case with foam insert for laser, receiver, and accessories
• Instruction Manual: Setup, calibration, and maintenance documentation
• Adjustment Tool: For field calibration verification

Job Applications

• Building Foundation Layout: Establishes level reference for footings and slab elevation across entire foundation perimeter without multiple setups
• Excavator Grade Control: LS-80L mounts to excavator bucket or mast for single-operator rough grading to design elevation
• Concrete Slab Preparation: Sets screeding elevation for flatwork crews working simultaneously across large pours
• French Drain and Utility Trenching: Maintains consistent slope when paired with grade rod and receiver for drainage applications
• Parking Lot and Pad Grading: Covers large site development areas where visual laser line is impractical due to distance and obstructions
• Ceiling and Soffit Installation: Projects horizontal reference for suspended ceiling grid and commercial soffit alignment

Compatible Accessories

Receivers & Detectors: LS-100D Digital Receiver | LS-B110 Bluetooth Receiver

Mounting & Positioning: SECO Heavy-Duty Flat Head Tripod | Topcon Tribach Adapter | 16ft Aluminum Grade Rod

Remote Controls: RC-40 Wireless Remote Control

Power Options: BT-61Q Rechargeable Li-ion Battery (requires separate battery case)

Related Guides

How to Field-Calibrate Your Rotary Laser Level — Step-by-step accuracy verification procedure using the two-point method

Topcon RL-H5A vs Spectra LL300 Comparison — Side-by-side specifications, accuracy, and total cost analysis

Choosing the Right Laser Receiver for Your Application — Machine-mount vs handheld detector selection criteria

Troubleshooting: Rotary Laser Won't Self-Level — Common causes and field solutions for leveling failures

Frequently Asked Questions

What's the actual working range with the LS-80L receiver in bright sunlight?

The LS-80L receiver extends working diameter to 2,600 feet (800m) in optimal conditions. In direct sunlight, expect reliable detection to 1,500-2,000 feet depending on ambient brightness. The receiver's detection window captures the laser pulse even when the beam is invisible to the naked eye, making it significantly more effective than visual-only systems outdoors.

Can I use rechargeable D-cell batteries instead of alkaline?

Yes, NiMH rechargeable D-cells work in the DB-2 alkaline case, but expect reduced runtime (typically 60-70 hours vs 100+ with alkaline) due to lower voltage curve. For dedicated rechargeable operation, consider the optional BT-61Q lithium-ion battery and BT-62Q battery case, which provides comparable runtime with faster recharge capability.

Does this laser have slope capability for drainage applications?

No, the RL-H5A is horizontal-only (single-axis self-leveling). For drainage slopes and single-grade applications, consider the Topcon RL-H5B which adds manual slope adjustment, or dual-slope models like the RL-SV2S for complex grading. Many contractors establish horizontal reference with the H5A and calculate slope offsets using grade rods.
