Topcon RL-H4C Self-Leveling Laser RB Kit with LS-100D Receiver and Rechargeable Batteries

Overview

The Topcon RL-H4C Self-Leveling Rotary Laser RB Kit is engineered for grading contractors, concrete finishers, and excavation crews managing commercial-scale site work. This complete package delivers 360-degree horizontal leveling across working diameters up to 800 feet (with receiver), maintaining ±10 arc-second accuracy without manual intervention on uneven terrain. The rechargeable battery configuration eliminates alkaline battery waste and cost—critical for crews running consecutive pours or multi-day grading operations. Paired with the LS-100D digital receiver, this kit provides the detection range and durability required for earthwork, foundation layout, and drainage applications where constant repositioning disrupts productivity. Topcon's RL-H4C platform bridges the gap between entry-level single-beam lasers and high-end GPS systems, offering professional-grade performance at a contractor-accessible price point for operations requiring reliable horizontal reference across large footprints.

Key Specifications

• Self-Leveling Range: ±5 degrees (both axes)
• Leveling Accuracy: ±10 arc seconds (±1/16" at 100 feet)
• Working Diameter: 2,600 feet (radius) with machine-readable mode; 800 feet typical with LS-100D receiver
• Rotation Speed: 0, 60, 120, 300, 600 RPM (variable)
• Ingress Protection: IP66 (dust-tight, water jet resistant)
• Battery System: Topcon DB-74 Li-ion rechargeable battery (included); 100+ hour runtime at 600 RPM
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Laser Unit Weight: 5.1 lbs (2.3 kg) with battery

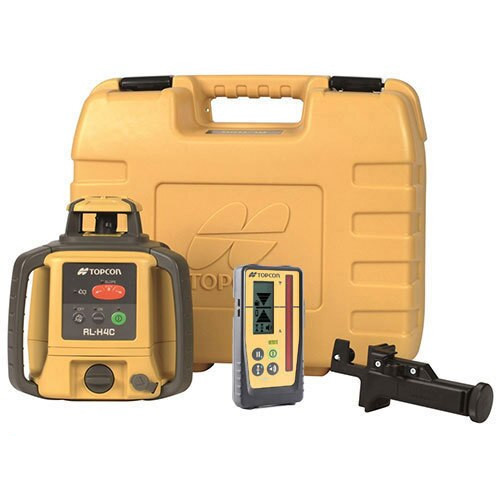

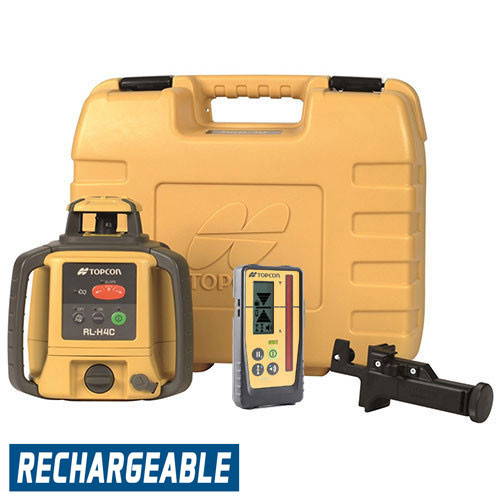

What's in the Kit

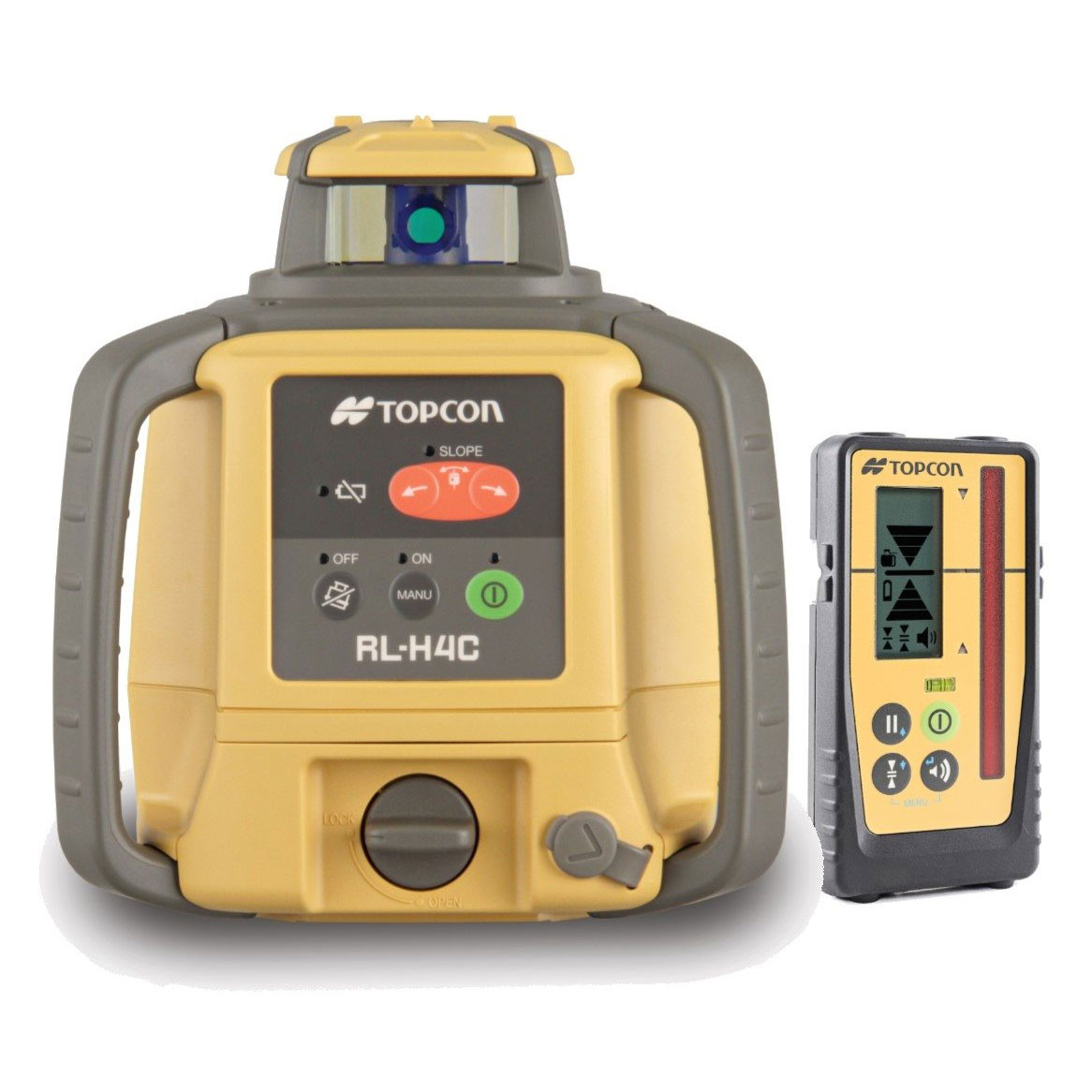

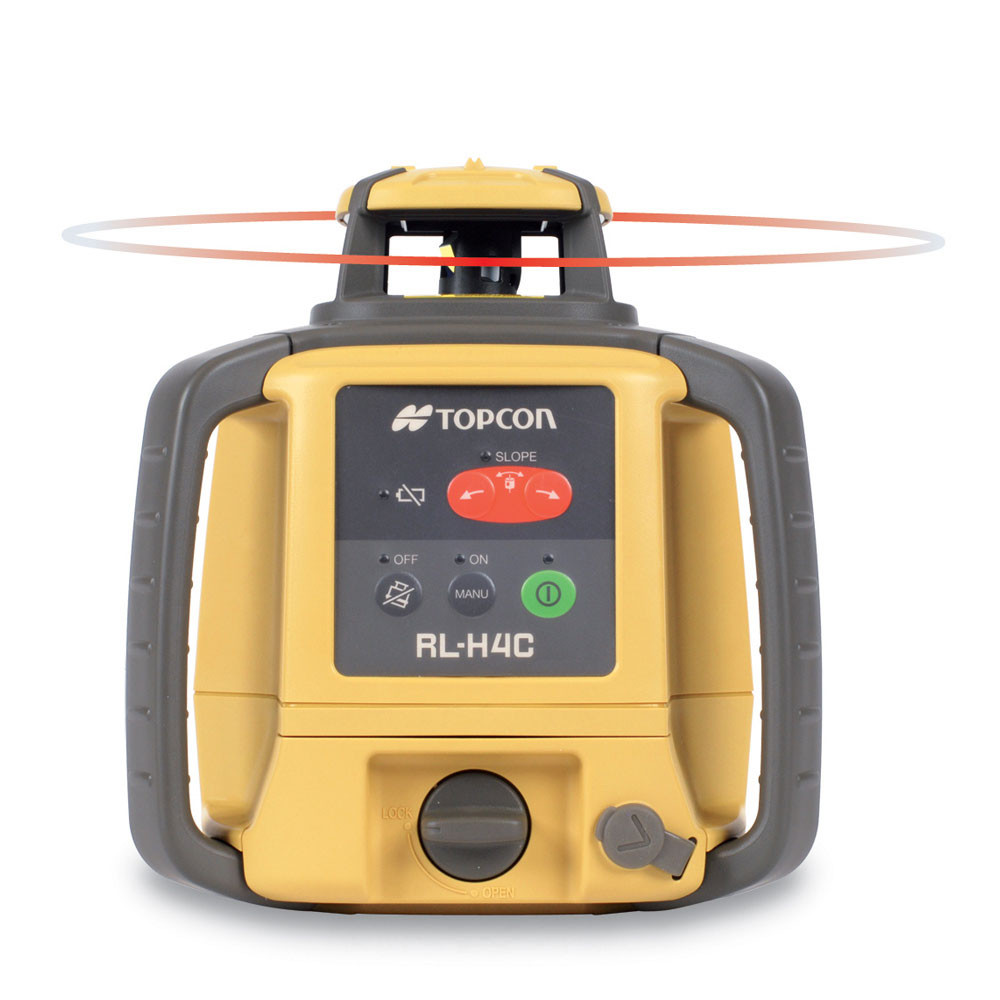

• RL-H4C Rotary Laser Transmitter – Self-leveling laser head with variable rotation speed control
• LS-100D Digital Laser Receiver – Dual-display receiver with rod clamp bracket and audio alert
• DB-74 Rechargeable Li-ion Battery – 7.2V 5800mAh battery pack with integrated charge contacts
• BC-27CR Battery Charger – 110V AC wall charger with LED charge status indicator
• RC-40 Remote Control – Wireless remote for rotation speed and slope adjustment (100-foot range)
• Soft Carrying Case – Padded transport case with interior compartments for laser, receiver, and accessories
• Instruction Manual – Quick-start guide and full operating manual with calibration procedures

Job Applications

• Site Excavation & Rough Grading: Establishes elevation reference across large cut-and-fill operations without instrument relocation, reducing setup time on multi-acre developments.
• Concrete Slab Pours: Provides continuous grade control for screed rails and laser screeds during flatwork operations where accuracy determines finished floor compliance.
• Foundation Layout: Sets consistent benchmark elevation for footing excavation and formwork alignment across commercial building footprints.
• Drainage & Utility Trenching: Maintains slope reference for gravity-fed systems, allowing pipe crews to verify inverts without constant instrument checks.
• Paving & Asphalt Operations: Guides grade equipment during base preparation and supports stringline verification for DOT-spec paving projects.
• Retaining Wall & Hardscape Installation: Ensures consistent course height and alignment for segmental walls, tiered landscaping, and large-format paver installations.
• Agricultural Land Leveling: Supports field grading operations for irrigation efficiency and drainage management across open terrain with minimal obstructions.

Compatible Accessories

Laser Receivers: Works with Topcon LS-80L Machine Receiver for extended 1,000-foot diameter detection, additional LS-100D Receivers for multi-crew operations, and Topcon LS-B110W Wireless Receiver for grade control integration.

Remote Controls: Compatible with Topcon RC-40 Remote Control (included in kit) and upgradeable to dual-slope remotes with RL-SV series firmware.

Mounting & Positioning: Mounts to all 5/8"-11 threaded tripods including heavy-duty aluminum flat-head tripods, quick-clamp elevator tripods, and magnetic vehicle mounts for machine control applications.

Related Guides

• How to Use a Rotary Laser for Site Grading – Step-by-step setup and operation procedures for excavation-grade work
• Topcon RL-H4C vs. Spectra LL300: Rotary Laser Comparison – Feature and performance analysis for contractor decision-making
• Laser Receiver Rod Mounting & Reading Techniques – Best practices for accurate grade rod readings in varying site conditions
• Topcon RL-H4C Error Codes & Troubleshooting → – Diagnostic procedures for common operational alerts and calibration issues

Frequently Asked Questions

Can I upgrade this kit to dual-slope capability for drainage work?

The RL-H4C hardware supports single-axis slope (horizontal leveling with X-axis or Y-axis grade), but does not support dual-slope (compound grade). For dual-axis applications, consider the Topcon RL-SV2S. The included RC-40 remote allows manual slope adjustment up to ±10% in single-axis mode, suitable for most drainage and paving applications requiring consistent fall.

How long does the DB-74 rechargeable battery last per charge, and can I use alkaline batteries as backup?

The DB-74 Li-ion battery provides 100+ hours of continuous operation at 600 RPM rotation speed under normal temperature conditions (70°F). Runtime decreases at slower rotation speeds due to increased motor engagement during self-leveling. The RL-H4C also accepts four D-cell alkaline batteries via the optional BT-61Q alkaline battery holder (not included in RB kit), providing approximately 60 hours runtime as field backup when AC charging is unavailable.

Is the LS-100D receiver compatible with other Topcon rotary lasers, or laser brands?

The LS-100D is a universal laser receiver compatible with any rotating red-beam laser operating in standard rotation mode, including Spectra, Leica, and Hilti rotary lasers. However, advanced features like digital readout compatibility and grade-matching are optimized for Topcon RL-series lasers. The receiver will detect and provide audio/visual indication with any brand but may not display numeric elevation offsets with non-Topcon transmitters.

What's the difference between the RB kit (313980772) and the standard RL-H4C package?

The RB (Rechargeable Battery) kit includes the DB-74 Li-ion battery, BC-27CR charger, and LS-100D receiver as a complete package. The standard RL-H4C configurations may include alkaline battery holders instead of rechargeable systems, or ship as laser-only packages requiring separate receiver purchase. This RB kit represents the most cost-effective complete solution for contractors needing immediate deployment without additional accessory purchases, and eliminates ongoing alkaline battery expense.
