Topcon RD-100W Wireless Remote Display

Overview

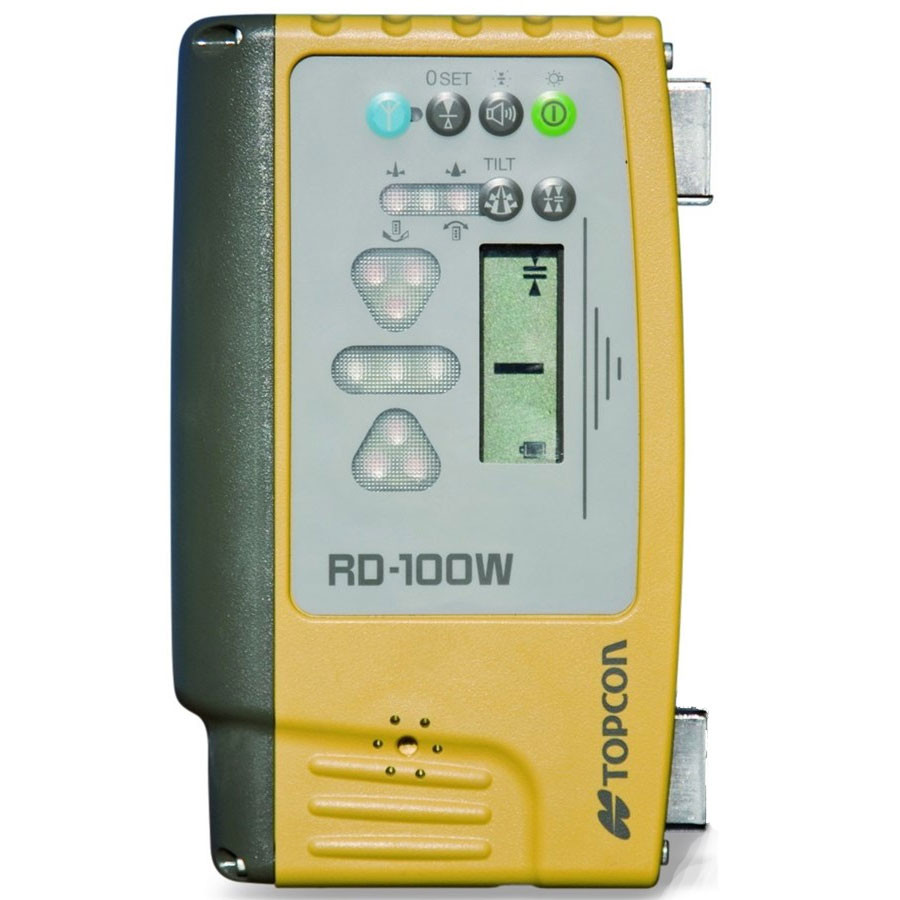

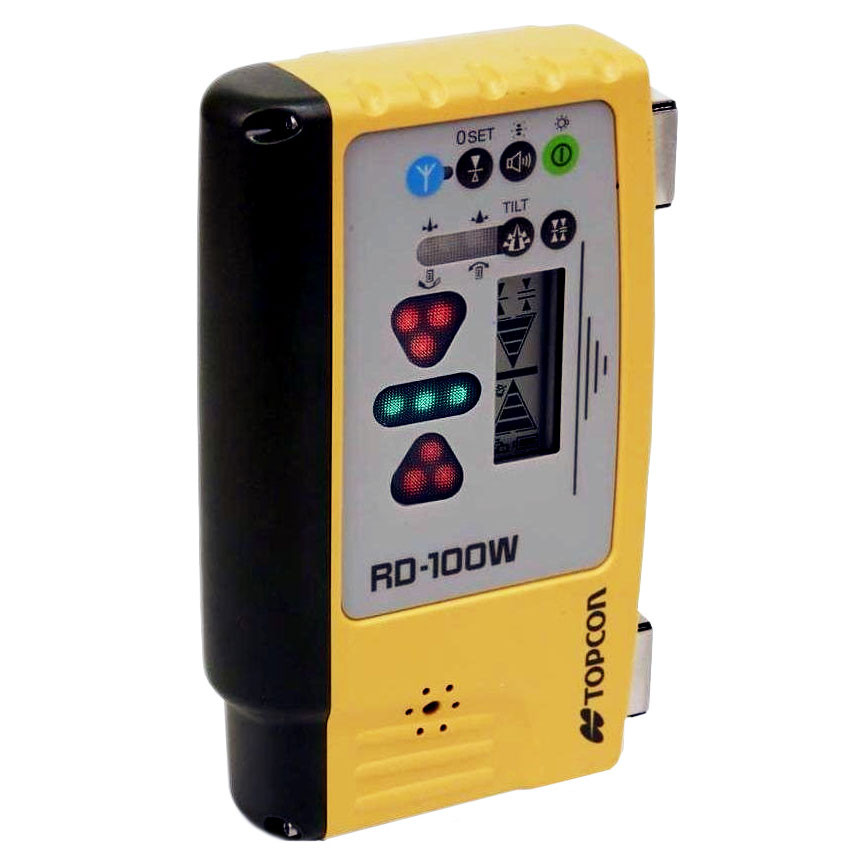

The Topcon RD-100W Wireless Remote Display (312671121) revolutionizes construction site efficiency by liberating operators from traditional wired grade monitoring systems. This professional-grade wireless display enables real-time elevation data monitoring from up to 300 feet away, allowing machine operators to work from the comfort and safety of their equipment cab while maintaining constant visibility of critical grade information. Unlike conventional systems that require line-of-sight or cumbersome cable connections, the RD-100W utilizes advanced wireless technology to deliver uninterrupted data transmission in demanding jobsite environments.

Designed specifically for integration with Topcon's LS and LR series rotating lasers and laser receivers, this remote display eliminates the need for operators to repeatedly exit their machines to check grade status. The result is dramatically improved productivity, reduced fuel consumption, enhanced operator comfort, and faster project completion times. The RD-100W's intuitive interface displays the same precise elevation information shown on the receiver itself, including on-grade indicators, cut/fill readings, and system status alerts, ensuring operators always have the information they need to maintain accurate grades.

Built to withstand the rigors of commercial construction, excavation, and grading operations, the RD-100W features a rugged, weather-resistant housing that performs reliably in dust, moisture, and temperature extremes. The bright, easy-to-read display remains visible in direct sunlight, while the compact form factor allows for flexible mounting options in virtually any machine cab configuration. For contractors seeking to maximize efficiency and reduce project timelines, the Topcon RD-100W represents an essential upgrade to laser-guided grading workflows.

Key Specifications

• Wireless Range: Up to 300 feet (91 meters) from receiver
• Wireless Technology: Proprietary digital radio frequency communication
• Display Type: High-visibility LCD with multi-segment indicators
• Power Source: Rechargeable battery with extended runtime
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Weatherproofing: IP66 dust-tight and water-resistant rating

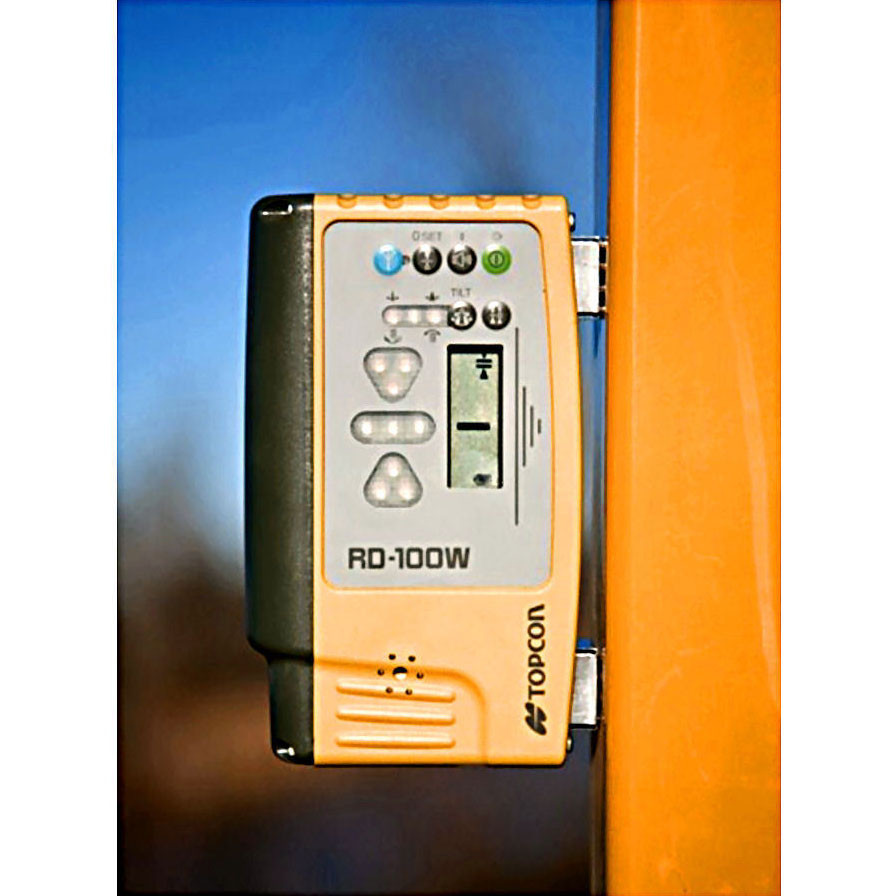

• Mounting Options: Magnetic base and bracket-mount compatible
• Display Readout: Numeric elevation offset with on-grade indicators
• Compatibility: Topcon LS and LR series rotating laser receivers
• Weight: Lightweight portable design (under 1 lb)
• Part Number: 312671121

What's in the Kit

• RD-100W Wireless Remote Display Unit
• Rechargeable Battery Pack
• AC Battery Charger with Power Cord
• Magnetic Mounting Base
• Protective Carrying Case
• Quick Start Guide and User Manual
• Manufacturer's Limited Warranty Documentation

Job Applications

• Site Grading and Excavation: Operators can monitor exact cut and fill measurements from the excavator or dozer cab, eliminating countless trips up and down from the machine to check the grade rod, reducing project time by up to 30% while maintaining millimeter-level accuracy across large sites.
• Foundation and Footing Preparation: Contractors can achieve precise elevation control for building pads and foundations without leaving the equipment, ensuring consistent depths and levels while significantly reducing fuel costs and equipment wear from unnecessary starts, stops, and idle time.
• Utility Trenching: Backhoe and trencher operators maintain perfect slope grades for drainage, sewer, and water lines by monitoring real-time elevation data wirelessly, preventing costly rework from incorrect depths and ensuring proper flow rates without constant manual checking.
• Road Construction and Paving: Motor grader and scraper operators can establish and maintain precise subgrade elevations throughout highway, street, and parking lot projects, achieving specification-compliant results faster while reducing material waste and the need for surveyor intervention.
• Parking Lot and Landscaping: Fine-grading operations for commercial parking facilities and landscape contouring benefit from continuous grade feedback, enabling operators to work more confidently and efficiently while creating smooth, properly draining surfaces that meet engineered plans.
• Agricultural Land Leveling: Farm and irrigation contractors can perform large-scale field leveling with consistent accuracy, improving water distribution efficiency and crop yields while spending more time moving dirt and less time checking elevations manually across expansive acreage.

Compatible Accessories

• Topcon LS-80L Dual-Slope Rotating Laser Level
• Topcon LS-100L Single-Slope Rotating Laser
• Topcon LR-50 Laser Receiver for Grade Rods
• Topcon LS-B110W Rotating Laser System
• Topcon RC-40 Remote Control for Laser Systems
• Heavy-Duty Aluminum Grade Rods (8-25 ft)
• Machine Control Mounting Brackets and Hardware
• Replacement Battery Packs for RD-100W
• 12V DC Vehicle Power Adapter

Related Guides

• Complete Guide to Choosing Construction Laser Levels
• Machine Control Setup: Installing Wireless Displays
• Improving Grading Accuracy and Efficiency Best Practices
• Understanding Topcon Rotating Laser Systems

FAQ

How far can the RD-100W display work from the laser receiver?

The RD-100W maintains reliable wireless connectivity up to 300 feet (91 meters) from the paired laser receiver. This range is sufficient for virtually all construction equipment operations and isn't dependent on line-of-sight, meaning the signal works even when obstacles are between the receiver and display. Actual range may vary slightly based on environmental interference and jobsite conditions.

Is the RD-100W compatible with all Topcon laser systems?

The RD-100W is designed to work with Topcon LS and LR series rotating laser receivers that have wireless capability. It's compatible with systems like the LS-80L, LS-100L, and LS-B110W when used with compatible receivers. For optimal performance, verify that your specific laser receiver model supports wireless remote display functionality. Consult the product compatibility chart or contact Express Tools for confirmation with your existing equipment.

How long does the battery last on a single charge?

Under normal operating conditions, the RD-100W rechargeable battery provides a full day of continuous use, typically 8-10 hours depending on display brightness settings and ambient temperature. The included AC charger fully recharges the battery overnight in approximately 4-6 hours. Many contractors keep a spare battery on hand to ensure uninterrupted operation on long workdays or multi-shift projects.

Can multiple displays be used with one receiver simultaneously?

Yes, the Topcon wireless system architecture supports multiple RD-100W displays paired to a single laser receiver, allowing grade data to be monitored from multiple machines or locations on the jobsite simultaneously. This is particularly valuable on large projects where several operators need real-time elevation information, or when both the machine operator and ground personnel require grade monitoring capability without additional receivers.
