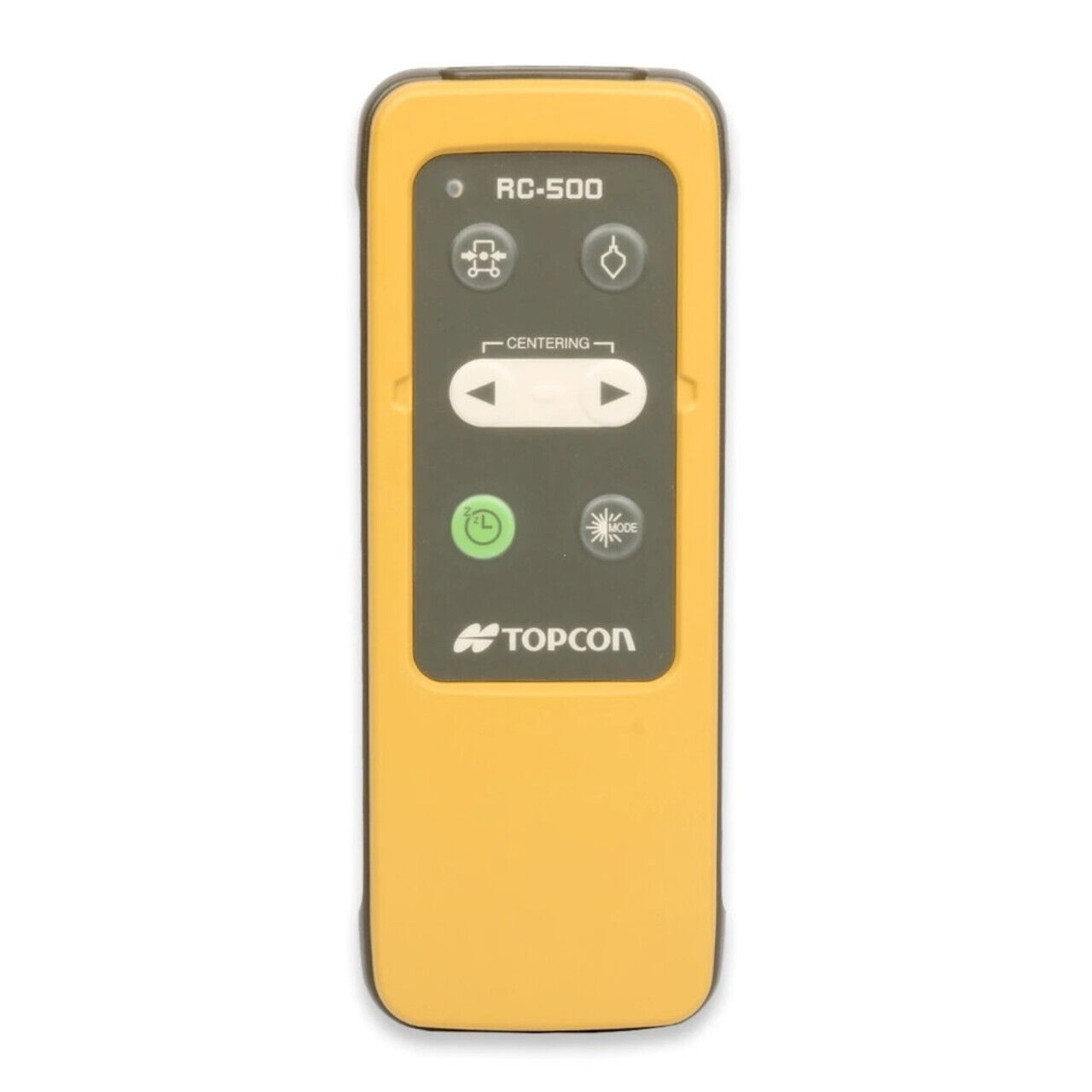

Topcon 1042278-01 RC-500 Rotary Laser Level Remote Control for TP-L6 Series Pipe Lasers

The Topcon RC-500 (part number 1042278-01) is a purpose-built wireless remote control designed for the TP-L6 series pipe laser family. It gives contractors the ability to operate, align, and manage the laser unit from a distance—eliminating the need for a second crew member at the transmitter during grade and alignment verification. Whether you're working deep in a manhole, navigating a long utility run, or coordinating confined-space pipe placement, the RC-500 keeps your workflow efficient and your crew lean.

Overview & Jobsite Applications

The RC-500 streamlines single-operator laser layout by delivering wireless control over beam alignment and power management functions of the TP-L6 pipe laser. In sewer installation, drainage grading, and underground utility work, the ability to remotely position the beam and confirm orientation without walking back to the instrument is a measurable productivity gain. The remote is compact enough to clip to a belt or vest, keeping both hands free for pipe handling and grade rod work. Its straightforward button layout means minimal learning curve even for operators new to remote-enabled laser systems.

Key Specifications

• Compatible Instruments: Topcon TP-L6 Series Pipe Lasers
• Part Number: 1042278-01
• Model: RC-500
• Power Source: 2 x AA alkaline batteries
• Control Functions: Wireless beam alignment, standby mode activation/deactivation, power management
• Communication Type: Wireless RF signal
• Form Factor: Handheld, field-portable remote
• Manufacturer: Topcon Positioning Systems

Key Features

• Remote Beam Alignment: Adjust laser beam orientation from a distance without returning to the transmitter—critical for confined-space and deep-trench applications
• Standby Mode Control: Activate or wake the instrument remotely to conserve battery life between layout shots
• Single-Operator Capability: Reduces crew requirements by allowing one person to both set grade and verify beam position independently
• AA Battery Power: Runs on readily available dual AA batteries—no proprietary packs or charging required on the jobsite
• Dedicated TP-L6 Compatibility: Engineered specifically for the TP-L6 series to ensure reliable pairing and full function access
• Compact Handheld Design: Fits in a pocket or clips to a tool belt for hands-free carrying between tasks

Job Applications

Sewer Main Installation: Laser operators working at manhole grade can remotely align the TP-L6 beam to match design invert elevations without repeated trips back to the instrument—keeping pipe installation moving without interruption.

Storm Drain & Drainage Layout: During drainage grading on commercial sites, the RC-500 lets a single operator verify beam angle and activate standby between measurements, reducing battery drain during long days of layout work.

Underground Utility Boring: When coordinating bore path verification with a surface crew, remote activation and alignment control keeps communication clear and eliminates the risk of accidentally shifting the laser while navigating tight access points.

Confined-Space Pipe Placement: In restricted-entry situations where a second crew member cannot safely access the setup location, the RC-500 enables one qualified operator to manage the laser from a safe standoff distance.

Compatible Accessories

• Topcon TP-L6 Series Pipe Laser
• Topcon Pipe Laser Detector & Grade Rod Accessories
• Replacement AA Batteries for Field Instruments
• Topcon Instrument Carrying Cases & Transport Solutions

Related Guides

• How to Set Grade with a Pipe Laser: Contractor's Step-by-Step Guide
• TP-L6 Series Pipe Laser Setup & Calibration Overview
• Single-Operator Laser Layout: Tips for Sewer & Utility Crews
• Topcon Pipe Laser Accessories Buying Guide

Frequently Asked Questions

Which Topcon pipe lasers is the RC-500 compatible with?

The RC-500 is designed specifically for the Topcon TP-L6 series pipe lasers. It is not guaranteed to function with other Topcon laser models outside the TP-L6 family. Verify your instrument model before ordering.

What batteries does the RC-500 use?

The RC-500 operates on two standard AA alkaline batteries, which are widely available at hardware and supply stores. No proprietary rechargeable packs are required, making field replacement quick and easy.

What functions can I control remotely with the RC-500?

The RC-500 provides wireless control over beam alignment positioning and standby mode activation on the TP-L6 pipe laser. This allows a single operator to orient the beam and manage instrument power without physically accessing the laser unit.

Is the RC-500 sold with the TP-L6 laser or separately?

The RC-500 is sold as a separate accessory. If your TP-L6 did not include a remote or if a replacement is needed, the RC-500 (part number 1042278-01) can be ordered individually through Express Tools.
