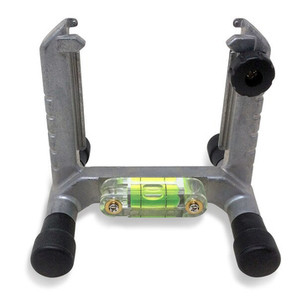

Topcon 329370010 Pipe Laser Target Holder Only

Precision Target Holder Engineered for Topcon TP-L5 Pipe Laser Systems

The Topcon 329370010 is a purpose-built replacement and supplemental target holder frame designed exclusively for the Topcon TP-L5 series pipe lasers. Precision-molded from durable, job-site-rated materials, this frame securely positions reflective target inserts at the correct orientation to receive the laser beam with maximum accuracy. Whether you're running gravity sewer mains, storm drain laterals, or force-main segments, having a reliable, properly fitting target holder is critical to maintaining grade control and avoiding costly realignment mid-run.

Overview & Jobsite Applications

The 329370010 target holder integrates seamlessly into the TP-L5 workflow. The frame snaps into position inside the pipe, holding the target insert centered and square so your crew can read grade with confidence from the instrument end. It eliminates the guesswork of improvised target setups and keeps your system working as Topcon intended. Ideal for municipal utility contractors, civil construction crews, and underground pipe specialists who depend on the TP-L5 day in and day out.

Key Specifications

• Part Number: 329370010
• Compatible Instrument: Topcon TP-L5 Series Pipe Lasers
• Function: Holds reflective target insert at correct position for laser beam reception
• Construction: Precision-molded frame, job-site durable materials
• Target Insert: Designed to accept Topcon TP-L5 compatible reflective target inserts
• Orientation: Fixed alignment ensures consistent, repeatable readings
• OEM Replacement: Genuine Topcon accessory, authorized dealer supplied

Key Features

• Precision-molded frame ensures target insert seats squarely and securely every time
• Maintains correct laser beam reception angle for accurate grade and alignment readings
• Durable construction withstands the demanding conditions of active pipe trenches
• Lightweight design does not impede pipe placement or adjustment
• OEM Topcon component — no fitment compromises or improvised workarounds
• Ideal as a replacement unit or as a spare to keep work moving on multi-pipe runs
• Compatible with the full TP-L5 series product family

Job Applications

Gravity Sanitary Sewer Installation: Keep grade on target throughout long sewer main runs. The 329370010 holds the reflective insert steady inside each pipe section so your grade checker can verify depth and alignment without stopping to reposition makeshift targets.

Storm Drain & Culvert Work: Storm drain projects demand consistent fall over long distances. Using a properly fitted target holder ensures the TP-L5 beam hits the reflective insert cleanly, giving operators a clear, unambiguous grade confirmation on every pipe segment.

Municipal Utility Upgrades & Rehab: On municipal rehab projects where precision documentation matters, having a genuine OEM target holder eliminates variables in your measurement chain. Inspectors and project engineers can have confidence the system is functioning to spec.

High-Production Pipe Crews: Running multiple crews or multiple pipe sizes in a single shift? Keep a spare 329370010 on the truck so a damaged or misplaced target holder never shuts down production. The low cost of a backup unit is trivial compared to crew downtime.

Compatible Accessories

• Topcon TP-L5A Pipe Laser
• Topcon TP-L5B Pipe Laser
• Topcon TP-L5G Green Beam Pipe Laser
• Topcon Reflective Target Inserts for TP-L5
• Topcon Pipe Laser Carrying Case
• Topcon Universal Pipe Clamp & Mounting Bracket

Related Guides

• How to Set Up the Topcon TP-L5 for Gravity Pipe Installation
• Pipe Laser Target Selection Guide: Which Insert Do You Need?
• TP-L5 Maintenance & Accessory Checklist for Field Crews
• Understanding Grade Control: Pipe Laser Best Practices

Frequently Asked Questions

What pipe laser models is the Topcon 329370010 compatible with?

The 329370010 target holder frame is engineered specifically for use with the Topcon TP-L5 series pipe lasers, including the TP-L5A, TP-L5B, and TP-L5G models. It is not confirmed to be cross-compatible with other Topcon pipe laser series such as the TP-L4 without verification from Topcon.

Does this part include the reflective target insert, or just the frame?

The 329370010 is the target holder frame only. Reflective target inserts are sold separately. If you need replacement inserts, please contact our team or browse our full selection of Topcon TP-L5 accessories to find the correct insert for your application.

How do I know if I need to replace my existing target holder?

Common signs that a target holder needs replacement include visible cracks or deformation in the frame, difficulty seating the target insert securely, or inconsistent laser readings that cannot be traced to instrument calibration issues. A compromised frame can introduce misalignment that throws off your grade — replacing it with a genuine OEM unit is the safest corrective action.

Is the Topcon 329370010 covered under a warranty?

As an authorized Topcon dealer, Express Tools supplies genuine OEM accessories. Warranty terms for replacement parts and accessories are subject to Topcon's standard accessory warranty policy. Contact our team for specific warranty details or to verify coverage for your purchase.
