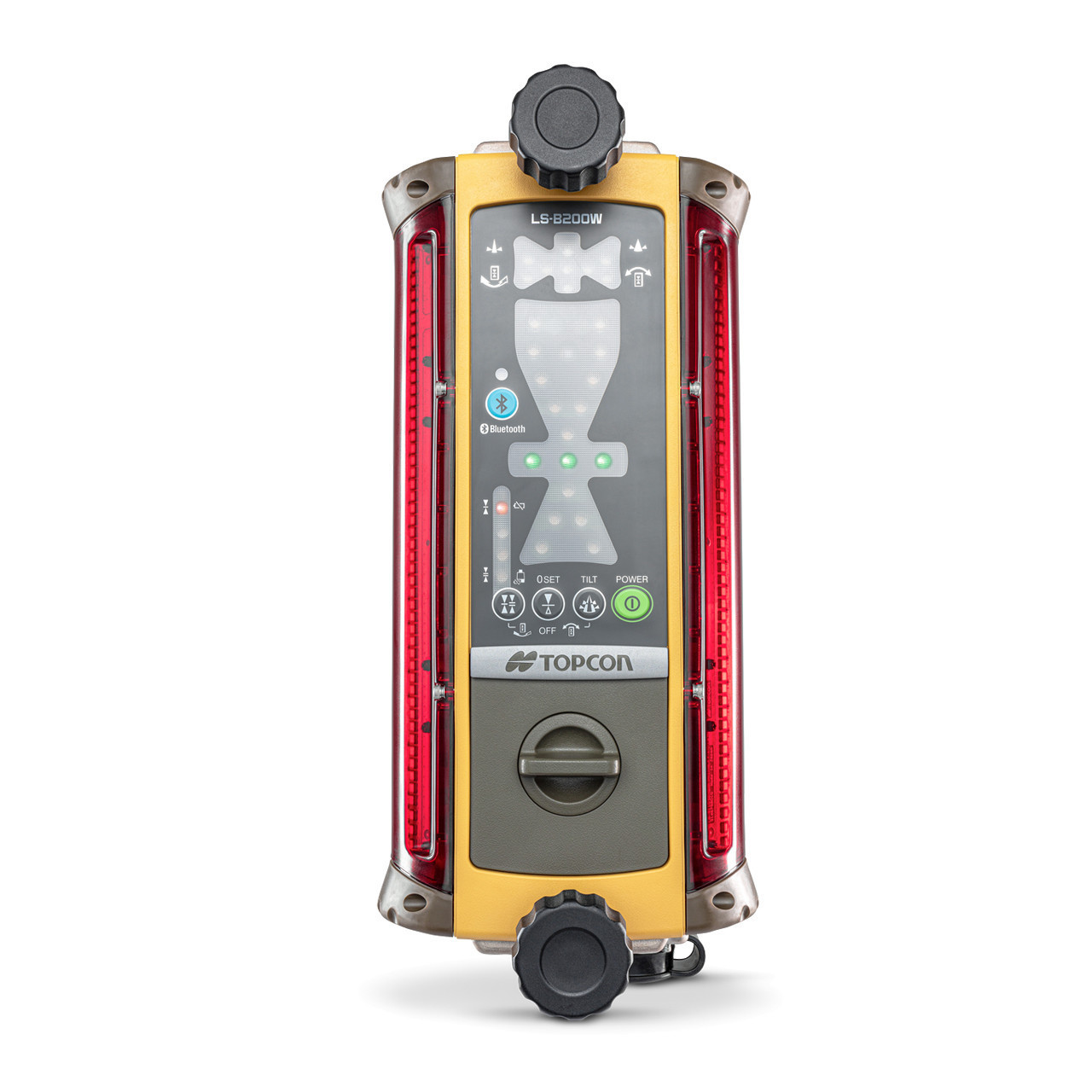

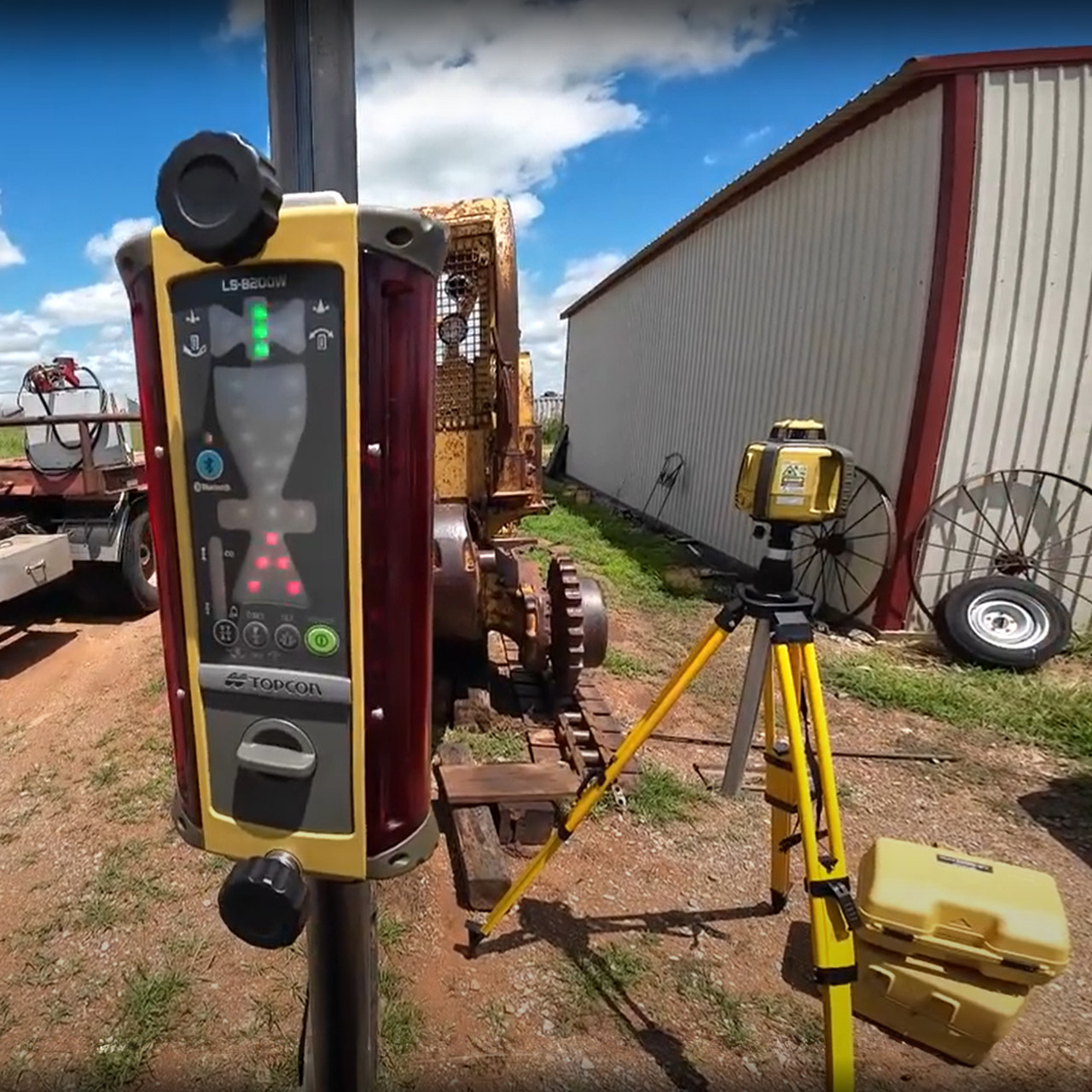

Topcon LS-B200W-MM Laser Machine Display Receiver 1063574-04-MM WIRELESS CAPABLE

Wireless Precision Depth Control for Excavators and Heavy Equipment

The Topcon LS-B200W-MM is a professional-grade wireless laser receiver built for machine-mount applications on excavators, dozers, and graders. Designed to detect laser plane signals from rotary lasers, this receiver delivers real-time grade and depth guidance directly to equipment operators — without the clutter of cables running from the mast to the cab. Whether you're cutting to grade on a foundation dig or finishing a drainage swale, the LS-B200W-MM keeps your operator accurate and productive all day long.

Jobsite Overview and Applications

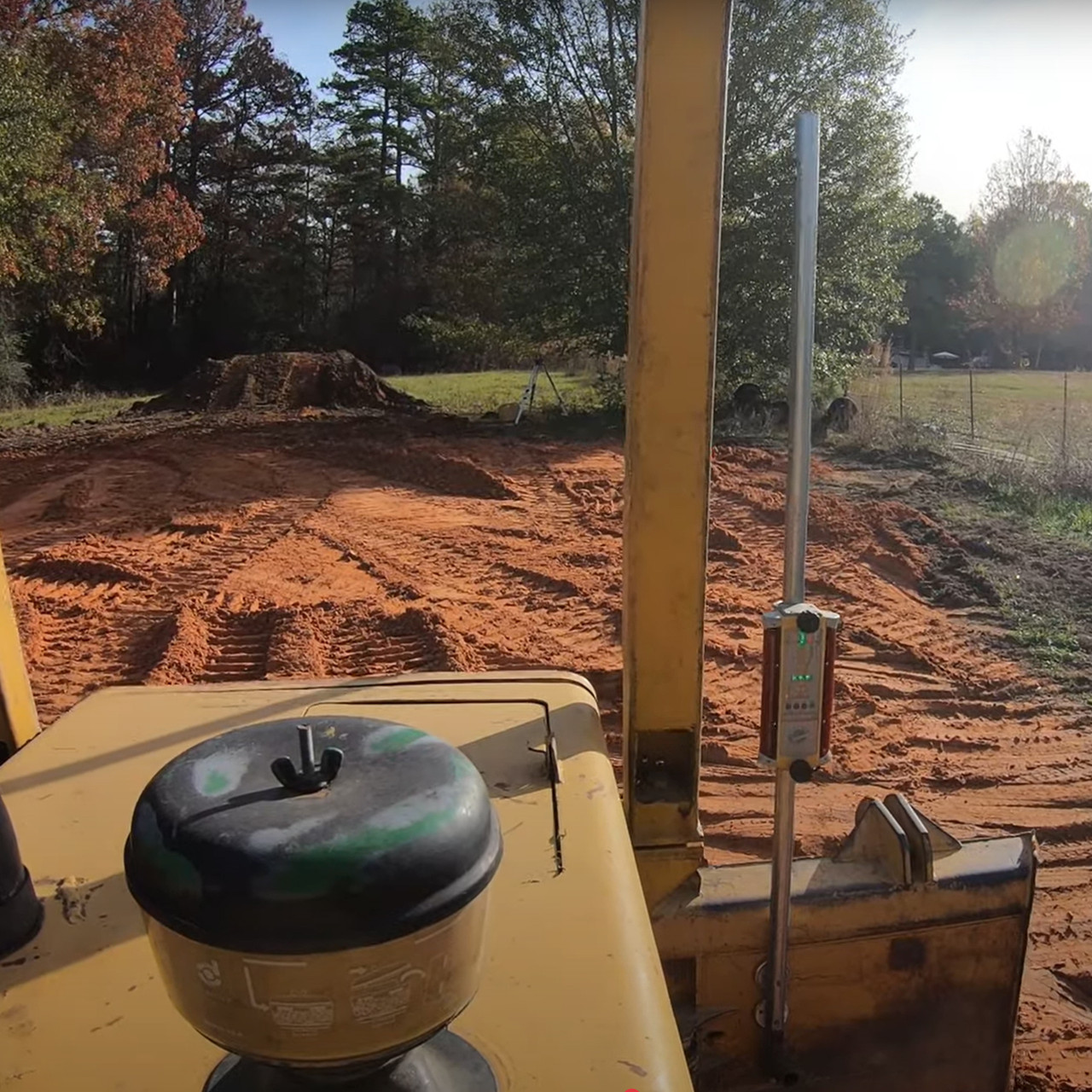

The LS-B200W-MM is engineered for contractors who need reliable, repeatable grade control across a wide range of earthmoving operations. Its wireless communication system transmits cut/fill guidance to a compatible cab display, eliminating wiring complications and reducing setup time. The included magnetic mount attaches directly to excavator blades, dozer cutting edges, or grader moldboards — no drilling, no permanent hardware. Plumb and tilt indication gives operators confidence that the mast and receiver are positioned correctly before the laser beam is acquired. This receiver is compatible with Topcon rotary lasers and integrates with Topcon's machine control ecosystem for grade-sensitive excavation and site preparation work.

Key Specifications

• Model: LS-B200W-MM (1063574-04-MM)
• Detection Method: Rotary laser signal detection
• Reception Height: 360-degree laser detection band
• Wireless Communication: Yes — wireless signal transmission to cab display

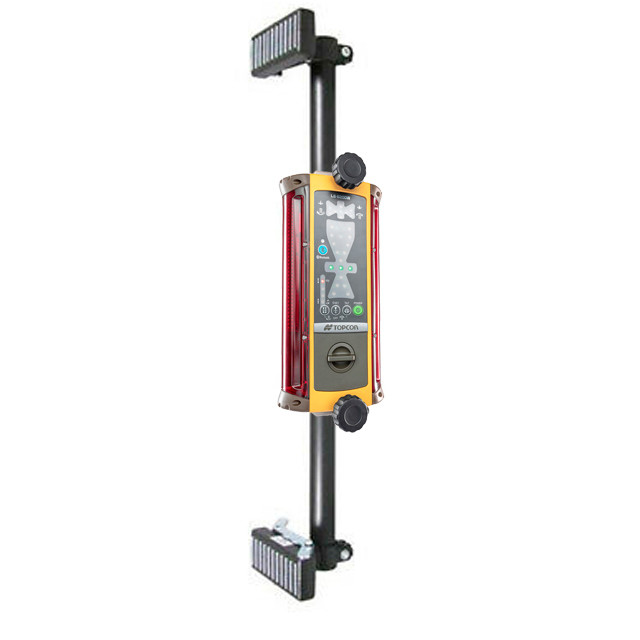

• Mount Type: Magnetic machine mount (no drilling required)
• Plumb Indication: Yes — verifies vertical mast alignment
• Tilt Indication: Yes — alerts operator to receiver tilt
• Operating Environment: Designed for outdoor heavy equipment use
• Compatible Systems: Topcon rotary lasers and machine control displays

Key Features

• Wireless Operation: Transmits grade data to the cab without cables, reducing clutter and failure points on the machine
• Magnetic Mount System: Attaches quickly to excavator blades, dozer edges, and moldboards — repositions in seconds
• Plumb and Tilt Indication: On-receiver alerts confirm proper setup before work begins, preventing costly grading errors
• Wide Laser Detection Band: Picks up the rotating laser plane across a generous reception window, maintaining lock even as the blade moves
• Rugged Construction: Built for the vibration, dust, and moisture exposure common on active earthmoving jobsites
• Topcon Ecosystem Integration: Designed to work within Topcon's machine control and laser layout product families

Job Applications

Excavation and Foundation Digging: Set your rotary laser at finished floor elevation, mount the LS-B200W-MM to the excavator bucket or blade, and your operator gets live cut depth feedback in the cab — eliminating over-dig and reducing backfill costs.

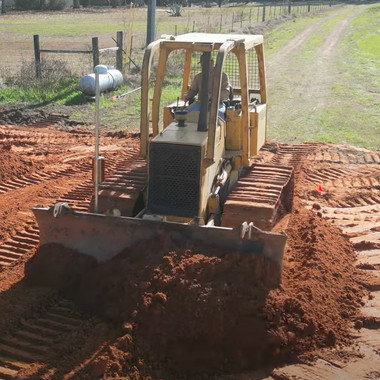

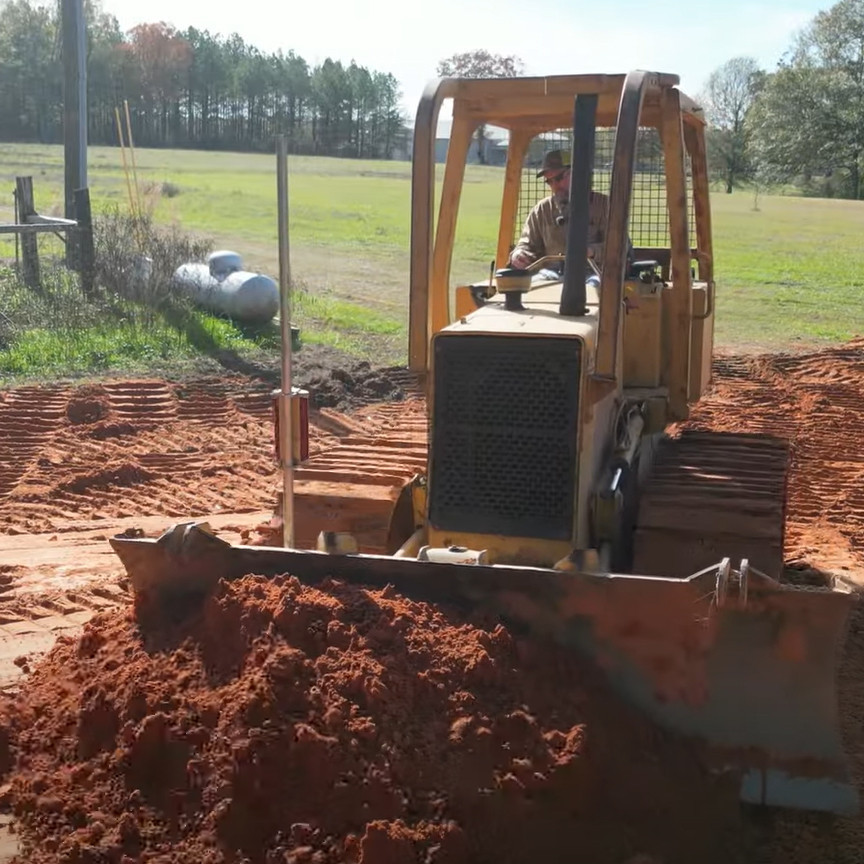

Site Grading and Earthwork: On large grading operations with dozers or motor graders, the wireless receiver keeps the cab display fed with real-time on-grade, cut, and fill data across the full width of each pass.

Drainage and Swale Construction: Precise depth control is critical when cutting drainage channels. The LS-B200W-MM gives operators the accuracy needed to maintain consistent slope and invert elevations without constant manual checking.

Utility Trench Preparation: When trenching for utilities, maintaining consistent depth and grade protects pipe flow requirements. Wireless feedback from the LS-B200W-MM reduces the need for manual rod checks and speeds up trench production.

Compatible Accessories

• Topcon Rotary Lasers — RL-H5A, RL-200 Series
• Topcon Machine Control Cab Displays
• Mast Pole Extensions for Machine Mount Applications
• Replacement Magnetic Mount Bases
• Topcon Receiver Protective Cases and Pouches

Related Guides

• How to Set Up a Laser Receiver on an Excavator
• Rotary Laser vs. Machine Control: Choosing the Right System
• Wireless vs. Cabled Machine Receivers: Pros and Cons
• Topcon Machine Control Product Guide

Frequently Asked Questions

Does the LS-B200W-MM work with any rotary laser, or only Topcon lasers?

The LS-B200W-MM is optimized for use with Topcon rotary lasers and is designed to integrate with Topcon's machine control display ecosystem. While the receiver may detect signals from other manufacturers' lasers, full wireless cab display functionality and system integration is confirmed with compatible Topcon laser and display units. Contact Express Tools for compatibility guidance with your specific setup.

How does the magnetic mount attach to the machine?

The magnetic mount uses a strong-hold magnet base that clamps directly to the steel cutting edge, blade, or moldboard of your excavator, dozer, or grader. No drilling or welding is required. The mount can be repositioned or moved between machines quickly, making it practical for contractors running multiple pieces of equipment.

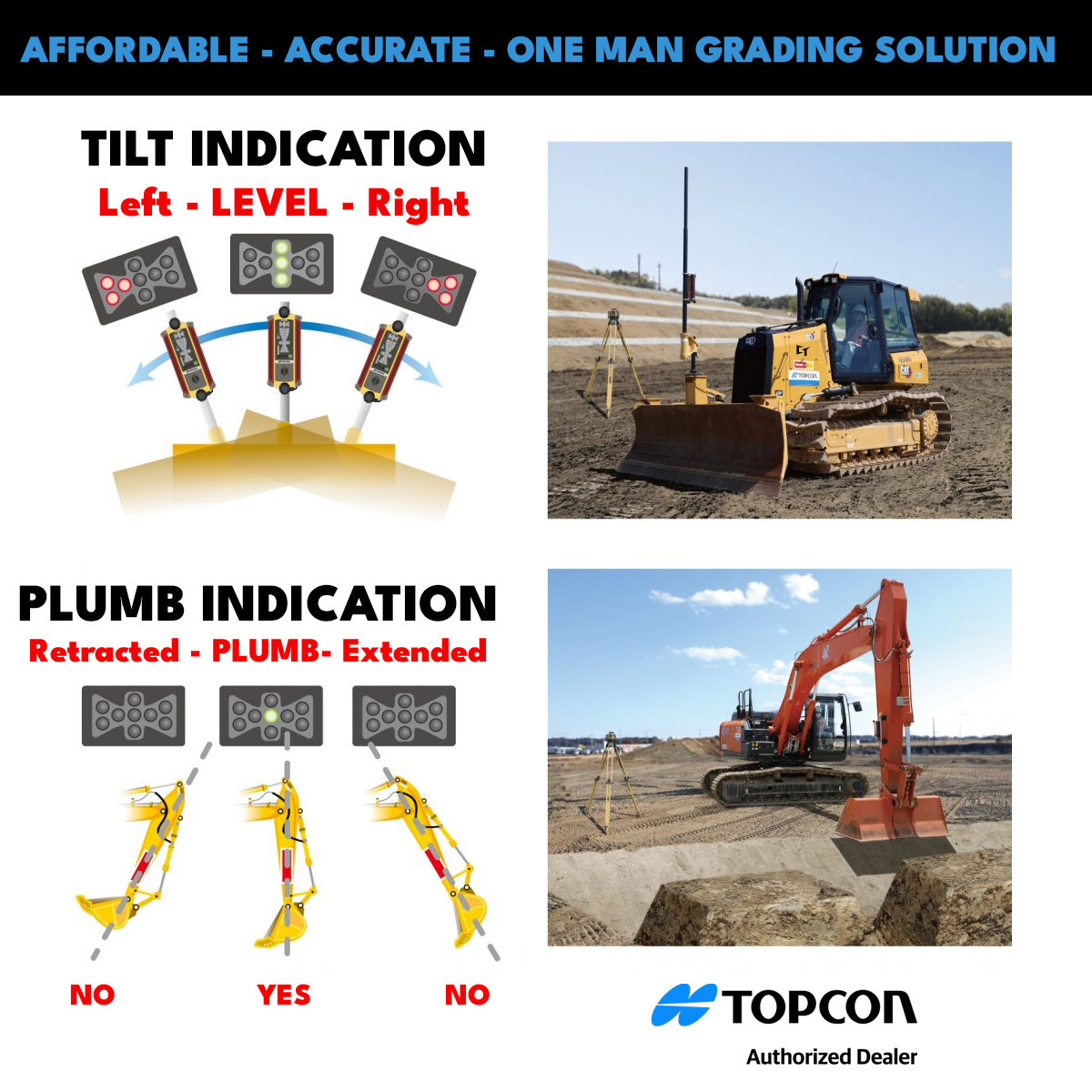

What does the plumb and tilt indication feature do?

The plumb and tilt indicators on the LS-B200W-MM alert the operator or ground crew if the receiver mast is not properly vertical or if the receiver has shifted to an angle that could affect reading accuracy. This is especially useful on uneven terrain where the machine itself may be on a slope, ensuring grade data stays reliable.

What display unit is needed to read the wireless signal in the cab?

The LS-B200W-MM transmits wirelessly to a compatible Topcon machine control cab display. The specific display required depends on your machine control configuration. Express Tools can help you identify the correct cab display and any additional components needed to complete your wireless machine control setup.
