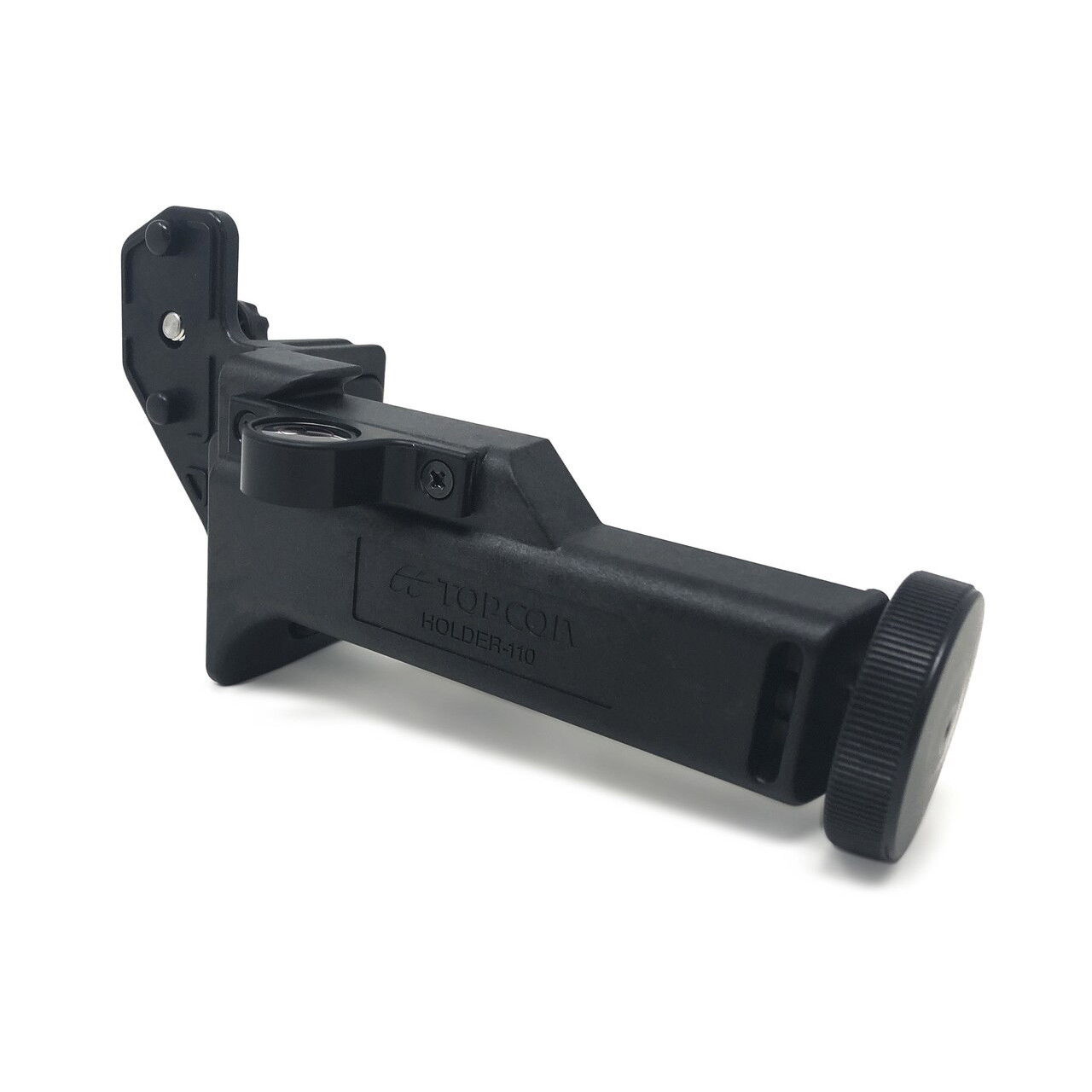

Topcon Holder-110 Rod Bracket

Keep your Topcon LS-100D digital laser receiver mounted securely and positioned correctly on the grade rod with the factory-designed Topcon Holder-110 Rod Bracket (part number 1019505-01). This is not a generic aftermarket clamp — it is the OEM mounting solution engineered by Topcon specifically for the LS-100D, delivering a precise, repeatable fit every time you clip it to the rod. For contractors, surveyors, and grading crews who depend on the LS-100D day in and day out, this bracket is the reliable connection between your receiver and your work.

Overview & Jobsite Applications

The Holder-110 rod bracket is designed to clamp onto standard grade rods and story poles, holding the LS-100D at the operator-selected height while providing stable signal capture from rotating laser levels. The purpose-built mounting geometry aligns the receiver's detection window at the correct angle and height, reducing the risk of missed grade calls or signal interference caused by improper mounting. Whether you're grading a pad, setting forms for a foundation, or laying pipe to grade, a secure and accurate receiver mount is just as important as the receiver itself. Worn, broken, or ill-fitting brackets introduce slop into the system and undermine the precision your laser equipment is built to deliver.

Key Specifications

• Part Number: 1019505-01
• Model: Holder-110
• Compatibility: Topcon LS-100D digital laser receiver
• Manufacturer: Topcon Positioning Systems
• Type: OEM grade rod bracket / receiver clamp
• Warranty: 90-day warranty through Express Tools

Key Features

• Factory-engineered fit for the LS-100D — no adapters or modifications required
• Designed to position the receiver at optimal height for maximum laser signal detection
• Secure clamping mechanism minimizes receiver movement during active grading operations
• Durable construction built to withstand routine contractor field use
• Direct OEM replacement — restores factory mounting function when original bracket is lost or damaged
• Compact and lightweight — does not add unnecessary bulk to the rod setup

Job Applications

Site Grading & Earthwork: Mount the LS-100D to a grade rod and let the Holder-110 keep it locked in position as your operator walks cuts and fills. A secure bracket means the receiver stays at the set grade height without shifting between readings.

Foundation & Footing Layout: When setting forms to an exact elevation, the last thing you need is a bracket that slips or wobbles. The Holder-110's OEM fit ensures the LS-100D reads consistently from shot to shot, keeping your form elevations tight.

Utility & Pipeline Work: Pipe layers running grade by laser depend on repeatable receiver positioning. The Holder-110 keeps the LS-100D at the correct rod height throughout the run, supporting accurate invert and grade control.

General Construction Layout: From floor flatness checks to elevation transfers, any task that puts the LS-100D on a rod benefits from a bracket that holds it where you put it — the Holder-110 does exactly that.

Compatible Accessories

• Topcon LS-100D Digital Laser Receiver
• Topcon Grade Rods & Story Poles
• Topcon Laser Level Carrying Cases
• Topcon Receiver Replacement Parts

Related Guides

• How to Set Up the Topcon LS-100D for Grade Control
• Choosing the Right Laser Receiver for Your Rotating Laser
• OEM vs. Aftermarket Laser Accessories: What Contractors Should Know
• Topcon LS-100D User Manual & Setup Guide

Frequently Asked Questions

What receivers is the Holder-110 rod bracket compatible with?

The Topcon Holder-110 (1019505-01) is designed specifically for the Topcon LS-100D digital laser receiver. It is an OEM part and is not guaranteed to fit other Topcon receiver models without verification. If you need a bracket for a different receiver, contact Express Tools for compatibility assistance.

Is this an OEM Topcon part or an aftermarket replacement?

This is a genuine OEM Topcon part (part number 1019505-01) manufactured by Topcon Positioning Systems. It is the same bracket that ships with new LS-100D receivers and meets factory specifications for fit and function.

What warranty does this bracket carry?

The Holder-110 rod bracket is backed by a 90-day warranty through Express Tools. As an authorized Topcon dealer, Express Tools supports your purchase with responsive customer service if any issues arise.

Does this bracket work with standard contractor grade rods?

The Holder-110 is designed to clamp onto grade rods compatible with the LS-100D mounting system. For best results, use it with standard contractor-grade rods or story poles that match Topcon's recommended rod specifications for the LS-100D receiver.
