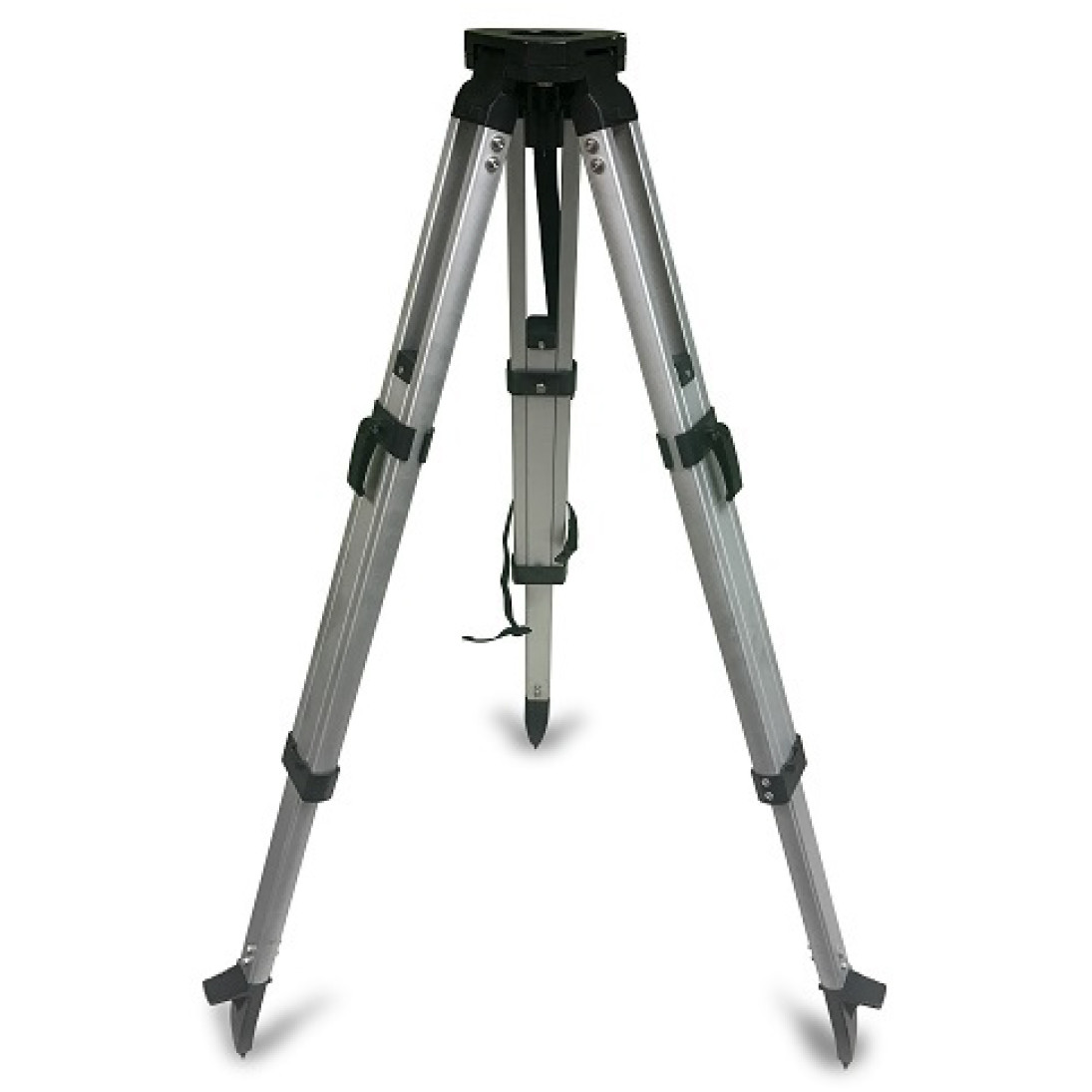

Topcon 1030652-01 Heavy Duty Aluminum Tripod

Topcon 1030652-01 Heavy Duty Aluminum Tripod

The Topcon 1030652-01 is a professional-grade heavy duty aluminum tripod engineered for contractors and surveyors who demand consistent, vibration-free instrument support across demanding jobsite conditions. Designed to work seamlessly with Topcon autolevels, optical and digital theodolites, total stations, and construction lasers, this tripod delivers the rigid, stable platform that precision measurement instruments require. Whether you're running grade checks on a grading project or setting control points for a structural layout, instrument stability starts at the tripod — and the Topcon 1030652-01 is built to hold steady when conditions push back.

Overview & Jobsite Applications

Construction sites are dynamic environments. Wind, equipment vibration, uneven terrain, and repeated setup-and-break cycles put real stress on survey tripods. The Topcon 1030652-01 addresses these challenges with a square-leg aluminum extrusion that resists the rotational twisting forces that round-leg tripods commonly experience in windy or high-traffic conditions. The quick-clamp head locks your instrument firmly and consistently, reducing setup time without sacrificing security. Adjustable leg extensions accommodate sloped or uneven ground, making this tripod equally capable on graded pads, finished floors, and rough terrain. At approximately 10 lbs, it strikes the right balance between portability for crew transport and the mass needed to dampen vibration from nearby heavy equipment.

Key Specifications

• Model Number: 1030652-01
• Material: Heavy duty aluminum construction
• Leg Design: Square-leg extrusion for rotational twist resistance
• Head Type: Quick-clamp flat head
• Thread Size: 5/8-11 UNC standard instrument thread
• Leg Adjustment: Telescoping legs with secure clamp locks
• Working Height Range: Approximately 42 in. to 65 in. (adjusted)
• Weight: Approximately 10 lbs
• Compatibility: Topcon autolevels, theodolites, total stations, and standard 5/8-11 threaded instruments
• Finish: Anodized aluminum for corrosion resistance

Key Features

• Square-Leg Design: Eliminates rotational twist caused by wind load and equipment vibration — keeps your instrument on-target between readings
• Quick-Clamp Head: Secure flat-head clamp reduces instrument mounting time and provides repeatable, positive lock-down
• 5/8-11 UNC Thread: Industry-standard thread fits virtually all professional survey and laser instruments
• Telescoping Adjustable Legs: Fast height adjustment with reliable leg clamps for setup on uneven or sloped terrain
• Anodized Aluminum Body: Lightweight yet rigid frame resists corrosion from moisture, concrete dust, and outdoor exposure
• Steel Leg Shoes: Hardened steel tips bite into soft ground and provide slip-resistance on hard surfaces
• Rugged Construction: Built to withstand the rigors of daily contractor use including frequent transport and varying weather conditions

Job Applications

The Topcon 1030652-01 tripod supports a wide range of professional contractor and survey workflows:

• Site Grading & Earthwork: Set up an autolevel or digital level on this tripod to establish benchmark elevations and verify cut/fill grades across large earthwork projects. The square-leg stability keeps readings accurate even when scrapers and dozers are working nearby.
• Structural Layout & Column Setting: Mount a total station for precise horizontal and vertical control when setting anchor bolts, column lines, and building corners. The rigid head and twist-resistant legs ensure repeated pointings stay on target.
• Utility & Pipeline Layout: Use with a pipe laser or optical level to establish invert elevations and grade control for storm drain, sanitary sewer, and utility conduit installation.
• Topographic Survey & As-Built Documentation: Support a total station or theodolite for collecting field data points, cross-sections, and as-built measurements on commercial and civil construction sites.

Compatible Accessories

• Topcon Fiberglass & Aluminum Survey Rods
• Tribrach Adapters for Total Stations
• Prism Poles & Bipods
• Hard Cases & Carrying Cases for Survey Equipment
• Topcon Automatic Levels
• Topcon Total Stations

Related Guides

• How to Properly Set Up and Level a Survey Tripod on Uneven Ground
• Contractor's Guide to Choosing the Right Tripod for Your Instrument
• Survey Equipment Care & Maintenance Tips for Jobsite Longevity

Frequently Asked Questions

What instruments is the Topcon 1030652-01 tripod compatible with?

The Topcon 1030652-01 uses a standard 5/8-11 UNC threaded head, which is the industry-standard thread for professional survey and layout instruments. It is compatible with Topcon autolevels, optical theodolites, digital theodolites, total stations, and most construction lasers and rotating laser levels from any manufacturer that uses this standard thread size.

What makes square-leg tripods better than round-leg tripods for construction use?

Square-leg tripod extrusions are significantly more resistant to rotational twisting forces than round legs. On active construction sites, wind loading and vibration from nearby equipment constantly apply lateral and torsional forces to a tripod. Round legs can rotate within their clamps under these forces, causing instrument drift between readings. The square cross-section of the Topcon 1030652-01 legs mechanically prevents this rotation, keeping your instrument stable and your measurements accurate.

Can this tripod be used on hard surfaces like concrete or asphalt?

Yes. The Topcon 1030652-01 features hardened steel leg shoes that work on both soft ground and hard surfaces. On concrete, asphalt, or finished floors, the steel tips provide adequate friction and can be used in combination with a sandbag or tripod chain weight if additional stability is needed in windy conditions. For interior concrete work, rubber tip covers are available as an optional accessory to prevent surface scratching.

How do I get the best accuracy from my instrument when using this tripod?

For best results, set the tripod legs shoulder-width apart and press all three leg shoes firmly into the ground before extending the legs to working height. Adjust leg length individually to get the head roughly level before fine-tuning with the instrument's leveling base. Always tighten leg clamps fully after height adjustment. Avoid setting up on freshly disturbed soil or near active equipment traffic. Give the tripod 30 to 60 seconds to settle after setup before taking critical measurements, especially on soft ground.
