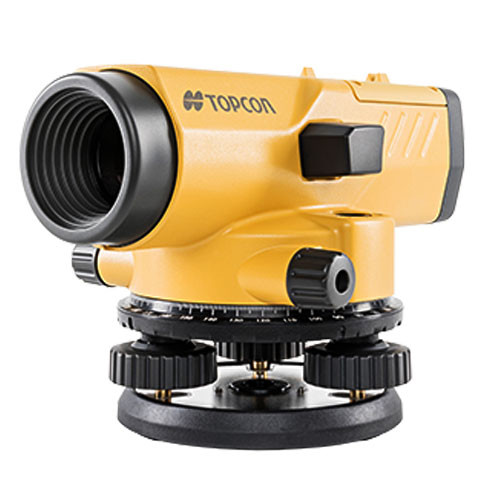

Topcon AT-B4 Automatic Level 24 power

Topcon AT-B4A Automatic Level

The Topcon AT-B4A is a professional-grade automatic level engineered for the demands of active construction and surveying environments. Combining 24x magnification with a magnetic damping compensator and IPx6 waterproof protection, the AT-B4A delivers reliable horizontal sighting accuracy whether you're grading a pad, checking formwork elevation, or shooting grades across a sprawling site. Trusted by contractors and surveyors worldwide, this instrument is built to perform when conditions are anything but perfect.

Overview & Jobsite Applications

The AT-B4A is designed for professionals who need a dependable optical level that won't slow them down in the field. Its sealed body shrugs off driving rain and equipment spray without requiring a protective cover, while the internal magnetic damping system keeps the compensator stable even when heavy machinery is working nearby. Whether you're on a civil construction project, a commercial building site, or a utility installation, the AT-B4A establishes accurate grade references quickly and consistently. The instrument's 24x objective lens allows crews to read a Philadelphia rod at distances well beyond 100 feet with minimal eyestrain, reducing repeat measurements and keeping your workflow moving.

Key Specifications

• Magnification: 24x
• Objective Lens Diameter: 36 mm
• Compensator Type: Magnetic damping, self-leveling
• Compensator Range: ±15 minutes of arc
• Standard Deviation (per km double-run): ±1.5 mm
• Minimum Focus Distance: 0.3 m (approximately 1 ft)
• Field of View at 100 m: 2° (3.5 m)
• Waterproof Rating: IPx6 — protected against powerful water jets
• Weight: Approximately 1.4 kg (3.1 lbs)
• Tripod Thread: 5/8 x 11 standard

Key Features

• IPx6 Waterproof Sealed Housing: Keeps internal optics and compensator dry during rain showers, equipment spray, and dusty conditions — no need for a rain cover on most days
• Magnetic Damping Compensator: Rapidly stabilizes the line of sight after movement or vibration caused by nearby heavy equipment, compactors, or traffic
• 24x Bright Optical System: Multi-coated lenses provide a sharp, bright image that reduces eye fatigue during long staking sessions
• Horizontal Circle: 360° graduated circle with degree/minute reading for basic angle layout without a transit
• Adjustable Eyepiece Diopter: Quick focus adjustment accommodates different operators without tools
• Circular Bubble with Mirror: Easy centering visible from multiple operator positions
• Standard 5/8 x 11 Base: Compatible with virtually all contractor tripods on the market

Job Applications

Foundation and Formwork Elevation Control: Set benchmark elevations and check form heights before concrete pours to keep floors and footings within spec.

Site Grading and Earthwork: Establish cut/fill grades across large pads and verify subgrade elevations with a grade rod or level staff — fast enough to keep equipment operators moving.

Utility and Pipeline Installations: Confirm pipe invert elevations and trench bottom grades on storm drain, sewer, and water main projects where consistent fall is critical.

Building Layout and Floor Leveling: Transfer elevations between floors during structural steel erection or tilt-up construction, and verify finished floor flatness against design tolerances.

Compatible Accessories

• Topcon Heavy-Duty Aluminum Tripod — stable platform for precise setups on soft or hard ground
• Philadelphia Style Grade Rod (13 ft) — standard leveling rod for elevation transfer and benchmarks
• Topcon Carrying Case for AT Series Levels — foam-lined hard case for transport and storage
• Optical Plumb Bob — for precise instrument centering over a point
• Sunshade for AT-B4A Objective Lens — reduces glare and improves contrast in bright conditions

Related Guides

• How to Set Up and Calibrate an Automatic Level on a Job Site
• Differential Leveling: A Contractor's Step-by-Step Guide
• Optical vs. Digital Levels: Choosing the Right Tool for Your Project
• How to Read a Grade Rod Accurately at Long Distances

Frequently Asked Questions

What does IPx6 waterproof rating mean for the AT-B4A?

IPx6 means the instrument is protected against powerful water jets from any direction. In practice, this means the AT-B4A can withstand heavy rain and equipment water spray without water entering the housing. You don't need to wrap it in a rain cover during a typical downpour, though storing it dry after use is always recommended.

Can the AT-B4A be used near operating heavy equipment?

Yes. The magnetic damping compensator is specifically designed to stabilize quickly after vibration disturbances such as compactors, excavators, or passing trucks. The compensator settles the line of sight faster than pendulum-only designs, allowing you to take accurate readings even on active sites.

What tripod does the AT-B4A require?

The AT-B4A has a standard 5/8 x 11-inch threaded base, which is the industry-standard thread used by the vast majority of contractor and surveying tripods. Any quality aluminum or fiberglass contractor tripod with a flat-head or dome-head adapter will work correctly with this instrument.

How accurate is the Topcon AT-B4A for construction leveling?

The AT-B4A has a standard deviation of ±1.5 mm per kilometer of double-run leveling, which exceeds the accuracy requirements for virtually all construction applications including foundation work, site grading, and utility installation. For comparison, most construction specs call for elevation tolerances in the range of ±3 mm to ±6 mm, so the AT-B4A provides ample precision with margin to spare.
