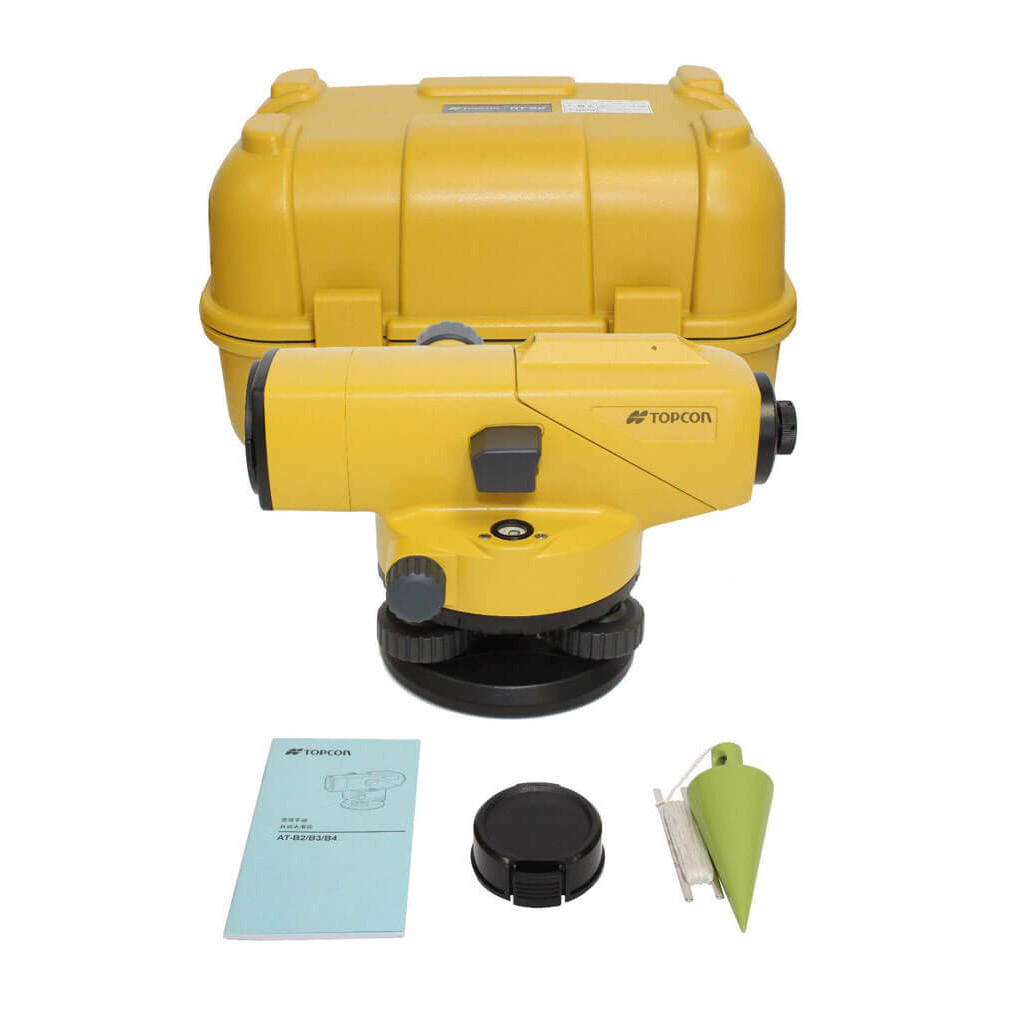

Topcon AT-B3A Automatic Level 28 power

Reliable Elevation Control for Survey Crews and Site Contractors

The Topcon AT-B3A is a 28-power automatic optical level built for professionals who need fast, accurate elevation data on demanding jobsites. Whether you're running a survey crew, laying out foundations, verifying cut-and-fill volumes, or setting drainage grades, the AT-B3A delivers the repeatability and durability that contractors depend on. Its dual-suspension compensator self-levels the line of sight automatically, keeping accuracy consistent even when working on uneven or vibration-prone ground. This is a purpose-built instrument for anyone who stakes their reputation on getting grade right the first time.

Jobsite Overview

The AT-B3A is the workhorse optical level for civil, commercial, and residential construction crews. From large earthwork projects to precision slab pours, this instrument fits naturally into the daily workflow of site supervisors, layout technicians, and licensed surveyors. Its 28x magnification allows rod readings at distances common in highway grading and large site development, while the robust housing sheds dust, moisture, and the inevitable rough handling of an active jobsite. If your crew is pulling elevations multiple times a day, the AT-B3A is engineered for exactly that level of use.

Key Specifications

• Magnification: 28x
• Objective Lens Diameter: 40mm
• Field of View: 1°20' (approximately 2.3m at 100m)
• Minimum Focus Distance: 0.3m
• Stadia Ratio: 100:1
• Compensator Type: Dual-suspension, magnetic damping
• Compensator Range: ±15'
• Leveling Accuracy: ±3mm per km double-run
• Circular Level Sensitivity: 8'/2mm
• Horizontal Circle: 360° graduated circle
• Instrument Weight: Approximately 1.7kg (without tribrach)
• Operating Temperature: -20°C to +50°C
• Waterproof Rating: Splash-resistant construction

Key Features

• Dual-Suspension Compensator: Four super-high-tensile suspension wires with magnetic damping settle quickly and maintain ±3mm/100m accuracy independent of minor instrument tilt
• 28x Magnification: High-contrast optics resolve rod graduations clearly at long working distances common in grading and highway work
• Horizontal Circle: Full 360° graduated horizontal circle supports layout angles and reference bearing work without a separate instrument
• Durable Housing: Impact-resistant body designed to withstand jobsite conditions, temperature extremes, and UV exposure
• Smooth Tangent Screw: Fine horizontal motion screw provides precise azimuth adjustment for accurate rod intersections
• Sunshade Included: Objective lens sunshade minimizes glare and thermal shimmer when working in direct sunlight
• Standard Tribrach Mount: Compatible with standard 5/8-11 tripod threads for use with a wide range of tripod and tribrach accessories

Job Applications

Foundation and Slab Layout

Set benchmark elevations and verify slab heights before pours. The AT-B3A's ±3mm accuracy gives structural contractors the confidence to check footing depths, confirm pad elevations, and catch grade errors before concrete hits the ground.

Cut-and-Fill Earthwork

Grading contractors use the AT-B3A to establish grade stakes and verify machine cut depths across large earthwork areas. With 28x magnification, rod readings stay sharp across the full width of most earthwork sites without moving the instrument setup.

Drainage and Utility Slope Verification

Confirm swale, pipe, and drainage channel grades before backfill. The AT-B3A resolves the small elevation differences that determine whether water flows to the inlet or ponds against the structure.

Site Benchmarking and Elevation Transfer

Survey crews use the AT-B3A to establish and transfer site benchmarks throughout project duration. Its consistent compensator performance means elevations taken at project start match checks taken weeks later under different site conditions.

Compatible Accessories

• Heavy-Duty Aluminum and Fiberglass Surveying Tripods
• Fiberglass and Aluminum Grade Rods
• Optical Tribrachs and Adapters
• Rod Levels and Bull's-Eye Bubbles
• Hard-Shell Instrument Carrying Cases
• Plumb Bobs and Accessories

Related Guides

• How to Set Up and Calibrate an Optical Auto Level
• Optical Level vs. Laser Level: Which Do You Need on the Jobsite?
• How to Read a Grade Rod for Accurate Elevation Shots
• Topcon Instrument Maintenance and Storage Best Practices

Frequently Asked Questions

What is the accuracy of the Topcon AT-B3A?

The AT-B3A achieves a leveling accuracy of ±3mm per kilometer on a double-run, which meets professional standards for foundation layout, grading work, and site benchmarking. The dual-suspension magnetic damping compensator maintains this accuracy within its ±15' working range.

Does the AT-B3A work with standard surveying tripods?

Yes. The AT-B3A uses a standard 5/8-11 tribrach mounting thread, making it compatible with the vast majority of aluminum and fiberglass surveying tripods available from Topcon and other manufacturers. Express Tools carries a full range of compatible tripods.

Is the Topcon AT-B3A suitable for construction grading or only licensed survey work?

The AT-B3A is widely used by both licensed surveyors and construction contractors. Site superintendents, grading foremen, and layout technicians routinely use automatic levels like the AT-B3A for grade staking, slab elevation checks, and drainage slope verification — tasks that do not require a licensed surveyor in most jurisdictions.

What is the difference between the AT-B3A and a laser level for grading work?

An automatic optical level like the AT-B3A requires a crew member to read a rod at each shot location, making it ideal for precise spot elevations and benchmark work. A rotary laser level broadcasts a continuous 360° plane and allows a single operator to check grade across a site independently. For high-precision elevation transfer and survey-grade accuracy, the AT-B3A is the preferred tool. For production grading where speed and single-operator setup matter more, a rotary laser may be more efficient.
