Topcon 9210-1022 Tripod Adapter — Precision Mounting for Pipe Laser Applications

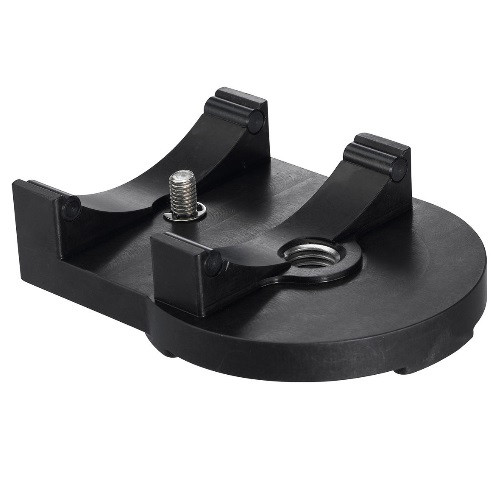

The Topcon 9210-1022 Tripod Adapter is a purpose-built mounting accessory engineered for contractors who demand reliable, repeatable pipe laser positioning on every job. Designed to work seamlessly with the Topcon TP-L4 and TP-L5 pipe laser series, this adapter attaches via the instrument's bottom socket and locks onto a standard surveying tripod, giving crews the flexibility to establish accurate grade lines above-pipe or over-the-top without improvising a setup. When grade and alignment tolerances are tight, the right mounting hardware is not optional — it's essential.

Overview and Jobsite Applications

Sewer installation, storm drainage, culvert work, and utility boring all share one requirement: the pipe laser must be positioned precisely and held firmly throughout the run. The Topcon 9210-1022 solves the common field problem of having no stable platform for over-the-top configurations. By mounting the TP-L4 or TP-L5 on a tripod via this adapter, operators can set up at manhole rim elevation, align the beam down the bore path, and leave the instrument locked in place while the crew grades from the far end. This eliminates the need for makeshift blocking or in-pipe placement on longer runs where access is limited.

Key Specifications

• Model Number: 9210-1022
• Manufacturer: Topcon Positioning Systems
• Compatible Instruments: Topcon TP-L4, TP-L5 pipe laser series
• Mounting Interface: Bottom socket connection on pipe laser body
• Tripod Compatibility: Standard 5/8-inch x 11 surveying tripod thread
• Configuration Type: Over-the-top and elevated positioning setups
• Construction: Machined metal adapter for durable field use

Key Features

• Direct bottom-socket attachment provides a rigid, zero-play connection to the pipe laser
• Enables over-the-top setup — ideal when in-pipe placement is impractical or impossible
• Works with any standard surveying or construction tripod with 5/8-inch x 11 thread
• Compact and lightweight — stows easily in a tool bag or instrument case
• Manufactured by Topcon to OEM fit and tolerance standards — no adapters or shims required
• Expands the versatility of the TP-L4 and TP-L5 across a wider range of site conditions

Job Applications

Sewer Main Installation: Set up the TP-L4 or TP-L5 on a tripod at the upstream manhole using the 9210-1022 adapter. The over-the-top position allows the laser beam to travel the full length of the run without obstruction, giving the pipe crew a clean grade reference from the first joint to the last.

Storm Drain and Culvert Work: On larger-diameter culvert installations where placing the laser inside the pipe is impractical, mounting the instrument on a tripod above the invert keeps the beam on grade while crews work efficiently around the pipe zone.

Horizontal Directional Drilling and Boring: When steering a bore, an elevated pipe laser on a tripod provides a stable, above-grade reference line that the drill operator can sight or tie instrument readings to without disturbing the setup between shots.

Utility Inspection and Grade Verification: After backfill or during pre-inspection, set up the pipe laser on a tripod at known invert elevation using this adapter to quickly verify grade continuity before the inspector arrives — no need to re-enter a confined space for each check.

Compatible Accessories

• Topcon TP-L4 Pipe Laser
• Topcon TP-L5 Pipe Laser
• Topcon Pipe Laser Target Plate
• Heavy-Duty Surveying Tripod — 5/8 x 11 Thread
• Topcon Pipe Laser Carrying Case

Related Guides

• How to Set Up a Pipe Laser for Sewer Installation
• Over-the-Top vs. In-Pipe Laser Placement: When to Use Each
• Topcon TP-L4 vs. TP-L5: Choosing the Right Pipe Laser
• Pipe Laser Accessories Guide for Contractors

Frequently Asked Questions

What pipe lasers is the Topcon 9210-1022 adapter compatible with?

The 9210-1022 is designed specifically for the Topcon TP-L4 and TP-L5 pipe laser series. It connects to the bottom socket of these instruments and is not designed for use with other pipe laser brands or Topcon models outside this series.

What tripod thread size does this adapter require?

The 9210-1022 is compatible with standard 5/8-inch x 11 thread surveying and construction tripods, which is the most common thread size used in the industry. No additional thread adapters are required for use with a standard contractor tripod.

Can I use this adapter for in-pipe laser positioning?

This adapter is designed for over-the-top and elevated tripod setups, not for in-pipe cradle positioning. For in-pipe placement, Topcon offers separate pipe clamps and cradle accessories. The 9210-1022 is best suited for applications where the laser must be mounted above the pipe or at manhole elevation.

Is the 9210-1022 a genuine Topcon OEM accessory?

Yes. The Topcon 9210-1022 is an original equipment manufacturer (OEM) accessory produced by Topcon Positioning Systems. Express Tools is an authorized Topcon dealer, so you can be confident you are receiving a genuine Topcon part with proper fit and quality assurance.
