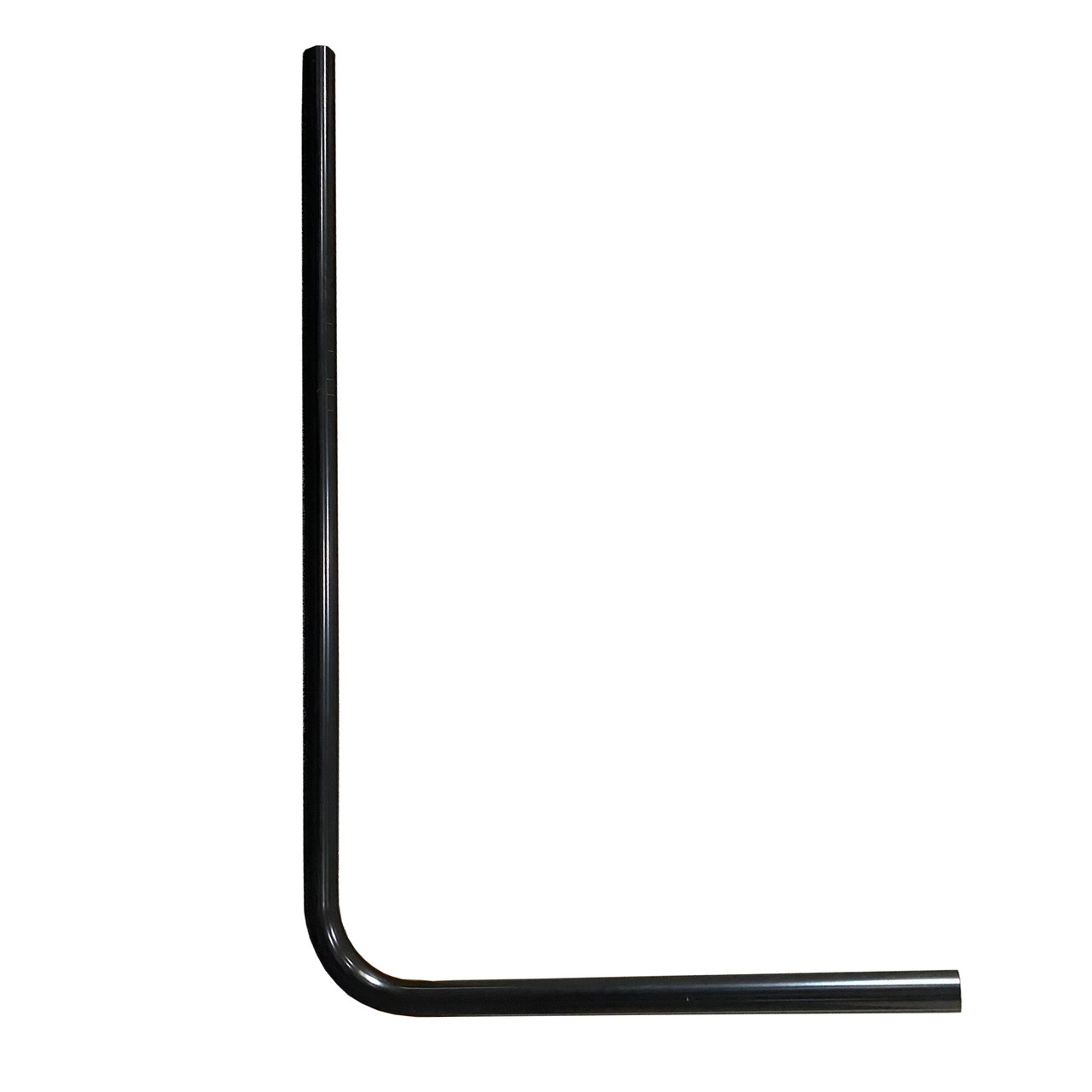

Topcon 9060-1143 L-Bar, 2" Diameter

Topcon 9060-1143 L-Bar: Professional Grade Control Mounting for Heavy Equipment

The Topcon 9060-1143 L-Bar is a 2-inch diameter precision mounting bracket engineered to securely position laser grade control receivers on dozers, motor graders, and vibratory compactors. Designed as a direct mechanical interface between the machine and the receiver mast, this L-bar provides a stable, vibration-resistant platform that delivers reliable signal capture in demanding grading environments. Earthwork contractors, site prep crews, and grading subcontractors depend on properly mounted grade control hardware to achieve single-pass accuracy and eliminate costly rework on large-scale cut-and-fill operations.

Overview: Grade Control Mounting Done Right

Machine control systems are only as effective as the hardware holding them in place. The Topcon 9060-1143 L-Bar is purpose-built to mount receiver masts at the correct height and angle relative to the blade or drum, ensuring the laser receiver maintains consistent line-of-sight to the rotary laser transmitter across the full range of blade movement. The 2-inch diameter tube specification matches standard contractor mast sizing for straightforward integration with existing Topcon grade control setups. Whether you are running a single-slope pad, a crowned road subgrade, or a complex detention basin, this bracket keeps your receiver locked on target throughout the shift.

Key Specifications

• Manufacturer: Topcon Positioning Systems
• Part Number: 9060-1143
• Bracket Type: L-Bar mounting bracket
• Tube Diameter: 2 inches (standard contractor mast compatible)
• Intended Mount: Dozer blade post, motor grader blade, vibratory compactor frame
• Construction: Heavy-duty steel with corrosion-resistant finish
• Compatibility: Topcon laser grade control receiver mast systems
• Application: Rotary laser grade control, single and dual-slope grading

Key Features

• 2-Inch Diameter Fit: Matches standard mast tubing for tool-free compatibility with most Topcon receiver rod assemblies used in the field
• L-Bar Geometry: The right-angle bracket design positions the mast outboard of the blade post, keeping the receiver clear of hydraulic lines, debris, and structural interference
• Heavy-Duty Construction: Built to withstand the constant vibration, shock loads, and environmental exposure inherent to dozer and grader operations on active jobsites
• Secure Clamping: Positive-lock mounting hardware prevents receiver drift during blade travel, ensuring grade feedback remains accurate throughout the workday
• Authorized OEM Part: Genuine Topcon replacement and installation component, ensuring full compatibility with Topcon machine control systems and warranty compliance
• Versatile Equipment Fit: Suitable for mounting on dozers, motor graders, and vibratory compactors across a wide range of makes and models when used with appropriate adapters

Job Applications

The Topcon 9060-1143 L-Bar is a field-proven mounting solution across a wide range of earthwork and site preparation applications:

• Commercial Site Preparation: Large pad grading projects demand consistent blade control across long runs. The L-bar keeps the receiver mast stable at grade-control height while the dozer makes repeated passes, reducing operator fatigue and grade checking time.
• Road Subgrade Construction: Motor grader operators use this bracket to position their laser receivers for crowned or single-slope subgrade work, allowing the grader to hold tight tolerances on roadway projects without constant grade rod checks.
• Detention Basin and Drainage Grading: Precise slope control is critical for detention pond bottom grades and drainage swales. The L-bar mount keeps the receiver aligned during close-tolerance finish grading where elevation errors can affect water flow performance.
• Compaction Elevation Control: Vibratory compactor operators mounting a grade control receiver use this bracket to monitor lift thickness and finished surface elevation in real time, helping crews maintain specified compaction lift depths across the site.

Compatible Accessories

Pair the Topcon 9060-1143 L-Bar with these related components for a complete machine control setup:

• Topcon Laser Grade Control Receivers
• Topcon Receiver Mast Rods and Extensions
• Topcon Rotary Laser Transmitters
• Machine Control Interface Cables and Connectors
• Topcon Blade Slope Sensors

Related Guides

• Machine Control Mounting Basics: Mast Height and Receiver Positioning
• How to Set Up a Dozer for Laser Grade Control
• Topcon Machine Control Systems: Buyer's Guide for Contractors

Frequently Asked Questions

What machines is the Topcon 9060-1143 L-Bar compatible with?

The 9060-1143 L-Bar is designed for mounting on dozers, motor graders, and vibratory compactors. The 2-inch diameter specification matches standard Topcon mast tubing and is compatible with a wide range of machine makes and models when used with the appropriate blade post or frame adapter hardware.

Does this bracket work with all Topcon laser receivers?

The L-bar is a mechanical mounting component designed for use within the Topcon machine control ecosystem. It is compatible with Topcon laser grade control receivers mounted on standard 2-inch diameter mast rods. Confirm your receiver and mast specifications with your Topcon dealer to ensure a complete and compatible assembly before installation.

Is the Topcon 9060-1143 a replacement part or a new installation component?

The 9060-1143 L-Bar functions as both a replacement component for worn or damaged brackets and as a new installation part for contractors adding a laser grade control receiver to a machine for the first time. As an authorized Topcon dealer, Express Tools supplies genuine OEM parts suitable for either application.

How do I know the correct mast height for my application when using this L-bar?

Mast height is determined by the working range of your rotary laser transmitter and the height of the receiver above the blade edge or drum surface. Topcon and most laser manufacturers publish recommended setup guidelines based on transmitter model and jobsite conditions. Your Topcon dealer or machine control technician can provide site-specific setup recommendations to ensure your receiver stays within the beam window throughout the full range of blade travel.
