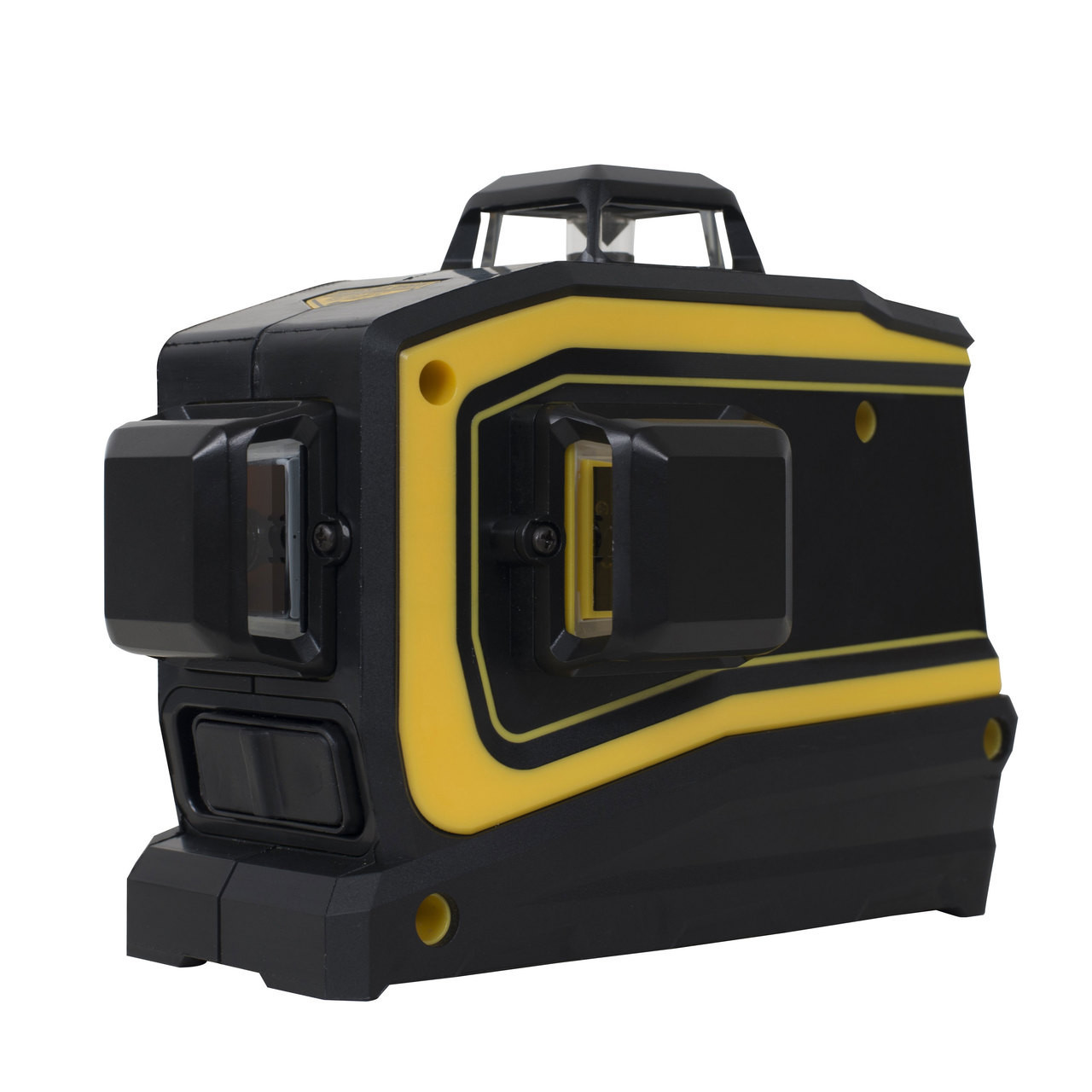

Spectra Precision LT58G-2 Universal Laser Layout Tool with Green Beams with Receiver

The Spectra Precision LT58G-2 is a professional-grade, three-plane green beam layout laser engineered for demanding interior construction environments. Projecting one horizontal and two vertical laser planes simultaneously, this tool gives contractors a complete reference grid for accurate layout, leveling, and squaring across virtually any interior application. Green beam technology produces up to 4x greater visibility than comparable red beam lasers, making it the clear choice for well-lit commercial jobsites, open floor plans, and high-bay spaces where red lasers struggle.

Overview & Jobsite Applications

Whether you're setting ceiling grid lines, plumbing stud walls, laying out electrical and mechanical rough-ins, or squaring a large commercial floor plate, the LT58G-2 delivers the accuracy and visibility you need without slowing down your crew. The self-leveling mechanism compensates for minor setup inconsistencies, getting you on-grade quickly so you can focus on the work. The included receiver extends the working range well beyond unaided eye visibility, allowing outdoor and extended-range use in bright conditions.

Key Specifications

• Laser Color: Green beam (532 nm)

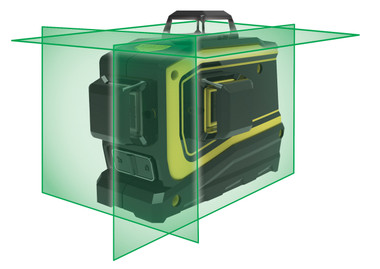

• Planes: 1 horizontal, 2 vertical (3-plane total)
• Self-Leveling Range: ±4°
• Accuracy: ±1/8 in at 100 ft (±3 mm at 30 m)
• Working Range (Unaided): Up to 165 ft (50 m) diameter
• Working Range (with Receiver): Up to 330 ft (100 m) diameter
• Visibility Advantage: Up to 4x brighter than red beam lasers
• Power Source: 4 AA batteries
• Battery Life: Up to 20 hours
• Dust & Water Protection: IP54 rated
• Mounting: 5/8-11 thread for tripod or grade rod mounting

Key Features

• Green beam laser planes for superior visibility in bright ambient light
• Three simultaneous planes for full room layout in a single setup
• Fast automatic self-leveling — out-of-level alert when beyond compensation range
• Pulse mode compatible with included receiver for extended range and outdoor use
• Rugged IP54-rated housing handles dust, debris, and light moisture on the jobsite
• Standard 5/8-11 mount threads onto tripods, wall brackets, and layout poles
• Compact, balanced design reduces fatigue during transport and repositioning

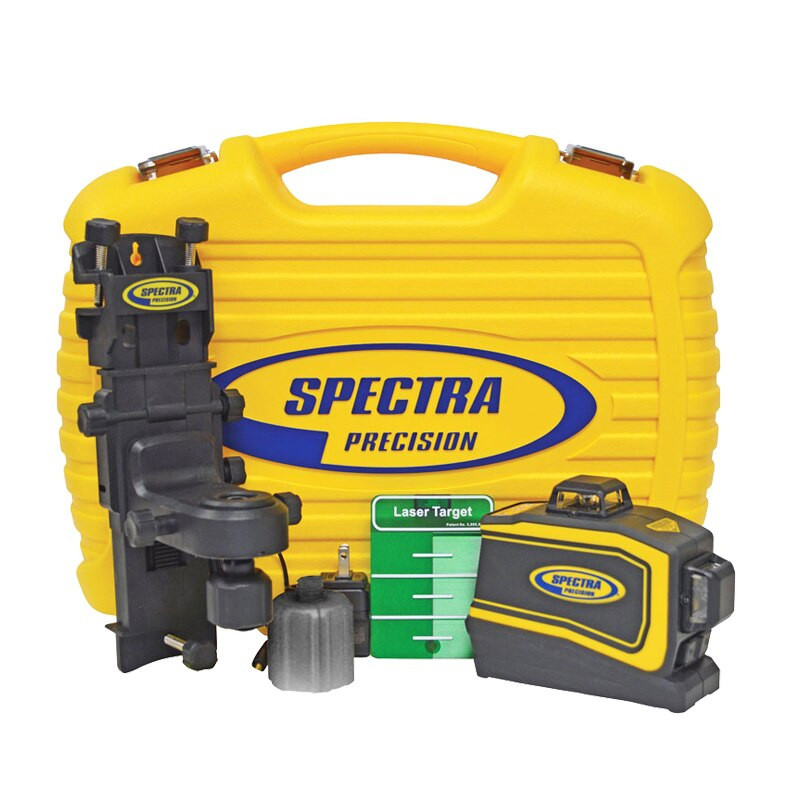

• Kit includes laser unit, receiver, target card, batteries, and carrying case

Job Applications

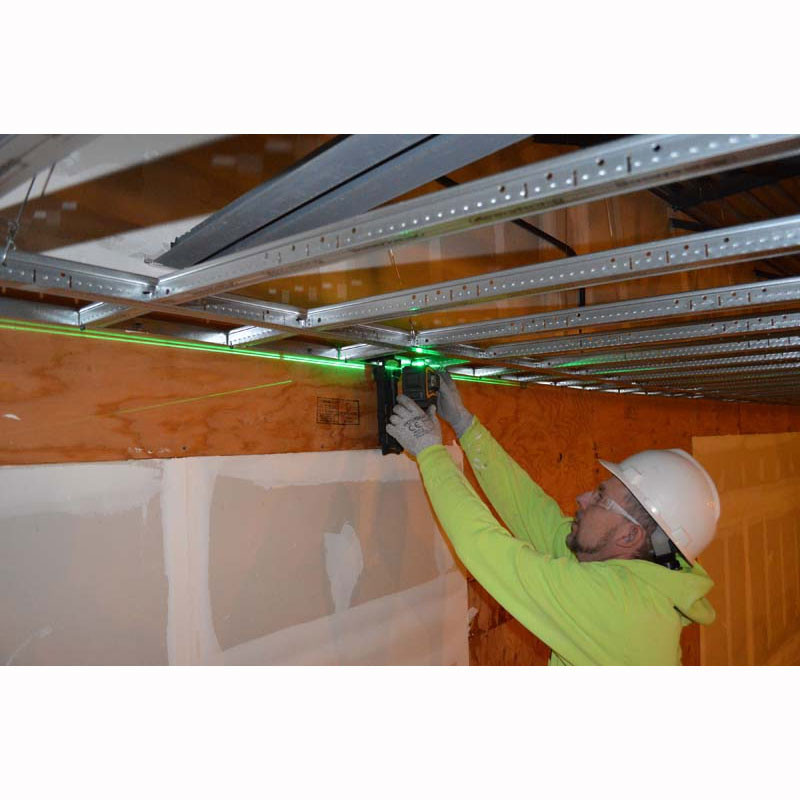

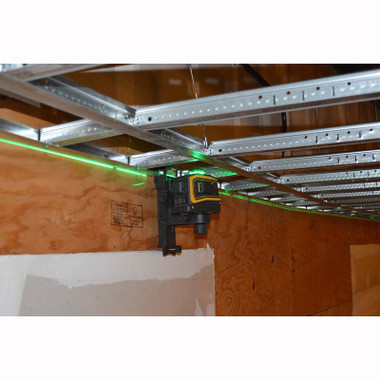

Ceiling Grid & Suspended Systems: Shoot a horizontal plane around the entire perimeter of a room to establish a consistent drop-ceiling height reference. Eliminates the need to snap repeated chalk lines and reduces layout time significantly on large commercial floors.

Stud Wall Framing & Plumb Transfer: Use both vertical planes to plumb walls from floor to ceiling simultaneously, or transfer layout lines from slab to overhead structure without a plumb bob. Ideal for metal stud framing on multi-story commercial projects.

Electrical, Mechanical & Finish Layout: Establish consistent box heights, conduit runs, and fixture centerlines across long walls or open bays. Green beam visibility means even well-lit finished spaces stay productive without waiting for low-light windows.

Squaring Large Floor Plates: Intersect the two vertical planes to establish a precise 90° reference corner. Combined with a measuring tape or layout rod, crews can square up large commercial slabs, gym floors, and warehouse layouts quickly and accurately.

Compatible Accessories

• Spectra Precision HR320 Laser Receiver
• Heavy-Duty Adjustable Tripod

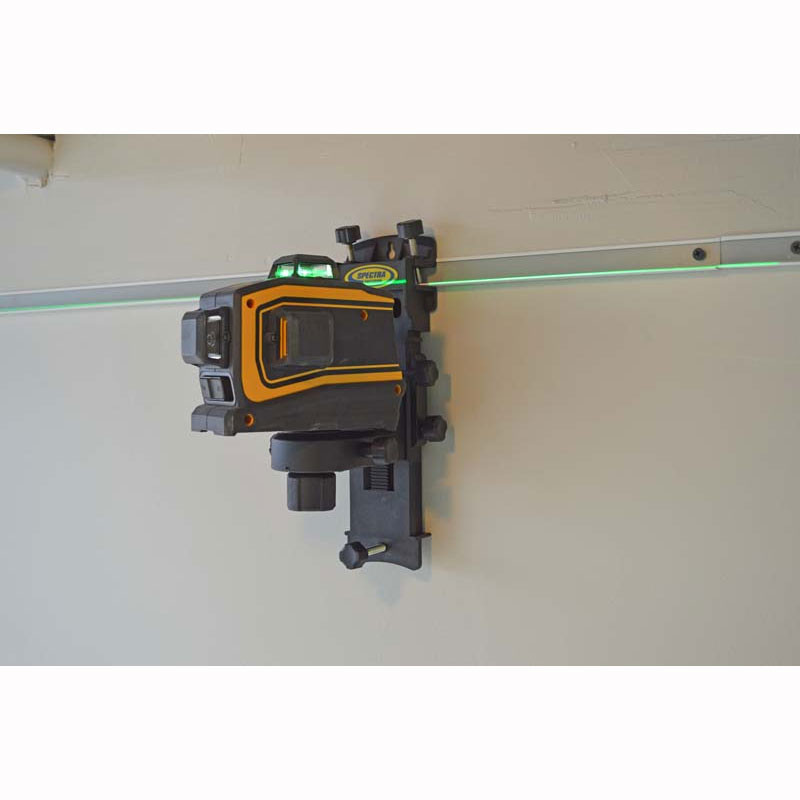

• Laser Wall/Ceiling Mounting Bracket
• Spectra Precision Carrying & Storage Case
• Grade Rod Laser Detector Clamp

Related Guides

• How to Set Up a 3-Plane Laser for Interior Layout
• Green Beam vs. Red Beam Lasers: Which Is Right for Your Job?
• Using a Laser Receiver to Extend Working Range
• Top Layout Lasers for Commercial Framing Contractors

Frequently Asked Questions

Can the LT58G-2 be used outdoors?

The LT58G-2 is optimized for interior use, but when paired with the included pulse-mode receiver, it can be used outdoors or in bright conditions at extended ranges up to 330 ft in diameter. Direct sunlight will still limit unaided visibility, so the receiver is recommended for any outdoor application.

Does this laser self-level automatically?

Yes. The LT58G-2 features automatic self-leveling within a ±4° compensation range. If the instrument is set up beyond that range, it will emit an out-of-level warning so you know the reference planes are not reliable before you start laying out.

What is the difference between the LT58G-2 and a standard red beam layout laser?

The primary difference is beam visibility. The LT58G-2's green beam (532 nm wavelength) is up to 4x more visible to the human eye than a red beam laser of equivalent power output, particularly in well-lit interior spaces. This translates directly to faster layout, fewer readbacks, and reduced eye strain over a full shift.

Is the LT58G-2 compatible with third-party laser receivers?

The LT58G-2 is designed to work with Spectra Precision receivers that support green beam pulse mode detection. While some universal receivers may detect the signal, Spectra Precision receivers such as the HR320 are recommended to ensure full compatibility, reliable detection range, and accurate grade indication.
