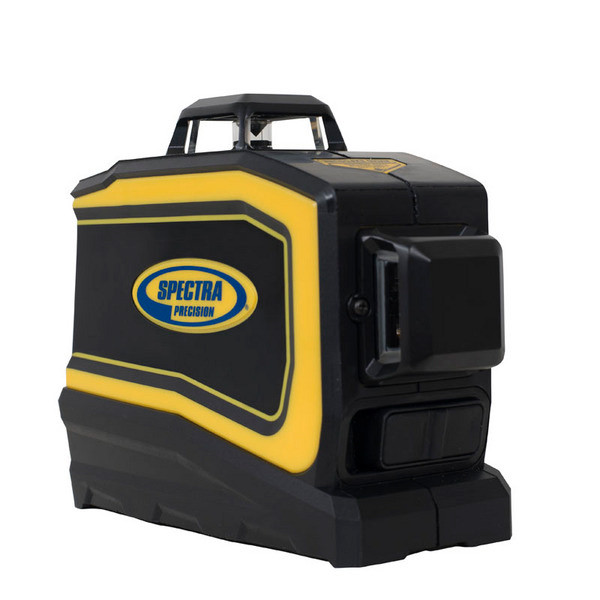

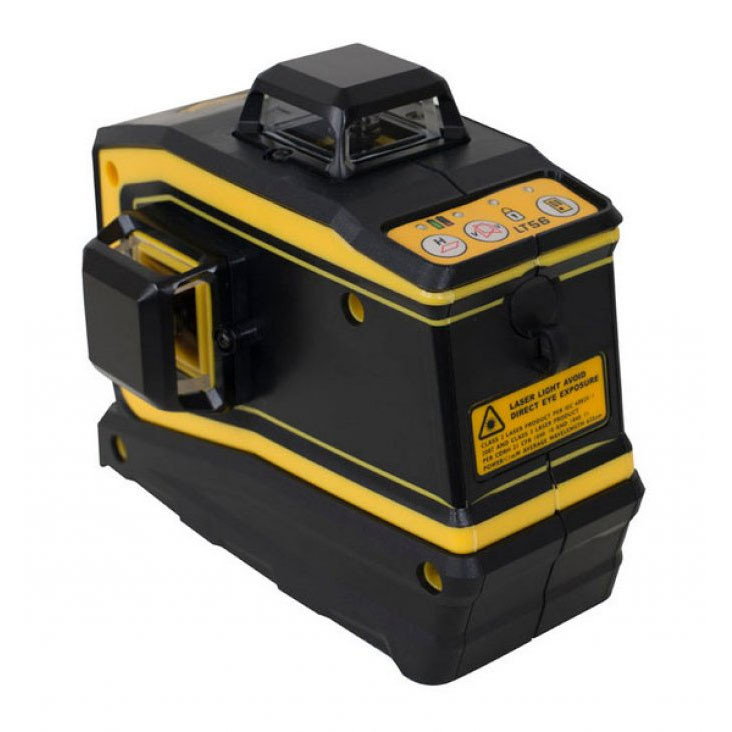

Spectra Precision LT56 Plane Laser Tool

Overview

The Spectra Precision LT56 Plane Laser Tool delivers precision layout performance exactly where interior crews need it most. Unlike rotary lasers that sacrifice beam visibility for 360-degree coverage, the LT56 projects ultra-bright red crossline planes designed specifically for tight indoor environments. Its dual-axis self-leveling system establishes perfectly perpendicular vertical and horizontal reference lines across walls, ceilings, and floors—making it indispensable for drywall installers, tile setters, cabinet installers, and finish carpenters who demand repeatable accuracy without constant manual checking. The compact, job-site-tough housing withstands the bumps and dust of active construction zones, while the intuitive control panel lets operators toggle between layout modes without interrupting workflow. At $465, the LT56 represents exceptional value for contractors who need laser-level precision without the bulk and expense of full rotary systems.

Key Specifications

• Laser Type: Class II red laser diode (635nm)
• Leveling Range: ±5 degrees self-leveling
• Leveling Accuracy: ±1/8 inch at 30 feet
• Working Range: Up to 100 feet diameter (165 feet with detector)
• Beam Visibility: Enhanced red beam optimized for indoor use

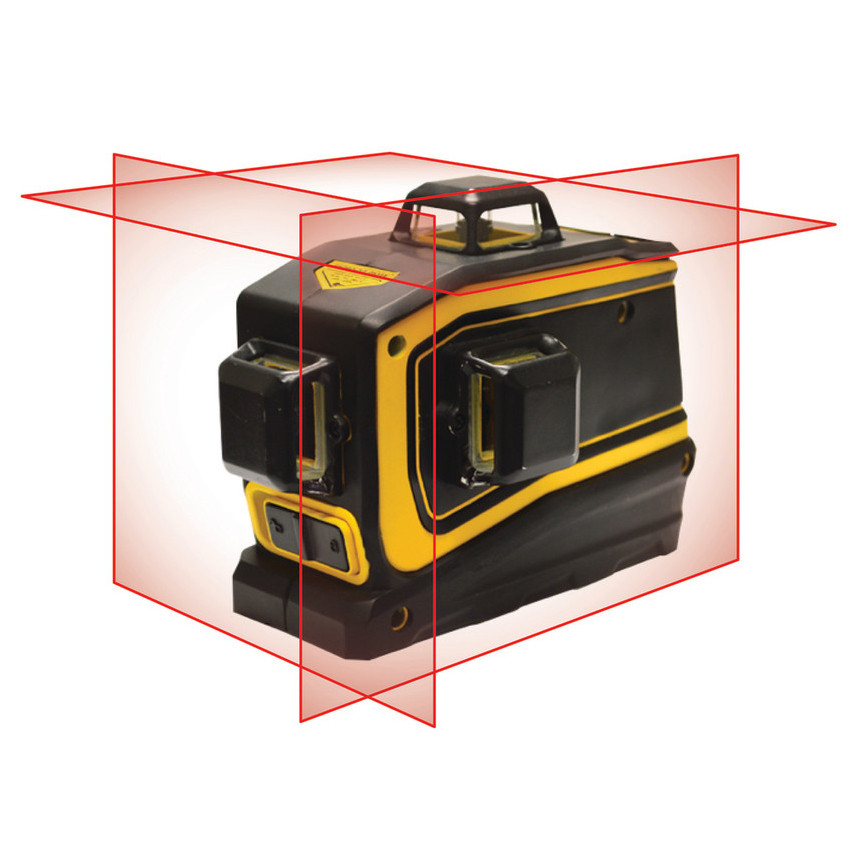

• Layout Modes: Horizontal plane, vertical plane, dual crossline, plumb down
• Power Source: 4 AA alkaline batteries (included) or optional AC adapter
• Battery Life: Up to 30 hours continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Dust/Water Resistance: IP54 rated
• Mounting Thread: 1/4"-20 and 5/8"-11 threads
• Dimensions: 5.1" × 5.1" × 5.9"
• Weight: 2.6 lbs with batteries
• Warranty: 3-year manufacturer limited warranty

What's in the Kit

• Spectra Precision LT56 Crossline Laser
• Protective Hard-Shell Carrying Case
• Magnetic Wall Mount Bracket
• Target Plate for Alignment Checks
• 4 AA Alkaline Batteries
• Quick Start Guide and Safety Manual
• 3-Year Warranty Registration Card

Job Applications

• Drywall Installation & Framing: Project perfectly level control lines for stud layout, track placement, and cutout positioning without measuring and snapping chalk lines that create dust and require cleanup.
• Tile & Flooring Layout: Establish perpendicular reference grids across floors and walls to ensure pattern alignment and prevent cumulative error that ruins expensive tile jobs—the bright red beam remains visible even on light-colored substrates.
• Cabinet & Millwork Installation: Set consistent elevation lines around entire kitchens or offices for upper and lower cabinet runs, eliminating the measurement errors that cause gaps and require shims.
• Electrical & Plumbing Rough-In: Mark outlet heights, switch locations, and fixture centerlines with repeatable accuracy across multiple rooms, ensuring code compliance and consistent finished appearance.
• Suspended Ceiling Grid Layout: Project horizontal planes to verify drop heights and guide main runner installation, especially critical in spaces with irregular floor elevations or sloped substrates.
• Window & Door Alignment: Verify header heights and sill elevations during framing or finish installation to maintain consistent sight lines and architectural proportions throughout a building.

Compatible Accessories

• Spectra Precision HL700 Laser Detector – Extends working range to 165 feet in bright conditions

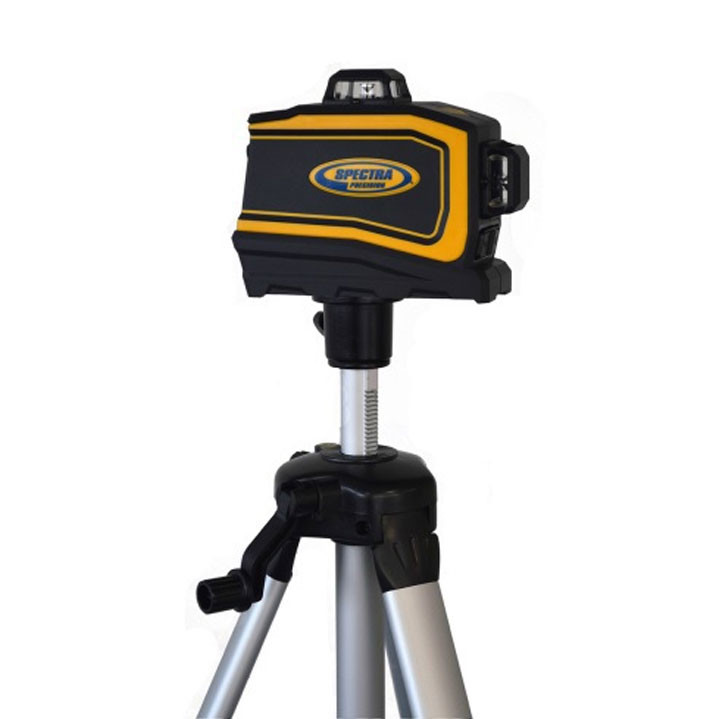

• Heavy-Duty Laser Tripod with Quick-Release Mount – Provides stable positioning at any height
• Magnetic Laser Target Panels (3-Pack) – Improves beam visibility on distant or dark surfaces
• RC601 Remote Control – Allows operation adjustment without accessing the laser
• Red Beam Enhancement Glasses – Increases beam visibility in challenging lighting
• Adjustable Elevator Tripod – Precision height adjustment from 3 to 10 feet
• AC Power Adapter for Spectra Lasers – Eliminates battery changes during all-day projects

Related Guides

• Crossline vs. Rotary Lasers: Choosing the Right Tool for Interior Layout
• How to Verify and Maintain Laser Level Accuracy
• Professional Tile Layout Techniques Using Laser Levels
• Laser Tool Safety: OSHA Requirements and Best Practices

FAQ

Can the LT56 be used outdoors for deck or patio projects?

While the LT56 functions outdoors, its red beam becomes difficult to see in direct sunlight beyond 15-20 feet. For outdoor applications, consider a green beam laser or use the optional HL700 detector, which extends usable range to 165 feet regardless of lighting conditions. The LT56 excels in covered outdoor spaces like garages, porches, and pavilions where direct sunlight isn't a factor.

How does the self-leveling system work, and what happens if the laser is bumped?

The LT56 uses a pendulum-based compensator that automatically levels the laser within ±5 degrees. If the unit is moved or disturbed beyond its leveling range, the laser beam begins flashing to alert you that it's out of level and measurements would be inaccurate. Simply reposition the laser closer to level, and it will automatically lock and display a steady beam when properly leveled.

What's the difference between this and a standard bubble-level laser pointer?

The LT56 projects full-room reference planes rather than just laser dots, creating continuous lines across entire walls, floors, and ceilings. The dual-axis self-leveling system maintains accuracy automatically, whereas bubble levels require manual adjustment and only project fixed points. This makes the LT56 dramatically faster for layout work involving multiple transfer points or pattern alignment.

Will the magnetic mount work on metal studs and HVAC ductwork?

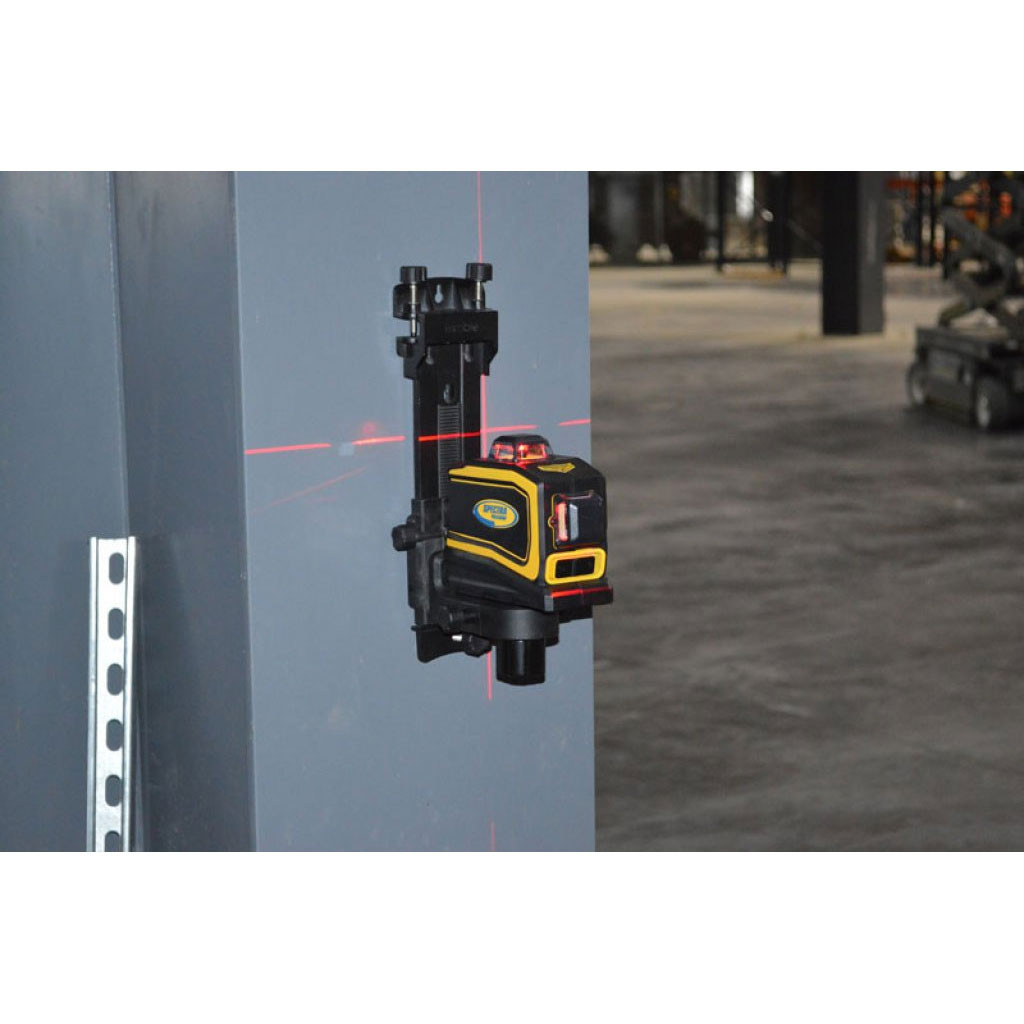

Yes, the included magnetic bracket provides secure attachment to any ferrous metal surface, including steel studs, ductwork, conduit, and structural steel. The mount features an adjustable tilt mechanism that helps position the laser at optimal angles even when mounting surfaces aren't perfectly vertical. For non-magnetic surfaces, use the standard 1/4"-20 or 5/8"-11 tripod threads.
