Spectra Precision LT52 Point and Line Laser Tool

Overview

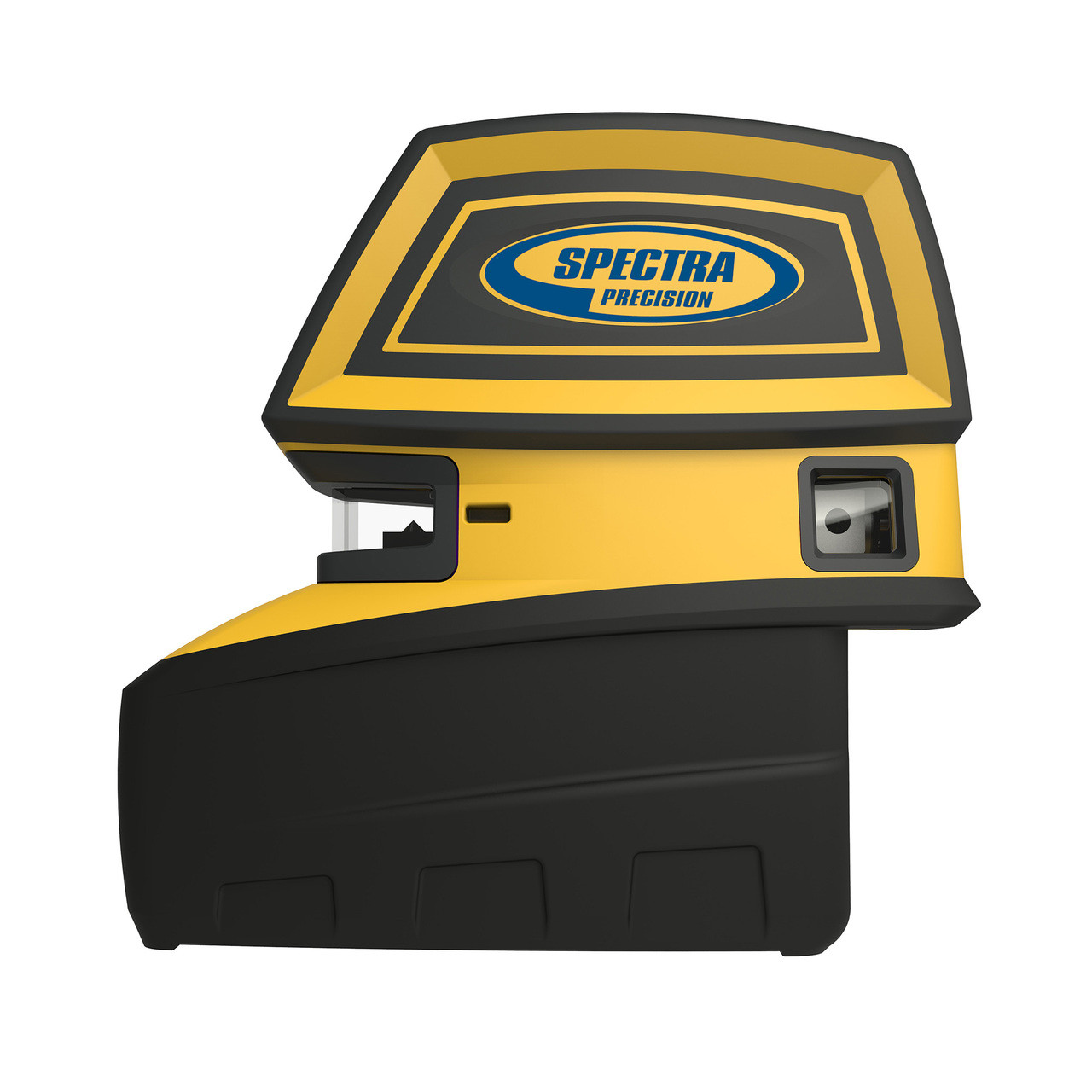

The Spectra Precision LT52 Point and Line Laser Tool delivers professional-grade layout capability in a single compact package, combining five-point laser projection with full horizontal and vertical crosslines to eliminate the need for multiple tools on the jobsite. This dual-functionality design addresses the reality of mixed-trade construction environments where point lasers excel for reference marking and transfer work, while line lasers streamline alignment and leveling tasks. With automatic self-leveling technology that compensates for tripod placement up to ±4 degrees, the LT52 maintains accuracy without constant manual adjustments, allowing contractors to set up quickly and work confidently across interior installations, mechanical rough-ins, and finish carpentry applications.

Built for professional trades including electricians, HVAC installers, framers, and finish carpenters, the LT52 features bright, clearly visible laser projections that remain readable in typical indoor lighting conditions. The five-point configuration projects laser dots at forward, backward, up, down, and plumb-down positions, creating comprehensive reference points for fixture placement, equipment mounting, and vertical transfer work. Simultaneously, the horizontal and vertical crosslines provide 120-degree fan angles for extended coverage along walls and floors, reducing the need for repositioning during alignment tasks. This combination makes the LT52 particularly valuable for contractors who transition between different project phases or work across multiple trades, consolidating their tool investment while maintaining professional-grade performance.

The tool's compact, lightweight design enhances portability without sacrificing durability, featuring protective overmold construction that absorbs impacts from typical jobsite handling. At just 2.2 pounds with batteries installed, the LT52 mounts easily to standard tripods via its 1/4"-20 thread or attaches to magnetic surfaces using optional accessories. Battery efficiency supports extended runtime on standard AA alkaline batteries, with approximately 20 hours of operation when running points and lines simultaneously, ensuring the tool keeps pace with full workdays without battery changes interrupting productivity.

Key Specifications

• Laser Configuration: Five-point laser (forward, backward, up, down, plumb-down) plus horizontal and vertical crosslines
• Leveling System: Automatic self-leveling with ±4-degree compensation range; out-of-level indicator flashing laser
• Accuracy: ±1/4 inch at 30 feet (±3mm at 10m)
• Line Fan Angle: 120 degrees horizontal and vertical
• Working Range: Up to 100 feet (30m) diameter; extends to 200 feet (60m) with compatible detector
• Laser Class: Class 2, <1mW power output, 635nm red laser diode
• Power Source: Three AA alkaline batteries (included)
• Battery Life: Approximately 20 hours (points and lines), 30 hours (points only)
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Tripod Mount: 1/4"-20 thread, standard photographic tripod compatible
• Ingress Protection: IP54 rated for dust and water splash resistance
• Weight: 2.2 lbs (1.0 kg) with batteries
• Dimensions: 4.3" × 3.9" × 5.5" (110mm × 99mm × 140mm)
• Warranty: Three-year manufacturer limited warranty

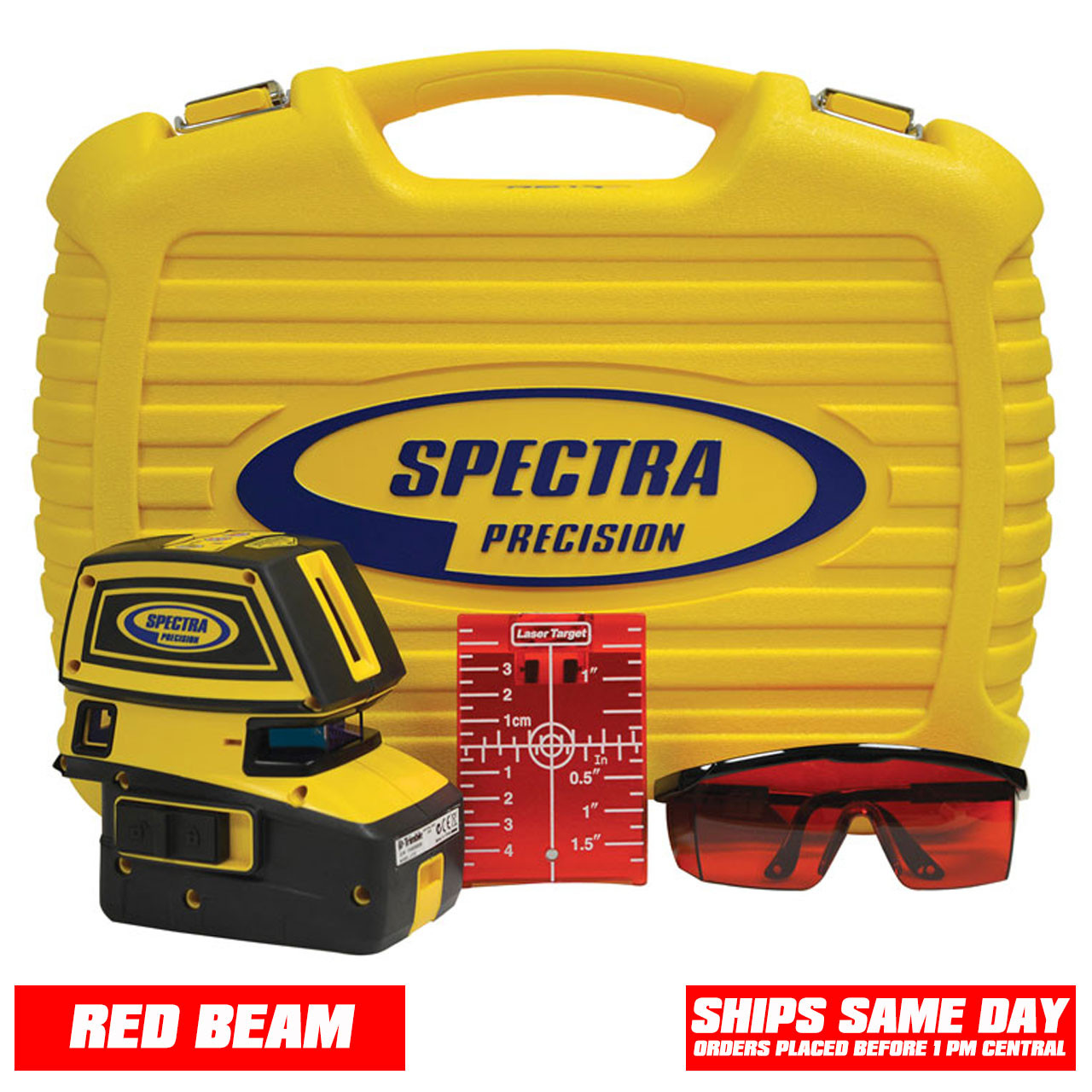

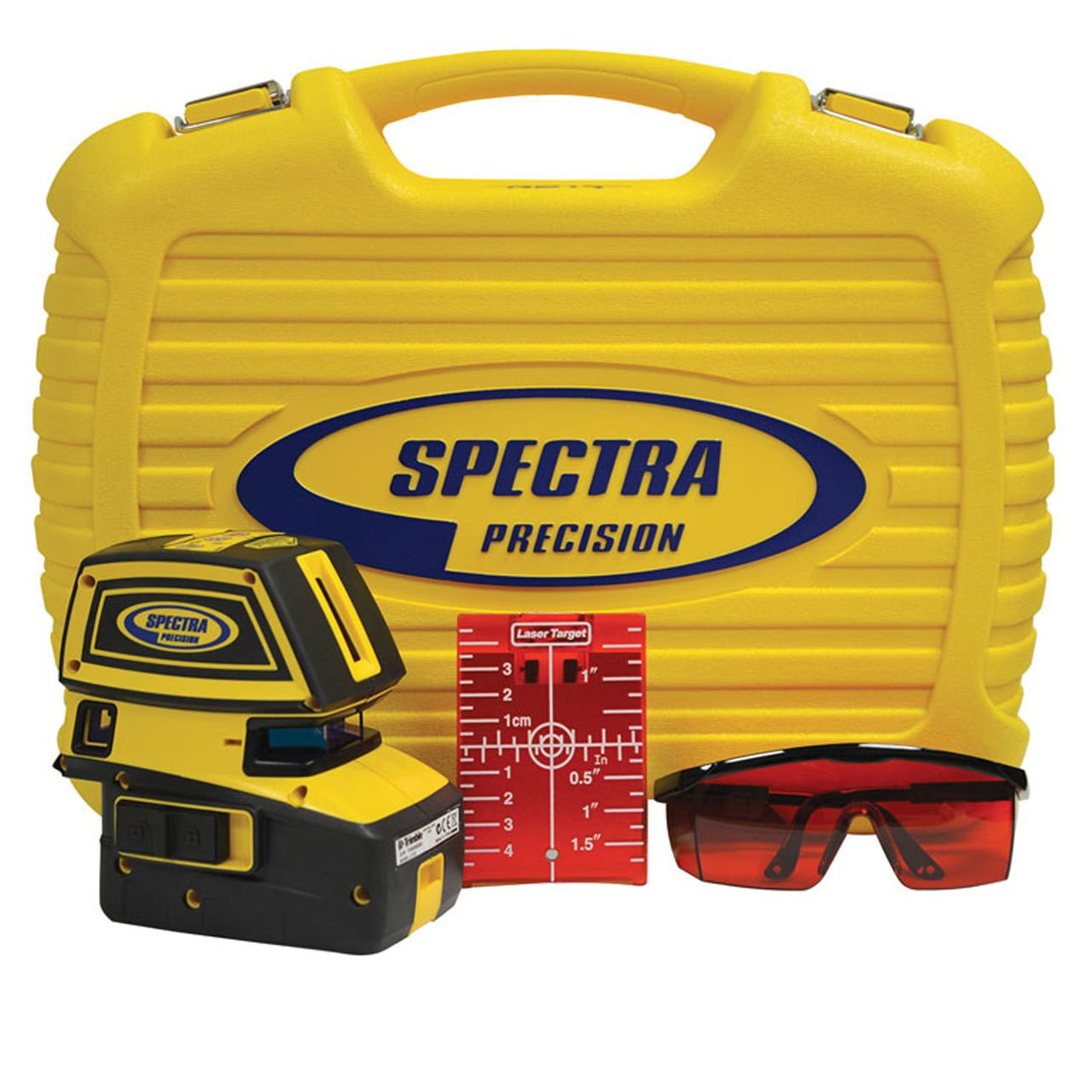

What's in the Kit

• Spectra Precision LT52 Point and Line Laser
• Three AA Alkaline Batteries (installed)
• Soft Carrying Case with shoulder strap and internal tool pocket

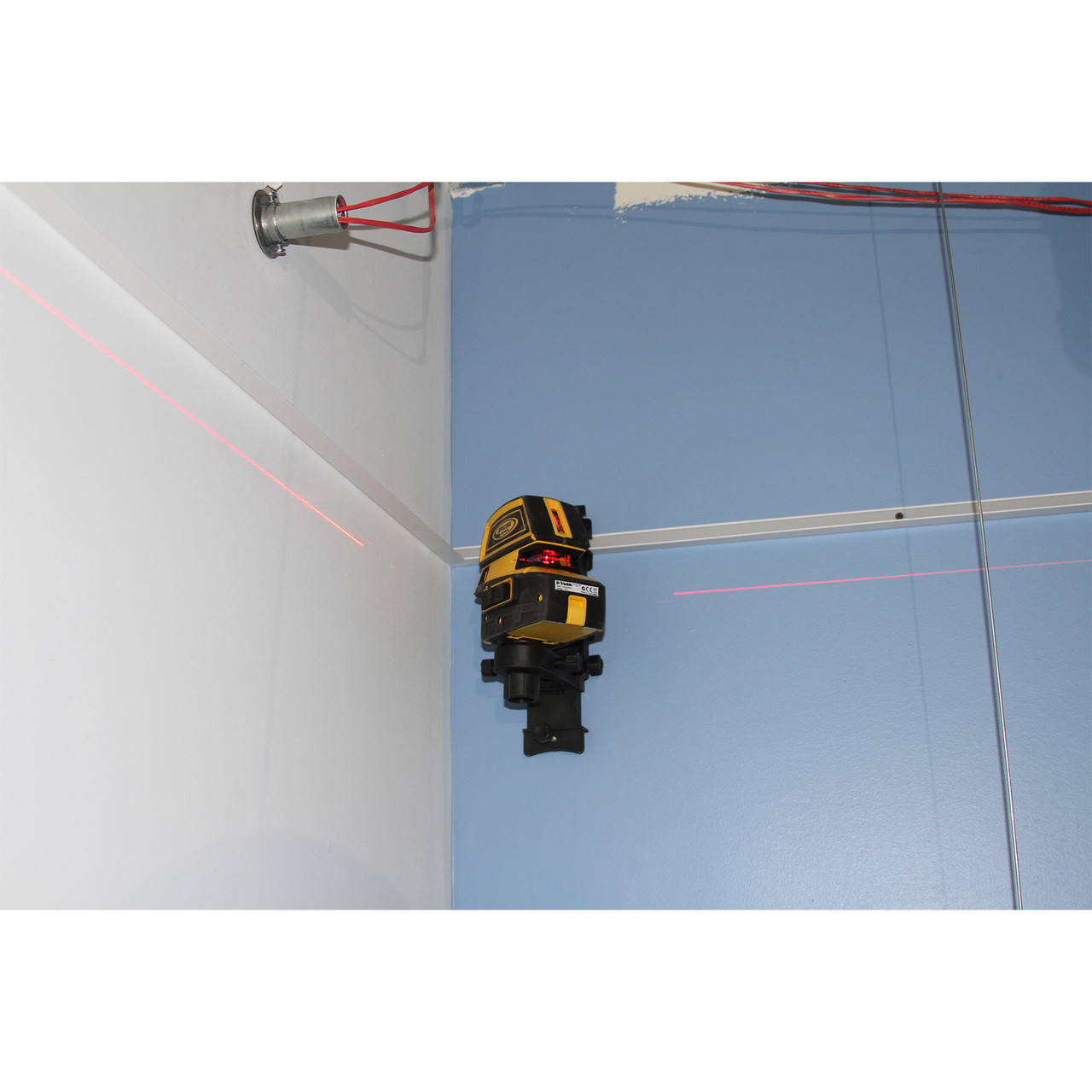

• Magnetic Wall Mount Bracket with quick-release mechanism
• Laser Target Card for enhanced visibility at extended distances
• Quick Start Guide and Safety Documentation

Job Applications

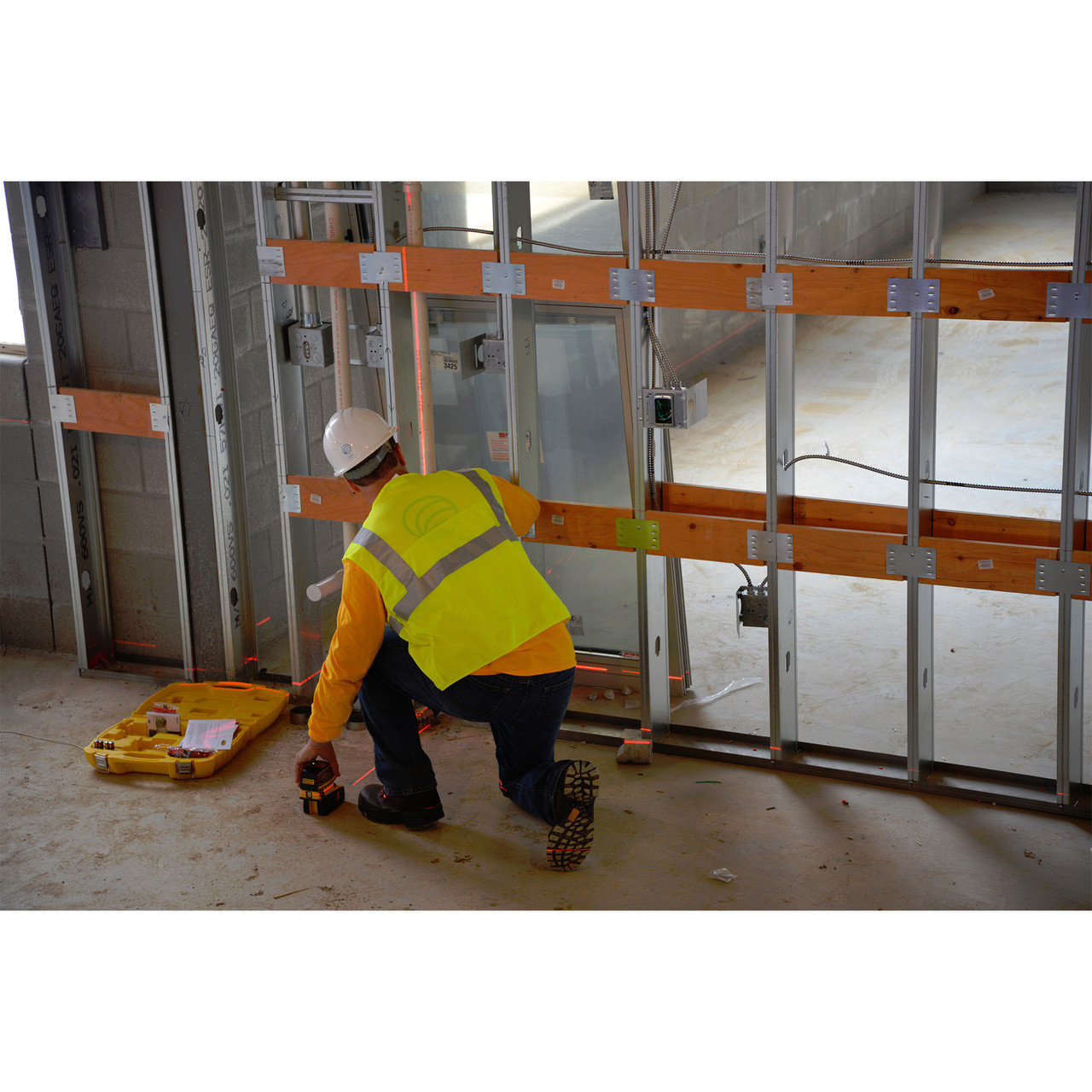

• Electrical Fixture and Device Installation: The five-point laser provides precise reference marks for transfer punching outlet boxes, switch locations, and lighting fixture positions between studs and finish surfaces, while crosslines verify consistent height alignment across rooms, ensuring uniform installation that meets code requirements and professional appearance standards.
• HVAC Duct and Pipe Layout: Horizontal and vertical crosslines streamline the alignment of ductwork, refrigerant lines, and condensate drains across long runs, while point projections establish exact penetration locations through joists and plates, reducing measurement time and eliminating cumulative layout errors that compound over distance in mechanical systems.
• Kitchen and Bath Cabinet Installation: The horizontal line establishes consistent cabinet height around entire rooms despite uneven floors, while the vertical line verifies plumb alignment and the plumb-down point transfers ceiling measurements to floor layout, ensuring cabinets, countertops, and tile work align perfectly in highly visible finish environments.
• Suspended Ceiling Grid Installation: Crosslines provide continuous reference for main runner alignment and cross-tee positioning without measuring each grid intersection, while the plumb-down point transfers ceiling grid layout to floor positions for wall angle installation, dramatically accelerating layout in commercial ceiling applications.

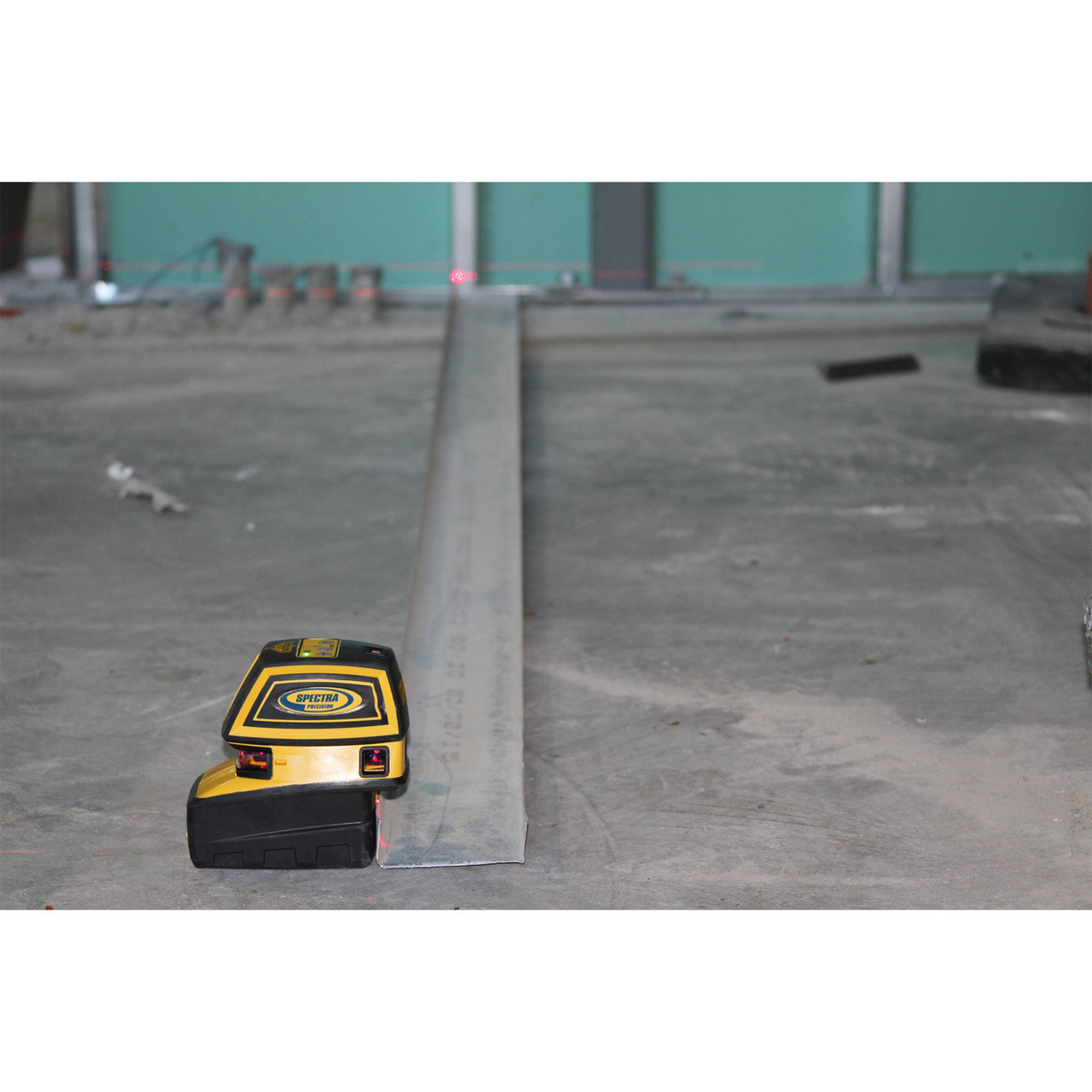

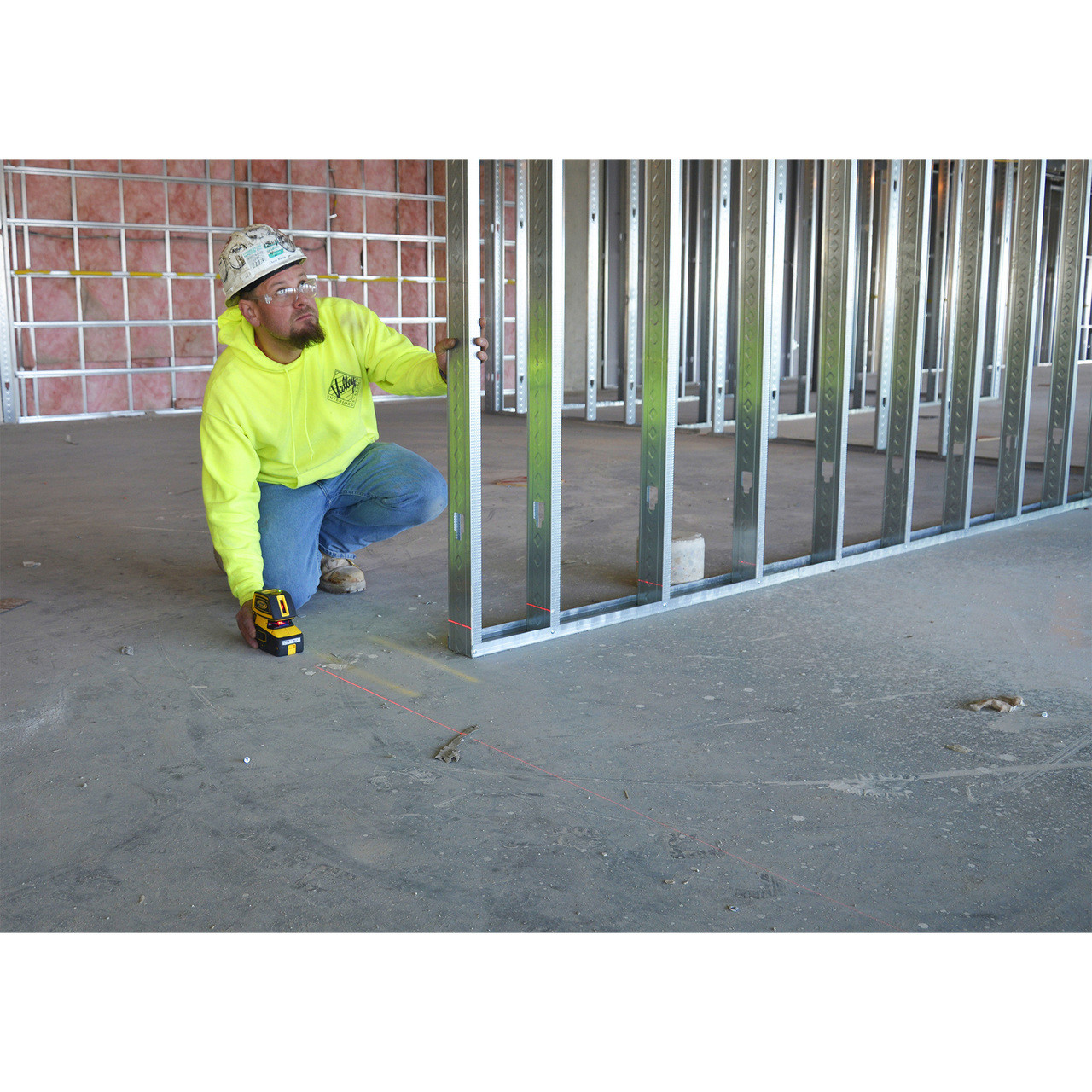

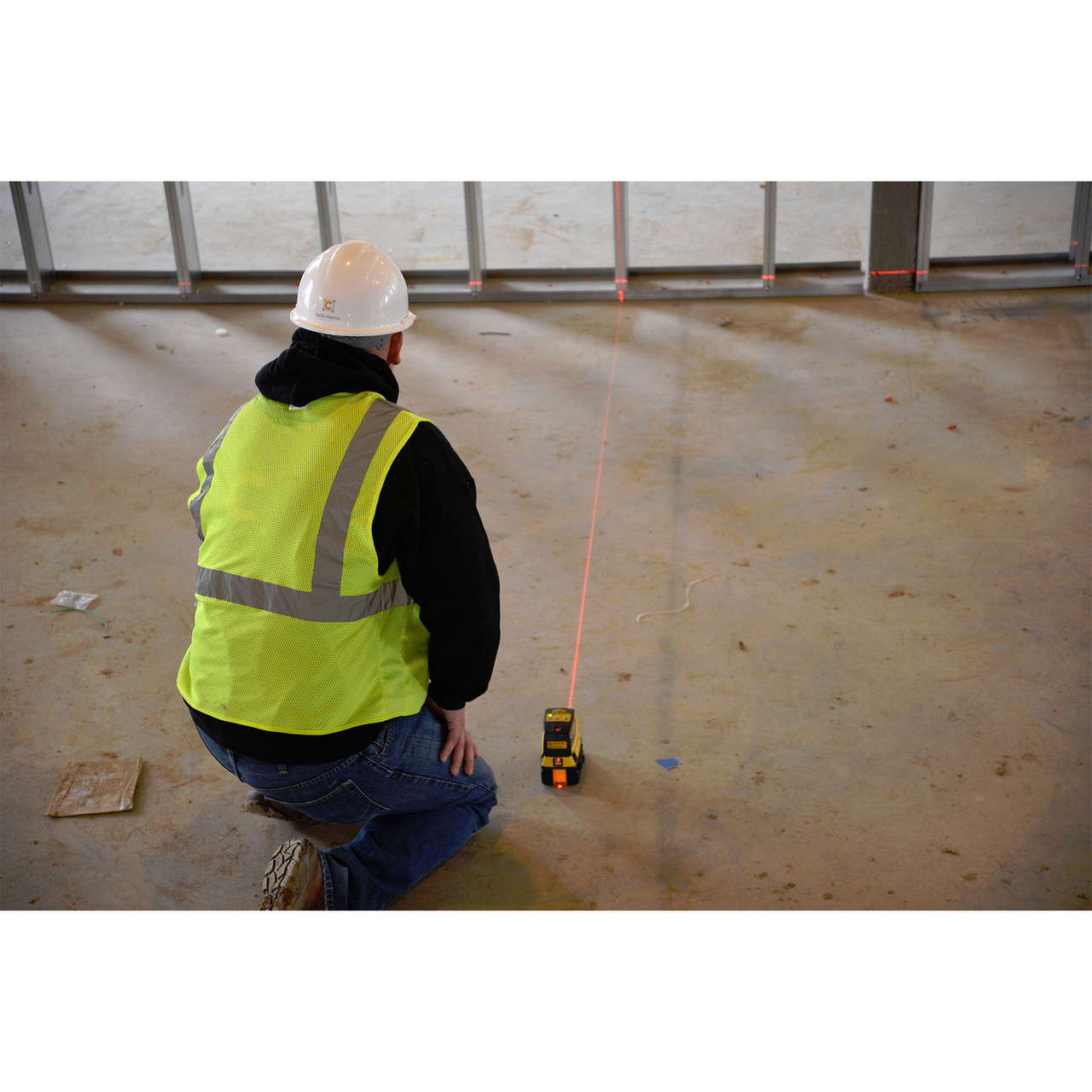

• Framing and Partition Wall Layout: The forward and backward points establish parallel reference lines for plate layout at extended distances, while vertical crosslines verify wall plumb during installation, combining rough layout speed with accuracy that prevents compounding errors in complex floor plans with multiple intersecting walls.
• Window and Door Trim Installation: Vertical and horizontal crosslines establish reveal lines and alignment references for casing and base installation, while point lasers verify symmetrical positioning around openings, enabling faster finish carpentry work that maintains consistent sight lines and professional appearance throughout the project.

Compatible Accessories

• Spectra Precision LR30W Wireless Laser Receiver: Extends working range to 200 feet in bright conditions or outdoor environments; wireless connectivity eliminates rod mounting
• Heavy-Duty Aluminum Tripod: Professional-grade tripod with quick-clamp legs and adjustable height from 40" to 67" for elevated laser positioning
• Magnetic Floor Base: Low-profile base attaches to steel studs, I-beams, and metal decking for overhead point transfer work
• Laser Enhancement Glasses: Red-lens glasses increase laser line visibility in bright ambient lighting conditions by up to 300%
• Ceiling/Wall Grid Target: Rotating laser target with magnetic mount for precise alignment verification in grid ceiling installations

Related Guides

• Choosing Between Point Lasers and Line Lasers for Your Trade
• Understanding Laser Level Accuracy Specifications
• Extending Your Laser's Working Range with Detectors
• Laser Safety Best Practices for Construction Jobsites

FAQ

Can the LT52 project points and lines simultaneously or must I choose one mode?

The LT52 projects all five points and both crosslines simultaneously at all times when powered on. This continuous multi-projection capability is the core advantage of the tool, eliminating the need to switch between modes or swap between separate point and line lasers during mixed tasks on the same job.

How does the self-leveling feature work if my tripod is significantly out of level?

The LT52's automatic compensator self-levels when the base is within ±4 degrees of level. If tripod tilt exceeds this range, the laser begins flashing to indicate out-of-level status, alerting you to reposition the tripod. This protects against working with inaccurate reference lines that could result from severe base tilt beyond the compensator's correction ability.

What's the practical difference between the 100-foot range and the 200-foot detector range?

The 100-foot range represents the distance at which the laser dots and lines remain visible to the naked eye in typical indoor lighting. For work beyond this distance or in very bright conditions where the laser becomes difficult to see, adding a compatible detector extends functional range to 200 feet by electronically sensing the laser and providing audio/visual confirmation of the beam position.

Is this laser suitable for outdoor construction layout work?

The LT52 is primarily designed for indoor applications where its red laser remains visible. While the laser functions outdoors within its operating temperature range and IP54 weather protection, visibility decreases significantly in direct sunlight. For outdoor use, you'll need to pair it with a compatible laser detector and work during lower-light conditions (early morning, late afternoon, or overcast days) for best results.
