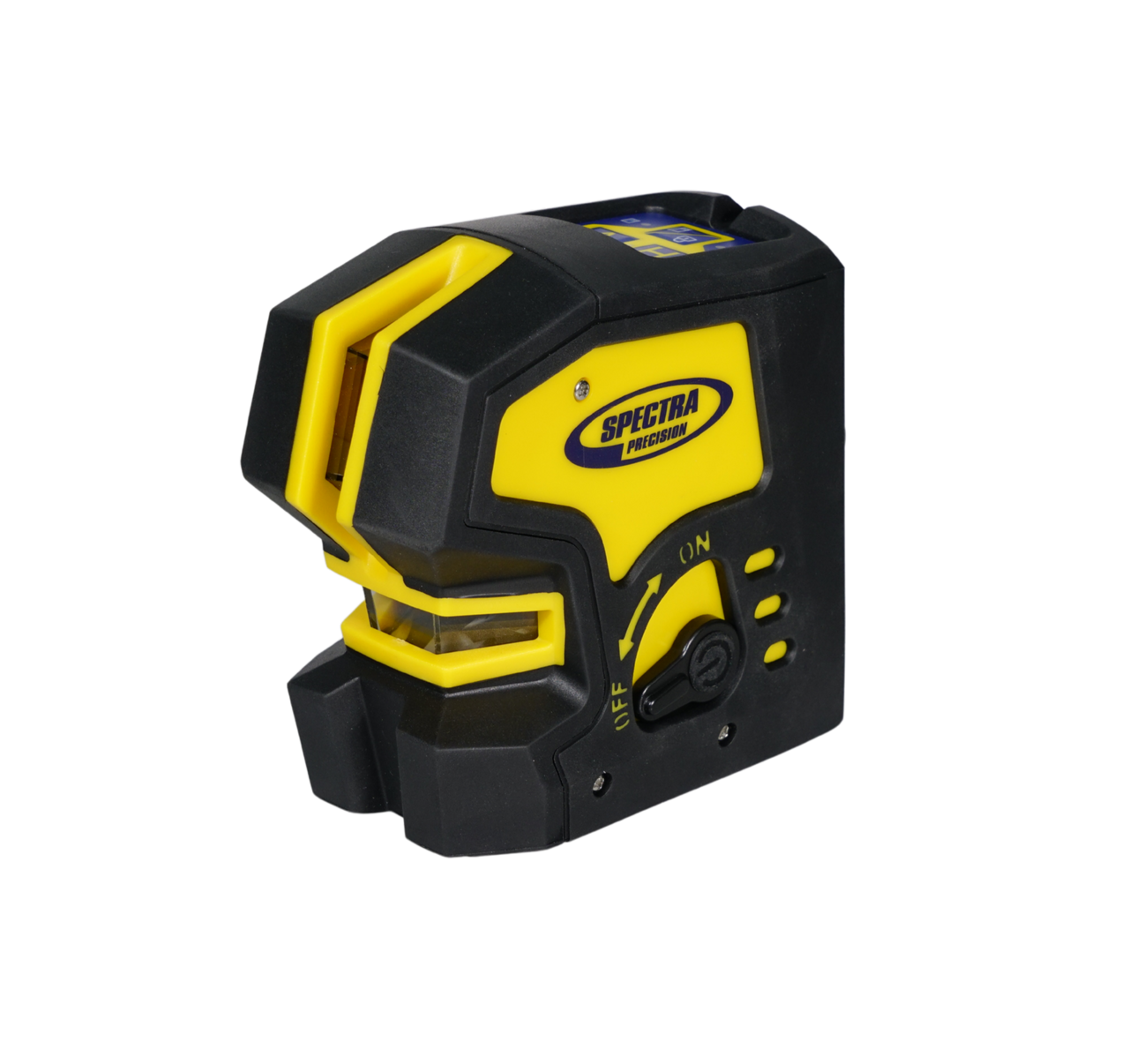

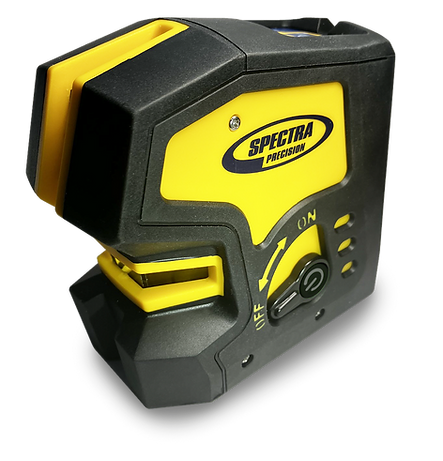

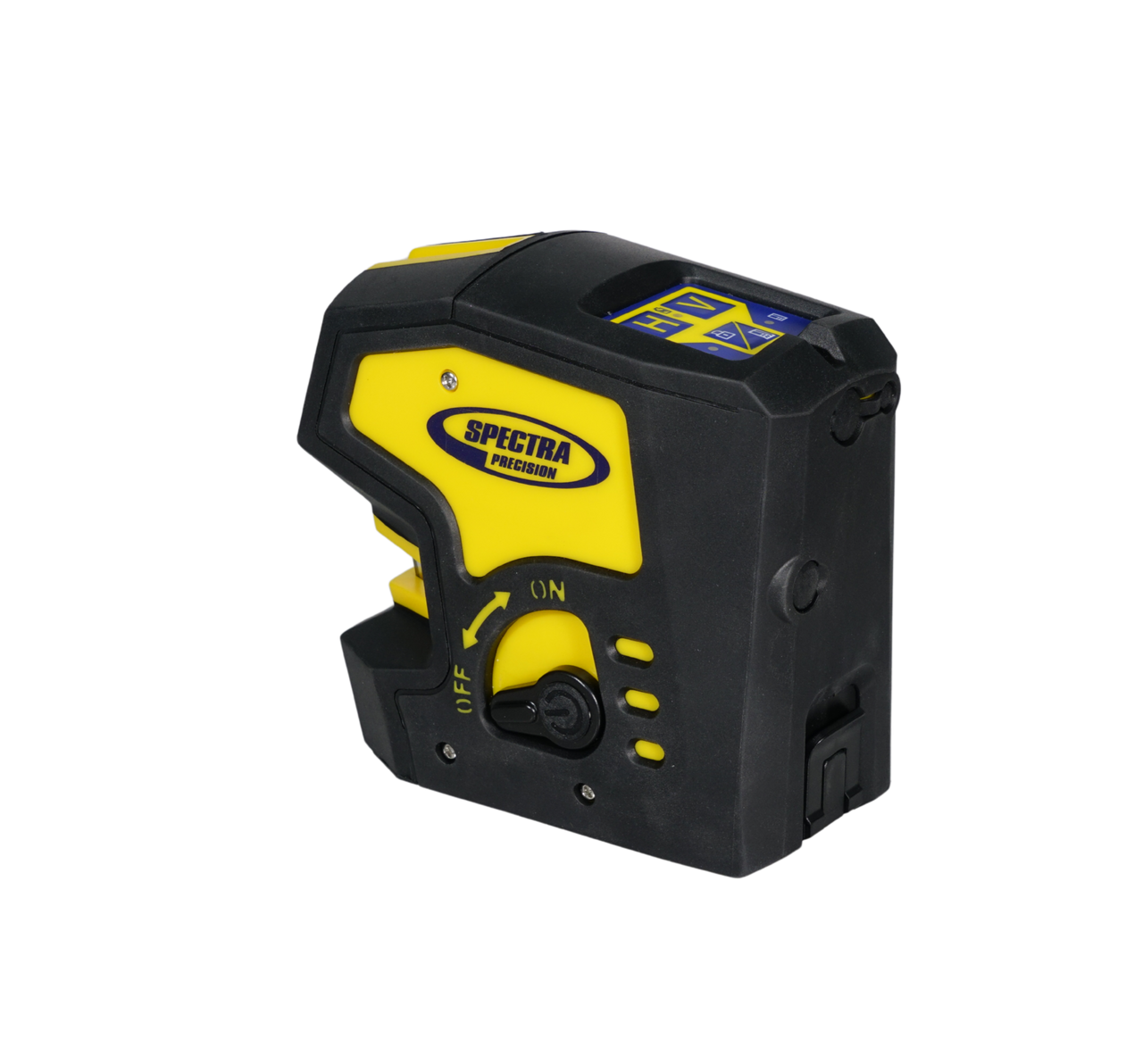

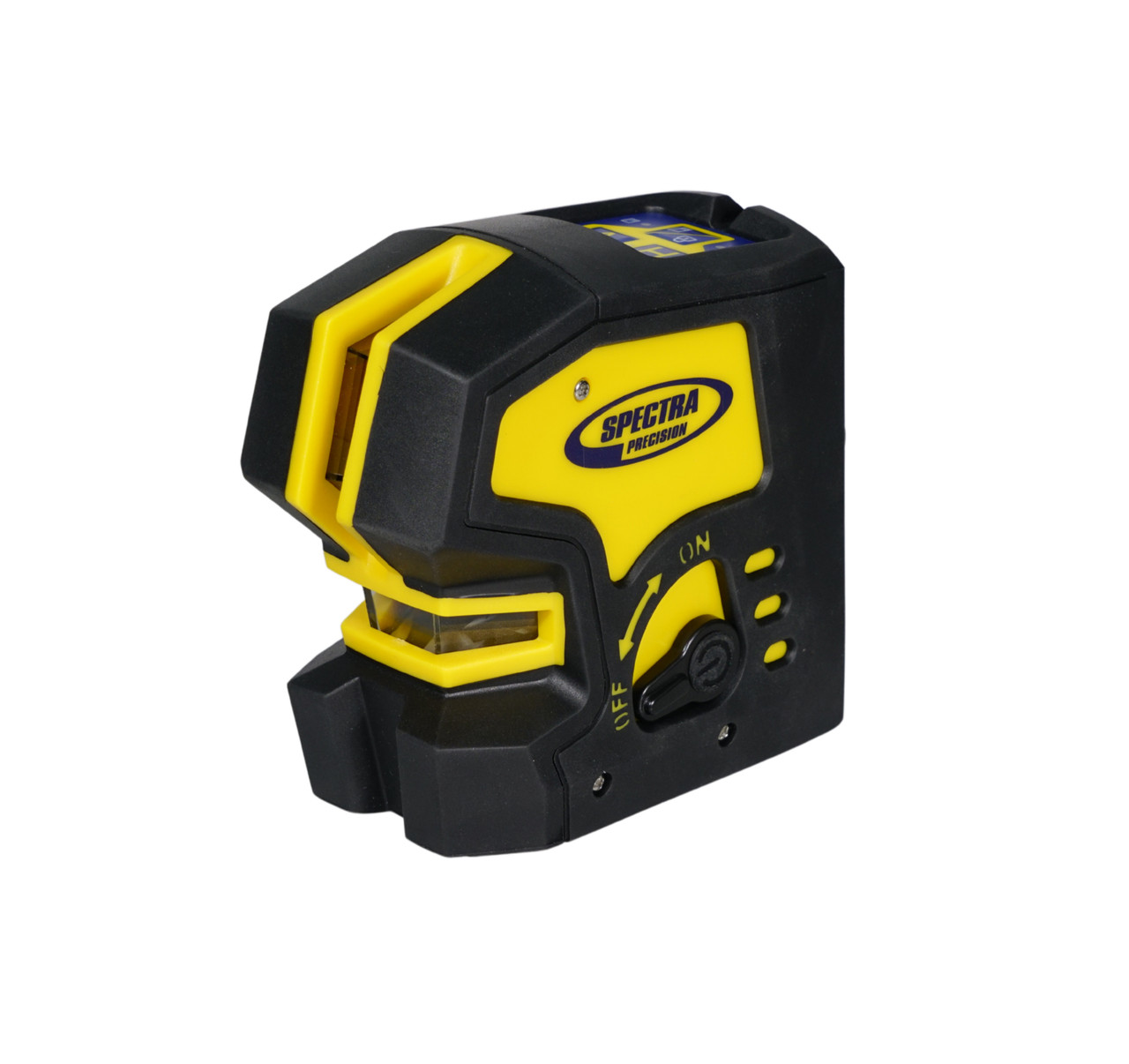

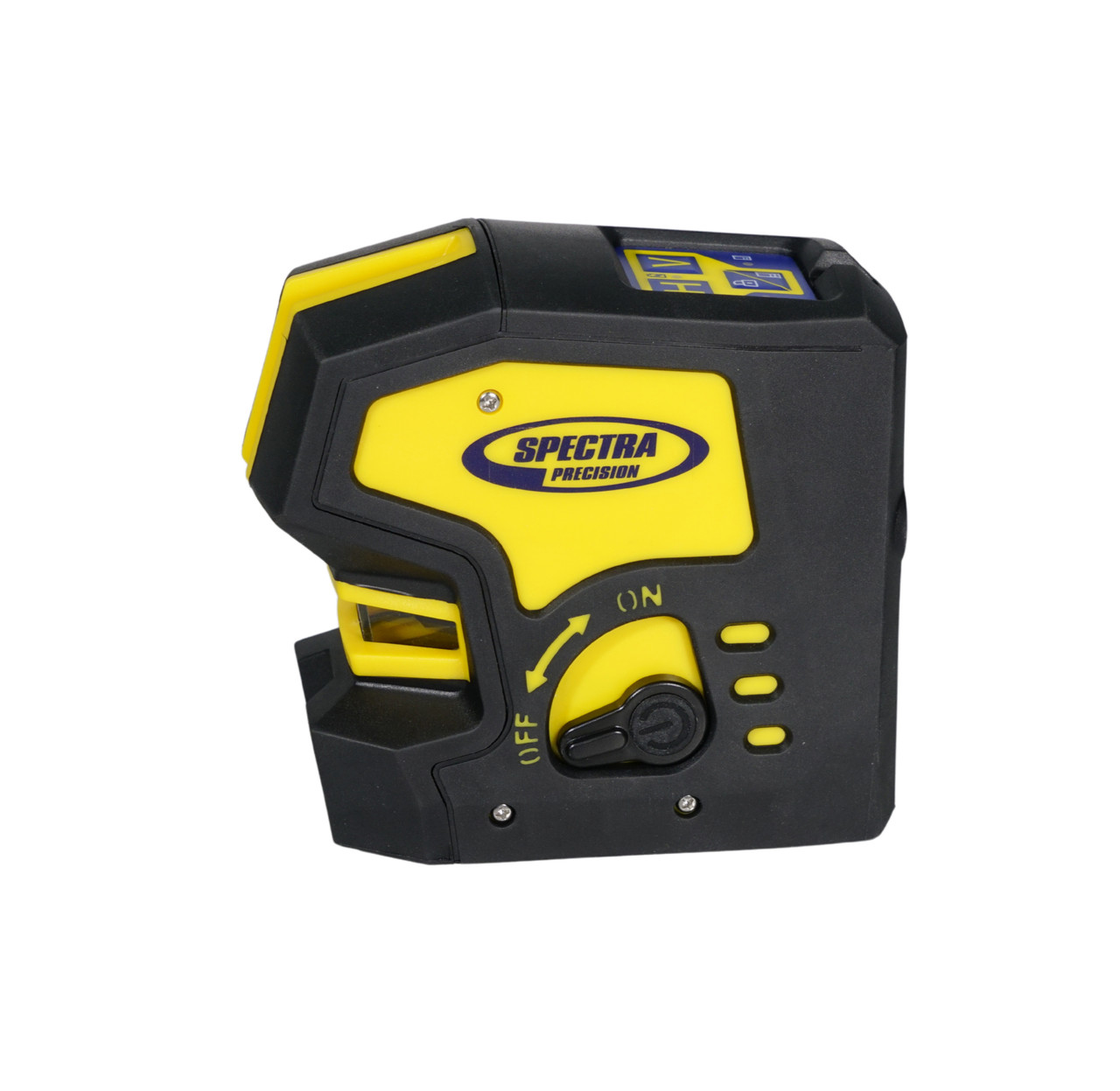

Spectra Precision LT20XG Cross-Line Laser — Built for Jobsite Toughness and Interior Precision

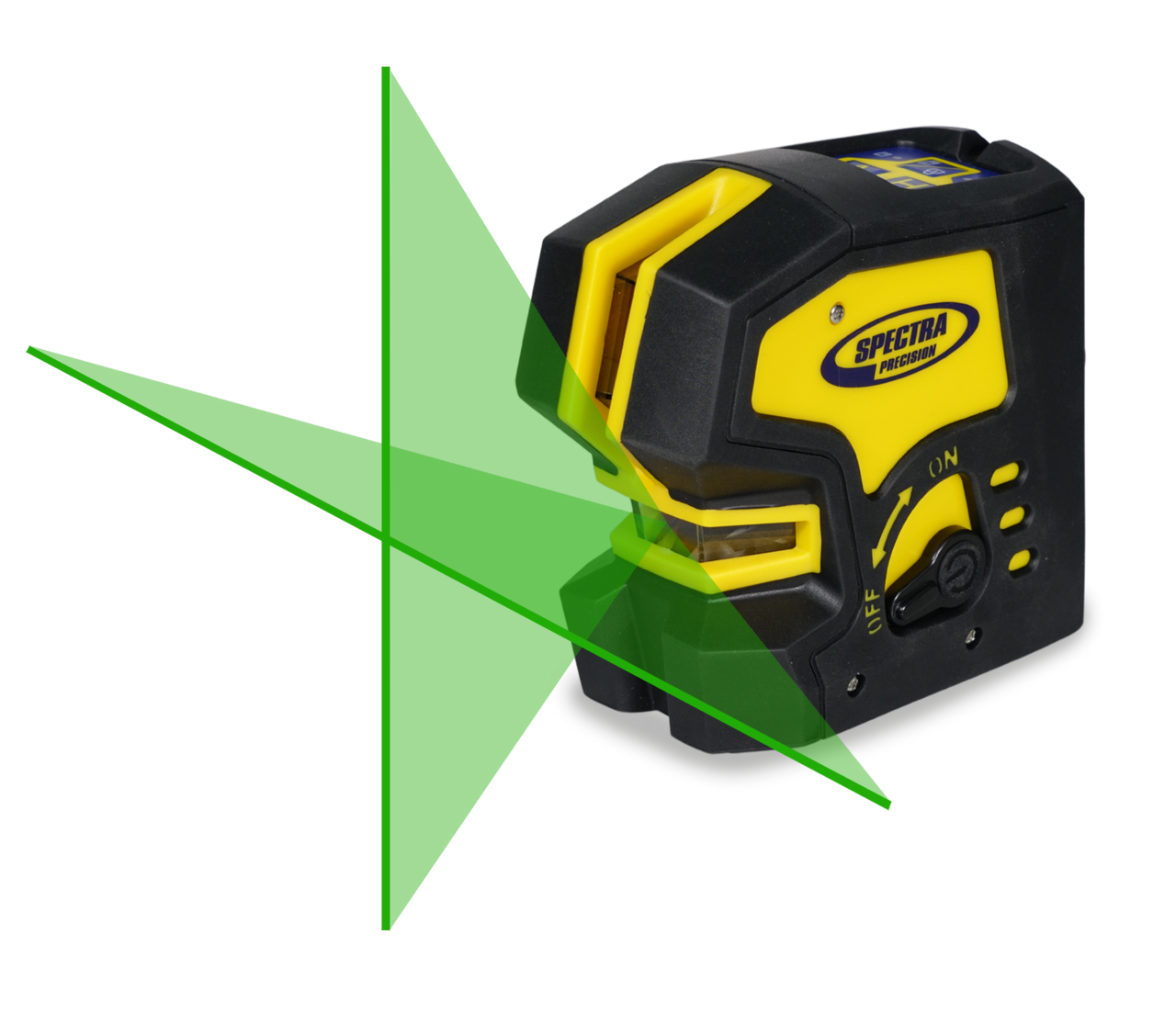

The Spectra Precision LT20XG is a professional-grade, self-leveling cross-line laser engineered for contractors who demand fast setup and reliable accuracy on interior jobsites. Projecting bright green horizontal and vertical reference lines simultaneously, the LT20XG cuts layout time dramatically and keeps your crew working with confidence — whether you're tiling floors, hanging cabinets, framing walls, or installing suspended ceilings.

Product Overview

Designed for the demands of interior construction, the LT20XG combines Spectra Precision's proven leveling technology with a rugged, jobsite-ready housing. The instrument self-levels within ±4 degrees, locks automatically when tilted beyond that range to prevent false readings, and delivers ±1/8-inch accuracy at 30 feet. Green beam technology provides up to 4× greater visibility than red beam lasers in the same class, making lines easy to read even in well-lit rooms without turning off the lights. A single button controls line selection — horizontal only, vertical only, or both lines simultaneously — giving you exactly the reference you need for each task.

Key Specifications

• Laser Color: Green (532 nm diode)
• Accuracy: ±1/8 in. at 30 ft (±3 mm at 10 m)
• Self-Leveling Range: ±4 degrees
• Working Range: Up to 100 ft diameter (with detector)

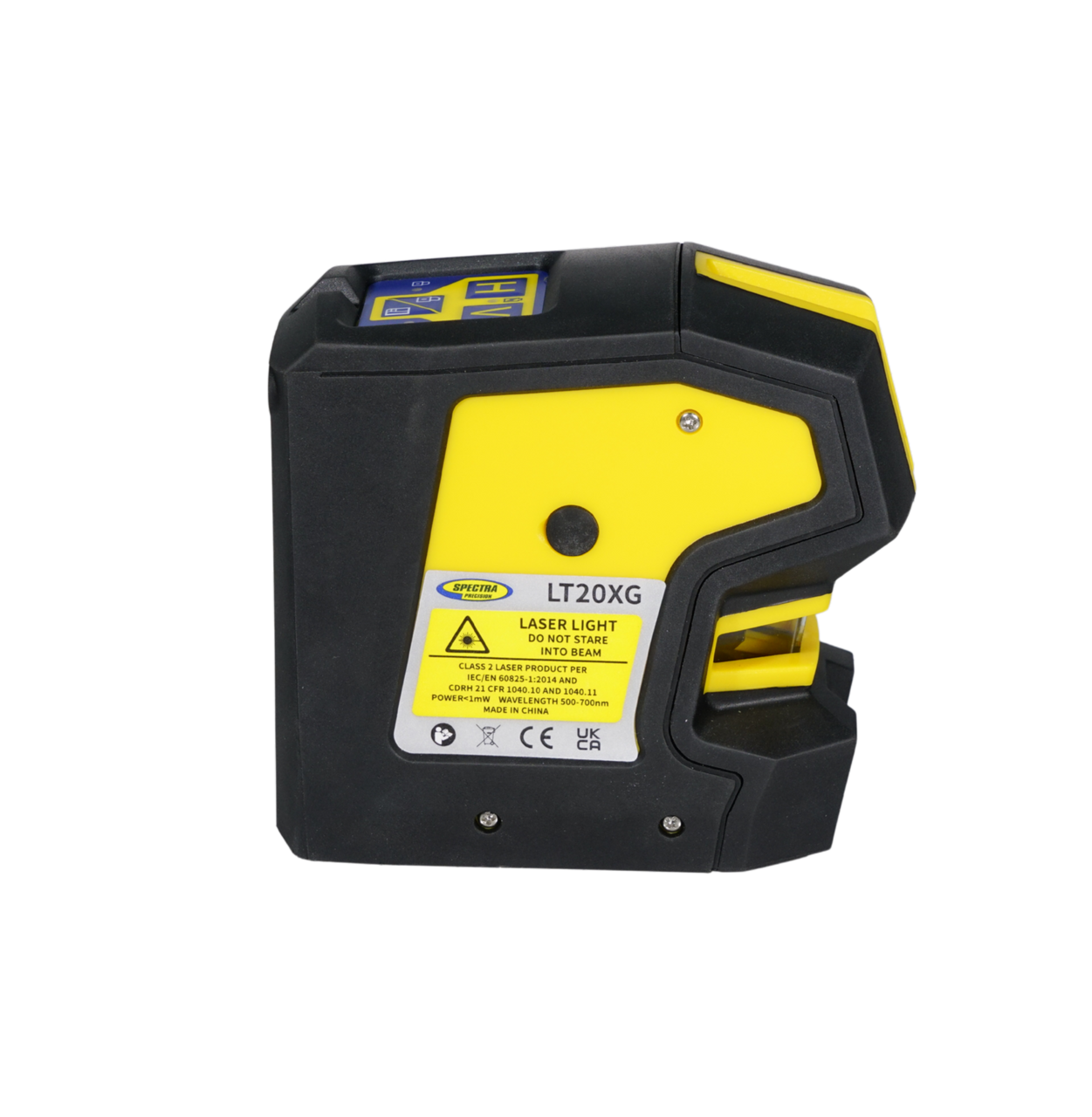

• Laser Class: Class 2, <1 mW
• Battery Life: Up to 20 hours (3× AA alkaline batteries)
• Dust & Water Protection: IP54 rated
• Tripod Mount: 5/8-11 standard thread
• Weight: Approximately 1.4 lbs (0.65 kg)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)

Key Features

• Bright green beam for maximum visibility in lit interior environments
• Automatic self-leveling with out-of-level warning alarm
• Three operating modes: horizontal line, vertical line, or cross-line
• IP54-rated housing resists dust and water splashes on the jobsite
• Over-molded rubber housing absorbs impact from minor drops and bumps
• 180-degree rotating base for flexible positioning without moving the instrument
• Standard 5/8-11 thread compatible with most tripods and wall brackets
• Long battery life — up to 20 hours on 3 AA batteries

Job Applications

Tile & Flooring Installation: Project a perfectly level horizontal line across a room to establish your first course of tile. Use the vertical line to maintain consistent grout joints and square layouts from wall to wall.

Cabinet & Millwork Hanging: Lock in a level reference line at cabinet height and transfer it around the entire room in seconds. Eliminate repeated measuring and chalk lines that waste time between cabinets.

Drywall & Partition Framing: Use the vertical beam to plumb stud walls and partition framing, and the horizontal beam to set consistent ceiling and floor track heights across long runs.

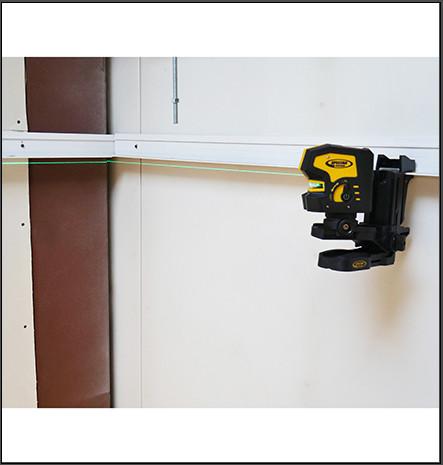

Drop Ceiling & Suspended Grid Layout: Establish a level plane for suspension wire heights and perimeter angle iron with a single instrument setup, speeding grid layout for commercial and residential ceiling projects.

Compatible Accessories

• Spectra Precision HL760 Laser Detector — Extends working range outdoors and in bright conditions
• Spectra Precision HR320 Elevator Tripod — Adjustable height tripod with 5/8-11 mount

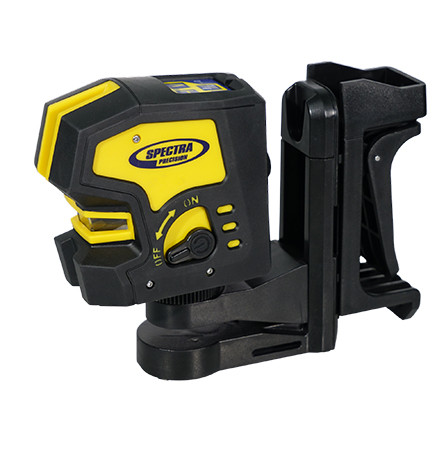

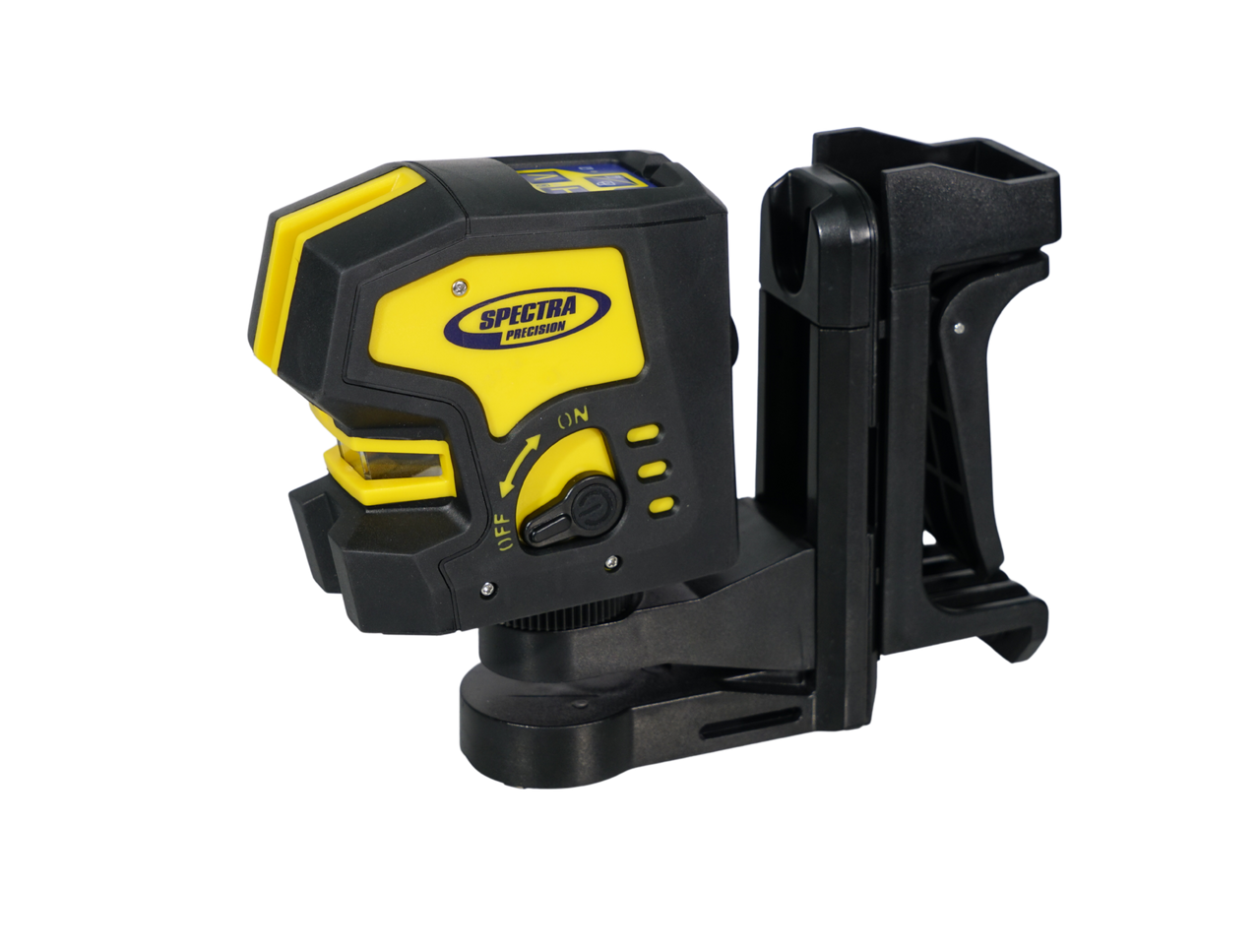

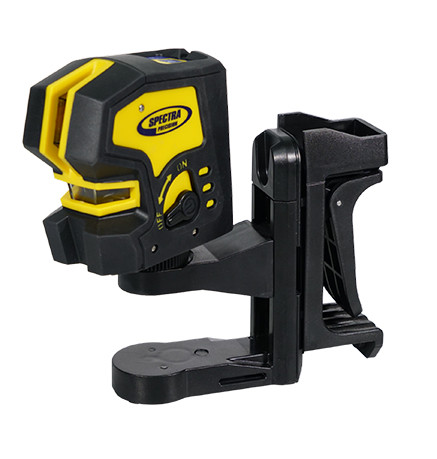

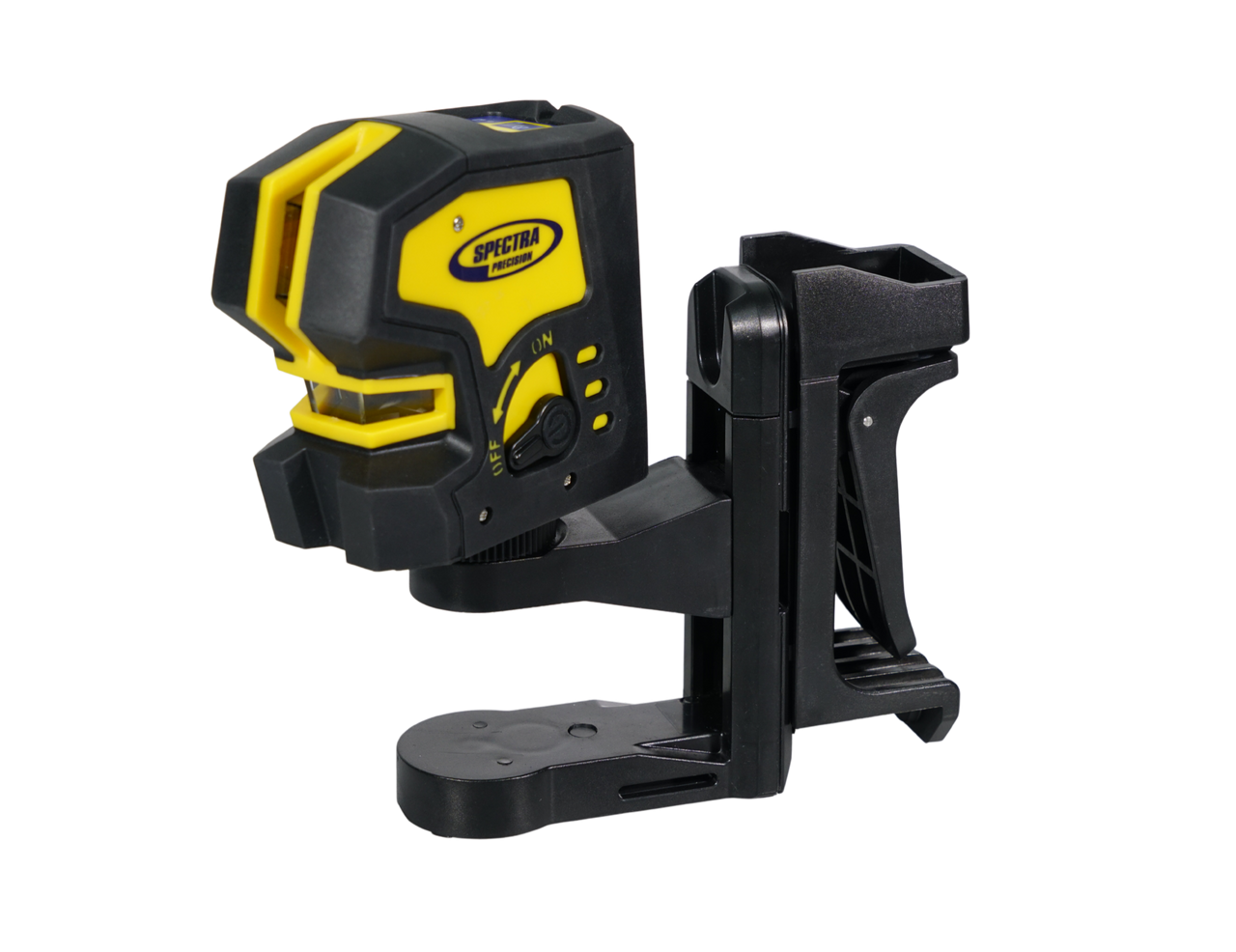

• Spectra Precision WB20 Wall/Ceiling Bracket — Magnetic mount for hands-free positioning
• Spectra Precision Carry Case for LT Series — Protective storage and transport case

Related Guides

• How to Set Up a Cross-Line Laser for Tile Layout
• Red vs. Green Beam Lasers: Which Is Right for Your Work?
• Using a Laser Level for Cabinet Installation
• Laser Level Accuracy Guide: What ±1/8" at 30 Ft Really Means

Frequently Asked Questions

Does the LT20XG work with a laser detector?

Yes. When paired with a compatible Spectra Precision detector such as the HL760, the LT20XG's working range extends significantly, making it practical for outdoor use or large, brightly lit interior spaces where the green beam may be harder to see with the naked eye.

Can I use the LT20XG for outdoor layout work?

The LT20XG is optimized for interior use. In outdoor or high-ambient-light conditions, a compatible laser detector is strongly recommended to pick up the beam reliably. The IP54 rating means it can handle light rain and dust exposure, but it is not designed for extended outdoor or rough-weather use.

What does the out-of-level warning do?

If the instrument is placed on a surface that exceeds its ±4-degree self-leveling range, it will automatically lock the beam and trigger an audible or visible warning, preventing you from taking measurements off a false level reference without realizing it.

Is the LT20XG compatible with standard tripods?

Yes. The base of the LT20XG features a standard 5/8-11 threaded mount, which is compatible with the vast majority of contractor tripods, grade rods, and wall brackets available on the market, including all Spectra Precision and compatible third-party accessories.
