Spectra Precision LR60 Laser Machine Display Receiver (NiMH)

# Spectra Precision LR60 Laser Machine Display Receiver (NiMH) — Professional-Grade Elevation Control The Spectra Precision LR60 laser receiver delivers advanced signal detection and real-time elevation data for professional machine control applications. Designed for contractors running excavators, dozers, and graders, this dual-display receiver features front and rear LCD screens, extended 60-hour battery life with NiMH technology, and rugged IP67-rated housing that withstands jobsite punishment. The LR60's enhanced detection algorithms maintain precise grade accuracy even in challenging environments with engine vibration, direct sunlight, and rotor interference—making it the go-to choice for demanding grading, excavation, and civil construction projects. ## Overview The Spectra Precision LR60 represents a significant advancement in laser receiver technology for machine guidance applications. This professional-grade receiver combines dual-display convenience with industrial durability, providing operators with clear elevation feedback regardless of their position on the machine. Built around advanced signal processing algorithms, the LR60 excels at filtering out false signals and environmental interference while maintaining lock on the rotating laser beam. The front and rear LCD displays show identical elevation information with bright, high-contrast graphics visible in direct sunlight—eliminating the need for operators to reposition themselves to check grade status. The receiver's NiMH rechargeable battery system delivers approximately 60 hours of continuous operation on a single charge, significantly reducing downtime and eliminating the cost and environmental impact of disposable batteries. An integrated battery status indicator provides advance warning before power depletion, allowing operators to plan charging cycles during natural work breaks. The LR60's detection window spans 120mm (4.7 inches) vertically, providing a generous capture range for initial grade acquisition while maintaining millimeter-level accuracy once locked onto the laser plane. This detection window is optimized for the rotating laser frequencies used in Spectra Precision systems, with sophisticated filtering to reject interference from competing lasers on multi-contractor sites. Housed in an IP67-rated enclosure with rubber overmolding, the LR60 withstands the constant vibration, impact, and weather exposure inherent to earthmoving equipment. The receiver mounts securely to standard machine control masts using the integrated clamp bracket, which accommodates both round and rectangular mast profiles without additional adapters. The LR60 interfaces seamlessly with manual, semi-automatic, and fully automatic machine control systems. Analog output signals communicate elevation data to control panels or automated hydraulic valves, while the visual display provides manual operators with intuitive on-grade, cut, and fill indicators using LED arrow arrays and numeric depth readouts. ## Key Specifications

• Detection Range: Up to 1,200 feet diameter (365m) with compatible Spectra rotating lasers
• Detection Window Height: 120mm (4.7 inches)
• Accuracy: ±1mm digital accuracy at receiver face

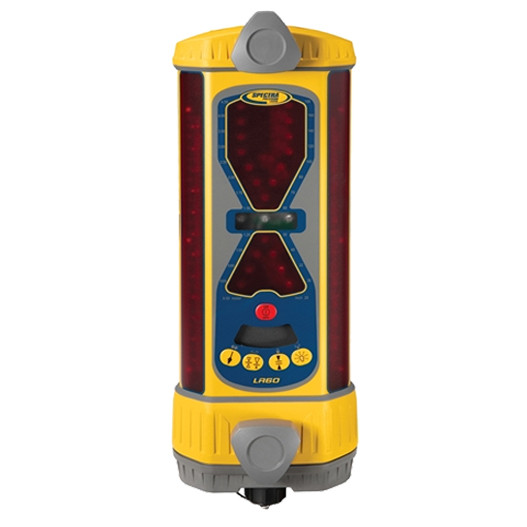

• Display Type: Dual LCD screens (front and rear), identical information on both sides
• Display Visibility: High-contrast LCD readable in direct sunlight
• On-Grade Indicators: Multi-LED arrow array with audible alerts
• Operating Battery Life: Approximately 60 hours continuous use (NiMH rechargeable)
• Battery Type: Integrated NiMH rechargeable battery pack
• Charging Time: 4-6 hours to full charge
• Output Signals: Analog output for machine control systems
• Environmental Rating: IP67 (dustproof and waterproof to 1m for 30 minutes)
• Operating Temperature: -20°F to 140°F (-30°C to 60°C)
• Mounting System: Universal clamp bracket fits round and rectangular masts
• Mast Compatibility: 1-inch to 1.5-inch diameter round; equivalent rectangular profiles
• Vibration Resistance: Engineered for continuous heavy equipment vibration

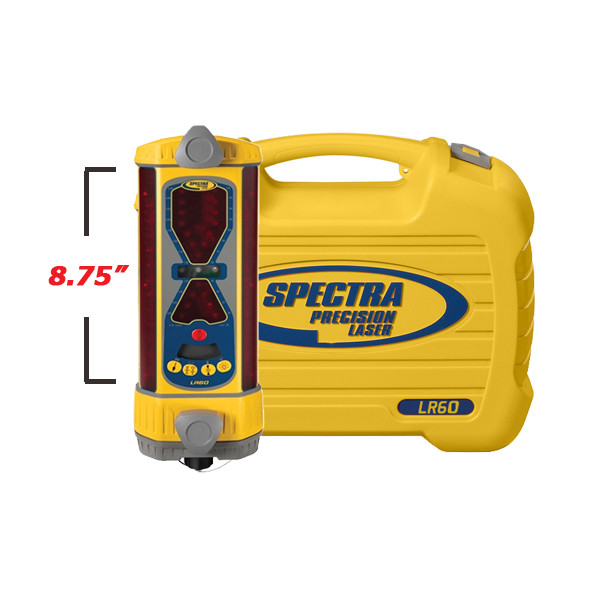

• Dimensions: 9.2" H × 5.1" W × 2.8" D (234 × 130 × 72mm)
• Weight: 2.4 lbs (1.1 kg) with battery installed
• Warranty: 3-year manufacturer warranty on receiver and electronics

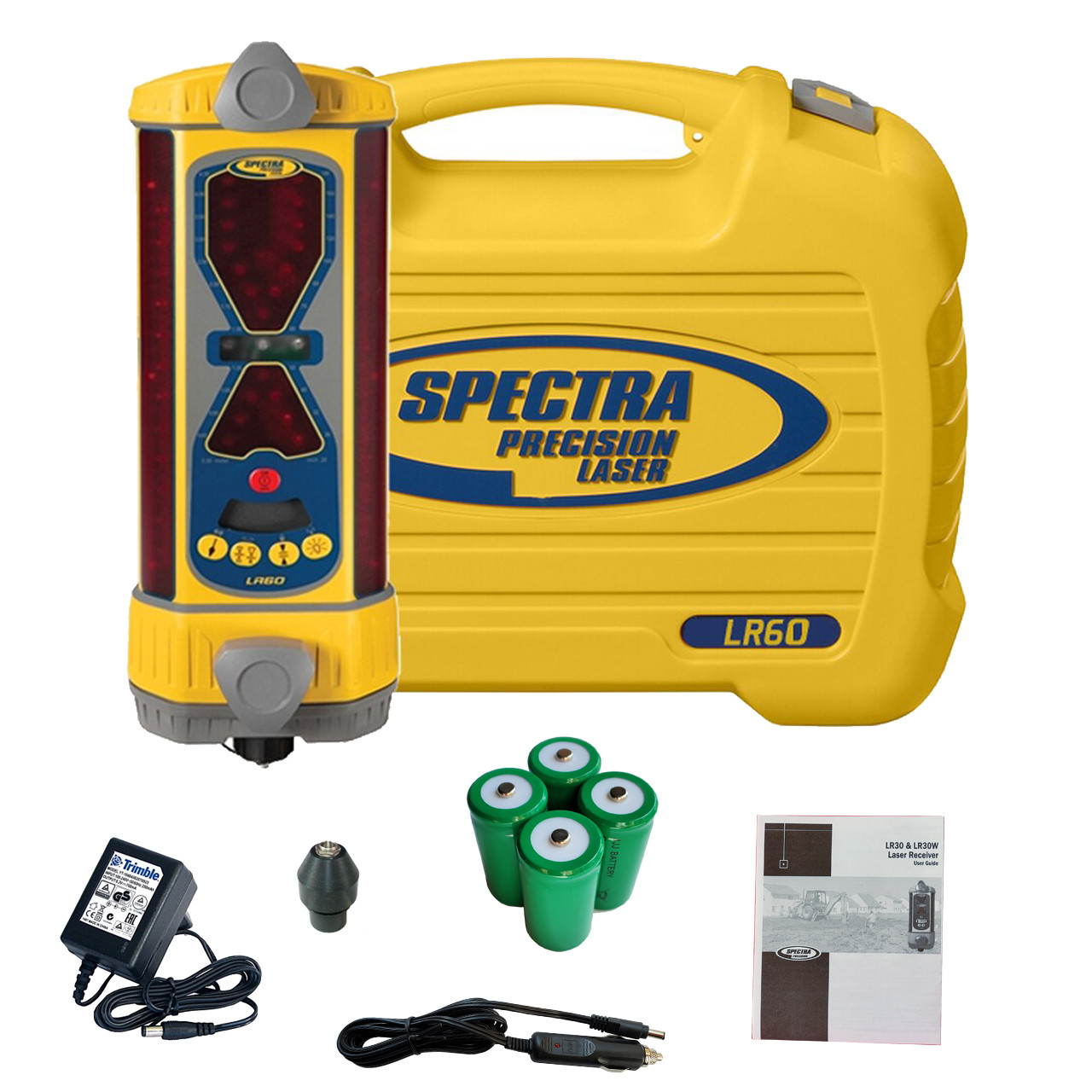

## What's in the Kit

• Spectra Precision LR60 Laser Receiver with dual displays
• NiMH rechargeable battery pack (pre-installed)
• AC battery charger with regional power adapter
• Universal mast clamp bracket with mounting hardware
• Machine control cable for analog output connection

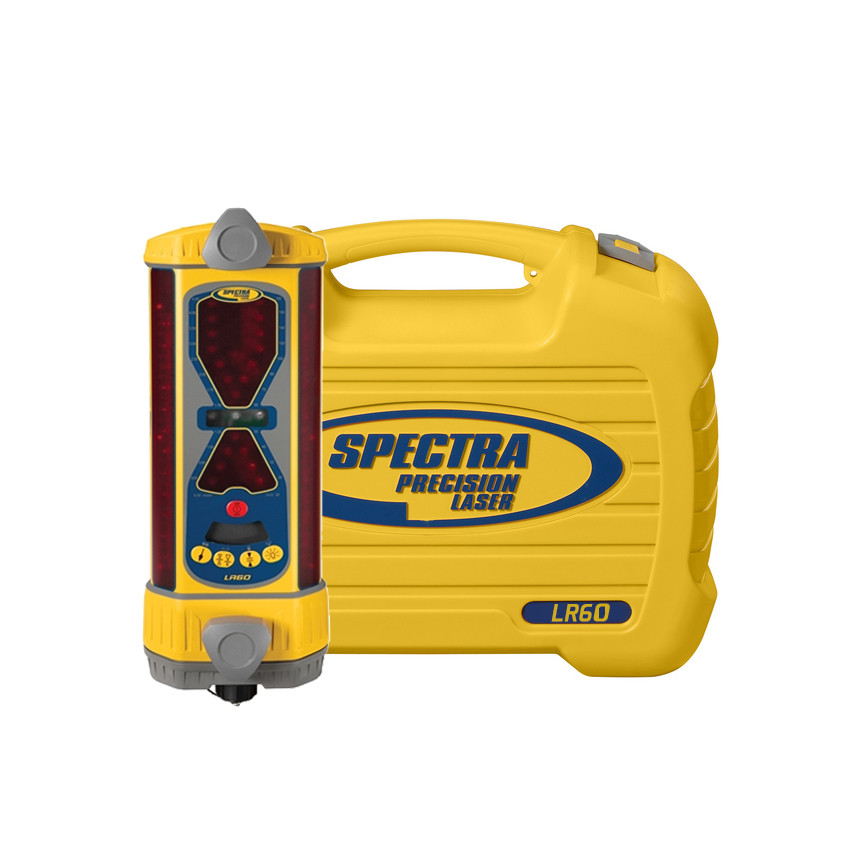

• Protective carrying case with foam insert
• Quick start guide and operating manual
• Calibration certificate and warranty registration card

## Job Applications

• Building Pad and Foundation Excavation: The LR60's dual displays allow excavator operators to monitor grade from either side of the cab without repositioning, critical when digging building pads where frequent elevation checks prevent costly overcuts that require expensive imported fill material to correct.
• Roadway and Highway Grading: The 60-hour battery life supports extended grading runs on linear projects without charging interruptions, while the IP67 weatherproofing withstands the dust, mud spray, and weather exposure typical of road construction—maintaining accurate elevation data throughout long shifts.
• Site Development Mass Grading: The wide 120mm detection window accelerates initial grade acquisition on rough terrain, allowing dozer operators to quickly locate the laser plane when working across sites with significant elevation variation, reducing the time spent searching for signal and increasing productive grading hours.
• Precision Agricultural Land Leveling: The ±1mm accuracy ensures precise water flow control for irrigation-dependent crops, where subtle elevation variations determine drainage patterns—the LR60's filtering algorithms maintain accuracy despite tractor engine vibration that causes less sophisticated receivers to display erratic readings.
• Utility Trench Excavation: The analog output integration with machine control systems enables semi-automatic depth control for consistent trench profiles, preventing the depth variations that create low spots where water accumulates and the high spots that leave pipes inadequately covered or exposed to load damage.
• Sports Field and Golf Course Grading: The receiver's millimeter-level precision supports the exacting grade tolerances required for athletic field drainage and playability, while dual displays benefit operators working finish grade patterns where frequent direction changes make single-sided displays impractical to monitor continuously.

## Compatible Accessories - [Spectra Precision Rotating Lasers](https://www.expresstools.com/spectra-rotating-lasers) — Compatible laser transmitters - [Machine Control Masts](https://www.expresstools.com/machine-control-masts) — Mounting poles and grade rods - [Laser Receiver Accessories](https://www.expresstools.com/laser-receiver-accessories) — Replacement batteries and cables - [Machine Guidance Control Panels](https://www.expresstools.com/machine-control-panels) — Display and control interfaces ## Related Guides - [Laser Receiver Setup for Machine Control Applications](https://www.expresstools.com/guides/laser-receiver-setup-machine-control) - [Optimizing Battery Life on Rechargeable Laser Receivers](https://www.expresstools.com/guides/rechargeable-receiver-battery-optimization) - [Understanding Laser Receiver Detection Windows and Accuracy](https://www.expresstools.com/guides/laser-receiver-detection-accuracy) - [Troubleshooting Machine Control Laser Systems](https://www.expresstools.com/guides/troubleshooting-machine-control-lasers) ## FAQ

What's the advantage of dual displays versus a single-sided receiver?

The LR60's front and rear LCD screens display identical elevation information on both sides of the receiver, allowing operators to check grade status from either side of the machine cab without turning around or repositioning. This is particularly valuable on excavators where the operator frequently changes working positions, during dozer work where monitoring grade while reversing improves efficiency, and on any machine where the single-sided receiver would face away from the operator depending on working direction. Dual displays eliminate the 5-10 seconds per check spent repositioning to read a single display—time that accumulates to significant productivity gains over a full shift.

How does the NiMH battery system compare to alkaline disposable batteries?

The integrated NiMH rechargeable battery provides approximately 60 hours of continuous operation per charge, comparable to high-quality alkaline batteries but with significantly lower long-term cost and environmental impact. A single NiMH pack can be recharged hundreds of times over its service life, eliminating the ongoing expense of disposable batteries and the downtime associated with emergency battery changes during critical grading operations. The rechargeable system also maintains more consistent voltage throughout its discharge cycle, providing stable receiver performance rather than the gradual degradation that occurs as alkaline batteries deplete. The 4-6 hour charging time allows overnight charging to support next-day use, and the battery status indicator provides advance warning before depletion.

Can the LR60 work with laser systems from other manufacturers?

The LR60 is optimized for Spectra Precision rotating lasers and uses detection algorithms tuned to those specific laser frequencies and rotation speeds. While the receiver may detect signals from some other manufacturers' lasers, accuracy, range, and reliability are only guaranteed when used with compatible Spectra Precision laser transmitters. Using non-matched equipment can result in reduced detection range, intermittent signal lock, false elevation readings, or complete inability to detect the laser plane. For systems incorporating lasers from multiple manufacturers, verify compatibility with Spectra technical support before deployment to avoid costly field failures during active grading operations.

What maintenance does the LR60 require for reliable long-term performance?

The LR60 requires minimal routine maintenance beyond basic care practices. Clean the detection window with a soft, damp cloth after each use to remove dust and mud that can reduce signal reception—avoid abrasive cleaners or solvents that damage the polycarbonate lens. Inspect the mounting clamp and hardware monthly for tightness and wear, as vibration can loosen connections over time. Charge the NiMH battery at least once every 30 days even during storage periods to prevent deep discharge that reduces battery capacity and lifespan. Store the receiver in its protective case when not in use to prevent impact damage, and verify the weatherproof seal integrity annually by inspecting the rubber overmolding for cracks or separation. Annual factory calibration is recommended for applications requiring certified accuracy documentation, though the receiver typically maintains specification accuracy for multiple years when properly handled.
