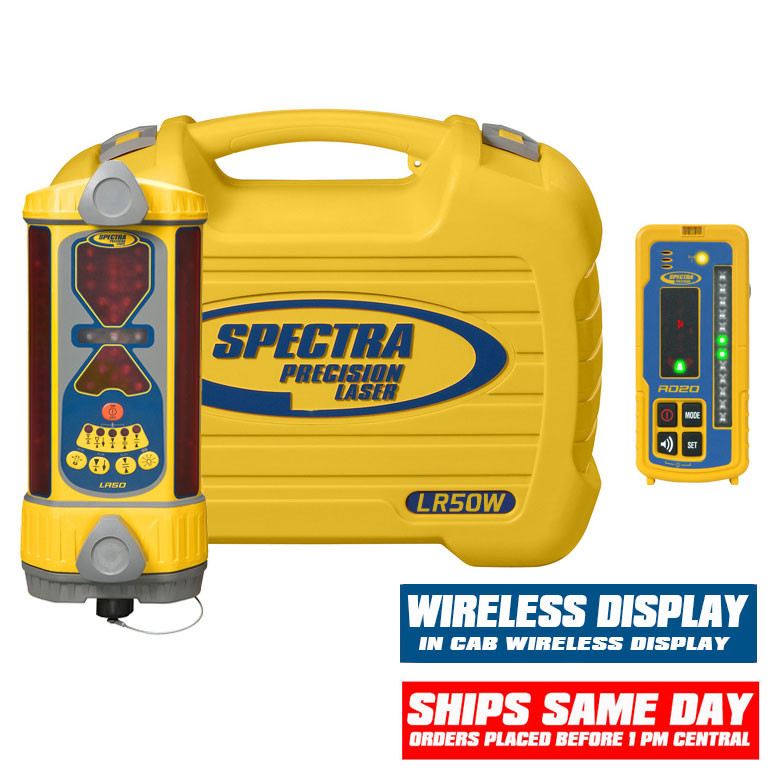

Spectra Precision LR50W Wireless Laser Machine Display Receiver (NiMH) RD20 Remote Display

Overview

The Spectra Precision LR50W Wireless Laser Machine Display Receiver with RD20 Remote Display revolutionizes machine control by eliminating cumbersome hardwired sensor cables. This integrated wireless system transmits elevation data instantly from the LR50W receiver to the RD20 operator display, delivering real-time grade information without the complexity of traditional wired setups. Ideal for dozer and excavator operators working in confined cab environments, this NiMH-powered system provides reliable wireless communication up to 100 feet, ensuring precise grading control while maintaining complete freedom of movement.

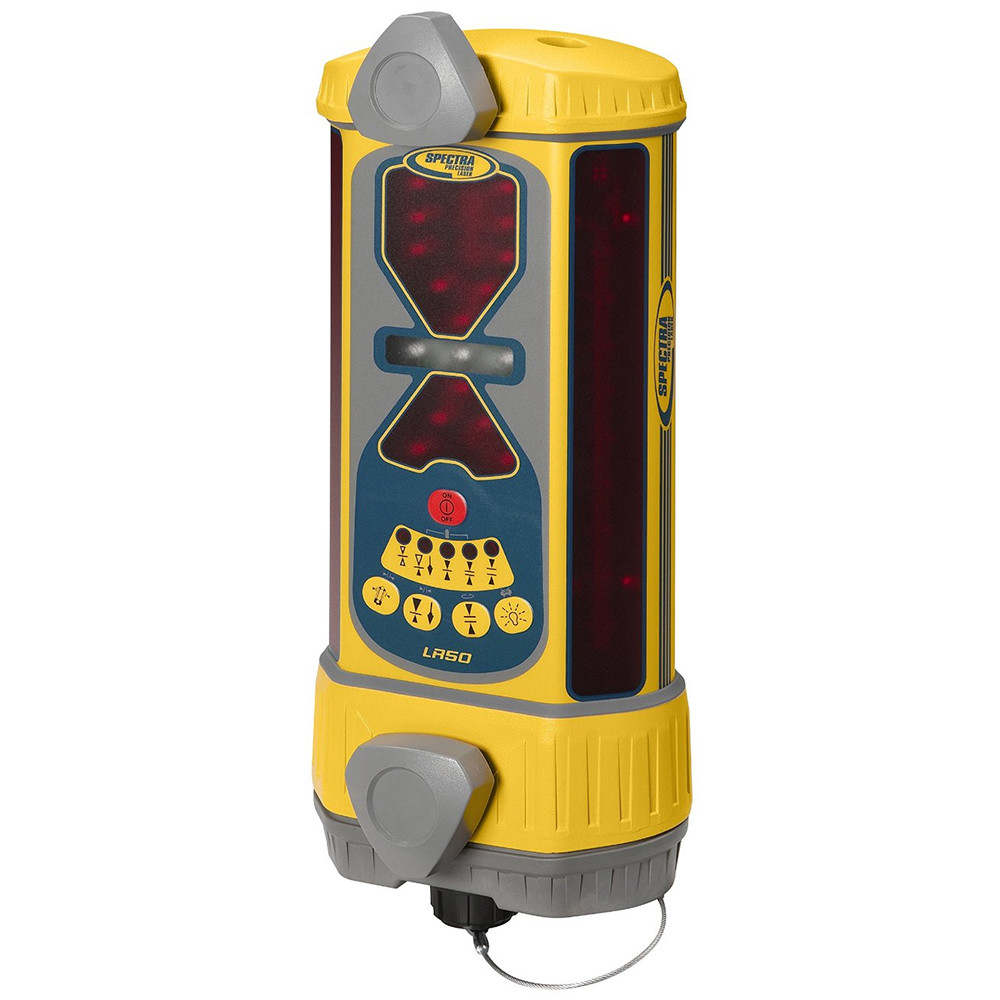

Built with Spectra Precision's proven laser detection technology, the LR50W features a high-visibility LED display array that captures rotating laser signals with exceptional accuracy. The weatherproof receiver mounts directly to machine masts or blades, while the compact RD20 remote display installs conveniently within the operator's line of sight. This wireless configuration reduces installation time by up to 70% compared to hardwired systems and virtually eliminates cable damage from moving machine components, significantly lowering maintenance costs and downtime on active job sites.

Key Specifications

• Wireless Range: Up to 100 feet (30 m) between LR50W receiver and RD20 display
• Detection Diameter: 10 inches (250 mm) with high-intensity LED array
• Accuracy: ±1/16 inch (±2 mm) grade accuracy in optimal conditions
• Power Source: Rechargeable NiMH battery pack (included)
• Battery Life: Up to 100 hours continuous operation per charge
• Display Type: RD20 high-contrast LCD with 5-LED grade indication
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Weatherproofing: IP67 rating (dustproof and waterproof to 1 meter)
• Mounting Options: Universal clamp for machine masts, blades, or buckets
• Display Features: Numeric grade depth, visual LED arrows, audio tone guidance
• Wireless Frequency: 2.4 GHz digital spread spectrum technology
• Weight: LR50W receiver 2.2 lbs (1.0 kg); RD20 display 0.9 lbs (0.4 kg)

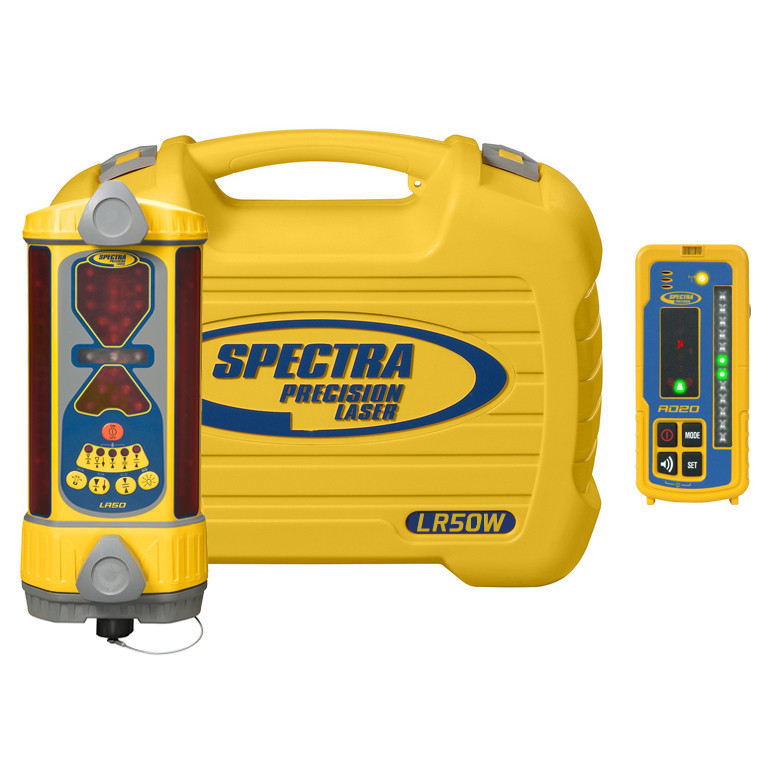

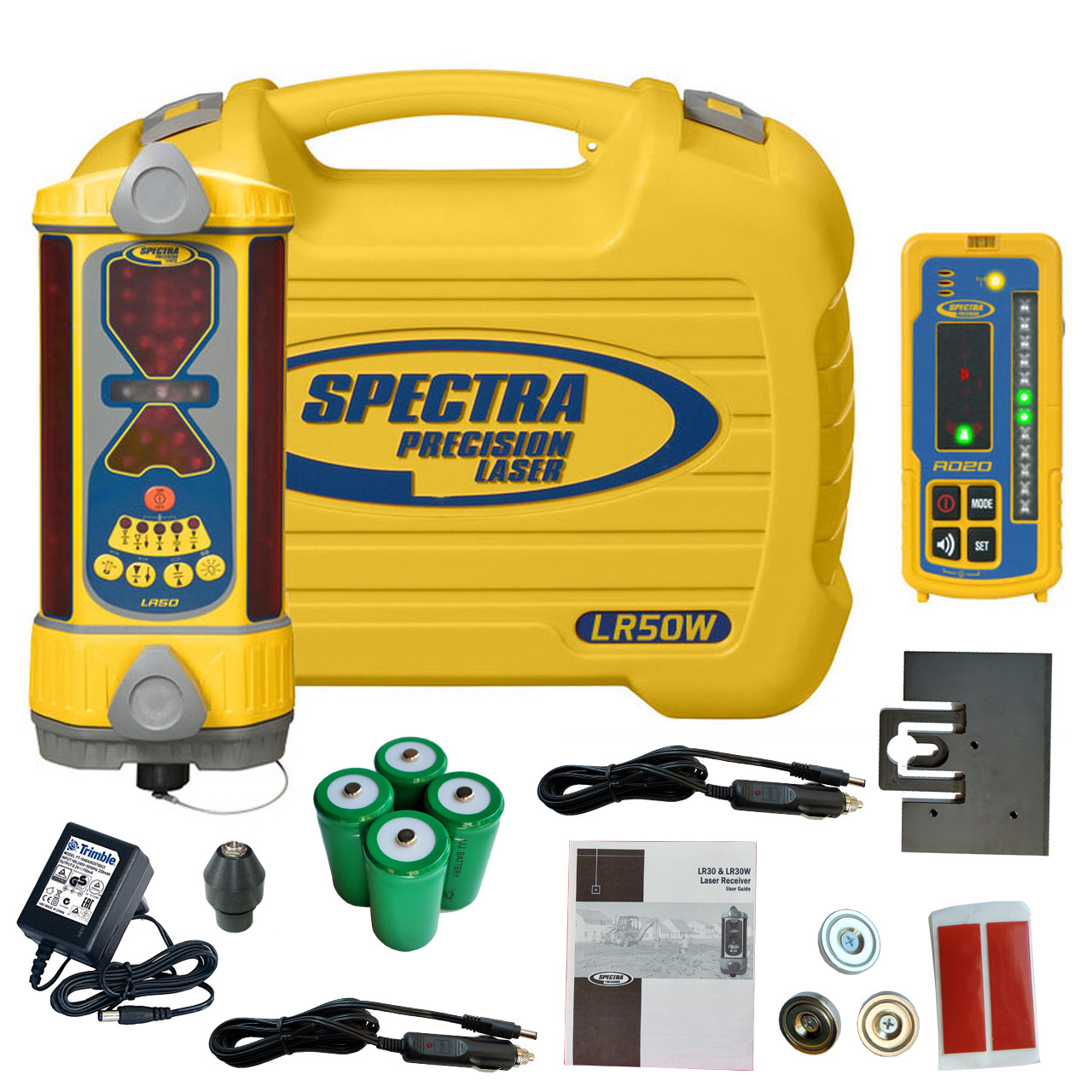

What's in the Kit

• LR50W Wireless Laser Receiver with integrated radio transmitter
• RD20 Remote Display with wireless receiver module
• Rechargeable NiMH battery pack with charging adapter
• Universal machine mounting clamp with adjustment hardware

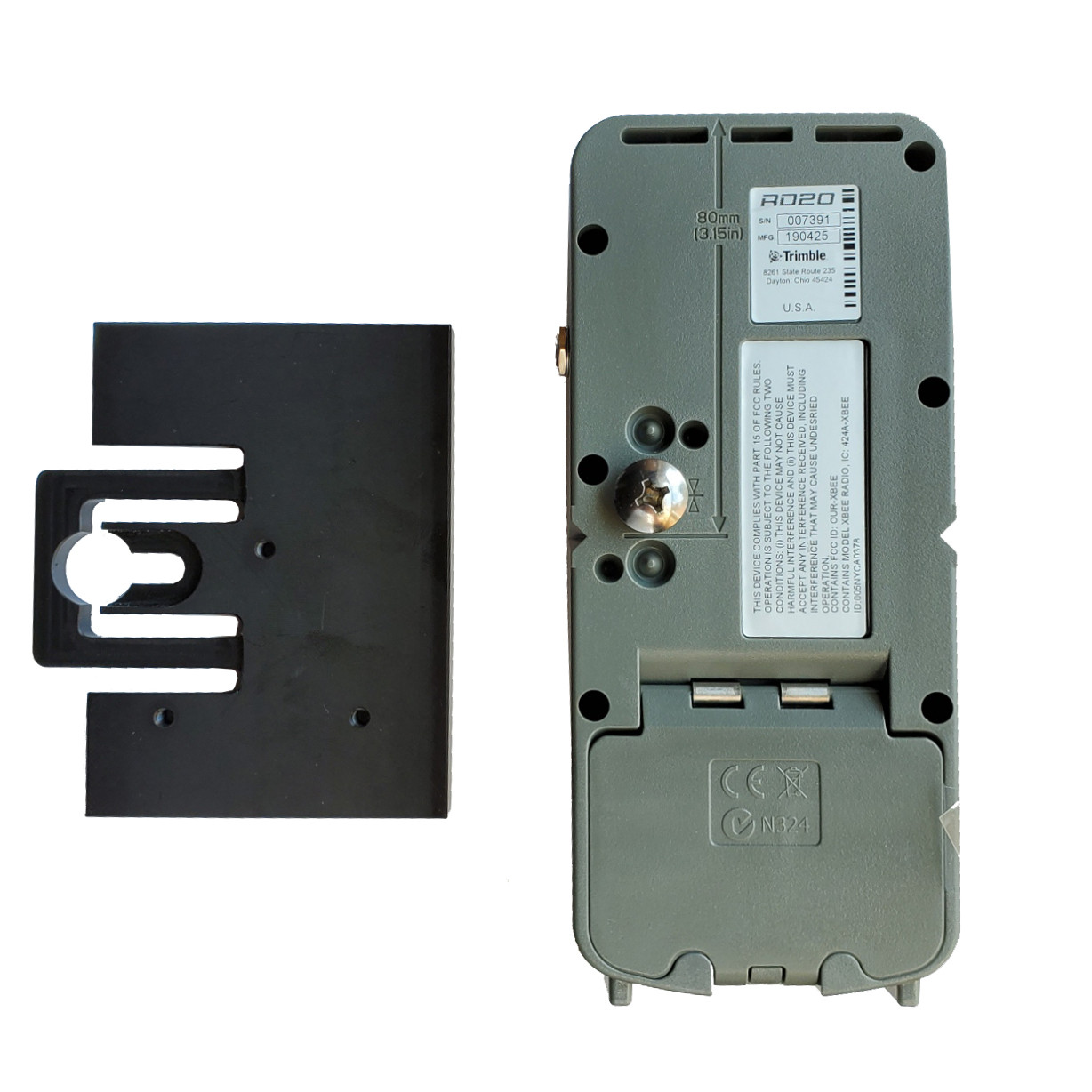

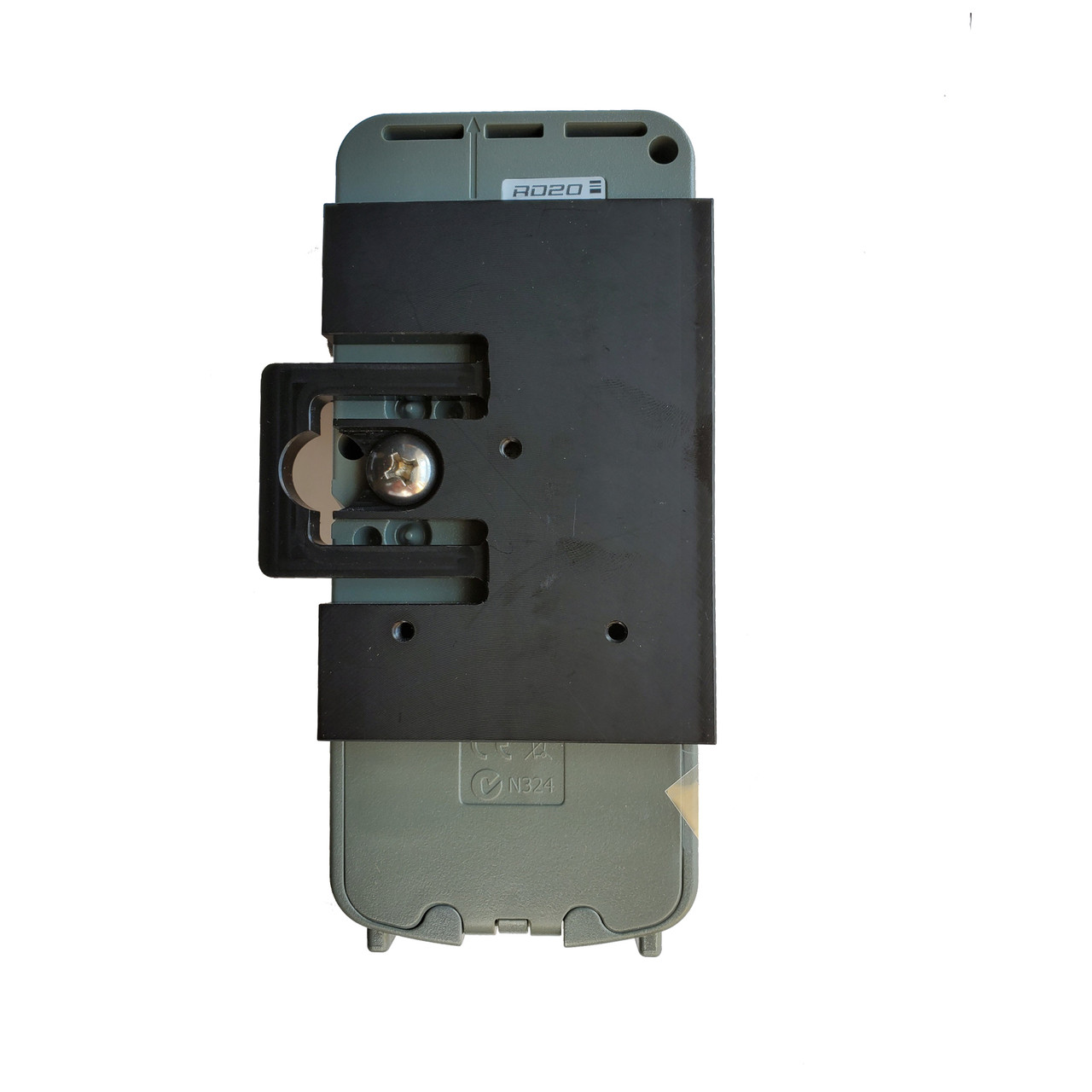

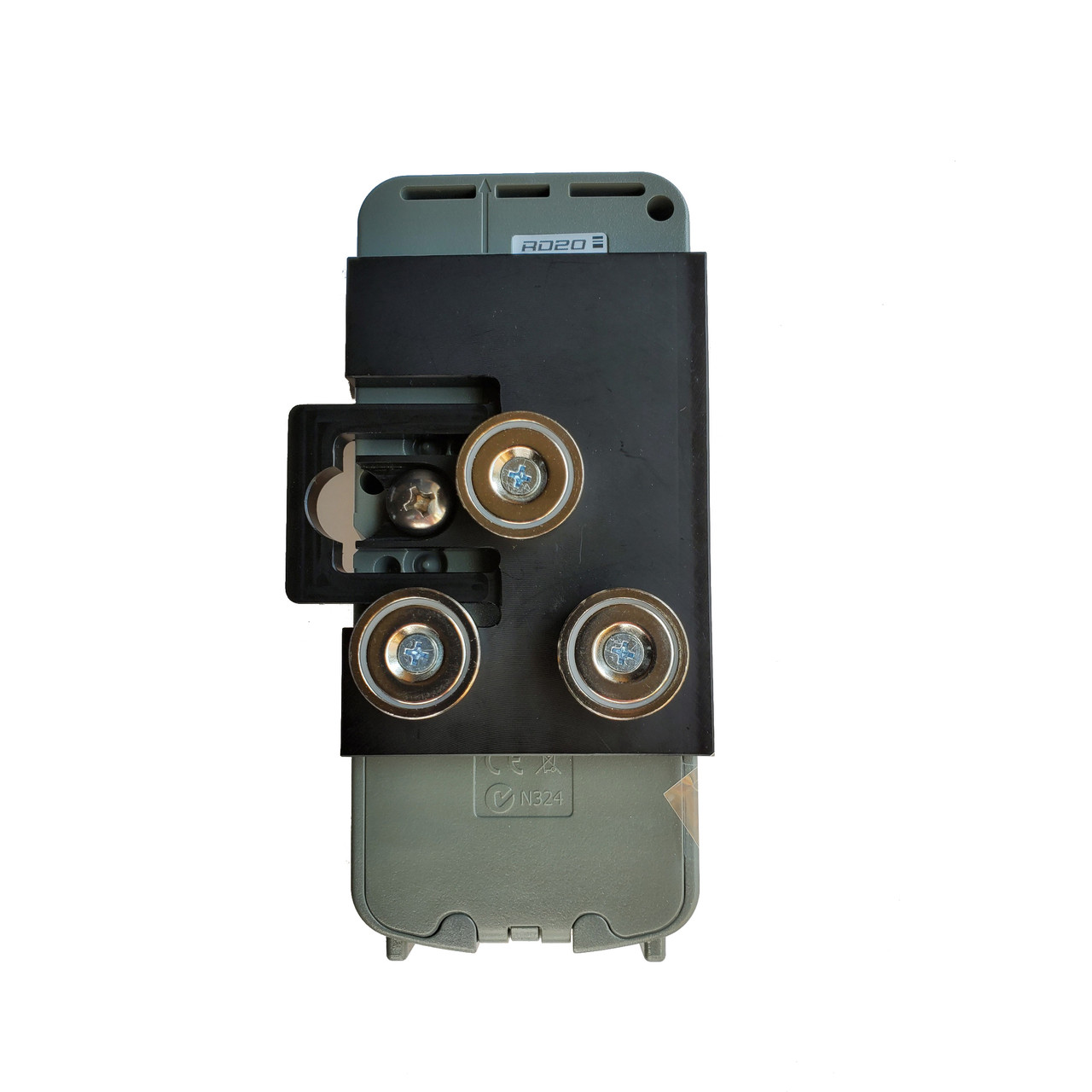

• RD20 cab mounting bracket with suction cup and adhesive options
• AC wall charger with international plug adapters
• 12V DC vehicle charger for field charging
• Weather-resistant storage and transport case
• Quick start guide and complete operator's manual
• Calibration certificate and warranty documentation

Job Applications

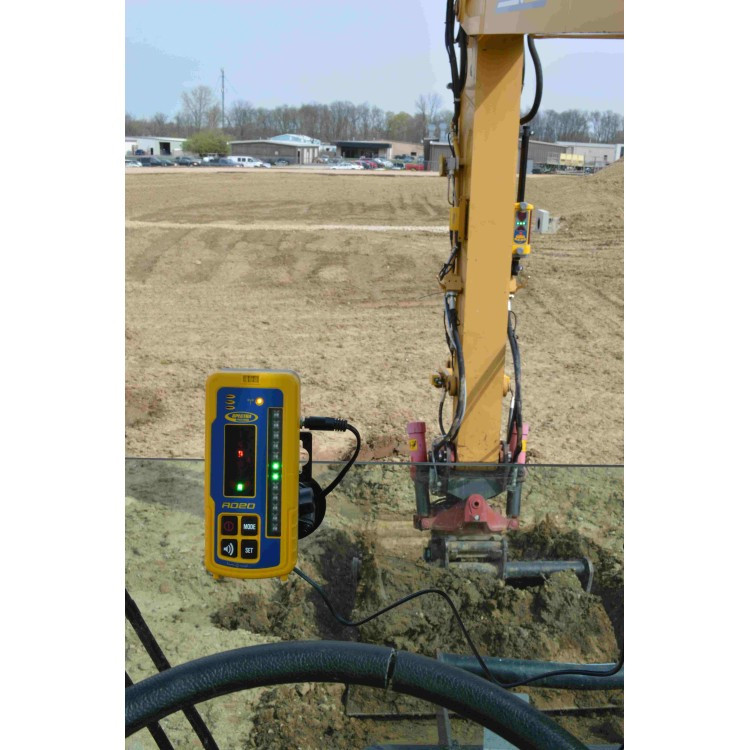

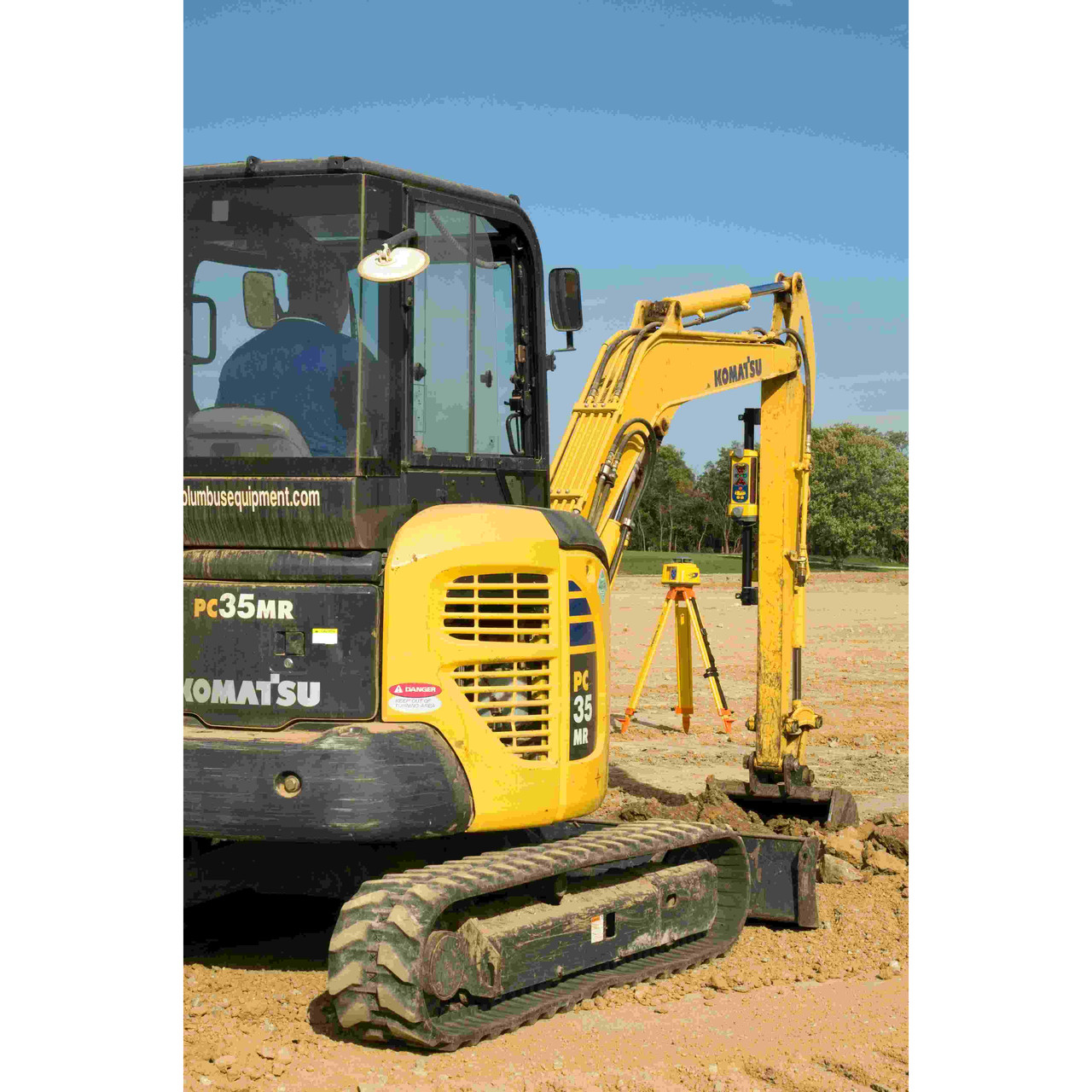

• Excavation Grading: Achieve precise trench depths and foundation grades without cables interfering with bucket rotation or boom movement, while operators monitor real-time elevation data from the RD20 display mounted at eye level in the cab.

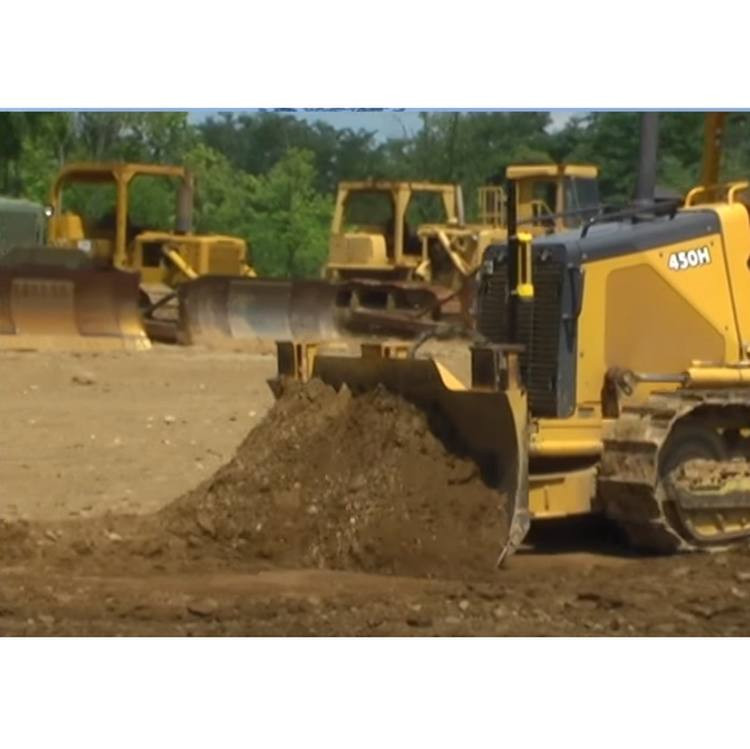

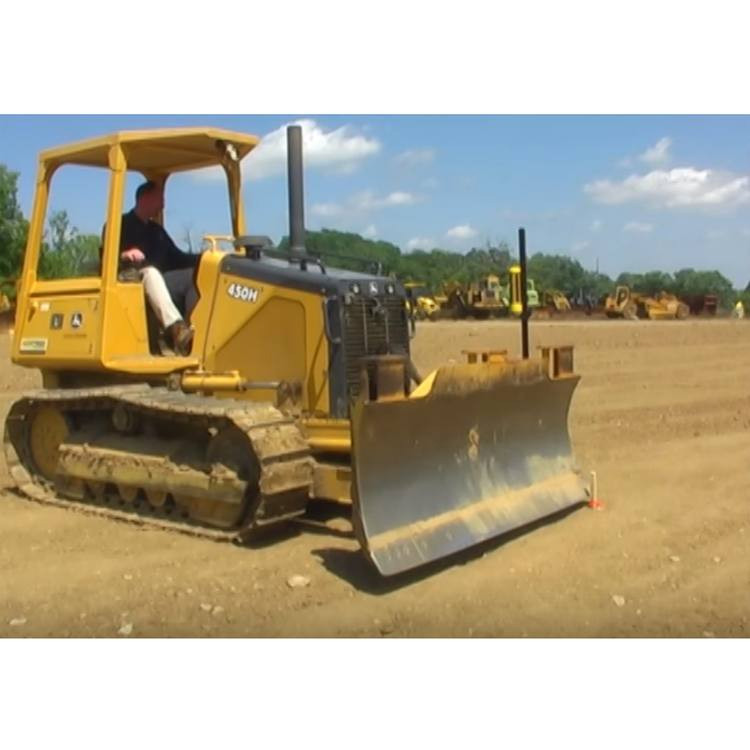

• Dozer Fine Grading: Maintain exact finish grades for parking lots, building pads, and sports fields with wireless freedom that eliminates cable snags on blade adjustments, enabling faster passes and reducing rework by up to 40%.
• Site Preparation: Establish accurate base elevations across large development sites where equipment frequently relocates, benefiting from instant wireless setup that cuts positioning time from 15 minutes to under 2 minutes per move.
• Drainage and Slope Work: Create precise drainage swales and sloped surfaces with continuous grade feedback transmitted wirelessly to operators, allowing concentration on machine control rather than cable management during complex multi-plane grading.
• Agricultural Land Leveling: Level fields for optimized irrigation with the durability to withstand dusty, muddy conditions where traditional wired systems fail, while the 100-hour battery life supports full week operations between charges.
• Road Construction: Maintain sub-grade and base course elevations on highway and street projects where equipment transitions between different machine types throughout the day, with wireless pairing that adapts instantly to changing equipment needs.

Compatible Accessories

Spectra Precision Rotating Lasers | Machine Control Masts & Extensions | Replacement NiMH Battery Packs | Universal Machine Mounting Clamps | Laser Detector Accessories | Operator Display Cab Mounts

Related Guides

Wireless vs. Wired Laser Receivers: Which System Is Right for Your Operation? | Complete Machine Control Setup Guide for Excavators and Dozers | Maximizing Laser Receiver Accuracy in Challenging Site Conditions | Best Practices for Extending Laser Equipment Battery Life

FAQ

How does the wireless connection between the LR50W and RD20 remain stable on active job sites with RF interference?

The LR50W utilizes 2.4 GHz digital spread spectrum technology that automatically frequency-hops to avoid interference from other wireless equipment, cell phones, and radio communications. The system continuously monitors signal strength and adjusts transmission power to maintain a reliable connection up to 100 feet, even in electromagnetically noisy construction environments. If signal quality degrades, the RD20 provides both visual and audible alerts, though this rarely occurs within the rated range.

Can I use one RD20 display with multiple LR50W receivers across different machines?

Yes, the RD20 can be paired with multiple LR50W receivers, though it connects to only one receiver at a time. You can quickly switch between paired receivers using the RD20's pairing menu, making it ideal for contractors who want one master display to monitor different machines throughout the day. The system stores up to 5 receiver pairings in memory, with reconnection taking approximately 3-5 seconds when switching between previously paired units.

What is the actual battery life under typical construction conditions, and how long does charging take?

Under normal construction use with moderate temperature conditions, expect 80-100 hours of continuous operation from a fully charged NiMH battery pack. In extreme cold (below 20°F), battery life may decrease to 50-60 hours. A complete recharge from fully depleted takes approximately 4-5 hours with the included AC charger, or 6-7 hours with the 12V DC vehicle charger. We recommend having a spare battery pack for multi-day projects without access to charging facilities.

Is the LR50W compatible with laser levels from other manufacturers, or only Spectra Precision lasers?

The LR50W is a universal laser receiver compatible with all rotating lasers operating in the standard red-beam visible spectrum (typically 600-700nm wavelength), regardless of manufacturer. This includes lasers from Topcon, Leica, Trimble, Apache, Johnson, and others. The receiver detects the rotating laser plane and calculates elevation differences, making it brand-agnostic. However, for optimal performance and warranty coverage, Spectra Precision recommends pairing with their LL300, LL400, or LL500 series rotating lasers.
