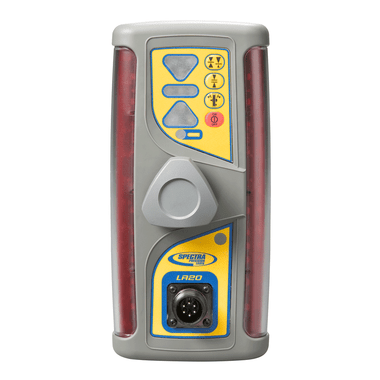

Spectra Precision LR20 Compact Laser Receiver with Holding Clamps

# Spectra Precision LR20 Compact Laser Receiver with Holding Clamps ```html

Overview

The Spectra Precision LR20 delivers precision-grade laser detection in a compact form factor designed specifically for tight-access grading applications. This rugged receiver excels on mini-excavators, mini-skid steers, and trenching equipment where traditional receiver packages are too bulky for confined work zones. Built to withstand the rigors of equipment mounting, the LR20 combines Spectra's proven detection accuracy with a low-profile design that won't interfere with overhead clearances or jobsite obstacles.

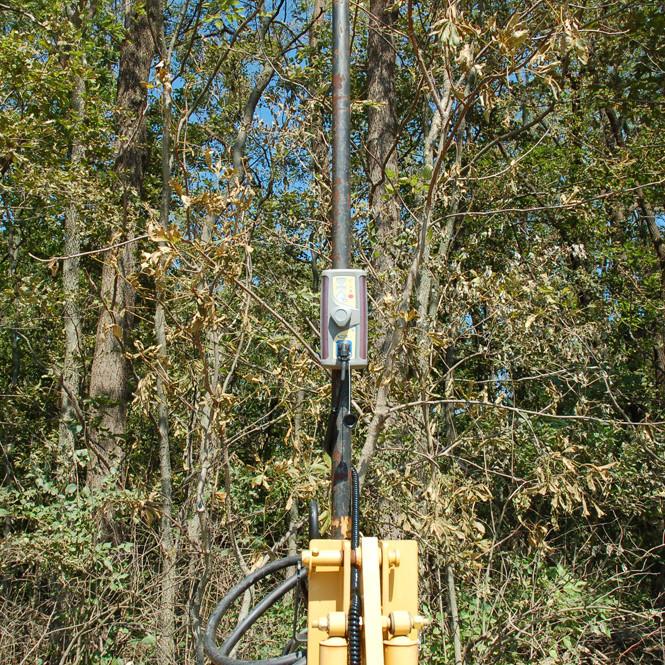

The included heavy-duty holding clamps secure firmly to masts and machine components, providing stable positioning even during aggressive grading operations. With intuitive LED indication visible from the operator's seat and reliable performance in demanding conditions, the LR20 keeps your compact equipment on grade without the bulk of standard receivers.

Key Specifications

• Detection Range: 1,600 feet (490 m) diameter working range
• Accuracy: ±1/16" (±2 mm) at 100 feet
• Channels: Single-channel laser detection
• Display: Five-segment LED array with on-grade, high, and low indication
• Detector Height: 5.9" (150 mm)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Power: 9V alkaline battery (40+ hours runtime)
• Ingress Protection: IP67 waterproof and dustproof rating
• Construction: Impact-resistant housing with reinforced mounting points
• Weight: 1.3 lbs (0.6 kg) with battery
• Compatibility: Works with all Spectra rotating lasers and select pipe lasers
• Audible Alert: Built-in beeper with volume adjustment

What's in the Kit

• LR20 compact laser receiver with detector window
• Two heavy-duty holding clamps for secure mast mounting
• 9V alkaline battery (installed)

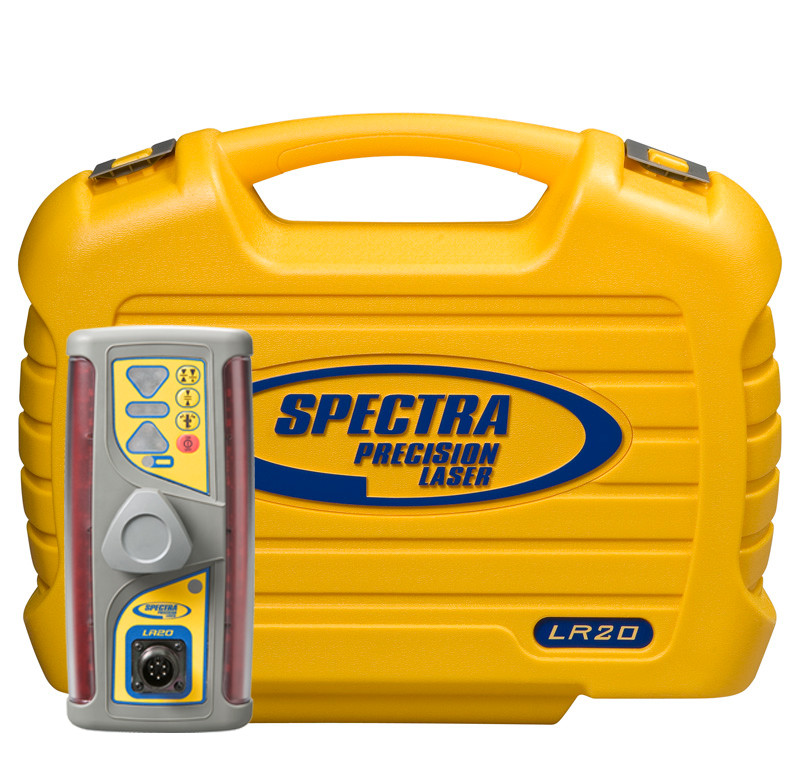

• Protective carrying case
• Quick-start guide and operation manual
• Manufacturer's two-year warranty documentation

Job Applications

• Residential Foundation Excavation: Compact size fits mini-excavators working in tight backyard access where full-size grading receivers would hit fences, trees, or structures during digging operations.
• Utility Trenching in Urban Environments: Low-profile design prevents receiver damage when trenching beneath overhead utilities, awnings, or parking structures where vertical clearance is limited.
• Landscape Grading with Mini-Skid Steers: Lightweight receiver won't overload compact equipment control systems, while rugged clamps stay secure during aggressive bucket work on drainage swales and finish grading.
• Parking Lot Storm Drain Installation: The compact footprint allows operation in congested areas between parked cars and existing infrastructure where standard receivers would be constantly bumped or repositioned.
• Septic System Excavation: Perfect for the confined workspace of residential septic installations where mini-equipment must navigate between the house, property lines, and protected areas without bulky attachments extending beyond the bucket.
• Agricultural Drainage Tile Work: Small size reduces crop damage when working in planted fields, and the secure clamps handle the vibration and jarring of tile plow operations that would shake loose standard receiver mounts.

Compatible Accessories

• Spectra Precision Laser Detector Masts — Adjustable height masts for optimal laser reception
• Spectra Precision LL500 Self-Leveling Rotating Laser — Rugged transmitter for excavation work
• Spectra Precision HL750 Slope Laser — Dual-grade capability for complex drainage
• Spectra Precision RC502 Remote Control — Wireless laser adjustment from machine cab
• 9V Alkaline Battery 12-Pack — Extended runtime for continuous operations
• Machine Control Mounting Brackets — Custom mounting solutions for various equipment

Related Guides

• Choosing the Right Laser Receiver for Compact Equipment
• Rotating Laser Setup Guide for Excavation and Grading
• Machine Control Systems: Buyer's Guide for Contractors
• Laser Detector Maintenance and Accuracy Verification

FAQ

Will the LR20 work with my existing Spectra laser transmitter?

Yes, the LR20 is compatible with all Spectra Precision rotating lasers including the HV101, LL300, LL400, LL500, and HL series. It also works with most Spectra pipe lasers when used for open-cut grading applications. The receiver detects the standard rotating laser beam and does not require specific transmitter pairing or configuration.

How does the compact size affect detection accuracy compared to full-size receivers?

The LR20 maintains the same ±1/16" accuracy as larger Spectra receivers. The compact design reduces physical size, not detection capability. The smaller detector window may capture slightly less of the laser plane in extremely dusty conditions, but for typical excavation and grading work, performance is identical to standard receivers while offering superior maneuverability in confined spaces.

Can I use this receiver on full-size excavators and dozers, or is it only for compact equipment?

While the LR20 functions perfectly on full-size equipment from a detection standpoint, it's specifically designed for applications where space constraints make standard receivers impractical. On larger machines with ample clearance, you may prefer receivers with larger displays for visibility from higher cab positions or dual-channel receivers for blade control systems. The LR20 excels when physical size is the limiting factor.

How secure are the holding clamps during rough grading and heavy vibration?

The included clamps are engineered for the shock and vibration environment of excavation equipment. They feature aggressive clamping surfaces and high-tension mechanisms that prevent loosening during operation. For maximum security, mount the receiver to a rigid mast section rather than flexible extensions, ensure clamp surfaces are clean before tightening, and perform a quick check after the first 15-20 minutes of operation to verify nothing has shifted during initial settling.
