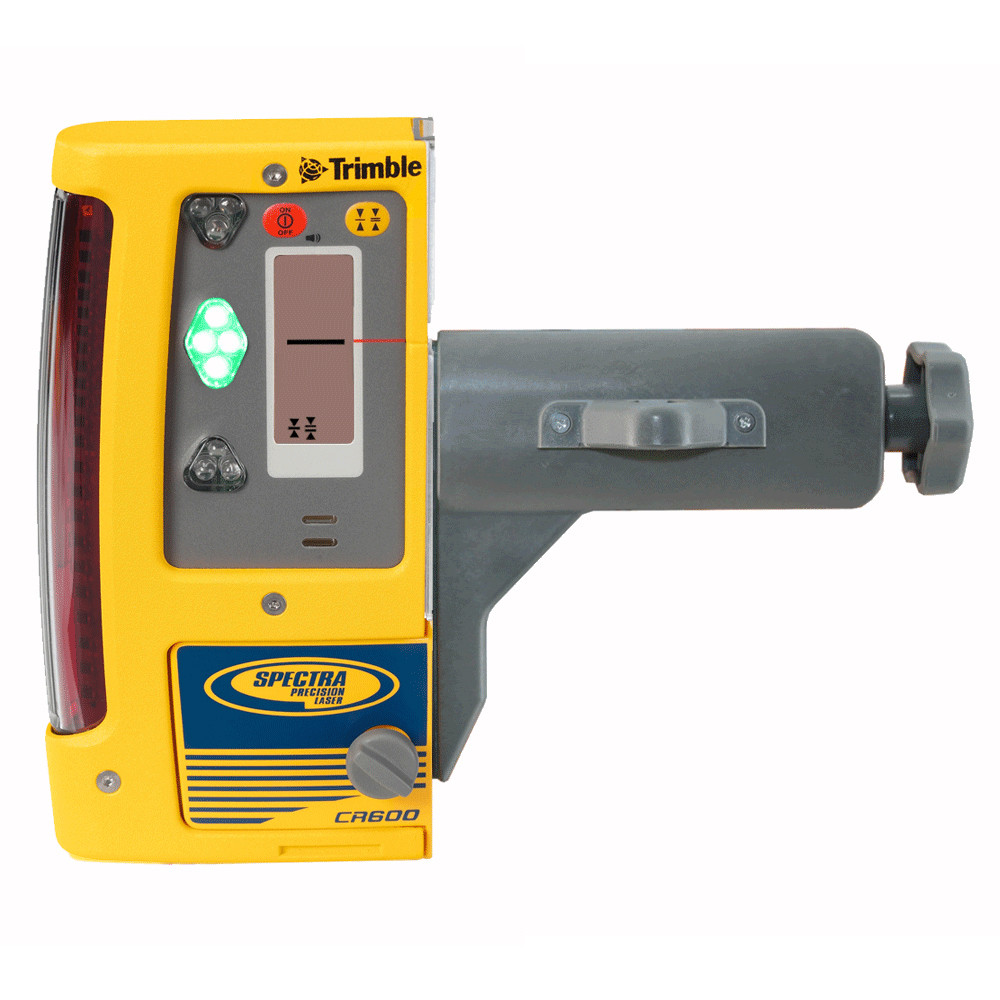

Spectra Precision Laser CR600 Machine or Rod Mounted Laser Receiver

Overview

The Spectra Precision CR600 Machine or Rod Mounted Laser Receiver delivers dual-mount versatility for construction professionals operating rotary laser systems across grading, excavation, and site preparation projects. Contractors, machine operators, and survey crews rely on the CR600 to establish precise grade control on dozers, graders, excavators, and pavers, while its quick-release rod clamp enables instant transition to manual hand-rod elevation checks. The dual-display configuration with front and rear LCD panels ensures visibility from any working position, while progressive LED light bars and audio tones provide real-time grade guidance in high-noise environments. Built for the demands of earthmoving operations, the CR600 extends machine control capabilities to legacy equipment without integrated GPS, delivering millimeter-level accuracy at ranges up to 1,300 feet from compatible rotating lasers.

Key Specifications

• Detection Range: Up to 1,300 feet (400 m) diameter working range
• Accuracy: ±1/16 inch (±1.5 mm) at 100 feet under optimal conditions
• Display Type: Dual LCD panels with front and rear viewing
• Grade Indication: 5-LED light bar with precision center indicator
• Audio Alerts: Variable-tone grade feedback with on/off control

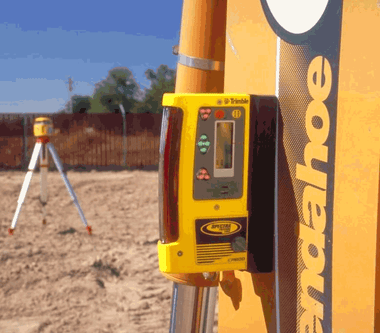

• Mounting Options: Machine mount bracket and rod clamp included
• Detection Window Height: 5.9 inches (150 mm) active sensor area
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Power Supply: 4 C-cell alkaline batteries or 12V DC machine power
• Battery Life: 60+ hours continuous operation (alkaline)
• IP Rating: IP67 dust-tight and waterproof protection
• Compatibility: Works with all Spectra rotary lasers and most competitive rotating laser systems
• Weight: 3.3 lbs (1.5 kg) with batteries

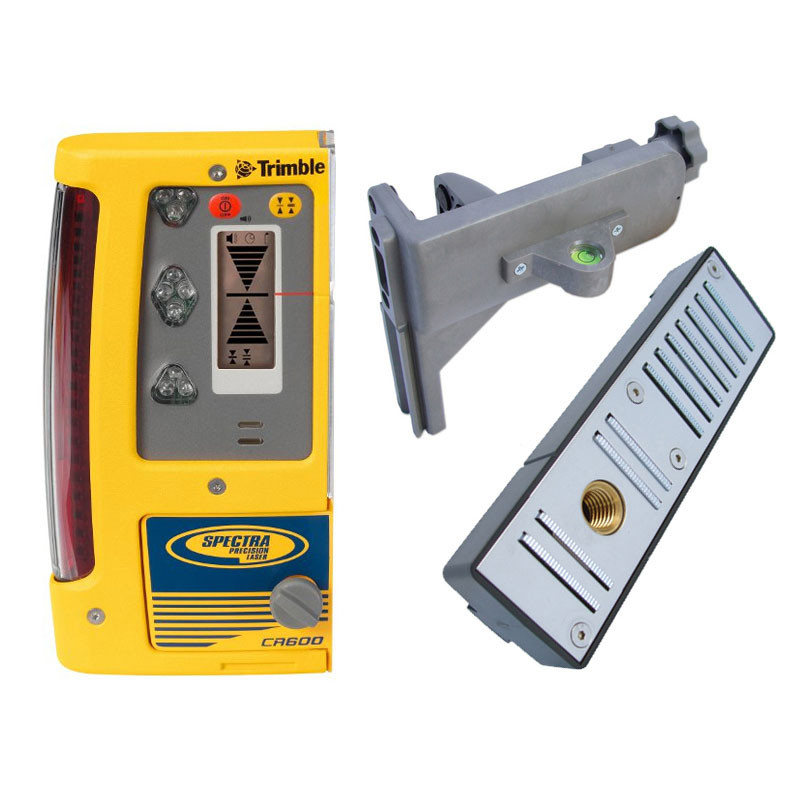

What's in the Kit

• Spectra Precision CR600 Laser Receiver Unit
• Machine Mount Bracket with Hardware
• Rod Clamp Assembly (fits standard aluminum grade rods)
• 12V DC Power Cable for Machine Connection
• 4 C-Cell Alkaline Batteries (pre-installed)
• Protective Carrying Case
• Operator's Manual and Quick Reference Card
• Calibration Certificate

Job Applications

• Motor Grader Blade Control: Mounts directly to grader blade systems for continuous elevation monitoring during fine-grading operations, eliminating the need for constant checker-rod verification and reducing passes.

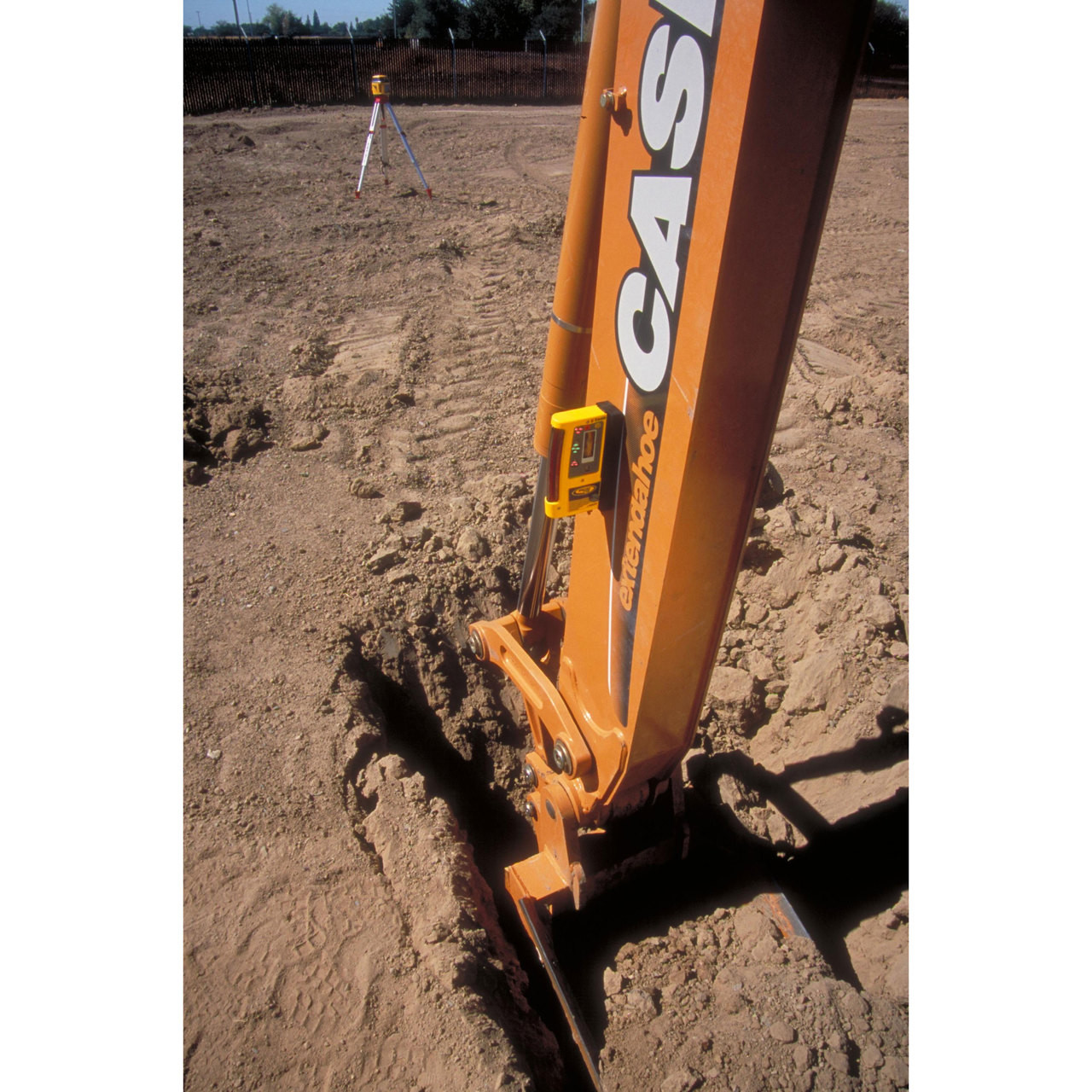

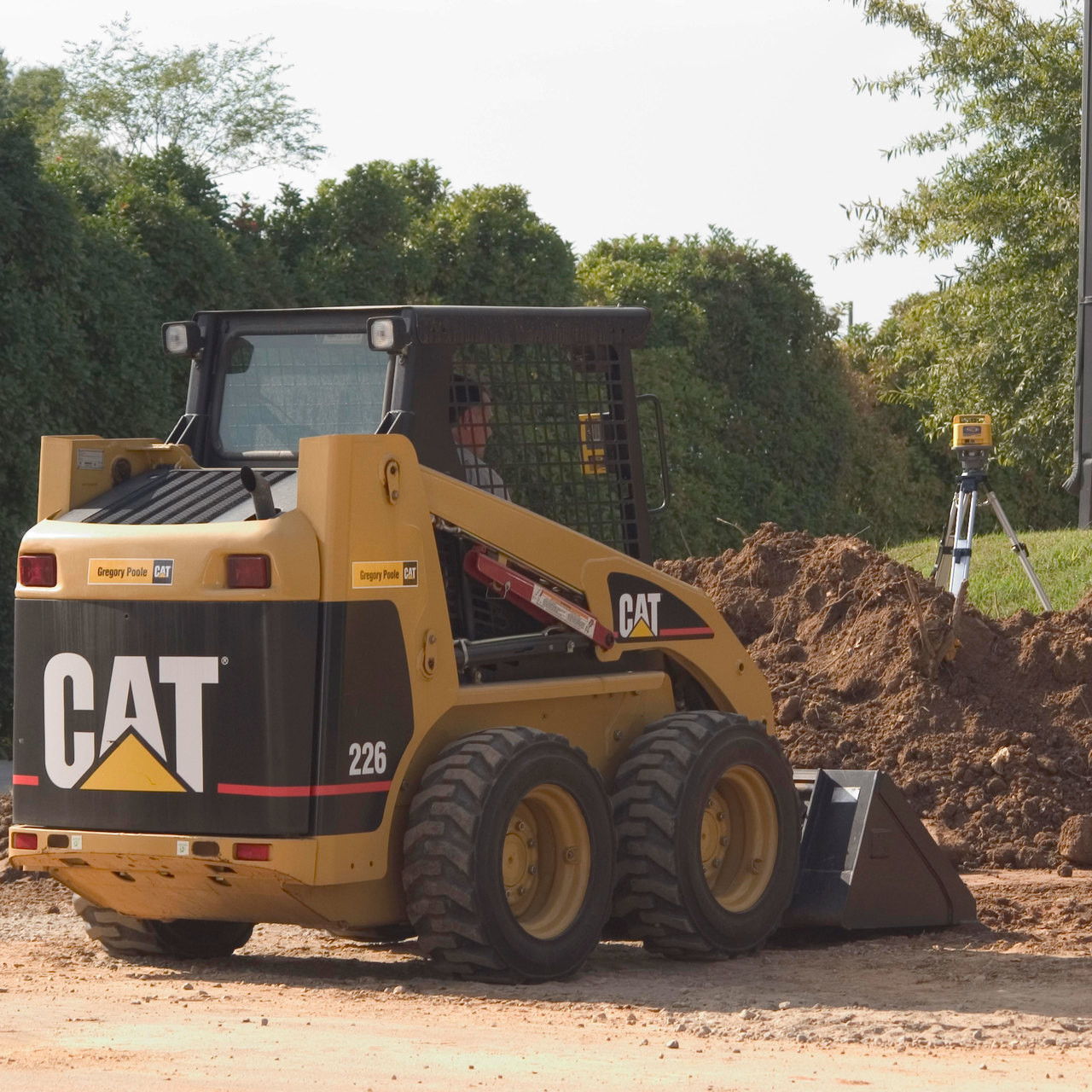

• Dozer and Excavator Rough Grading: Provides operators with real-time cut/fill guidance on masts and booms, accelerating mass earthwork while maintaining tolerance compliance on building pads and roadway subgrades.
• Asphalt Paving and Screed Control: Attaches to paver screeds for automated grade reference during parking lot and highway paving, maintaining consistent mat thickness and reducing material waste from over-application.
• Utility Trench Excavation: Delivers precise depth control for sewer, storm drain, and water line installation where consistent slope and invert elevations are critical to hydraulic performance and inspection approval.

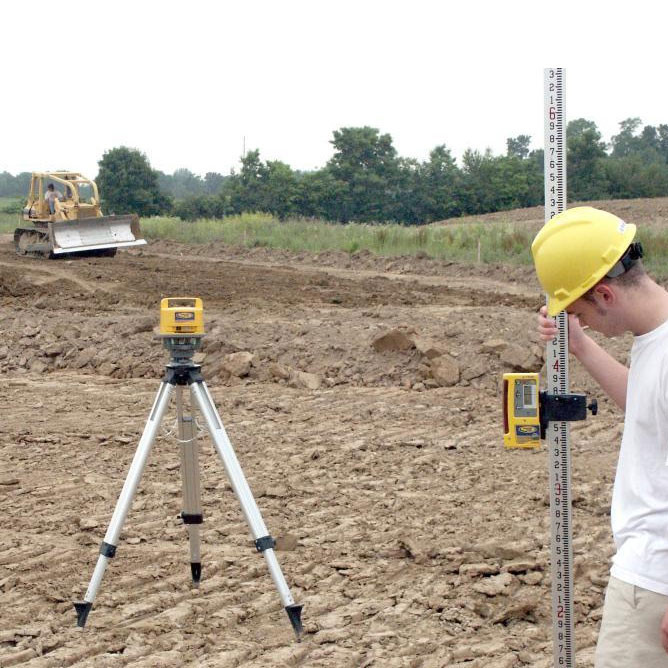

• Concrete Slab and Deck Preparation: Transitions to rod-mount mode for hand-checking formwork elevations and screed rail positioning before concrete placement, ensuring flatness specifications on industrial floors and bridge decks.
• Site Drainage and Swale Grading: Enables survey crews to verify drainage patterns and finished grades during final grading operations, confirming positive drainage away from structures and toward collection systems.

Compatible Accessories

Extend the capabilities of your CR600 receiver with these precision positioning tools:

• Spectra Precision HV302 Laser Detector — handheld unit for quick spot checks
• SECO 25-Foot Aluminum Grade Rod — telescoping rod for manual elevation verification
• Spectra Precision LL500 Rotary Laser — long-range self-leveling laser transmitter
• Universal Replacement Rod Clamp Assembly — spare clamp for multiple receiver setups
• C-Cell Alkaline Batteries (12-Pack) — extended runtime power supply
• Adjustable Machine Mount Extension Bracket — custom positioning hardware

Related Guides

• Laser Receiver Calibration and Accuracy Testing Procedures
• Comparison: Spectra CR600 vs. Topcon LS-80L Machine Receivers
• Mounting Laser Receivers on Dozers, Graders, and Excavators
• Troubleshooting Laser Receiver Signal Loss and Interference Issues

Frequently Asked Questions

Can the CR600 work with rotating lasers from other manufacturers besides Spectra Precision?

Yes, the CR600 is compatible with most rotating laser systems operating on standard frequencies, including Topcon, Leica, Trimble, and DeWalt rotary lasers. The receiver detects the rotating laser plane regardless of brand, though optimal performance is achieved when paired with Spectra Precision laser transmitters. Always verify frequency compatibility if using specialized dual-grade or digital lasers.

What's the effective detection range in bright sunlight or dusty conditions?

Under ideal conditions, the CR600 detects laser signals up to 1,300 feet diameter (650-foot radius). Bright sunlight reduces effective range to approximately 500-800 feet depending on laser power, while dust and humidity further limit detection distance. For maximum range in adverse conditions, use a high-powered rotary laser like the Spectra LL500 and position the receiver to minimize direct sunlight on the sensor window.

How do I switch between machine-mount and rod-mount configurations on the jobsite?

The CR600 features a quick-release system that allows tool-free transitions between mounting modes. Simply loosen the thumbscrew on the machine bracket to remove the receiver body, then secure it into the rod clamp assembly. The process takes approximately 30 seconds and requires no recalibration. Both mounting systems can remain attached to their respective equipment, enabling rapid deployment for checking machine work with hand-rod verification.

Does the receiver require periodic calibration, and how often should accuracy be verified?

Spectra Precision recommends annual calibration or whenever the receiver experiences significant impact or environmental exposure. Field accuracy checks should be performed monthly by comparing receiver readings against known benchmark elevations. The included calibration certificate indicates factory testing, but contractors working to tight tolerances (±0.01 feet) should establish a calibration schedule based on usage intensity and project specifications. Authorized service centers provide traceable calibration with NIST-compliant documentation.
